USER MANUAL HSC 644 C TEKA

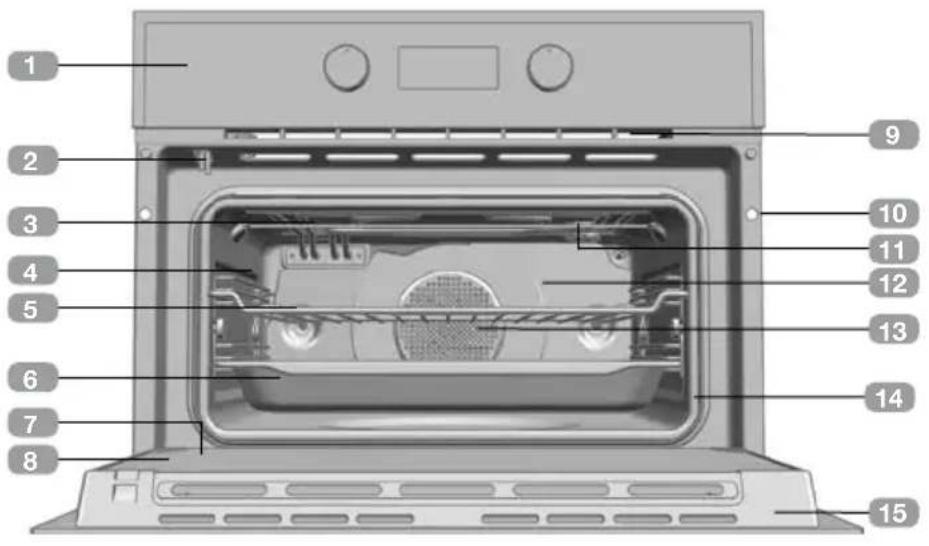

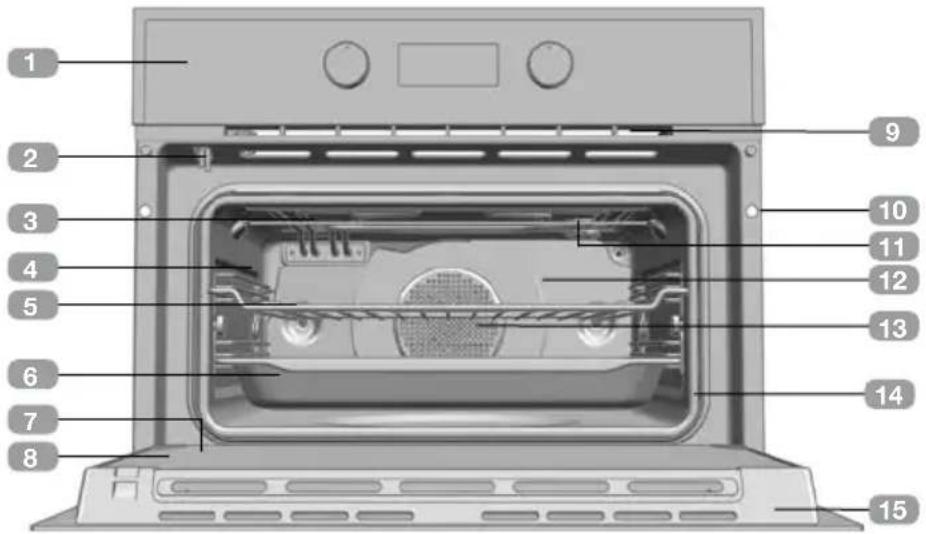

Door lock (only for pyrolytic models)

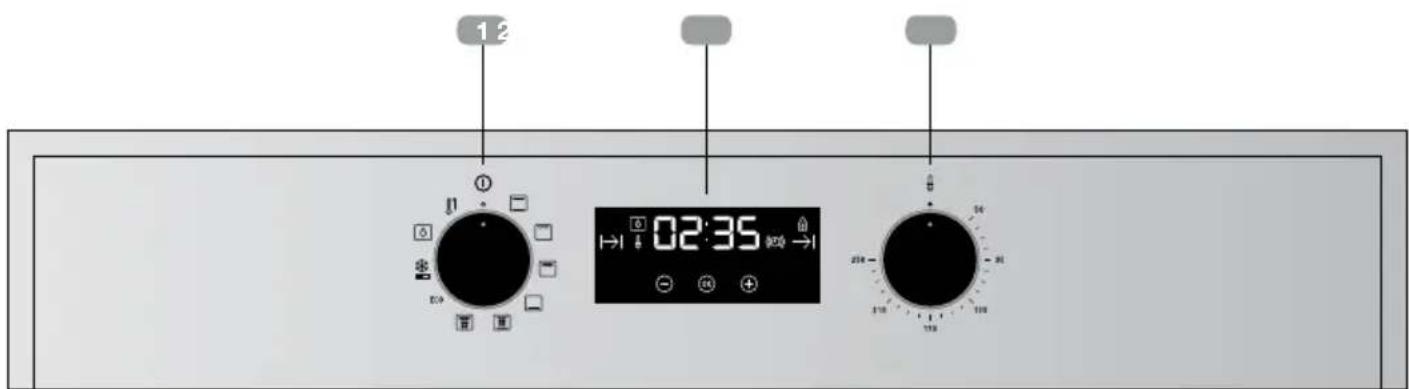

Function control dial

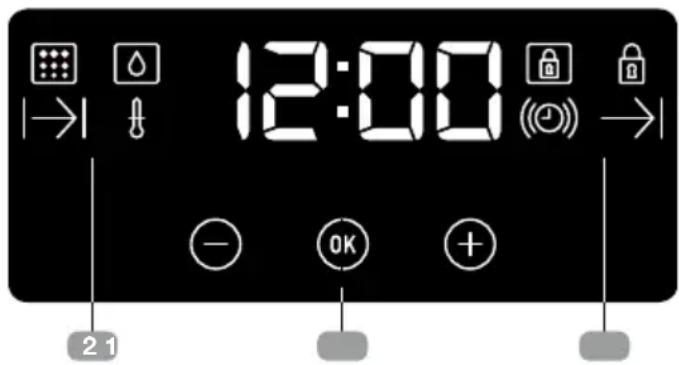

Electric clock/timer

Temperature control dial

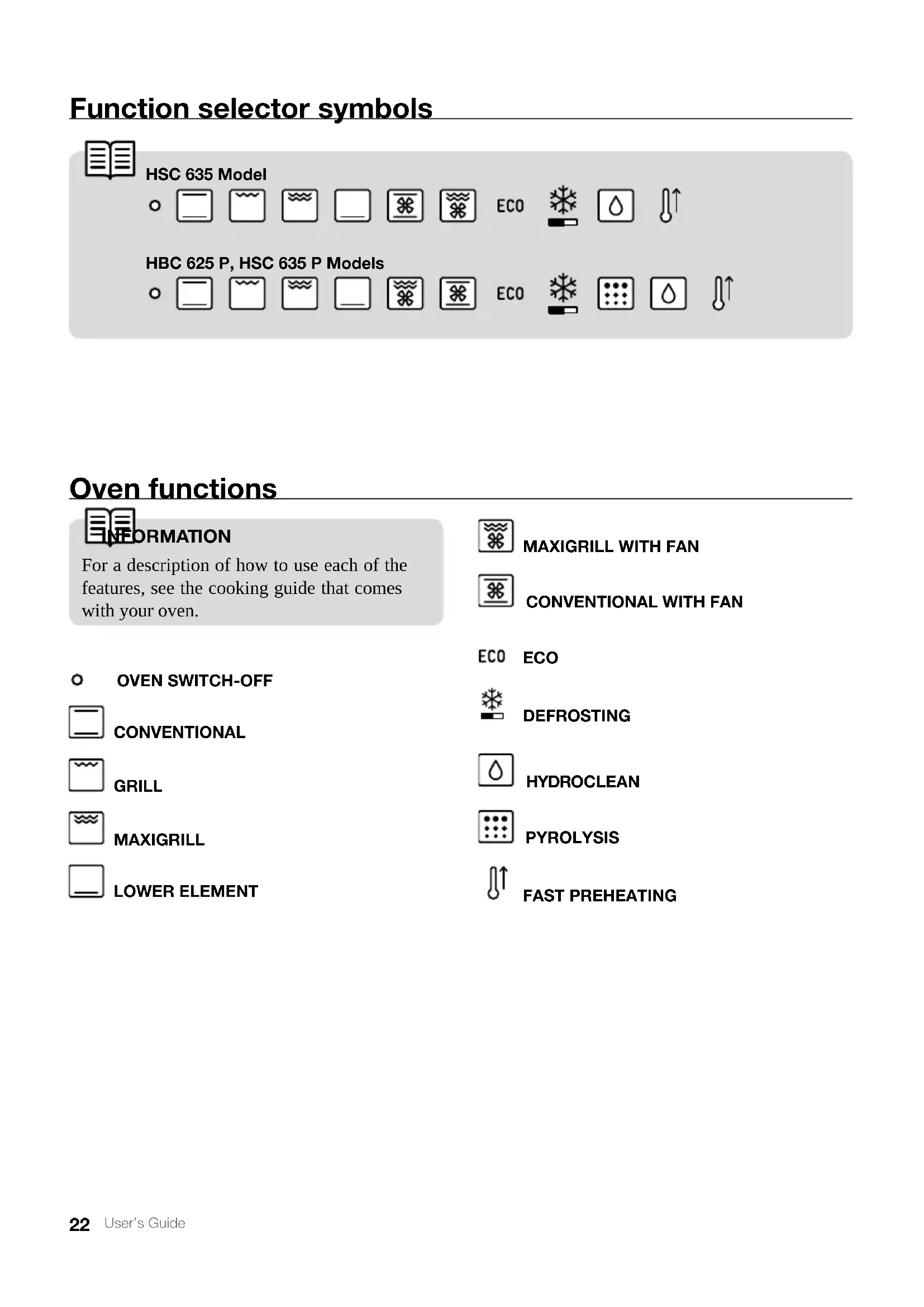

User’s Guide Function selector symbols HSC 635 Model HBC 625 P, HSC 635 P Models Oven functions OVEN SWITCH-OFF CONVENTIONAL GRILL MAXIGRILL LOWER ELEMENT INFORMATION For a description of how to use each of the features, see the cooking guide that comes with your oven.

CONVENTIONAL WITH FAN

KEYS , and : Enable you to programme the electronic clock/timer functions.

SYMBOLS Clock Settings AVISADOR: Lights up when the clock/ timer is selected. Generates an acoustic signal when the time is up. The oven does not turn off at the end of the timer period. This function can also be used while the oven is cooking. and PROGRAMMING: Light up to indi- cate that the oven is programmed (cooking time, stop time or total).

Cooking Time: This function allows you to programme the cooking time, after which the oven will turn off automatically.

Cooking Stop Time: This setting al- lows you to programme the time for cook- ing to stop, after which the oven will turn off automatically.

and Cooking Time and Cooking Stop Time: This setting allows you to pro- gramme the cooking time and cooking stop time. The oven switches on automatically at the set time and operates for the select- ed cooking time (Cooking Time). It then switches off automatically at the indicated time (Cooking Stop Time). CLOCK/TIMER LOCK: Indicates that the touch keys for the clock/timer are locked, preventing modifications by small children. Indicates that the touch keys for the clock/ timer are locked, preventing modifications by small children. Other functions HEATING: Indicates that the oven is trans- mitting heat to the food. HYDROCLEAN: Lights up while the Teka Hydroclean

function is in progress. PYROLYSIS: For pyrolytic models only. Lights up while the Pyrolytic function is in progress. DOOR LOCK: For pyrolytic models only. Indicates that the door is locked, either manually or automatically while the pyrolytic function is in progress. WARNING The sensitivity of the touch keys adapts continually to environmental conditions. Make sure the surface of the control panel is clean and free of obstacles when plugging in the oven. If the clock does not respond correctly when you touch the keys, unplug the oven for a few seconds and then plug it in again. Doing this causes the sensors to adjust au- tomatically so that they will react once more to fingertip control.

• When you plug in the oven, you will see the clock flashing 12:00.

• Touch or to adjust the hours and then the minutes. You will hear a double beep confirming the time is set.

• If you wish to modify the time, touch or until the time starts flashing. Touch and and follow the instructions in the previ- ous point. NOTE The clock light has a night mode so the display light will dim between 00:00 and 6:00 hours. WARNING In the event of a power failure, your elec- tronic clock/timer settings will be erased and 12:00 will flash on the clock display. Reset it and programme again. Oven use Press to cycle the display between cook time and current time.

OVEN TIMER OPERATION

Programming the Buzzer

or until the symbol on the display starts flashing, then press . The indication ‘00:00’ will appear on the display.

2. Select the time after which you want the

alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The sym- bol will flash slowly.

3. Once the time has expired, an acoustic sig-

nal will sound for 90 seconds and the symbol will flash quickly. NOTE With the Buzzer function, the oven will not turn off when the time expires. MANUAL OPERATION

• After setting the clock, the oven is ready for use. Select a cooking function and tempera- ture. INFORMATION In models with an electronic temperature control, when the selector switch is turned, the clock display will show the temperature. After selecting the temperature, the clock display will automatically reappear.

• You will notice that the symbol lights up during cooking to indicate that heat is being transmitted to the food. This symbol disap- pears when the selected temperature has been reached.

• Set the controls to to turn off the oven. INFORMATION When a cooking cycle begins, the oven will automatically display the total time for the cycle in progress.25 User’s Guide English

4. Touch any key to stop the alarm. The

symbol will then disappear. If you wish to modify the time on the buzzer, re- peat the steps shown. Upon entering the timer control, the time currently remaining will appear, which you will be able to adjust. NOTE With the Buzzer function, the remaining time will show permanently on the display. With this programmed function, it is not possible to view the time or the total programmed cooking time. Programming Cooking Time

or until the symbol on the display starts flashing, then press . The indication ‘00:00’ will appear on the display.

2. Select the time after which you want the

alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time.The sym- bol will flash slowly.

3. Select a function and a cooking temperature

using the oven commands.

4. Once the cooking time is up, the oven will

turn off, an alarm will sound and the symbol will flash quickly.

5. Touch any key to stop the alarm and turn off

the symbol. The oven will switch on again.

6. Set the controls to the

position to turn off the oven. You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press

change the time. NOTE With the Cooking Time function, the remain- ing time will show permanently on the dis- play. You cannot see the current time on the display when this function is set. Programming the Cooking Stop Time

or until the symbol on the display starts to flash and press . The in- dication ‘00:00’ will appear on the display.

2. Select the time after which you want the

alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The sym- bol will flash slowly.

3. Select a cooking function and temperature.

4. When the cycle is finished, the oven will turn

itself off, a buzzer will sound and symbol will flash quickly.

5. Touch any sensor to stop the alarm and to

turn off the , symbol. The oven will switch on again.

6. Set the controls to the

position to turn off the oven. You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press

change the time. Programming Cooking Time and Cooking Stop Time

or until the symbol on the display starts flashing, then press . The indication ‘00:00’ will appear on the display.

2. Select the cooking time by touching

. Next, a double beep will sound, the re- maining time will appear on the display and the symbol will flash slowly.26 User’s Guide

3. Touch or until the symbol on the

display starts flashing, then press . The indication ‘00:00’ will appear on the display.

4. Select the cooking end time by touching

. Next, a double beep will sound and the current time will be displayed on the display.

5. Select a cooking function and temperature.

The oven will remain disconnected with the and symbols lit up. The oven is now programmed.

6. When it is time to start cooking, the oven will

turn on and will operate for the programmed cooking time.

7. While cooking, the cooking time remaining

will be displayed and the symbol will flash slowly.

8. When the cooking time is up, the oven will

turn off, a buzzer will sound, and the symbol will flash quickly.

9. Touch any sensor to stop the buzzer and

turn off the symbol. The oven will switch on again.

10. Set the controls to the

position to turn off the oven. You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press

change the time. Safety instructions

This function can be selected at any time while using the oven. To activate the function, touch and hold the and keys at the same time for sever- al seconds until you hear a beep and the symbol appears on the display. The clock/ timer is locked. If the oven is off and you activate the child safety function, the oven will not work even if a cooking function is selected. If this function is activated while you are cooking, it will only lock the electronic clock/timer settings. To disable the function, press the and keys at the same time for several seconds until you hear a beep.

Available in pyrolytic models only. This function allows the oven door to be locked. IMPORTANT This function can only be selected when the oven command functions are set to the rest position

To activate/deactivate the door lock, follow these steps:

or until the symbol on the display starts flashing. The current door lock status will be displayed: “On” if it is active and “Off” if deactivated.

, and the status of the lock will be inverted: if the door is unlocked, it will lock and vice versa.

3. Once the door has been locked/unlocked,

the new locking status of the door will ap- pear on the display. In the event that the locking system is ac- tive, the symbol will appear constantly lit on the display.27 User’s Guide English Teka Hydroclean

function This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven. For easier cleaning, do not allow dirt to accu- mulate. Clean the oven frequently.

PROGRAMMING THE TEKA

WARNING Do not pour water into a hot oven as this can damage the enamel of the oven. Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot. First remove the trays and all accessories from the oven interior, including the tray supports and telescopic guide rails. To do this, follow the instructions in the installation and mainte- nance guide accompanying the oven.

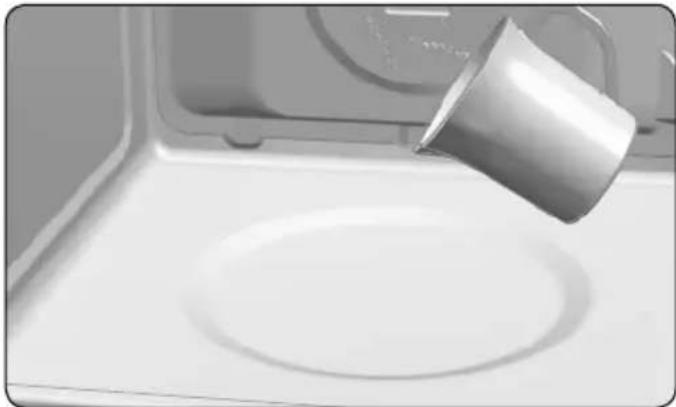

1. With the oven cold, gently pour 250 ml of wa-

ter into the bottom of the oven cavity and add a few drops of a mild dishwasher detergent. bol will flash slowly and the time remaining to complete the cycle will appear on the dis- play. IMPORTANT The duration of this cycle cannot be changed. To stop the cycle before it is finished, turn the control dial to the position.

4. When the cycle is finished, the oven will turn

itself off, an alarm will sound and the symbol will flash quickly. IMPORTANT Do not open the oven door until the Hydro- clean

function is complete. The cooling cycle is necessary for the func- tion to work properly.

5. Touch any sensor with your fingertip to stop

the alarm and turn off the symbol.

6. Turn the control dial to the

7. Any traces of dirt and excess water can now

be removed from the oven with a damp cloth. The Hydroclean

function takes place at a low temperature. However, cooling times can vary depending on the room temperature. WARNING Before touching the inside surface of the oven, make sure that it has cooled properly. If a deeper clean is required after using the Hy- droclean

function, use neutral detergents and non-abrasive sponges.

2. Turn the control dial to the position.

3. You will hear a beep indicating that the Teka

cycle has started. The sym-28 User’s Guide Pyrolytic self-cleaning function Function available in models HBC 625 P and HSC 635 P. WARNING Before setting the pyrolytic cleaning cycle, carefully read the safety instructions, which you will find at the start of the Installation and Maintenance guide. This function allows you to carry out a pyrolytic cleaning cycle during which, due to the high tem- peratures reached inside the oven, accumulated grease undergoes a carbonisation process. The general recommendation is to perform a py- rolytic cycle every 4-5 uses, using the most suit- able programme according to the level of stains present in the oven. The more stained the oven, the longer the duration of the programme. During the pyrolytic cycle the light inside the oven will remain off. PROGRAMMING

THE PYROLYTIC FUNCTION

IMPORTANT Before carrying out the pyrolysis, you must remove all accessories and dishes from the oven, including the shelves and/or telescop- ic guide rails. To do this, follow the instruc- tions in the installation and maintenance guide accompanying the oven. WARNING Clean any spillages or excess dirt from the inside, as these could ignite during the py- rolysis and create a fire hazard.

1. Turn the cooking control dial to the Pyrolysis

2. TAfter a few seconds, the

symbol will light up on the clock display, reading ‘P2’ (Pyrolysis programme 2.

3. You can now change the pyrolysis pro-

gramme to P1, P2 or P3 by pressing the

4. Once the desired programme has been se-

lected, press . The automatic door lock will be activated immediately.

5. Once the door is locked, the

symbol will light up on the clock display and the time re- maining before the end of the pyrolysis will ap- pear. IMPORTANT At this point, the oven is programmed and the pyrolytic cleaning cycle is under way. During the cycle, none of the oven timer functions may be chosen (except the child lock). Do not try to open the oven door as this may interrupt the cleaning process.

6. When the pyrolytic cleaning cycle has fin-

ished, an alarm will sound, the symbol will flash and you will see the time ‘0:00’ on the clock display.

7. Press any of the timer’s keys to disable the

8. Turn the control dial to the

9. The oven’s heating process has finished.

However, the oven is extremely hot and cannot be used.29 User’s Guide English The cooling process will continue to oper- ate and the symbol will remain lit until the oven cools down. IMPORTANT As a result of the high temperatures inside the oven, the cooling process may vary de- pending on the room temperature..

10. Once the oven has cooled down, the

symbol will turn off.

11. Open the oven door and wipe the inside

with a damp cloth, removing the ash from the cleaning cycle. Hard-to-reach areas in the oven will need to be cleaned with a non-metallic fibre scourer.

12. Once the oven is clean, do not forget to

replace the supports and accessories.

13. The oven is now ready to be used.

IMPORTANT If any incident is detected in the program- ming or use of this function, consult the in- stallation and maintenance guide included with your oven.

CANCELLING THE PYROLYTIC FUNCTION

Pyrolysis is an automatic function and there- fore it can only be activated from the timer programme. To cancel a pyrolysis in progress it is necessary to reset the oven, following the instructions below:

1. Set the control dial to the

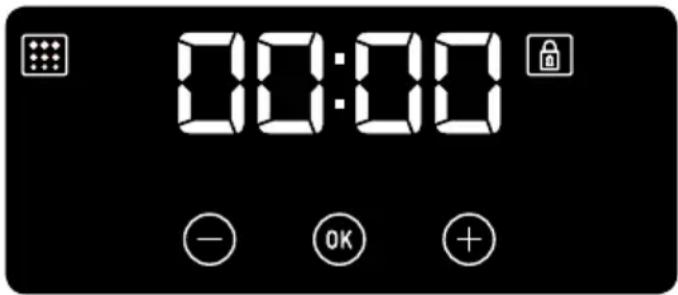

position. The timer display will appear as follows

2. Depending on the internal temperature of the

oven, either of the two following situations could arise: a) Dangerous internal temperature: In this case, the door will remain locked until the temperature reaches safe levels. b) Safe internal temperature: If the temper- ature inside the oven is safe, the door will be unlocked immediately.

3. Once the door has been unlocked and can
