USER MANUAL 54660 Brandani

1. Read all the manual carefully before first use and keep for future reference
2. This article is intended for home use, it is not designed for any industrial or commercial use.
3. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Do not let the appliance touch or come into contact with any hot surface.
6. Always unplug the appliance and allow it to cool before replacing an accessory or before cleaning.
7. The use of additional accessories not included in the package or not recommended by BRANDANI may cause danger or damage to the appliance and will not be covered by the warranty.
8. The temperature of accessible surfaces may be high when the appliance is operating.
9. The appliances is not intended to be operated by means of an external timer or separate remote-control system.
10. The use of electrical extension cords is not recommended.
11. To prevent any damage or danger of electric shock do not immerse the appliance in water or any other liquid.
12. Do not use the appliance for any other purpose than that intended.
13. When using this appliance, leave adequate space above and on all sides for air circulation.
14. Do not leave unattended while in use.
15. Always use the product on a clean, dry, flat surface.
16. Do not use outdoors.

INSTRUCTION MANUAL 111

COMPONENTS

1. Transparent lid
2. Ring seal
3. Level indicators
4. Stainless steel body
5. Function light
6. On/off
7. Electric base
   8 Whisk for frothing

FUNCTION MAX CAPACITY TIME
Hot Frothing (Dense foam)	115 ml 55-105s
Hot Frothing (Airy foam)	115ml	55-105s
Hot Milk	240ml	105-155s
Cold Milk Frothing	115ml	55-65s

CARATTERISTICETECNICHE

VOLTAGE 220-240V

HZ 50-60HZ

POWER 500W

DIMENSIONS 11x15,5x18,5h cmS

MAXIMUM CAPACITY 240 ML

REMOVABLE BASE YES

INSTRUCTION MANUAL 113

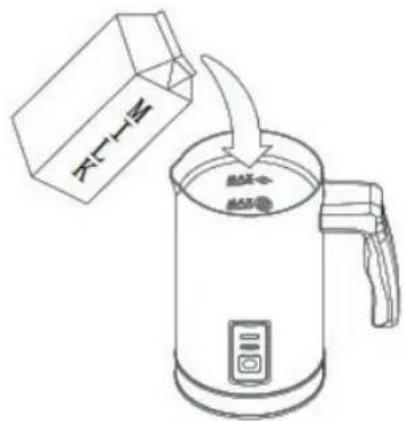

HOW TO USE

1. Set the whisk inside the jug.
2. Pour the milk into the jug according to the max & min markings inside the jar
3. Press once, the red light and the orange light keep bright (Hot frothing with dense foam, the red light and orange light will flash when it finish frothing)
4. Press twice, the red light keeps bright (Hot frothing with airy foam, the red light will flash when it finish frothing)

5. Press three times, the orange light keeps bright (Milk warming, the orange light will flash when it finish warming)

6. Press four times, the blue light keeps bright (Cold milk frothing, the blue light will flash when it finish warming)

SUGGESTIONS

WITH FROTHED MILK WITH HOT MILK

CAPPUCCINO

1/3 express coffee

2/3 frothed milk

Add cocoa powder.

LATTE MACCHIATO

Pour the frothed milk into a tall glass.

Add a small quantity of espresso

coffee around the edge of the glass

CAFFÉ MACCHIATO

(with frothed milk)

Prepare your coffee

Add frothed milk as required

CAFFELATTE

1/3 coffee

2/3 hot milk

HOT CHOCOLATE

Pour hot milk into a large cup, add powdered chocolate and stir until smooth

CAFFÉ MACCHIATO

(with hot milk)

Prepare your coffee

Add hot milk as required

FURTHER ADVICE

• It takes only a few minutes for Schiumotto to heat and froth milk so in the meantime you can prepare your coffee and any other additional ingredients.
• Use whole milk for best results (more frothy milk)
• Keep the whisks in a safe place, they are small and easily misplaced
• Let the appliance cool for 2 minutes before using again in order to avoid over-heating
• This appliance is for heating and frothing milk only. The addition of further ingredients (chocolate, instant coffee etc.) can cause malfunction

CLEANING

• Before cleaning make sure Schiumotto is cold and that the plug has been disconnected from the wall socket. For an easier and more accurate cleaning it is recommended that you clean the appliance after every use.
• Always clean the internal part after each use with a soft damp cloth and mild detergentin order to preserve the quality of the non-stick surface
• The lid can be washed. Clean the external surfaces with a soft damp cloth to avoid damaging the elegant design.
  CAUTION: never use water on the main body or electric base and avoid any drop of water or other liquid touching the electric circuits under the body. The working operation could be compromised!
• Wash the whisks and leave to dry thoroughly. Do not put in the dishwasher!

PROBLEM CAUSES	SOLUTION
The indicator lights don't come on, Schiumotto doesn't work	1. The plug is not connected.	Connect plug to socket
	2. The base has not been Schiumotto main body part	Detach the body and re-attach to the base
	3. There is no electric current from the socket	Check electricity
	4. The electric circuits are damaged.	Contact the nearest BRANDANI sales point
The appliance stops working after a few seconds	1. The temperature of the body is too high	Let the body cool before using Schiumotto again
	2. The electric circuits have been damaged by water	Contact the nearest BRANDANI sales point
The motor isn't working 1. Schiumotto has not been properly cleaned after last use and milk residues are blocking operation		Clean the internal properly surfaces well and remove the whisk and clean separately
2. The motor is damaged Co		contact the nearest BRANDANI sales point

Burnt milk 1. The amount of	milk may not be correct	Use the correct amount
	2. Schiumotto has been used without having been cleaned	Always clean immediately after every use
	3. The voltage of the socket is inferior to that required	Contact the nearest BRANDANI sales point

INFORMATIONS POUR LA SÉCURITÉ

MANUEL D'INSTRUCTIONS 119

COMPOSANTS

201 MANUEL D'INSTRUCTIONS

DIMENSION PRODUIT CM 11X15,5X18,5H

CAPACITE MAXIMUM 240 ML

BASE DETACHABLE SI

MANUEL D'INSTRUCTIONS 21

MANUEL D'INSTRUCTIONS

22|MANUEL D'INSTRUCTIONS

AVEC MONTE LAIT AVEC LAIT CHAUD

CAPPUCCINO

1/3presso

2/3 de lait monté

MANUEL D'INSTRUCTIONS 123

AUTRES CONSEILS

The apparatus is warranted for 2 years from the purchase date.

KEEP THE RECEIPT AS A PURCHASE CHECK.

The warranty is limited to fabrication or materials defects, it is not extended to pieces subject to usury or damages to the frail parts (switch, cord, etc...). In the event of a breakdown covered by warranty, bring the apparatus back to the retailer where it has been acquired, with the receipt. This is the only way we can guarantee the free substitution of the product. The product is designed only for the domestic use and not for a business-related one. The warranty will be void in case of misuse or tampering, abuse and repair by unauthorised personnel. Our warranty does not limit the customer's law rights. This appliance conforms with the European Directive on electromagnetic compatibility (EMC) 89/336/EC, as amended by directives 92/31/EC and 93/68/EC, and the low voltage directive (LVD) 73/23/EC, amended by directive 93/68/EC.

WARRANTY

BRANDANI GIFT GROUP SAS di P.e L.Brandani

VIA CARAVAGGIO, 1-51012 PESCIA PT

Ph. [phone] - Fax [phone]

Web: www.brandani.it E-mail: [e-mail]
