USER MANUAL 1096501401 SILVERCREST

Operation and Safety Notes

SE

PerSonvåg

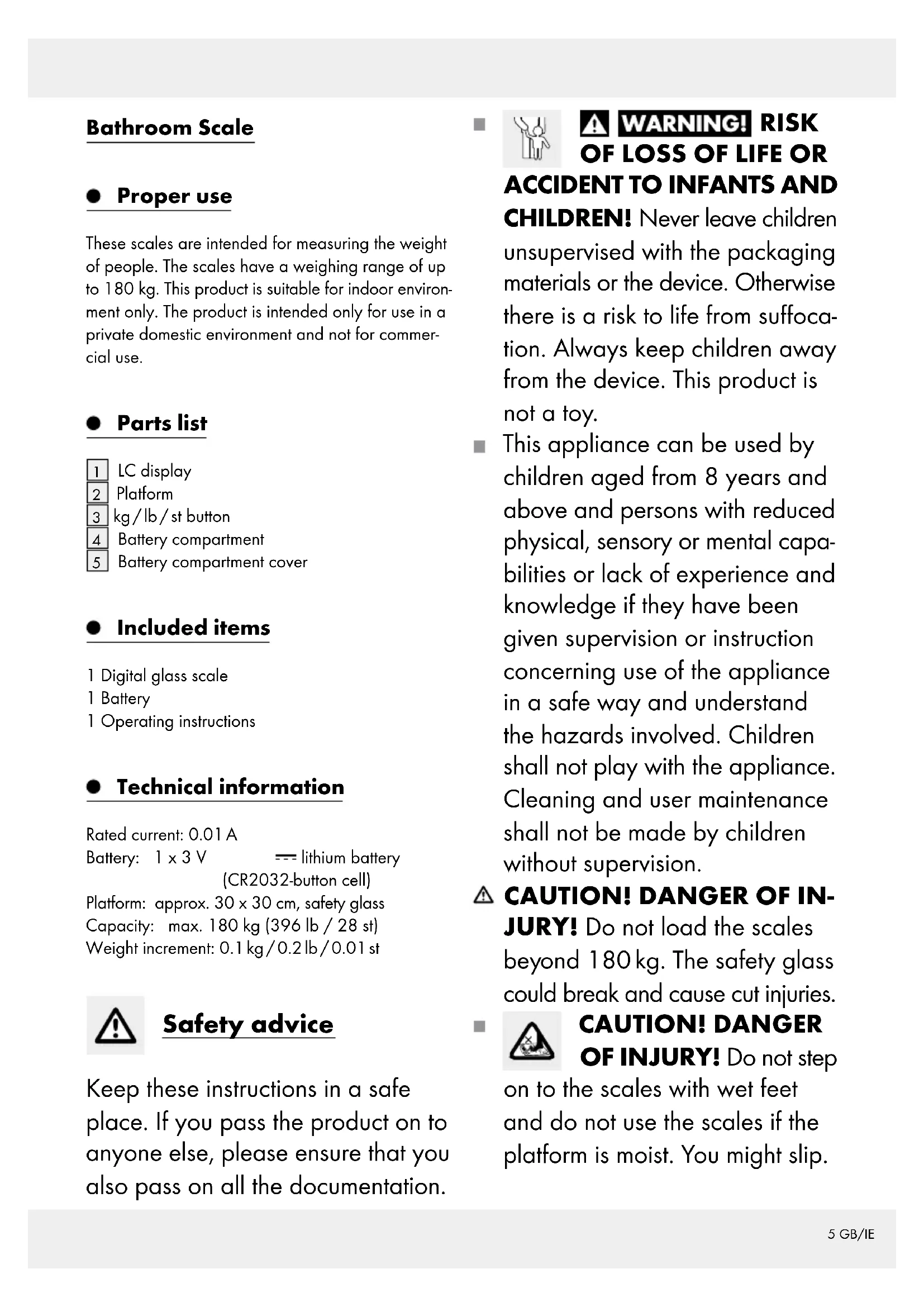

These scales are intended for measuring the weight of people. The scales have a weighing range of up to 180kg . This product is suitable for indoor environment only. The product is intended only for use in a private domestic environment and not for commercial use.

- Parts list

1 LC display
2 Platform
3 kg/lb/st button
4 Battery compartment
5 Battery compartment cover

- Included items

1 Digital glass scale
1 Battery
1 Operating instructions

- Technical information

Rated current: 0.01 A

Battery: 1 × 3V lithium battery

(CR2032-button cell)

Platform: approx. 30 × 30 cm , safety glass

Capacity: max. 180 kg (396 lb / 28 st)

Weight increment: 0.1kg / 0.2lb / 0.01st

Safety advice

Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

WARNING!RISK

OF LOSS OF LIFE OR

ACCIDENT TO INFANTS AND

CHILDREN! Never leave children unsupervised with the packaging materials or the device. Otherwise there is a risk to life from suffocation. Always keep children away from the device. This product is not a toy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! DANGER OF INJURY! Do not load the scales beyond 180kg . The safety glass could break and cause cut injuries.

CAUTION! DANGER

OF INJURY! Do not step

on to the scales with wet feet and do not use the scales if the platform is moist. You might slip.

Protect your scales from impact, moisture, dust, chemicals and sudden changes in temperature and keep them away from sources of heat (ovens, heating radiators).
Check the device for damage before bringing it into use. If the device is damaged do not use it.
Remove the battery if the device breaks down or is defective. Otherwise the battery is more likely to leak.
Always have any repairs carried out at the service centre or by an electrical equipment repair specialist.

Dangers arising from the use of batteries

WARNING! DANGER TO

LIFE! Batteries are not intended to be in the hands of children. Do not leave batteries lying around. They could be swallowed by children or pets. In the event of swallowing a battery, contact a doctor immediately!

CAUTION! DANGER OF EXPLOSION! Neve

recharge single-use batteries. Do not short-circuit or open them. Overheating, fire or destruction

of the batteries might result. Never throw batteries into fire or water. The batteries might explode.
Avoid extreme environmental conditions and temperatures as they may affect batteries e.g. above radiators. Otherwise the batteries are more likely to leak.
Exhausted or damaged batteries can cause caustic burns upon contact with the skin. To avoid this, always wear suitable protective gloves in these circumstances!
Avoid contact with the skin, eyes and mucous membranes if fluid is leaking from a battery. If you come into contact with corrosive battery fluids, flush the affected area thoroughly with clean water and contact a doctor immediately.
Remove the battery if you are not going to use the device for an extended period.
When inserting the battery, ensure the correct polarity! This is shown in the battery compartment.
Remove a spent battery immediately from the device. There is an increased danger of leaks!
Batteries must not be disposed of in the normal domestic waste!

Every consumer is legally obliged to dispose of batteries in the proper manner!
- Keep batteries away from children; do not throw batteries in the fire, short-circuit them or take them apart.
If the above instructions are not complied with, the battery may discharge itself beyond its end voltage. There is then a danger of leaking. If the battery has leaked inside your device, you should remove it immediately in order to prevent damage to the device!

Before first use

- Removing the insulation strips

Note: The product is supplied with the battery already in place. Before first use pull the insulation strip out from between the battery and the battery compartment.

Preparing for use

- Inserting the battery

See Fig.4 and 5.
If the scales do not appear to work, check that the battery has been inserted correctly and reinsert it if necessary.

Note: The display indicates when it is time to replace the battery. When you step on to the scales and the battery is too weak, the LC display shows "Lo" (see Fig. C) and the scales switch off automatically.

If you see this message, replace the exhausted battery with a new battery of the same type.
When you insert the battery, make sure that the contacts do not get bent.

- Setting the units of weight

Note: The standard unit of weight is kilogram (kg). The factory default setting for the scales as supplied is "kg".
Press the kg / lb / st button to select the unit of weight. The units will be displayed in the LC display as follows:

Kilogram (kg): see Figure A

Pound (lb): see Figure E

Stone (st): see Figure F

- Switching on your scales / measuring your weight

Tip: Weigh yourself at the same time of day (preferably in the morning) after visiting the toilet, with an empty stomach and without clothing to ensure that your results are compatible.

Place the scales down on a solid, flat horizontal surface.
Step on to the scales.
Place even weight on each leg.
If at all possible stand on the same areas of the platform each time and do not move. Moving during the weighing process can lead to discrepancies in the results.

The scales will start to measure immediately.

After blinking 2 times, the weight display will display the result, as shown in, for example, Fig. B.

Note: If the scales show "OL" (see Fig. D), it signals that the scales are overloaded. Observe the maximum capacity of 180kg (396 lb / 28 st).
Step off the platform. The scales switch off automatically after about 10 seconds. Until then the weight measurement remains visible.

Note: After a change of location and following every battery change, the scales must be re-calibrated. To do this, proceed as follows:
Step onto the scales. The scales will show you an incorrect measuring result. Step off the platform. The scales will calibrate automatically.
Wait until the scales switch off automatically.
Step onto the scales once again. The scales will show you the correct measuring result.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Troubleshooting

This appliance has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If the display indicates a problem, move such objects away from it.
Electrostatic charge can lead to the appliance failing. In cases of the appliance failing to work remove the batteries for a short while and then replace them.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

- Cleaning

Clean the device using a slightly moist cloth. For more stubborn dirt you can also apply a weak soap solution to the cloth.
Never immerse the device in water or other liquids. Ignoring this advice may damage the device.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

C

Henkilövaka

Pile: 1 x pile lithium 3 V

(CR2032-bouton)

Charge: max. 180 kg (396 lb/28 st)

Graduation: 0,1 kg/0,2 lb/0,01 st

Sécurité
