Product type	Cooker hood
Brand	ZANKER
Model	ZKC62661XA
Usage	Extraction (external evacuation) or recirculation (internal recycling)
Number of speeds	3 (low, medium, high)
Lighting	Halogen lamp 12 V - 20 W max - G4
Grease filter	Metal, washable monthly by hand or in dishwasher
Activated carbon filter	Type 20 (washable) or Type 15 (non-washable, replace every 4 months)
Minimum distance (electric hob)	50 cm
Minimum distance (gas or mixed hob)	65 cm
Installation	Electrical connection via plug or standard circuit breaker
Maintenance	Clean regularly inside and outside with a damp cloth and mild detergent
Safety	Unplug before maintenance; do not use without grid; avoid open flames
Domestic use	Yes, exclusively
Material	Stainless steel (estimate)

Frequently Asked Questions - ZKC62661XA ZANKER

How to clean the grease filter?

The grease filter must be cleaned once a month with non-aggressive detergents, by hand or in the dishwasher at low temperature and short cycle. Dishwasher washing may cause discoloration without affecting efficiency.

How to replace the hood bulb?

First unplug the appliance. Make sure the lamps are cool. Use only halogen lamps 12V - 20W max - G4. Do not touch the lamps with bare hands.

What is the minimum distance between the hood and the hob?

For electric cookers, the minimum distance is 50 cm. For gas or mixed cookers, it is 65 cm. Follow the manufacturer's instructions if they indicate a larger distance.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation (internal recycling) version with an activated carbon filter. You must install a suitable filter (type 20 washable or type 15 non-washable).

How often should the carbon filter be cleaned or replaced?

For the washable type 20 filter, clean it every two months with hot water or in the dishwasher at 65°C. For the non-washable type 15 filter, replace it every 4 months maximum.

What to do if the hood does not work?

First check the power supply (plug, circuit breaker). Make sure the hood is properly connected. If the problem persists, contact a professional. Do not attempt to repair yourself.

How to adjust the suction speed?

Use the controls: position 3 for minimum speed, 4 for medium speed, 5 for maximum speed. Maximum speed is recommended in case of high vapor concentration.

Is it safe to use the hood with a gas cooker?

Yes, provided a minimum distance of 65 cm is maintained and the room is adequately ventilated. Never flambé food under the hood.

How to install the hood?

Installation must be carried out by a qualified professional. Respect the minimum distances, securely fix the hood to the wall or cabinet, and connect it to the external evacuation or install the carbon filter.

What to do in case of a power failure?

The hood will not work. Make sure the power is restored before using it. Do not attempt to force the controls.

USER MANUAL ZKC62661XA ZANKER

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.
Caution! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the by removing the plug or disconnecting mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may became hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood

must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

USE

The hood is designed to be used either for

exhausting or filter version

INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

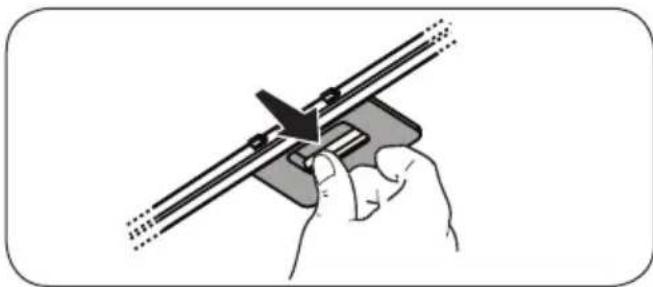

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

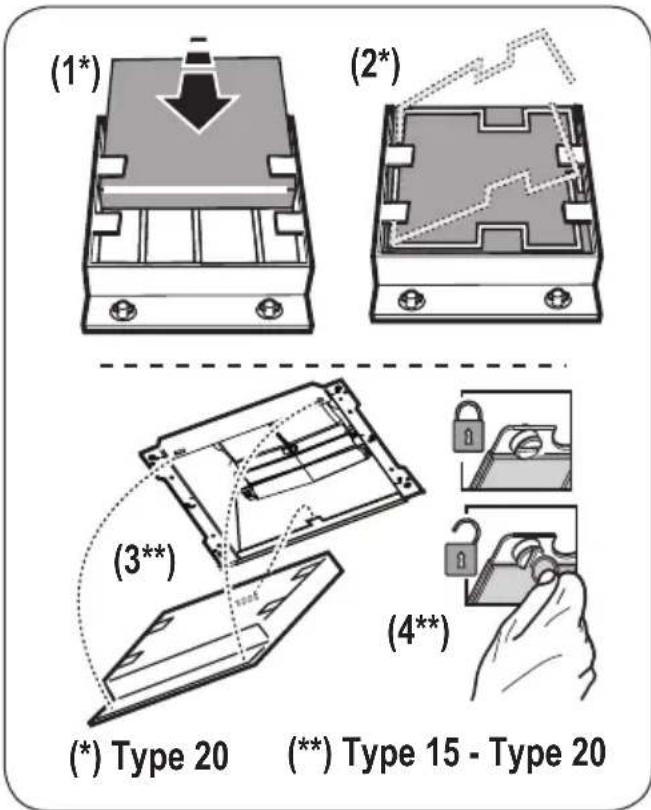

Charcoal filter - Type 20 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Type 15 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1. ON/OFF lighting
2. OFF motors
   3.-4.-5. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

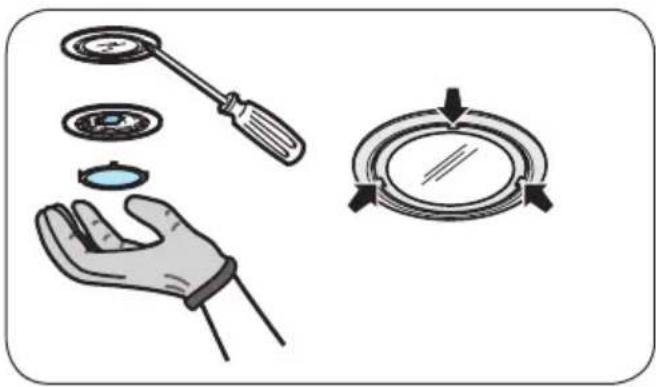

Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAires. Follow package directions and do not touch new light with bare hands.
