FR 6002 H CB - Deep fryer BOMANN - Free user manual and instructions

Frequently Asked Questions - FR 6002 H CB BOMANN

USER MANUAL FR 6002 H CB BOMANN

Black BOMANN air fryer with control knobs and a green handle (no visible text or symbols on the device body)

Elimination......Page 22

ESPAÑOL

Indice

Overview of the Components ...... Page 3

Instruction Manual......Page 35

Technical Data......Page 39

Technical diagram of an air fryer with numbered parts and a close-up view of its internal components.

Bedienungsanleitung

LET OP: Anti-aanbaklaag

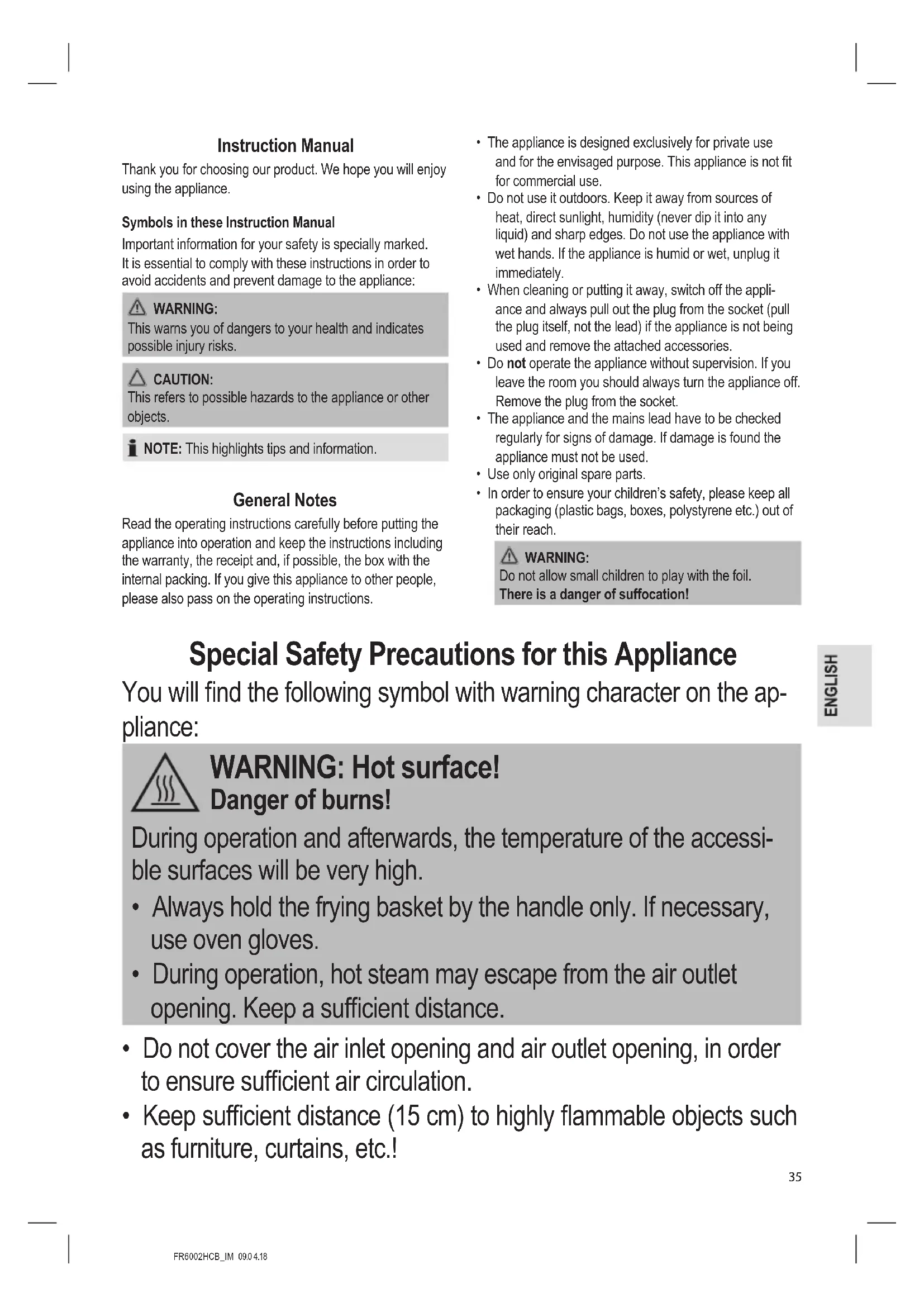

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot surface!

Danger of burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

• Always hold the frying basket by the handle only. If necessary, use oven gloves.
• During operation, hot steam may escape from the air outlet opening. Keep a sufficient distance.

- Do not cover the air inlet opening and air outlet opening, in order to ensure sufficient air circulation.

- Keep sufficient distance (15 cm) to highly flammable objects such as furniture, curtains, etc.!

• Due to rising heat and vapours do not place the appliance under wall cupboards.
• Do not operate the appliance with an external timer or separate remote control system.
• Do not tamper with the safety switch.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.
4. If there are missing parts or obvious damage, do not use the appliance. Return it to your retailer immediately.

Overview of the Components / Scope of Delivery

1 Heating indicator lamp
2 Operation indicator lamp
3 Air inlet openings
4 Air outlet openings
5 Temperature controller
6 On/off switch/timer
7 Strainer insert
8 Handle of the frying basket
9 Frying basket

Notes for Use

Location

• Set the appliance onto a non-slip, level, and heat-resistant surface.
• Take care that the appliance and the mains cable never are placed onto hot surfaces or near heat sources (e.g. range, hob).

Electric Connection

Before inserting the power plug into the outlet, check that the mains voltage to be used matches that of the appliance. You can find the required information on the nameplate.

Connected Wattage

The total power consumption of this appliance can be up to 1400 W.

CAUTION: Overload!

Do not use any multiple sockets, as this appliance is too powerful.

Switching the Appliance On / Off

• The appliance is switched off if the timer is set to the ○ position.
• Operation is only possible if the frying basket is inserted into the appliance.
• To use the appliance, set the desired time with the timer. And set the desired temperature with the temperature controller.

NOTE:

Once the time is up, a bell will sound. The appliance will switch off automatically.

Before Initial Use

- There is a protective layer on the heating element. To remove this, operate the appliance for about 10 minutes without any contents.

NOTE:

Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

WARNING:

Allow the appliance to cool down before you clean it!

• Disconnect the mains plug from the wall socket.
• Wipe the frying basket, the strainer insert, and the inside of the appliance before using it.

Useful Hints for Use

• This appliance is used for the preparation of solid foods. Do not prepare any soups or liquid foodstuffs in it.

• A safety switch prevents the use of the appliance without the frying basket.

• To achieve an optimum result, fill the frying basket maximal up to the MAX marking only. Never overfill the frying basket, so that the food does not touch the heating element.

• Never put oil or other liquids in the frying basket. In order to achieve crispy results, you can brush the food with a little bit of oil.
• Do not prepare the appliance for high-fat foods (e. g. sausages).
• All foods can be prepared in the appliance, which are also suitable for the oven.
• The strainer insert helps to let the accumulated fat settle on the bottom of the frying basket. That makes the food crispier.
• Note that the dough expands during baking of cakes, bread or similar. Nothing must come into contact with the heating element.
  • Take out the strainer insert if you want to bake bread etc.
• Foods that are cooked over one another, must be shaken after half way through the cooking time. Thus the result is optimized and prevents uneven cooking.
• Pour water on homemade potato products after cutting at least 30 minutes to reduce the potato starch. Then dry the potato pieces with paper.
• The cooking time depends on several factors: Size, condition, quantity of food and set temperature. For standard values, see “Table of cooking times”.
• If you do not preheat the hot air fryer, add 3 minutes to the cooking time.
• Fry steaks / larger quantities of meat in a pan previously before leaving to cook in the hot air fryer. Time and temperature are dependent on the desired degree of doneness.
• With the appliance, you can also reheat food. Set the timer to 10 minutes and the temperature control to 150^ .

Using the Appliance

1. Make sure that the appliance is unplugged and switched off (The control lamps are off).
2. Pull the frying basket out of the appliance using the handle.
3. Put the strainer insert into the appliance if needed. The arrows on the strainer insert and the frying basket have to match. Push the strainer insert down all the way.
4. Slide the frying basket back into the appliance. It must engage.
5. Connect the appliance to a properly installed earthed socket.
6. Turn on the appliance with the switch. The upper indicator lamp lights up. You can select a cooking time.
7. Turn the temperature controller to the desired temperature. The lower indicator lamp lights up.

NOTE:

• The lower indicator lamp goes out as soon as the set temperature has been reached.

• It switches on and off during operation. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained.

• Pull the frying basket out of the appliance using the handle.

• Fill the frying basket with the desired food.

• Slide the frying basket back into the appliance.

• If necessary, shake the food after half the cooking time. To do this, pull out the frying basket using the handle.

WARNING: Hot steam can escape!

1. Slide the frying basket back into the appliance.

End of Operation

1. A beep sounds when the set time has expired.

NOTE:

You can also abort the operation by setting the timer to the ○ position.

1. Pull out the frying basket using the handle.

2. Put the food in a heatproof bowl.

3. Slide the frying basket back into the appliance.

Table of Cooking Times

Foodstuffs	MIN / MAX approx. quantity (g)	Cooking time (minutes)	Temperature (°C)
Potato products
Thin frozen French fries	300 - 700	12 - 16	200
Thick frozen French fries		12 - 20

Foodstuffs	MIN / MAX approx. quantity (g)	Cooking time (minutes)	Temper- ature (°C)
Potato products
Homemade fries	300-800	18-25	180
Homemade potato wedges		18-22
Homemade potato cubes	300-750 12	-18
Gratin potatoes 500	18-22
Hash browns 250	15-18
Meat
Steak	100-500	8-12	180Pork cutlet 10-14
Hamburger 7-14
Sausages in batter		13-15200
Poultry
Chicken lower leg	100-500	18-22	180
Chicken breast 10-	15
Baked
Cake,∅ max. 15 cm	300	20-25 160
Muffins 15-18 200
Quiche,∅ max. 15 cm	400 20-22	180
Light Refreshments
Frozen chicken nuggets	100-500	6-10	200Frozen fish
fingers	100-400
Spring rolls 8-10
Stuffed vegetables		10 160
Frozen breaded cheese snacks		8-10	180

Cleaning

WARNING:

• Always turn the appliance off before cleaning it and remove the mains plug. Wait until the appliance has cooled down.
- Do not immerse the appliance in water! Doing so may result in an electric shock or fire.

CAUTION: Non-stick coating

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

WARNING:

Let the strainer insert cool down before you take it out of the frying basket!

The frying basket and strainer insert can be cleaned in a warm rinse.

- Clean the appliance inside and outside with a slightly moist, not wet cloth.

Storage

• Clean the appliance as described. Let the accessories dry completely.
  • We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
  • Always store the appliance at a well ventilated and dry place outside the reach of children.

Troubleshooting

If a problem occurs, it is often only a small thing. Before you contact our service, please note the following information:

Problem Possible Cause Remedy
The appliance is not working.	The appliance has no power supply. Check the socket with another appliance.
	You have not set the cooking time. Select a desired cooking time.
The food is not cooked to the end.	The frying basket is overfilled. Reduce the amount of food. Smaller quantities are cooked evenly.
	The temperature is set too low. Set the temperature higher with the temperature controller (see “Table of cooking times”).
	The cooking time is set too low. Use the timer to increase the time (see “Table of cooking times”).
The food is cooked unevenly.	When foods are placed on top of each other, there is inadequate airflow.	The food must be shaken after half the cooking time.
The food is not crisp.	Foods are used, which is only suitable for a conventional fryer.	Use oven-ready food or sprinkle it with a little oil.
Smoke comes out of the appliance.	You are preparing very fatty foods. Fat splashes inside the appliance may cause the emission of fumes. Provide adequate ventilation.
	In the frying basket there are still fat residues from previous use.	Clean the frying basket after each use as described in the chapter “Cleaning”.

Technical Data

Model: FR 6002 H CB

Power supply: 220 - 240 V\~, 50 - 60 Hz

Power consumption: 1400 W

Protection class:....I

Net weight: .... approx. 3.70 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment; do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
