ControlSpace® WP22BU-D

2-in/2-out Dante™ Wall Plate

The symbols below are internationally accepted symbols that warn of potential hazards with electrical products.

This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

WARNING: Use only with an agency approved power supply meeting all local and national regulatory requirements (ex. UL, CSA, VDE, CCC).

WARNING: This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document before attempting installation.

WARNING: Install in accordance with all local and national codes.

CAUTION: Only use a power supply that is a Limited Power Source (LPS) or a Class 2 power supply as defined in the IEC/UL 60950 safety standard.

CAUTION: If this equipment is powered from a PoE network, the network must not originate outside of the building or exit the building at any time.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wider blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
13. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

pro.Bose.com Important Safety Instructions

1. When an external power supply is used to power this apparatus, that power supply shall be connected to a mains socket outlet with a protective earthing connection.

2. When permanently connected, an all-pole mains switch with a contact separation of at least 3mm in each pole shall be incorporated in the electrical installation of the building.

3. If rack mounting, provide adequate ventilation. Equipment may be located above or below this apparatus but some equipment (like large power amplifiers) may cause an unacceptable amount of hum or may generate too much heat and degrade the performance of this apparatus.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, Contact your local municipality, disposal service, or the shop where you bought this product.

Names and Contents of Toxic or Hazardous Substances or Elements

	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether(PBDE)
PCBs	X 0 0 0 0 0
Metal parts	X 0 0 0 0 0
Plastic parts	0 0 0 0 0 0
Speakers	X 0 0 0 0 0
Cables	X 0 0 0 0 0
0: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T 11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T 11363-2006.

©2015 Bose Corporation. All rights reserved. All trademarks are the property of their respective owners.

The ControlSpace® WP22BU-D Dante™ audio interface is a cost-effective multi-IO wall plate designed to fit into most dual-gang US junction boxes. Its size and I/O density make it easy to put Dante connectivity wherever it's needed – near the audio source or destination – thereby reducing costly and interference-prone analog wiring.

Power/ ID LED Balanced audio input (Input 1) Balanced audio Output (Output 1) Unbalanced RCA audio inputs (Input 2a) Unbalanced stereo 3.5 mm jack audio input (Input 2b) Unbalanced stereo jack audio output (Output 1 & 2)

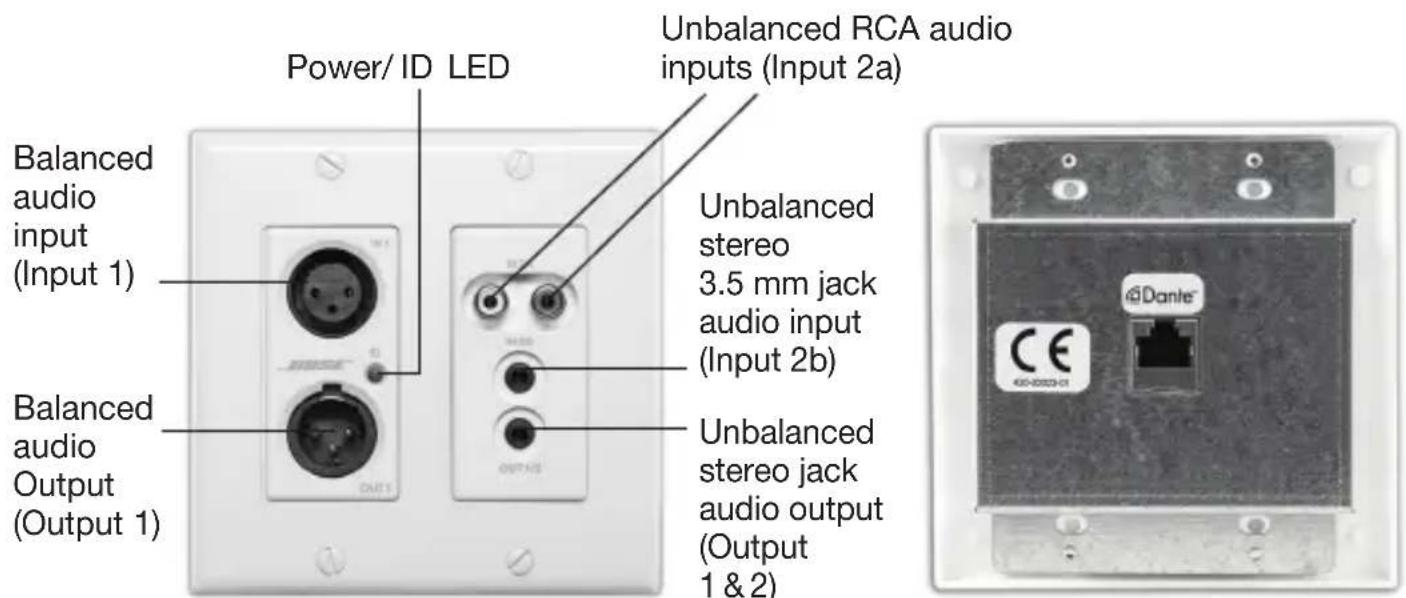

Figure 1. ControlSpace WP22BU-D wall plate front and back

The WP22BU-D features two Dante input and two Dante output channels. The analog I/O are configurable via Bose® ControlSpace Designer™ software to support different connectivity configurations. The XLR connector provides balanced mic/line audio to Dante output

channel 1. However, the second Dante output comes from one of three possible input mixes:

• A mono mix of the RCA jack inputs
- A mono-mix of the 3.5 mm stereo jack inputs
- A combined mix of the RCA inputs and the stereo jack inputs

The mix selection can be set using ControlSpace Designer software.

The WP22BU-D has two output options. An XLR connector provides a balanced line output for analog output 1 only, and a 3.5 mm stereo jack connector provides an unbalanced line level output for both analog output 1 and analog output 2. Both output connectors may be used simultaneously.


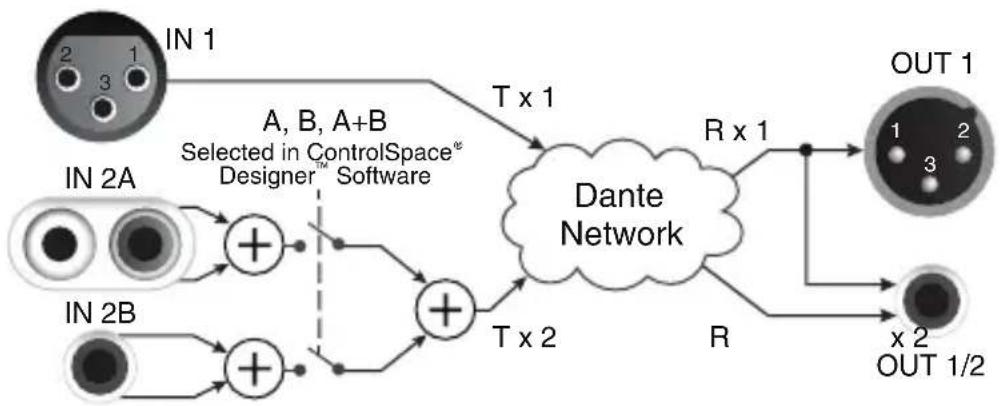

Figure 2. WP22BU-D internal audio block diagram

Connection to the Dante network is provided by a single Ethernet RJ-45 connector on the back of the unit. The WP22BU-D is PoE powered over the network cable from a suitable PoE source (IEEE 802.3af) eliminating the need for a local power supply

ControlSpace Designer software is used to configure specific features and the audio routing of this device.

Note: The WP22BU-D has a label on the front of the metal housing at the top that lists the last 6 digits of the MAC address. Important for initial device identification, these digits are part of the device's default network name when detected by ControlSpace Designer software. The full MAC address is also given on the back of the unit.

What's in the Box

The WP22BU-D comes supplied with the following:

• WP22BU-D device
• Mounting screws
• Decora plate

Mounting

A typical installation will involve mounting the wall plate into a 2-gang junction box or low-voltage ring. Before starting, make sure the wall box where the WP22BU-D is to be installed is pre-wired with a suitable network cable back to a PoE enabled network switch or mid-span injector. If a mid-span injector is being used, the cable should be connected to the port that supplies both Ethernet and power (refer to the devices manual if unsure which port is which).

Attach the network cable from the switch/mid-span injector to the Dante network port of the Dante WP22BU-D. If the switch or mid-span injector is already running and PoE is enabled, the unit should power up and the green ID LED on the front of the device should turn on.

With the cable attached, place the WP22BU-D into the wall box taking care to not trap the cabling. Once in place, secure it with the mounting screws provided. Finally, fasten the Decora plate on top using the screws provided with it.

HARDWARE CONNECTIONS

The WP22BU-D accepts and drives either unbalanced or balanced audio devices. Refer to the following diagrams and instructions for connecting different types of audio devices. Professional grade audio cabling is recommended to achieve the best audio performance throughout the system.

Balanced Source to Balanced Destination

Connect a balanced source to the WP22BU-D XLR input or a balanced destination to the WP22BU-D XLR output using a 2-core shielded cable. Using the cable cores, connect positive output to positive input and negative output to negative input. Connect output ground to input ground using the cable shield.

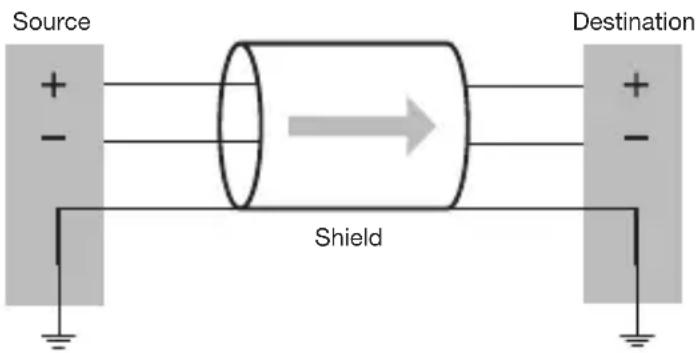

Figure 3. Balanced source to balanced destination connection

Source + - Destination Shield

Unbalanced Source to Balanced Destination

If using a single-core shielded cable to connect a 2-wire unbalanced source to the WP22BU-D XLR input or an RCA or stereo jack unbalanced output signal from the WP22BU-D to a balanced input on another device, connect the positive output of the unbalanced source to the positive input of the balanced destination. Connect both the source and destination input grounds together and short the negative input of the destination to ground at the input of the destination.

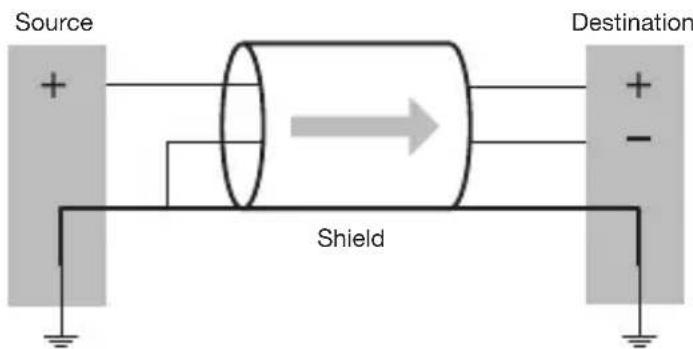

Figure 4. 2-wire unbalanced source to balanced destination connection

Source + - Destination Shield

For the same connection using a 2-core shielded cable, connect the positive and ground as before, but short the negative conductor to the shield at the source connection.

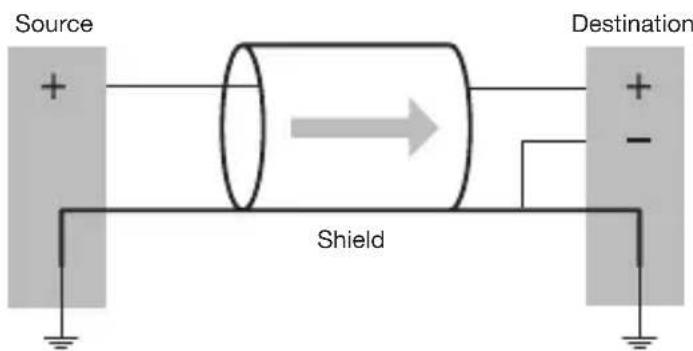

Figure 5. 3-wire unbalanced source to balanced destination connection

Source + - Destination Shield

Balanced Source to Unbalanced Destination

If using a single-core shielded cable to connect a balanced source to an RCA or stereo jack input on the WP22BU-D or to connect the XLR output from the WP22BU-D to an unbalanced input on another device, connect the positive output of the balanced source to the positive input of the unbalanced destination. Connect both the source and destination input grounds together and short the negative input of the source to ground at the output of the source.

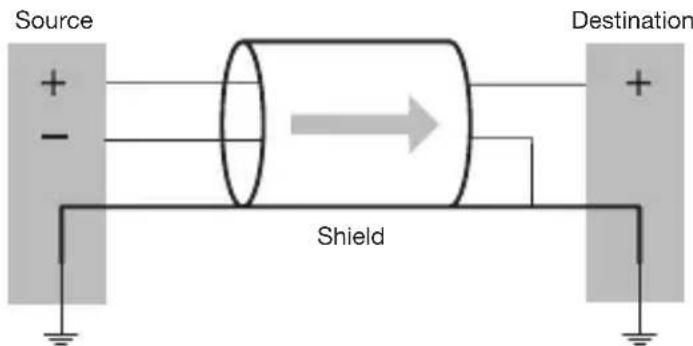

Figure 6. 3-wire balanced source to unbalanced destination connection

Source + - Shield Destination +

For the same connections but using a 2-core shielded cable, connect the positive and ground as before, then short the negative conductor to the shield at the destination end of the cable.

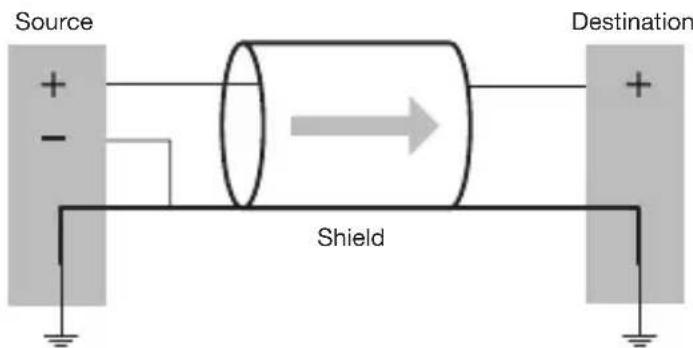

Figure 7. 3-wire balanced source to unbalanced destination connection

Source + - Shield Destination +

Unbalanced Output to an Unbalanced Destination

To connect an unbalanced source to a WP22BU-D RCA or stereo jack input, or to connect the stereo jack output to an unbalanced destination, connect the positive output to the destination's positive input and connect the grounds together through the cable shield.

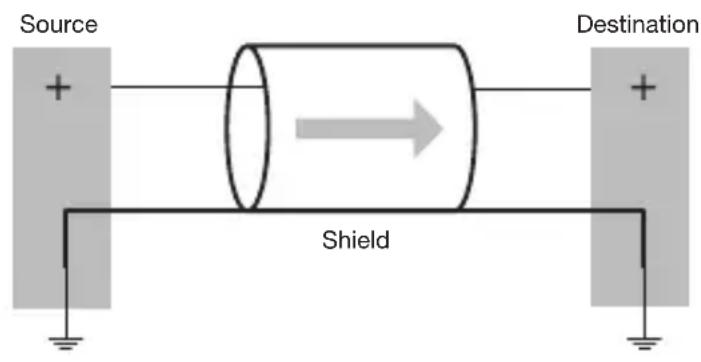

Figure 8. Unbalanced source to unbalanced destination connection

Source Destination + - Shield

DEVICE CONFIGURATION

There are two parts of the device that require software to setup. First the audio routing, and second the configurable features of the device itself. Both should be carried out using ControlSpace® Designer™ software.

TECHNICAL SPECIFICATIONS

Audio Inputs
Input Channels Two (2) analog, balanced (XLR) and unbalanced (RCA and/or 3.5mm)
Connectors One (1) XLR, one (1) RCA pair, one (1) 3.5mm TRS
Phantom Power +48VDC, software selectable (XLR input only)
Gain Settings 0 / +25 / +40 dB, software selectable (XLR input only)
Input Impedance > 1.8 kΩ at any gain setting
Equivalent Input Noise -115 dBu (+40 dB gain)
Maximum Input Level +12 dBu @ 0 dB gain
Audio Outputs
Output Channels	Two (2) analog, balanced (XLR) and unbalanced 3.5 mm, with automatic muting on loss of Dante signal
Connectors One (1) XLR, one (1) 3.5mm TRS
Output Noise < -90 dBu
Maximum Output Level +12 dBu
Software Application
ControlSpace® DesignerTM software v4.2 or later
General
Digital Conversion 48 kHz / 24-bit
System THD	< 0.01 % at any gain, input signal 3dB below maximum
PoE Class Class 0 802.3af PoE PD compliant
Certifications FCC Part 15 Class A, CE (EN 55022 Class A)
Dimensions	2.75" H x 3.60" W x 1.88" D (70 mm x 91 mm x 48 mm)
Operating Temperature 32 °F – 104 °F (0 °C – 40 °C)
Product Code 738678-0010

Dante ^™ is a trademark of Audinate Pty Ltd.

744552-0010

BOSE® Better sound through research®

© 2015 Bose Corporation

The Mountain, Framingham, MA 01701-9168 USA

AM744552 Rev.00
