WA 1450 - Fondue, raclette and wok appliance FRITEL - Free user manual and instructions

Product type	Multifunction appliance for fondue, raclette, wok, waffles and croque-monsieur
Brand	Fritel
Model	WA 1450
Power supply	230 V, standard mains plug
Plate material	Solid cast aluminum with non-stick coating
Plate dimensions	22 x 19 cm per plate
Thermostat	Continuously adjustable with red indicator light
Handle	Cool Touch with locking system for vertical storage
Main functions	Fondue, raclette, wok, waffles, croque-monsieur
Cleaning	Soft damp cloth with detergent; do not immerse
Safety	Hot surfaces, use by children aged 8 and over under supervision
Warranty	2 years
Included accessories	Waffle fork, degreaser (reference)
Maintenance	Unplug before cleaning, allow to cool
Safety instructions	Do not use extension cord, do not immerse, keep away from children

Frequently Asked Questions - WA 1450 FRITEL

How to use the fondue plate?

Place the fondue pot on the plate, turn on the appliance and adjust the thermostat. Use suitable accessories (fondue forks). Do not touch hot surfaces.

Can I use the appliance for wok?

Yes, with the appropriate wok plate. Make sure the appliance is on a stable surface and the cord is fully unwound.

How to clean the plates after use?

Unplug the appliance and let it cool. Use a soft damp cloth with detergent. Never use hard brushes and do not immerse the appliance.

What to do if the appliance no longer heats?

Check that the appliance is plugged into a 230V outlet and that the thermostat is set to a position. If the indicator light does not come on, contact your point of sale.

Can metal utensils be used on the plates?

No, never use sharp or metal objects to avoid damaging the non-stick coating. Use wooden or heat-resistant plastic utensils.

How to make successful waffles?

Follow the recipe, beat the batter well, wait for the indicator light to go off before adding batter, and remove the waffle with a special fork (WF 1000).

Are spare parts available?

Yes, accessories like the waffle fork (WF 1000) and FRITEL degreaser are available separately in stores or at www.fritel.com.

Is the appliance suitable for professional use?

No, it is designed for domestic use only. Professional use voids the warranty.

How to store the appliance?

Use the handle locking system to store the appliance vertically, which takes up less space.

Where to find recipes for this appliance?

Visit www.fritel.com to discover many recipes suitable for this appliance.

USER MANUAL WA 1450 FRITEL

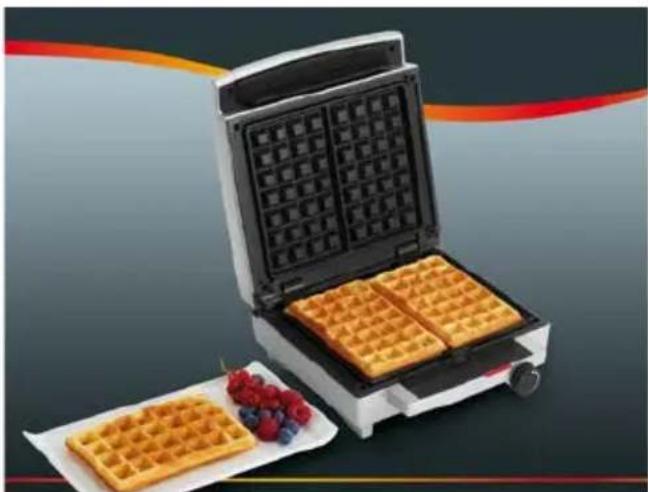

Waffle Maker WA 1450

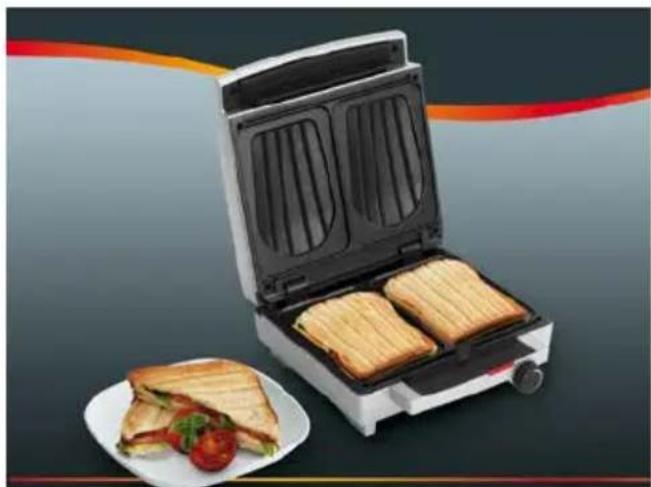

Sandwich Maker SW 1450

GEBRUIKSAANWIJZING

Attentively read the user manual before using the appliance!

Keep the manual carefully.

GEBRAUCHSANWEISUNG

GB Description of the appliance

1.Contious adjustable thermostat knob
2. Red control lamp: lights up as soon as the thermostat position is chosen and turns off when the chosen thermostat position is reached.
3. Fix baking plates: massif die-cast aluminium baking plates with non stick coating. The baking plates can not be removed from the appliance. Dimension per baking plate: 22 × 19 cm
4. Heating element: integrated in the baking plates for better thermal conductivity and very stable temperatures.
5.Reception of exceedent of dough.
6. Cool Touch handles with locking latch, for sealing of the stuffed toasts and space saving storage.
7.Cord (not marked)

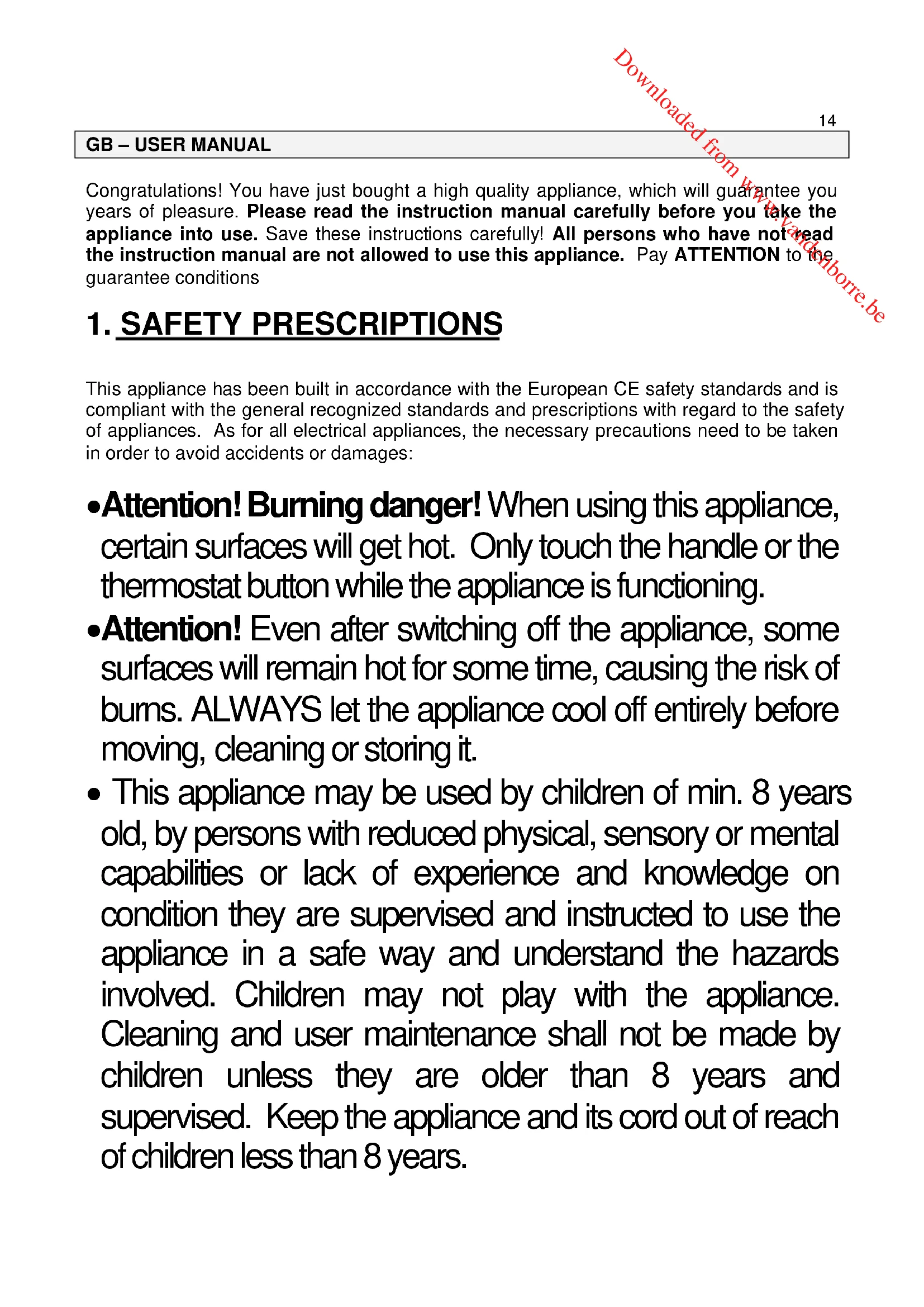

Congratulations! You have just bought a high quality appliance, which will guarantee you years of pleasure. Please read the instruction manual carefully before you take the appliance into use. Save these instructions carefully! All persons who have not read the instruction manual are not allowed to use this appliance. Pay ATTENTION to the guarantee conditions

1. SAFETY PRESCRIPTIONS

This appliance has been built in accordance with the European CE safety standards and is compliant with the general recognized standards and prescriptions with regard to the safety of appliances. As for all electrical appliances, the necessary precautions need to be taken in order to avoid accidents or damages:

• Attention! Burning danger! When using this appliance, certain surfaces will get hot. Only touch the handle or the thermostat button while the appliance is functioning.
• Attention! Even after switching off the appliance, some surfaces will remain hot for some time, causing the risk of burns. ALWAYS let the appliance cool off entirely before moving, cleaning or storing it.

• This appliance may be used by children of min. 8 years old, by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge on condition they are supervised and instructed to use the appliance in a safe way and understand the hazards involved. Children may not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

• NEVER immerse the appliance, the power cord or the plug in water or any other liquid. They are only to be cleaned with a damp cloth.

• A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service.

• NEVER use separate timers or remote control systems.

• ALWAYS place the appliance on a solid and flat base, such as a kitchen counter or table, so that the appliance won't move or turn over.

• After use remove the plug from the power point. Also proceed this way when the appliance is not in use, before cleaning and moving.
• NEVER use the appliance outdoor.
• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS complete unroll the power cord.
• NEVER let the cord hang over the edge of the table or the counter.
• NEVER place the power supply cord near heat sources such as cookers,加热器 or ovens.
• Only use the appliance on the mains voltage as indicated on the identification label.
• This appliance is only suited for indoor household use, and not for professional use.

2. BEFORE THE FIRST USE

• Remove all packaging and stickers.
• Keep packaging away from children.
• First check your appliances for possible damages. If it is damaged, do NOT use the appliance but bring it back to your sales point.
• Clean the plates as described under 'Cleaning' (4) before the first use.
• Check if the mains voltage of your appliance (230 Volt) corresponds with the mains voltage in your home.
• The appliance is now ready for use.
• ATTENTION: Upon the first use, there might be a slight odor or smoke output. This is normal.

a) Completely unroll the power cord and plug in the appliance in a 230 V socket. The appliance must be in closed position.

b) Then turn the thermostat knob onto the chosen position. As soon as you have chosen a thermostat position the red control lamp lights up.
ATTENTION: the appliance will now get hot. Only touch the thermostat knob and the handles.
c) The red control lamp will turn off as soon as the chosen thermostat position (chosen temperature) has been reached.
d) Open the appliance. For your convenience the appliance remains in open position at 105^ (upright system). Rub the plates in with some oil (only with every first baking)
e) You can now add the toast, the waffle dough ... Do not use sharp utensils as they could damage the non-stick coating of the plates.
f) Close the appliance.
g) After baking, open the appliance and remove the waffle or sandwich immediately.
h) When you are finished baking, turn the thermostat knob completely to the left to the 0-position.
i) Unplug the appliance.

Tips for baking waffles (more tips and tricks on www.fritel.com!)

• ALWAYS follow the recipe correctly or use a baking mix.
• ALWAYS use high quality flower and make sure the dough is well beaten.
• Wait for the red control lamp turns off before adding the paste to the appliance (only for the first waffle).
• Remove the waffle with a special U-shaped fork. Insert the fork horizontally into the waffle in order not to damage the non-sticking coating or the waffle. See point 6 « Accessory »: waffle fork WF 1000.

4. CLEANING

• Pull the plug from the socket.
• Let the appliance cool off entirely.
• Baking plates: moisten a soft cloth in hot soapy water. Wring it out and clean the plates. NEVER use stiff washing-up brushes, this could damage the anti stick coating!
• The base and the housing of the appliance can be cleaned with a damp cloth. NEVER immerse these parts in water or in any other liquid.

5. USEFUL TIPS IN CASE OF MALFUNCTIONS

Do not use the appliance when it is malfunctioning. First go through the following:

The appliance doesn't warm or the control lamps don't light up:

Check if your appliance is connected to the right mains voltage, whether there is mains voltage, and if the appliance was plugged in correctly. If there is still a malfunctioning, please return the appliance to your sales point.
If the power cord is damaged, don't use your appliance and return it to your sales point immediately.

The appliance has been designed for domestic use. The guarantee conditions expire upon professional use. Defects and/or damages following to the non observance of the user manual are not covered by the guarantee.

6. ACCESSORIES

• FRITEL WF 1000 waffle fork: stainless steel waffle fork with heatproof handle to remove the waffles from the appliance easily
• FRITEL Fat dissolver: suited for all greasy surfaces. Available in practical spray.

FRITEL accessories are available separately. Ask for them at your point of sale of discover our products on our website www.fritel.com.

7. GUARantee CONDITIONS

Your guarantee starts on the day of purchase. The guarantee lasts 2 years.

Determination of guarantee:

• The guarantee covers every repair and/or replacement free of charge of the parts recognized defective by our Department of Service after Sale if the damage is due to faulty design, material or construction. The guarantee does not cover damage or normal wear of the baking plates.
• The guarantee is only valid for the first/original user.
• The transport costs are at the expenses of the purchaser.
• The guarantee is only granted after presentation of your purchase invoice.

The guarantee expires automatically in the following cases:

• Incorrect connection, e.g. electric voltages.
• Abnormal or professional use or misuse handling
• Lack of care and cleaning
• Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.
• When reference numbers have been altered or been removed.
• When not respecting the instructions in the user instructions

8. ENVIRONMENT

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

9. LIABILITIES

All liabilities, towards both consumer(s) and third parties that could result from not observing all the safety regulations prescribed in this user manual can under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the deep fryer, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

10. RECIPIES

Find all our recipes on www.fritel.com
