FO 2470 - Fondue, raclette and wok appliance FRITEL - Free user manual and instructions

USER MANUAL FO 2470 FRITEL

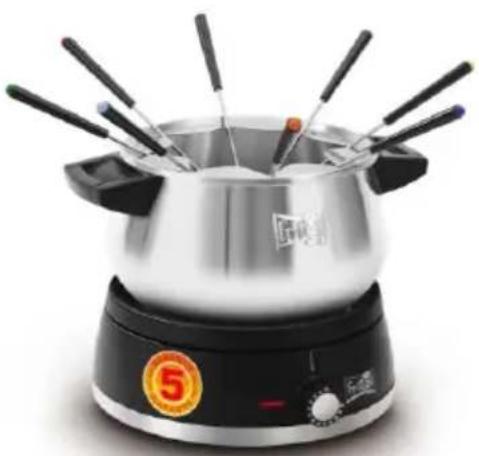

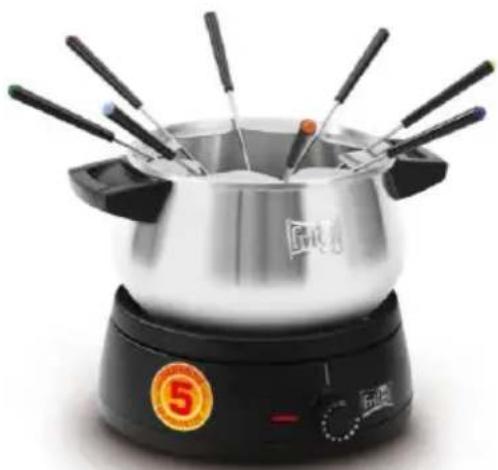

GB Description of the appliance

5. Base with covered heating element

7. Continuously adjustable thermostat

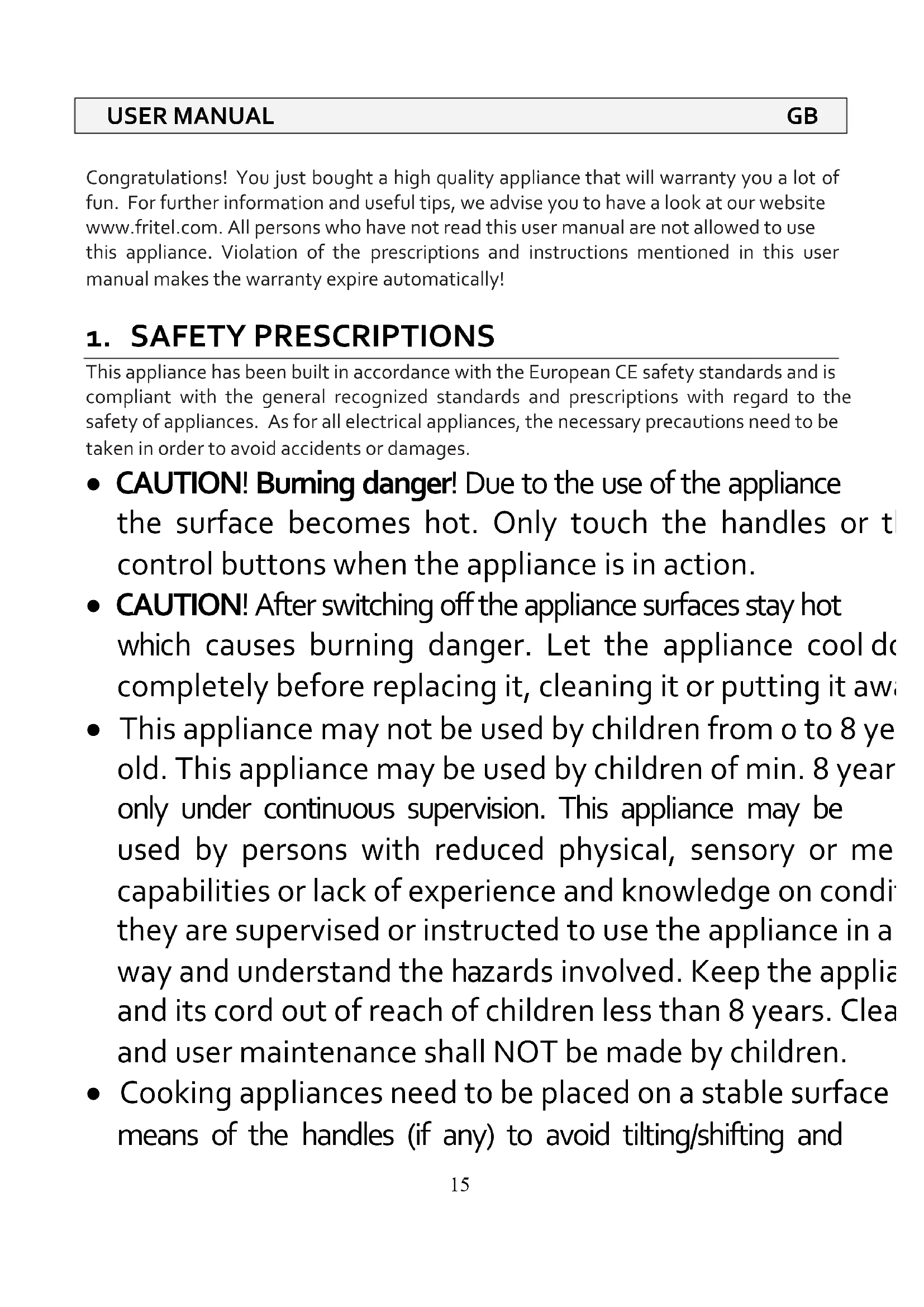

Congratulations! You just bought a high quality appliance that will warranty you a lot of fun. For further information and useful tips, we advise you to have a look at our website www.fritel.com. All persons who have not read this user manual are not allowed to use this appliance. Violation of the prescriptions and instructions mentioned in this user manual makes the warranty expire automatically!

1. SAFETY PRESCRIPTIONS

This appliance has been built in accordance with the European CE safety standards and is compliant with the general recognized standards and prescriptions with regard to the safety of appliances. As for all electrical appliances, the necessary precautions need to be taken in order to avoid accidents or damages.

• CAUTION! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the handles or the control buttons when the appliance is in action.

• CAUTION! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, cleaning it or putting it away.

• This appliance may not be used by children from 0 to 8 years old. This appliance may be used by children of min. 8 years old, only under continuous supervision. This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge on condition they are supervised or instructed to use the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children less than 8 years. Cleaning and user maintenance shall NOT be made by children.

• Cooking appliances need to be placed on a stable surface by means of the handles (if any) to avoid tilting/shifting and16 spilling of hot liquids.

• The appliance is only intended for household use at room temperature excluding: staff kitchens in shops, offices and other work environments; farms; clients in hotels, motels and other residential environments; bed & breakfast environments.

• NEVER use the appliance outdoors.

• A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service.

• NEVER touch the control button, electrical power cord and plug with wet hands. NEVER immerse the appliance, the power cord or the plug in water (or any other liquid). They are only to be cleaned with a damp cloth. In case the appliance does get wet or moist, immediately disconnect the plug from the power socket.

• Never move the appliance as long as the oil is hot.

• ALWAYS remove the plug from the electrical socket after use and before cleaning.

• ALWAYS place the appliance on a solid and flat base, such as a kitchen counter or table, so that the appliance will not move or turn over.

• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS complete unroll the power cord.

• NEVER let the cord hang over the edge of the table or the counter.

• NEVER place the appliance and the power supply cord near water sources, such as a sink, or near heat sources such as cookers.17

• In case the appliance falls in the water when it is still plugged in, first disconnect the plug from the power socket before removing the appliance from the water. After that return the appliance to an acknowledged repairer.

• Keep the appliance on a distance from combustible objects, such as curtains, seats.

• NEVER hold or move the appliance by its’ power cord. NEVER bend or tighten the electrical power cord or wrap it around the appliance or over a sharp edge.

• The appliance may not be used for other purposes or with other appliances!

• Only use the original accessories.

• Only use the appliance on the mains voltage as indicated on the identification label.

2. BEFORE THE FIRST USE

• Check if the main voltage of your appliance (230 Volt) corresponds with the mains voltage in your home.

• Remove all packaging and stickers.

• Clean all parts. The fondue pan, ring and forks can be cleaned in the dishwasher or in soapy hot water. The base with hidden heating element can NEVER be immersed in water. To clean this, use a clean damp cloth. Dry very carefully.

This fondue is equipped with an adjustable thermostat and therefore is suited for all kinds of fondue, namely classic meat fondue, cheese fondue, Chinese fondue, chocolate fondue...

• Remove the fondue ring

• Fill the pan with oil, cheese, stock or chocolate. Always fill the pan between MIN and MAX level. Suitable oils are: fondue oil, sunflower oil, peanut oil, corn oil. Always use oil that is suited for high temperatures and change the oil after every fondue.

• Put the fondue ring back

• Only insert the plug now. NEVER plug the appliance in before the pan is filled as described here above.

• Now turn the thermostat on the desired temperature: ➔ Traditional and Chinese fondue: maximum ➔ Cheese or chocolate fondue: start on medium position Remark: the content may not bubble or boil. In that case, immediately turn the thermostat lower. Especially cheese and chocolate have to be heated slowly to avoid boiling over or burning. Stir firmly once in a while to get a smooth mixture. Should you notice the temperature is not high enough, you can turn up the heat with the thermostat.

• We advise you heat up the fondue while you make all the preparations.18

• The control lamp is illuminated as long as the desired temperature is not reached. As soon as the desired temperature is reached the control lamp will be turned off. You now can fondue. Remark: during the use of the appliance the control lamp will turn on and off all the time. This means the thermostat works correctly.

• Prick the desired ingredients on the fondue forks and insert them into the fondue pan. Carefully watch them to make sure they do not burn or do not overcook. Do not scratch the pan with the fondue forks; this might damage the fondue pan.

• As soon as all ingredients are ready, remove them from the pan. After stopping completely, turn the thermostat as low as possible and remove the plug from the socket.

• First let the appliance cool down completely.

• Then pour the oil or the stock. For cheese and chocolate fondue, you’d best first remove rests of cheese or chocolate with kitchen paper.

• In case of persistent rests, let the fondue pan soak with hot soapy water.

• You can clean the pan, as well as the forks and the ring in the dishwasher, or by hand. Do not use abrasive sponges or products.

• NEVER IMMERSE the appliance, the power cord or the plug in water or any other liquid. Clean the outside of the appliance with a damp cloth and dry it with a clean towel.

5. USEFUL TIPS IN CASE OF MALFUNCTIONS

Do not use the appliance in case of a malfunction. Then go to your point of sale. THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE. THE WARRANTY CONDITIONS EXPIRE UPON PROFESSIONAL USE. DEFECTS AND/OR DAMAGES FOLLOWING TO THE NON-OBSERVANCE OF THE USER MANUAL ARE NOT COVERED BY THE WARRANTY. We reserve the right to carry out technical modifications.

6. WARRANTY CONDITIONS

Your warranty starts on the day of purchase and is valid for 2 years.19

Extend the warranty from 2 to 5 years :

• Register your appliance on www.fritel.com and ... all done!

• All conditions regarding extended warranty are also mentioned on our website. The user is responsible for cleaning and proper packaging of the defective appliance before presenting it for repair. It is insufficient to wrap the device in cardboard packaging with paper. Fritel is not liable for damage resulting from insufficient packaging, which also irrevocably invalidates the warranty. Determination of warranty:

• The warranty covers every repair and/or replacement free of charge of the parts recognized defective by our Department of Service after Sale if the damage is due to faulty design, material or construction. The warranty does not cover damage or normal wear and tear of the baking plates.

• The warranty is only valid for the first/original user.

• The transport costs, in case of reparation, are at the expenses of the purchaser.

• The warranty is only granted after presentation of your purchase invoice.

• The warranty cannot be invoked for normal wear and tear. The warranty expires automatically in the following cases:

• Incorrect connection, e.g. electric voltages.

• Abnormal or professional use or misuse handling.

• In case of insufficient packaging and bad transport in case of return shipping.

• Lack of care and cleaning.

• Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.

• When reference numbers have been altered or been removed.

• For faults not due to the appliance itself, but to an external cause, collision, damage, fire, earthquake, flood, lightning, etc.

• When not respecting the instructions in the user instructions. For appliances that are not under warranty for any of the above reasons, all costs (transport, administration, research, handling) will be charged.

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.20

All liabilities, towards both consumer(s) and third parties, that could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observance of these safety regulations, the user of the appliance, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

9. ACCESSORIES, SPARE PARTS AND OTHER PRODUCTS

FOR ALL SUPPLEMENTARY INFORMATION, RECIPES AND
