TO 1890 - Toaster FRITEL - Free user manual and instructions

Product type	Toaster
Brand	Fritel
Model	TO 1890
Number of slots	2
Maximum capacity	2 slices of bread
Browning level adjustment	6 positions (1 = light, 6 = dark)
Functions	Defrost, reheat, manual stop
Crumb tray	Removable
Voltage	230 V AC
Power	800-1000 W (estimated)
Housing material	Stainless steel (likely)
Dimensions (L x W x H)	Approximately 25 x 15 x 20 cm
Weight	Approximately 1.5 kg
Power cord length	Approximately 80 cm
Maintenance	Clean the exterior with a damp cloth; empty the crumb tray regularly
Safety	Automatic shut-off at end of cycle; hot surface; do not immerse
Warranty	2 years (upon presentation of the purchase receipt)
Intended use	Household use only

Frequently Asked Questions - TO 1890 FRITEL

How to use the Fritel TO 1890 toaster?

Insert the slices of bread into the slots (max 2), plug in the appliance, select the browning level (1 to 6), then press down the on/off lever. The toasting stops automatically. You can also press the Stop button to interrupt the cycle.

How to defrost frozen bread with this toaster?

First select the desired browning level, lower the lever, then press the Defrost button (the indicator lights up). The toaster defrosts then toasts the bread automatically.

How to reheat an already toasted slice?

Place the toast in the slots, lower the lever, then press the Reheat button. The toast will be reheated for about 30 seconds.

What to do if smoke comes out of the toaster?

Immediately press the Stop button to stop the cycle. Unplug the appliance and let it cool down. Check that the crumb tray is empty and that the bread is not too close to the heating elements.

Can I toast buttered bread or bread with jam?

No, only toast dry bread. Fats or sugary substances can burn and damage the appliance, or even cause a fire.

Why are toasts darker during successive uses?

When you toast several slices in a row, the toaster becomes hotter, which speeds up browning. For consistent results, reduce the browning setting after the first toast.

How to clean the toaster?

Unplug the appliance and let it cool completely. Clean the exterior with a soft damp cloth. Remove the crumb tray from the back, empty it and rinse it with soapy water. Dry it before putting it back. Never use abrasive cleaners.

Can I use an extension cord or power strip?

No, always plug the toaster directly into a wall outlet. The use of extension cords or timers is prohibited for safety reasons.

What to do if the lever does not stay down?

Check that the toaster is plugged in and that the crumb tray is properly inserted. If the problem persists, contact an authorized after-sales service.

What is the warranty of the Fritel TO 1890 toaster?

The warranty is 2 years from the date of purchase, upon presentation of the receipt. It covers manufacturing defects. Damages due to misuse or professional use are not covered.

USER MANUAL TO 1890 FRITEL

Congratulations! With this design toaster, your breakfast will be a real treat from now on. Delicious juices. Please read this user manual and the guarantee terms attentively before using the toaster. Keep the manual carefully. Persons, who have not read this user manual, are not allowed to use this toaster.

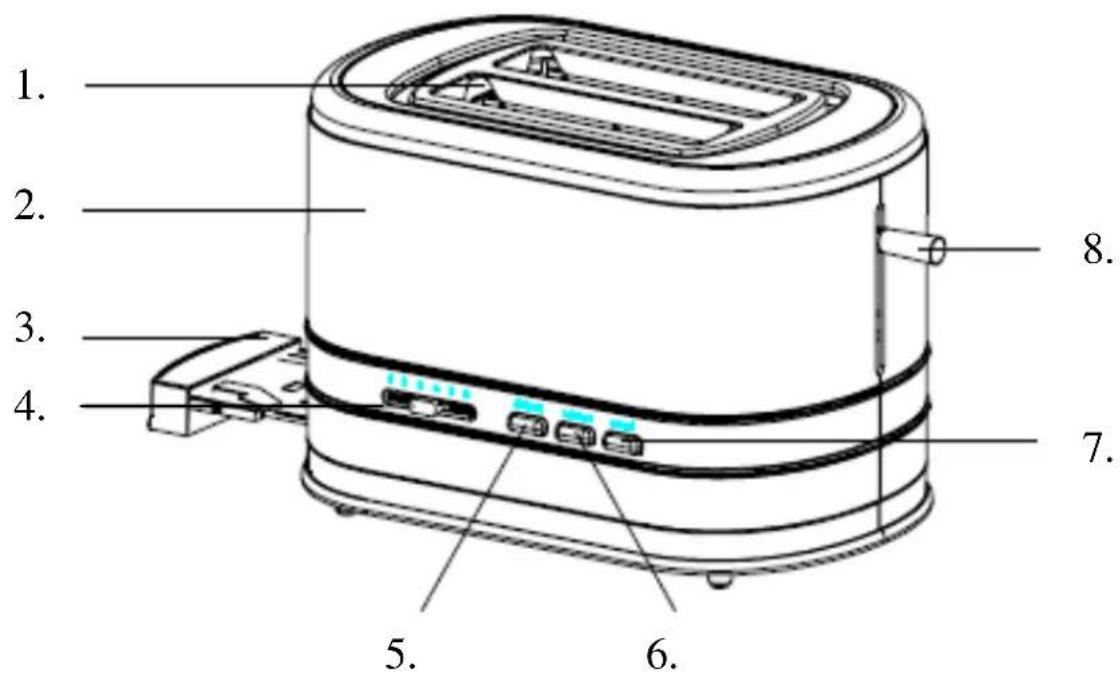

PRODUCTBESCHRIJVING

CONDITIONS DE GARANTIE

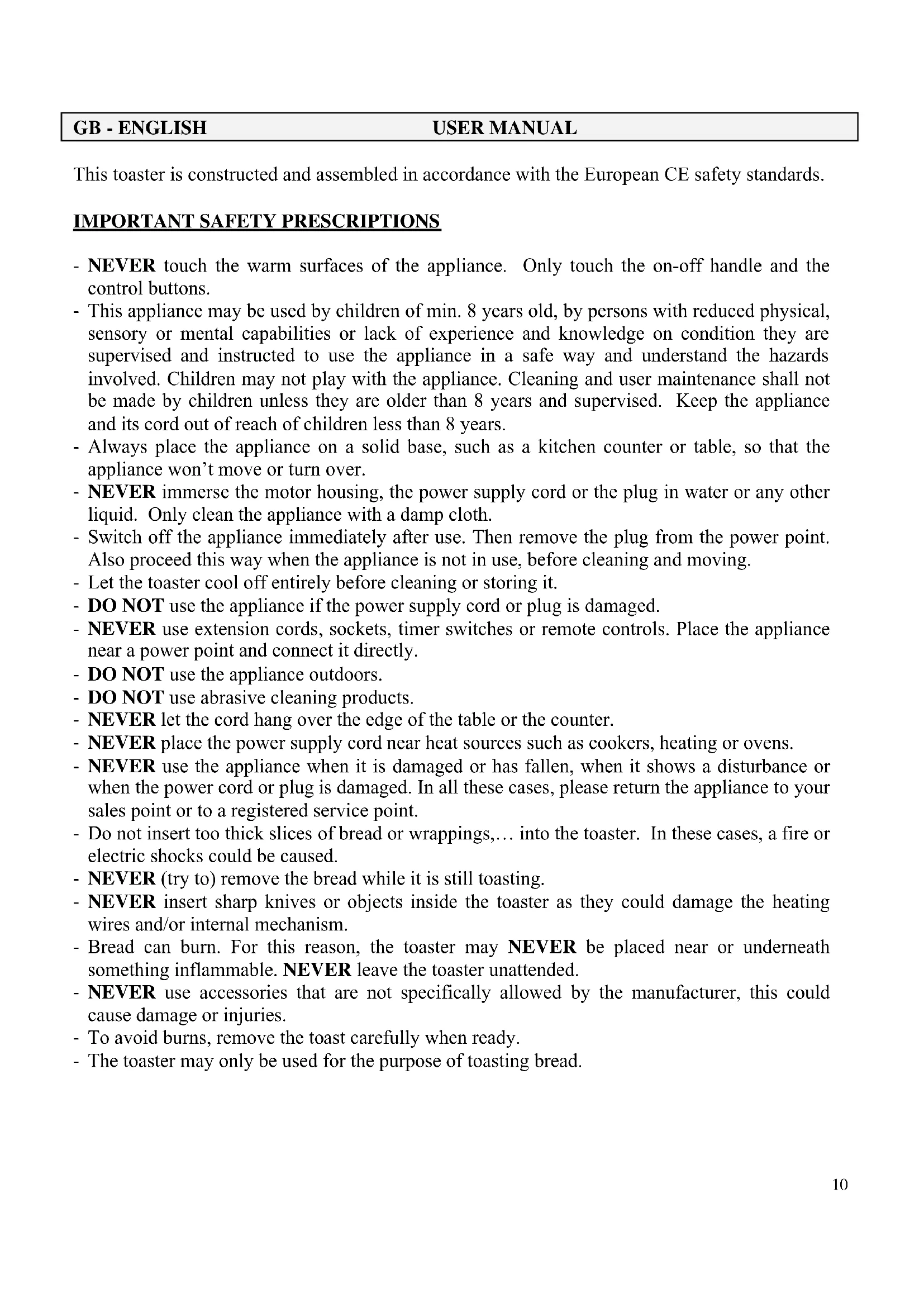

This toaster is constructed and assembled in accordance with the European CE safety standards.

IMPORTANT SAFETY PRESCRIPATIONS

• NEVER touch the warm surfaces of the appliance. Only touch the on-off handle and the control buttons.
• This appliance may be used by children of min. 8 years old, by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge on condition they are supervised and instructed to use the appliance in a safe way and understand the hazards involved. Children may not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
• Always place the appliance on a solid base, such as a kitchen counter or table, so that the appliance won't move or turn over.
• NEVER immerse the motor housing, the power supply cord or the plug in water or any other liquid. Only clean the appliance with a damp cloth.
• Switch off the appliance immediately after use. Then remove the plug from the power point. Also proceed this way when the appliance is not in use, before cleaning and moving.
• Let the toaster cool off entirely before cleaning or storing it.
• DO NOT use the appliance if the power supply cord or plug is damaged.
• NEVER use extension cords, sockets, timer switches or remote controls. Place the appliance near a power point and connect it directly.
• DO NOT use the appliance outdoors.
• DO NOT use abrasive cleaning products.
• NEVER let the cord hang over the edge of the table or the counter.
• NEVER place the power supply cord near heat sources such as cookers, heating or ovens.
• NEVER use the appliance when it is damaged or has fallen, when it shows a disturbance or when the power cord or plug is damaged. In all these cases, please return the appliance to your sales point or to a registered service point.
• Do not insert too thick slices of bread or wrappings,... into the toaster. In these cases, a fire or electric shocks could be caused.
• NEVER (try to) remove the bread while it is still toasting.
• NEVER insert sharp knives or objects inside the toaster as they could damage the heating wires and/or internal mechanism.
• Bread can burn. For this reason, the toaster may NEVER be placed near or underneath something inflammable. NEVER leave the toaster unattended.
• NEVER use accessories that are not specifically allowed by the manufacturer, this could cause damage or injuries.
• To avoid burns, remove the toast carefully when ready.
• The toaster may only be used for the purpose of toasting bread.

BEFORE THE FIRST USE

• Check if the mains voltage of your appliance (230 Volt) corresponds with the mains voltage in your home.
• Remove all packagings and stickers. Then clean the parts as described in ' Maintenance and cleaning', before using the appliance for the first time.
• Upon the first use, the toaster could give out a light smell. This is perfectly normal and will disappear after a few uses.
• For the first use, we advise you to follow the steps mentioned under 'USE', but without actually using bread.

USE

• Insert the slices of bread in the toaster slots. Do not insert more than 2 slices at once. Only use normal bread sizes.
• Plug in the toaster.
• Select the desired browning degree by means of the slide control. Position 1 = very light toast and position 6 = very dark toast. For a golden brown toast, please choose position 3 or 4.

Remark: the colour will be darker if you insert only one slice of bread

Remark: If you toast several slices one after the other, the next toasts will be darker than the first ones.

• Press down the on-off handle. The 'cancel' button will light up.
• Once the toast has reached its requested browning degree, the on-off handle will automatically lift up.

Remark: only toast plain bread, without butter, marmalade, ...

• While toasting, you can observe your bread. If you think it has reached the requested browning degree, you can use the 'cancel' button to end the toasting right away.
• If you wish to reheat your toast, insert the toast, press down the on-off handle and press the 'reheat' button. The toast will then reheat during about 30 seconds.
• If the bread comes out of the freezer, select the requested browning degree, insert the toast, press down the on-off handle and press the 'defrost' button.

IMPORTANT: Place the crumb tray correctly before using the toaster.

MAINTENANCE AND CLEANING

• Pull out the plug after every use. Let the appliance cool off entirely.
• Clean the outside with a soft damp cloth and NEVER use abrasive cleaning products.
• Remove the crumb tray carefully and empty it. Clean it with a damp cloth and replace it correctly.

GUARANTEE PRESCRIPTIONS

Your guarantee starts on the day of purchase and is valid for 2 years and will only apply after submitting the purchase invoice. The guarantee will expire irrevocably and immediately when the toaster is used for purposes other than domestic (i.e. professional).

• The guarantee covers every repair and/or replacement free of charge of the parts recognized defective by our technical department and if the damage is due to faulty manufacture, construction or material.
• The guarantee is only valid for the original user.
• Carriage, both ways, is for the purchaser's account.

The guarantee expires in the following cases :

• Incorrect connection, e.g. electric voltages.
• Abnormal use, misuse handling, lack of care.
• Modifications or repairs made to the appliance by persons not authorized by us as manufacturer.
• When reference numbers altered or removed.

USEFUL TIPS

In case the above mentioned solutions remain without results, please return your toaster to a certified reparation centre or to your sales point

DO NOT use the appliance in case of a malfunction of when the power cord is damaged. Please address your sales point immediately.

THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE. THE GUARANTEE CONDITIONS EXPIRE UPON PROFESSIONAL USE; DEFECT AND/OR DAMAGES FOLLOWING TO THE NON OBSERVANCE OF THE USER MANUAL ARE NOT COVERED BY THE GUARANTEE.

ENVIRONMENT

DO NOT throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

LIABILITIES

All liabilities, towards both consumer(s) and third parties, that could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the deep fryer, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.
