SWK 2200 B2 - Kettle SILVERCREST - Free user manual and instructions

Frequently Asked Questions - SWK 2200 B2 SILVERCREST

USER MANUAL SWK 2200 B2 SILVERCREST

Operating instructions

IAN 111451

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garanzia

Copyright 38
Intended use 38

Scope of delivery 39

Controls 39

Technical details 39

Safety instructions 40

Preparation 42

Unpacking 42

Disposal of packaging. 42

Starting to use the appliance. 42

Boiling water 43

Cleaning and care 45

In the event of scale deposits 45

Storage 46

Fault rectification 46

Disposal of the appliance 46

Notes on EC Conformity Declaration 47

Importer 47

Warranty 47

Service 48

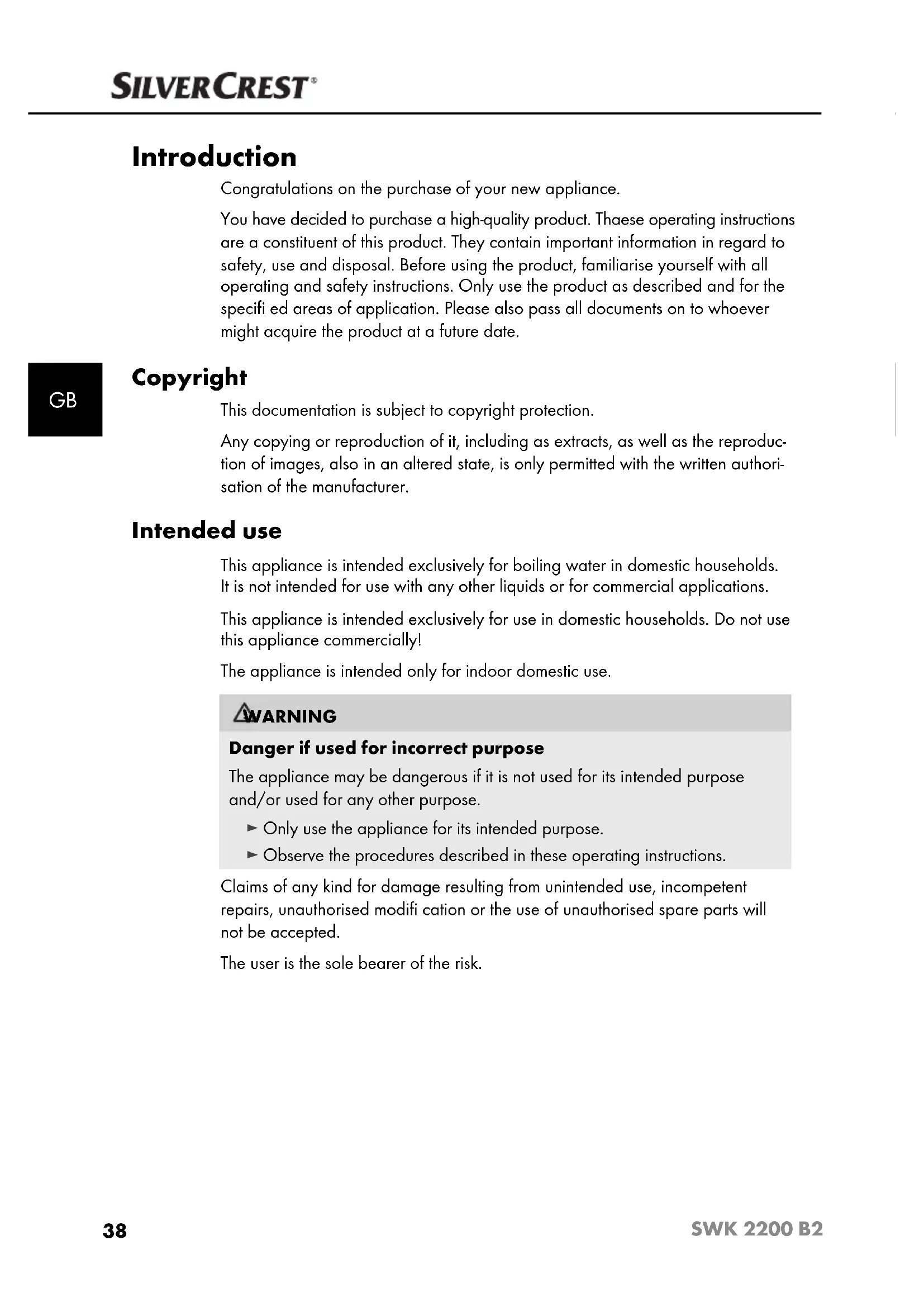

Introduction

Congratulations on the purchase of your new appliance.

You have decided to purchase a high-quality product. Thaese operating instructions are a constituent of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Only use the product as described and for the specified areas of application. Please also pass all documents on to whoever might acquire the product at a future date.

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is intended exclusively for boiling water in domestic households. It is not intended for use with any other liquids or for commercial applications.

This appliance is intended exclusively for use in domestic households. Do not use this appliance commercially!

The appliance is intended only for indoor domestic use.

WARNING

Danger if used for incorrect purpose

The appliance may be dangerous if it is not used for its intended purpose and/or used for any other purpose.

Only use the appliance for its intended purpose.
Observe the procedures described in these operating instructions.

Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted.

The user is the sole bearer of the risk.

Scope of delivery

The appliance is supplied with the following components as standard:

• Stainless Steel Kettle
• Base
• Operating instructions

NOTE

• Check the contents of the delivery for completeness and visible signs of damage.
• If the contents are incomplete, or are damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Controls

Pouring opening
2 Release
Scale
On-/Off switch
Indicator lamp
6 Base
Cable retainer
8 Kettle

Technical details

Voltage supply 230 V \~,50 Hz

Rated power 2200 W

Capacity max. 1.7 litres

Safety instructions

DANGER - RISK OF ELECTRICAL SHOCK!

• Ensure that the base with the electrical connections NEVER comes into contact with water! Allow the base to dry completely if it accidentally becomes wet.
• Use the kettle only with the supplied base.
• Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.
• To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.
• ALWAYS remove the plug from the mains power socket after use. Switching the appliance off is not sufficient, because the appliance is under power for as long as the plug is connected to the power socket.
• Check the appliance for externally visible damage before use. Do not use a damaged appliance or one that has been dropped.
• Have all repairs carried out by authorised specialist companies or customer service. Incompetent repairs may result in risks for the user. Warranty claims also become void.

Never submerse the appliance in water or other liquids! You could receive a fatal electric shock if residual liquids come into contact with live components during operation.

WARNING - RISK OF INJURY!

• Keep lid closed when boiling water, otherwise the automatic switch-off cannot work. Boiling water could then spray out over the rim.
• Clods of hot steam may be released. The kettle also becomes extremely hot during use. It is always best to wear oven mitts when handling the kettle.
• Ensure that the appliance is stable and vertical before switching it on. Boiling water can cause an unstable kettle to fall over.
  Do not open the lid while the water is boiling.
• Appliances may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed how to use the appliance safely and have understood the potential risks.
  This appliance may be used by children aged 8 years or over if they are supervised or or have been instructed how to use the appliance safely and have understood the potential risks.

Cleaning and user maintenance tasks must not be carried out by children unless they are aged 8 years or more and are supervised. The appliance and its connecting cable must be kept away from children younger than 8 years old.

Children must not play with the appliance.
- Do not fill the kettle up to more than the MAX marking! Otherwise boiling water may spill out!

CAUTION - PROPERTY DAMAGE!

• Do not use an external timing switch or a separate remote control system to operate the appliance.
• Never leave the appliance unattended during operation.
• Ensure that the appliance, the power cable or the plug do not come into contact with heat sources such as hotplates or open flames.

Preparation Unpacking

Remove all parts of the appliance and the operating instructions from the box.
Remove all packing material.

WARNING

Risk of suffocation!

Packaging material must not be used for playing with. Risk of suffocation.

Disposal of packaging

The packaging protects the appliance from damage during transport.

The packaging materials are selected according to their environmental friendliness and disposal attributes - and are therefore recyclable.

Recirculation of packaging into the material flow saves conserves raw materials and reduces the amount of waste generated. Dispose of packaging material that is no longer needed in line with the applicable local regulations.

NOTE

If possible, keep the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can pack the appliance properly for its return.

Starting to use the appliance

WARNING - RISK OF INJURY!

Always use nothing but fresh drinking water in the kettle! Do not consume any water that is not certified as potable. If you do, you are taking a risk with your health!

Before starting to use the appliance, ensure that ...

• The appliance, power plug and power cord are in proper condition and ...
• all packaging materials have been removed from the appliance.

1) Open the lid by pressing the release button 2 towards the handle and, at the same time, lifting the lid upwards.
2) Fill the appliance with water up to the MAX mark and let it come to a full boil once - as described in the next section.
3) After it has boiled, pour this water away.
4) Rinse the kettle ⑧ out with clean water.

5) Fill the appliance with water once again, up to the MAX mark, and then bring it to boil. When done, pour this water away also.

The appliance is now ready for use.

Boiling water

RISK-ELECTRIC SHOCK!

NEVER place the electrical base in close proximity to water -Risk of fatal electric shock!

WARNING - RISK OF INJURY!

Always use fresh drinking water. Do not consume any water that has already stood in the kettle for longer than one hour. Do not reboil water that has cooled down. Always pour old water away. It may contain germs!

NOTE

Always ensure that the on/off switch is in the "O" position when the mains plug is unplugged and the appliance is standing on the base. If not, the appliance could heat up unintentionally as soon as the mains plug is plugged in again.

1) Remove the kettle 8 to fi ll it!
2) Open the lid by pressing the release button ② towards the handle and, at the same time, lifting the lid upwards.

NOTE

• Hold the kettle ⑧ upright when filling it. This is the only way to read the markings on the scale ③ correctly.
  3) Fill the kettle 8...

• to at least the MIN mark, so that the appliance does not overheat,

• no further than the MAX mark, so that boiling water cannot spill out.

4) First close the lid and then place the kettle 8 on the base 6, such that it stands securely on the base 6.
5) Now insert the plug into the mains power socket.
6) Push the on/off switch 4 down into the position ^ . The appliance starts to operate and the indicator lamp 5 lights up.

When the water is boiling, the appliance switches itself off automatically. The On/Off switch 4 reverts automatically to the "O" position, the indicator lamp 5 switches off.

NOTE

If you wish to stop or interrupt the boiling procedure, simply move the On/Off switch 4 back to the "0" position. You can continue the boiling process, but you must wait for 20 seconds until the heating element has cooled down. You can then switch the appliance back on.

CAUTION - PROPERTY DAMAGE!

• Do not press the On/Off switch 4 during the cooling phase, since this could result in damage to the appliance.

7) Disconnect the appliance from the mains power socket when not is not in use, in order to prevent an unintentional activation.

WARNING -RISK OF INJURY!

For safety reasons you should not open the lid when the water is boiling or extremely hot. Risk of scalding.

TIPS

• This appliance is equipped with an overheating protection: if the appliance is switched on unintentionally without any water in the kettle ⑧, the appliance switches itself off automatically.
  If the appliance boils dry because the lid has not been closed, for example, the appliance switches itself off automatically.
  In these cases, allow the appliance to cool down before using it again.

Cleaning and care

RISK - ELECTRIC SHOCK!

Before cleaning the appliance, disconnect the plug from the mains power socket! Otherwise there is the risk of receiving an electric shock!
- Never open any housing parts. There are no user-serviceable elements inside. When the housing is open, there is the risk of receiving a potentially fatal electrical shock.

NEVER immerse the appliance in water or other liquids! You could receive a fatal electric shock if residual liquids come into contact with live components during operation.

WARNING - RISK OF INJURY!

Allow the appliance to cool suffi cientsly before cleaning it. Risk of burns!

CAUTION - PROPERTY DAMAGE!

• Do not use abrasive or caustic cleaning agents. These can attack the surface and damage the appliance beyond repair.
  Clean all exterior surfaces with a lightly moistened dishcloth. Always dry the appliance properly before using it again. For stubborn soiling use a mild detergent on the cloth. Ensure that there is no detergent residue on or in the appliance before using it again.
  Rinse the inside of the kettle 8 out with clean water.
  If there are any deposits in the kettle, wipe out the inside surface with a moist cloth, or use a washing up brush or bottle brush. Then rinse the kettle out with clean water again.

In the event of scale deposits

Scale deposits on the bottom of the appliance lead to increased energy consumption and reduce the service life of the appliance.

Descale the appliance as soon as scale deposits become apparent.

Use a descaler that is designed for household appliances (e.g. coff ee machines). Proceed as described in the descending agent usage instructions.
■ After descending, rinse the appliance out with plenty of fresh water.

Storage

■ Let the appliance cool down completely before putting it into storage.
Wind the power cable around the cable storage 7 beneath the base 6
Store the appliance in a dry location.

Fault rectification

Malfunction Cause Solution
The appliance not working.	The plug is not inserted into a mains power socket.	Connect the plug to the power supply.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	Contact Customer Services
	The appliance has overheated and the overheating protection is active.	Allow the appliance to cool down.
The ON/OFF switch 4 is not engaging.	The kettle 8 is not on the base 6.	Place the kettle 8 on the base 6.
	The appliance is defective.	In this case, contact Customer Services.

Disposal of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre should you be in any doubt.

Notes on EC Conformity Declaration

In regard to compliance with fundamental requirements and other relevant provisions, this appliance complies with the European Electromagnetic Compatibility Directive 2004/108/EC, RoHS Directive 2011/65/EU and the Low-Voltage Directive 2006/95/EC.

CE

The full original Declaration of Conformity is available from the importer.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Warranty

The warranty provided for this appliance is 3 years from date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact the Customer Service by telephone. This is the only way to guarantee free dispatch of your goods.

NOTE

This warranty is valid only for material or manufacturing faults, not for transport damage, parts subject to wear and tear or for damage to fragile parts, e.g. switches.

This appliance is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifi cations not carried out by one of our authorised service centres.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts.

Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase.

Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN111451

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

GB

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com
