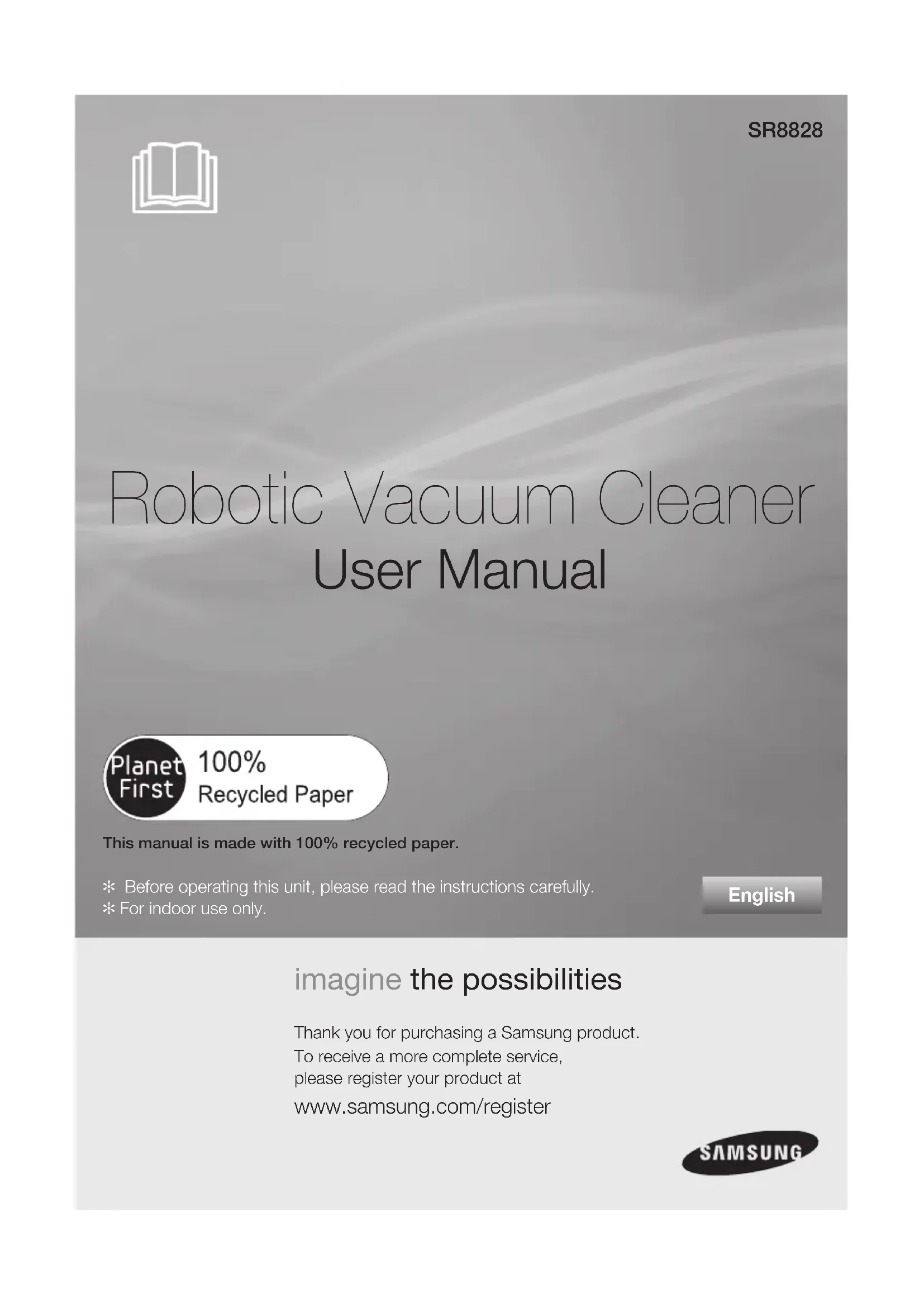

USER MANUAL SR8828 SAMSUNG

imagine the possibilities Thank you for purchasing a Samsung product.To receive a more complete service, please register your product at www.samsung.com/register Robotic Vacuum Cleaner User Manual ✻ Before operating this unit, please read the instructions carefully.✻ For indoor use only. English This manual is made with 100% recycled paper. SR8828 DJ68-00620T.indb 1DJ68-00620T.indb 1 2012.1.11 4:15:6 PM2012.1.11 4:15:6 PM2_ Safety information Safety information

CAUTION/WARNING SYMBOLS USED

WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists.

NOTE Explains terms to help users understand how use the product properly. SAFETY INFORMATION

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.

• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual. WARNINGWARNING DJ68-00620T.indb 2DJ68-00620T.indb 2 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PMSafety information _3 Safety information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following: READ ALL INSTRUCTIONS BEFORE USING YOUR ROBOTIC VACUUM CLEANER. Unplug from outlet when not in use and before conducting maintenance.

WARNING: to reduce the risk of fi re, electric shock, or injury:

• Use only as described in this manual.

Do not operate the robotic vacuum cleaner or charger if it has been damaged in any way.

• If the cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a customer care center.

• Do not handle the charger or robotic vacuum cleaner with wet hands.

• Use only on dry, indoor surfaces.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. BATTERY CHARGER

• Do not modify the polarized plug to fi t a non-polarized outlet or extension cord.

• Do not use outdoors or on wet surfaces.

• Unplug the charger from the outlet when not in use and before servicing.

• Use only the charger supplied by the manufacturer to recharge.

• Do not use with a damaged cord or plug.

• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not mutilate or incinerate batteries as they will explode at high temperatures.

• Do not attempt to open the charger. Repairs should only be carried out by a qualifi ed customer care centre.

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

• Do not use without a fi lter in place. When servicing the unit, never put fi ngers or other objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked; keep openings free of dust, lint, hair, and anything that may reduce air fl ow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use to pick up fl ammable or combustible liquids such as gasoline, nor use on areas where they may be present.

• Do not use robotic vacuum cleaner in an enclosed space fi lled with vapours given off by oil based paint, paint thinner, moth proofi ng substances, fl ammable dust, or other explosive or toxic vapours.

• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, fl ush them immediately with clean water for a minimum of 10 minutes. Seek medical attention. DJ68-00620T.indb 4DJ68-00620T.indb 4 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PMContents _5 Contents SAFETY INFORMATION

06 Power related 07 Before use 10 In use 11 Cleaning and maintenance PRODUCT FEATURES

15 Components 16 Name of each part

19 Installing robotic vacuum cleaner 19 Installation order 19 Turning the power switch on or off 20 Installing the charger 21 Charging 22 About the battery 23 Starting/stopping cleaning 24 Recharging 25 Auto cleaning 26 Spot cleaning 27 Max cleaning 28 Edge cleaning 29 Scheduled Cleaning

30 Cleaning robotic vacuum cleaner

Please keep the cleaning and maintenance methods in mind 30 Cleaning the sensor window and the camera 31 Cleaning the dust bin and the Filter 32 Cleaning the power brush 34 Cleaning the edge-cleaning side rotating brush 35 Cleaning the driving wheel PRODUCT SPECIFICATION

38 Product specifi cation DJ68-00620T.indb 5DJ68-00620T.indb 5 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PM6_ Safety information Safety information POWER RELATED Do not bend the power cord forcefully or place a heavy object on it that could break it. - This may result in fi re or electric shock. Do not use a damaged power cord, plug, or a loose power outlet. - This may result in fi re or electric shock. Do not use multiple plugs in a single socket. (Do not leave the cord lying exposed on the fl oor.) - This may result in fi re or electric shock. Do not pull the power plug by the cord or touch the plug with wet hands. - This may result in fi re or electric shock. Make sure to remove any dust or water from the power plug. - Failing to do so may result in a malfunction or electric shock. WARNING WARNING WARNING WARNING WARNING DJ68-00620T.indb 6DJ68-00620T.indb 6 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PMSafety information _7 Safety information 01 SAFETY INFORMATION CAUTION BEFORE USE Before activating the robotic vacuum cleaner, make sure that the dust bin is assembled. - If the dust bin is not inserted, robotic vacuum cleaner will not operate. CAUTION Never use robotic vacuum cleaner in locations with combustible material such as: - Locations with candles or desk lamps on the fl oor. - Locations with unattended fi res (fi re or embers). - Locations with gasoline, distilled alcohol, thinner, ashtrays with burning cigarettes, etc. CAUTION Robotic vacuum cleaner is for domestic use only. Do not use it in the following locations. - Attics, basements, warehouses, industrial buildings, separate rooms distant from the main building, locations exposed to wet or damp conditions such as bathrooms or wash rooms, and narrow and highly situated locations such as tables or shelves. Critical damage (abnormal operation and breakage) may occur when used in these locations. CAUTION Open all doors to clean all rooms. - When a door is closed, the robotic vacuum cleaner will not be able to enter that room.

However, make sure to close the doors to the main entrance, the veranda and the bathroom, and any other rooms where the robotic vacuum cleaner may fall to a lower fl oor. CAUTION For carpets with long tassels, fold the tassels under the carpet. - Unfolded tassels may result in critical damage to the carpet and the machine itself, as they get caught in the driving wheel or the power brush. DJ68-00620T.indb 7DJ68-00620T.indb 7 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PM8_ Safety information Safety information BEFORE USE When a child or pet is left alone, make sure to turn off the Power Switch of the robotic vacuum cleaner. - Robotic vacuum cleaner may attract their attention. - When the rotating wheel or brush catches fi ngers, feet, clothing or hair, this may result in injury. - If a child or pet is in the way of the robotic vacuum cleaner, it may be identifi ed as an obstacle and the area may not cleaned. - When the Power Switch is turned off, it will cut off the power supply and deactivate all functions. CAUTION Remove objects scattered on the fl oor before cleaning. - Robotic vacuum cleaner is designed to detect obstacles 5cm away from it. - Bath towels, pads in front of bathrooms and sinks, entrances, utility rooms, power cords, table cloths or belts can become entangled in the driving wheel or power brush. This can cause objects to fall from the table. CAUTION Remove small objects or brittle items from the area to be cleaned in advance. - Make sure to clear any objects before cleaning. - Make sure to remove fragile items such as china, glass objects, fl owerpots, etc. - Robotic vacuum cleaner does not recognize coins, rings or other valuable items such as jewelry. CAUTION Ensure that children do not step or sit on the robotic vacuum. - Children may fall and injure themselves or critical damage may occur to the product. CAUTION Inform all family members (or relevant parties) to be cautious before cleaning or when using the Scheduled Cleaning Mode. - Robotic vacuum cleaner may run into children, causing them to fall. CAUTION When installing the charger station, do not leave the power cord exposed on the fl oor. - When the robotic vacuum cleaner automatically recharges or passes by the charger station, it may drag the power cord around with it. CAUTION DJ68-00620T.indb 8DJ68-00620T.indb 8 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PMSafety information _9 Safety information 01 SAFETY INFORMATION BEFORE USE Always keep the power cord of the charger plugged into the outlet. - Although the robotic vacuum cleaner has a self-charging function, if the power cord of the charger station is unplugged, it cannot charge its battery automatically. CAUTION Do not use the charger for other purposes. - This may result in critical damage to the charger or cause a fi re. WARNING Make sure the robotic vacuum cleaner does not vacuum or move over liquids such as water, oil or pet litter.

This may result in critical damage to the product.

Liquids may spread through the wheels resulting in contamination. WARNING CAUTION Install the charger in a location that can be easily accessed by the robotic vacuum cleaner. - If the charger is installed in a corner, this may cause extra movements and may disturb the automatic recharging process. Make sure that there is no trace of liquids on the charger station. - Failing to do so may result in fi re or electric shock. WARNING Do not short-circuit the charge pins with metal objects such as chopsticks, screwdrivers, and etc. - This will result in critical damage to the charger. WARNING There should be no obstacles 0.5 m to the left and right and within 1 m of the front. WARNING about 1m about 1m about 0.5m about 0.5m about 0.5

about 0.5m Objects in front of the charger will prevent the robotic vacuum cleaner from auto-charging itself. - Clear the area. CAUTION about 0.5mabout 0.5m about 1m about 1m DJ68-00620T.indb 9DJ68-00620T.indb 9 2012.1.11 4:15:7 PM2012.1.11 4:15:7 PM10_ Safety information Safety information NOTE IN USE You cannot use the robotic vacuum cleaner on thick carpets. - This may result in problems with the robotic vacuum cleaner. - This may result in damage to carpets. Robotic vacuum cleaner may not be able to continue its operation if it is stuck at the entrance or veranda doorsill. - Robotic vacuum cleaner stops operating for safety reasons if it cannot move for more than 5 minutes. - To resume operating, turn the Power Switch off and then on again after moving it to a location where it can continue cleaning. If an unusual sound, smell or smoke is emitted from the robotic vacuum cleaner, immediately turn off the Power Switch and call the customer care center. WARNING Do not use the robotic vacuum cleaner on a table or other high locations. - This may result in damage when the unit accidentally drops. CAUTION Robotic vacuum cleaner may bump into furniture such as chair legs, table legs, thin and long furniture, etc. while operating. - For a quicker and cleaner performance, place the chairs on top of the table. Immediately remove any large pieces of paper or plastic bags from the machine while cleaning. - Using the machine for an extended period of time with its inlet port obstructed may result in critical damage to the product. Do not place any objects on top of the robotic vacuum cleaner. - This may result in malfunction. CAUTION CAUTION CAUTION CAUTION DJ68-00620T.indb 10DJ68-00620T.indb 10 2012.1.11 4:15:8 PM2012.1.11 4:15:8 PMSafety information _11 Safety information 01 SAFETY INFORMATION NOTE NOTE IN USE Robotic vacuum cleaner cannot completely clean locations that it cannot reach, such as corners, and spaces between sofas and walls. - Please clean these locations occasionally. Dust clusters may remain after cleaning, when the robotic vacuum cleaner fails to pick up dust clusters that were formed while cleaning. - In this case, sweep up the dust with another cleaning tool.

CLEANING AND MAINTENANCE

When cleaning the product, do not spray water directly onto the exterior or wipe it with a volatile material such as benzene, thinner or alcohol. - This may result in critical damage to the product. CAUTION The unit must not be disassembled or reconstructed by anyone other than a qualifi ed service engineer. - This may result in damage to the product. CAUTION Do not forcefully press the bumper on the robotic vacuum cleaner. - If the bumper sensor gets damaged, the robotic vacuum cleaner may bump into walls or furniture. CAUTION Remove any foreign substances accumulated on the Obstacle and Cliff sensors on a regular basis. - Dirt accumulated on the sensors will result in inaccurate functioning of the sensors. WARNING추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서추락방지 센서Cliff sensorObstacle sensor DJ68-00620T.indb 11DJ68-00620T.indb 11 2012.1.11 4:15:8 PM2012.1.11 4:15:8 PM12_ Safety information Safety information

CLEANING AND MAINTENANCE

Contact the Samsung Electronics customer care center to replace the battery. - Failing to use original batteries will result in product failure. WARNING If the power cord is damaged, have it replaced by a qualifi ed service engineer from the customer care center. - Failing to do so may result in fi re or electric shock. WARNING Before cleaning the charger, make sure to disconnect the power cord for safety. WARNING When removing foreign substances, always use the cleaning brush after turning the Power Switch off. - Failing to do so may result in sudden operation of the unit and cause an injury or critical damage to the product. WARNING Power brush Power brush Edge- Edge- cleaning cleaning side brush side brush DJ68-00620T.indb 12DJ68-00620T.indb 12 2012.1.11 4:15:8 PM2012.1.11 4:15:8 PMProduct Features _13 Product Features

• What is ceiling shape recognition (Visionary mapping

This function recognizes the shape of the ceiling using the camera on top to identify the area to be cleaned and determines the best way to pass over and clean every section of the fl oor.

VARIOUS CLEANING MODES

Various cleaning modes are provided to meet all your needs.

DELICATE CLEANING OF EVERY CORNER

Since the robotic vacuum cleaner cleans the fl oor in a sequential way ( ) along the map determined by the ceiling shape recognition function, it cleans every corner of the fl oor.

Cleans all rooms automatically.

Cleans a localized area intensely. It can be used to clean bread or cookie crumbs.

Runs until the battery is nearly depleted.

When the Obstacle Sensor detects an obstacle during the cleaning, the Robot Cleaner reduces its speed to minimize the bumping impact and the Bumper Sensor also helps it lower the bumping impact. And, it cleans the corners by reaching to them as close as possible.

5. Scheduled Cleaning Mode

At the specifi ed time, the robotic vacuum cleaner cleans the fl oor.

About 1.5m About 1.5m DJ68-00620T.indb 13DJ68-00620T.indb 13 2012.1.11 4:15:8 PM2012.1.11 4:15:8 PM14_ Product Features Product Features DOORSILL CROSSING The robotic vacuum cleaner’s innovative driving system makes it possible for it to cross over doorsills with a height of about 1.5 cm and clean all rooms. The robotic vacuum cleaner may not be able to pass a 1.5 cm doorsill depending on the shape of the doorsill. ANTI-CRASH The robotic vacuum cleaner detects and avoids obstacles in 2 stages. First, the 7 obstacle sensors detect obstacles in stage 1 and if the robotic vacuum cleaner does crash into an obstacle, the 2 bumper sensors absorb the impact.

EDGE-CLEANING SIDE ROTATING BRUSH

The edge-cleaning side rotating brush cleans dust from the edges. AUTO CHARGING When the battery is low, the robotic vacuum cleaner is automatically guided to the charger to enable it to perform a quick auto charge. SAFETY DEVICE When the robotic vacuum cleaner is lifted up while cleaning, the driving wheels, power brush, suction motor, and side rotating brush are stopped autonati(all) by sensor. About 1.5 cm Stair type Vertical type DJ68-00620T.indb 14DJ68-00620T.indb 14 2012.1.11 4:15:8 PM2012.1.11 4:15:8 PMAssembling the cleaner _15 Assembling the cleaner

Assembling the cleaner

[ Display panel ] DISPLAY PART

- Shows the timer display, progress status, and error codes using numbers, letters and graphics.

2. Battery Level Indicator

- Charging: Shows the charging progress in 3 steps. - In Use: Shows the battery charge level. The battery charge level is reduced by each level from FULL while operating. (When the battery is fully discharged, one level will fl ash to display “LO”.)

3. Scheduled Cleaning

- When cleaning is scheduled, the Scheduled Cleaning icon is lit.

- This icon turns on when the robotic vacuum cleaner returns to the charger station to charge its battery.

5. Cleaning Mode Display

- Each time the cleaning mode button is pressed, the corresponding cleaning mode is displayed. (a) Auto Mode: This icon turns on when Auto cleaning mode is selected. (b) Spot Mode: This icon turns on when Spot cleaning mode is selected. (c) Max Mode: This icon turns on when Max cleaning mode is selected. (d) Edge Mode : “ ” is on when Edge cleaning mode is selected. BUTTON PART

- Press to start/stop cleaning.

- Press to select a cleaning mode. After selecting a cleaning mode, press the ( ) button to start cleaning.

- Press to schedule a cleaning. You can delay a cleaning up to 23 hours.

- When this button is pressed, the Recharging icon is turned on and robotic vacuum cleaner will return to the charger station to charge its battery.

1. Turning the Power Switch on or off

To use the robotic vacuum cleaner, you must turn on the Power Switch at the bottom of the main unit.

2. Installing the Charger

To charge the robotic vacuum cleaner, you must fi rst install the charger. Since the battery is discharged when the product is purchased, you must fully charge the battery before use.

3. Charging the Battery

You should charge the battery completely before using the robotic vacuum cleaner.

INSTALLING THE ROBOTIC VACUUM CLEANER

TURNING THE POWER SWITCH ON OR OFF CAUTION If the Power Switch is turned off, the robotic vacuum cleaner will not be charged even if it is docked with the charger station. To use the robotic vacuum cleaner, you must turn the Power Switch on. If you turn the Power Switch off, all settings will be reset.

1. Turn over the main unit and turn the Power Switch

on. - If the icons are not turned on, it indicates that the battery charge is depleted. In this case, dock the robotic vacuum cleaner to the charger station after turning the Power Switch on. - Note that turning the Power Switch off will reset all settings. - When no key is pressed for approximately 10 minutes when the power is on, the power is automatically turned off to save battery power. In this case, to use this robotic vacuum cleaner again, please push the “Power” button or “Start/Stop” button. DJ68-00620T.indb 19DJ68-00620T.indb 19 2012.1.11 4:15:9 PM2012.1.11 4:15:9 PM20_ Operating the cleaner Operating the cleaner

Always keep the power cord of the charger plugged into the power outlet. - If no power is supplied to the charger, the robotic vacuum will not be able to fi nd the charger and will not be able to charge automatically. - If the robotic vacuum cleaner is separated from the charger, the battery is automatically discharged.

2. There should be no obstacles 0.5 m to the left and

right and within 1 m of the front.

1. Install the charger on a fl at surface.

3. Install the charger in a location where it can be easily

accessed by the robotic vacuum cleaner.

4. Arrange the power cord along the wall.

5. When the fl oor is made of wood, install the charger

in the same direction as the grain of the wood. Power Lamp Power Lamp Charging Lamp Charging Lamp NOTE about 1m about 1m about 0.5m about 0.5m about 0.5m about 0.5m DJ68-00620T.indb 20DJ68-00620T.indb 20 2012.1.11 4:15:9 PM2012.1.11 4:15:9 PMOperating the cleaner _21 Operating the cleaner

Check the charge status of the robotic vacuum cleaner. - When charging starts, the battery level indicator and

When charging is complete, the battery level indicator and “FULL” will be displayed in the display panel.

1. After aligning the charge pins of the main unit with

the charge pin of the charger station, press the main unit until you hear a “Recharging power” sound from the charger. - The Charging Lamp turns green. When the product is initially purchased, the battery is fully discharged, and you must charge the robotic vacuum cleaner manually. Power Lamp Power Lamp Charging Lamp Charging Lamp Power Power Lamp Lamp Charging Lamp Charging Lamp NOTE ● When the product is initially purchased, it will take about 120 minutes to fully charge the battery and will run for about 90 minutes. ● When charging the battery while the battery is over-heated, the charging time can increase. ● Measures to take when charging is not smooth. When the robotic vacuum cleaner cannot be automatically charged, check the following: - Turn the Power Switch at the bottom of the robotic vacuum cleaner off and on (Reset). - Re-plug the power of the charger (Reset). - Check whether there are any foreign substances on the charge connector and wipe the charge connector on the main unit and the charger with a dry cloth. - Check whether there are objects near the charger that are strong refl ectors. ● When separating the robotic vacuum cleaner from the charger, it will discharge naturally. - Charge the robotic vacuum cleaner through the charger, if possible. (When leaving your home unattended for a long period of time due to a business trip, travelling etc., turn off the Power Switch of the robotic vacuum cleaner and unplug the power of the charger to store them.) Turn on the Power Switch at the bottom of the product.

When the battery level display fl ashes while cleaning, the robotic vacuum cleaner stops vacuuming and automatically charges itself at the charger.

When the battery level fl ashes and “LO” is displayed while cleaning, robotic vacuum cleaner cannot be operated by the buttons on the main unit. In this case, directly carry the robotic vacuum cleaner to the charger to charge the battery. (This is when the battery is completely discharged.) Charge completeCharging Required charging<Charge display>Charging Fully chargedFlashFlash DJ68-00620T.indb 21DJ68-00620T.indb 21 2012.1.11 4:15:10 PM2012.1.11 4:15:10 PM22_ Operating the cleaner Operating the cleaner

- This battery is only for Samsung robotic vacuums. It is strictly prohibited to use it for other appliances or for other purposes. - Do not disassemble or modify the battery. - Charge it in a location with good ventilation. - Do not expose the battery to fi re and do not heat it. - Do not connect any metallic objects to the (+) or (-) terminals of the battery. - Keep it indoors (0℃~40℃). - Before you discard this product, dispose of batteries in an environmentally safe manner. - Do not discard batteries with your regular household trash. - Follow all local regulations when disposing of old batteries. ✽ If the battery is out of order, do not disassemble it. Contact your nearest customer care center. ✽ An increased charging time and a shorter battery life indicates the near end of the battery life. Please contact an authorized customer care center to replace your battery. The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

The robotic vacuum cleaner is powered by an environment-friendly Nickel Metal Hydride (NiMH) rechargeable battery, and an over-charge prevention function guarantees an extended life time.

The battery warranty period is 6 months from the date of purchase.

When purchasing a battery, ask the customer care center for the genuine part symbol ( ) and model number before purchasing it. DJ68-00620T.indb 22DJ68-00620T.indb 22 2012.1.11 4:15:10 PM2012.1.11 4:15:10 PMOperating the cleaner _23 Operating the cleaner

Turning the power on - Main unit: Press the ( ) button. - The main unit buttons, battery level indicator and cleaning mode icons are turned on. Turning the power off - Main unit: Press and hold the ( ) button down for 3 seconds. - All icons except for the battery level indicator are turned off. Starting - Main unit: Select Auto / Spot / Max / Edge mode by using the ( ) button and then pressing the ( ) button. - When cleaning begins, the robotic vacuum cleaner starts to move.

Pressing the ( ) button without selecting cleaning mode starts to perform the Auto mode cleaning. Stopping - To stop, press the ( ) main unit button. - When cleaning is stopped, the robotic vacuum cleaner stops. You can run or stop all robotic vacuum functions.

Each robotic vacuum function only runs when the Power Switch is turned on.

When the robotic vacuum is operating, press the ( ) button to cancel the operation and select a function. Using the main unit buttons Turning the power on or off Starting or stopping cleaning DJ68-00620T.indb 23DJ68-00620T.indb 23 2012.1.11 4:15:10 PM2012.1.11 4:15:10 PM24_ Operating the cleaner Operating the cleaner

- The main unit icon ( ) is turned on and the robotic vacuum cleaner will return to the charger.

2. To stop the robotic vacuum cleaner while it is

Recharging button when the robotic vacuum cleaner is less than 1.5 m from the charger. You can have the robotic vacuum cleaner return to the charger to charge the battery by using the Recharging button.

When the robotic vacuum cleaner is operating, press the ( ) button to cancel the operation and press the Recharging button. Troubleshooting when the robotic vacuum cleaner does not return to the charger

Check the installation of the charger - When the charger is in a location where the charger cannot guide the robotic vacuum cleaner to the charger. - When the charger is more than 5m away from robotic vacuum cleaner. : It may require a longer time for the robotic vacuum cleaner to return to the charger.

Manually charge the robotic vacuum cleaner in the following cases. - When the charger is installed in a corner. - When the battery is fully discharged. - When the robotic vacuum cleaner is trapped by an obstacle (furniture etc.) - When the robotic vacuum cleaner cannot pass over the doorsill to the location where the charger is installed. Using the main unit buttons

AUTO CLEANING The robotic vacuum cleaner will move by itself and automatically clean the house until cleaning is completed once.

If cleaning begins when the robotic vacuum cleaner is docked with the charger station, the time to return to the charger is decreased since the robotic vacuum cleaner remembers its original position while moving.

If the battery level becomes too low while cleaning, the robotic vacuum cleaner will automatically return to the charger station and resume cleaning after charging its battery. (Number of cleaning operations resumed: Once) While cleaning When cleaning is complete About the Resume Cleaning function If the robotic vacuum cleaner has evaluated that cleaning is complete, the resume cleaning function is not performed. If you move the robotic vacuum cleaner when it is being charged or press a button, the robotic vacuum cleaner judges cleaning to be complete and does not resume cleaning. Cancel the mode.

Set the mode. Main unit buttonConfiguration Sequence Do not move the robotic vacuum cleaner when it is cleaning or press a button while it is cleaning. Otherwise, the robotic vacuum cleaner judges cleaning to be complete and starts cleaning again from the beginning. CAUTION NOTE 1time DJ68-00620T.indb 25DJ68-00620T.indb 25 2012.1.11 4:15:10 PM2012.1.11 4:15:10 PM26_ Operating the cleaner Operating the cleaner

USING THE ROBOTIC VACUUM CLEANER

SPOT CLEANING You can conveniently clean a specifi c area that has a a lot of cookie crumbs, dust, and etc.

Move the robotic vacuum cleaner to the location where you want to perform a spot clean. While cleaning When cleaning is complete - In Spot cleaning mode, the robotic vacuum cleaner cleans an area with a length of 1.5m and a width of 1.5m. - When cleaning is completed, the robotic vacuum cleaner will display End, Stop, and Stand by. Cancel the mode.

When the robotic vacuum cleaner is docked with the charger station, spot cleaning is not supported. Main unit buttonConfiguration Sequence2time NOTE About 1.5mAbout 1.5m DJ68-00620T.indb 26DJ68-00620T.indb 26 2012.1.11 4:15:10 PM2012.1.11 4:15:10 PMOperating the cleaner _27 Operating the cleaner

03 OPERATING THE CLEANER

USING THE ROBOTIC VACUUM CLEANER

MAX CLEANING The robotic vacuum cleaner automatically moves and cleans until the battery runs out and the battery level fl ashes only one level.

If cleaning begins when the robotic vacuum cleaner is docked with the charger station, the time to return to the charger is decreased since the robotic vacuum cleaner remembers its original position while moving.

If the battery level becomes low while cleaning, the robotic vacuum cleaner automatically returns to the charger station and resumes cleaning after charging the battery. (Number of resumed cleaning operations: Once) CAUTION Do not move the robotic vacuum cleaner while it is cleaning or press a button while cleaning. Otherwise, the robotic vacuum cleaner judges cleaning to be complete and starts cleaning again from the beginning. While cleaning

Set the mode. About the Resume Cleaning function If the robotic vacuum cleaner judges cleaning to be complete, resume cleaning is not performed. If you move the robotic vacuum cleaner while it is being charged or press a button, robotic vacuum cleaner judges cleaning to be complete (cleaning is not resumed). NOTE Main unit buttonConfiguration Sequence3time DJ68-00620T.indb 27DJ68-00620T.indb 27 2012.1.11 4:15:10 PM2012.1.11 4:15:10 PM28_ Operating the cleaner Operating the cleaner When the Obstacle Sensor detects an obstacle during the cleaning, the Robotic vacuum Cleaner reduces its speed to minimize the bumping impact and the Bumper Sensor also helps it lower the bumping impact. It cleans the corners by reaching to them as close as possible. (This Robotic vacuum Cleaner is a touching type cleaner.)

USING THE ROBOTIC VACUUM CLEANER

EDGE CLEANING The robotic vacuum cleaner will move by itself and automatically clean the house until cleaning is completed once.

If cleaning begins when the robotic vacuum cleaner is docked with the charger station, the time to return to the charger is decreased since the robotic vacuum cleaner remembers its original position while moving.

If the battery level becomes too low while cleaning, the robotic vacuum cleaner will automatically return to the charger station and resume cleaning after charging its battery. (Number of cleaning operations resumed: Once) While cleaning When cleaning is complete About the Resume Cleaning function

• If the robotic vacuum cleaner has evaluated that cleaning is complete, the resume cleaning function is not performed.

If you move the robotic vacuum cleaner when it is being charged or press a button, the robotic vacuum cleaner judges cleaning to be complete and does not resume cleaning. Do not move the robotic vacuum cleaner when it is cleaning or press a button while it is cleaning. Otherwise, the robotic vacuum cleaner judges cleaning to be complete and starts cleaning again from the beginning. CAUTION NOTE Cancel the mode.

SCHEDULED CLEANING You can schedule robotic vacuum cleaner to start cleaning from a particular time. (Time delay: Up to 23 hours)

Scheduled cleaning is only performed when robotic vacuum cleaner is docked with the charger station. The icon is turned off. Whenever the button is pressed, the time is increased or decreased.

Enter the Scheduled Cleaning mode. Finish the setting.

Main unit buttonConfiguration SequenceFlashFlash(Example) To clean 5 hours Later from now NOTE When setting is complete, and you press the ( ) button instead of the Delay Start button, the scheduled cleaning time is canceled. After completing the setting, if you manually move the robotic vacuum cleaner from the charger station, the scheduled cleaning time is cancelled. DJ68-00620T.indb 29DJ68-00620T.indb 29 2012.1.11 4:15:11 PM2012.1.11 4:15:11 PM30_ Maintain tools and fi lter Maintain tools and fi lter

CLEANING THE ROBOTIC VACUUM CLEANER

PLEASE KEEP THE CLEANING AND MAINTENANCE METHODS IN MIND

When the Power Switch is damaged, please contact the service agent so that it does not cause any accidents.

Do not use any means or mechanical devices not installed by the manufacturer that could accelerate the deformation of the robotic vacuum cleaner. CLEANING THE SENSOR WINDOW AND THE CAMERA You must turn off the Power Switch at the bottom of the main unit before cleaning the robotic vacuum.

Never spray water, thinner, benzene etc. directly onto the main unit of robotic vacuum cleaner.

Always turn off the power switch at the bottom of the main unit before cleaning the robotic vacuum. The robotic vacuum cleaner could operate suddenly and cause an injury.

CLEANING THE DUST BIN AND THE FILTER

2. Separate the dust bin cover by pulling it in the direction of

the arrow in the fi gure.

1. Press the Dust Bin Eject (PUSH) button and pull the

dust bin to separate the dust bin. First, empty the dust bin before cleaning it.

Empty the dust bin in the following cases.

1. When dust has accumulated inside the dust bin.

2. When the suction power suddenly becomes weak.

3. When the noise suddenly increases.

3. Separate the Filter from the dust bin by pulling it in the

direction of the arrow in the fi gure.

5. Install the Filter into the dust bin.

- Make sure that the grid pattern of the Filter is facing downwards. It cannot be installed in the wrong direction.

4. Wipe the dust from the Filter and the dust bin.

✽ You can wash them with water.

6. Close the dust bin cover and install it into the main unit.

2. After checking whether there are any foreign

substances, press the hook that is fi xing the brush cover to separate it.

1. Separate the dust bin by pressing the Dust Bin Eject

(PUSH) button. You must turn off the Power Switch at the bottom of the main unit before cleaning the robotic vacuum.

3. Lift the power brush up from the main unit.

4. Remove any foreign substances such as long hairs

or strings wrapped around the power brush using a cleaning brush or a vacuum cleaner. CAUTION

Because the dust in the dust bin may come out, separate the dust bin fi rst before cleaning the power brush.

5. When cleaning is complete, fi x the Power Switch side of

the power brush fi rst and then fi x the other side of the brush in the same way. DJ68-00620T.indb 32DJ68-00620T.indb 32 2012.1.11 4:15:11 PM2012.1.11 4:15:11 PMMaintain tools and fi lter _33 Maintain tools and fi lter

6. After inserting the 3 tips at the top of the cover,

push the other end in until it “clicks” into place. CAUTION

• To prevent the robotic vacuum cleaner from becoming clogged, be careful not to vacuum tooth picks or cotton swabs.

hen removing foreign substances becomes diffi cult, contact a customer care center.

• Because the power brush vacuums the dust on the fl oor, long strings or hair can become wrapped around the brush. Check and clean the power brush regularly. DJ68-00620T.indb 33DJ68-00620T.indb 33 2012.1.11 4:15:11 PM2012.1.11 4:15:11 PM34_ Maintain tools and fi lter Maintain tools and fi lter

2. Wearing rubber gloves, wrap the side rotating brush with

a cloth using hot water for about 10 seconds and wipe it on the cloth.

Check whether the side rotating brush is bent or whether there are any foreign substances stuck on the brush. You must turn off the Power Switch at the bottom of the main unit before cleaning the robotic vacuum.

3. Turning the side rotating brush, repeat the procedures

4. If hair or string is wrapped between the main unit and

the side rotating brush, undo the screw of the side rotating brush using a (+) driver to remove it. When reassembling the brush, check the “L” mark on the edge-cleaning side rotating brush and the “L” mark on the main unit and then reassemble the side rotating brush. (Letter “R” is carved at the right side rotating brush.) NOTE Because the side rotating brush easily attracts hair and other foreign substances, make sure to clean it frequently. Excessive foreign substances on the side rotating brush can damage the brush.

CLEANING THE DRIVING WHEEL

2. Check for foreign substances and remove them

using a stick or a pair of blunt nippers if necessary.

1. When cleaning the driving wheel, place a soft cloth

on the fl oor and fl ip the main unit, placing it down carefully. You must turn off the Power Switch at the bottom of the main unit before cleaning the robotic.

Robotic vacuum cleaner does not operate at all before cleaning.

Is the dust bin assembled?

Is the Power Switch turned on?

Turn on the Power Switch.

Is cleaning mode ( ) in the display panel turned on?

Is the battery level fl ashing only one level and is ‘LO’ displayed in the display panel?

Lift up the robotic vacuum cleaner, and manually dock the robotic vacuum onto the charger to charge it. Robotic vacuum cleaner stopped operating while cleaning.

Is the battery level fl ashing only one level and is ‘LO’ displayed in the display panel?

Lift up the robotic vacuum cleaner, manually dock the robotic onto the charger to charge it.

Has the robotic vacuum cleaner become hooked on wires on the fl oor?

Is the robotic vacuum cleaner stuck to the fl oor where there is a height difference? - The driving wheel is lifted.

Turn off the Power Switch and move the cleaning robotic vacuum to another place to clean.

Is there a thin towel (cloth) wrapped around the driving wheel?

Turn off the Power Switch and remove the thin towel.

Is the robotic vacuum cleaner stuck on the doorsill?

Turn off the Power Switch and move the robotic vacuum cleaner to another place to clean. The suction power is weak while cleaning.

Check whether the dust bin is full of dust.

Stop the robotic vacuum cleaner and empty the dust bin.

Check whether the suction inlet is clogged by foreign substances.

Turn off the Power Switch and remove the foreign substances on the suction inlet.

Check whether the Filter is clogged.

Clean the Filter well. Robotic vacuum cleaner cannot fi nd the charger.

Check whether the power plug of the charger is plugged correctly into the outlet.

If there are any obstacles within a range of about 1m in front of the charger and about 0.5m range to the left and right of the charger, you should remove the obstacles.

Robotic vacuum cleaner is caught, stuck or trapped while navigating.

Turn off the Power Switch at the bottom and move the robotic vacuum cleaner to a different location.

A foreign substance (string, paper, toy etc.) is caught in the power brush.

Turn off the Power Switch at the bottom and remove the foreign substance from the power brush.

A foreign substance (string, paper, toy etc.) is caught in the left driving wheel.

Turn off the Power Switch at the bottom and remove the foreign substance from the left driving wheel.

A foreign substance (string, paper, toy etc.) is caught in the right driving wheel.

Turn off the Power Switch at the bottom and remove the foreign substance from the right driving wheel.

Check bumper sensor.

Slightly pull the stuck bumper outward.

A foreign substance (dust, stain etc.) is on the Obstacle sensor window.

Turn off the Power Switch at the bottom and wipe the foreign substance from the front and rear sensor windows using a soft cloth.

A foreign substance (Dust, stain etc.) is on the Cliff sensor window.

Turn off the Power Switch at the bottom and wipe the foreign substance on the cilff sensor window with a soft cloth.

Insert the dust bin until you hear a “Click” sound.

A foreign substance (String, cloth etc.) is caught on the edge-cleaning side rotating brush.

FONCTIONS DU PRODUIT

MISE SOUS/HORS TENSION

IMPORTANT : READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING. By downloading, copying, installing or using the software you agree to this license. If you do not agree to this license, do not download, install, copy or use the software. License Agreement For Open Source Computer Vision Library Copyright (C) 2000-2008, Intel Corporation, all rights reserved. Copyright (C) 2008-2010, Willow Garage Inc., all rights reserved. Third party copyrights are property of their respective owners. Redistribution and use in source and binary forms, with or without modifi cation, are permitted provided that the following conditions are met: Redistribution’s of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistribution’s in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. The name of the copyright holders may not be used to endorse or promote products derived from this software without specifi c prior written permission. This software is provided by the copyright holders and contributors “as is” and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall the Intel Corporation or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profi ts; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage. Copyright (c) 2006, 2008, 2009, 2010 Edward Rosten

All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of the University of Cambridge nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. DJ68-00620T.indb 40DJ68-00620T.indb 40 2012.1.11 4:15:29 PM2012.1.11 4:15:29 PMMemo DJ68-00620T.indb 41DJ68-00620T.indb 41 2012.1.11 4:15:29 PM2012.1.11 4:15:29 PMCode No. DJ68-00620T REV(0.0) DJ68-00620T.indb 42DJ68-00620T.indb 42 2012.1.11 4:15:29 PM2012.1.11 4:15:29 PM
