Product Type	LCD Monitor
Brand	Samsung
Model	ST91S
Screen Size	Approximately 18 or 19 inches (diagonal)
Optimal Resolution	1280 x 1024 at 60 Hz
Panel Type	Active Matrix TFT LCD
Pixel Pitch	0.2805 mm (H) x 0.2805 mm (V)
Viewing Angle	80°/80°/80°/80° (L/R/T/B)
Dimensions (W x D x H)	398.2 x 208.4 x 443.2 mm (with simple stand)
Weight	5.8 kg (with simple stand)
Power Supply	AC 90 ~ 264 V, 60/50 Hz ± 3 Hz
Power Consumption (max)	40 W
Power Saving Mode	PowerSaver (less than 3 W in standby)
Video Input Connectors	D-sub 15-pin (analog) and DVI-D (digital)
Main Functions	Auto adjustment, OSD, position and size adjustment, color correction
Plug & Play Compatibility	VESA DDC (DDC1/2B)
Maintenance and Cleaning	Use a soft, slightly damp cloth; do not spray directly
Safety	Do not open the case; unplug during storms; avoid moisture
Spare Parts and Repairability	Repair by qualified personnel only; VESA 100x100 mm mount for articulated arm
General Information	Online manual available in PDF format; warranty included

Frequently Asked Questions - ST91S SAMSUNG

What to do if the screen remains black and the power indicator blinks?

The monitor is likely in power saving mode (PowerSaver). Press a key on the keyboard or move the mouse to reactivate it. If the problem persists, check the connections and perform a self-test by disconnecting the video cable.

How to clean the LCD screen of the ST91S monitor?

Use a soft, slightly damp cloth (clean water or recommended cleaning product). Wipe gently without applying pressure. Never spray liquid directly on the screen.

I cannot see the OSD menu on the screen. What should I do?

The OSD menu may have been locked. Press the Menu button for more than 5 seconds to unlock it.

Why does the screen display strange colors or black and white?

Check the video cable connection (D-sub or DVI). Make sure the graphics card is properly seated in its slot. Restart the computer after checking.

How to install the monitor on a wall mount?

The monitor is compatible with a VESA 100x100 mm mount. Remove the original stand (4 screws) and attach the mounting interface provided with the wall mount.

What does the message 'Video frequency too high' mean?

This message appears if the graphics card outputs a signal with a refresh rate exceeding the monitor's capabilities (max 85 Hz vertical). Reduce the resolution or frequency in Windows display settings.

Why is there no sound with the multimedia stand (option)?

Check that the stereo cable is properly connected between the computer and the monitor's audio input jack. Make sure the volume is not at minimum and the sound card is enabled.

How to adjust the position and size of the image?

Use the OSD menu: press the Menu button, then navigate with the + and - keys to select 'Position' or 'Size'. Adjust according to your preferences.

The monitor does not turn on at all. What should I check?

Make sure the power cord is properly connected to the monitor and the wall outlet. Check that the power switch on the back is turned on. Test another outlet or cable.

Can I use the monitor with a Macintosh?

Yes, the monitor is Macintosh compatible. Use the D-sub cable (if necessary with a special adapter for older Mac models). Adjust the resolution in System Preferences.

USER MANUAL ST91S SAMSUNG

SyncMaster 181T/191T/171T/171S/171V/191N/170N/172N/192N/173N/193N

SAMSUNG ELECTRONICS SyncMaster Monitor SAMSUNG DIGIT2012 everyone's Invitred Natural Color

3D rendered image of a gray plastic mechanical part with a circular cutout and a small blue circular symbol on the right (no text or symbols)

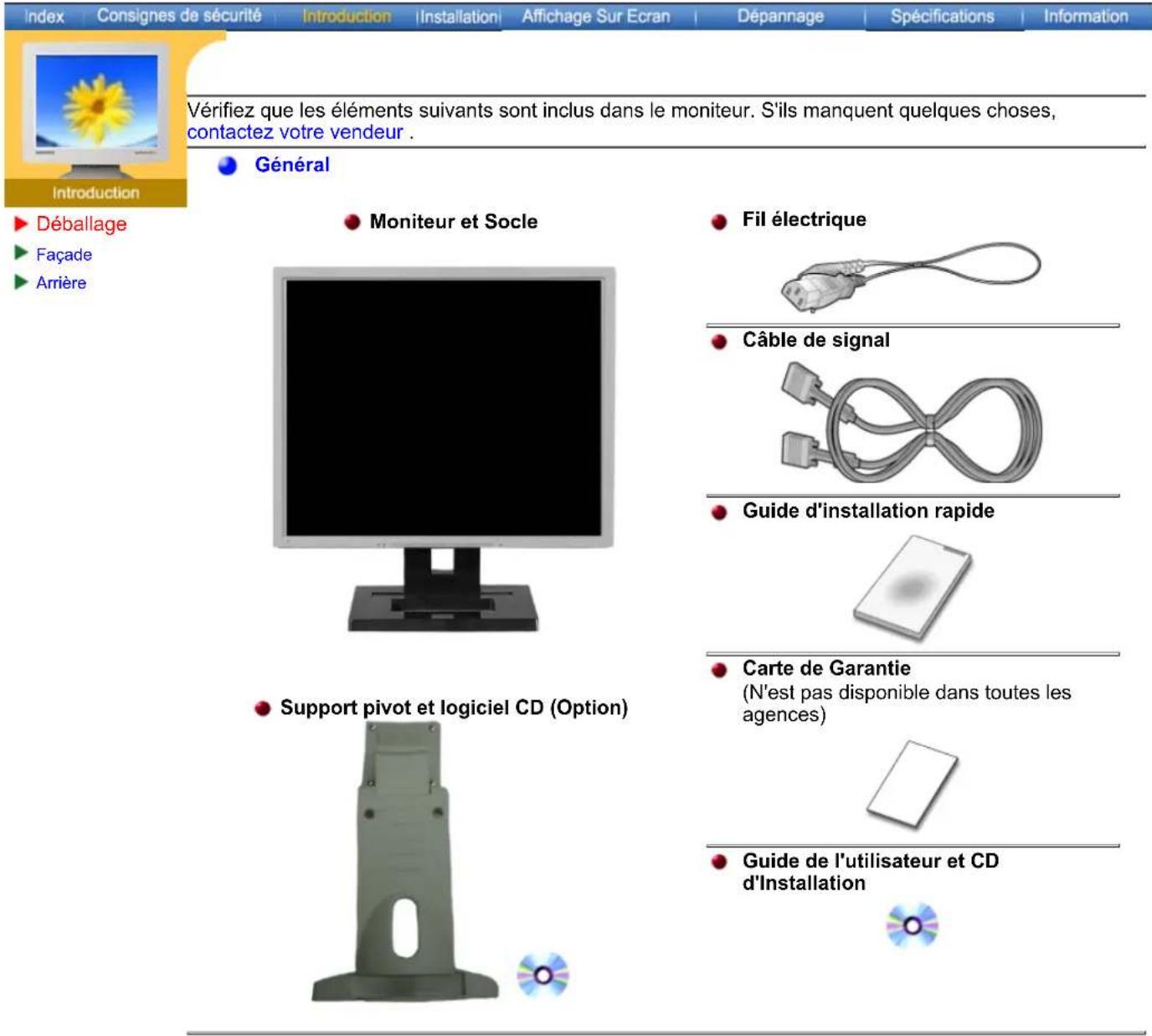

• Fil électrique


Câble signal

Coiled cable with two connectors, no text or symbols visible

Câble DVI (Option)

Laboratory instrument with scale and pointer, no visible text or symbols

Coiled cable with two connectors and a bow-shaped connector (no text or symbols visible)

câbles son

Exterior view of a mechanical device with a central vertical bar and two arrows pointing to the top (no visible text or symbols)

Coiled electrical cable with two leads, no text or symbols visible

Exterior view of a mechanical device with a central vertical bar and two arrows pointing to the top (no visible text or symbols)

Coiled cable with two connectors and a bow-shaped loop (no text or symbols)

6 5 4 3 2 1 I Matrix (Ω) + - Exit Auto

Diagram of a computer monitor with numbered parts labeled 1 to 4 for identification.

Diagram of a computer monitor with numbered components for identification

Diagram of a computer monitor with labeled parts, showing numbered connection points for viewing and display functions.

1 2 3 STEREOS INPUT

Samsung Monitor Setup for Windows: ME/98/95 Pick the display adapter which you want to install the monitor S3 Inc. Savage4 Pick the monitor which you want to install SyncMaster 703DFX/753DFX SyncMaster 753DFX/703DFX/783DFX, MagicSyncMaster C SyncMaster 755DFX Cancel OK

1. Klicka på "Installera"-knappen i "Varning!"-fönstret.

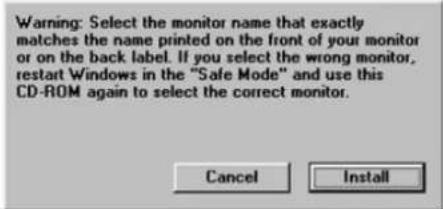

Warning: Select the monitor name that exactly matches the name printed on the front of your monitor or on the back label. If you select the wrong monitor, restart Windows in the "Safe Mode" and use this CD-ROM again to select the correct monitor.

Warning Select the monitor name that exactly matches the name printed on the front of your monitor or on the back label. If you select the wrong monitor, restart Windows in the "Safe Mode" and use this CD-ROM(or Diskette) again to select the correct monitor. Cancel install

Hardware Installation The software you are installing for this hardware: SyncMaster 1715/175S/170S, MagicSyncMaster CX375S has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Pick a category Business and Services Design the application of device files, files in a new or similar format file for your computer, or worldwide the Web, web, and desktop. Add to hardware resources Data, Web, Language, and Internet Search, Speech, and Audio Resources Accessibility Options Performance and Maintenance

App Store and Platform Pick a task... Design the customer's menu. Design the customer's menu. Design the customer's menu. Design the customer's menu. or pick a Control Panel Icon Edit Finish Finish Sequence of our items, such as the user(s), comments, info, for use, and more connections.

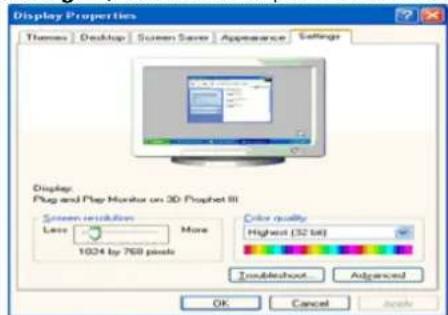

Display Properties Themes | Desktop | Screen Server | Appearance | Settings Display Plug and Play Monitor on 3D Prophet III Screen settings Less More 1024 by 768 pixels Color quality Highest [52 bit] Troubleshoot Advanced OK Cancel Apply

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitors Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

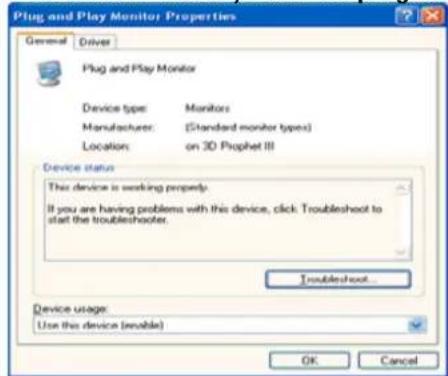

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Drivers Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signor: Microsoft Windows XP Publisher Driver Details: To view details about the driver files. Update Driver: To update the driver for this device. Roll Back Driver: If the device fails after updating the driver, roll back to the previously installed driver. Uninstall: To uninstall the driver (Advanced) OK Cancel

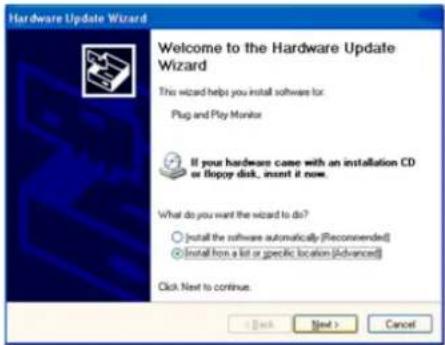

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, want it now. What do you want the wizard to do? ○ install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue.

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to first or expand the default search, which includes local paths and removable media. The best driver found will be installed. Search removable media (Happy CD-ROM_1 Include the location in the search A:\ Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a lot. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

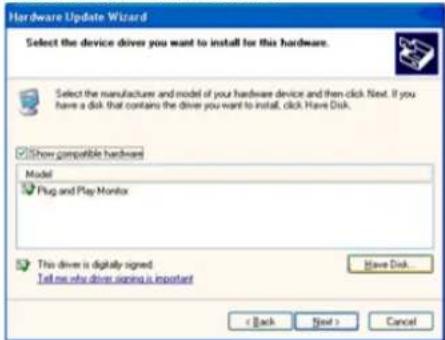

Hardware Update Wizard Select the device drives you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed Tell me why driver signing is important Have Disk... < Back Next > Cancel

Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: OK Browse...

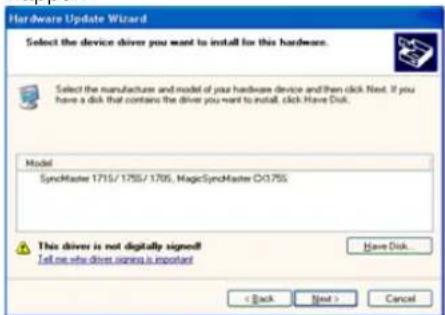

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacture and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Model SyncMaster 1715/ 1755/ 1765, MagicSyncMaster O3755. This driver is not digitally signed! Tell me see driver signes is important Have Disk. < Back Next > Cancel

Hardware Installation The software you are installing for this hardware: SyncMaster 171S/ 175S/ 170S, MagicSyncMaster CX175S has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Hardware Update Wizard Completing the Hardware Update Wizard The wizard has finished installing the software for SyncMaster 1715/1755/1705, MagicSyncMaster D1756 Click Finish to close the wizard. + Back Finish Cancel

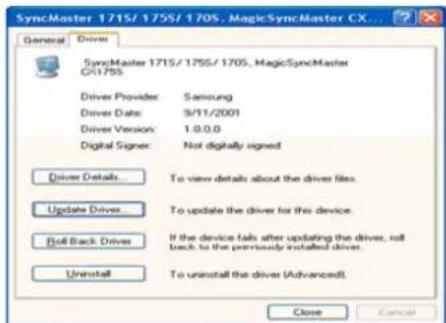

SyncMaster 1715/1755/1705, MagicSyncMaster CX... General Driver SyncMaster 1715/1755/1705, MagicSyncMaster CX1755 Driver Provider: Samsung Driver Date: 9/31/2001 Driver Version: 1.0.0.0 Digital Signer: Not digitally signed Driver Details To view details about the driver files. Update Drivers To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). Close Cancel

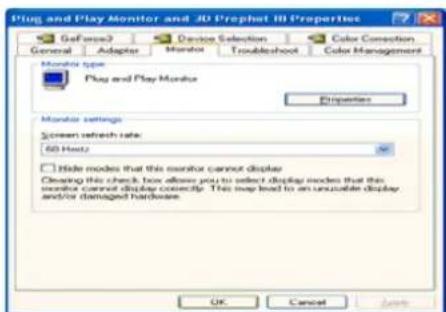

Plug and Play Monitor and 3D Prophet III Properties General Adapter Monitor Troubleshoot Color Connection Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This map leads to an accessible display and/or damaged hardware OK Cancel Access

Computer monitor with blue connecting lines pointing to a labeled point 'a' (no text or symbols on screen)

Two views of a computer monitor with labeled components, showing front and side views (no text or symbols present)

Computer monitor setup with a computer tower and monitor, showing a close-up of the front portion of the screen (no visible text or symbols)

Diagram showing two labeled components (1 and 2) of a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

VESA Interface de support

VESA Interface de support

VESA Interface de support

VESA Interface de support

VESA Interface de support

Cartoon illustration of a book with a rising graph and question marks above it, set against a blue upward arrow background (no text or symbols)

Samsung Computer Products Customer Service 400 Valley Road, Suite 201, Mt. Arlington, NJ 07856

Tel. : [phone], 1-800-SAMSUNG (1-800-726-7864)

Fax.: [phone]

http://www.samsungusa.com/monitor/

CANADA :

Samsung Electronics Canada Inc. 7037 Financial Drive

Mississauga, Ontario L5N 6R3

< European Service Center & National Service >

Stafford Park 12 Telford, Shropshire, TF3 3BJ

Samsung Electronics Australia Pty Ltd. Customer Response Centre 7 Parkview Drive, Homebush Bay NSW 2127

Tel : [phone]

http://www.samsung.com.au/

ESPAÑA :

Samsung Electronics Comercial Iberica, S.A. Ciencies, 55-65 (Poligono Pedrosa) 08908 Hospitalet de Llobregat (Barcelona)

Tel. : [phone]

Fax.: [phone]

http://samsung.es/

THAILAND :

HAI SAMSUNG SERVICE CENTER MPA COMPLEX BUILDING,1st-2nd Floor 175 SOI SUEKSA VIDHAYA SATHON SOI 12 SILOM ROAD ,SILOM,BANGRAK BANGKOK 10500 TEL : [phone] FAX : [phone]

Information

Service

SOUTH AFRICA :

Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021 South Africa Tel : [phone] Fax : [phone] http://www.samsung.co.za/

SWEDEN/DENMARK/NORWAY/FINLAND :

Samsung Electronics AB

Box 713

S-194 27 UPPLANDS VÄSBY

SVERIGE

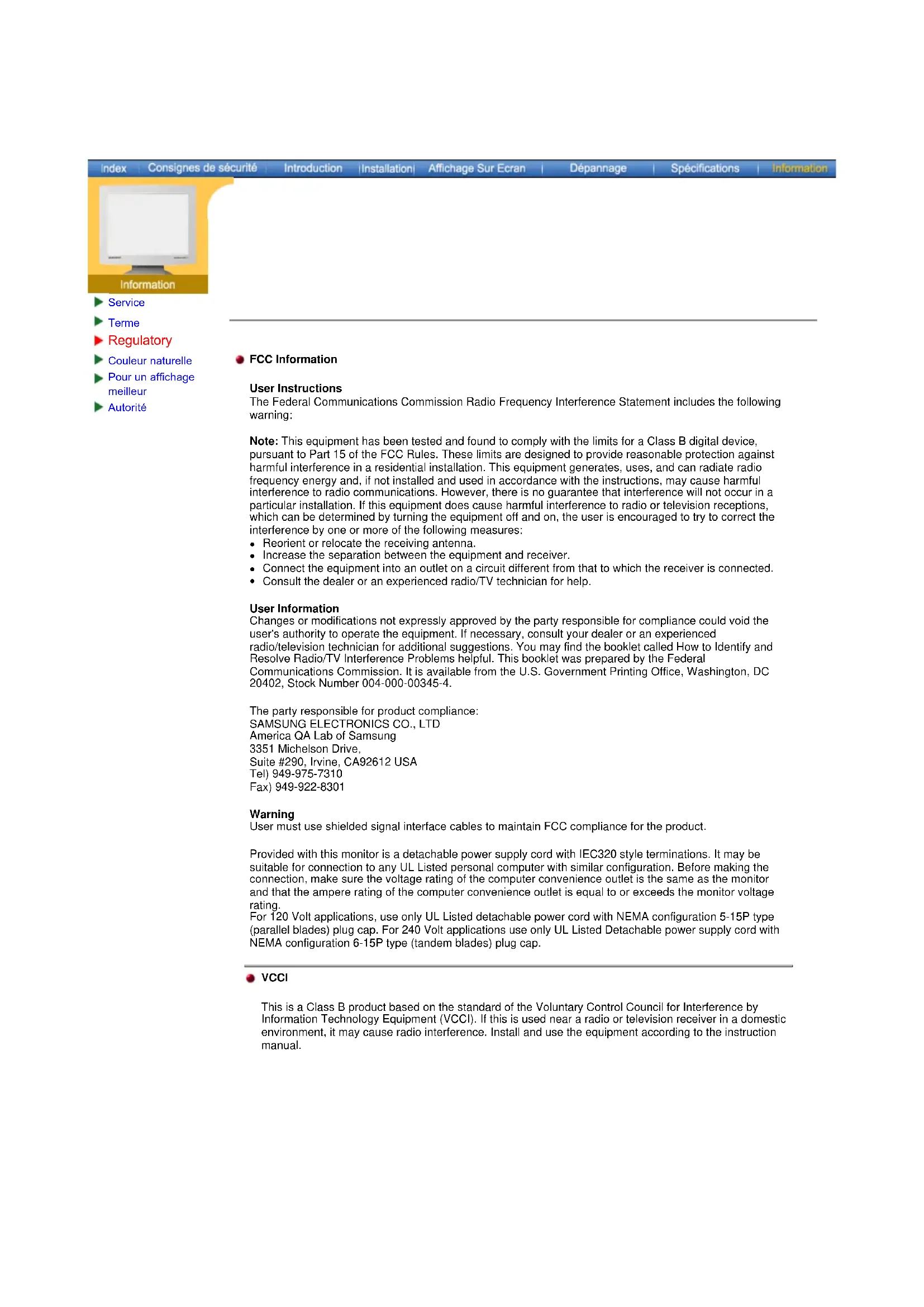

The Federal Communications Commission Radio Frequency Interference Statement includes the following warning:

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television receptions, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

User Information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If necessary, consult your dealer or an experienced radio/television technician for additional suggestions. You may find the booklet called How to Identify and Resolve Radio/TV Interference Problems helpful. This booklet was prepared by the Federal Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4.

The party responsible for product compliance:

SAMSUNG ELECTRONICS CO., LTD

America QA Lab of Samsung

3351 Michelson Drive,

Suite #290, Irvine, CA92612 USA

Tel) 949-975-7310

Fax) 949-922-8301

Warning

User must use shielded signal interface cables to maintain FCC compliance for the product.

Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL Listed personal computer with similar configuration. Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage rating.

For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type (parallel blades) plug cap. For 240 Volt applications use only UL Listed Detachable power supply cord with NEMA configuration 6-15P type (tandem blades) plug cap.

VCCI

This is a Class B product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

• EN55022:1998+A1:2000 - Radio Frequency Interference
• EN55024:1998 - Electromagnetic Immunity of Information Technology Equipment
• EN61000-3-2:1995+A1/A2:1998 - Power Line Harmonics
• EN61000-3-3:1995 - Voltage Fluctuations

PCT Notice

TCO'95-Ecological requirements for personal computers (TCO applied model only)

AB general requirements

AB2 Written Eco-document accompanying the products

Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and to the further development of environmentally-adapted electronic products.

Why do we have environmentally-labelled monitors?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem as far as monitors and other electronic equipment are concerned is that environmentally harmful substances are used both in the products and during their manufacture. Since it has not been possible so far for the majority of electronic equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

Index | Consignes de sécurité | Introduction | Installation | Affichage Sur Ecran | Dépannage | Spécifications | Information There are also other characteristics of a monitor, such as energy consumption levels, that are important from both the working and natural environment viewpoints. Since all types of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since it is often routinely left running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme, which provides for international environmental labelling of monitors. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden). The requirements cover a wide range of issues: environment, ergonomics, usability, emission of Service Terme Regulatory Couleur naturelle Pour un affichage meilleur Autorité

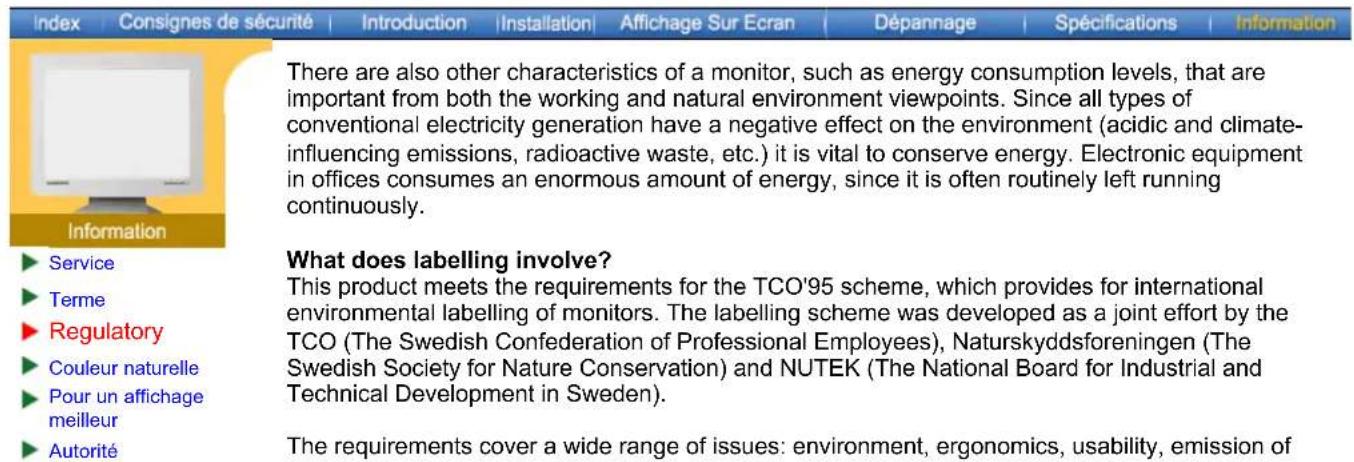

There are also other characteristics of a monitor, such as energy consumption levels, that are important from both the working and natural environment viewpoints. Since all types of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since it is often routinely left running continuously.

What does labelling involve?

This product meets the requirements for the TCO'95 scheme, which provides for international environmental labelling of monitors. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern among other things restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons), and chlorinated solvents. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan, which must be adhered to in each country where the company conducts its operations policy. The energy requirements include a demand that the monitor after a certain period of inactivity shall reduce its power consumption to a lower level, in one or more stages. The length of time to reactivate the monitor shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example in respect of the reduction of electric and magnetic fields, along with physical and visual ergonomics and good usability.

TCO Development Unit 1996-11-29

On the page this folder you will find a brief summary of the environmental requirements met by this product.

The comple environmental criteria document may be ordered from:

TCO Development Unit

S-11494 Stockholm

Sweden

Fax: [phone]

E-mail (Internet): [e-mail]

Current information regarding TCO'95-approved and labelled products may also

be obtained via the Internet, using the address:

http://www.tco-info.com/

TCO'95 is a co-operative project between(3 logos)

Environmental Requirements

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fish eating birds and mammals, due to the bioaccumulative processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

- TCO'95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.

Lead

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

- TCO'95 requirement Permits the inclusion of lead since no replacement has yet been developed.

Cadmium

Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

- TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colour-generating layers of display screens must not contain any cadmium.

Mercury

Mercury is sometimes found in batteries, relays and switches. Mercury damages the nervous system and is toxic in high doses.

• TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million)

Index | Consignes de sécurité | Introduction | Installation | Affichage Sur Ecran | Dépannage | Spécifications | Information of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit. CFCs (freons) CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma). • The relevant TCO'95 requirement: Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging. TCO'99-Ecological requirements for personal computers (TCO applied model only)

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

This product meets the requirements for the TCO'99 scheme which provides for an international environmental and quality labelling labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO(The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen(The Swedish Society for Nature Conservation), Statens Energimyndighet(The Swedish National Energy Administration) and SEMKO AB.

The requirements cover a wide range of issue: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs(freons)and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Index | Consignes de sécurité | Introduction | Installation | Affichage Sur Ecran | Dépannage | Spécifications | Information Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Information ► Service ► Terme ► Regulatory ► Couleur naturelle ► Pour un affichage meilleur ► Autorité Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. Time relevant TCO'99 should ensure that production requires to bring up over 35 days.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as today there is no commercially available alternative. TCO aims on removing this exception when a Mercury free alternative is available.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

Index | Consignes de sécurité | Introduction | Installation | Affichage Sur Ecran | Dépannage | Spécifications | Information Information Medical Requirement

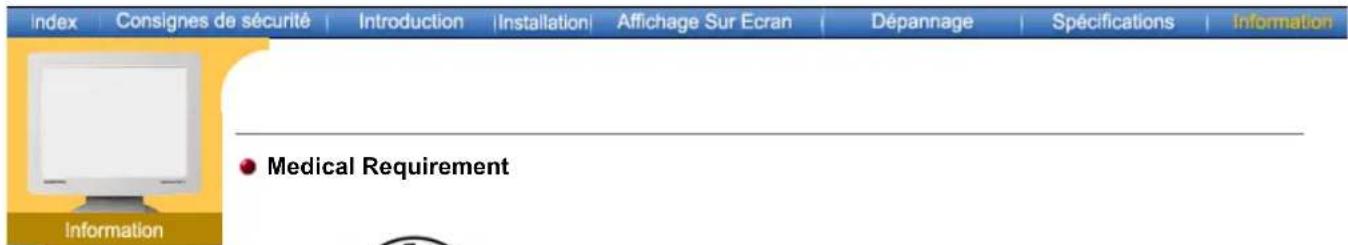

• Medical Requirement

Classifications:

In accordance with UL 2601-1/IEC 60601-1, the product is cssified as Continuous duty Class I equipment, which is not protected against ingress of liquids. The product is not suitable for use in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.

EMC

This equipment has been tested and found to comply with the limits for medical devices to the IEC 601-1-2:1994. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to other devices, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving device.
- Increase the separation between the equipment.
- Connect the equipment into an outlet on a circuit different from that to which the other device (s) are connected.
- Consult the manufacturer or field service technician for help.

Video In / RS 232 / Video Out

Accessories equipment connected to the analog and digital interfaces must be certified to the respective IEC standards (i.e. IEC 950 for data processing equipment and IEC 601-1 for medical equipment.) Furthermore all configurations shall comply with the system standard IEC 601-1-1. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore, responsible that the system complies with the requirements of the system standard IEC 601-1-1. If in doubt, consult the technical services department or your local representative.

Transport and Storage Limitations:

Temperature Range of -40°C to +70°C

Relative Humidity of 10 -95%, non-condensing

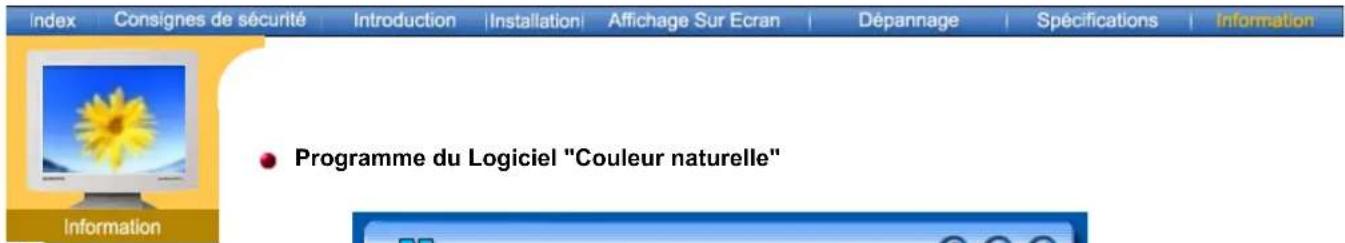

Natural Color Color Management System Monitor Adjustment Printer Adjustment Natural Color Color Management System
