Dear MAGNAT Customer,

Congratulations on your fine new loudspeakers and thank you very much for choosing MAGNAT! You have made an excellent choice. The high-quality speakers produced by MAGNAT are renowned all over the world.

Please study the instructions and information below carefully before using your new loudspeakers.

The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock.

The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed.

Do not open! Risk of electric shock!

CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapters or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

IMPORTANT SAFETY PRECAUTIONS

• Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.
  WARNING NOTICES: All of the warning symbols on the speakers, accessories and in the instruction manual itself must be adhered to.
• EXPOSURE TO HEAT: Only operate the speakers and accessories in a temperature range from 10^ to 40^ .
• The speakers should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.). When setting up close to an amplifier a minimum distance of 10cm must be maintained.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Pay attention to a sufficient ventilation of the device. The device may not be covered, e.g. by drapes, curtains. Maintain a distance of 20~cm to walls.
• EFFECT OF MOISTURE: The speakers should not be exposed to dripping or splash water. Neither should they be used to support vases or other containers filled with liquid. Do not expose the speakers to water or high levels of humidity. There is a danger of electric shock. In the event of contact with moisture or liquids remove the mains adapter immediately.
• FOREIGN MATERIAL: Ensure that no foreign material enters through the speaker openings and into the interior. This could trigger short circuits and even result in electric shock and fire.
• CLEANING: Please use a soft, dry cloth with no cleaning agents, sprays or chemical solvents, as these could damage the surfaces.

• ELECTRICAL CONNECTION: Please note the voltage levels on the information signs. The mains adapter for the speaker should only be operated with the voltage and frequency values specified on the signs.

• LIGHTNING PROTECTION/PREVENTIVE MEASURES: If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage.

• MAINS CABLE: The mains cable must always be suitable for operation and it should only ever be laid out in a manner that prevents it from being trodden on. It should not be pinched by objects either, as this can damage the cable. When using plugs and power strips it must be ensured that the cable is not kinked at the point where it emerges from the socket. Do not connect or remove the mains cable with damp hands.
• The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable.
• OVERLOAD: Sockets, power strips and extension cables should not be overloaded. If an overload occurs, there is a risk of electric shock and fire.
• SETTING UP: Please read the installation instructions.
• The speakers should only be positioned or mounted on a solid surface and not on moving base frames, otherwise there is a risk of injury.
• Only use attachments/accessories specified by the manufacturer.

DAMAGE THAT MUST BE RECTIFIED BY A SPECIALIST:

If any of the following damage occurs, disconnect the device from the mains immediately and contact a specialist to conduct the repair work:

• The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.
• Damage to the mains socket at the device.
• If moisture or water has entered the device or foreign objects have fallen into the device.
  If the device has fallen and the housing is damaged.
• If the device does not work properly, even though all of the information in the instruction manual has been observed.

Only those subsequent alterations approved by the manufacturer may be conducted.

Only original spare parts should be used for repair.

After conducting any repairs the safety of device should be checked to ensure it is functioning correctly and safely.

Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

DECLARATION OF CONFORMITY

C E

Hereby, Magnat Audio-Produkte GmbH declares that the device CS 40 is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. The Declaration of Conformity can be found at www.magnat.de in the download area of the device.

Operating frequency: 2.4 GHz range: 2412-2472 MHz

5 GHz range: 5180-5240 MHz, 5260-5320 MHz, 5500-5700 MHz

Maximum power transmitted acc. EN62311:

2.4 GHz range: 20 dBm

5150-5350 MHz: 23 dBm

5470-5725 MHz: 23 dBm

USE AS DIRECTED

This device is designed for indoor use only.

INSTRUCTIONS FOR DISPOSAL

In accordance with European Directive 2002/96/EC all electrical and electronic appliances must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old appliances with normal household waste.

BATTERY DISPOSAL

Old batteries are hazardous waste and must be disposed of in accordance with current regulations.

OPEN THE CARTON AND CHECK FOR THE FOLLOWING ITEMS

1

2

1. The Loudspeaker Magnat CS 40
2. Instruction manual

Note: Information about cost free usable Apps you will find at chapter 6.1.

FEATURES

WLAN

Touch panel

Aux In

PRODUCT DESCRIPTION

1.1 Top

Decrease volume

Mute Increase volume

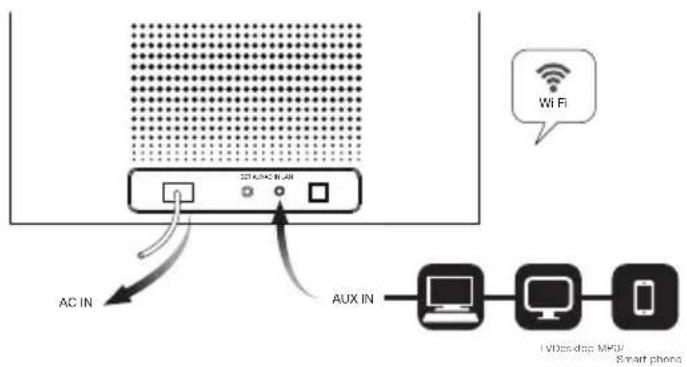

1.2 Rear

• SET (RESET/ WPS Mode): Press briefly to activate WPS mode; press and hold for about 5 sec. to restore the speaker to the factory settings.
• AC main power adapter: Connect the power adapter to power on the system automatically.
• AUX-IN: Audio input, 3.5mm stereo socket
• LAN: Ethernet LAN connection to connect your speaker to a LAN port of a router instead of WLAN network.

1.3 LED Status

Button/LED Displa Status
STANDBY	in Red	Standby mode after 15mins w/o any audio signal inputs
AUX IN Lights up	Orange Connected via AUX IN
SET Flames Green/Blue Slowly		1. Reset to factory default2. Firmware update
WLAN	Flashes WhiteLights up solid White	1. Booting process2. WPS is processing1. System is ready for WLAN connection2. AP Mode
VOL -/+	Flashes	volume increase/decrease
MUTE Flashes $lowly Mute

2. NETWORK CONFIGURATION

The speaker is connected to the network via WLAN. The WLAN antenna on the speaker receives the signals from the network router.

3. CONNECTING THE POWER SUPPLY

Please connect the AC Connection cable with your wall AC outlet socket.

4. POWERING THE SPEAKER ON AND OFF

Power on / off the speaker

The speaker will power on automatically when connecting the power supply. Disconnect the power supply to power off the speaker.

STANDBY MODE

The system will enter Standby mode after 15 mins without any audio signal inputs.

• You can use the SET (WPS) button to connect the speaker to the network of your router or set up the network connection over the web interface of the speaker.
• Put the speaker as near as possible to the router when putting it into operation for the first time in order to guarantee an efficient WLAN signal during the set-up process. Then place the speaker within the range of the WLAN network.

5.1 WLAN connection via WPS Mode

If your router has a WPS button, this is a simple and convenient way of connecting the speaker to the network:

• Press the WPS button on the router and press the SET (WPS) button briefly on the rear of the speaker to confirm the connection.

Note: Please also refer to the instruction for the router.

The product will now establish a connection with the network. The LED will flash rapidly during this process.

• Once the connection has been made, the LED will turn solid White.
• The product can now play back audio signals from the network.
• The product saves the connection data therefore they do not need to be re-entered the next time it is switched on.

Note: The waiting time of WPS mode is 2 mins.. You might need to re-start and press WPS button once again when time out.

5.2 Connecting to a network via the web interface

If it is not possible to connect to a network via WPS, you can use the web interface of the speaker. You will need a device with a wireless network adapter on which you can access an internet browser (e.g., a computer/ smartphone).
- Power on the speaker and search for the "Magnat_CS40XX-XX-XX" open WLAN network in the list of available networks on the computer/ Smartphone.
Note: XX-XX-XX in the SSID of the speaker stands for the last 6 characters of the MAC address of the respective speaker.
- The screen will navigate to the setting page automatically. If not, Please open the web browser and enter 172.19.42.1 in the address bar of the browser then press ENTER to confirm.
The web interface of the WLAN will appear:

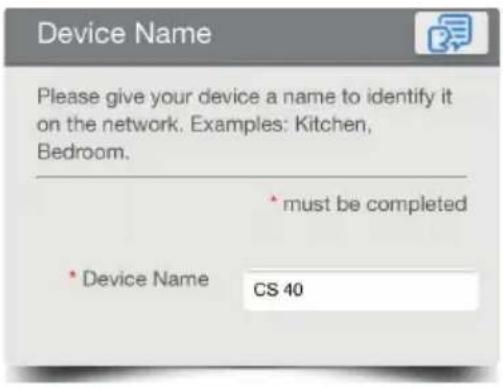

• Enter a name for the speaker by which you will be able to identify it in the list of available speakers (e.g. "lounge" or "kitchen").

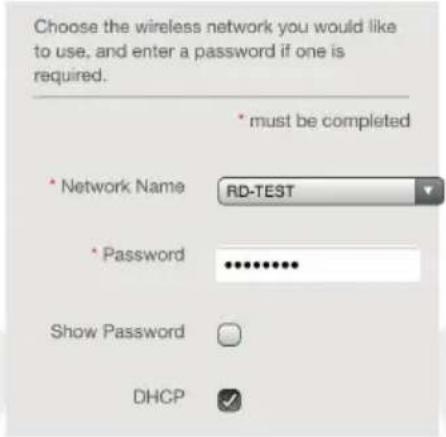

• Search in the list of available networks in the "network name" drop-down menu and select the network to which you want to connect the speaker.

• If the network router does not assign IP addresses, switch the DHCP function off here and then enter the IP address manually in the bottom boxes.
• Then enter the network key, included password if required, and click on "CONNECT".
• The web page will inform you "network was connected successfully". The product will now establish a connection with the network

Note:

1. The product does not support "WEP" security protocol.
2. The smart device might navigate to a valid network after setting up the connection between speaker and router. If not, please make sure the smart device connects to the same network as the speaker connected to.

The product can now play back audio signals from the network. The connection data are saved therefore they do not need to be re-entered the next time it is switched on.

6. MUSIC PLAYBACK

You can play music from the network over your speaker and you can also play music from device connected via direct mode or the stereo signal from a device connected externally (AUX-in mode).

6.1 Installing the app on an Android/Apple smartphone/tablet PC

In order to be able to use the music playback control function on the speaker on a tablet PC or smartphone, you first need to install the relevant app (Allplay radio and jukebox) for your tablet PC/ smartphone available from the Play Store (Android) or App Store (Apple).

Note: At Apple store are eventually not both Apps available for each Apple tablet.

6.2 Spotify short guide

Using This Device With Spotify Connect

Spotify lets you listen to millions of songs – the artists you love, the latest hits and discoveries just for you.

If you are a Spotify user, you can control this device using your Spotify app.

Step 1: Add your new device to the same wifi network as your phone, tablet or PC (see product user instructions for details).

Step 2. Open the Spotify app and play any song.

Step 3. Tap the song image in the bottom left of the screen.

Step 4. Tap the Connect icon

Step 5. Pick your CS 40 from the list.

For information on how to set up and use Spotify Connect please visit www.spotify.com/connect

Licenses

The Spotify Software is subject to third party licenses found here:

https://developer.spotify.com/esdk-third-party-licenses/

• Connect the speaker to an available WLAN network, following the instruction in section "5. Initial Operation".
• Connect your smart device to the same network and start up the relevant DLNA app.
• Once the app has started, select a media server (DLNA server) from which you want to play music and then select the speaker as the medium (DLNA player) on which the music is to be played.

Note: You can select more than one speaker for the playback. Please refer to the app for details.

The app offers the following playback options:

Party mode: Various smart devices add music tracks via the app from a shared playlist which is played on the speaker.

Multizone mode: Various smart devices add music tracks via the app from different playlists which are played on different speaker.

Multiroom mode: Several speaker are combined via the app to form a group and a playlist is played from a smart device on all the speakers in this group.

8. PLAYBACK IN THE DIRECT MODE

• Power on the speaker and the speaker will enter Direct Mode automatically.
• Or Press the SET (RESET/ WPS MODE) button for 5 secs in order to switch the speaker to direct mode.

After about 30 seconds the White LED will flashing rapidly.

• Connect the smart device directly to the "Magnat_CS40 XX-XX-XX" open WLAN network of the speaker.
• Select a music source on your smartphone/ tablet and then select the speaker as the medium on which the music is to be played.

Note:

1. Playback in Party, Multizone or Multiroom mode is not available in direct mode.
2. When using direct mode, please remember to switch off the 'Auto-Login' and 'Auto-Join' function on smartphone, to avoid smartphone trying to connect with a valid network.

9. PLAYBACK FROM AN EXTERNAL AUDIO DEVICE

• Connect a 3.5mm stereo jack to the AUX-IN socket in order to play back stereo sound output from other audio devices on the speaker. The speaker will switch automatically to AUX-IN mode and the product status LED button will light up Orange.
• The speaker will revert back to the previous WLAN mode when there is no any audio signal input through AUX-IN mode after 1 sec.

10. RESTORING THE FACTORY SETTINGS

• Press and hold the SET button down for about 5 seconds in order to restore the factory settings.
• The product will restart and the LED will light up Green. Then the White LED will turn solid white to indicate that WLAN mode is active and the speaker is ready to connect to the network..

Note: Please note that all the settings, e.g. the network WPA/ WPA2 key, will be irretrievably lost and will need to be input again after the product has been reset.

11. RESETTING THE PRODUCT MANUALLY TO THE FACTORY SETTINGS

If the speaker no longer responds to inputs or if problems occur with the network connection, it may be necessary to reset the product to the factory settings.

• Press the SET (RESET/ WPS MODE) button on the rear of the product and hold it down for more than 5 seconds.

Note: All existing network information will have been deleted and will have to be re-entered to establish a network connection.

12. SOFTWARE UPDATE

You can use the app to update the software of the speaker. The app searches for software updates and, if one is available, it downloads it from the internet onto the speaker.

MAINTENANCE

The lacquered surface is best cleaned with a mild household cleaner. On no account use furniture polish or similar products on these surfaces.

HOW TO AVOID DAMAGE TO YOUR VALUABLE SPEAKERS

All MAGNAT loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position - i.e. with "linear" amplifier output. Turning up the bass and treble controls too far delivers more power to the woofers and/or tweeters, and at high volumes this can actually destroy the speaker units!

SPECIFICATIONS

Operating voltage: AC 100 - 240 V 150 W / 50-60 Hz

System Type: 2.0 stereo

Rated output power: 50 watts (2x25 watt)

Frequency range: 70 - 18 000 Hz

Temperature range: 0 - 45^

Net weight: 5.3kg

Dimensions (WxHxD): 412 x 230 x 172 mm

WLAN

Frequency range: 2.4GHz/5GHz

WLand standard: 802.11 a/b/g/n

Ecryption: WPA2

Range: circa 35 - 100 m indoor

circa 100 - 300 m outdoor

SUBJECT TO TECHNICAL CHANGE
