USER MANUAL Venus 20030162 Sonnenkönig

Festnetz 14 Cent/Minute

CE-DECLARATION DE CONFORMITE

This product is only suitable for well insulated spaces or occasional use.

GB

INDEX

1. Safety instructions 36
2. Content of packing 38
3. Installation 38
4. Operation 41
   5.Troubleshooting 42
5. Cleaning and maintenance 42
6. Warranty / Disposal / Technical change 43

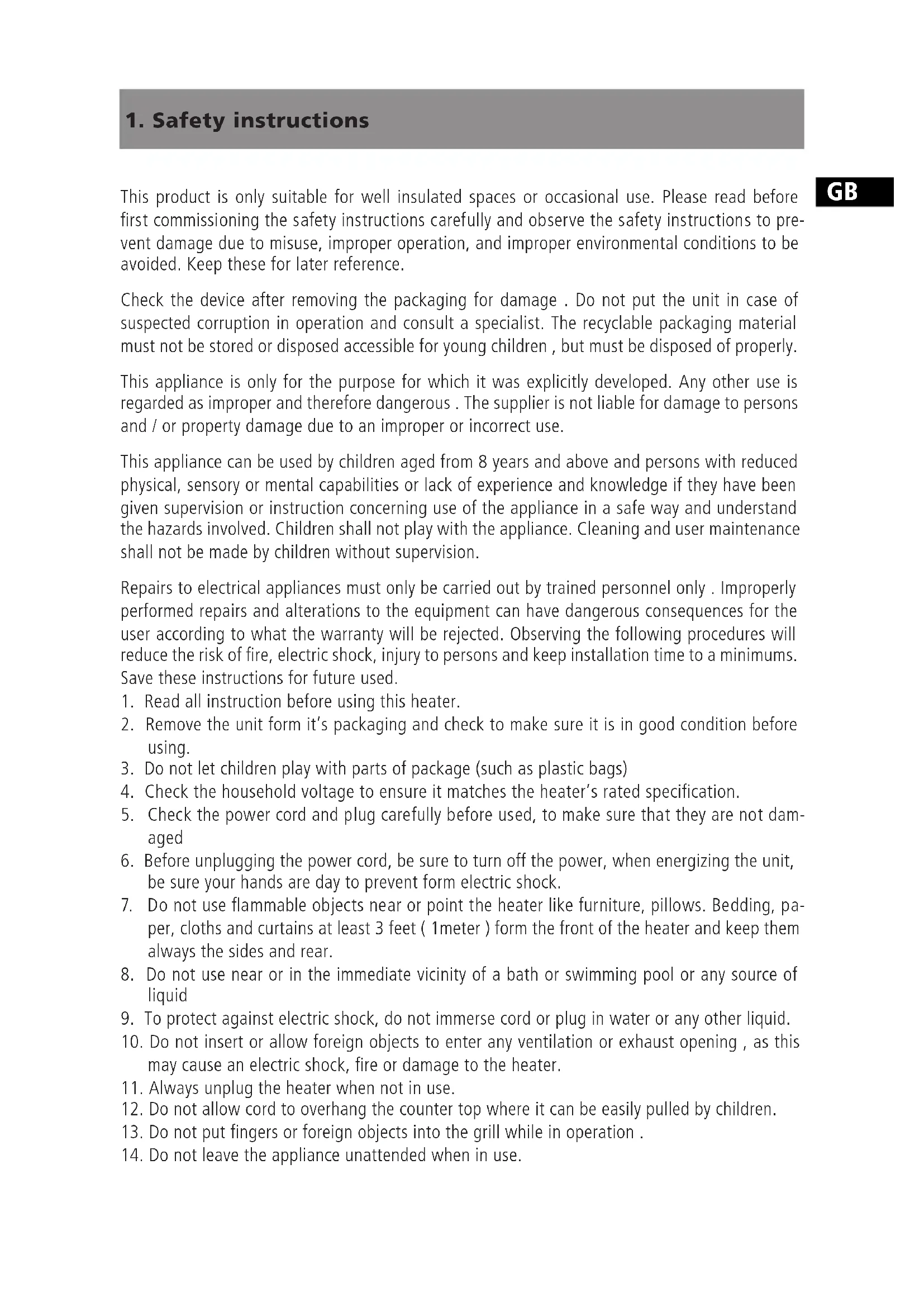

1. Safety instructions

This product is only suitable for well insulated spaces or occasional use. Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected. Observing the following procedures will reduce the risk of fire, electric shock, injury to persons and keep installation time to a minimums. Save these instructions for future used.

1. Read all instruction before using this heater.
2. Remove the unit form it's packaging and check to make sure it is in good condition before using.
3. Do not let children play with parts of package (such as plastic bags)
4. Check the household voltage to ensure it matches the heater's rated specification.
5. Check the power cord and plug carefully before used, to make sure that they are not damaged
6. Before unplugging the power cord, be sure to turn off the power, when energizing the unit, be sure your hands are day to prevent form electric shock.
7. Do not use flammable objects near or point the heater like furniture, pillows. Bedding, paper, cloths and curtains at least 3 feet (1 meter) form the front of the heater and keep them always the sides and rear.
8. Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid
9. To protect against electric shock, do not immerse cord or plug in water or any other liquid.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the heater.
11. Always unplug the heater when not in use.
12. Do not allow cord to overhang the counter top where it can be easily pulled by children.
13. Do not put fingers or foreign objects into the grill while in operation .
14. Do not leave the appliance unattended when in use.

GB

1. This heater is not intended for use in bathrooms, laundry and similar indoor locations, never located heater where it may fall into a bathtub or other water container.
2. No liability can be accepted for any damage caused by non compliance with these instructions or any other improper use or mishandling.
3. This appliance is not intended for use by persons (including children) with reduces physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children ad vulnerable people should be supervised to ensure they do not play with the appliance.
4. If the supply cord is damaged in any way, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. To prevent overheating of this appliance, keep the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and outlets from time to time to ensure it is clear of any dirt or dust accumulation.
6. Parts of the heater may exceed 200^ , Contact with the heating tube, reflector, or mental parts near the heating tube, may cause severe BURNS. To avoid burns, do not let bare skin touch hot surface.
   21.ALWAYS allow heating element to cool at least 10 minutes before touching the heating tube or adjacent part
7. This product contains recyclable materials. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

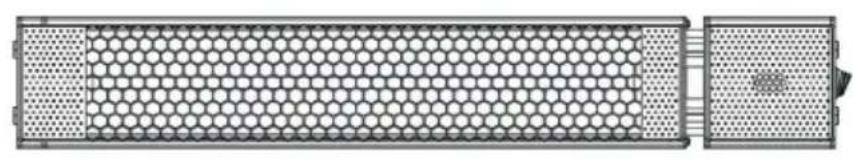

2. Content of packing

Heater

Wall fixing accessory (4X)

Knurled screw (2x) Remote controlScrew (4x)

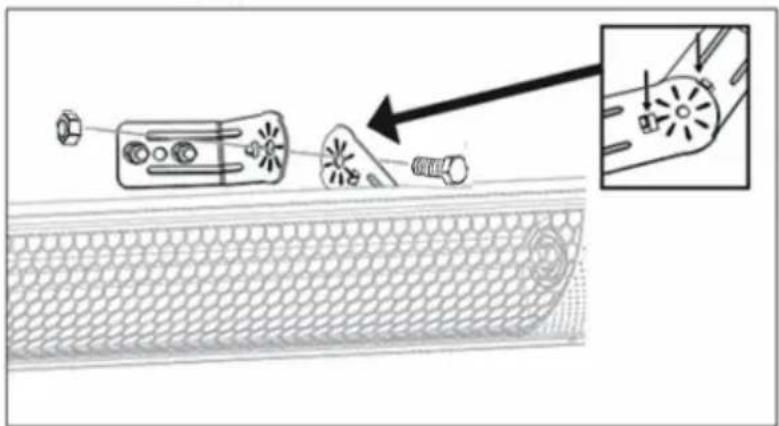

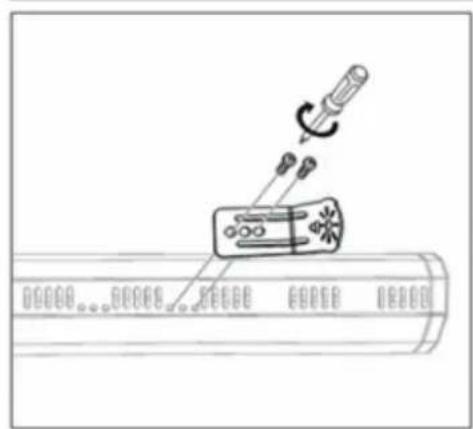

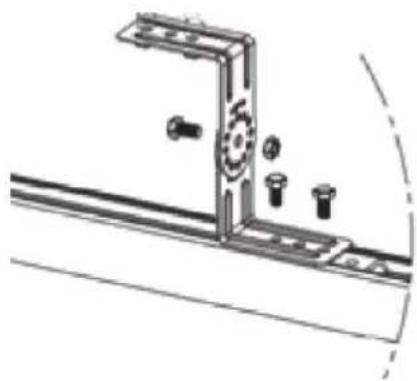

3. Installation

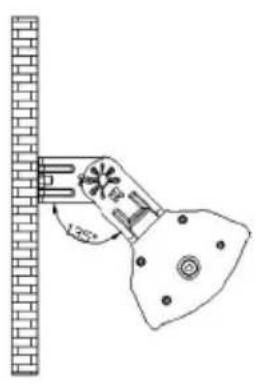

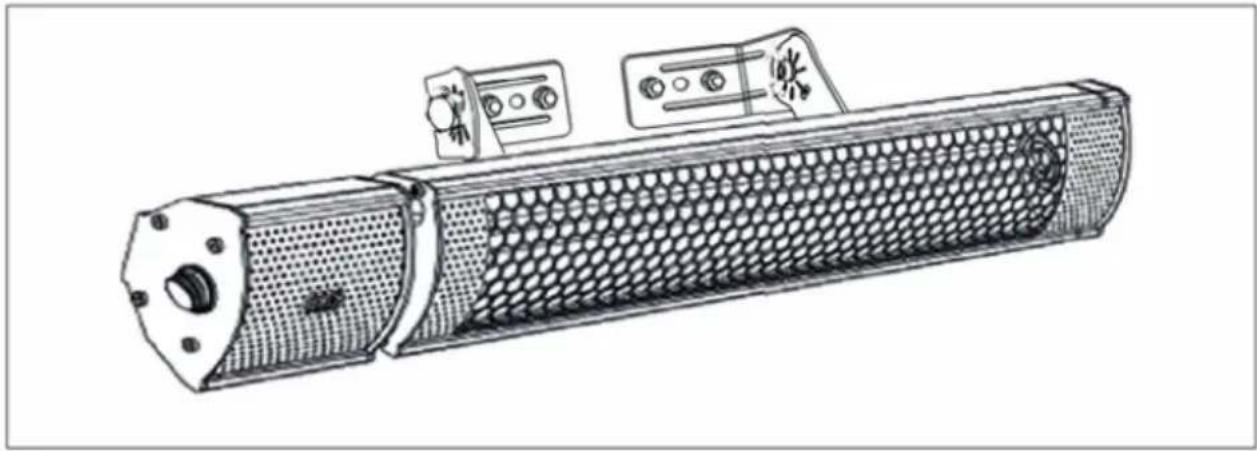

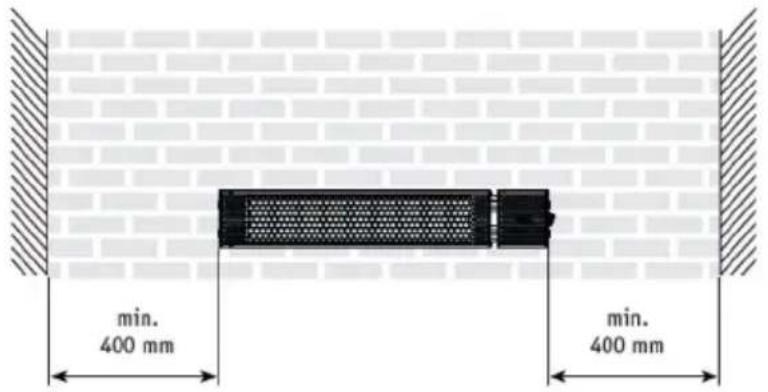

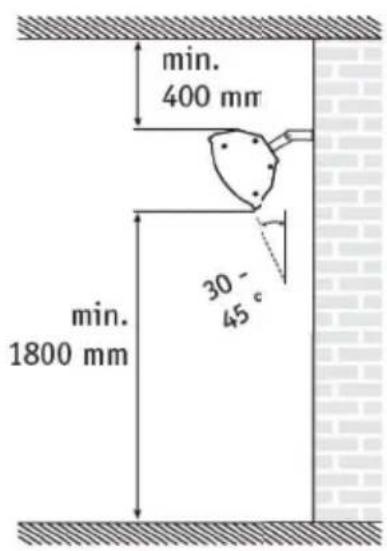

A wall mounting bracket is provide with the heater which has been specifi cally designed to allow this product to be fitted to a wall or ceiling before drilling the holders for the wall/ceiling is solid and that there are no hidden water pipes or electric wires. The heater must be installed no less than 16^ form side walls and no less than 6^ off the floor.

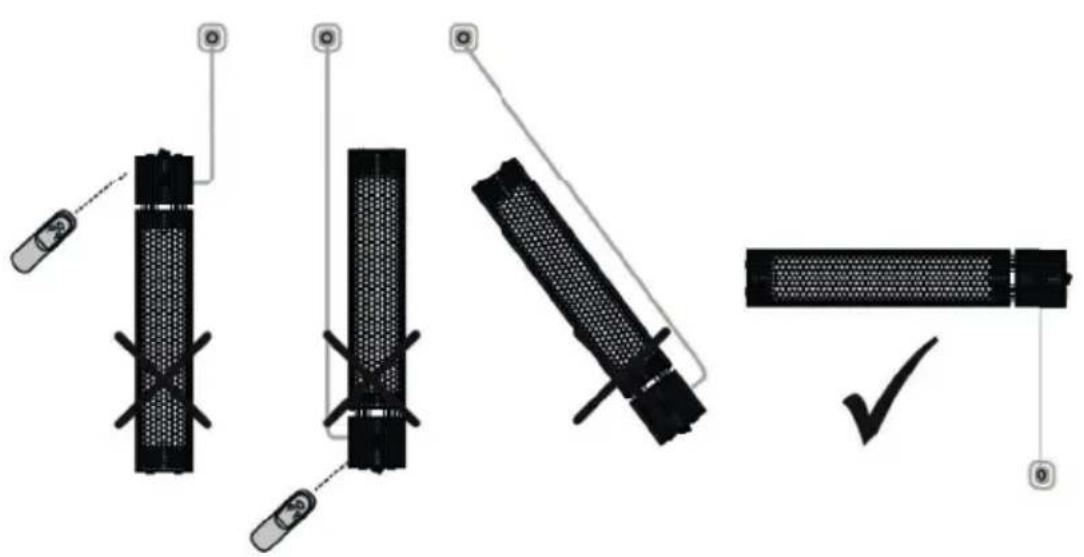

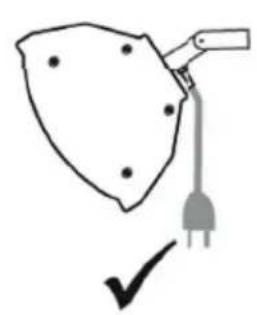

Important: Ensure that the supply cables is well mounted and that it does not come into contact with reflector of the heater or that is does not trail into heated area, the supply cable can be fixed to them metal mounting bracket behind heater with plastic zip ties.

GB

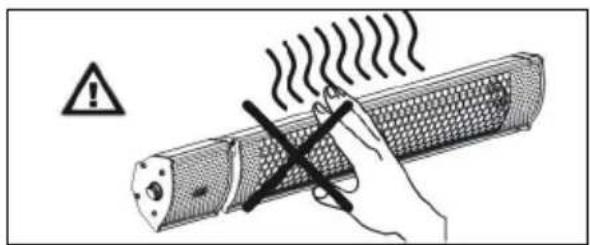

During operation and 5 minutes after switching off - VERY HOT SURFACE!!!

4. Operation

BUTTON FUNCTION

Standby mode ON,

LED lights up

Standby ON

Heating level 1

Heating level 2

Standby OFF

Standby mode ON,

LED goes out

REMOTE CONTROL

1 PLUG the unit into a plug socket, make sure the power supply is the same as rated.
2 PRESS the power button on the right side of heater.
3 TURNOTN the heater by remote control, or off the heater.
4 DOWN & UP BUTTON, setting the power level.

GB

5. Troubleshooting

1. If heater will not power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse is working.
3. Check to see it the thermostat knob to the ON position.
4. Check the thermostat setting, The heater may be off because it has reached the desired temperature setting.

6. Cleaning and maintenance

Regular and careful cleaning helps your infrared heater operate efficiently for many trouble free years. To clean your heater follow the steps below

1. Unplug the power cord for your safety before cleaning your appliance.
2. Make sure the heater is cool before continuing.
3. To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. (CAUTION: DO NOT let liquids enter the heater)
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the heater is completely dry before use.

Storage: Store the heater in a cool, dry location when not in use to prevent dust and dirt build up. Use packaging carton to store.

7. Warranty / Disposal / Technical change

WARRANTY

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

DISPOSAL

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

TECHNICAL CHANGES

Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.

Please save the packaging materials of the unit.

CE DECLARATION OF CONFORMITY

This device complies with the following standards

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/AC:2014

EN 60335-2-30:2009 + Cor. :2010 + A11:2012

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 61000-4-2:2009

EN 61000-4-3:2006+A1:2008+A2:2010

EN 61000-4-4:2012

EN 61000-4-6:2014

EN 61000-4-11:2004

EN 62233:2008

2014/30/EU

2014/35/EU

Table for information requirements for electric local space heaters P
Model identifier(s):
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom	2,0 kW Manual heat charge control with integrated thermostat [no]
Minimum heat output (indicative)	Pmin	N/A kW Manual heat charge control with room and/or outdoor temperature feedback				[no]
Maximum continuous heat output	Pmax	2,0 kW Electronic heat charge control with room and/or outdoor temperature feedback				[no]
Auxiliary electricity consumption				Fan assisted heat output		[no]
At nominal heat output	elmax	2,019 kW Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A kW Single stage heat output and no room temperature control				[no]
In standby mode	eLSB	0,54 W Two or more manual stages, no room temperature control				[no]
			With mechanical thermostat room temperature control			[no]
			With electronic room temperature control			[no]
			Electronic room temperature control plus day timer			[yes]
			Electronic room temperature control plus week timer			[no]
			Other control options (multiple selections possible)
			Room temperature control, with presence detection			[no]
			Room temperature control, with open window detection			[no]
			With distance control option			[no]
			With adaptive start control			[no]
			With working time limitation			[yes]
			With black bulb sensor			[yes]
Contact details:	Heyuan Xinda Quantz Electric Appliance Co., Ltd. Inside Linjiang Industrial Park, Zijin Economic Development Zone, Zijin County, Heyuan 517000, Guangdong, China
Remark:For electric local space heaters, the measured seasonal space heating energy efficiency cannot be worse than the declared value at the nominal heat output of the unit.

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment.

Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries in household waste is prohibited.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
