USER MANUAL THCD 182 LI EINHELL

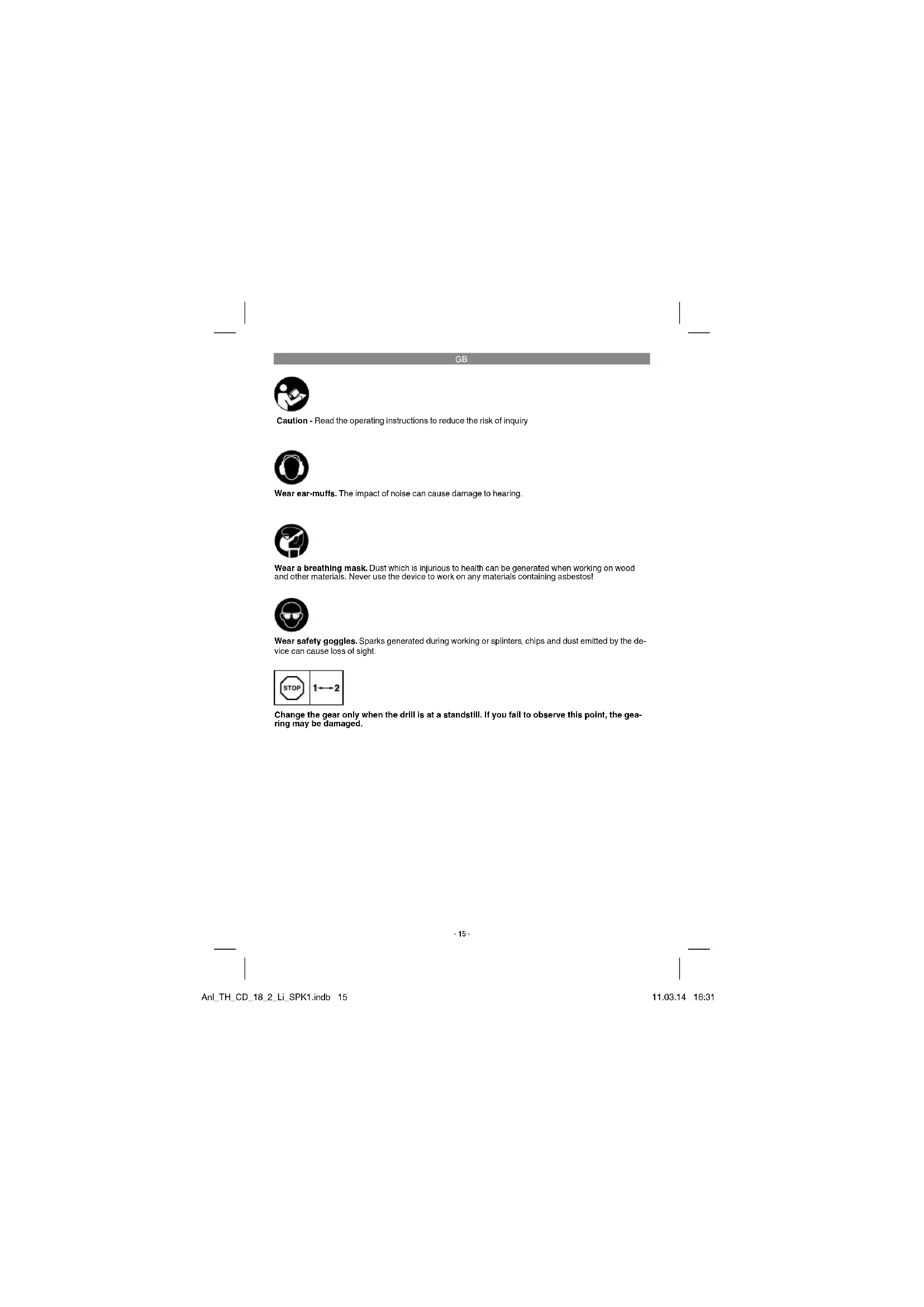

Caution - Read the operating instructions to reduce the risk of inquiry Wear ear-muff s. The impact of noise can cause damage to hearing. Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the de- vice can cause loss of sight. Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Change the gear only when the drill is at a standstill. If you fail to observe this point, the gea- ring may be damaged. Anl_TH_CD_18_2_Li_SPK1.indb 15Anl_TH_CD_18_2_Li_SPK1.indb 15 11.03.14 16:3111.03.14 16:31GB

Important! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Caution! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

1. Torque adjustment (setting ring)

9. Magnetic screw holder

10. Selector switch for 1st/2nd gear

11. Battery capacity indicator

12. Switch for battery capacity indicator

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Important! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Cordless drill/screwdriver

Original operating instructions

The cordless drill/screwdriver is designed for tigh- tening and undoing screws, as well as for drilling in wood, metal and plastic. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes. Anl_TH_CD_18_2_Li_SPK1.indb 16Anl_TH_CD_18_2_Li_SPK1.indb 16 11.03.14 16:3111.03.14 16:31GB

uncertainty .............................................3 dB Wear ear-muff s. The impact of noise can cause damage to hea- ring. Total vibration values (vector sum of three direc- tions) determined in accordance with EN 60745. Drilling in metal Vibration emission value a

Warning! The specifi ed vibration value was established in accordance with a standardized testing method. It may change according to how the electric equip- ment is used and may exceed the specifi ed value in exceptional circumstances. The specifi ed vibration value can be used to compare the equipment with other electric power tools. The specifi ed vibration value can be used for initi- al assessment of a harmful eff ect. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear protective gloves. Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

3. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

5. Before starting the equipment

Be sure to read the following information before you put the cordless screwdriver into operation:

1. Charge the battery only with the charging unit

2. Only ever use sharp drill bits and screwdriver

bits which are suitable for the purpose and in faultless condition.

3. Always check for concealed electric cables

6.1 Charging the battery (Fig. 2-3)

1. Take the battery pack (5) out of the handle

(Fig. 2), pressing the pushlock button (8) of the battery pack as you do so.

2. Check that your mains voltage is the same as

that marked on the rating plate of the battery charger. Plug the mains plug of the charger (6) into the mains socket outlet.

3. Connect the charging cable (a) to the char-

4. Both LEDs are lit. Push the charging adapter

(7) onto the battery pack (5). The green LED extinguishes to indicate that the battery pack is being charged. When the charging period is completed after approx. 3 to 5 hours, both LEDs will come on again. The battery pack may become a little warm during the charging process. This is normal. If the battery pack fails to charge, check for the following:

Voltage at the power socket

Good contact at the charging contacts of the charging unit If the battery pack still fails to charge, send

and the battery pack to our customer service center. To ensure that the battery pack provides long ser- vice, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops.

6.2 Torque setting (Fig. 4 / Item 1)

The cordless screwdriver is fi tted with a mechani- cal torque selector. The torque for a particular screw size is set with the setting ring (1). The torque is dependent on a number of factors:

On the type and hardness of the material in- volved

On the type and length of the screws used

On the requirements that the screw connec- tion has to satisfy The grating disengagement of the coupling in- dicates that the selected torque level has been reached. Caution! Only ever adjust the setting ring when the equipment is at a standstill.

6.3 Drilling (Fig. 4/Item 1)

For drilling purposes, adjust the setting ring for the torque to the last setting “Drill”. In the drill setting the slip coupling is non-functional. The maximum torque is available for drilling.

6.4 Changeover switch (Fig. 5/Item 3)

The slide switch above the On/Off switch is for setting the direction of rotation of the cordless screwdriver and for preventing the cordless screwdriver from being switched on inadvertently. You can select between clockwise and counter- clockwise rotation. To avoid causing damage to the gearing, the direction of rotation must only be changed when the screwdriver is at a standstill. When the slide switch is in the middle position, the On/Off switch is blocked.

6.5 On/Off switch (Fig. 5/Item 4)

Infi nitely variable speed control is possible with the On/Off switch. The further you push the switch, the higher the speed of the cordless screwdriver.

6.6 Changing the bit (Fig. 6)

Caution! Set the changeover switch (3) to its center position whenever you carry out any work (for example changing the tool, maintenance work, etc.) on the cordless screwdriver.

The cordless screwdriver is fitted with a quick-action chuck (2) with an automatic spindle stop.

The chuck opening (a) must be large enough to hold the tool (drill bit or screwdriver bit).

Select the suitable tool. Push the tool as far as possible into the chuck opening (a).

Tighten the chuck (2) and then check that the tool is secure.

It is advisable to use self-centering screws (e.g. Torx, cross recessed head) as these will enable you to work safely and reliably. Always make sure that the bit used is of the same size and shape as the screw. Set the torque to suit the screw size as specifi ed in the instructions. Anl_TH_CD_18_2_Li_SPK1.indb 18Anl_TH_CD_18_2_Li_SPK1.indb 18 11.03.14 16:3111.03.14 16:31GB

6.8 Magnetic screw holder (Fig. 4/Item 9)

Screws can be placed on the magnetic screw hol- der for easy reach during operation.

6.9 Selector switch for 1st/2nd gear

(Fig. 4 / Item 10) You can work with a higher or lower speed de- pending on the position of the selector switch. Change the gear only when the drill is at a stand- still. If you fail to observe this point, the gearing may be damaged.

6.10 Battery capacity indicator

(Fig. 2/Item 11) Press the button for the battery capacity indicator (12). The battery capacity indicator (11) indicates the charge state of the battery on 3 colored LEDs. All the LEDs are lit: The battery is fully charged. The yellow and red LEDs are lit: The battery has an adequate remaining charge. Red LED: The battery is empty, recharge the battery.

7. Cleaning, maintenance and

ordering of spare parts Always pull out the mains power plug before star- ting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage tempe- rature is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_TH_CD_18_2_Li_SPK1.indb 19Anl_TH_CD_18_2_Li_SPK1.indb 19 11.03.14 16:3111.03.14 16:31GB

For EU countries only Never place electric power tools or batteries in your household refuse! Recycling alternative to the requested returning of equipment: Instead of returning the equipment to the manufacturer, the owner of the electrical equipment is obliged to ensure that the equipment is properly disposed of if relinquishing ownership. The old equipment as well as any batteries can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes This consignment contains lithium-ion batteries. In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment packa- ge is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fi xed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany. Anl_TH_CD_18_2_Li_SPK1.indb 20Anl_TH_CD_18_2_Li_SPK1.indb 20 11.03.14 16:3111.03.14 16:31GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Drill chuck Consumables* Bit inserts/drill bits Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims

are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suff ered by the device which have been verifi ably caused by a

material or manufacturing fault and is limited to the rectifi cation of such defects or the replacement of the device at our discretion. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_TH_CD_18_2_Li_SPK1.indb 22Anl_TH_CD_18_2_Li_SPK1.indb 22 11.03.14 16:3111.03.14 16:31F

= dB (A); guaranteed L
