USER MANUAL RVW6027AB INVENTUM

Simple line drawing of a faucet with a valve and a container labeled 'cigarette' (no text or symbols beyond label)

max 110cm min 50cm max 40cm

4. Nederlands

INVENTUM AquaStop 10 20 30 40 50 60 70 preparation 2 3 user 4 user 5 processed model programma Three 9 user 6 user 5 user

Close-up of a mechanical component with an arrow indicating rotational motion (no visible text or symbols)

Close-up of mechanical components or parts, possibly a valve or connector, with no visible text or symbols.

Close-up of a mechanical component with no visible text or symbols

4 SALT

ZOUTVERBRUIK INSTELLEN

Close-up of a mechanical device with a handle and internal components, no visible text or symbols

Close-up of a mechanical component with a hand pointing to a section (no visible text or symbols)

Exterior view of a modern office building (no signage)

Let op!

Exterior view of a rectangular electronic device with a small attached component (no visible text or symbols)

Exterior view of a printer or scanner device (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a conveyor belt system with two wheels and a central shaft (no text or symbols)

Bovenste korf

Diagram of a multi-layered industrial or storage unit with cylindrical tanks and a central shaft, no visible text or symbols.

Onderste korf

Two grayscale images showing a food basket with various kitchen utensils and cooking pots, no text or symbols visible.

Black X symbol over a grid of circular objects, no text or symbols present

Illustration of industrial machinery components with no visible text or symbols

3D rendered abstract shapes with grid overlay, no visible text or symbols

Diagram showing a device with directional arrows and a numbered label '1' indicating sequence or step number.

a b ②

Diagram of a mechanical component with labeled parts (3 and C), showing a downward arrow and circular feature (no text or symbols beyond labels)

4

Pure diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Positioning the appliance page 24

Connecting to the water tap and drainage page 25

Electrical connection page 26

In daily use page 26

1. Description of the appliance page 29

2. Before first use page 30

Filling the salt reservoir page 30

Setting the salt consumption page 30

Filling with rinse aid and setting the consumption page 31

Dishwasher detergents page 32

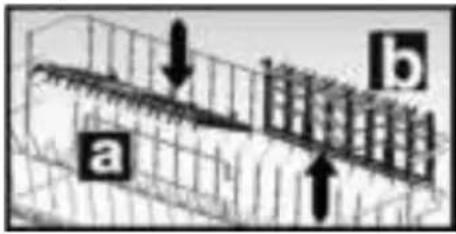

1. Loading your dishwasher page 33

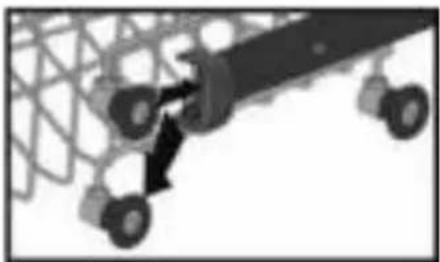

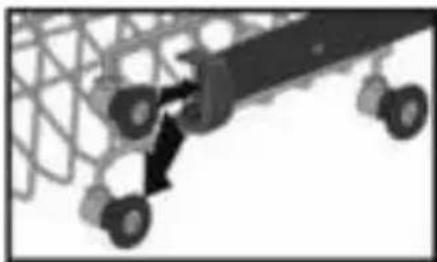

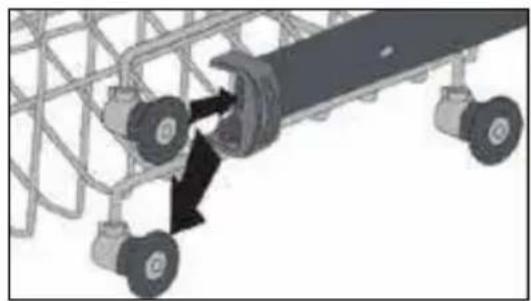

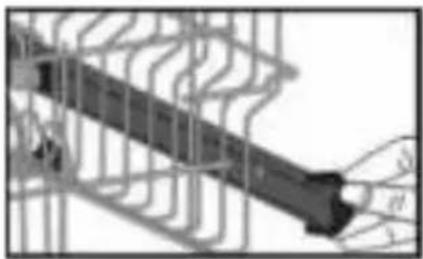

Adjusting the height of the upper basket page 33

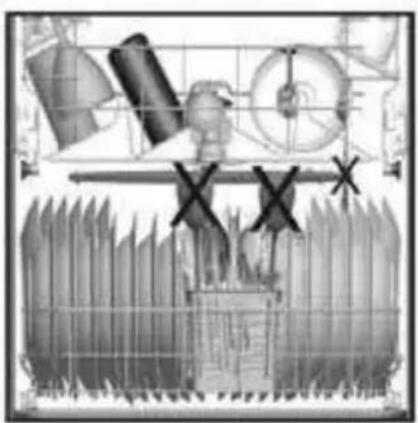

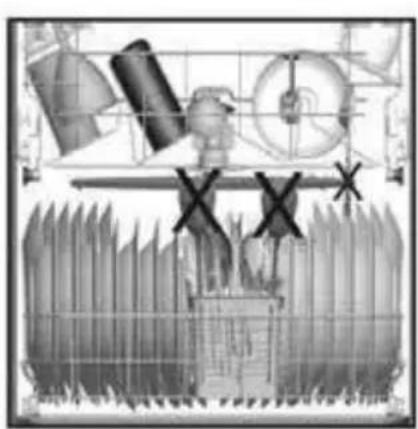

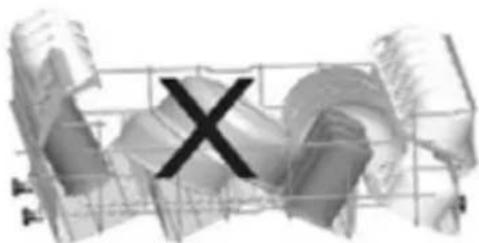

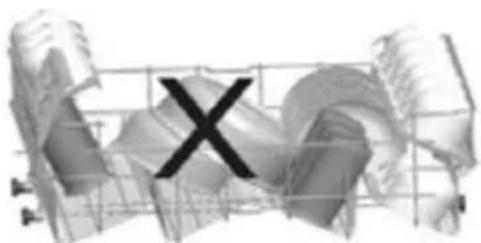

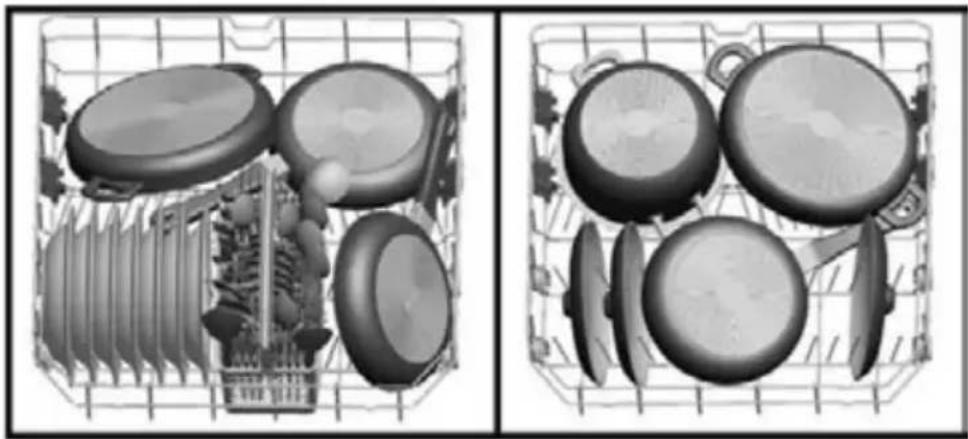

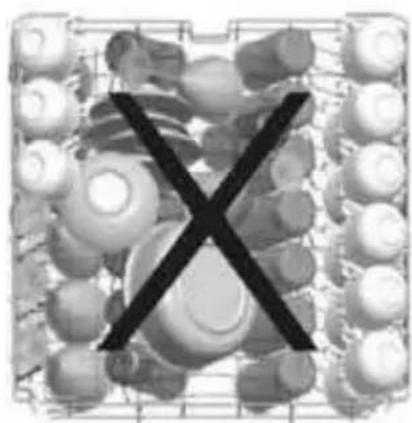

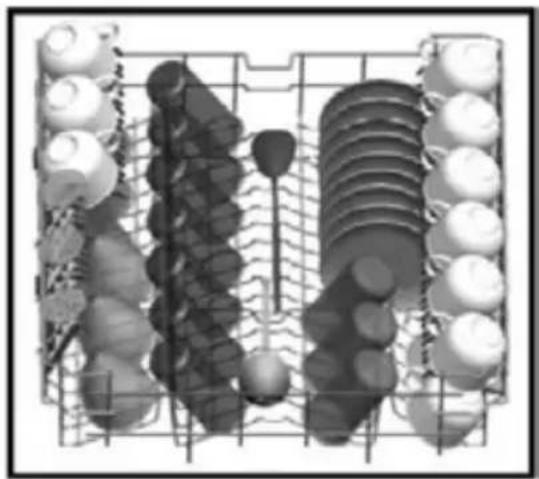

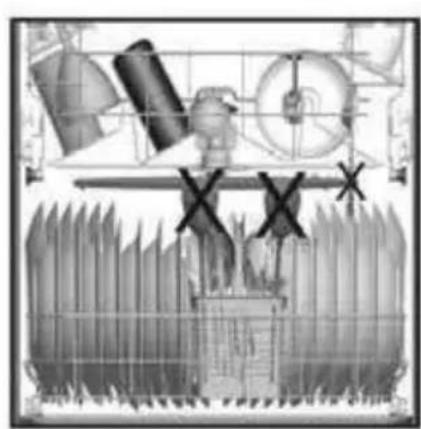

Different ways of loading the baskets page 34

1. Setting the dishwasher page 35

Switching the dishwasher on and off page 35

Ending or changing a program page 35

Program selection table page 36

1. Cleaning & maintenance page 37

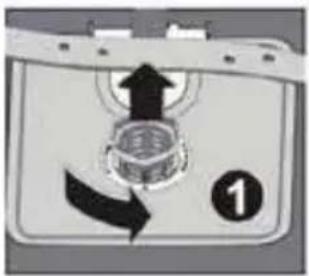

Cleaning the filters page 37

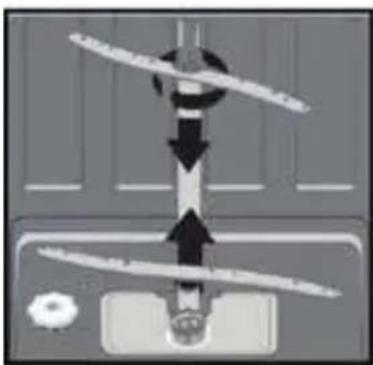

Cleaning the spray arms page 37

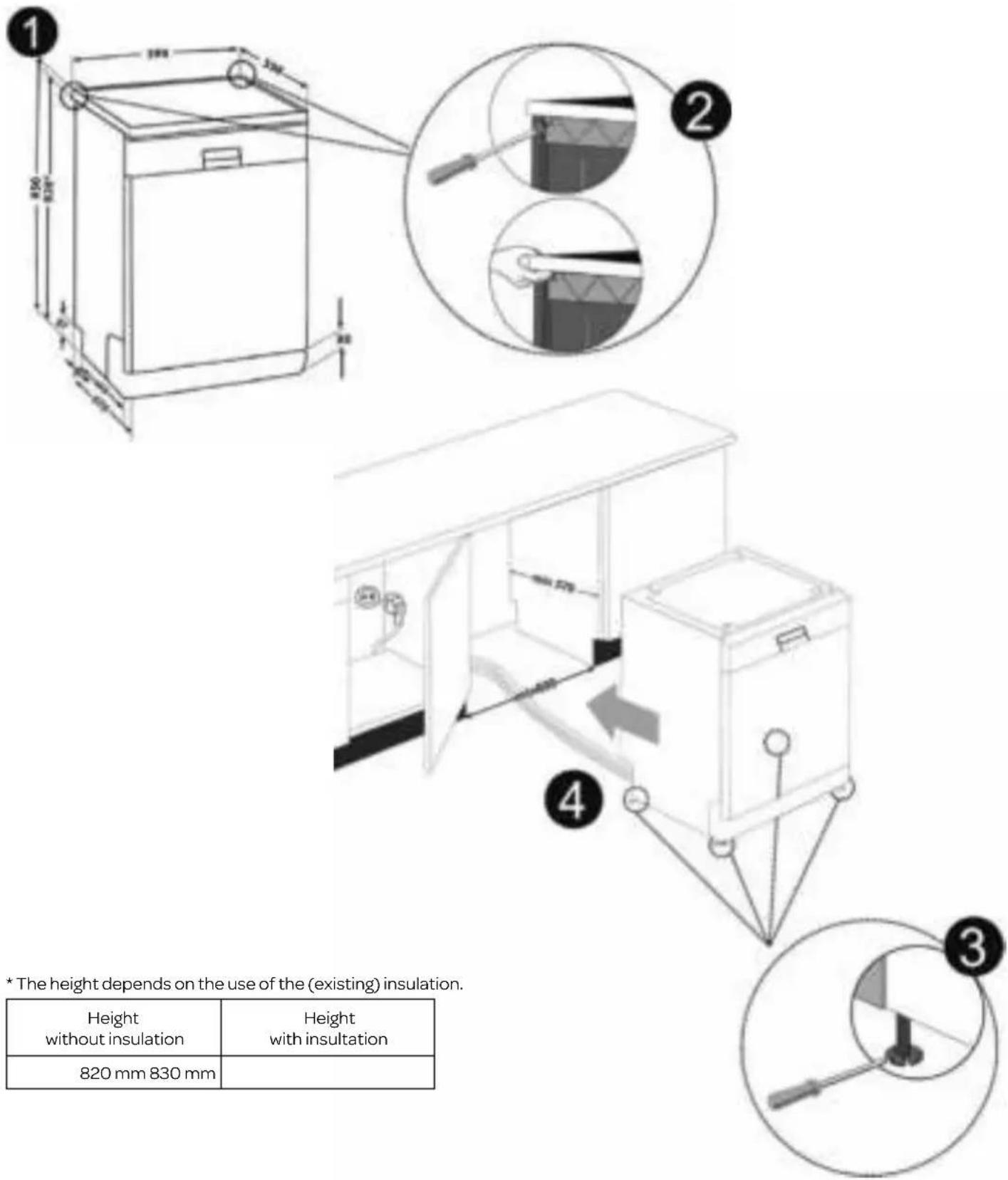

1. Placing the dishwasher under a counter top page 38

2. Troubleshooting page 39

What to do if... page 40

Product fiche page 41

General terms and conditions of service and warranty page 42

NEDERLANDS pagina 2 tot 22

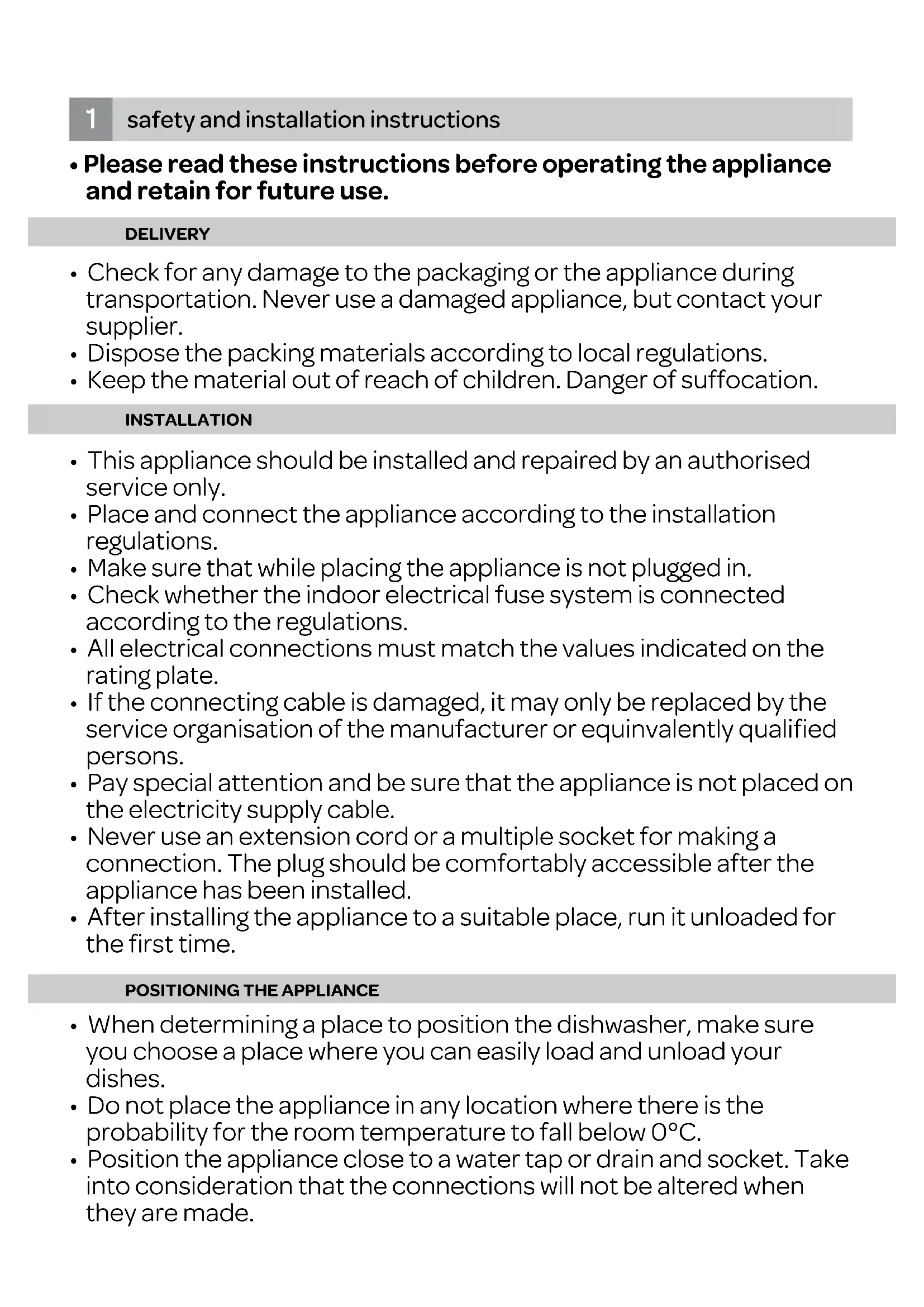

1 safety and installation instructions

- Please read these instructions before operating the appliance and retain for future use.

DELIVERY

• Check for any damage to the packaging or the appliance during transportation. Never use a damaged appliance, but contact your supplier.
• Dispose the packing materials according to local regulations.
• Keep the material out of reach of children. Danger of suffocation.

INSTALLATION

• This appliance should be installed and repaired by an authorised service only.
• Place and connect the appliance according to the installation regulations.
• Make sure that while placing the appliance is not plugged in.
• Check whether the indoor electrical fuse system is connected according to the regulations.
• All electrical connections must match the values indicated on the rating plate.
• If the connecting cable is damaged, it may only be replaced by the service organisation of the manufacturer or equivalently qualified persons.
• Pay special attention and be sure that the appliance is not placed on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the appliance has been installed.
• After installing the appliance to a suitable place, run it unloaded for the first time.

POSITIONING THE APPLIANCE

• When determining a place to position the dishwasher, make sure you choose a place where you can easily load and unload your dishes.
• Do not place the appliance in any location where there is the probability for the room temperature to fall below 0^ .

• Position the appliance close to a water tap or drain and socket. Take into consideration that the connections will not be altered when they are made.

• Do not grip the appliance by its door or control panel in order to move it.

• Make sure that the water inlet and outlet hoses do not get stuck while positioning the appliance.
• Adjust the appliances adjustable feet to ensure the appliance is standing level and balanced. Proper positioning of the appliance ensures problem-free opening and closing of the door.
• If the door of your appliance does not close properly, check if the appliance stands level on the floor. If not, adjust the adjustable feet and ensure its stable position.

CONNECTING TO THE WATER TAP AND DRAINAGE

Make sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the beginning of the water supply in your house to avoid any damage to your appliance because of any contamination (sand, clay, rust, etc.) that might occasionally carried in through the mains water supply.

• Always use the new water inlet hose supplied with your appliance. If you are using the new water inlet hose, run water through it for a while before making the connection.
• Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0,03 Mpa and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted inbetween.

• After the connections are made, the tap should be turned on fully and checked for water leakage.

- The appliance is supplied with an double-walled aquastop. The system automatically cuts off the water supply if the water inlet hose starts to leak and the space between the walls is filled with water. Make sure not to cut into the aquastop or that it gets twisted or stuck.

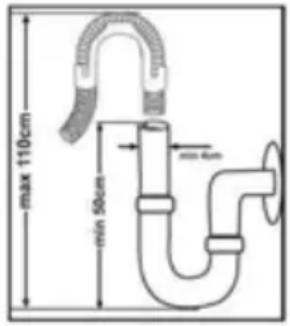

- The water drain hose can be connected either directly to a drain pipe with a minimum diameter of 4 cm, or let it run into the sink,

making sure to avoid bending or crimping it. The free end of the hose must be at a height between 40 and 100 cm and must not be immersed in water.

- Close the water tap after each use.

8.5±1.2 m

Illustration of a faucet with a valve and a pipe outlet (no text or symbols)

max 110cm min 50cm max 4cm

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case Inventum will not accept responsibility.

ELECTRICAL CONNECTION

• The plug of the appliance must be connected to an earthed socket. Make sure that the voltage and the frequency values for the current in the home correspond to those on the rating plate. Inventum is not responsible for damage when using the appliance with a socket that is not earthed.
• The electrical installation in the home must be provided with a fuse of 16 Amp. The dishwasher is designed for connection to 220 -240 V \~50 Hz. The appliance should not be plugged in during positioning. Always use the supplied plug.
• The appliance's electrical cable should only be replaced by an authorised service or an authorised electrician. Failure to do so may lead to accidents.
• For safety purposes, always make sure to disconnect the plug when a wash program has finished. In order not to cause an electric shock, do not unplug when your hands are wet.
• When disconnecting your appliance from the mains supply, always pull from the plug. Never pull the cord itself.

IN DAILY USE

• This appliance is intended to be used in household and similar applications such as:
• in shops, offices or other working environments;
• farm houses;
• by client in hotels, motels and other residential type environments;
• bed & breakfast type environments.
• An electrical appliance is not a toy, and should therefore always be placed outside the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.

• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Cleaning and maintenance shall not be made by children.
  • Children must not play with the appliance.

• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• This appliance must be earthed! Earthing reduces the risk of an electric shock in the event of errors and faults. This appliance is fitted with an earthed power lead and plug. Only insert the plug into an earthed wall socket that has been fitted in compliance with the local electrical regulations!
• Incorrect connection of the power lead can result in a lifethreatening situation. In case of doubt, contact a qualified electrician or service technician. Do not make any changes to the plug. If the plug does not fit into the wall socket, contact a qualified electrician to change it.
• Do not place heavy objects on the opened door. Do not stand on the door. The appliance may tip over, which can result in damage to the appliance.
• Do not put any chemical dissolving agents such as solvents in the appliance. There is risk of explosion.
• Do not clean unsuitable plastic dishes in the appliance, unless they bear a mark indicating that they are dishwasher-safe. Where dishes do not bear any such marking, always follow the manufacturer's instructions.
• Only use detergent, rinse aid and salt that is intended for use in a dishwasher. Inventum will not be responsible for any damage that might occur in your appliance otherwise.
• Keep the detergents out of reach of children.
• Keep detergents and rinse aids out of the reach of children. Keep children out of reach of the dishwasher when open. There may still be some cleaning agent present in the appliance. If swallowed, consult a doctor immediately and take the packaging with you.
• Keep the door closed. You can trip over an open door.
• Do not bend the inlet and drainage hoses or power lead excessively during installation. Take care to ensure they do not become stuck.
• Avoid contact with the skin and eyes. Keep children away from the dishwasher when the door is open.
• Make sure that all loose components in the dishwasher have been fitted correctly. Do not open the door during the cycle.
• This appliance is intended solely for washing dishes. Use the appliance only in a frost-free room!
• Remove the door or deactivate the lock when disposing of the

appliance. Children are known to have gotten themselves locked in old appliances. To forestall such a situation, break your appliance's door lock and tear off the electrical cables.

• Do not allow children to play with the appliance.
• Check whether the detergent reservoir is empty following the end of the wash cycle.
• Fill the salt and rinse aid reservoirs prior to first use and when the indicators light up. Set the salt consumption before use.
• Disconnect the appliance from the power supply when cleaning or performing repairs. Remove the plug from the socket or turn off the switch in the fuse box.
• Long and/or sharp items of cutlery, such as carving knives, should be placed with the points facing down in the cutlery basket or placed horizontally in the upper basket or cutlery drawer.
• Dispose of the packaging materials in a responsible manner and in accordance with government regulations.
• This appliance must only be used for its intended purpose. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
• Do not put any items into your appliance which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Inventum will not be responsible for any scratch or rust to form on the inner frame of your appliance due to basket movements otherwise.
  islation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

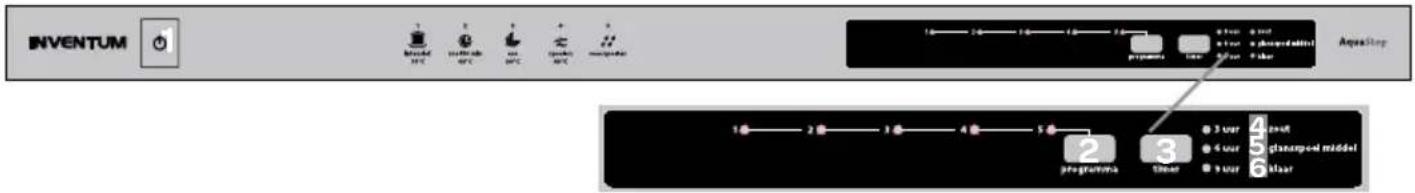

2 description of the appliance

INVENTUM AquaStop 10 20 30 40 50 60 preparation 2 3 4 5 programma 3 ur 4 ur 5 ur 4 out 4 out 5 out 2 3 4 5 2 3 4 5 2 3 4 5 2 3 4 5 2 3 4 5

1. On/off button - when the on/off button is pressed the indicator light Ready (6) lights up.
2. Program selector button - select the desired washing program with this button - P1, P2, P3, P4 or P5. The corresponding indicator light lights up.
3. Timer button with indicator lights - press this button to delay the start of the program by 3, 6 or 9 hours. Each press of the button changes the delay time with 3 hours. The indicator light at the selected time lights up. Press the button again after you have selected the 9 hour delay to cancel the delay time. Close the door to activate the delayed time. To select a different delay time, press the timer button and select a different delay time. As soon as the delayed time has passed the corresponding indicator light goes out and the dishwasher will start the selected washing program.
4. Control lamp for softening salt - the dishwasher checks if there is enough salt available. If not, the control lamp lights up and you need to refill the salt reservoir.
5. Control lamp for rinse aid - the dishwasher checks if there is enough rinse aid available. If not, the control lamp lights up and you need to refill the rinse aid reservoir.

6. Indicator light Ready - when the dishwasher has finished washing and drying this indicator light lights up. A buzzer will also sound five times to indicate the program is finished.

7. Upper basket

8. Upper spray arm
9. Upper basket track latch
10. Filters
11. Lower spray arm
12. Cutlery basket
13. Lower basket
14. Rating label
15. Control panel
16. Detergent and rinse aid reservoir
17. Salt reservoir

1 2 3 4+5 6 7 8 9 10 11

3 before first use

Prior to using the machine for the first time please check whether the electricity and supply water specifications match the values indicated by the installation instructions for the appliance.

Remove all packaging materials inside the machine.

Fill the salt reservoir and fill up with water until it almost overflows. Set the water hardness setting.

Fill the rinse aid reservoir.

FILLING THE SALT RESERVOIR

For a good washing result, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime residues will remain on the dishes and the interior of the dishwasher. This has a negative effect on your applinace's washing, drying and shining performance.

For this purpose, dishwasher salt is used.

• Remove the lower basket and unscrew the cap of the salt reservoir (1 and 2).
• Fill the reservoir before first use with 1 litre of water (3). Place the provided funnel into the opening and fill with salt till the overflow level (4).
  It is normal for a little water to flow out of the opening when doing this.
• Screw the cap back on firmly.

ATTENTION!

• Remove any spilled salt and run a full program to prevent corrosion to the bottom.
• Refill the salt reservoir when the indicator light of the salt reservoir lights up.

Grayscale medical scan image showing internal anatomical structures with an arrow indicating a specific region (no text or symbols present)

Close-up of mechanical components with no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

4 SALT

SETTING THE SALT CONSUMPTION

To find out the water hardness level in your area, contact your local water company. Adjust the salt consumption according to the table on the next page.

Note! Hardness level is adjusted to level 3 as a factory setting.

INVENTUM 1 2 3

- Press the program selector button and keep it pressed down while the dishwasher is not on (3).

- In the meanwhile switch on the dishwasher by pressing the On/Off button (4).

- Keep the program selector button (2) pressed down until the indicator lights (P1, P2, P3, P4 (P5) and Ready) turn on and off.

After the indicator lights (2) lit up, release the program selector button (3). The control panel shows the latest entered or hardness setting.

- Set the level of water hardness by pressing the program selector button (3). Use the table of water hardness level settings on the next page.

After adjusting the level of water hardness, press the On/Off button (1) to confirm and store the setting.

Table of water hardness level settings

Water hardness level	German hardness dH	French hardness dF	British hardness dE	Hardness level indicator
				P1	P2	P3	P4	P5
10-50	90-6●○○	●
26-110	-207-14○●	○○●
3	12-17	21-30	15-21	○	○	●	○	●
4	18-22	31-40	22-28	○	○	○	●	●
5	23-31	41-55	29-39	●	○	○	●	●
6	32-50	56-90	40-63	○	●	○	●	●

FILLING WITH RINSE AID AND SETTING THE CONSUMPTION

Rinse aid is used to prevent traces of water droplets being left on the clean dishes. It also increases the drying performance, since the water drains off more easily. Only use rinse aid which is designed for use in dishwashers.

• The rinse aid reservoir is located on the inside of the door, alongside the detergent reservoir.
• Open the lid of the rinse aid reservoir (1).
• Fill the rinse aid reservoir until the rinse aid level indicator turn dark (2). Close the lid.
• By checking the rinse aid level indicator you can see whether or not the dishwasher needs rinse aid. A dark indicator (b) means there is rinse aid in the compartment. A light indicator (a) shows you need to refill the reservoir with rinse aid.
• The rinse aid level can be adjusted between the setting 1 and 6. The factory setting for rinse aid is level 3.

Unscrew the cap and use a large screwdriver to set the correct level (3). You need to increase the level of rinse aid when water stains form on your dishes after a wash program. Decrease it when strips or blue stains form on the dishes. Keep adjusting the level until the dishes are streak-free when you take them out of the dishwasher.

Close-up of a hand holding a small electronic device with a label '1' (no visible text or symbols on the device itself)

Close-up of a mechanical component with a hand pointing to a section (no visible text or symbols)

Mechanical component with a labeled part (3), showing internal parts and a rectangular body (no text or symbols beyond the number)

Attention!

• Refill the rinse aid reservoir when the rinse aid indicator lights up.
• Do not overfill the rinse aid reservoir. The reservoir will overflow.
• Spilled rinse aid must be cleaned up. Otherwise they may lead to leakage as a result of extreme foaming.

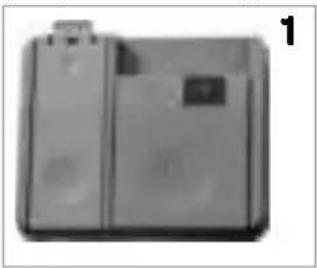

DISHWASHER DETERGENTS

Use a detergent specifically designed for use in domestic dishwashers. You can find it in a powder, gelcapsules and tablets.

Detergent must be placed into the reservoir before starting the dishwasher. Keep the detergents stored in a cool, dry place and out of reach of children. If swallowed, consult a doctor immediately and take the packaging with you.

Do not fill more detergent than required in the reservoir; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Exterior view of a rectangular electronic device with a small square patch on the side (no visible text or symbols)

Exterior view of a printer with paper spool and paper holder (no visible text or symbols)

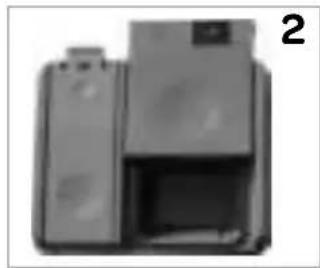

• Push the latch (1) to open the detergent reservoir. The detergent reservoir has level lines inside. It is possible to measure the right amount of detergent using these lines.
• The reservoir can contain a maximum of 40 grams of detergent. Fill the reservoir with 25 grams of detergent when the dishes are heavily soiled or with 15 grams if they are less soiled. Pour 5 grams in the compartment when there are dried food wastes in the dishes and when the dishwasher is overly loaded.
• Close the lid by sliding it in place, close the door and start the dishwasher.
• Depending on the water hardness and the amount of dirt on the dishes add extra detergent.

Detergent manufacturers also produce combined detergents called 2-in-1, 3-in-1, 5-in-1 etc. Generally, combined detergents produce sufficient results under certain usage conditions only. Observe the instructions on packaging when using a combined product. Never put the detergent tablet into the interior section or in the cutlery basket of the dishwasher. Always put the tablet into the detergent reservoir.

When using short wash cycles it is possible the tablet does not dissolve fully. Therefore use detergent tablets only in combination with long wash cycle, so that the detergent tablet has time to fully dissolve.

4 loading your dishwasher

Properly placing your dishes into the dishwasher has a positive effect on the energy consumption and the washing and drying performance.

The lower basket can be loaded with large items such as pots with long handles, pans, lids, plates, salad bowls and the cutlery basket.

The upper basket is for cups and saucers, mugs, small bowls and glasses. Wine glasses and long-stem glasses must be placed against the edge of the basket, rack or glass supporter wire and not against other items. Long, small cooking utensils, such as wooden spoons, should be placed lying down in the middle of the upper basket.

The cutlery basket is designed for cutlery. Sharp items of cutlery, such as knives and forks should be placed with their sharp points facing down. Place the cutlery piece by piece in a compartent to ensure the spray arms can reach every part.

WARNING: place your dishes into your dishwasher in a way that they will not prevent the upper and lower spray arms from spinning. a = open, b = closed

The upper basket has height adjustable racks. They are designed to increase the capacity of the upper basket. You can place your glasses and cups on the racks. You can use them open or closed. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the spinning of the spray arm.

a = open b = closed

a b

Different ways of loading the baskets are shown on the next pages.

ADJUSTING THE HEIGHT OF THE UPPER BASKET

The upper basket is in the upper position. When it is in this position, you can place large items, such as pots and large plates, on the lower basket. When the upper basket is in the lower position, you can place large plates in the upper basket. Adjust the height of the upper basket only when it is empty.

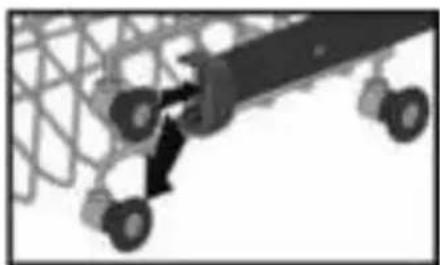

Use the runners to adjust the height of the basket. Open the basket track latch by turning them sideways. Take the basket out of the guiding rails. Place the other runners in the guiding rails and push the basket back in the rails. Close the track latches. You have now placed the upper basket in the lower position.

Pure electrical circuit lines without any symbols

Silhouette of a mechanical assembly with wheels and a central component (no visible text or symbols)

Upper basket

Diagram of a grid-like structure with circular elements and a central rod, no visible text or symbols

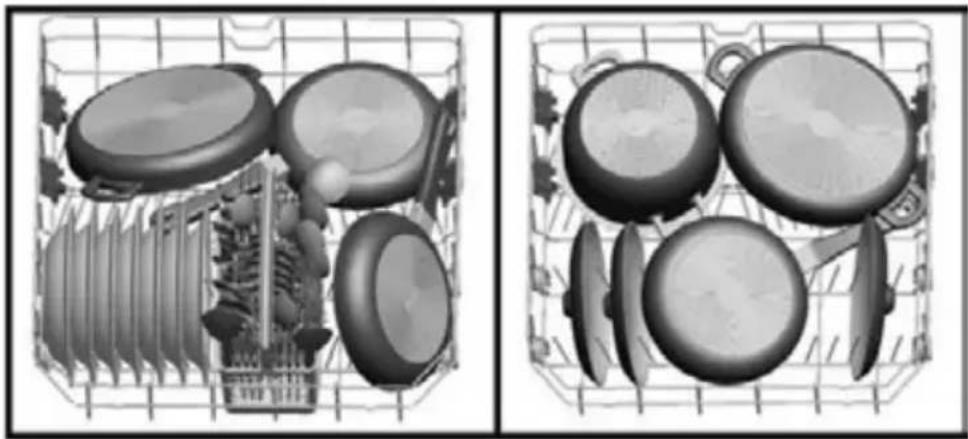

Lower basket

Two grayscale images showing a food basket with various kitchen utensils and pots, no text or symbols visible.

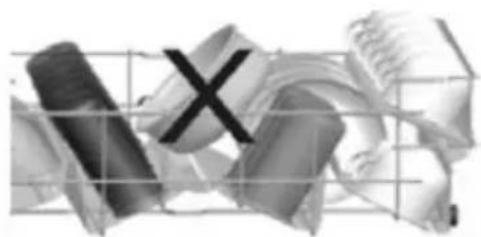

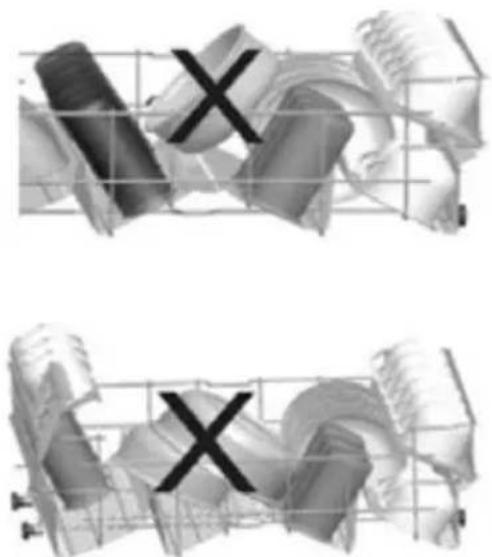

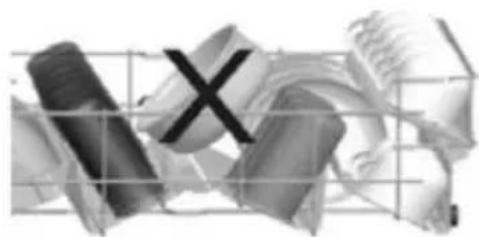

Upper and lower basket faulty loading

Black X symbol over a grid of circular objects, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Abstract 3D rendered geometric shapes with grid lines, no text or symbols present

Abstract 3D wireframe structure with a large 'X' symbol overlay (no text or symbols present)

WARNING: place your dishes into your dishwasher in a way that they will not prevent the upper and lower spray arms from spinning. Make sure that no objects are sticking through the bottom of the cutlery basket.

34 • English

SWITCHING THE DISHWASHER ON AND OFF

INVENTUM 1 2 Aquacitrop

• Switch the dishwasher on by pressing the On/off button (1).
• Select the desired program with the program selector knob (2).
• Close the door and the program starts automatically.

The dishwasher remains silent for about 40-50 minutes whilst drying. When the buzzer sounds five times, the program is finished.

- Open the door and switch the dishwasher of with the On/off button (1).

NOTE! You can slightly open the door and wait a few minutes before unloading the dishwasher. The dishes and cutlery will still be very hot and may break as a result of the heat. Moreover, the dishes dry better when allowed to stand for a few minutes.

ENDING OR CHANGING A PROGRAM

If you would like to end a program of change a program while a washing cycle is already running.

• Carefully open the door and select another program with the program selector knob (2).
• Close the door and the new program will resume the course of the old program.

NOTE: open the door slightly when you want to open the door in order to stop the washing program before it is completed to avoid water spillage.

If you would like to end a program or stop the dishwasher:

• Open the door slightly and keep the program selector button (2) pressed for 3 seconds. The indicator light of the program turns off and the indicator light Ready blinks.
• Close the door so the dishwasher can discharge the water in it for about 30 seconds
• As soon as the program is ended, the buzzer will sound five times and the indicator light Ready is lit.
• Open the door and switch the dishwasher off with the On/off button (1) or select another program with the program selector button (2) and turn the dishwasher back on.

Program Program information Program process Time in minutes
P1-intensief	INTENSIVE - Wash program for heavily soiled dishes, such as pots, pans and casseroles with dried leftover food.	Pre-wash70°C washCold rinseWarm rinseDryingReady	127
P2 - unel 50 min	FAST 50 MIN - A short program for dirty dishes which need no drying, such as casseroles.	65°C washCold rinseWarm rinseReady	50
P3 - eco	ECO - Daily program for normally soiled dishes (The program takes a little longer, but uses less water and heats slower which decreases the energy consumption).	Pre-wash50°C washCold rinseWarm rinseDryingReady	187
P4 - spoelen	RINSE - A short program for lightly soiled dishes that do not need drying.	40°C washCold rinseWarm rinseReady	30
P5 - voorspoelen	PRE-WASH - Pre-wash and soaking of leftover foods on dishes that you plan to wash later.	Pre-washReady	15

6 cleaning & maintenance

Cleaning the dishwasher regularly, prolongs the dishwasher's service life.

Check before cleaning the dishwasher if it's is turned off. Unplug the dishwasher and turn off the tap.

Clean the outside of the dishwasher with a damp cloth. To prevent odors from forming within the dishwasher, clean the seals of the door regularly with a soft damp cloth.

To prevent the dishwasher from getting clogged, we advise to clean the dishwasher regularly with a special cleanser. Fill the detergent reservoir with detergent, select a cycle with a high temperature and start the program. If this is insufficient, use a special cleanser for dishwasher and follow the instructions on the packaging.

Clean the filters and the spray arms once a week.

CLEANING THE FILTERS

Check once a week if there is any residue on the filters. Remove the filters and clean them thoroughly under the water tap. The filter system consist of three components: the micro filter (2a), the main filter (2b) and the sieve (3c).

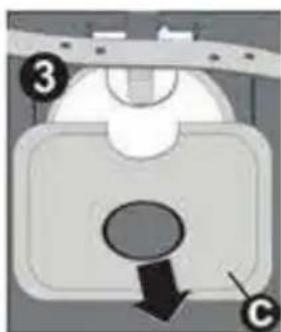

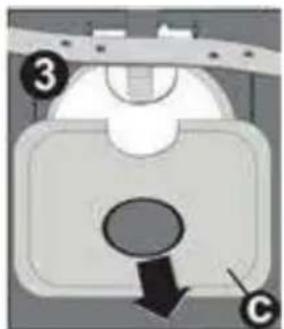

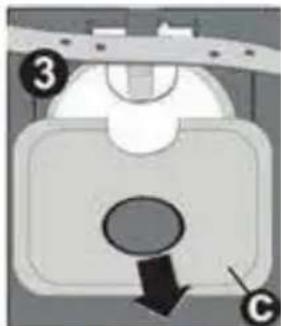

1. To remove the filters, turn the main filter (2b) anti-clockwise and pull it upwards. The micro filter (2a) is attached to the main filter.
2. Pull the main filter from the micro filter and clean both parts with warm water using a dishwashing brush.
3. Take the sieve out of the dishwasher and clean it with warm water and if needed a dishwashing brush. Place the sieve back in the dishwasher.

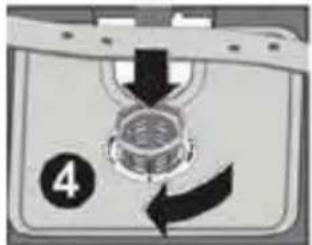

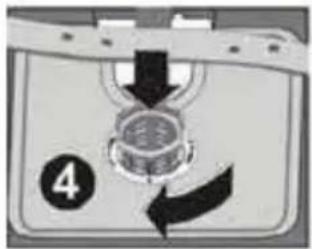

4. Place the main filter in the micro filter with the markings allined. Re-fit the filters in the sieve and turn it clockwise to fixe it.

Diagram showing a device with directional arrows and a numbered label '1' indicating sequence or step number.

a b ②

Diagram of a mechanical component with labeled parts (3 and C), showing a downward arrow and circular feature (no readable text or symbols)

4

• Do not use the dishwasher when there are no filters in place.
• Incorrect fitting of one the filters will result in the dishwasher no longer delivering maximum performance.
• Make sure the filters are clean. This ensures proper functioning of the dishwasher.

CLEANING THE SPRAY ARMS

Check the nozzles of the upper and lower spray arms regularly for waste. Waste can block the nozzles and bearing in the spray arms. Remove the clogging in the spray arms and clean them with warm water.

• Unscrew the nut of the upper spray arm to remove it. Remove the spray arm.
• Remove the lower spray arm by pulling it upwards.
• Clean the spray arm with warm water.
  • Make sure that the nut is perfectly tightened when refitting the upper spray arm.

Pure diagram of a mechanical or electrical component with directional arrows, no text or symbols present

7 placing the dishwasher under a counter top

If you want to place the dishwasher under a counter top, check whether there is enough space (Fig. 1) and if the electrical and water supply are suitable. If the space is suitable for placing the dishwasher, remove the wortktop (Fig. 2).

• To remove the worktop, remove the screws at the rear of the dishwasher. Push the worktop 1 cm to the rear and lift it (Fig. 2).
- Push the dishwasher under the counter top. Make sure the hoses do not get crushed or bent (Fig. 4).
- Adjust the feet according to the slope of the floor by setting the dishwasher level (Fig. 3).

1 2 4 3 * The height depends on the use of the (existing) insulation. Height without insulation Height with insulation 820 mm 830 mm

* The height depends on the use of the (existing) insulation.

Height without insulation	Height with insulation
820 mm 830 mm

8

troubleshooting

FAULTCODE DESCRIPTION CHECK
P1 - Intensive	P2 - Fast 50 min	P3 - Eco	P4 - Rinse	P5 - Pre-wash
					Inadequate water supply • Check whether the tap is fully open and there is nothing blocking the water mains. • Close the tap, remove the input hose and check whether it is clogged. • Start the dishwasher again. Contact the service department of Inventum when the error remains.
					Water supply is not stopping. • Close the tap. • Contact the service department of Inventum.
					The waste water can not be discharged.	• The water discharge hose is clogged. • The filters might be clogged. • Turn the dishwasher off. Reset the dishwasher's program and check the filters and the discharge hose. Restart the dishwasher. • Contact the service department of Inventum when the error remains.
					The water temperature is not correct. Heating defect.	• Contact the service department of Inventum.
					Safety is activated against water overflow.	• Turn off the dishwasher and close the tap. • Contact the service department of Inventum.
					Faulty electronics. • Contact the service department of Inventum.
					Overheating error. • Contact the service department of Inventum.
					Position of the distributor error. • Contact the service department of Inventum.
					Faulty heat sensor. • Contact the service department of Inventum.

...the program won't start?

• Check if the plug is connected.
• Check the fuse in the fuse box.
  • Make sure the water tap is open.
• Make sure the door of the dishwasher is closed properly.
• Check whether the dishwasher is turned on with the On/off button.
• Check whether the water inlet hose and filters aren't clogged.

...the indicator lights won't go off after the cycle has finished?

- The On/off button is not released yet.

...detergent residues are left in the detergent reservoir?

- Detergent has been added when the reservoir was damp.

...water is left inside the dishwasher at the end of the cycle?

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The cycle has not finished yet.

...the dishwasher stops during a wash cycle?

• Power failure.
  • Water supply failure.
  • The program can be paused.

...you hear noise during a wash cycle?

• The dishwasher is not loaded properly.
• One of the spray arms is hitting the dishes.

...there are partial food wastes left on the dishes?

• The dishes aren't placed correctly which prevents the spray arms from reaching everything.
• The basket is overly loaded.
  • The dishes lean against each other.
• Too small amount of detergent is added.
• Wrong program selected.
  • One of the spray arms is clogged with food waste.
  • The filters are clogged.
  • The filters are not placed correctly.
  • The water drain pump is clogged.

...there are whitish stains on the dishes?

• Too small amount of detergent is added.
  • The dosage of the rinse aid is too low.
• In spite of the high level of water hardness there is no special salt added.
  • The level of water hardness is set too low.
  • The cap of the salt reservoir is not closed well.

...the dishes won't dry?

• A program without a dry process was selected.
  • The dosage of the rinse aid is too low.
  • The dishes are unloaded too fast.

...there are rust stains on the dishes?

• The stainless steel quality of the dishes is insufficient.
  • The dosage of salt is too high.
• The cap of the salt reservoir is not closed well.
• Too much salt was spilt inside the dishwasher while refilling the reservoir.
  • The water mains is polluted.

Contact the service department of Inventum when a malfunction occurs which is not described.

	INVENTUM
Model RVW6027AB
Number of place settings 12 place settings
Energy efficiency class * A++
Annual energy consumption [Aec] kWh ** 258
Energy consumption standard cycle [Et] 0,90
Power consumption in OFF mode [Po] 0,50
Power consumption in standby mode [PI] 1,00
Annual water consumption ** 3360
Drying efficiency class *** A
Standard program ECO 50°C
Program duration standard **** [min] 187
Noise level dB(A) 47
Color white
Dimensions
Height [mm] 850
Width [mm] 598
Depth [mm]	598
Weight [W]	46 kg
Power consumption	1900
Rated voltage/frequency	220-240 Volt -/50 Hz
Rated current	10 A
Water pressure (flow pressure)	0,03 - 1 Mpa

* A+++ (highest efficiency) to D (lowest efficiency).
** Based on 280 standard cleaning cycles. Actual annual energy/water consumption depends on the actual frequency of usage.
*** A (highest efficiency) to G (lowest efficiency).
**** This program is suitable for cleaning normally soiled tableware and that it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.

Note: the above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and the dishes, water hardness, amount of detergent, etc.

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

5-year Inventum warranty

1. Inventum offers a 5-year warranty on most large domestic appliances and a selection of small domestic appliances. This 5-year Inventum warranty consists of a 2-year full manufacturer's warranty, extended by a further 3-year warranty. The only thing you need to do to qualify for the 3-year extended warranty is to register the product within 45 days of purchase. You can read more about registering the product in the following paragraph.
2. In accordance with the 5-year Inventum warranty provisions, a faulty product or part will always be exchanged for a new model during the first 2 years under the warranty. During the 3rd to 5th year under the warranty, you will only pay the costs of exchange. The current costs of exchange are listed at www.inventum.eu/omruilkosten.
3. In order to claim under the 5-year Inventum warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
4. The 5-year warranty period starts from the date the product is bought.
5. In order to claim under the warranty, you must produce a copy of the original receipt.
6. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Product registration

1. The 3-year extended warranty is easy to obtain, free of charge, by registering the product within 45 days of purchase, via the website www.inventum.eu/garantie- registratie. If you did not register the product within 45 days of purchase, you can still do so up to 2 years after the purchase date. However, there will be a charge. The one-off registration charge is € 89 for each separate product. Registration is possible only for products that are subject to the 5-year Inventum warranty. Whether the product qualifies for the 5-year Inventum warranty is stated in the product user manual and in the product information sheet, on Inventum's website.
2. The warranty period always starts from the date the product is bought. If the product is registered for the extended warranty at a later date, the warranty period still starts from the original date of purchase.
3. The 3-year extended warranty can only be applied for if you are in the possession of a copy of the original receipt and the Inventum 5-year warranty certificate.

Large domestic appliances

1. Breakdowns or faults in large domestic appliances (separate and built-in white goods) can be registered via the form at www.inventum.eu/service-aanvraag, by calling the Inventum costumer service department or in the store where you bought the device. The telephone number of the costumer service department can be found at www.inventum.eu.
2. In the event of breakdowns or faults in large domestic appliances, Inventum will have the option to have a service engineer inspect the faulty device onsite at the customer in the Netherlands and to carry out repairs, there and then. The Inventum customer service department can also decide to have the device exchanged.
3. If you suffer a breakdown or fault in a large domestic appliance during the first 2 years from the date of purchase, Inventum will not charge any costs for the exchange, call-out or for parts and labour.
4. If you registered the product as described before at www.inventum.eu/garantie-registratie and you subsequently report a breakdown of a large domestic appliance in the 3rd to 5th year of the date of purchase, the 5-year Inventum warranty applies and the device will be repaired or exchanged, free of charge. In the event of a repair or exchange of the device, you only pay the costs of exchange. The current costs of exchange are listed at www.inventum.eu/omruilkosten. If you did not register the product, the 3-year extended warranty does not apply.
5. When reporting a breakdown or fault, a service engineer will contact the customer within 1 working day in order to make an appointment. When the report is made in a weekend or during a public holiday, this will be the next working day.
6. If you report a breakdown or fault via the form at www.inventum.eu/service-aanvraag, you will be kept informed of the progress via mobile messages and e-mail.
7. The warranty period starts from the date the product is bought.

42 • English

1. In order to claim under the warranty, you must produce a copy of the original receipt and the Inventum 5-year warranty certificate.
2. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. Parts that have been replaced, packaging material and exchanged devices are taken back by the service engineer and become the property of Inventum.
3. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
4. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
5. Inventum cannot be held liable for damage as a result of devices built in incorrectly.
6. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.

7. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

8. Sicherheitsvorschriften Seite 45

Lieferung Seite 45

ENGLISH pages 23 to 43

Coasterfly

8.5±1.7 m

max 110cm min 50cm max 4cm

Close-up of a metallic object with a curved arrow indicating direction (no visible text or symbols)

Close-up of mechanical components or parts, possibly a valve or connector, with no visible text or symbols.

Close-up of a mechanical component with no visible text or symbols

4 SALT

SALZVERBRAUCH EINSTELLEN

Close-up of a mechanical component with a hand holding a tool, no visible text or symbols

Close-up of a mechanical component with a hand adjusting a section (no visible text or symbols)

Top-down view of a mechanical component with no visible text or symbols

Achtung!

Exterior view of a rectangular electronic device with a small inset component (no visible text or symbols)

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

Silhouette of a large industrial machine with wheels and a connecting rod (no visible text or symbols)

Oberkorb

Diagram of a mechanical or electrical component with multiple cylindrical components and a central rod, no visible text or symbols.

Unterkorb

Two grayscale images showing a grid of kitchen utensils, one with a side view and the other with a close-up view (no text or symbols visible)

Black X symbol over a grid of circular objects, no text or symbols present

Illustration of industrial machinery components with no visible text or symbols

Abstract grayscale illustration of fragmented shapes with a central 'X' mark, no text or symbols present

Abstract 3D wireframe structure with a black 'X' symbol overlay (no text or symbols present)

Diagram showing a device with directional arrows and a numbered label '1' indicating a section or step.

a b ②

Diagram of a mechanical component with labeled parts (3 and 6), showing a circular feature and a downward arrow (no text or symbols beyond labels)

4

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

ENGLISH pages 23 to 43

Close-up of a mechanical component with an arrow indicating rotational motion (no visible text or symbols)

Close-up of mechanical components or parts, possibly a valve or connector, with no visible text or symbols.

Close-up of mechanical components or parts, possibly a valve or connector, with no visible text or symbols.

4 SALT

RÉGLAGE DE LA CONSOMMATION DE SEL RÉGÉNÉRANT

Close-up of a mechanical device with a handle and internal components (no visible text or symbols)

Close-up of a mechanical component with a hand pointing to a section (no visible text or symbols)

Mechanical component with no visible text or symbols, labeled '3' in corner (no other text or symbols)

Attention!

Exterior view of a modern office building (no signage)

Exterior view of a printer with paper and paper roll (no visible text or symbols)

Pure electrical circuit lines without any symbols

Diagram of a mechanical assembly with gears and a central component (no text or symbols)

Panier supérieur

Diagram of a mechanical or electrical component with multiple cylindrical components and a central rod (no text or labels)

Panier inférieur

Two grayscale images showing a food basket with various kitchen utensils and cooking pots, no text or symbols present.

Diagram showing four 3D mechanical components with X marks, likely representing a gear or industrial assembly.

Diagram of a device with directional arrows and labeled component '1', likely indicating movement or flow.

a b ②

Diagram of a mechanical component with labeled parts (3 and C), showing a downward arrow and circular feature (no readable text or symbols)

4

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
