USER MANUAL CB 5032 Carmen

PERFECT CURLS

Model: CB5032 (100-240V)

Gebruiksaanwijzing

Mode d'emploi

Gebrauchsanweisung

Manual

Carmen CB 5032 - PERFECT CURLS - 1


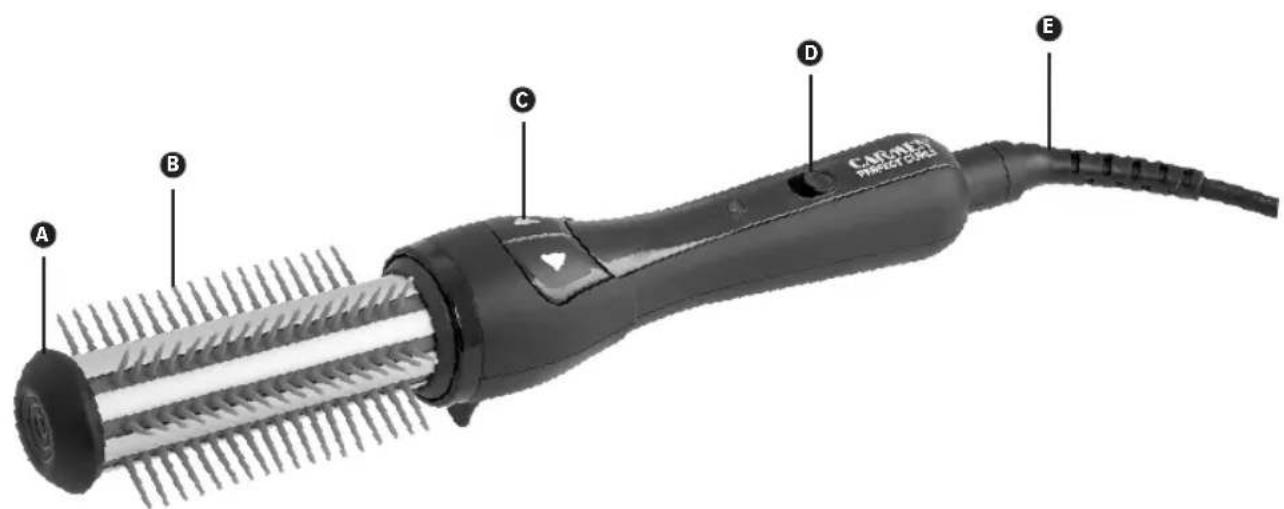

A B C D E GASLONE 3100 GREEN DICKER

A Beschermende cool tip • Embout froid pour protection • Kühle Spitze für Schutz • Protecting cool tip
B Flexibele siliconen tandjes • Poils flexibles en silicone • Flexible silicone bristles • Flexible Silikonborstenzähne
Rotatieknoppen • Boutons de rotation • Tasten für die Drehung • Rotation button
D Rotatiesnelheid schakelaar • Commutateur de vitesse de rotation • Drehzahlschalter • Rotation speed switch
E Meedraaiend snoer • Cordon rotatif • Drehkabel • Swivel cord

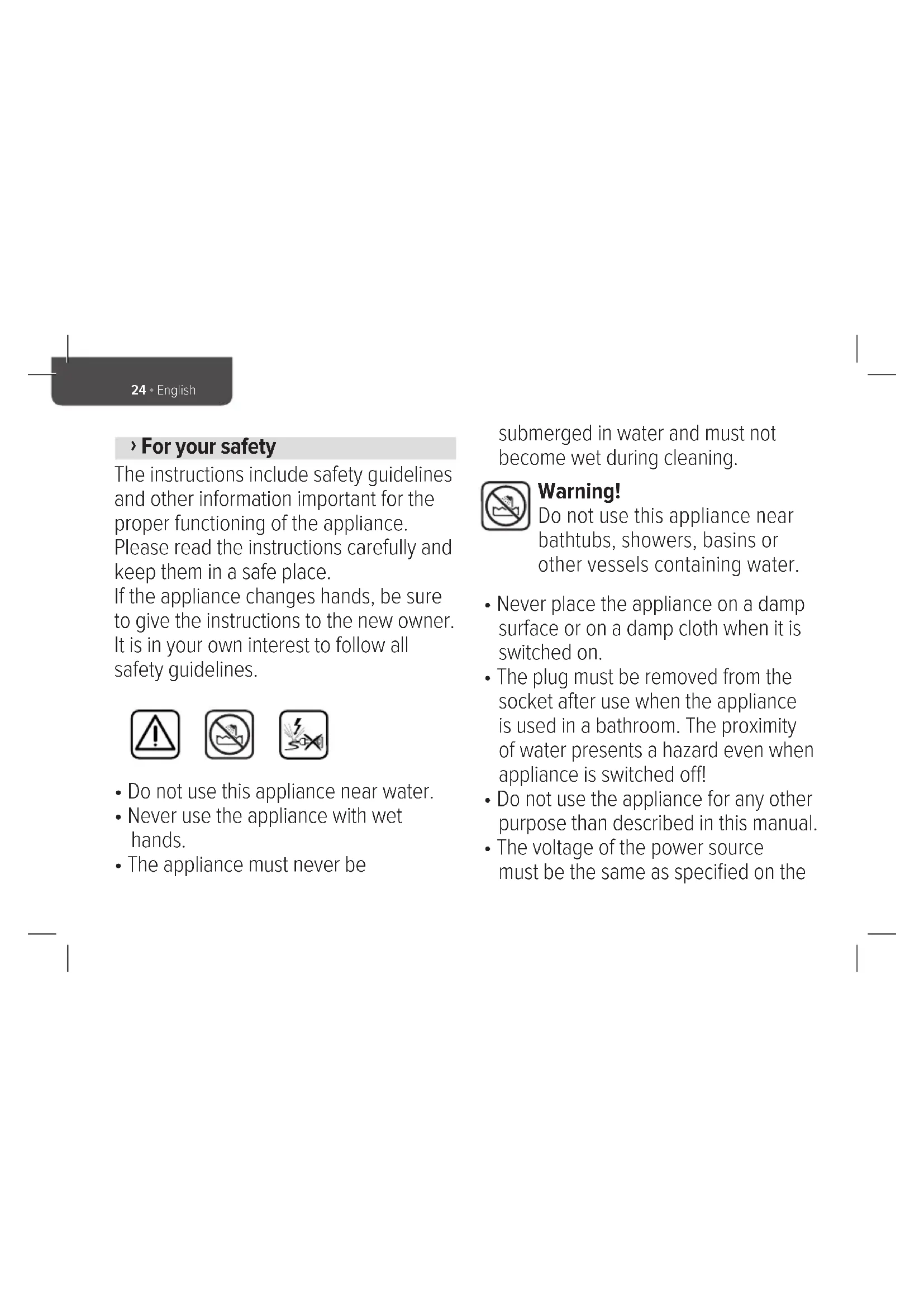

>Voor uw veiligheid

The instructions include safety guidelines and other information important for the proper functioning of the appliance.

Please read the instructions carefully and keep them in a safe place.

If the appliance changes hands, be sure to give the instructions to the new owner. It is in your own interest to follow all safety guidelines.

Carmen CB 5032 - >Voor uw veiligheid - 1

Carmen CB 5032 - >Voor uw veiligheid - 2

Carmen CB 5032 - >Voor uw veiligheid - 3

Do not use this appliance near water.
Never use the appliance with wet hands.
• The appliance must never be

submerged in water and must not become wet during cleaning.

Carmen CB 5032 - >Voor uw veiligheid - 4

Warning!

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

Never place the appliance on a damp surface or on a damp cloth when it is switched on.
The plug must be removed from the socket after use when the appliance is used in a bathroom. The proximity of water presents a hazard even when appliance is switched off!
Do not use the appliance for any other purpose than described in this manual.
The voltage of the power source must be the same as specified on the

appliance.

Switch the appliance off if the drying process is interrupted.
The plug must be removed from the socket:
if a fault occurs during use
every time it is cleaned
after use
Never remove the plug by pulling on the cable.
Never wind the cable around the appliance.
The appliance must not be switched on if:
the cable is damaged
there is visible damage to the appliance
the appliance has been dropped

- When the appliance is connected to

the power, never leave it unattended.

Wait until the appliance has cooled down before you store it.
This appliance can be used by children from the age of 8 up as well as by persons with reduced physical, sensory or mental abilities or with lacking experience and/ or knowledge, if these persons are supervised or have been instructed how to use the appliance in a safe way and have understood the hazards which could arise from using it. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
Packaging materials such as plastic bags must be kept out of the reach of children.
Fitting an earth leakage circuit breaker provides additional safety: the current in the circuit may exceed 30 mA. Consult your electrician.
The appliance may present a hazard even when it is switched off. The plug must therefore be removed from the socket after use.
If the cable is damaged it may be replaced only by an approved service point, for safety reasons.
A damaged appliance must not be used.
Only specialists are allowed to do reparations. Improperly reparations can cause considerable danger!
There is always risk of injury when using electrical appliances improperly!
• To prevent unintentional misuse, keep

the appliance stored away in a safe place.

• Take care to avoid contact between the hot surface of the barrel and your skin.
- The connecting cable must not come into contact with hot appliance parts.
- Never use flammable substances, e.g. hairspray, styling mousse etc., on your hair before using this appliance.
- The appliance may only be used on dry, natural hair. Do not use on artificial hair!
- The appliance must not come into contact with flammable materials. It must also not be used near flammable materials because the curling iron reaches temperatures of approx. 200°C.
- Never cover the curling iron with an

object.

Do not place the hot curling iron on any heat sensitive surfaces.
Place the appliance on a stable, flat surface during use.

>Carmen Perfect Curls

Thank you for purchasing the Carmen Perfect Curls. Please read these instructions carefully before using the product and keep them in a safe place for future reference.

>The product

Name: Carmen Perfect Curls

Model: CB5032

Voltage: 100-240V, 50-60Hz

Power: 54-58W

Carmen CB 5032 - >The product - 1

CE compliance:

This appliance complies with EU EMC Directives 2014/30/EU and Low Voltage 2014/35/EU.

>Specifications

• Automatic rotating curling brush
• Flexible silicone bristles
- Two rotating speeds
• Curling brush diameter: 32 mm
• 200 °C
- Cool tip
- Ceramic coating

• Automatic shut-off
- 1.8 m long cable
• Suitable for medium to long hair

>Operating instructions

The Carmen Perfect Curls allows you to style your hair in different fashions. For example, you could create sensual wavy curls, but also have the ends curl inward or outward for a completely different look!

Please use the product as follows:

Use a heat-protecting serum or spray before using the Carmen Perfect Curls.
Make sure the hair is dry before using the curling iron.
Brush your hair to ensure it's free of knots.
Divide the hair into locks.
Turn on the curling iron. The curling iron has reached the required temperature as soon as the light stops flashing.
Choose setting 1 for an average rotating speed or setting 2 for a high rotating speed.

Steps to follow for wavy curls:

Place a lock with its end on the curling iron. Now let the curling iron roll up the rest of the lock automatically by pressing one of the rotating buttons.
Depending on the desired effect and which side of the hair-do must be styled, you can choose a rotating direction for the curling iron (left or right).
Keep the hair in place for 4-10 seconds, depending on your hair type. Please be careful, don't touch your skin with the hot iron.
Thanks to the flexible silicone teeth it's now easy to remove the curling iron from the hair lock.

Steps to follow for curly hair ends:

Depending on the desired style, place a lock at the start on top or at the bottom of the curling iron.
Press and hold one of the rotating buttons while carefully moving the curling iron downward to ensure your hair is being brushed and styled into the desired direction. The silicone teeth will brush the hair while giving it a nice shine.
Depending on the desired effect and which side of the hair-do must be styled, you may choose a rotating

direction for the curling iron (left or right).

Repeat these steps until all of your hair is styled.
Turn off the device and let your hair cool down.
Use hairspray to fix your hair style.
Enjoy your new look!

>Cleaning and maintenance

Ensure that the appliance is disconnected from the mains before cleaning. Do not submerge it in water. Protect the appliance against dust.

Use a soft non-abrasive cloth that is slightly dampened with water to wipe styling barrel surface. Do not allow water or any other liquid to get into the handle of the iron.

>Environmental and Disposal

Carmen CB 5032 - >Environmental and Disposal - 1

Carmen CB 5032 - >Environmental and Disposal - 2

The packing material and the unit and accessories are made of materials that can be recycled.

Appropriate separation and disposal of the remaining materials helps recycling.

Carmen CB 5032 - >Environmental and Disposal - 3

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

To return your used appliance, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental recycling.

>Guarantee

The guarantee covers this product for a period of 2 years, with the exception of individual parts, beginning on the date of original purchase. Use of the guarantee does not result in extension of the guarantee period. The guarantee covers manufacturing faults and material faults in original parts. This guarantee does not include normal wear and tear and damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the

30 · English

technical and/or safety instructions required.

If your product requires repair, you should contact an authorized service dealer.

Never dispose of your appliance with the regular household waste. Follow the waste disposal regulations for your locality or return your appliance to the retailer. Retain the retailer's receipt as proof of purchase.

Carmen has a policy of continuous improvement in product quality and design. Carmen therefore reserves the right to change the specifications of its products at any time.

—

[Non-Text]

—

[Non-Text]

(No text)

—

广力云智慧零售收银系统

[Non-Text]

CARMEN®

PERFECT CURLS

Model: CB5032 (100-240V)

Glen Dimplex Benelux

Saturnus 8

8448 CC Heerenveen

Nederland

Telephone: +31 (0)513 78 98 40

Fax: +31(0)513 78 98 41

Service: +31 (0)513 78 98 58

www.carmen.nl
