UIAA 55 - Freezer INDESIT - Free user manual and instructions

Product Type	Freezer
Brand	Indesit
Model	UIAA 55
Dimensions (door space)	L × P ≥ 902 × 1052 mm
Power supply	220-240 V / 50 Hz
Refrigerant type	Flammable gas (R600a)
Defrosting	Manual
Temperature setting	Min, Med, Max (mechanical thermostat)
Leveling feet	Yes, two at the front
Door reversal	Yes, possible
Interior accessories	Glass/plastic shelves, vegetable bin
Interior cleaning	Weak baking soda solution
Child safety	Use from age 8 under supervision
Repairs	Only by qualified technician with original parts
Disposal	Comply with local regulations (flammable gas)
Location	Flat floor, ventilated, away from heat sources
Energy consumption	Optimized by regular maintenance (defrost at 3-5 mm frost)

Frequently Asked Questions - UIAA 55 INDESIT

How to install my Indesit UIAA 55 freezer?

Place it on a flat, solid floor, in a ventilated room, away from heat sources and direct sunlight. Leave a space of 10 cm on the sides and at the back, and 30 cm above. Wait 2 hours after transport before plugging it in.

How to reverse the door opening direction?

Use a Phillips screwdriver and a hex key. Disassemble the upper and lower hinges, remove the door stop blocks, then position the hinges on the opposite side. Adjust the leveling after the operation.

How to adjust the temperature?

The adjustment button is located inside on the right wall. Position Min for ambient temperature, Med for normal use, Max for the coldest (summer or fast freezing). Wait 24 hours before placing food.

How to defrost my freezer?

This appliance does not have automatic defrosting. To defrost, unplug the appliance, empty the food, leave the door open, and remove the ice manually (do not use mechanical tools). Then clean and dry before restarting.

What to do if the freezer makes a lot of noise?

Noises are normal: they come from the circulation of refrigerant and the compressor. Check that the appliance is level, that the food is well distributed, and that nothing touches the walls. If the noises are excessive, contact a technician.

How to clean the interior and exterior?

Unplug the appliance. Clean the interior with a weak solution of baking soda then rinse with hot water. Wipe the exterior with a damp cloth and furniture polish. For the condenser at the back, vacuum the dust with a soft brush.

Why is there condensation on the door?

Condensation is normal in case of high ambient humidity or temperature changes. Wipe it with a dry cloth. If it persists, check that the door closes properly and that the seal is clean.

What types of food should not be stored in this freezer?

Do not store explosive substances (flammable aerosols), corrosive products, medicines or biological products. Avoid sealed bottles (beer) that could explode. Hot foods must cool before being placed.

How to save energy with this freezer?

Open the door as little as possible. Set the thermostat to Med in normal conditions. Defrost as soon as the frost layer exceeds 3-5 mm. Let food cool before placing it. Place the appliance in a cool place, away from heat sources.

How to dispose of my old freezer?

Do not throw it away with household waste. Use local collection systems or return it to the retailer. Before, remove the door for child safety. The refrigerant and insulation require special treatment.

USER MANUAL UIAA 55 INDESIT

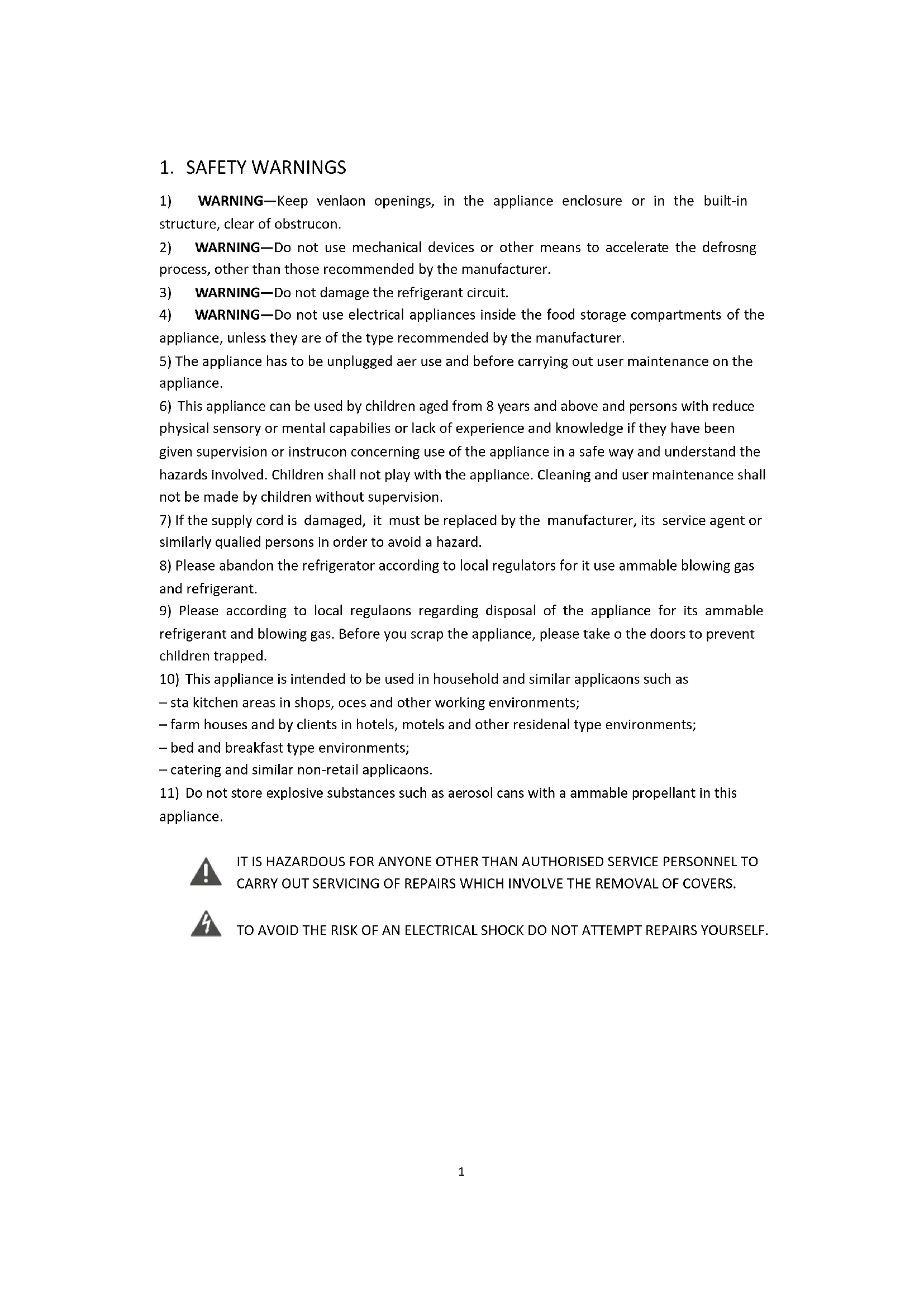

1) WARNING—Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING—Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 3) WARNING—Do not damage the refrigerant circuit. 4) WARNING—Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. 5) The appliance has to be unplugged after use and before carrying out user maintenance on the appliance. 6) This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 7) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 8) Please abandon the refrigerator according to local regulations for it uses flammable blowing gas and refrigerant. 9) Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped. 10) This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

11) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

2. INSTALLATION

2.1 Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 10cm of free space is left at both sides, 10cm at the rear and 30cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

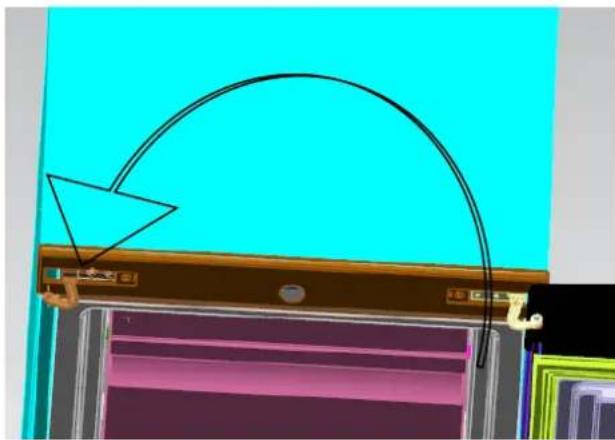

2.2 Reversing the Door Swing

Tools Required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

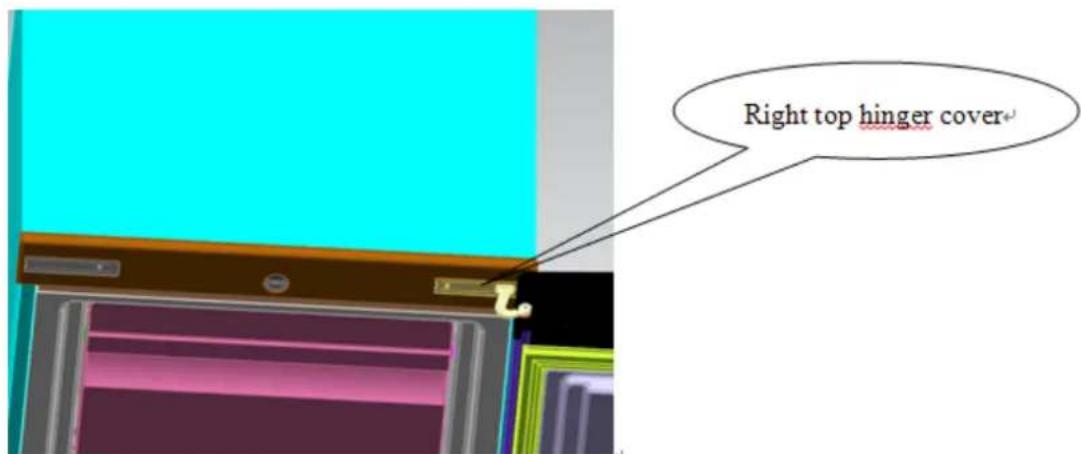

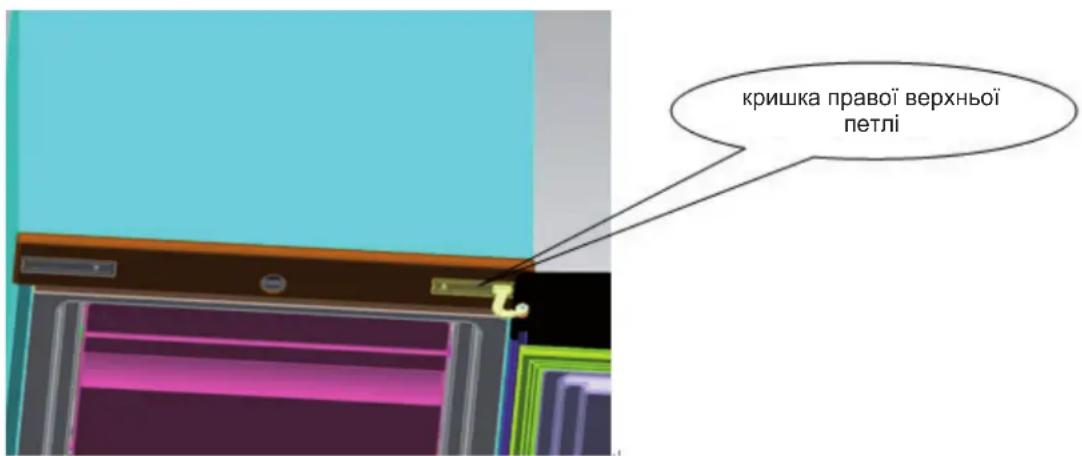

1) Remove the right top hinge cover.

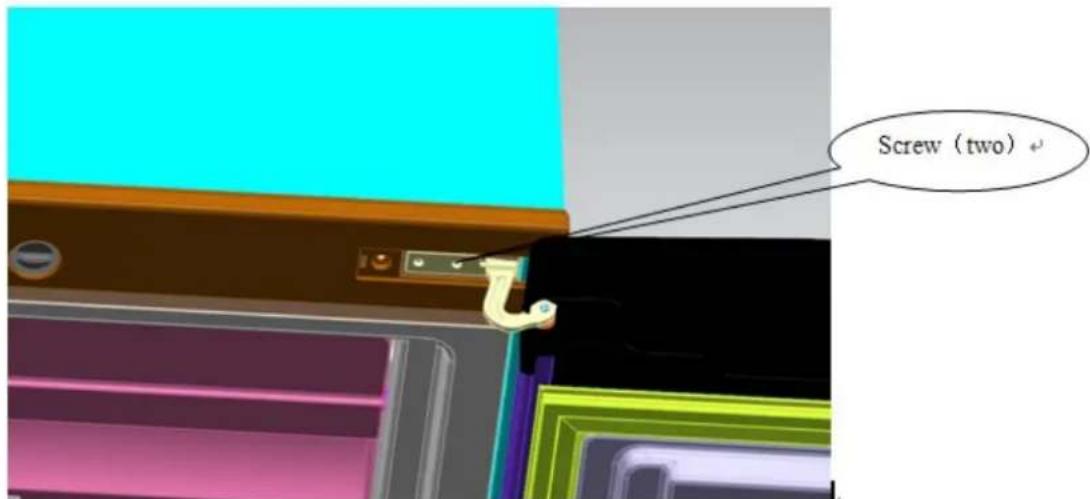

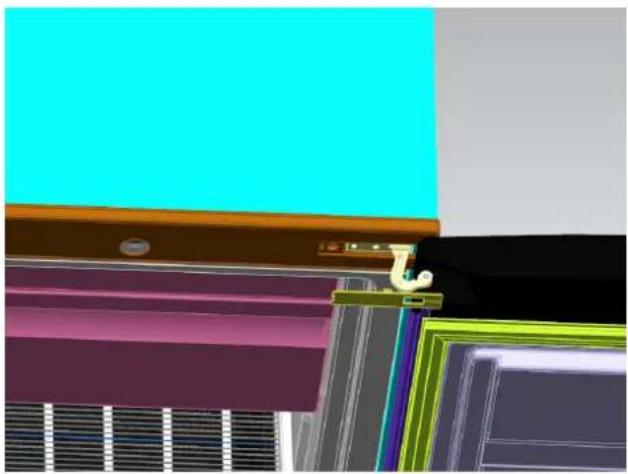

2) Remove the screws fixing the top hinge with a cross-slot screwdriver.

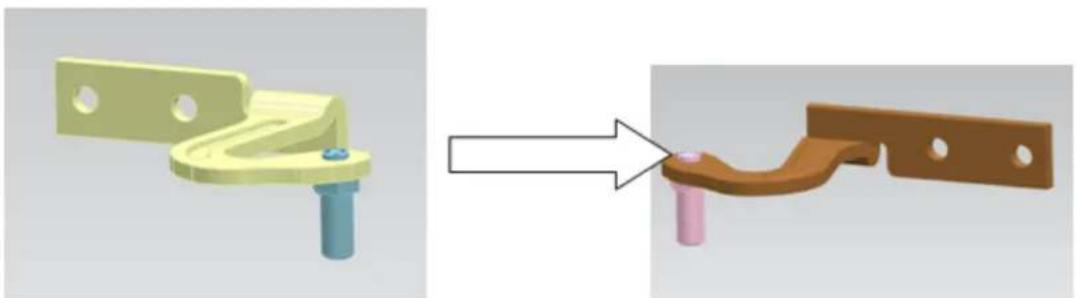

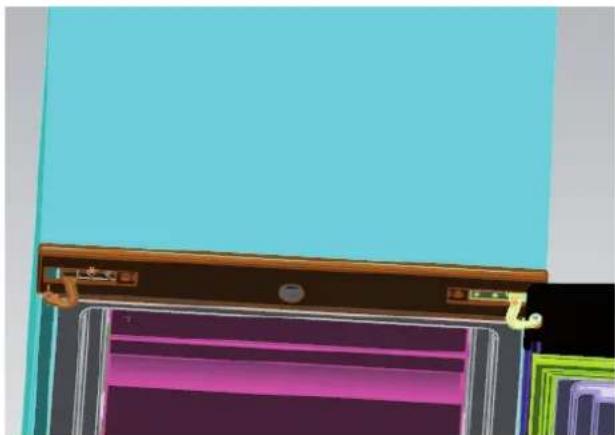

3) Replace the top hinge, the top door limit block, and the door bearing bush to the other side.

A. Remove the nut with a sleeve. Take off the washer, then remove the axle and fix it to the other side.

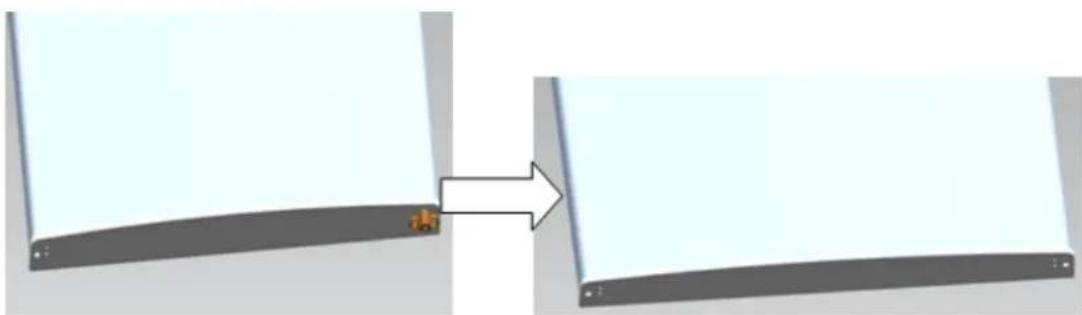

B. Remove the door limit block.

C. Please take out another door limit block and mount it to the door with screws.

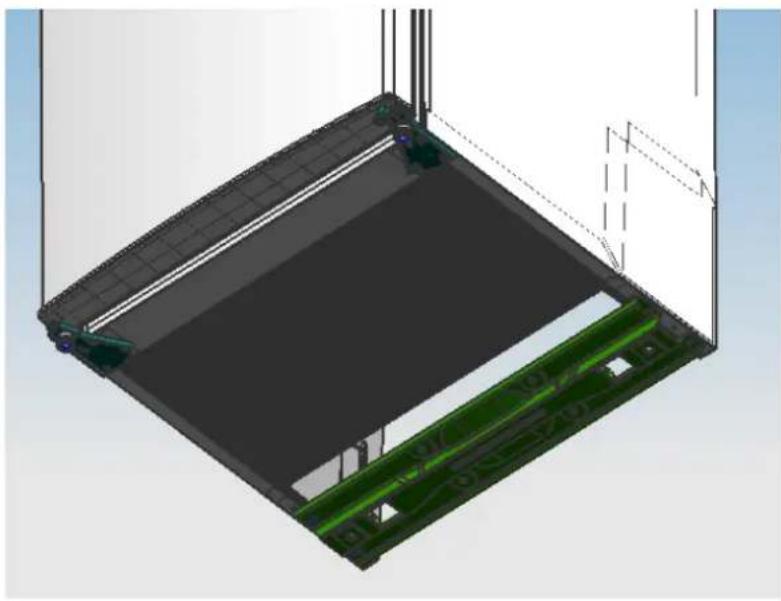

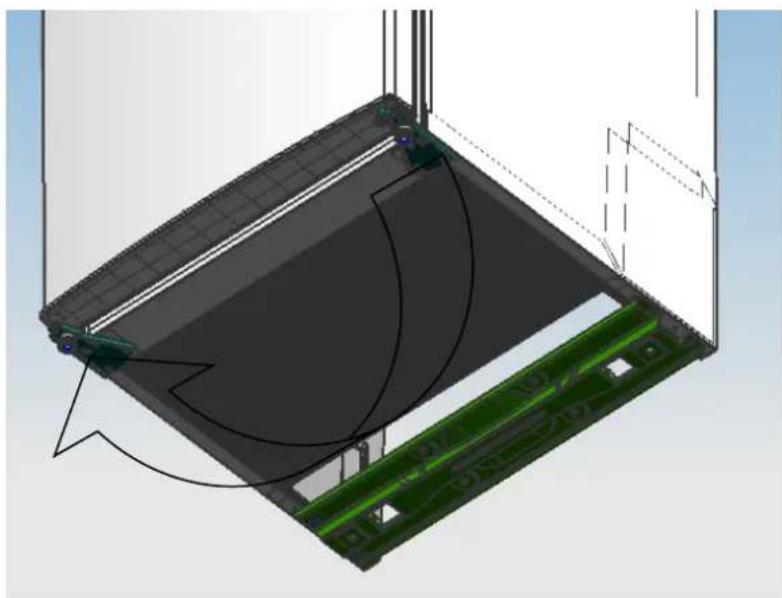

4) Disassemble the screws fixing the bottom hinge with a cross-slot screwdriver.

Note: the refrigerator-freezer incline angle should be less than 45 degrees.

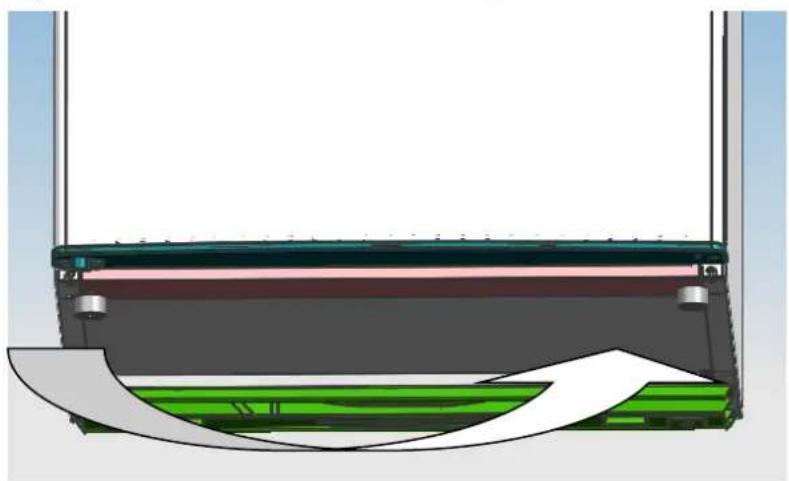

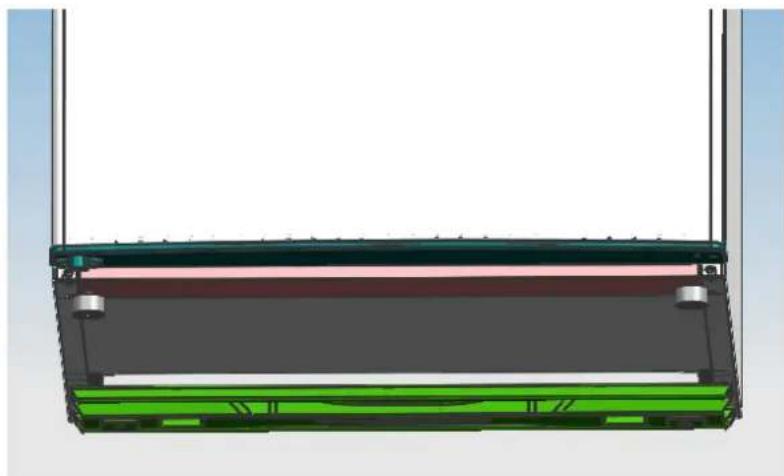

5) Replace the bottom hinge to the other side, then fix it with screws.

6) Set the door in the right position, fix the mid-hinge.

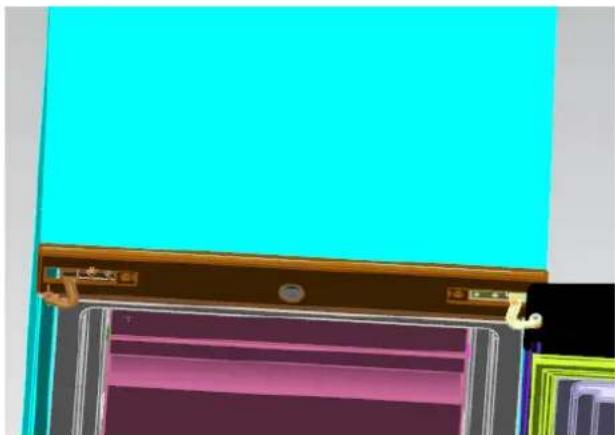

7) Replace the top hinge.

8) Set the top door in the right position, fix the top hinge and the cover.

9) Replace the leveler to the other side and adjust it to make sure the cabinet is level.

2.3 Door Space Requirements

The unit's door must be able to open fully as shown.

W x D >= 902 x 1052 mm

2.4 Levelling the Unit

To do this, adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Make sure that the foot touches the ground before use.

Look down from the top, and turn clockwise or counterclockwise to loosen or tighten.

2.5 Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information, refer to the Cleaning section.

2.6 Before Using Your Unit

Do not damage the power cord under any condition so as to ensure safety. Do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile, and highly corrosive items in the refrigerator to prevent damage to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

This product is a household refrigerator and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs, or biological products.

Do not place items such as bottled or sealed containers of liquid, such as bottled beers and beverages, in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Before Plugging In

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until two hours after moving the unit.

2.7 Interior Accessories

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

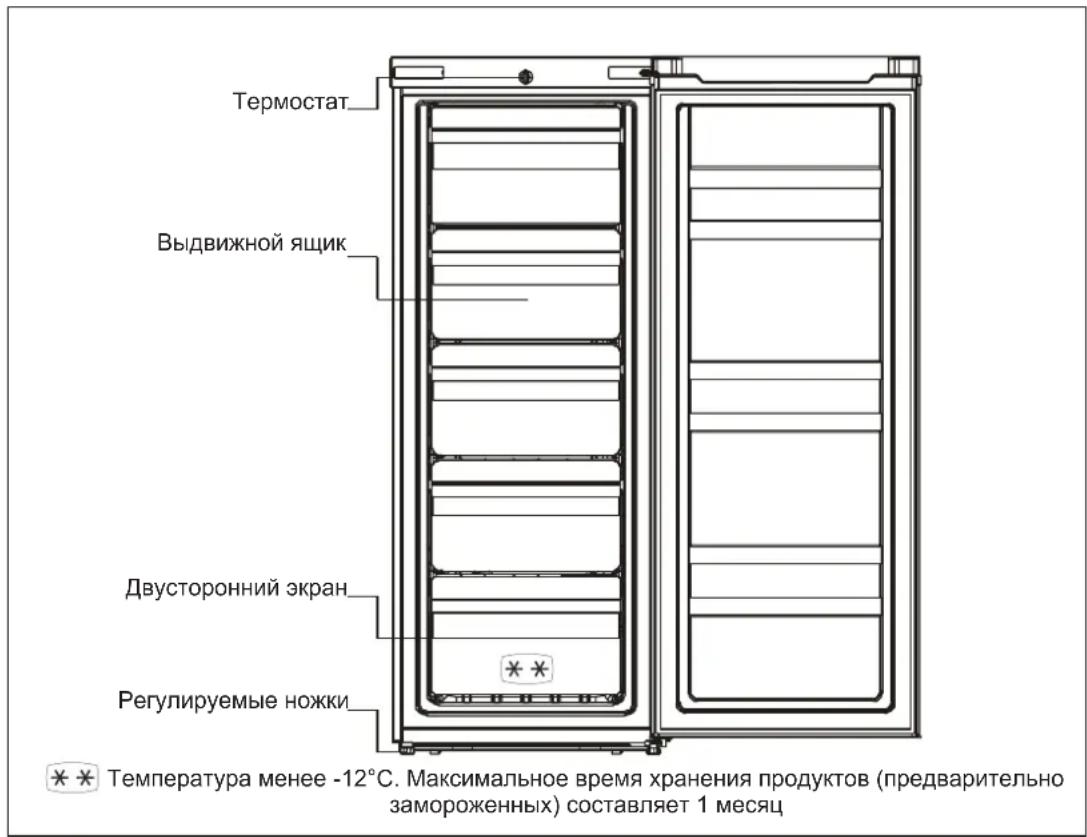

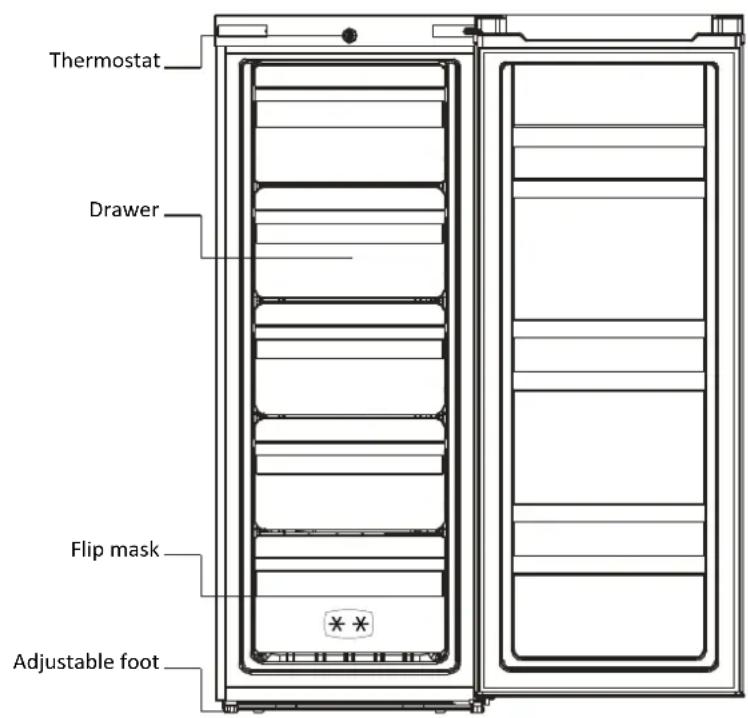

3. PRODUCT OVERVIEW

※※ : Temperature lower than -12°C. Maximum storage time for (pre-frozen) food is 1 month

*All images in this instruction manual are for indication only; please refer to your individual unit for details.

4. OPERATION

4.1 Switching On Your Unit

♠ The temperature selector knob is located on the right hand side wall of the refrigerator interior

Setting "Min": Less Cool Temperature

Setting "Mid": Normal Operation (adequate for most situations)

Setting "Max": Coolest Temperature

During high ambient temperatures, e.g., on hot summer days, it may be necessary to set the thermostat to the coolest setting (position "Max"). This may cause the compressor to run continuously in order to maintain a low temperature in the cabinet. For the first time you install your refrigerator, set the thermostat knob at "Med". Give your refrigerator time to cool down completely before adding food. It is best to wait 24 hours before adding food. The thermostat knob controls the temperature.

4.2 Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC-free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 Tips for Keeping Food in the Unit

Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool. To prevent transfer of flavors and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped. Always let pre-cooked food cool down before you put it in the unit. This will help to maintain the internal temperature of the unit. To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

5. CLEANING

5.1 Defrosting

NOTE: THIS UNIT DOES NOT HAVE AN AUTO DEFROST SYSTEM.

5.2 Cleaning the Interior and the Exterior of the Unit

Remove all the shelves and the salad bin. To remove the salad bin, first remove the lower door shelf. Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a "wrung-out" sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit. The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

5.3 Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6. MAINTENANCE

6.1 Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.2 Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

6.3 Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

7. Troubleshooting

The following simple issues can be handled by the user. Please call the after-sales service department if the issues are not settled.

Inoperaon	Whether the freezer is plugged and connected to power; Low voltage; Failure power or tripping circuit
Odor	Odorous foods should closely wrapped; Whether foods are roen; Whether the interior shall be cleaned.
Long-term operon of compressor	It is normal that refrigerator operates for longer me in summer when the ambient temperature is higher; Do not put too much food in the freezer at one me; Do not put foods unl they are cooled; Frequent opening of refrigerator door.
Illuminang light does not shine	Whether the refrigerator is connected to power, whether the illuminang light is damaged.
The refrigerator door can not be properly closed.	The freezer door is stuck by food packages; Too much food; Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced; Whether the refrigerator parts are properly placed.

7.1 Warm Tips:

♠ The refrigerator enclosure may emit heat during operation, especially in summer. This is caused by the radiation of the condenser, and it is a normal phenomenon. ♠ Condensation: Condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large. This is a normal phenomenon, and the condensation can be wiped away with a dry towel. ♠ Buzz: Buzz will be generated by running compressor, especially when starting up or shutting down.

8. TIPS FOR ENERGY SAVING

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

In normal temperature conditions, please arrange the thermostat at the middle setting.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

If it is the outer condenser, the rear wall should be always clean and free of dust or any impurities.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight. Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

9. DISPOSAL

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit, break off any old locks or latches and remove the door as a safeguard.

Correct Disposal of this product

Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collecon systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

For more information, please contact the local authority or your retailer where you purchased the product.

1. CONTENTS 11
2. TROUBLESHOOTING 11
3. POWER SUPPLY 12
4. DISPOSAL 12

1. SAFETY INSTRUCTIONS FOR PROPER USE

1. WARNING: Do not block the air intake or exhaust vents inside the unit or inside the built-in structural element.
2. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. WARNING: Do not damage the refrigerant circuit.
4. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5. The appliance must be cleaned after use and before carrying out technical maintenance by the user.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Children shall not carry out cleaning and user maintenance without supervision. 7. SAFETY INSTRUCTIONS FOR CONNECTING TO THE POWER SUPPLY
7. Since the refrigerator uses a flammable gas and refrigerant, its disposal must be carried out in accordance with the regulations and rules of local authorities.
8. When disposing of the refrigerator, it is necessary to follow local norms and rules for the disposal of appliances that use flammable refrigerants and gas. Before disposing of the appliance, it is recommended to remove the door to prevent children from being trapped inside.
9. This appliance is intended for household and similar use, such as: - in staff kitchen areas in shops, offices and other working environments;
10. in farm houses, by clients in hotels, motels and other residential type environments; - in bed and breakfast type environments; - in catering and similar non-retail applications.
11. The device must be stored in a dry, well-ventilated place, protected from dust, aerosols, and flammable liquids.

Repair or maintenance that requires disassembly may only be performed by an authorized service center.

To avoid electric shock, do not attempt to repair the device yourself.

2. INSTALLATION

2.1 Installation Location

When choosing the installation location, make sure the surface is level and firm, and that the device is protected from moisture. Do not place the device near heat sources such as radiators, stoves, or heaters. Additionally, to reduce energy consumption, install the device away from direct sunlight. Extreme cold or hot ambient temperatures can also reduce the device's performance. The device is not intended for use in garages or outdoors. Do not cover the device with cloth.

When installing the device, ensure at least 10 cm of free space on both sides, 10 cm from the rear surface, and 30 cm from the top surface. This allows cool air to circulate around the cooling vents, ensuring efficient cooling.

2.2 Changing the Voltage Setting

Required tools: Phillips screwdriver, flathead screwdriver, or hex key

1) Remove the screws from the right side panel.

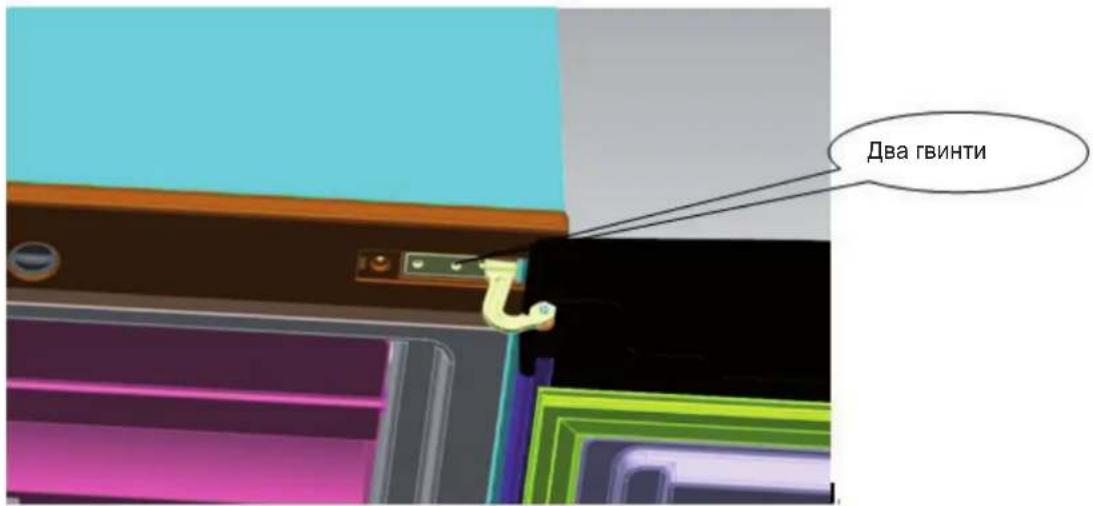

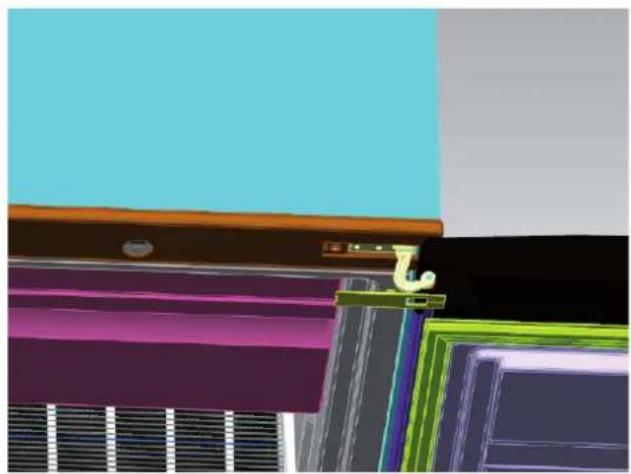

2) Using a Phillips screwdriver, remove the screws that secure the top panel.

3) Move the top panel, aligning the top hinges and the bottom hinge supports to the opposite side. Remove the nut from the hinge. Remove the hinge, then reposition the hinge on the opposite side and secure it.

B. Remove the hinge supports.

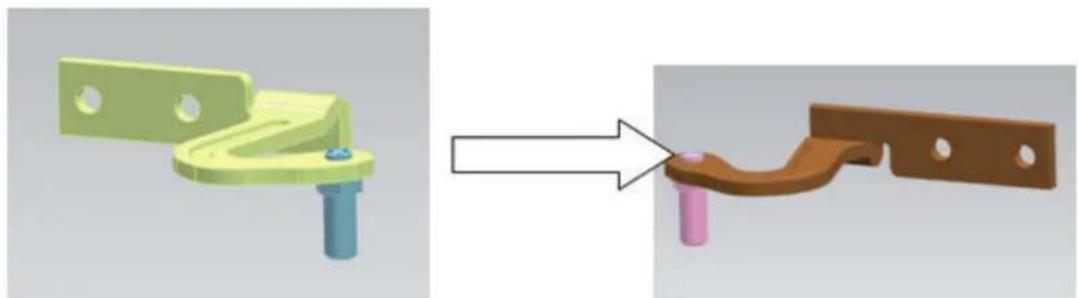

C. Move the hinge supports to the opposite side together with the screws attached to them.

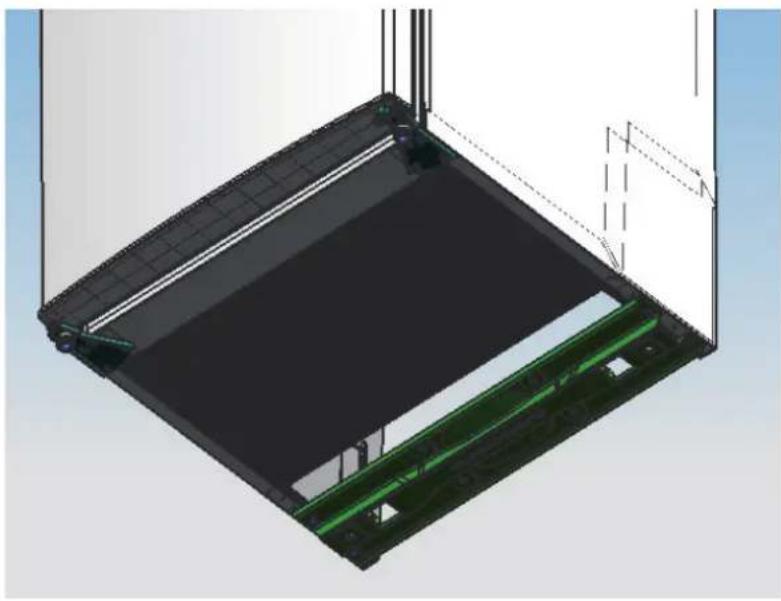

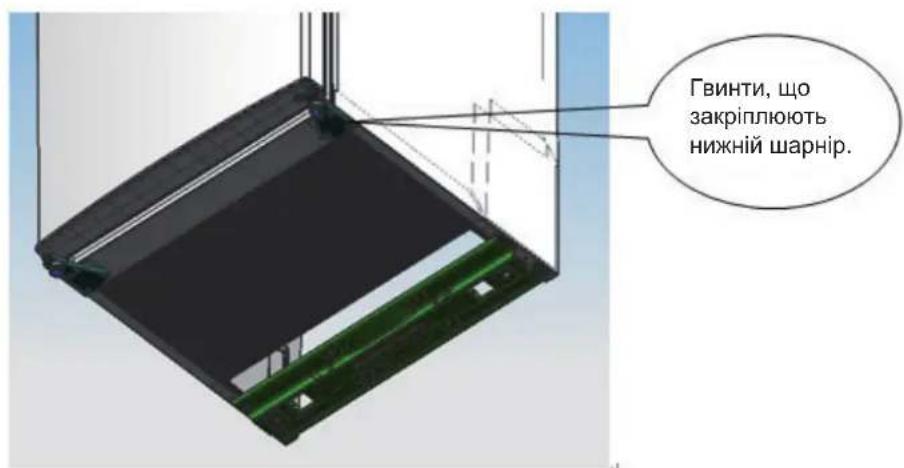

4) Using a Phillips screwdriver, remove the screws that secure the bottom panel.

PnmuTka: Kyt Haxiny XoJIoNbHnKa 3 Mopo3NbHOIO KaMepoIO He nepeBnUye 45°

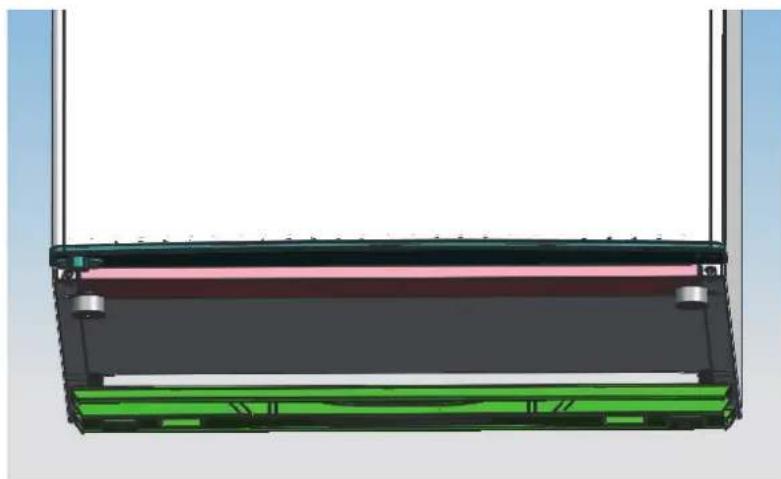

5) IpeceTaBte HxKHe nTeHn Ha npOtIeKHy cToPOHy i 3aKpinitb II rBNHTAMN.

6) HanaTuIte npabunbHe noJoxKeHHaDbepaT i 3akpinitb cepeHIO netnIO.

7) NpepecTaBTe BepxHIO nTnIO.

8) BcTaHOBt b npaBnBHe nIOJoxKeHHa BepxHix DBepuT, 3akpiniTb BepxHIO neTIIIO i KpnIky.

9) Pecetabte onopn, 00 pernyIObTcBra, Ha npOTnIeKHy cToPOHy i HanaHTyTe ix TaKIM YHOM, 06 3a6e3neHTN BiIDNOBIDHe noJoxeHH npucrpoHa noBepxHi BCTaHOBNeHH.

2.3BmorndoDbepHoro npocTopy

Ibepi npictpoIO NOBHHI NOBHicTIO BiKpNBaTnCRAK NOKa3aHO Ha MaIIOHky. 山 × 2 9 0 2 × 1 0 5 2 MM

2.4 BupiBHHoBaHH npncTpoko

Iyra 0BIO BIKOPNCOTBOYTOBCA DBI ONOPN, 1O perynIOTBcB, B nepeHni yactnHi npncTpo. Y pa3i, Raio npncTpiH He BnipIBHNO, nooKeHHaDBepaT i MarHITHO yuiNbHOBaHa He BiDperyIbOBAHO HaleKHM YINOM.

Ipeed BnKOpncTaHHm npncToIO nepeKoHacTea, 0O onopu TOpKaHTbca NOBepXHi BCTaHOJIeHH.

BnBnAChb BnH3, BiDpeRyIHOte OOnOpN IxXom ix 6eptaHHa 3a i npTo rOdHHNKoBOi CTpiKN.

Ipeed BkIIOueHHaM!

He BmkaTe npictpi paHie, HIX uepe3 Dbi roDHH nicJno IepemiuHn.

2.7 DonomixKHe 6bHaHnBHyTpiwHbOro npocTopy xoJOnIbHnKa

Plastic or glass shelves for storing products are included in the delivery set of the device, with different models equipped with different combinations.

It is necessary to insert one of the full-size shelves for storing products in the lower guide rails, located above the vegetable and fruit containers, and leave it in this position. To do this, insert the shelf for storing products into the guides and check that it does not have the ability to move in the upper or lower directions and wobble.

To insert the shelf at a different height, perform a similar action in the reverse order.

The maximum volume for storing fresh products is achieved when storing frozen products. The volume for storing frozen products is reduced by one shelf or several shelves or drawers that are usually not used.

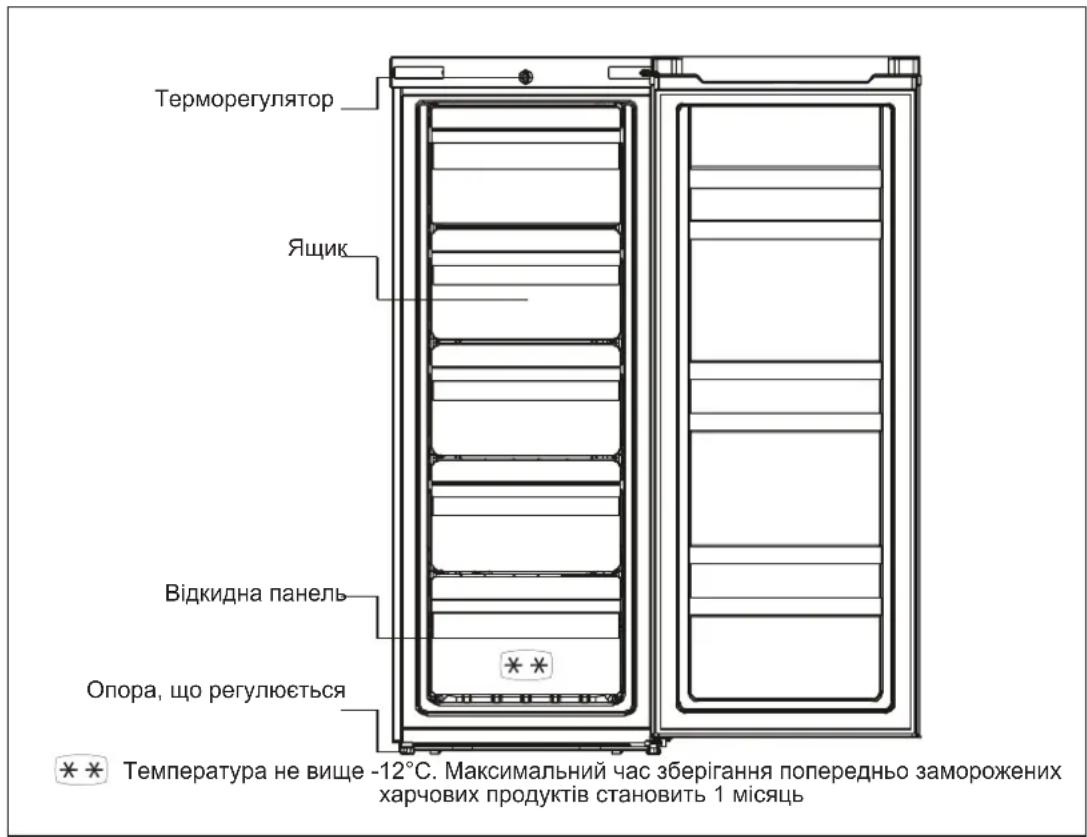

3. GENERAL INFORMATION

*All images in this manual are for illustration only; for detailed information, refer to the attached documents.

4. OPERATION

4.1 Turning on the device

The thermostat knob is located on the right side of the inner surface of the refrigerator. The "Min" position corresponds to the lowest temperature mode. The "Mid" position corresponds to the normal operating temperature mode (most often used). The "Max" position corresponds to the highest temperature mode.

Under high ambient temperatures, for example, on a hot summer day, a situation may arise when it is necessary to set the thermostat to the highest temperature position (position [Max]). This may cause the compressor to operate continuously to maintain a low temperature inside the device. After installing the refrigerator, set the thermostat to the position <M E>. Before placing products in the refrigerator, wait until the temperature inside the refrigerator drops. Before placing products in the refrigerator, it is recommended to wait 24 hours. The temperature is regulated by the thermostat knob.

4.2 Noise inside the device!

You may notice that the device makes some unusual sounds. Most of them are considered absolutely normal, but you should be informed about this!

These sounds are caused by the circulation of refrigerant in the cooling system. They become more pronounced after the installation of new refrigerating units. This is not a malfunction and does not affect the efficiency of the device. These sounds are related to the operation of the compressor, specifically to the function of pumping refrigerant through the system.

4.3 Recommendations for storing food products in the device

• To avoid contamination by bacteria, cooked meat/fish must be stored on shelves located above raw meat/fish. Store raw meat/fish in a container of sufficient volume to collect leaking juice and cover it with a lid properly. Place the container on the lowest shelf.
• Arrange the products so as to ensure air circulation inside the device. Make sure that the device parts do not heat up.
• To prevent the penetration of odors and the drying out of products, pack or cover each product separately. There is no need to pack fruits and vegetables.
• Before placing cooked products in the refrigerator, be sure to let them cool. This will help maintain the appropriate temperature inside the device.
• To prevent the escape of cold air from the device, try to limit the number of openings.

Open the door. It is recommended to open the door only as necessary, to place or take out products.

5. Cleaning

5.1 Defrosting

WARNING: THIS DEVICE IS NOT EQUIPPED WITH AN AUTOMATIC DEFROSTING SYSTEM.

5.2 Cleaning the inside and outside surfaces of the device

Remove all containers for storing vegetables. To do this, first remove the shelves from the lower door.

Clean the inside surface of the device with a soft solution of bicarbonate of soda, then rinse with warm water, using a damp sponge or cloth. Before putting the shelves and containers for storing vegetables back in place, dry them thoroughly. Clean the outside surfaces with a damp cloth, then wipe with a standard product for polishing furniture. To avoid damage from the polishing product to the magnetic door seal or the inside of the device, make sure that during the cleaning of the outside surfaces the door is closed. The condenser grille on the back surface of the device and adjacent components can be cleaned with a vacuum cleaner with a brush attachment with soft bristles.

5.3 Cleaning tips

Condensation may appear on the outside surface of the device. This may be related to changes in ambient temperature. Wipe away any traces of moisture. If the problem is not resolved, contact a qualified service technician.

6. TECHNICAL MAINTENANCE

6.1 Precautions during transportation/moving of the device

Do not hold the appliance by the side surface or bottom. It is forbidden to pick up the refrigerator by holding it by the ribs of the top surface.

6.2 Maintenance

Maintenance of the appliance should be carried out by qualified personnel, and only original spare parts may be used. Under no circumstances should you attempt to repair the appliance yourself. Repairs performed by an incompetent person may lead to injury or serious malfunction. Contact a qualified maintenance technician.

6.3 Switching off the appliance for an extended period

If the appliance is not used for an extended period, switch it off from the power supply, remove the products, clean the appliance, and leave the doors ajar to prevent the accumulation of unpleasant odors.

7. TROUBLESHOOTING

The following are simple problems that can be resolved by the user. If you cannot resolve the problem yourself, contact the service department.

2. INSTALLATION

2.1 Placement

B. REMOVE THE DOOR LIMIT BLOCK

C. REMOVE THE DOOR LIMIT STOP WITH SCREW FASTENING TO THE DOOR

4) Remove the screws of the upper hinge using a Phillips screwdriver.

Note: The tilt angle of the refrigerator-freezer should be less than 45 degrees.

5) Turn the lower hinge to the other side, then fix it with screws.

6) Set the door to the right position and secure the middle loop.

7) Move the upper loop.

8) Place the upper door in the right position and secure the upper loop with the cover.

9) Place the leveling feet on the other side and adjust them to the required level of the cabinet.

2.3 Requirements for the door opening

The door must open easily, as shown in the figure. 山 × ≥ 902 × 1052 mm

2.4 Adjusting the position of the refrigerator

For this, adjust the adjustable feet at the front of the refrigerator. If

the refrigerator is not level, the door and the magnetic seals will not close properly.

Before starting operation, make sure that the feet touch the floor.

Look from top to bottom and turn the feet clockwise or counterclockwise, loosening or tightening them.

2.5 Cleaning before operation

Wipe the interior surface of the product with a cloth moistened with a weak solution of baking soda. Then wipe with a cloth moistened with warm water, using a "squeegee" cloth. Rinse the shelves and drawers with clean water and dry them completely before placing them in the refrigerator. Wipe the exterior surface of the refrigerator with a damp cloth. For more information, see the "Care" section.

2.6 Before starting the refrigerator

For safety reasons, the power cord must not be damaged under any circumstances. Do not turn on the refrigerator if the cord or plug is damaged.

To avoid damage to the refrigerator or fire, do not place flammable, explosive, easily evaporating, or corrosive substances in it.

To avoid fire, do not place easily flammable items near the refrigerator.

This product is a household refrigerator and is intended only for storing food. According to national standards, household refrigerators should not be used for other purposes (for example, storing blood, medicines, or biological products).

To avoid explosion or other damage, do not place sealed containers or bottles with drinks (for example, beer or drinks in bottles) in the freezer compartment.

Before placing any products in the refrigerator, plug it in and let it run for 24 hours to make sure it works properly, and also to set the required temperature. The refrigerator should not be overfilled.

♠ Before switching on

It is necessary to check that the socket and the plug of the refrigerator are in good condition.

♠ Before switching on!

Do not switch on the refrigerator for two hours after it has been transported.

2.7 Internal accessories

The refrigerator has various plastic and glass shelves for storage (different models have different combinations).

It is necessary to always slide one of the half-size glass shelves for storing the lower group of guides, with trays for fruits and vegetables, and leave it in this position. To do this, push the storage shelf forward until it turns up or down and is removed.

Perform the same operation in reverse order to install the shelf at a different height.

So that the volume of the compartment for storing fresh products and the compartment for storing frozen products

is maximum, you can remove one or several shelves, drawers, according to your needs.

3. SHORT DESCRIPTION OF THE PRODUCT

*All drawings contained in this instruction are provided solely for demonstration; for more detailed information, it is necessary to study your refrigerator.

4. OPERATION

4.1 Switching on the refrigerator

The temperature selection knob is located on the right inner wall of the refrigerator, and

The "Min" mark indicates a less low cooling temperature

The "Mid" mark indicates operation in normal mode (used in most cases)

The "Max" mark indicates the lowest cooling temperature

Vegetables should not be frozen.

• Before placing only freshly prepared dishes, always let them cool down. This will help maintain the temperature inside the refrigerator. To prevent cold air from escaping the refrigerator, try not to open

the door too often. It is recommended to open the door only to place products or remove them.

5. CLEANING

5.1 Defrosting

This refrigerator does not have an automatic defrosting system.

5.2 Cleaning the internal and external parts of the refrigerator

♠ CLEANING THE CONTAINER AND THE SALAD DRAWER. Before cleaning the container and the salad drawer, remove the door shelves. ♣ Wipe the inner surface of the appliance with a cloth dampened in a solution of baking soda, then rinse it in warm water or use a "wipe-out" sponge. Before installing the shelves and the salad drawer, dry the surface completely. ♠ For cleaning the outer surface, use a damp cloth, then wipe the surface with a standard furniture polish. To avoid polish getting on the magnetic door gaskets, make sure

that the door is closed.

♠ The condenser grille on the back of the refrigerator and the removable parts can be vacuumed using a nozzle with a soft brush.

5.3 Cleaning tips

Condensation may appear on the outer surfaces of the refrigerator. This may be related to changes in temperature in the room. Wipe off any remaining moisture. If this problem persists, contact a qualified service technician.

6. MAINTENANCE

6.1 When loading (unloading) the refrigerator and moving it, care should be taken

When moving the refrigerator, hold it by the side panels or by the base. Under no circumstances should you lift the refrigerator by the edge of the top surface.

6.2 Servicing

Servicing of the refrigerator should be carried out only by authorized service technicians, and only original spare parts should be used. Under no circumstances should repairs be carried out independently. If repairs are performed without the appropriate experience, serious malfunctions may occur. Contact qualified service technicians.

6.3 Switching off the refrigerator for an extended period

When the refrigerator is not in use for extended periods of time, it should be disconnected from the power supply, emptied of food, and cleaned. Leave the door open to prevent unpleasant odors.

7. TROUBLESHOOTING

The following simple problems can be resolved by the user independently. If the problem cannot be resolved independently

ХолодINьнк He pa6oTaet	У6eДNTeСb, ChTo MOrO3NlBnK BkIIOUChE N B pO3eTky, ИВ Hero NOCTyPaTe 3JIeKTPo3Heprɪg; Hɪzkoe HaprJaGeHne;
Зanax	ПюdYKTbI C SInIbHbIM 3aIaxOM cIeIduyET o6bopaUHbAы; U6eДNTeCSb, ChTo пюdYKTbI He IcIopUeHbI;
ДлteINьнaj pa6oTa kompeccopa	ДлЯ XOLODINbHnka JByIeTcR HoPmO bOJee ДлteINьнaj pa6oTa IeTOM, KOrDa BHeShnry TempepaTpya BbIe; HenomeuaIte B MOrO3INbHnK cIiShKOM 6OJIbShoe KOLIIeCtBO pIpOdYKTOB 3a Odn Pa3;
Освeшени He rOpIT	U6eДNTeCSb, ПОДКЛIOUeH LlX OLODINbHnK K cETN, ИИспраВно Ll CamO OCBeшени.
Дberца XOLODINbHnka MoJcT 6bIb HeПЛOTHO 3akpbItA.	ЗakрыТЮ dIbeцbl MOrO3INbHоJ kAmeрbl PrpeЯTCTbYIOT 3aCtprBShine ПюdYKTbI; сIiShKOM MHOro
ГromКие 3ВуКи	U6eДNTeCSb, ChTo PpOdYKTbI pa3IIOJeHbI POBHo, И ChTo XOLODINbHnK haxODINTCB R paBHOBeCHOM COCTOЯHn; U6eДNTeCSb, ChTo DeTaln XOLODINbHnKa yCTaHOBJIeHbI DoJIXHbIM obpa3OM.

7.1 Heat generation:

The refrigerator body may become hot during operation, especially in summer; this is due to the condenser heat dissipation and is normal. Condensation may appear on the outer surface of the door seals of the freezer compartment when the humidity level in the room is too high; this is normal, and the condensation can be wiped off with a dry cloth. Clicking: Clicking may be produced by the operating compressor, especially when turning the refrigerator on or off.

8. ENERGY SAVING TIPS

Try not to open the door too often, especially when the humidity and temperature are high. After opening the door, try to close it as quickly as possible.

From time to time, check the effectiveness of the ventilation of the appliance (whether the air circulation behind the refrigerator is sufficient).

At normal temperature, set the thermostat knob to the middle position.

Before placing food in the refrigerator, make sure it has cooled to room temperature.

A thick layer of ice or frost increases electricity consumption; therefore, you should defrost the refrigerator as soon as the ice layer reaches 3-5 mm.

As for the condenser, it should always be clean, free of dust and foreign particles.

The refrigerator should be placed in the coolest place, away from heat-emitting appliances, heating pipes, and also in a place not exposed to direct sunlight. Before placing food in the refrigerator, let it cool to room temperature. Overloading the refrigerator with food leads to more intensive compressor operation. Food that freezes too slowly may lose its quality or spoil. Make sure that food is tightly wrapped and dry the containers before placing them in the refrigerator. This helps reduce the amount of ice formed inside the refrigerator. Storage compartments should not be lined with aluminum foil, wax paper, or paper towels. This may obstruct air circulation and negatively affect the performance of the appliance. To avoid frequent door openings and quick food retrieval, place food evenly and attach labels to them, extracting the maximum possible amount of food at once and close the door as quickly as possible.

9. DISPOSAL

Old devices have a certain residual sensitivity. In case of disposal in an environmentally safe manner, the raw materials can be recovered and reused. The refrigerant used in the appliance and the insulating materials must be disposed of using a special procedure. Before disposal, make sure that none of the tubes on the rear side of the device are damaged. For current information on disposal options for old devices and waste materials from new devices, contact local authorities.

In case of disposal of old devices in rural areas, for safety, remove old locks and latches and take off the door.

Correct disposal of the product

Correct disposal of the product

This marking indicates that the product should not be disposed of with other household waste within the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle this product responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

For additional information, contact local authorities or the dealer where the product was purchased.
