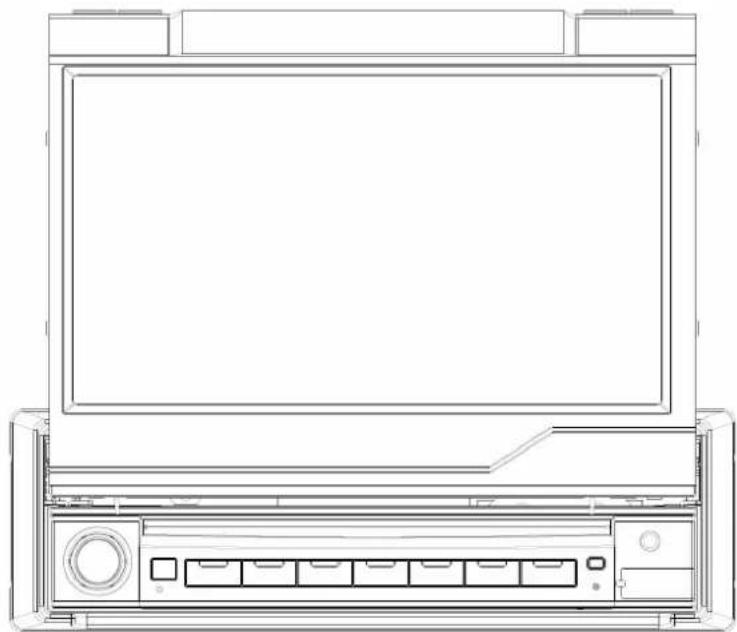

USER MANUAL MCR1307 Marquant

DVD Player With Radio
7 Inch Touch Screen Monitor
RDS Function

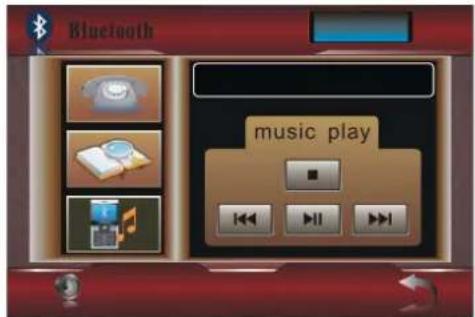

- Bluetooth Function
USB Interface
SD/MMC Card Interface
AV IN Interface On The Front Panel
Remote Control

SAFETY INFORMATION 3

DISC NOTES. 5

INSTALLATION 7

CONNECTIONS. 10

LOCATIONS AND FUNCTION OF THE PLAYER 11

LOCATIONS AND FUNCTION OF THE REMOTE CONTROL. 13

BASIC OPERATION 16

MENU OPERATION 18

RADIO OPERATION 18

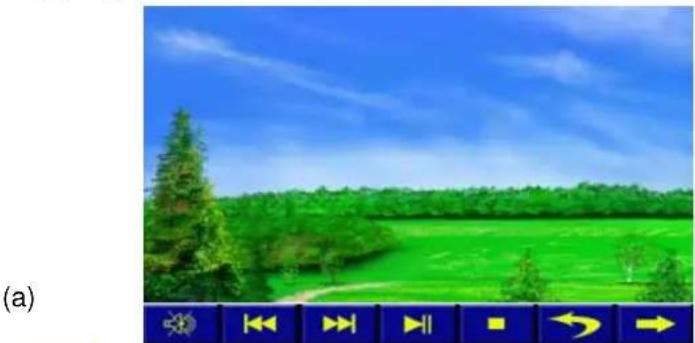

DVD OPERATION 21

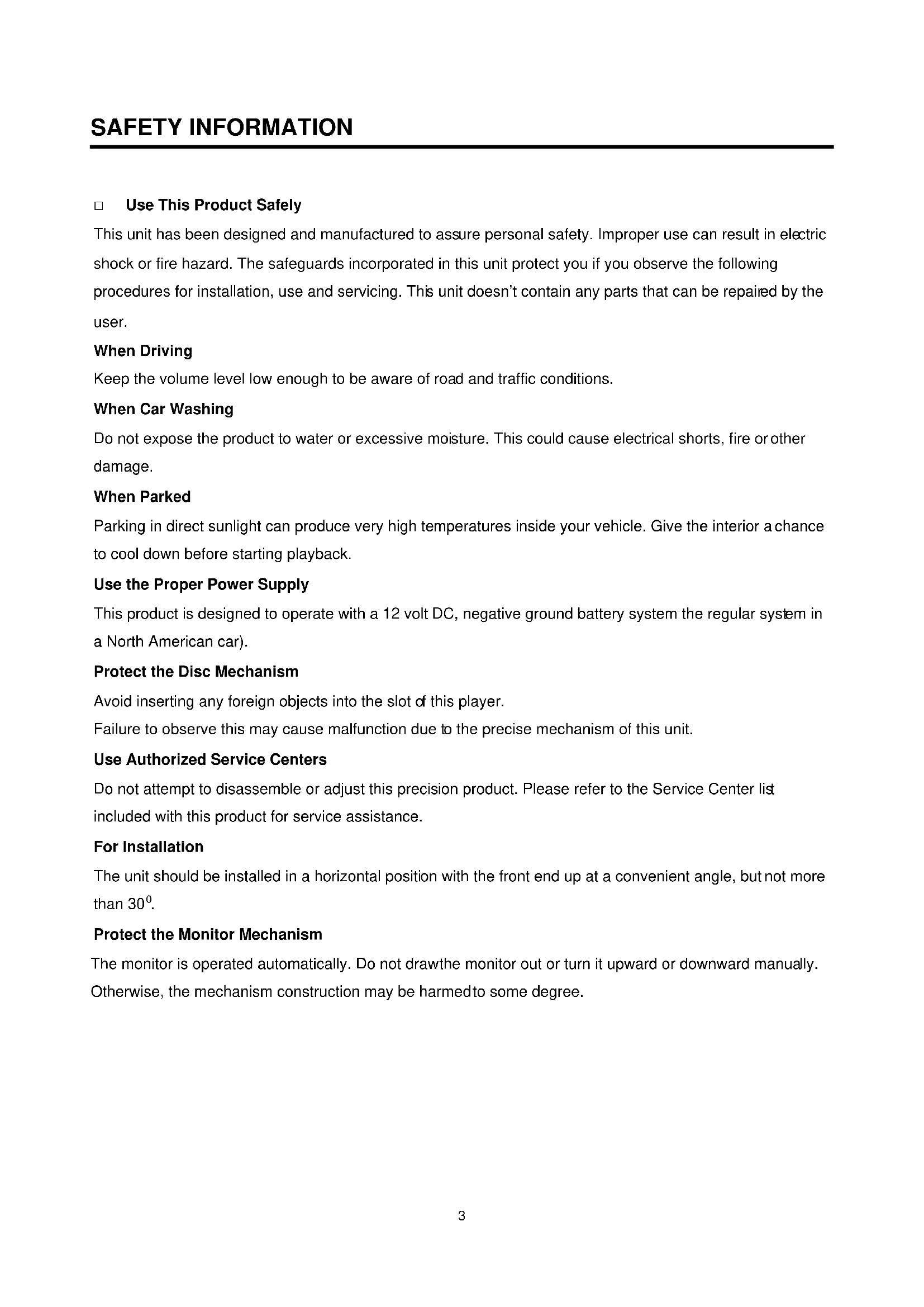

Use This Product Safely

This unit has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit protect you if you observe the following procedures for installation, use and servicing. This unit doesn't contain any parts that can be repaired by the user.

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system the regular system in a North American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player.

Failure to observe this may cause malfunction due to the precise mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust this precision product. Please refer to the Service Center list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30^ .

Protect the Monitor Mechanism

The monitor is operated automatically. Do not draw the monitor out or turn it upward or downward manually. Otherwise, the mechanism construction may be harmed to some degree.

CAUTION:

MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYERCORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATIONEXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DON NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Region Management Information

Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

CD

12 cm disc

MP3

12 cm disc

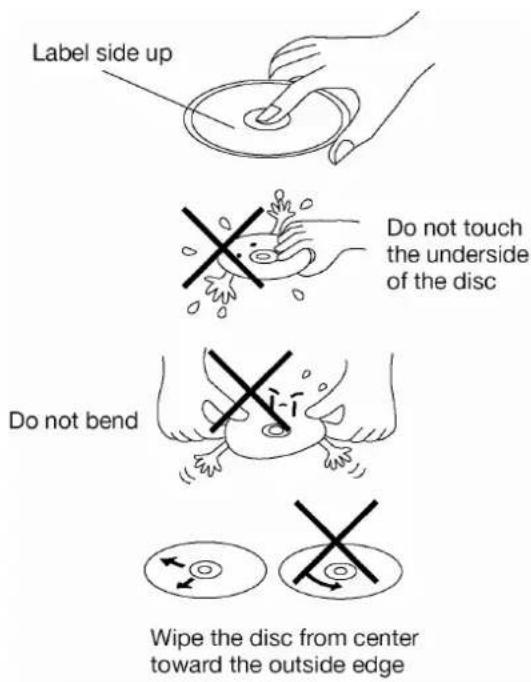

Handling and Cleaning

• Dirt, dust, scratches and warping discs will cause wrong operation.
• Do not place stickers or make scratches on discs.
• Do not warp discs.
• A disc should always be kept in its case when not in use to prevent from damage.

• Do not place discs in the following places:

• Direct sunlight.

• Dirty, dusty and damp areas.
• Near car heaters.
• On the seats or dashboard.

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, using a soft cloth slightly dip with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it unusable) depending on the way it is handled and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

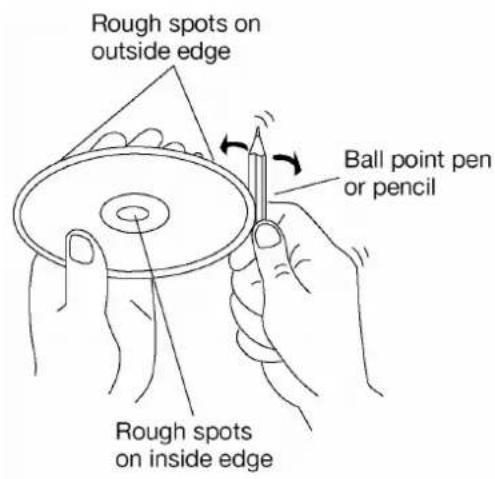

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ballpoint pen or pencil as shown on the right. To remove the rough edges, pressthe side of the pen or pencil against the inside and outside edges of the disc.

Notes:

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is an emergency stop.
  If installation angel exceeds 30^ from horizontal, the unit might not give its optimum performance.

• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

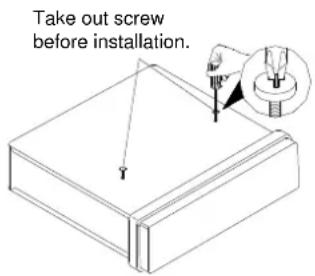

TAKE OUT SCREW BEFORE INSTALLATION

Before install the unit, please remove the two screws.

DIN FRONT-MOUNT (Method A) Installation Opening

This unit can be installed in any dashboard having an opening as shown below:

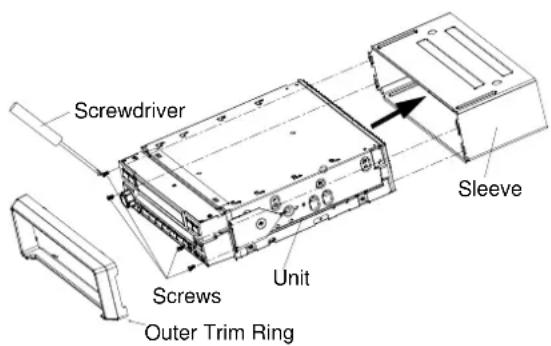

Installing the unit

Be sure you test all connections first, and then follow these steps to install the unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Disconnect the wire harness and the antenna.
3. Lift the top of the outer trim ring then pull it out to remove it.
4. Use the screwdriver to remove the four screws on the left and the right side of the unit then you can remove the sleeve.

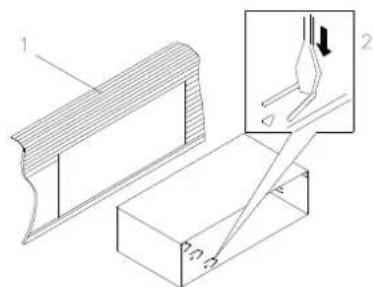

1. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.

(1) Dashboard (2) Taps

1. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables.

2. Slide the unit into the sleeve until it locks it to place.

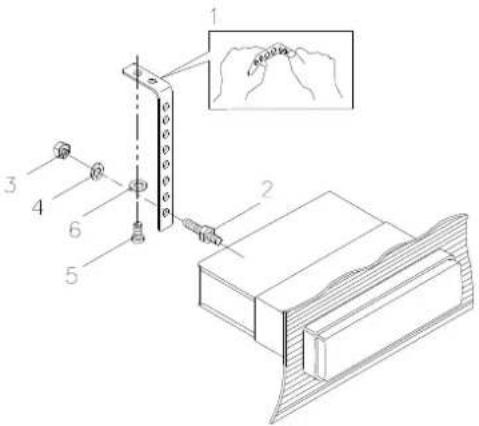

3. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your vehicle's mounting area. Then use the supplied hardware (Tapping Screw and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit.

Note to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard.

(1) Metal Strap; (2) Mounting Bolt; (3) Hex Nut;
(4) Spring Washer; (5) Tapping Screw;
(6) Plain Washer

1. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the out trim ring.

Removing the unit

1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Remove the metal strap attached the back of the unit (if attached).
3. Lift the top of the outer trim ring then pull it out to remove it.
4. Remove the four screws on the left and the right side of the unit then pull the unit out of the dashboard.

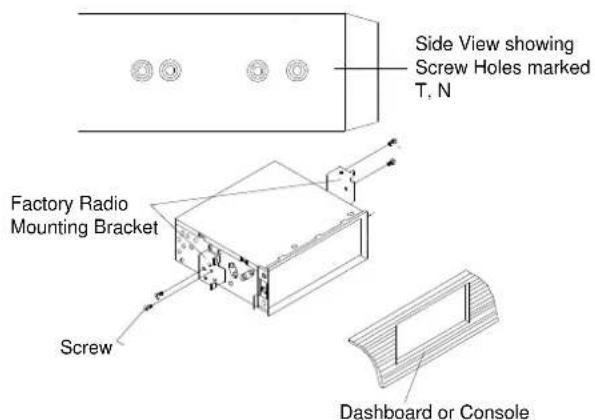

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan or Toyota, follow these mounting instructions.

Use the screw holes marked T (Toyota), or N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

To fasten the unit to the factory radio mounting brackets.

Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the metal strap are not used for method B installation.

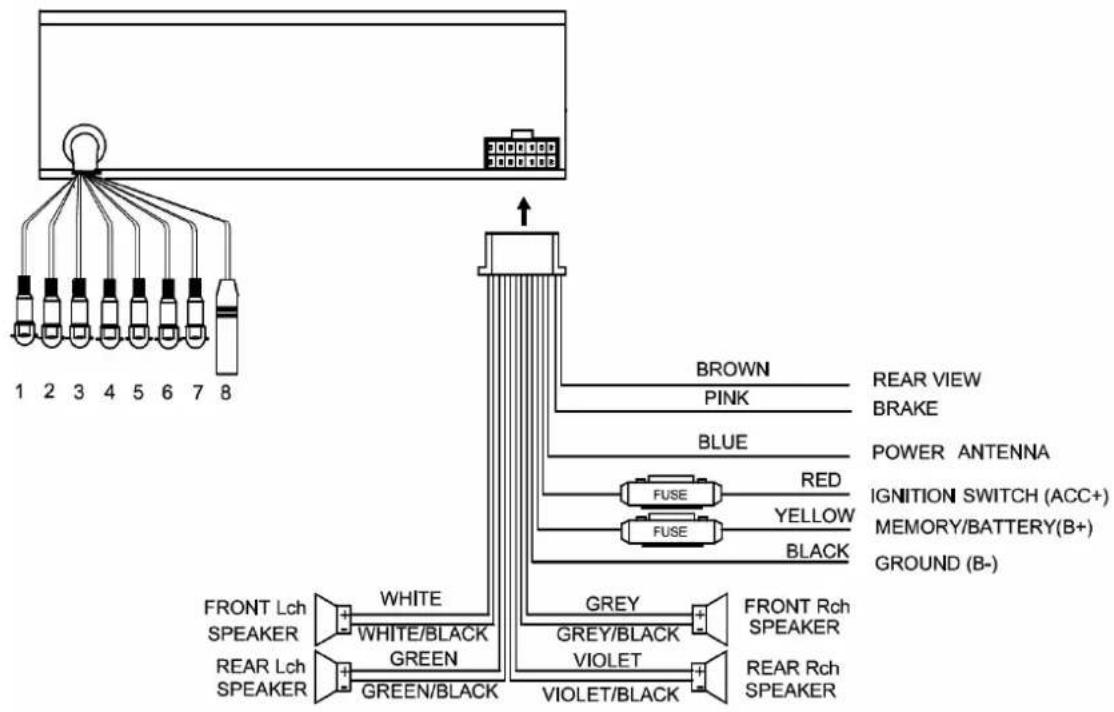

Line No.	Line color Function (terminal color)
1 Grey	Video output (YELLOW)
2 Green	Rearview input (YELLOW)
3 Green	Subwoofer output (GREEN)
4 Brown	Front RCA out right (RED)
5 Brown	Front RCA out left (WHITE)
6 Grey	Rear RCA out right (RED)
7 Grey	Rear RCA out left (WHITE)
8 Black	Radio antenna connector (BLACK)

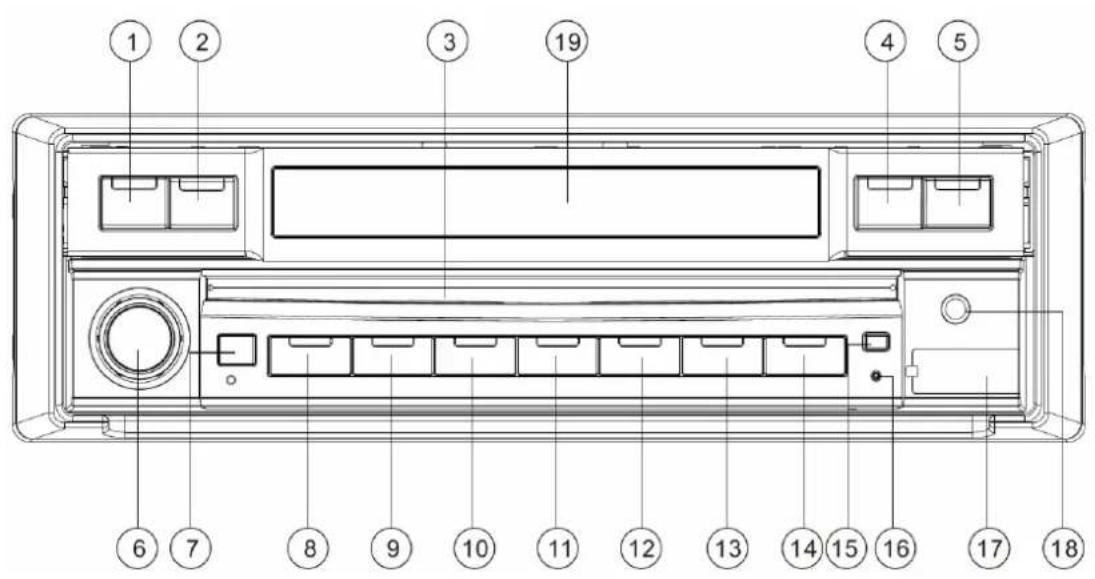

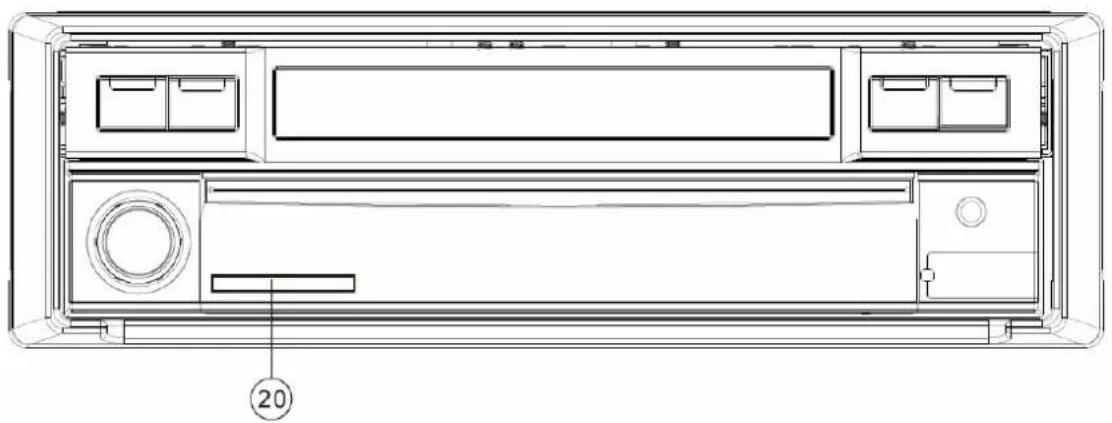

KEYS ON THE FRONT PANEL

WHEN REMOVIDING THE DETACHABLE PANEL (press button () to remove it):

1. OPEN: Press to draw out the monitor, when the monitor drawing out, press it to turn down the monitor and draw in.
2. BAND: Press it shortly to select radio band mode.
3. Disc Slot: Insert the disc into the disc slot to enter into DVD mode.
4. 3: Press to answer the call or make a call in BT mode.
5. Press to hang up the call.
6. Volume knob/push SEL button: Repeatedly press to select the audio mode to adjust, such as VOL, BAS, TRE, BAL, FAD. Rotate the knob to increase/decrease the volume level.
7. Remote sensor (IR): Receive signal from the remo te control to control the unit.
8. In power off status, press it to turn the unit on Press it for several seconds to turn off the unit. When the unit is on, press shortly to mute the sound, press it again to resume the sound.
9. SRC: In normal working status, press it to select the desired source mode, such as DVD, RADIO, AV IN, USB ... etc.
10. TA/AF: Press it shortly to switch AF on or off. Hold press it to switch TA on or off.
11. /PTY: press it shortly to play/pause the playback.Hold press it to select the PTY program.
    12&13. When the monitor is drawing in, press to seek the radio stations, select the track backward/forward, how to operation please refer to the contents below. When the monitor is drawing out, press to adjust the monitor angle.
12. : Press to eject the disc that in the disc slot of the unit.
13. Release button: press to remove the button panel.
14. Reset button.
15. USB interface: Provide the interface for USB player.
16. AV IN jack: You can connect another audio/video system to the unit from this jack.
17. LCD: Display the current information on the display.
18. SD/MMC card interface.

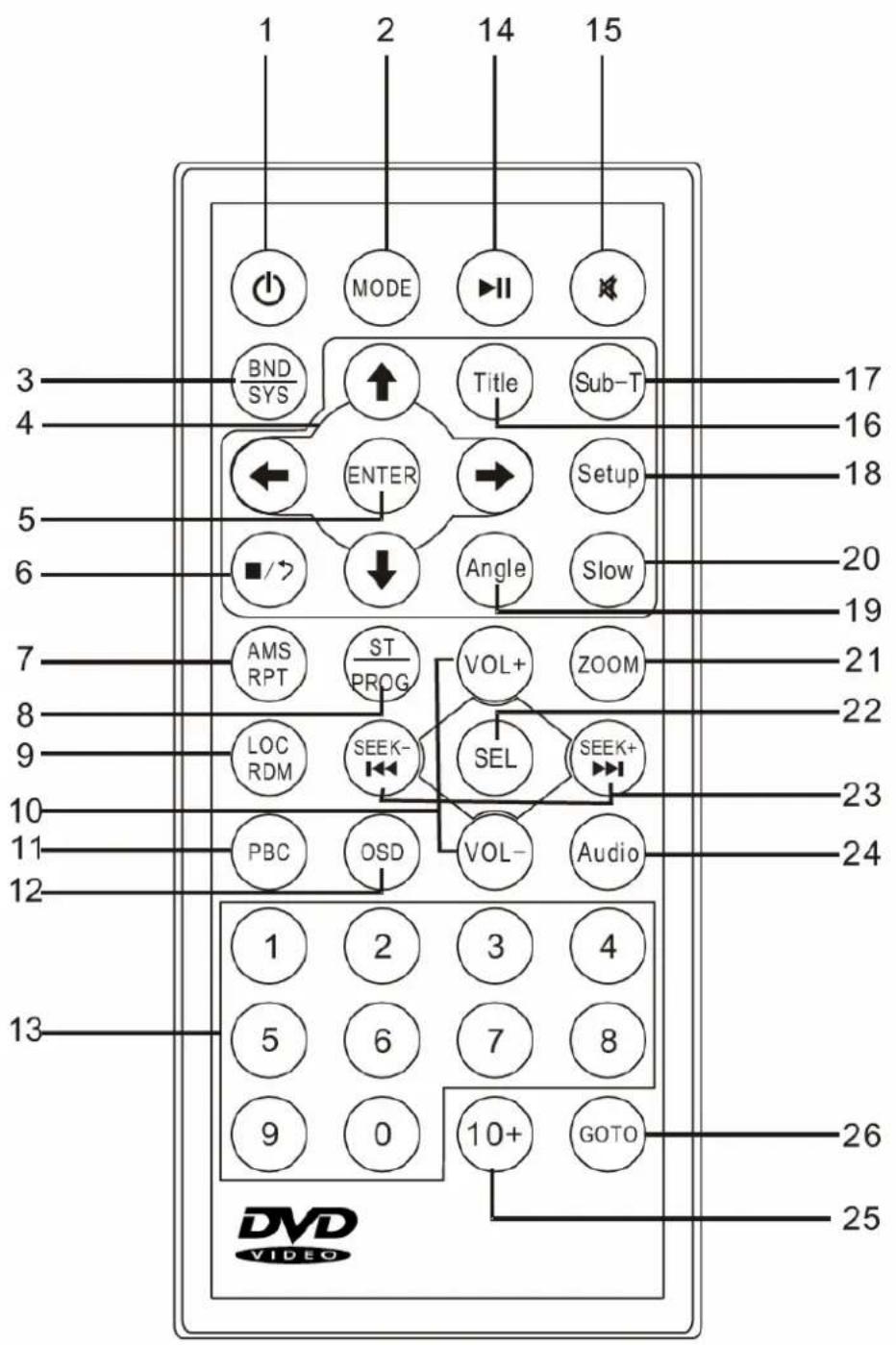

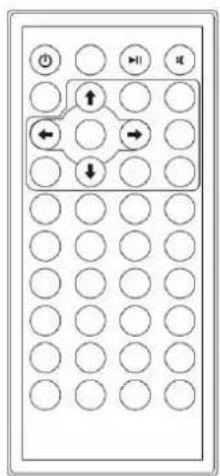

1. ①

Press it to turn on the unit. When the unit is on, press it to turn the unit off.

2. MODE

When the unit is on, press it to select the different mode, such as RADIO, DVD, AV IN, USB mode.

For your need, some modes are for optional.

3. BND/SYS

In radio mode, press it shortly to select the desired band, such as FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2).

4. /

In case of menu mode, the buttons served as cursor buttons to select item left/right, up/down.

5. ENTER

Press to confirm your selection.

6.

In DVD/USB mode, press it to stop the play and return to the DVD logo.

7.AMS/RPT

In radio mode, press to activate auto seek/preset store function.

In media play mode, press to switch the repeat mode of discs.

8. ST/PROG

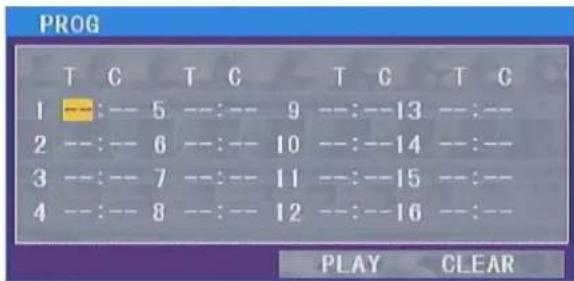

In media play mode, press to enter into program mode to play the track in your desired sequence. In radio mode press to set the reception between mono mode or stereo mode.

9. LOC/RDM

Press to t to play all tracks on the disc in random order.

In radio mode, press it shortly to select between local and distant stations.

10. VOL+/VOL-

Press to increase/decrease the volume level.

11.PBC

It can be used to change between PBC ON and PBC OFF on the VCD disc.

12. OSD

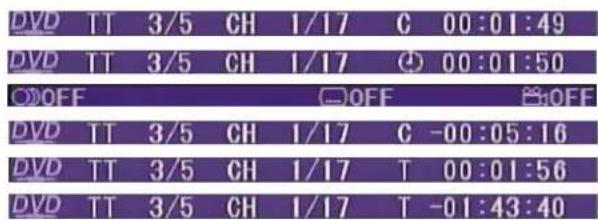

In DVD mode, press to display OSD (the on-screen display) information.

13.0-9

Numeric buttons.

14.

Press to play/pause the playback.

15.

Press to mute the sound, press it again to resume the sound.

16. Title

Press to display the title menu of the DVD disc.

17. Sub-T

Press to display the subtitle information of the DVD disc.

18. Setup

In DVD mode, press to enter into the DVD setup menu.

19. Angle

Press to change the view angle on multi-angle DVD disc.

20. Slow

For some discs, press to start slow forward function.

21.ZOOM

Press to allow the picture to be increased in size.

22. SEL

Press to enter into the audio selection mode, such as VOL, BAS, TRE, BAL, FAD.

23. SEEK-SEEK+

Press shortly to skip to the previous/next track. Press and hold it to activate fast reverse/forward function.

In radio mode, press it shortly to search the frequency backward/forward manually. Press and hold it to seek the frequency automatically.

1. Audio

Press to display the audio information of the DVD/VCD disc.

1. 10+

Digital selecting button for track, cooperatively used with numeric buttons.

1. GOTO

GOTO (Disc search button) used in DVD mode, cooperatively used with numeric buttons.

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented as indicated.

3. Close the cover.

4. Battery: One button cell lithium battery (CR2025).

Using the Remote Control

Point the remote control towards the remote control signal receiver on the player front face.

Operation angle: About ± 30 degree in each the direction of the front of the remote sensor.

Press button on the front panel or on the remote control to turn the unit on. When the unit is on, press button on the front panel for several seconds or press on the remote control will turn the unit off.

MONITOR PANEL ANGLE ADJUST

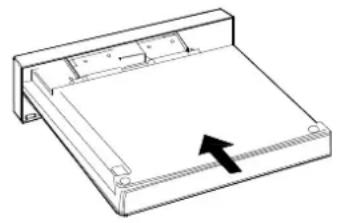

Press OPEN button on the front panel to draw out the monitor then press OPEN again to draw in the monitor to normal position.

When the monitor drawing out, the front monitor can be turn down or turn up to some degree by using / buttons on the front panel.

NOTE: The monitor is operated automatically. Do not draw the monitor out or turn it upward or downward manually. Otherwise, the mechanism construction maybe harmed to some degree.

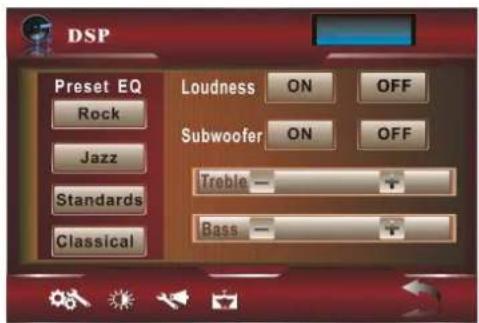

SOUND ADJUSTMENT

Repeatedly press the volume button on the front panel of the unit or SEL on the remote control to select the desired adjustment mode. The adjustment mode will change in the following order:

After selecting your desired mode, you can adjust the current mode being displayed by using the volume knob on the front panel or VOL+/VOL- buttons on the remote control. Note: When P-EQ mode is activated (not in EQ OFF mode), press the volume knob on the unit or SEL button on the remote control to select the modes. And Bass /Treble modes are invalid. (Shown as below)

Note when the monitor is drawing in, press SEL button, the BRI, CON, and COL three items can't be selected and adjusted.

REMOTE SENSOR

There is a remote sensor on the front panel. You can point the remote control to the remote sensor and press functions keys on the remote control to control the unit.

Note to operate it within the certain operation angle.

VOLUME LEVEL ADJUSTMENT

Press the volume knob on the front panel of the unit or VOL+/VOL- buttons on the remote control to adjust the volume level. You can also adjust the volume level by tapping the volume bar displayed on the screen.

MUTE FUNCTION

Press button on the front panel shortly or on the remote control will mute the sound. Press it again will resume the sound.

MODE SELECTION

When the unit is on, press SRC button on the front panel or MODE button on the remote control to select the desired mode to enjoy. Such as radio, DVD, USB, AVIN mode.

Note: Some modes can't be selected if the unit doesn't with the function. For example IPOD function, GPS function. If there isn't any disc in the disc slot, DVD mode will be skipped.

BRAKE FUNCTION

If the brake wire (pink wire) isn't connected to the ground (when driving), the picture will not be shown on the screen in DVD/AV mode for safety purpose. Only the audio will be heard.

Note: Only when parking, the DVD/AV picture can be seen on the screen. When driving, the warning information will be displayed.

RESET FUNCTION

The reset button is on the front panel of the unit.

It must be activated with either a ballpoint pen or thin metal object. The reset button is to be activated for the following reasons:

1. Initial installation of the unit when all wiring is completed.
2. All the function buttons do not work.
3. Error symbol on the display.

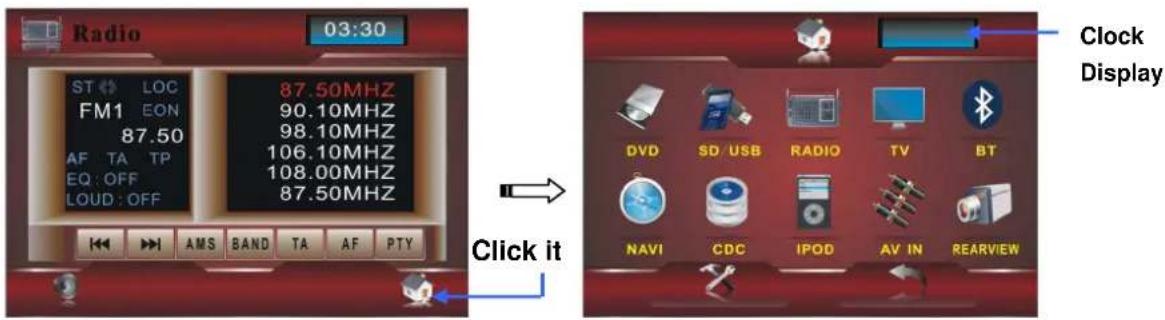

MAIN MENU

In the current mode, click icon on the screen to return to the menu interface.

Click the different icon on the interface to enter into the desired mode. The following contents will introduce the different functions the unit provides.

Note: Click some icons will be invalid if the unit doesn't with the function. For example IPOD, NAVI function. If there isn't any disc in the disc slot, click [DVD] will be invalid.

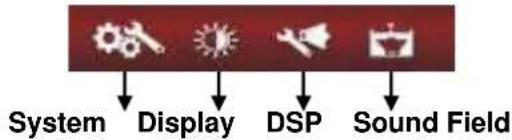

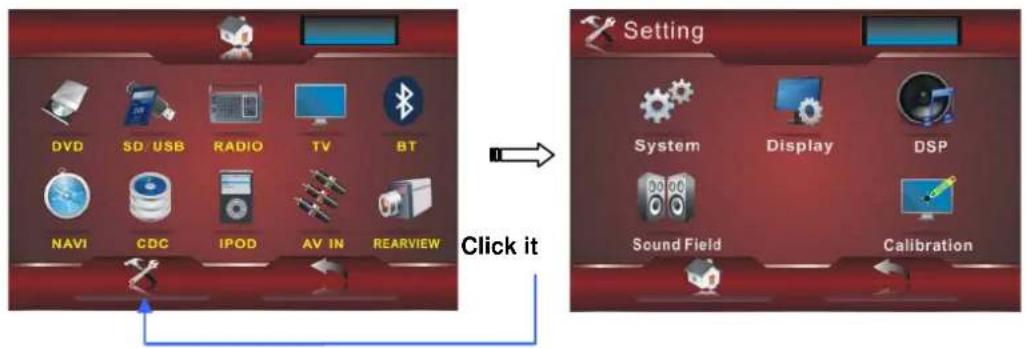

Click icon to enter into the Setting interface. Click to exit the main menu interface and return to the current mode.

1. RADIO OPERATION

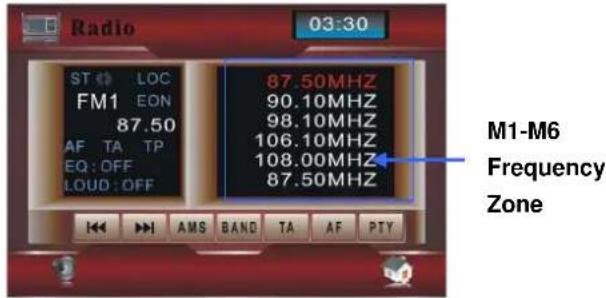

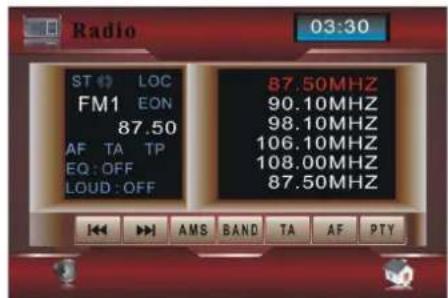

In the main menu click [RADIO] icon to enter into the radio interface:

※ BAND---ClickBANDiconto select the different band.

You can also pressBAND button on the front panel or BND/SYS on the remote control to select desired band. The reception band will change in the following order: FM1 FM2 FM3 AM1 (MW1) AM2 (MW2).

※ 1- - click to select channel downward or upward manually.

Press 1/ buttons on the remote control or click / on the screen shortly to adjust frequency manually.

During radio mode, hold press on the remote control or hold press / on the screen to activate automatic seek function. The frequency is updated correspondingly on display.

※ LOUD---click to switch loudness on or off.
※AMS---click to start automatic memory storing/program scanning function.

Automatic Memory Storing

Press and hold AMS button on remote control about several seconds or hold press AMS icon on the screen, the radio searches from the current frequency and checks the signal strength until one cycle search is finished. And then stations are stored into the preset number button in turn according to the strength of the stations. When auto seek is finished, it will enter into preset scan mode automatically.
Program Scanning

Shortly press AMS button on the remote control or click AMS icon on the screen to scan all station presets saved in memory. And it will hold at each station for several seconds.

※ STATIONSTORING

The preset buttons (numeric buttons 1~6) on remote control and M1~M6 frequency bar displayed on right zone of the touch screen can be used to store 6 stations in each band for convenient access to your favorite stations. The stations might be FM1, FM2, FM3, AM1 (MW1), AM2 (MW2) band. The operation is as below:

■ Programming stations

1. Select the desired band, then tune in the station you want to store in memory.
2. Press and hold one of the preset buttons or M1~M6 frequency bar for several seconds, the current station will be stored to the location button. Repeat steps 1. and 2. to program additional stations.

Quick tuning

Select the desired band, then press one of the six preset buttons on remote control or tap M1~M6 frequency bar displayed on screen will retrieve the corresponding station which had been stored in the memory.

※ MONO/STEREO

You can press ST button on remote control or click ST icon on the screen to select mono or stereo mode. You can sometimes improve reception of distant stations by selecting mono operation.

LOCAL/DISTANCE

Press LOC button on the remote control or click LOC icon on the radio menu to select between local and distant stations.

Local setting for reception of strong station, and a distant setting for reception of weaker stations.

When search station in local mode, if there is no s tation available, it will switch to distant mode and search station automatically. If there is no statio n available, it will stop searching and return to I ocal mode.

When search station in distant mode, if there is no station available, it will stop searching in distant mode.

※ EQUALIZATION

EQ--- click it to change the equalization mode, such as ROCK, JAZZ, CLAS and OFF.

※ RDS OPERATION

a) ClickAF icon on the screen or shortly press TA/AF button on the front panel to switch AF function on or off.
b) Click TA icon on the screen or hold press TA/AF button on the front panel to switch TA on or off. When TA on, the unit will search Traffic Announcement automatically. When received a Traffic Announcement station, the unit will change to the Traffic Announcement station automatically. Click TA icon or hold TA/AF button to exit TA mode.
c) ClickPTY icon on the screen or hold press PTY button on the front panel to select program. PTY icon or PTY button is operated as follows:

While selecting PTY engagement, its selection is implemented by preset

M1~M6 frequency bar.

According to above two allotted group, the preset number is used for PTY selection as follows:

MUSIC group:

SPEECH group:

M1: POP M, ROCK M

M1: NEWS, AFFAIRS, INFO

M2:EASY M, LIGHT M

M2: SPORT, EDUCATE, DRAMA

M3: CLASSICS, OTHER M

M3: CULTURE, SCIENCE, VARIED

M4: JAZZ, COUNTRY

M4: WEATHER, FINANCE, CHILDREN

M5: NATION M, OLDIES

M5: SOCIAL, RELIGION, PHONE IN

M6:FOLK M

M6: TRAVEL, LEISURE, DOCUMENT

When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

If corresponding PTY information is not existed any more, PTY engaging is automatically exit to normal mode.

Notes:

AF: Alternative Frequencies

Frequency list of broadcasting stations transmitting the same program

TA: Traffic Announcement Identification

Identification data showing traffic information is being transmitted or not

PTY: Program Type Code

Contents of programs such as news, light music, sports etc.

TP: Traffic Program Identification

Identification data for traffic information-broadcasting station

※ --- Click the icon on the screen to return to the main menu interface.

2.DVD OPERATION

If there is no disc in the disc slot, in any mode press button on the front panel to slide down the monitor panel then insert a disc into the disc slot, the unit will switch to the DVD mode and play the disc automatically. If there is a disc in the disc slot, press SRC button on the front panel or MODE button on the remote control or tap [DVD] icon on the MENU interface to change the mode to DVD mode, then the unit will play the disc automatically.

In the DVD interface, tap anywhere of the touch screen to display the DVD control interface, you can operation it using these icons on the screen.

Click to enter into the operation interface (b) and (c).

DVDVIDEO MENU PLAY

When playing a DVD disc in the DVD player:

1) The disc will be played automatically and stop at menu picture.

Use / cursor buttons on the remote control or click / , / 1ns

the screen to move between the highlight bars in the menu.

2) Press ENTER button on the remote control or click OK icon on the touch screen to confirm the selected item.
3) You can click MENU icon on the screen to return to the menu of the DVD disc.

EJECTING A DISC

Press on the front panel to eject the disc.

STOPPLAYBACK

Press button or click n to stop the playback and go back to the

DVD LOGO. Then click on the screen or press on the remote control or on the front panel of the unit to start play.

SKIP TO THE PREVIOUS/NEXT TRACK

During playing, click / / loans on the screen or press / button on the remote control or during playback will skip to the previous/next track.

Note: For some VCD2.0 discs (PBC-playback control), /按钮 or /cons may be unavailable.

Note you can use the numeric buttons (0-9) and 10+ button on the remote control to select the track directly.

PAUSING PLAY

Press on the remote control or on the front panel or click on the screen during playback will stop playback temporarily. To return to normal playback, press again.

※ RAPID FORWARD/RAPID REVERSE

Hold press / the screen or hold press / onthe remote control during playback.

Each time the button is pressed, the speed of rapidforward /reverse changes according to the disc as follows.

DVD/VCD/CD/MP3:

Press Slow on the remote control during play. Each time the button is pressed, the speed of slow forward (SF) changes according to the disc as follows.

In slow motion state, click PLAY icon on the screen or press , normal playback to recover normal playback.

※PBC MENU PLAYBACK OF VCD/SVCD

For some VCD or SVCD discs, there is a menu in order to select the desired contents. This menu is called PBC (Playback Control) menu.

Press PBC button on the remote control to change between PBC ON and PBC OFF on the disc. In PBC ON mode, REPEAT, RANDOM, PROGRAM and GOTO functions are unavailable.

※ON-SCREEN DISPLAY FUNCTION

Press the OSD button on the remote control or click OSD icon on the screen during playback to display the console information of the current disc on the screen.

For an example (when playing a DVD disc):

Once you press OSD button on the remote control or click OSD icon on the screen you will see the information as the following order.

1) Item: TT
Function: Display the current title number and total title number.
2) Item: CH
Function: Display the current chapter number and total chapter number.
3) Item: (This icon only displayed for several seconds, after several seconds it will disappeared.)
Function: Display the played time of the current chapter.
4) C-: Display the remaining time of the current chapter.
5) T: Display the played time of the current title.
6) T-: Display the remaining time of the current title.
7) C: Display the played time of the current chapter.
8) 0EFF 0FF 0FF

Display the current disc's language, audio type, subtitle language and play angle.

Note: The displayed information is different according to different type of discs.

※ REPEAT PLAY

Repeat play: when you want to repeat playing the whole disc or a track or a chapter in the disc.

• Press RPT button on the remote control or click RPT icon on the screen repeatedly to select different repeat modes.
  For different kinds of discs, pressing RPT button has different effects.

For example:

DVD:

MP3:

Note: REPEAT feature does not support VCD2.0 (with PBC ON).

※RANDOM PLAY

Click RDM icon on the screen or press RDM button on the remote control switch between random on or off. When random on, it will play the tracks or programs on random order.

※ GOTO FUNCTION

When disc playing, GOTO button is used to select the desired program to play.

For example:

FOR DVD:

Press GOTO button on the remote control, the screen will display the information as followed:

DVTT 03/05CH 004/017① 00:00:06

Use the numeric buttons and / buttons to move the cursor position to input the desired Title, Chapter or Time, then press ENTER button on the remote control to confirm.

FOR CD:

CDrom TRK 0001/162 A 00:00:57

You can input the Track and Time then pressENTER to confirm.

※ ZOOMFUNCTION

Allows the picture to be increased in size. Press ZOOM button on the remote control to toggle among 2 scale, 3 scale and 4 scale, 1/2 scale, 1/3 scale, 1/4 scale.

When the scale is 1/4 times, press ZOOM button again to cancel the zoom function.

During Zoom mode, press , /→buttons on the remote control to move pictures up, down, left or right direction.

Multi-subtitle Language Function

Press Sub-T on the remote control or click SUB-T icon on the screen during playback. The corresponding information will be shown on the screen.

Each time the button is pressed, the subtitle language changes in sequential order.

Notes:

The language number is different according to be disc.
Some discs only contain one subtitle language.

Multi-audio Language Function

Press Audio on the remote control or click L/R icon on the screen during playback. The corresponding information will be shown on the screen.

Each time the button is pressed, the audio soundtrack language changes on sequential order.

Notes:

The language number is different according to be disc.
- Some discs only contain one soundtrack language

Multi-angle Function

Press Angle button on the remote control during playback. The corresponding information will be shown on the screen.

Each time the button is pressed, the angle changes in sequential order.

Notes:

The angle number is different according to the disc.
The function only works for discs having scenesrecorded at different angles.

For VCD, press Audio on the remote control or click L/R icon on the screen during playback to change the channel, such as MONO L, MONO R, and STEREO.

※ PROGRAM PLAY

In program play mode, you can play the track in your desired sequence.

To program play a disc, please follow the next instructions.

For VCD/CD/MP3:

1) In PBC OFF mode. Press PROG button on the remote control to enter program edit interface.

2) Use / turser buttons to select the items you want to pro gram. The items you selected will become highlight.

3) Input the sequence number you want to program by numeric buttons (0-9) on the remote control.
4) Use cursor buttons to select PLAY character, then press ENTER button on remote control to confirm. And "PRG PLAY" will appear on the screen. The unit will play the tracks you programmed.
5) If you want to clear the program, use cursor but tons to select CLEAR character and press ENTER will clear the information you have programmed. And "PRG CANCEL" will appear on the screen.

For DVD:

The operation is the same as VCD/CD operation.

Press PROG button on the remote control the following media play window will be shown on the screen:

※ EQ--- Click it or press EQ button on the front panel to change the equalization mode, such as ROCK, JAZZ, CLAS and OFF.

--- Click to mute the sound, click it again to resume the sound.

DVD SETUP

In DVD mode, when the disc is playing or in stop mode, press Setup on the remote control to enter setup menu.

When the cursor is on the topside, use / buttons to move between the different pages, such as SYSTEM SETUP, LANGUAGE SETUP, AUDIO SETUPVIDEO SETUP, and DIGITAL SETUP.

System setup

Language setup

Audio setup

Video setup

Digital setup

• Press ↓ button to move the cursor to the setup page below and then you can use ↑/ ↓ buttons to move between the different setup options.
• Press → button to display the choice list for each setup option and then use ↑/ ↓ buttons and ENTER button to change your selection.

1) SYSTEM SETUP

When you open the setup menu, you will see the system setup page at first, see below:

SYSTEM SETUP

TV SYSTEM

TV TYPE

password

RATING

DEFAULT

EXIT SETUP

• TV SYSTEM: Change the TV SYSTEM among NTSC, PAL and AUTO.
• TV TYPE: Change the TV TYPE among 4:3 PS, 4:3 LB and 16:9.
• PASSWORD: Change the PASSWORD lock or unlock, thedefault PASSWORD is "0000".
• RATING: Change the parental RATING among 1KID SAFE, 2G, 3PG, 4PG13, 5PG-R, 6R, 7NC-17, 8ADULT.
• DEFAULT: Restore the system setup to the defaultsetup.

2) LANGUAGE SETUP

When you open the language setup menu, you will see the language setup page:

LANGUAGE SETUP

OSD LANGUAGE

AUDIO LANG

SUBTITLE LANG

MENULANG

DIVX LANG

EXIT SETUP

You can change the OSD LANGUAGE among: English, Dutch, Spanish, French, Portuguese and Russian.

You can change the AUDIO LANGUAGE among: Dutch, Portuguese, English, Japan, French, Spanish, Russian and Latin.

You can change the SUBTITLE LANGUAGE among: Dutch, Portuguese, English, Japan, French, Spanish, Russian and OFF.

You can change the MENU LANGUAGE among: Dutch, Portuguese, English, Japan, French, Spanish, Russian and Latin.

You can change the DIVX LANGUAGE among: CYRILLIC and WESTERN EU.

3) AUDIO SETUP

When you open the AUDIO menu, you will see the folbowing picture:

• AUDIO OUT: Change among SPDIF/OFF, SPDIF/RAW andSPDIF/PCM.
• KEY: Change the tone within a certain range.

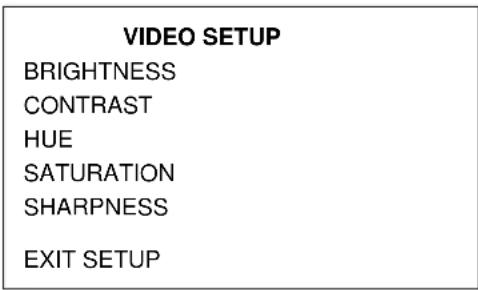

4)VIDEO SETUP

When you open theVIDEO menu, you will see the following picture:

You can adjust the value of the brightness, contrast, hue, saturation and sharpness.

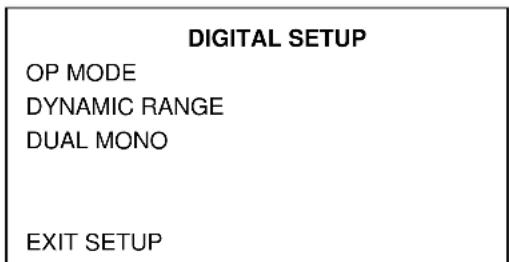

5) DIGITAL SETUP

When you open the DIGITAL menu, you will see the following picture:

• OP MODE: to set the operating modes for Dolby Digital decoder, there are LINE OUT and RF REMOD to be selected.
• DYNAMIC RANGE: you can adjust the dynamic range between 1/8, 2/8, 3/8, 1/2, 5/8, 3/4, FULL.
• DUAL MONO: there are STEREO, MONO L, MONO R and MX MONO to be selected.

LAST PLAY MEMORY

1) During disc playback, if you turn off the unit and then turn on the unit again, the DVD unit will resume playing from the point that just interrupted.
2) During disc playback, if you press SRC button on the front panel or MODE button on the remote control to switch to other mode, then return to DVD mode again, the unit will resume playing from the point that just interrupted.

※ --- click to return to the main menu interface.

In the main menu click [BT] icon to enter into the following interface:

Before you read this Bluetooth instruction please note the following points:

a) The Bluetooth function is optional, you just can use this function which you bought the products including Bluetooth function.
b) This function needs your mobile phone support Bluetooth.
c) The initial secret code is "0000".

※ Use the Bluetooth mobile phone to pair with the unit. During any mode, setting your mobile as "Bluetooth connect" when it is connected successfully, the screen will show a "CONNECT OK" word.

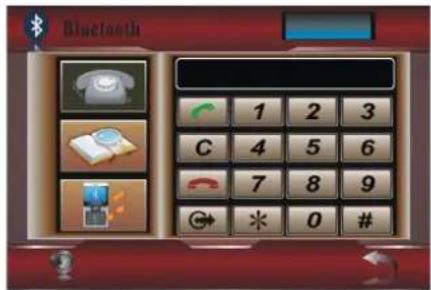

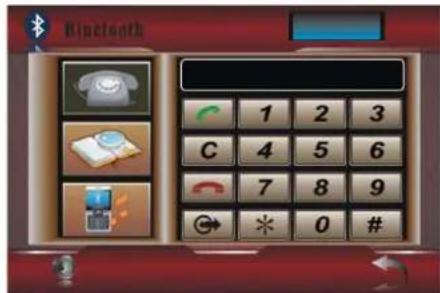

※ --- click to enter into the Dial interface.

Use the number buttons (0-9, *, #) on the dial keypad on the left of the screen to input the number you need. Click C icon to clear the number you input. Then

click to make an outgoing call. Click to hang up the call.

When there is an incoming call, click to pick up the call or click to hang up the call.

--- click to transfer the voice between the mainunit and the Bluetooth mobile phone.

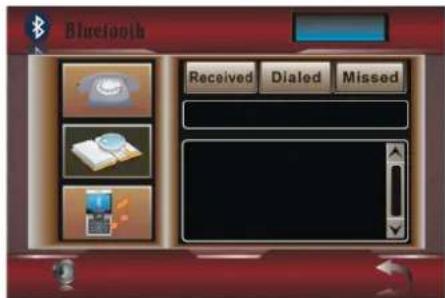

--- click to enter into the Call Record interface.

In this interface, you can search the received calls, dialed calls and missed calls record.

※

--- click to enter into the BT music interface.

The unit supports Bluetooth audio function. If your mobile phone supports A2DP function, when the paring is ok, you can choose the unit you have paired to play the stereo music.

During playing, click on the screen or press button on the remote control during playback will skip to the previous/next track.

Click on the screen or press on the remote control to play/pause the normal playback. Click on the screen or press on the remote control to stop normal playback.

Note: when playing music, you can not make any phone call. When there is an incoming call, you can choose to answer it or not.

※

---- click to the previous mode, such as radio, DVD...

4. SD/USB OPERATION

USB

On the front panel of the unit there is an interface for USB. When you connect an

USB to the interface, it can play the audio/video files on the USB.

In the main menu click [SD/USB] icon to enter into the USB play interface. You can

select the audio, photo, video files to play.

Touch the screen to display the control icons and use the control icons or the buttons on the remote control to operate the USB play.

You can refer to the 2.DVD operation above.

SD

When you press release button on the front panel to remove the detachable panel, you can see the

SD/MMC interface on the housing.

Insert the SD card into the interface, in the main menu click [SD/USB] icon to enter into the SD play interface.

You can select the audio, photo, video files to play.

Tap somewhere of the touch screen, the icons used b control the SD play will appear. Use the control icons or the buttons on the remote control to operate the SD play. You can refer to the 2. DVD operation above.

5. AV IN OPERATION

On the front panel of the unit, there is an AV IN jack. You can connect the auxiliary audio/video device from the jack. In the main menu click [AV IN] icon to enter into the corresponding interface.

--- Click to mute or resume the sound.
※ --- Click the icon to return to the main menu interface.

On the back of the unit, there is a jack for rearview video in. When click the [REARVIEW] icon on the main menu to enter back sight function, the unit will play the video information that input from the rearview video in jack.

When the brown rearview line of the unit is connected to +12V, the picture of the screen will switch to rearview picture automatically.

7. SETUP OPERATION

In the main menu click icon to enter into the Setting interface:

Click the corresponding icon on the menu to enter into the setting.

--- Click to return to the main menu interface.
--- Click to return to the current mode, such as radio or DVD...

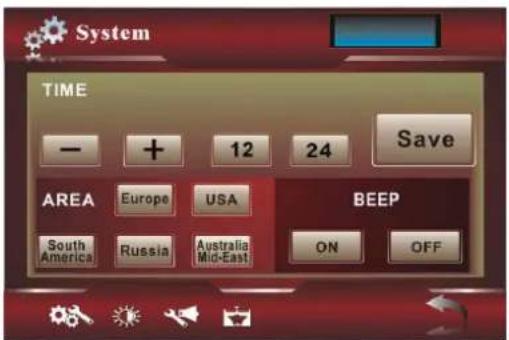

※ System

TIME ZONE --- Click the hour or minute that you want to change, then click the - and + to adjust the value.

Click 12 or 24 to select 12 hour time format or 24 hour time format.

Click Save to confirm the time setting.

AREA ZONE --- Click the icon for different country to select the country you are in. There are Europe, USA, South America Russia, and Australia/Mid-Ease to be selected.

Note for some countries, click 'Russia' is invalid.

BEEP ZONE --- Click ON or OFF to switch beep sound on or off.

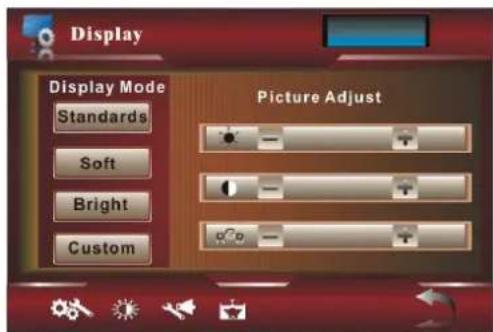

※ Display

Display Mode

Click Standards, Soft, Bright and Custom to enter the corresponding appearance display.

Picture Adjust

• Brightness adjustment

--- Contrast adjustment

--- RGB (Chroma) adjustment

Click ^+ and - to adjust the value of brightness, contrast and RGB.

--- click to back to main menu interface.

※DSP

PRESETEQ

Click the different icon on the picture to select the corresponding equalization mode: Rock, Jazz, Standards and Classical.

Loudness --- select ON or OFF

Subwoofer --- select ON or OFF

Treble --- click ^+ and - to adjust the value of treble

Bass --- click ^+ and - to adjust the value of bass

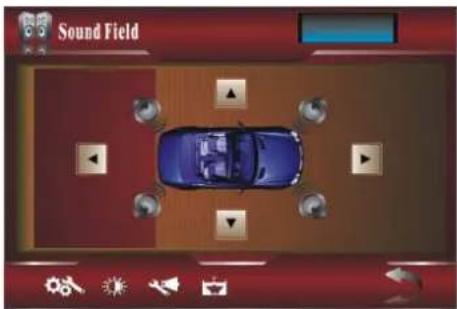

Sound Field

Use the cursor icons up, down, left and right to adjust the sound effect of the four areas.

※ Touch Calibration

Click to enter into the touch screen calibration function. How to set it please refer to the information on the screen.

What might appear to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player.

The power does not turn on.

The lead wires are not connected properly to the c onnectors.
Make sure the connection is correct.
The fuse has blown.
After checking for short circuits in the wires, re place the fuse with one having the same rating.
The internal processor is not working due to noise or other factors.
Press the reset button to reset the unit to factor y defaults.

The remote control does not work. The unit does not operate even when the correct buttons on the remote control are pressed.

Battery capacity is low.
Install new batteries.
Some operations are disabled in specific states.
Enter the correct mode.

The disc can not play.

Disc is of poor quality or damaged or not clean.
Clean or replace the disc with one of higher quality.
The disc installed is not supported by the unit.
Examine the disc type.
The disc installed is not compatible with the vide o system.
Replace the disc with one compatible with your vid eo system.

The desired source is not selected although you press the MODE button.

An optional unit required to listen to each source is not connected yet.
Connect the optional unit correctly.
The reset button is not pressed yet although the optional unit has been connected to the unit.
Press the reset button.

Nothing happens when the button are pressed.

An optional unit required to listen to each source is not connected yet.
Connect the optional unit correctly.
The computer chip in the unit is not functioning normally.
Press the reset button on the unit.

No video image appears.

The unit is not connected to the parking brake detection switch.
Make proper connections.

The parking brake is not engaged.

For safety reasons no television/video images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed

The sound quality is poor or distorted.

One of the speaker wires is being pinched by a screw in the car.
Check the speaker wiring.
The speakers are not wired correctly.
- Reconnect the speaker wires so that each output terminal is connected to a different speaker.

Radio reception is poor.

The car antenna is not extended.
Pull the antenna out all the way.
The antenna control wire is not connected.
Connect the wire correctly.

The sound/picture skips on a DVD/VCD/CD/MP3.

The disc is scratched or dirty.
Clean the disc.

A track will not play.

Random play has been selected.
Turn off random play.

A VCD cannot be played using menus.

The VCD disc being played is not compatible with P BC.
- Menu playback is available only with VCD discs rec ordered with PBC.

The viewing angle cannot be changed.

The DVD disc being played does not contain the recording of more than one angle.
The viewing angle cannot be changed when the DVD disc being played does not contain the recording of more than one angle.
You are attempting to switch the angle in a DVD section where more than one angle is not recorded.
More than one viewing angle may be recorded only i n limited sections in a disc.

GENERAL

Power Supply Requirements : DC 12 Volts, Negative G round

Maximum Output Power

• Version Y : 4x40 watts

Current Drain

• Version Y : 15 Ampere (max.)

RADIO

For 2 Bands

FM

Frequency Coverage 87.5 to 108 MHz

Sensitivity (S / N = 30dB) 10 dBu

Image Rejection >45dB

Stereo Separation >25dB

MW

Frequency Coverage 522 to 1620kHz

Sensitivity (S / N = 20dB) 36 dBu

Image Rejection >45 dB

DVD

Signal system: Compositive video 1.0Vp-p 75Ω

Discs played: (1) DVD-VIDEO disc

5^ (12 cm) single-sided, single-layer
5" (12 cm) single-sided, double-layer
(2) Compact disc (CD-DA/CD-R/CD-RW/MP3)
(3) (12 cm)VIDEO CD

Monitor Screen Size: 7.0" TFT

Solution: 480 (RGB) X234 DOT

Note:

Specifications and design are subject to modification, without notice, due to improvements in technology.

MANUEL D'UTILISATION

Système audio/video

TV SYSTEM TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

Loudness --- seLECTIONnez ON ou OFF

While selecting PTY engagement, its selection is implemented by preset M1~M6 frequency bar.

M2: SPORT, EDUCATIE, DRAMA

3: KULTUUR, WETENSCHAP, GEVARIEERD

M4: WEER, FINANCIEEL, KINDEREN

M5:SOCIAL,RELIGIE,BELSPELLLEN

M6:REIZEN,ONTSPANNING,DOCUMENTAIRE

You can input the Track and Time then press ENTER to confirm.

ZOOM FUNCTIE

Loudness --- selecteer ON of OFF

Subwoofer---selecteer ON of OFF
