T6

Quick Start Guide

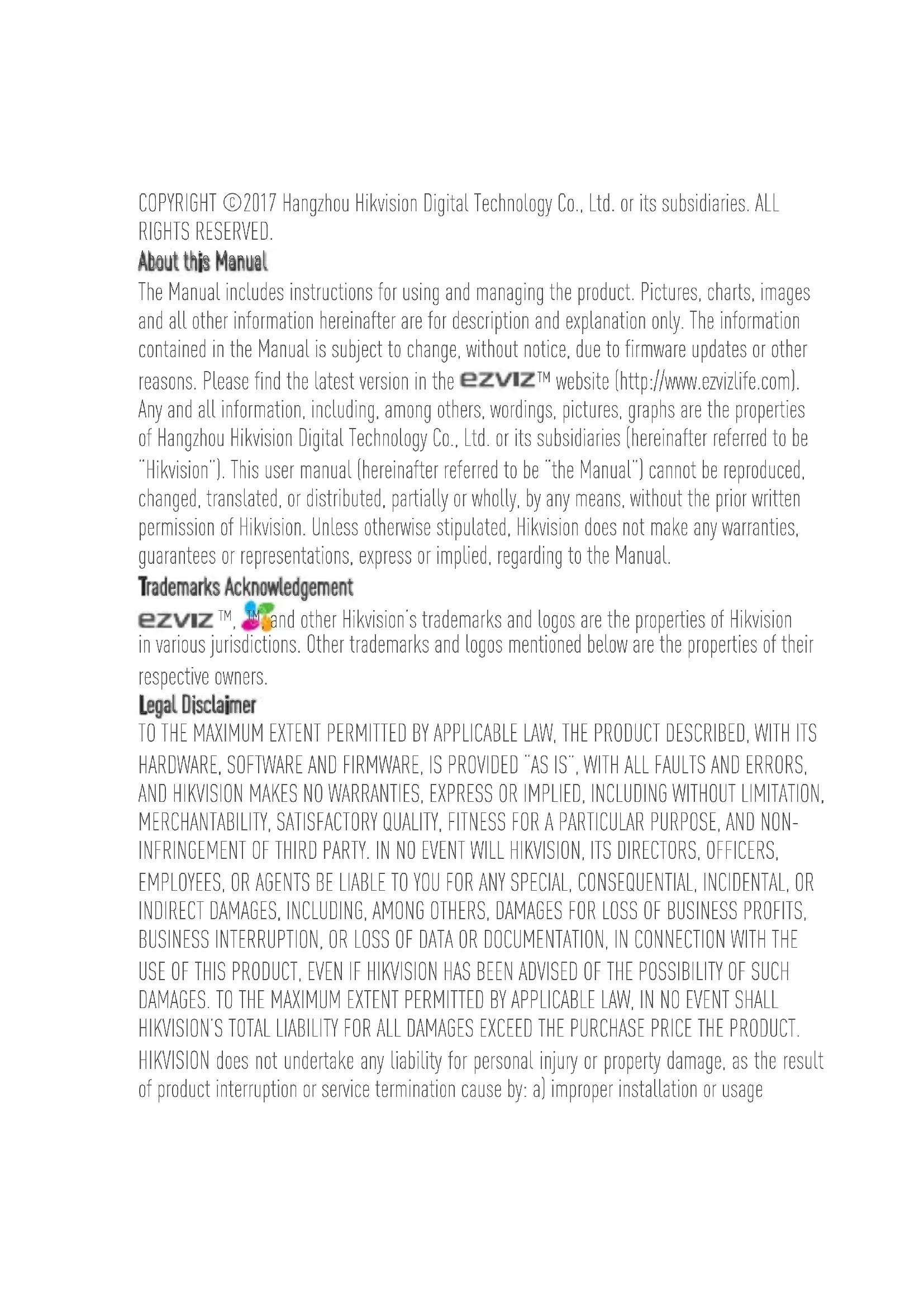

COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ezviz™ website (http://www.ezvizlife.com). Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

ezviz™, ™, and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT. HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage

other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMINCAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAILS.

Safety Instruction

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Regulatory Information

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-T6-A] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link: http://www.ezvizlife.com/declaration-of-conformity.

Operations

Step 1

Charging

Make sure to charge the Open/Close Detector before you begin using it for the first time. Connect the sensor to the power socket with the power cable. The status indicator displays red while it is charging and turns blue when charging is complete.

Pure electrical circuit lines without any symbols

A fully-charged battery can last for up to 3 months. Recharge when the battery runs low.

Step 2

Adding to the Home Sense Alarm Hub

The EZVIZ Home sense alarm hub should be purchased separately.

• 0

Option 1 (Recommended) Add Using the EZVIZ App

1 Remove the Base

Detach the base from the detector by sliding it as directed by the arrow. You can see the device QR code code located on the back of the sensor.

2 Adding detector to the Home Sense Alarm Hub

• Download and install the EZVIZ app by searching the "EZVIZ" in App Store (iOS version) and Google Play™ (Android version).
• Start the app and register for an EZVIZ user account following the start-up wizard.
• Log in the EZVIZ app and scan the device QR code to add it to the Alarm Hub.

• Option 2 Add Using the Home Sense Alarm Hub

• Enable the "Adding Detectors Mode" of your Home Sense Alarm Hub by quickly pressing its Setting button.
• Bring the detector close to the Home Sense Alarm Hub (within 2ft.) and press the button on the detector. The Blue indicator flickers twice indicating the adding signal has been sent.

Home Sense Alarm Hub Within 50cm Indicator

- The Home Sense Alarm Hub will announce the type and serial number of the detector being added.

Step 3 Installing Detector

1 Using the Foam Sticker

Attach the foam sticker to the base of the detector.

For metal door or window installation, use the 3 mm thick foam sticker.

3 mm

2 Installing the Open/Close Detector

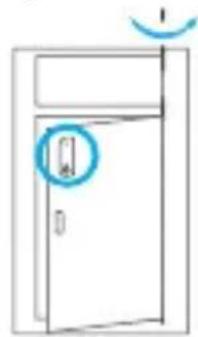

- Install the base close to the edge of the door or window's swinging side as illustrated in the figures below.

Simple line drawing of a door with a circular button labeled 'I' and a hanging signal icon above (no text or symbols)

Window

Simple line drawing of a double door with two x-shaped cutouts and a blue circular icon (no text or symbols)

Door

- Mount the detector to its base to complete the installation.

3 Recording Closed Status

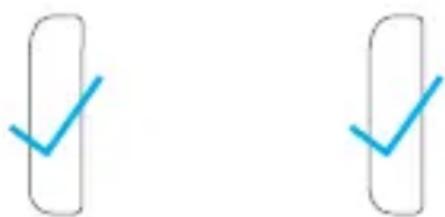

Keep the door or window closed and then press and hold the button on detector for 2 seconds to record the closed status. The indicator flickers red for 15 seconds indicating the status is recorded.

The Closed Status will need to be recorded again if the sensor is removed from its current location.

Two identical hand-drawn paperclip symbols with a single blue checkmark (no text or labels)

4 Test the Open/Close Detector

The indicator blinks red when the door or window is opened and will send an alarm message to the linked EZVIZ account. The indicator blinks blue when the door or window is closed.

Maintenance

When the battery runs out, a low battery alert will be sent to the EZVIZ account to notify you to recharge. Remove the detector from its base to recharge it. Reinstall it after it has been recharged.

Appendix

Box Contents

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

Home Sense Open/Close Detector x1 Base x1

Simple line drawing of a rectangular object with rounded corners and small square cutouts (no text or symbols)

(Attached to the back of Home Sense Open/Close Detector.)

Foam Sticker x2 (1 mm thick & 3 mm thick)

Power Cable x1

Installation Guide

Quick Start Guide x1

Basics

Simple line drawing of a remote control device with no text or symbols

Button

LED Indicator

Flickers Blue Once: The door or window is in closed status.

Flickers Red Once: The door or window is open. .

Charging Interface

Base

Specifications

Charging Voltage 5V

Battery Capacity 450mAh/1.66Wh

Battery Life 3 Months

Working Temperature -10°C to 55°C (14°F to 131°F)

Charging Humidity 0 to 40%

Working Humidity 10% to 90%

Trigger Angle >3°

Power Consumption ≤ 10dBm

Betrieb

Schritt 1

Aufladen

Simple line diagram showing connections between a power plug and a socket (no text or symbols)

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

T6 x1 Sockel x1

Simple line drawing of a rectangular object with rounded corners and small square cutouts (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Taste

LED-Anzeige

Simple line diagram showing connections between a power plug, socket, and terminal outlet (no text or symbols)

- The Internet Alarm Hub issues a voice prompt of the detector type and serial No. indicating the detector is added.

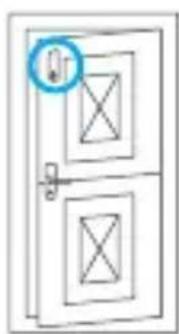

Paso 3

Simple line drawing of a door with a hanging door and a circular icon on the door (no text or symbols)

Ventana

Simple line drawing of a door with two panes and a handle (no text or symbols)

Puerta

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

Simple line drawing of a rounded rectangular object with two small square cutouts on both sides (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Botón

ES

Indicador LED

Simple line diagram showing connections between a power plug, socket, and terminal outlet (no text or symbols)

Simple line drawing of a door with a hanging door and a circular icon on the door (no text or symbols)

Fenêtre

Simple line drawing of a door with two panes and a handle (no text or symbols)

Porte

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

1 T6 1 socle

Simple line drawing of a rounded rectangular object with two small square cutouts on the side (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Touche

Diode témoin

Simple line diagram showing connections between a power adapter and a plug (no text or symbols)

Simple line drawing of a door with a hanging door and a circular label (no text or symbols)

Finestra

Simple line drawing of a door with two panes and a handle, no text or symbols present

Porta

Simple line drawing of a remote control with a magnifying glass icon (no text or symbols)

T6 (1) Base (1)

Simple line drawing of a rounded rectangular object with two small square cutouts on the side (no text or symbols)

Simple line drawing of a remote control device with a circular dial and dotted lines indicating connection points (no text or symbols)

Pulsante

LED

Pure electrical circuit lines without any symbols

Simple line drawing of a door with two doors and a handle, no text or symbols present

Two identical hand-drawn paperclip symbols with a single blue checkmark inside (no text or labels)

NL

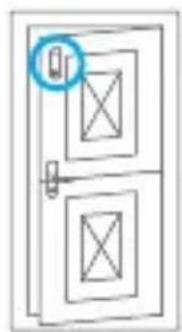

4 De Open/Gesloten-detector testen
