USER MANUAL PLPRO DMC Furman

• LiFT (Linear Filtering Technology) with zero ground contaminaon

• Switchable/Dimmable true RMS current and laboratory precise digital voltage meter

• Front panel mounted USB charger

• Two Smooth Track retractable, long-life, low-heat, front panel LED lights with dimmer-power switch for rack illuminaon

• BNC connector on the rear panel accepts any standard (12VAC 0.5 amp) gooseneck lamp to illuminate the rear of your rack (Furman GN-I and GN-LED accessory gooseneck lamps are best for this applicaon)

• Eight rear panel AC outlets (three with wide spacing and hook and loop straps to accommodate and secure transformers - wall warts)

• Five year limited warranty INTRODUCTION Thank you for purchasing a Furman Classic Series power condioner, and congratulaons on your choice. Classic Series power condioners feature Furman’s revoluonary Series Mul-Stage Protecon (SMP) circuit, Extreme Voltage Shutdown (EVS), and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Furman - uncompromised AC protecon and puricaon. Our Classic Series has been precisely engineered to exceed the crical demands of audio/video professionals, contractors, broadcasters, and musicians alike. SMP (SERIES MULTI-STAGE PROTECTION) Furman’s SMP surge suppression virtually eliminates service calls and costly “down me”. Tradional surge suppression circuits sacrice themselves when exposed to mulple transient voltage spikes, requiring the dismantling of your system and repair of your surge suppressor. Not so with Furman’s SMP. Damaging transient voltages are safely absorbed, clamped, and dissipated. Your connected equipment is protected, while your Furman protects itself! Unique to Furman’s SMP is its unparalleled clamping voltage, dened as the amount of voltage that is allowed to pass through to your equipment when the protecon device is subjected to a transient surge or spike. While other designs oer clamping voltages that are well above 330 Vpk, Furman’s SMP clamps at 188 Vpk, (133 VAC RMS) even when tested with mulple 6000 Vpk - 3000 amp surges! This unprecedented level of protecon is only available with Furman’s SMP technology. EVS (EXTREME VOLTAGE SHUTDOWN) Furman’s trusted over-voltage (EVS) circuitry protects against prolonged overvoltage condions, such as accidental connecons to 208 or 240 VAC, or an intermient neutral. It does so by monitoring the incoming voltage and, when an unsafe condion is detected, triggering a relay which shuts o the incoming power unl the overvoltage condion is corrected and the power switch is reset. LIFT (LINEAR FILTERING TECHNOLOGY) Unfortunately, tradional AC power condioners have been designed for unrealisc laboratory condions. Prior technologies, whether mulple-pole or convenonal series-mode lters, could actually harm audio and video performance more than they help, due to the resonant peaking of their anquated, non-linear designs. Under certain condions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse sll, lost digital data, the need to reboot digital presets, or destrucon of sensive digital converters are frequently caused by excessive voltage spikes and AC noise contaminang the equipment ground. Furman’s LiFT takes a dierent approach, ensuring opmal performance through linear AC noise ltering with no ground contaminaon.

PL-PRO DMC ADDITIONAL FEATURES

The PL-PRO DMC features Smooth Track LED rack lights which produce virtually no heat and provide an extremely long lifespan. A dimmer control for the rack lights allows the user to adjust the level of illuminaon (by rotang clockwise/counterclockwise) or switch the lamps on and o (by pushing the knob in). A rear mounted BNC jack accepts any standard (12VAC 0.5 amp) gooseneck lamp for rear rack illuminaon. The PL-PRO DMC is equipped with a front panel convenience AC outlet and eight rear panel outlets in two isolated banks. The outlets in Bank A are spaced to accommodate transformer plugs (wall warts) which may be secured with the included hook and loop straps. Since the banks are isolated from each other, it is recommended to connect analog equipment into Bank A and digital equipment into Bank B (or vice versa). The PL-PRO C’s 20 amp (2400 wa) capacity is supplied from a robust 12 AWG, 10 foot AC cord.5 FRANÇAIS ENGLISH ESPAÑOL Addionally, the PL-PRO DMC oers a switchable laboratory precision digital meter that displays incoming voltage in 1-volt steps or true RMS current in 0.1 amp steps. The voltmeter’s accuracy is ±1.5 volts and features a tri-color voltage range indicator. This informs the user whether voltage is in or out of a safe range, even from a distance too great to accurately read the displayed voltage. SAFETY INFORMATION To obtain best results from your Furman Classic Series power condioner, please read this manual carefully before using. WARNING To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. Dangerous high voltages are present inside the enclosure. Do not remove the cover. Refer servicing to qualied personnel only. The lightning ash with an arrowhead symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sucient magnitude to constute a risk of electric shock.

IMPORTANT SAFETY INSTRUCTIONS

(Please read prior to installaon) 1. Please read and observe all safety and operang instrucons before installing your Furman Classic Series power condioner. Retain these instrucons for future reference. 2. Your Classic Series condioner should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 3. Do not place your Classic Series condioner near high heat sources such as radiators, heat registers, stoves, or other appliances that produce extreme heat.

4. The Furman PL-PRO DMC should only be connected to a 120 VAC, 50Hz/60Hz, 20 amp grounded electrical outlet. Do not

defeat the ground or change polarizaon of the power plug. 5. Route the AC power cord and other cables so that they are not likely to be walked on, tripped over, or stressed. Pay parcular aenon to the condion of the cords and cables at the plugs and at the point where they exit your Furman condioner. To prevent risk of re or injury, damaged cords and cables should be replaced immediately. 6. Clean your Furman condioner with a damp cloth only. Do not use solvents or abrasive cleaners. Never pour liquid on or into the unit.

7. Your Furman condioner should be serviced by qualied service personnel when:

• The power supply cord or the plug has been frayed, kinked, or cut.

• Objects have fallen or liquid has been spilled into the unit.

• The unit has been exposed to rain or extreme moisture.

• The unit does not appear to operate normally.

• The“ProteconOK”indicatorisnotlit.

• The unit has been dropped, or the enclosure has been damaged.

• The retractable LED lights have failed.

8. Your Furman condioner requires that a safety ground be present for proper operaon. Any aempt to operate the unit

without a safety ground is considered improper operaon and could invalidate the warranty.

9. Do not aempt to service your Furman condioner beyond what is described in this manual. All other servicing should be

referred to qualied service personnel.6

PL-PRO DMC OWNER’S MANUAL

OPERATION RETRACTABLE SMOOTH TRACK RACK LIGHTS, REAR PANEL LAMP AND DIMMER CONTROL: The Furman Classic Series power condioners ulize a dimmer control for the two retractable Smooth Track light tubes. The dimmer knob controls the brightness of both front panel lamps. Turn it clockwise to increase brightness; turn it counterclockwise to decrease brightness. The knob is also a momentary power switch for the lamps: push it in to turn the lamps on or o. When the lamps are not in use, we recommend turning the dimmer fully counterclockwise, or pushing the knob to the o seng to maximize the life of the LED’s. Whether the light tubes are fully extended or ush with the front panel, there will be no appreciable heat regardless of the dimmer seng due to the eciency of our full light spectrum LED’s. All Furman Classic Series Condioners feature a rear rack BNC socket which will accept any 12 VAC (0.5A) gooseneck lamp assembly (such as the Furman GN-LED or GN-I). Simply slide the BNC plug over the socket and rotate clockwise unl the connector snaps into the locked posion. The rear rack lamp can be powered on or o with the rear light switch which is adjacent to the BNC connector. ULTRA-LOW RESISTANCE MAGNETIC POWER SWITCH / CIRCUIT BREAKER: Furman’s Classic Series 20 amp capacity power switch is specically designed to stand up to the enormous high in-rush current demands of many power ampliers. Addionally, Furman magnec circuit breakers are not sensive to temperature, and will not raise the AC impedance as do many, less costly thermal breaker. If the 20 amp RMS current capacity of the PL-PRO C is exceeded, the spring tensioned-switch will immediately switch to the o posion. You will need to switch the toggle back to the on posion once the problem is corrected (typically by eliminang one component, or unl the RMS current does not exceed 20 amps or 2400 was). EXTREME VOLTAGE SHUTDOWN (EVS) INDICATOR: The Extreme Voltage LED indicator is normally o. It is located within the meter lens assembly directly above the blue voltage / current LED’s, though during normal use it will NOT be visible. The Extreme Voltage indicator monitors a hazard common in the entertainment, remote broadcast, and AV contractor industries: wiring faults. For example: accidental connecon to 208VAC where 120VAC is expected, or an open series neutral from a 208 to 240VAC electrical service. The Furman EVS circuit senses voltages that are so high that operaon would be impossible and shuts the power down before damage can occur. Upon inially applying power to these units, the Extreme Voltage indicator will light and a red “Extreme Voltage” label will appear at the top of the meter lens if the input voltage is above the extreme voltage cuto. NOTE: If the mains power is above the high cuto voltage and has caused the EVS circuit to remove power from the PL-PRO DMC’s outlets, it cannot restore power without the operator manually turning the unit o, then on again. Avoid turning the unit back on without rst checking the source of the problem and changing the AC source (if necessary). PROTECTION OK INDICATOR: Although the Furman SMP circuit assures virtually maintenance-free protecon from transient voltage spikes and surges, nature has a way of occasionally creang electrical forces that are beyond the capabilies of ANY surge suppression device to absorb without some degree of damage (such as a direct lightning hit in an outdoor applicaon). In the rare instance that this occurs, the green “Protecon OK” LED indicator, located at the boom right of the meter lens assembly, will dim. If this happens, some level of protecon from voltage surges will remain, but the PL-PRO DMC’s clamping voltage rang will be compromised and the unit must be returned to Furman for service. NOTE: Furman’s Classic Series power condioners do not compensate for high or low AC line voltage. If you frequently move your rack to dierent locaons, derive power from generators, use very long extension cords, travel internaonally, or are in an area prone to brownouts, you may benet from the use of one of Furman’s AC Voltage Regulators. SWITCHABLE DIGITAL VOLTAGE AND TRUE RMS CURRENT METER: Furman’s laboratory precision AC digital voltmeter connually measures incoming voltages within a typical tolerance of +/-1.5VAC. It should be noted that the voltage reading is incoming. Furman’s laboratory precision True RMS digital current meter connually measures the total circuit AC load, within a typical tolerance of +/- 0.5 amp. Because these meters feature true RMS technology, the current readings are accurate regardless of load condions (capacive, inducve, or resisve). To switch between voltage and current, press the buon labeled “Line Voltage/Current”. Hold this buon down for two seconds to dim the brightness of the display. VOLTAGE RANGE INDICATOR: This indicator is located in the lower le corner of the digital volt / amp meter lens assembly. When AC voltage is within 5 volts (+/-) of a nominal 120VAC source, this tri-color indicator will be green (opmal). However, if the voltage is between 110 to 114VAC or be- tween 126 to 130VAC, the indicator will turn amber (cauon - not opmal). If the incoming voltage is in an extreme range (below 110 or above 130), the indicator will turn red. This range is far from opmal, and may be potenally damaging to some equipment.7 FRANÇAIS ENGLISH ESPAÑOL Acon Needed: Correct the line voltage, then turn the Furman condioner on. If the voltage present is below 114 VAC or above 126 VAC, consider installing a Furman voltage regulator. SERVICE If you require technical support or equipment service, please contact the Furman Service Department at (760) 438-7000. You may also email techsupport@furmansound.com. All equipment being returned for repair must have a Return Authorizaon (RA) number. To get an RA number, please call the Furman Customer Service Department. Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please provide a note giving your name, address, phone number, RA number and a descripon of the problem.

5 YEAR LIMITED WARRANTY

SAVE YOUR SALES RECEIPT! The receipt is your proof of purchase and conrms the product was purchased at an authorized Furman dealer. It will need to be submied to Furman in order to process any warranty claims. Furman, a brand of Nortek Security and Control LLC, warrants its PL-PRO DMC (the “Product”) as follows: Furman warrants to the original purchaser of the product that the product sold hereunder will be free from defects in material and workmanship for a period of ve years from the date of purchase. If the product does not conform to this Limited Warranty during the warranty period (as herein above specied), purchaser shall nofy Furman of the claimed defects by calling (760) 438-7000 or via email (techsupport@furmansound.com). If the defects are of such type and nature as to be covered by this warranty, Furman shall authorize purchaser to return the product to Furman headquarters. Warranty claims MUST be accompanied by a copy of the original purchase invoice or receipt showing the purchase date. Shipping charges to Furman headquarters must be prepaid by the purchaser of the product. Furman shall, at its own expense, furnish a replacement product or, at Furman’s opon, repair the defec- ve product. Return shipping charges back to purchaser will be paid by Furman. THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. USB CHARGER: The Furman PL-PRO C’s USB charger provides an easy way to recharge many popular electronic accessories as well as cellular communicaon devices by simply plugging the re-charge cord into the front panel socket. Please note that as there are currently many standards for USB, some devices may not be compable with our charger. TRANSFORMER PLUG (WALL WART) SECURING LOOPS: Your 20 amp Furman Classic Pro Series condioner features rear panel AC outlets that are widely spaced for plug transformers (wall warts). Addionally, these may be secured for transport with hook and loop straps (included). Each outlet has threaded screw holes on either side to accommodate the hook and loop straps. TROUBLESHOOTING 1.) Symptom: No power to the AC outlets. Possible Cause: The circuit breaker (located on the front panel) has tripped due to excessive load. Acon Needed: Unplug one piece of equipment from the Furman condioner and manually turn the unit o, then on again. 2.) Symptom: No power to the AC outlets, “Protecon OK” indicator is not lit. Possible Cause: Either the AC outlet to which your Furman condioner is connected has no AC voltage present, or the protecon circuitry in your unit has been compromised. Acon Needed: Plug the Furman condioner into an AC receptacle where a nominal 120 VAC is present. If the problem persists, contact Furman for service. 3.) Symptom: Extreme Voltage (EVS) indicator lit. Possible Cause: Input voltage is above 140V causing power to the unit’s outlets to be shut down. Addionally, if the voltage is below 85V – 90V at turn on, the unit will not allow AC voltage to reach the outlets.8

PL-PRO DMC OWNER’S MANUAL

Furman does not warrant against damages or defects arising out of improper use or abnormal handling of the product, or against defects or damages arising from improper installaon. This warranty shall be cancelable by Furman at its sole discreon if the product is modied in any way without wrien authorizaon from Furman or Nortek Security and Control LLC. This warranty also does not apply to products upon which repairs have been aected or aempted by persons other than pursuant to wrien authorizaon by Furman or Nortek Security and Control LLC. THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligaon of Furman shall be to repair or replace the defecve product in the manner and for the period provided above. Furman shall not have any other obligaon with respect to the products or any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequenal damages. This Limited Warranty states the enre obligaon of Furman with respect to the product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and eect. SPECIFICATIONS CURRENT RATING: 20 amps OPERATING VOLTAGE: 90 to 139 VAC OVER VOLTAGE SHUTDOWN: 140 VAC typically SPIKE PROTECTION MODES: Line to neutral, zero ground leakage SPIKE CLAMPING VOLTAGE: 188 VAC peak @ 3,000 Amps, 133 VAC RMS RESPONSE TIME: 1 nanosecond MAXIMUM SURGE CURRENT: 6,500 amps NOISE ATTENUATION: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz Linear aenuaon curve from 0.05 - 100 Ohms line impedance DIMENSIONS: 1.75” H x 19” W x 10.5” D. WEIGHT: 12 lbs. (5.5 kg.) CONSTRUCTION: Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards POWER CONSUMPTION: 15 VA SAFETY AGENCY LISTING: TUV9 FRANÇAIS ENGLISH ESPAÑOL

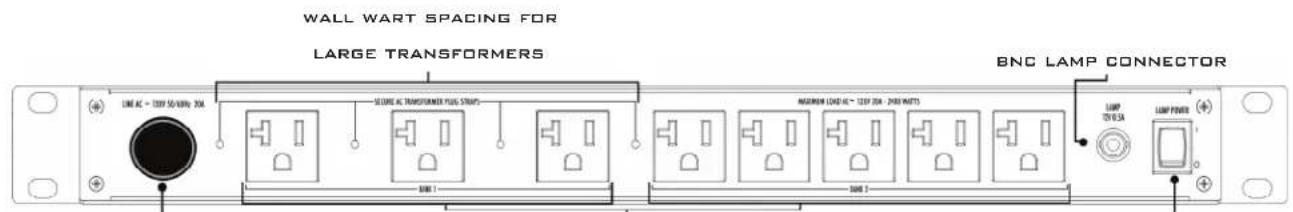

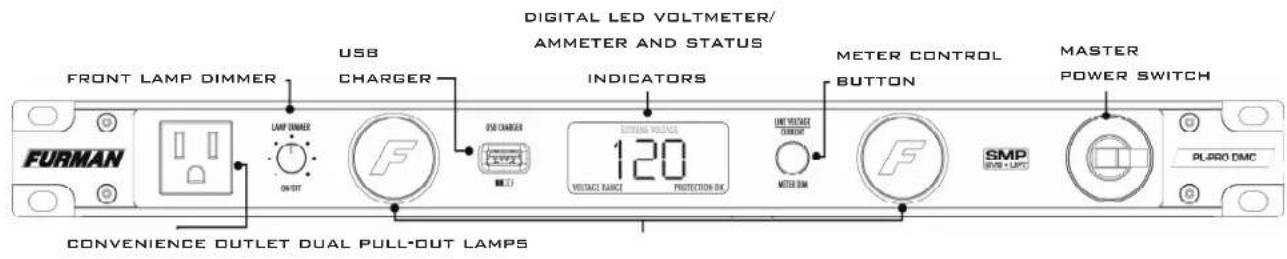

convenience outlet dual pull-out lamps wall wart spacing for large transformers bnc lamp connector bnc lamp power switchisolated ac outlet banks 10 ft. 12 gauge power cable front lamp dimmer meter control button master power switch digital led voltmeter/ ammeter and status indicators usb charger10
