Welcome!

Thank you for purchasing the Sony MiniDisc Deck. Before operating the deck, please read this manual thoroughly and retain it for future reference.

About This Manual

The instructions in this manual are for the MDS-PC2 MiniDisc Deck.

Conventions

- Controls in these instructions are those on the supplied remote; these may, however, be substituted by controls on the deck that are similarly named, or, when different, appear in the instructions within parentheses.

Example: Press ▷ (or ▶ on the deck).

• 🎨 indicates hints and tips for making the task easier.

TABLE OF CONTENTS

Getting Started 4

Before You Start the Hookup 4

Hooking Up the Audio Components 5

Location and Function of Parts 8

Remote Parts Description 8

Front Panel Parts Description 10

Using the Display 11

Recording on MDs 13

Notes on Recording 13

Recording on an MD 14

Adjusting the Recording Level 16

Recording Tips 16

Marking Track Numbers While Recording (Track Marking) 18

Starting Recording With Six Seconds of Prestored Audio Data (Time Machine Recording) 19

Synchro-recording With the Audio Component of Your Choice (Music Synchro-recording) 19

Synchro-recording With a Sony CD Player (CD Synchro-recording) 20

Playing MDs 22

Playing an MD 22

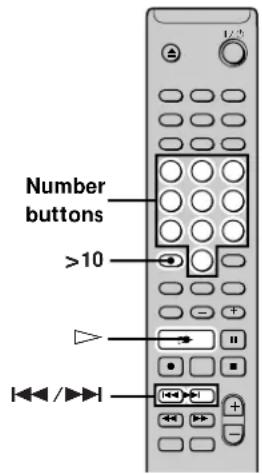

Playing a Specific Track 23

Locating a Particular Point in a Track 24

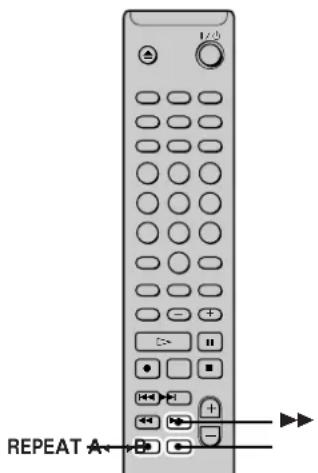

Playing Tracks Repeatedly 25

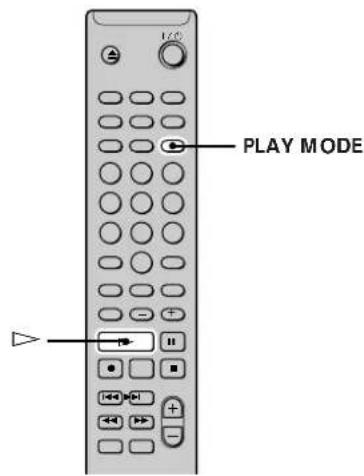

Playing Tracks in Random Order (Shuffle Play) 26

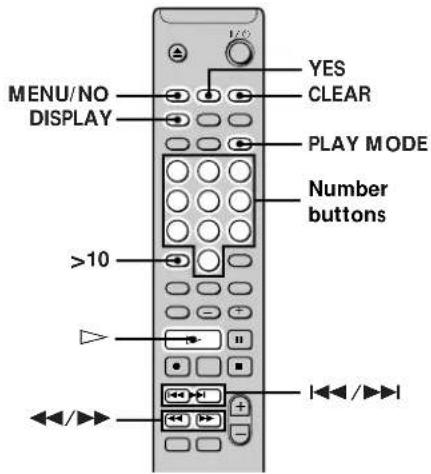

Creating Your Own Program (Program Play) 26

Tips for Recording From MDs to Tape 28

Editing Recorded MDs 29

Erasing Tracks 30

Dividing Tracks 32

Combining Tracks 33

Moving Tracks 33

Naming Tracks or MDs 34

Undoing the Last Edit 37

Other Functions 38

Fade In and Fade Out Recording 38

Falling Asleep to Music (Sleep Timer) 39

About the CONTROL A1ⅡControl System 39

Additional Information 42

Precautions 42

Handling MDs 43

System Limitations 43

Troubleshooting 44

Specifications 44

Display Messages 45

Edit Menu Table 46

Setup Menu Table 47

Self-Diagnosis Function 47

Index 48

Getting Started

This chapter provides information on the supplied accessories, things you should keep in mind while hooking up the system, and how to connect various audio components to the MD deck. Be sure to read this chapter thoroughly before you actually connect anything to the deck.

Before You Start the Hookup

Checking the supplied accessories

This MD deck comes with the following items:

• Audio connecting cords
• Optical cable (1)
- Remote commander (remote) RM-D35M (1)
• R6 (size-AA) batteries (2)
- Connector (RS-232C monaural mini-jack) ^* (1)
- Monaural (2P) mini-plug cord * (1)
• Audio connecting cord*
- CD-ROM* (1)
* Required for operation by personal computer. For details, refer to the operating instructions supplied with the MD Editor 2 software.

$$ (\text { pin - plug } \cdot 2 \longleftrightarrow \text { pin - plug } \cdot 2) (2) $$

$$ (\text { pin - plug } \cdot 2 \longleftrightarrow \text { stereo mini - plug }) (2) $$

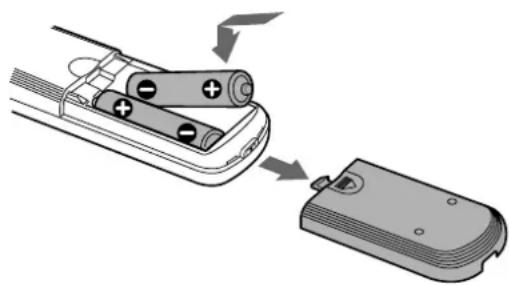

Inserting batteries into the remote

Insert two R6 (size-AA) batteries with the + and - properly oriented to the markings into the battery compartment. When using the remote, point it at the remote sensor on the deck.

Diagram showing battery charging process from a remote to a closed portion of a device (no text or symbols)

When to replace the batteries

Under normal conditions, the batteries should last for about six months. When the remote no longer operates the deck, replace both batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Hooking Up the Audio Components

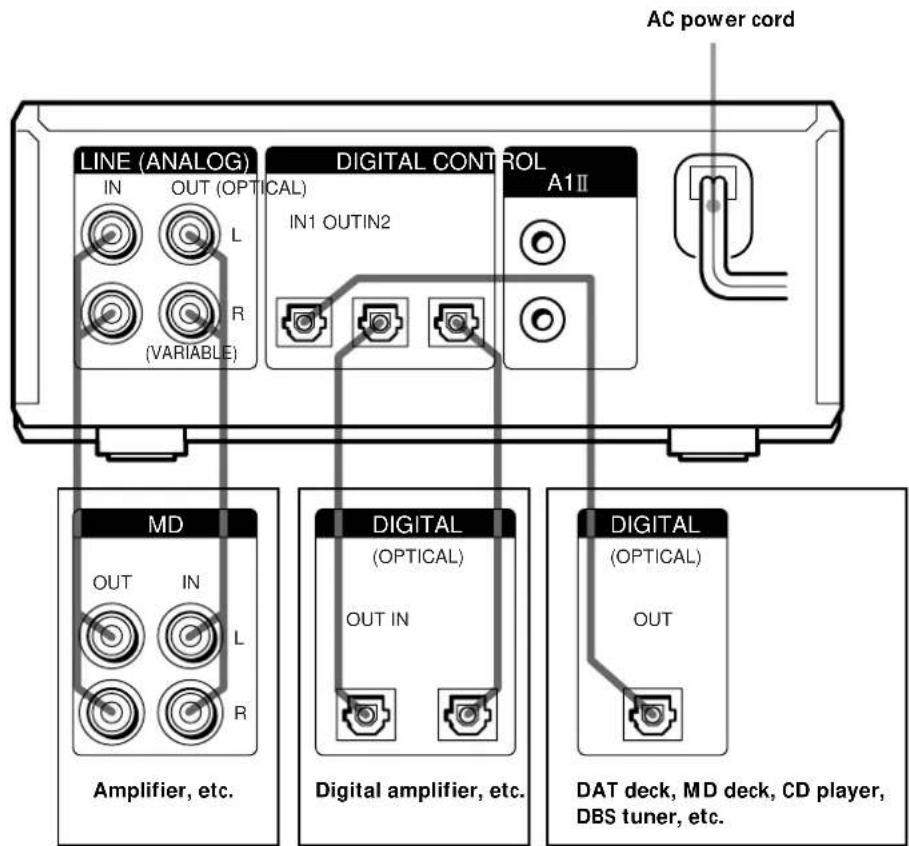

AC power cord LINE (ANALOG) IN OUT (OPTICAL) L R (VARIABLE) DIGITAL CONTROL A1 II IN1 OUTIN2 MD OUT IN L R Amplifier, etc. DIGITAL (OPTICAL) OUT IN Digital amplifier, etc. DIGITAL (OPTICAL) OUT DAT deck, MD deck, CD player, DBS tuner, etc.

Required cords

Audio connecting cords (2) (supplied)

When connecting an audio connecting cord, be sure to match the color-coded pins to the appropriate jacks: white (left) to white and red (right) to red.

White (L) Red (R) White (L) Red (R)

Optical cable (2) (only one supplied)

• When connecting an optical cable, take the caps off the connectors and insert the cable plugs straight in until they click into place.
• Do not bend or tie the optical cable.

Things you should keep in mind while hooking up the system

• Turn off the power to all components before making any connections.
• Do not connect any AC power cord until all the connections are completed.
• Be sure the connections are firm to prevent hum and noise.

Jacks (connectors) for connecting audio components

Connect To the
Amplifiers	LINE (ANALOG) IN/OUT jacks
Digital amplifiers	DIGITAL (OPTICAL) IN2/OUT connectors
DAT decks, another MD deck, CD players, or DBS tuners	DIGITAL (OPTICAL) IN1 connector

Hooking Up the Audio Components

Connecting audio components to CONTROL A1 IIjacks

Monaural (2P) mini-plug cords (not supplied)

For information on connections through the CONTROL A1Jacks, see page 39.

Connecting the AC power cord

Connect the AC power cord of the deck to a wall outlet.

Note

Do not connect the AC power cord to a switched outlet.

Connecting a personal computer

Connect the MD deck to a personal computer using a monaural mini-plug cord (2-pin) (supplied) and a connector (supplied).

By this connection, you can edit MDs on computer's display or input disc names and track names using computer's keyboard. For connection and operation, refer to the operating instructions supplied with the MD editor 2 software for details.

Notes on setting up

• Don't place your personal computer on top of this MD deck.
• Don't install the deck vertically (sideways).

Location and Function of Parts

This chapter tells you about the location and function of the various buttons and controls on the supplied remote and the front panel. Further details are provided on the pages indicated in the parentheses. It also tells you about the information that appears in the display window.

Remote Parts Description

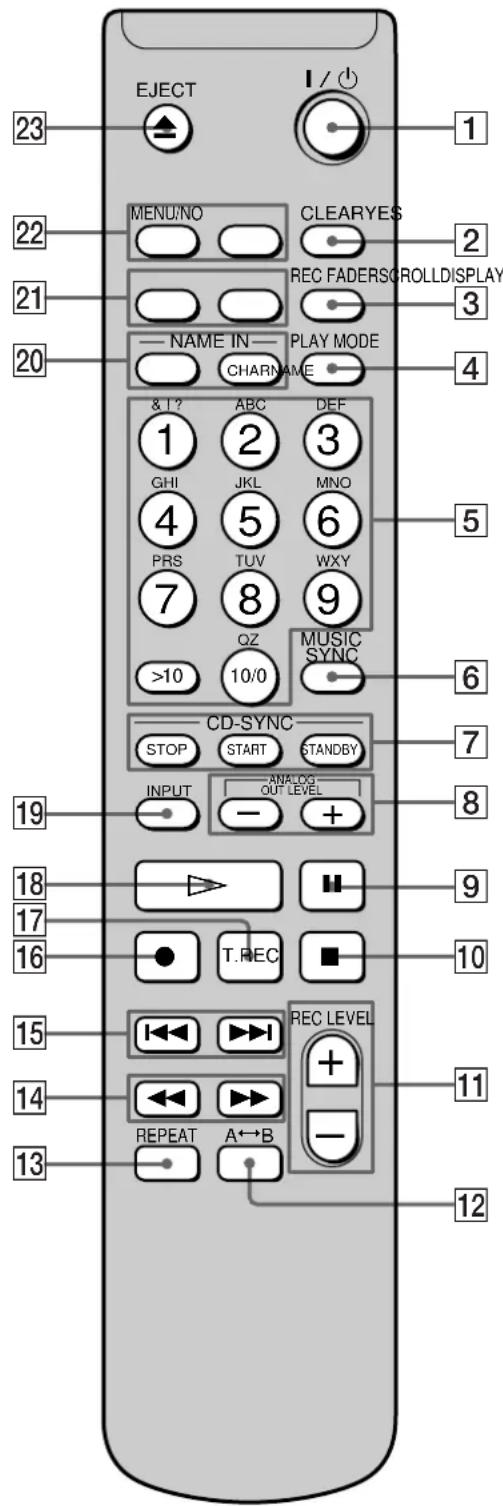

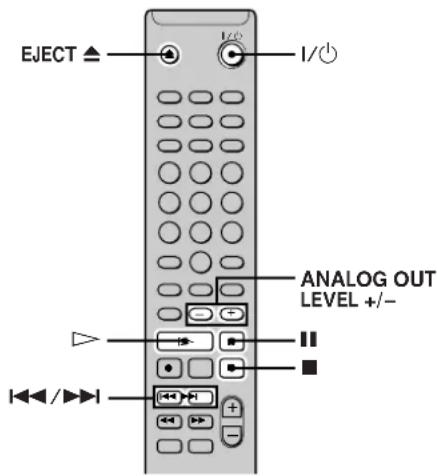

EJECT I / ⏻ 23 MENU/NO CLEARYES 21 REC FADERS CROLLDISPLAY 20 NAME IN PLAY MODE CHARNAME & I ? ABC DEF 1 2 3 GHI JKL MNO 4 5 6 PRS TUV WXY 7 8 9 QZ MUSIC SYNC >10 10/0 6 CD-SYNC STOP START STANDBY INPUT ANALOG OUT LEVEL 8 19 18 17 16 T.REC ■ 15 REC LEVEL 14 REPEAT A↔B 11 12

1 I/ ① (power) switch (14, 22)

Press to turn the deck on. When you turn the deck on, the I/① switch indicator on the deck turns off. When you press the switch again, the deck turns off and the indicator lights up red.

2 CLEAR button (27, 35)

Press to cancel the selection.

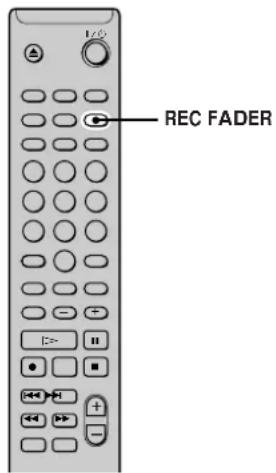

3 REC FADER button (38)

Press to perform Fade-in Recording or Fade-out Recording.

4 PLAY MODE button (26)

Press to select Shuffle Play or Program Play.

5 Letter/number buttons (24, 34)

Press to enter a track number directly or input letters or numbers.

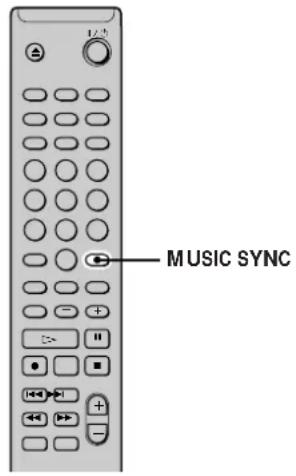

6 MUSIC SYNC button (19)

Press to start Music Synchro-recording.

7 CD-SYNC STOP button (20)

Press to stop CD Synchro-recording.

CD-SYNC START button (20)

Press to start CD Synchro-recording.

CD-SYNC STANDBY button (20)

Press to enter standby for CD Synchro-recording.

8 ANALOG OUT LEVEL +/- buttons (23)

Press to adjust the output level from the LINE (ANALOG) OUT jacks and PHONES jack.

9 II button (15, 22)

Press to pause play or recording. Press again to resume play or recording.

10 ■ button (15, 22, 30)

Press to stop play, stop recording, or cancel the selected operation.

11 REC LEVEL +/- buttons (16)

Press to adjust the recording level.

12 A←→B button (25)

Press to select Repeat A-B Play.

13 REPEAT button (25)

Press to play tracks repeatedly.

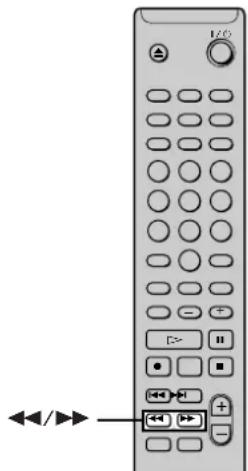

14 ◀◀/▶▶ buttons (24, 26, 31, 35)

Press to locate a portion within a track, change the contents of a program, or shift the cursor.

15 ◀◀/▶▶I buttons (14, 22, 26, 30, 39)

Press to locate tracks or select a menu item.

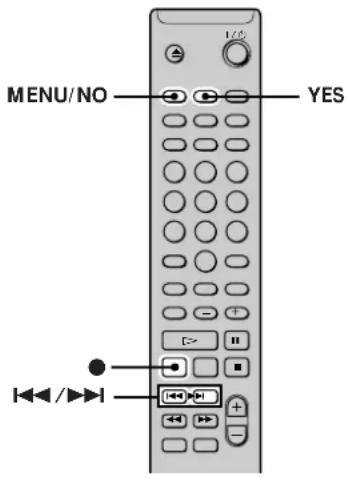

16 ● button (15, 17, 18)

Press to record on the MD, monitor the input signal, or mark track numbers.

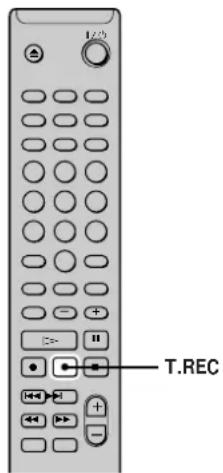

17 T.REC button (19)

Press during recording pause to start Time Machine Recording.

18 ▷ button (15, 22)

Press to start play.

19 INPUT button (14)

Press to select the input jack (or connector) of the program source to be recorded.

20 NAME button (34)

Press to add the name or change the name of a track or MD.

CHAR button (34)

Press to select the type of characters to be input when naming a track or MD.

21 DISPLAY button (11, 16, 26)

Press to select the information to be displayed in the window.

SCROLL button (12)

Press to scroll the name of a track or MD.

22 MENU/NO button (14, 26, 30, 39)

Press to display "Edit Menu" or "Setup Menu."

YES button (14, 26, 30, 39)

Press to carry out the selected operation.

23 EJECT ▲ button (15, 22)

Press to eject the MD.

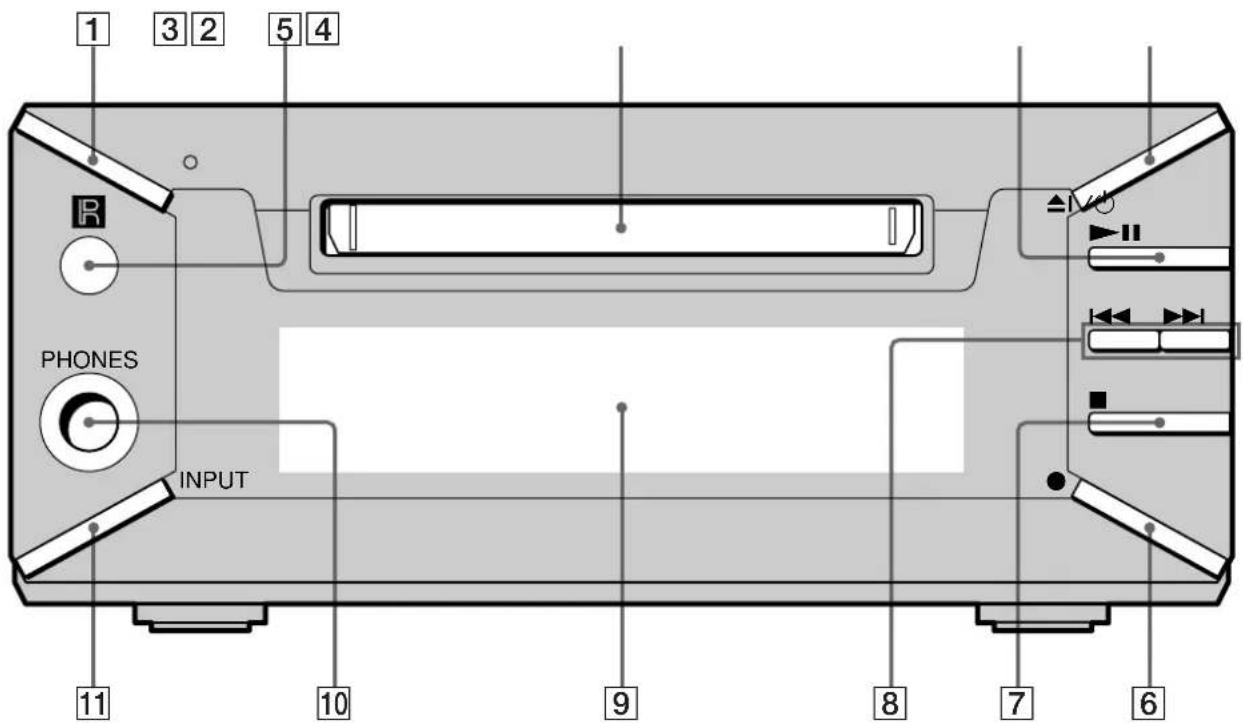

Front Panel Parts Description

1 3 2 5 4 R PHONES INPUT 11 10 9 8 7 6

1 I/⏻ (power) switch (14, 22)

Press to turn the deck on. When you turn the deck on, the switch indicator turns off. When you press the switch again, the deck turns off and the indicator lights up red.

2 Remote sensor (4)

Point the remote towards this window (R) for remote operations.

3 MD insertion slot (14, 22)

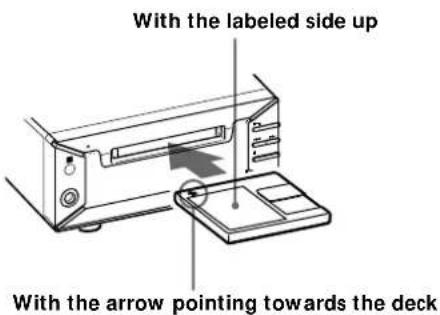

Insert the MD as illustrated below.

With the labeled side up With the arrow pointing towards the deck

4 ▶ II button (15, 22)

Press to start play, pause play, or pause recording.

5 ▲ button (15, 22)

Press to eject the MD.

6 ● button (15, 17, 18)

Press to record on the MD, monitor the input signal, or mark track numbers.

7 ■ button (15, 22, 30)

Press to stop play, stop recording, or cancel the selected operation.

8 ◀◀/▶▶I buttons (14, 22, 24, 26, 30, 39)

Press to locate tracks or a portion within a track.

9 Display window (11, 12)

Shows various information.

10 PHONES jack (23)

Connect the headphones. Press ANALOG OUT LEVEL +/- on the remote to adjust the volume.

11 INPUT button (14)

Press to select the input jack (or connector) of the program source to be recorded.

Using the Display

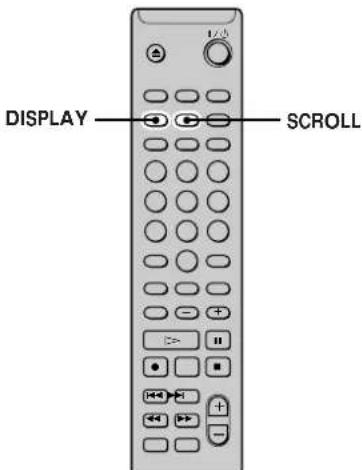

The display window shows information about the MD or track. This section describes the information that appears for each deck status.

DISPLAY SCROLL

Note

The type of information (e.g., total number of tracks, recorded time, remaining time, track or disc name) which was last displayed will continue to appear until you change it by pressing DISPLAY, even if you change the deck operation status. For example, if the remaining time was displayed when you stop the deck, the remaining time will continue to appear when you begin playing the same MD again or a different one.

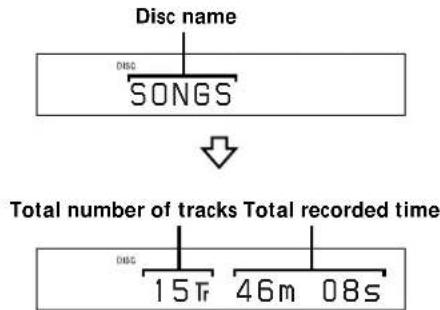

When you insert an MD

The display automatically changes as follows:

Disc name DSC SONGS Total number of tracks Total recorded time DSC 15Tr 46m 08s

While the deck is stopped

Press DISPLAY repeatedly to change the display.

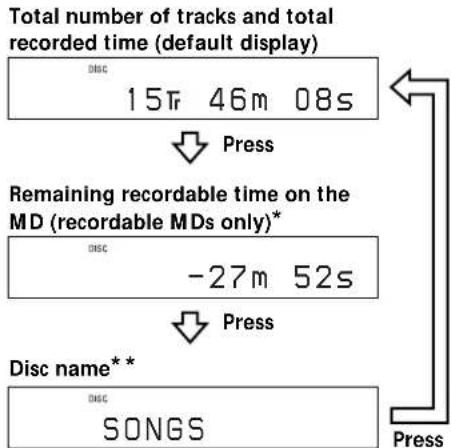

Each press of the button changes the display as follows:

Total number of tracks and total recorded time (default display) 15Tr 46m 08s Press Remaining recordable time on the MD (recordable MDs only)* -27m 52s Press Disc name** SONGS

* Not shown for the premastered discs.
**When the MD has no name, "No Name" appears, followed by the default display.

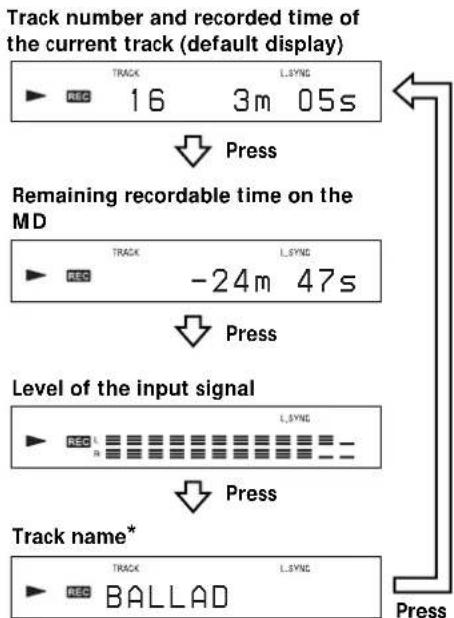

While the deck is recording

Press DISPLAY repeatedly to change the display.

Each press of the button changes the display as follows:

* When the track has no name, "No Name" appears, followed by the default display.

Using the Display

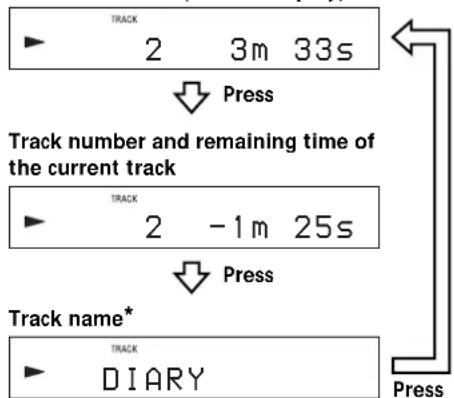

While the deck is playing

Press DISPLAY repeatedly to change the display.

Each press of the button changes the display as follows:

Track number and elapsed time of the current track (default display)

* When the track has no name, "No Name" appears, followed by the default display.

You can check the track name at any time while playing

Press SCROLL.

The track name appears and scrolls. While the track name is scrolling, press the button again to pause scrolling, and again to continue scrolling.

Recording on MDs

This chapter explains the various ways to record on an MD, as well as how to mark track numbers and perform synchro-recording with other components.

Notes on Recording

About indications which appear while recording

When "Protected" and "C11" alternate in the display

The record-protect slot is open and the MD is record-protected. To record on the MD, slide the tab to close the slot. For details, see "To prevent accidental erasure of the recorded material" on page 15.

When "Din Unlock" and "C71" alternate in the display

• The digital component selected with the INPUT button is not connected correctly. Check the connection.
• The selected digital component is not turned on. Turn on the component.

When "Cannot Copy" appears in the display

The MD deck uses the Serial Copy Management System. MDs recorded through the digital input connector can't be copied to other MDs or DAT tapes through the digital output connector. For details, see "Guide to the Serial Copy Management System" on page 14.

When "TRACK" flashes in the display

The MD deck is recording over existing track(s) ("Recording on an MD" on page 14). The indication stops flashing when the deck reaches the end of the recorded portion.

About indications which appear after recording

When "TOC" lights up in the display

Recording has finished but the TOC (Table of Contents) on the MD has not been updated to reflect the recording results. The recording will be lost if you disconnect the AC power cord while the indication is on. The TOC will be updated only when you eject the MD or turn off the MD deck.

When "TOC Writing" flashes in the display

The deck is updating the TOC. Do not disconnect the AC power cord or move the deck while the indication flashes.

Notes on Recording

Automatic conversion of digital sampling rates during recording

A built-in sampling rate converter automatically converts the sampling frequency of various digital sources to the 44.1 kHz sampling rate of the MD deck. This allows you to monitor and record sources such as 32- or 48-kHz DAT tapes or satellite broadcasts, as well as the CDs and MDs. Please note that 22.05- or 96-kHz digital sources can't be recorded on this deck.

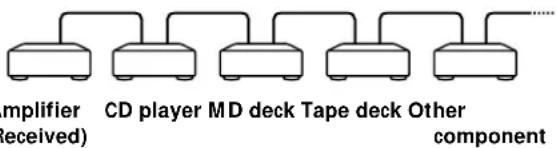

Guide to the Serial Copy Management System

Digital audio components, such as CDs, MDs, and DATs make it easy to produce high-quality copies of music by processing music as a digital signal.

To protect copyrighted music sources, this deck uses the Serial Copy Management System which allows you to make only a single copy of a digitally recorded source through digital-to-digital connections.

You can make only a first-generation copy\* through a digital-to-digital connection.

Examples are given as follows:

• You can make a copy of a commercially available digital sound program (for example, a CD or MD), but you can't make a second copy from the first-generation copy.
• You can make a copy of a digital signal from a digitally recorded analog sound program (for example, an analog record or a music cassette tape) or from a digital satellite broadcast program, but you can't make a second copy from the first-generation copy.

* A first-generation copy means the first recording of a digital audio source through the deck's digital input connector. For example, if you record from a CD player connected to the DIGITAL (OPTICAL) IN1 connector, that copy is a first-generation copy.

Note

The restrictions of the Serial Copy Management System don't apply when you make a recording through the analog-to-analog connections.

Recording on an MD

The operations for normal recording are explained below. If the MD has recorded material on it, the deck will automatically start recording from the end of the recorded portion.

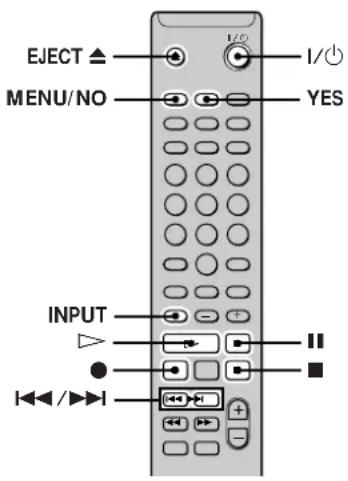

EJECT ▲ I/O MENU/NO YES INPUT ▶ ● ◀◀/▶◀ +

1 Turn on the amplifier and program source, and select the source on the amplifier.
2 Press I/⏻ to turn on the deck.

The switch indicator on the deck turns off.

3 Insert a recordable MD.
4 Press INPUT repeatedly to select the input jacks (connectors) connected to the program source.

If the source is connected to the Select

DIGITAL (OPTICAL) IN1 connector Optical 1 In

DIGITAL (OPTICAL) IN2 connector Optical 2 In

LINE (ANALOG) IN jacks Analog In

5 Press MENU/NO twice.
"Setup Menu" appears in the display.
6 Press I◄◄/►►I repeatedly until "Stereo Rec" or "Mono Rec" appears in the display, then press YES.
7 Press I◄◄/►►I repeatedly to select the recording mode, then press YES.

To record in Select

Stereo Stereo Rec (factory setting)

Monaural Mono Rec

Monaural mode allows you to record about twice as much material as stereo.

8 Press MENU/NO.

9 If necessary, locate the point on the MD to start recording from.

If you want to record on a new MD or start recording from the end of the recorded portion, go to step 10.

To record over from the beginning of an existing MD track

Press ◀◀◀ /▶▶▶I repeatedly until the number of the track to be recorded over appears.

To record over from the middle of an MD track

Press ◀◀◀ /▶▶▶I repeatedly until the number of the track to be recorded over appears, then press ▷ (or ▶▶▶▶ on the deck) to start playback. Press ■■ (or ▶▶▶▶ on the deck) at the point you want to start recording from.

10Press ●.

The deck changes to recording pause.

11 If you have selected "Analog In" in step 4 above, adjust the recording level.

For details, see "Adjusting the Recording Level" on page 16.

12 Press ▷ or II (or ▶II on the deck).

Recording starts.

13Start playing the program source.

Operations you may want to do during recording

To Press

Stop recording ■

Pause recording || (or ▶|| on the deck)

Resume recording after pausing ▷ or || (or ▶|| on the deck)

Fject the MD EJECT ▲ after stopping recording

When you pause recording

The track number increases by one. For example, if you paused recording while recording track 4, the track number will be 5 when you resume recording.

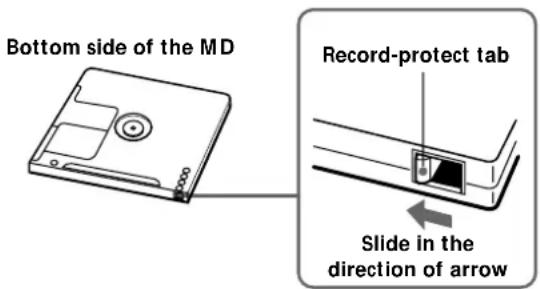

To prevent accidental erasure of the recorded material

To make it impossible to record on an MD, slide the record-protect tab in the direction of the arrow (see illustration below) to open the slot. To enable recording, close the slot.

Bottom side of the MD Record-protect tab Slide in the direction of arrow

To play the tracks you just recorded

Press ▷ (or ▶■ on the deck) immediately after stopping recording. The deck starts to play from the first track of the material just recorded.

To play from the first track of the MD after recording

1 Press ■ again after stopping recording.
2 Press ▷ (or ▶II on the deck).

The deck starts to play from the first track of the MD.

Note

• You can't record over existing material when Shuffle Play (page 26) or Program Play (page 26) has been selected. "Impossible" appears in the display at this time.
• You can't use the buttons on the remote or the deck while the deck is controlled by a personal computer. "REMOTE" appears in the display at this time.

Adjusting the Recording Level

Do the procedure below to adjust the recording level.

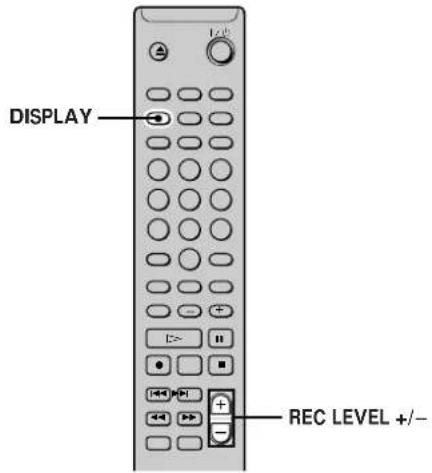

DISPLAY REC LEVEL +/−

1 Do steps 1 to 10 of "Recording on an MD" on pages 14 and 15.
2 Play the portion of the program source with the strongest output.
3 Press DISPLAY repeatedly until the peak level meters appear.
4 While monitoring the sound, press REC LEVEL +/- repeatedly to adjust the recording level to its highest level without turning on "OVER" on the peak level meters.

Occasional lighting of "OVER" is acceptable.

Avoid turning this indication on.

5 Stop playing the program source.
6 To start recording, continue from step 12 of "Recording on an MD" on page 15.

You can adjust the recording level during recording

Press REC LEVEL +/- repeatedly.

To display the level of the strongest signal

The Peak Hold function continuously displays the level of the strongest signal that has been input.

Do the procedure below to turn Peak Hold on.

1 While the deck is stopped, press MENU/NO twice to display "Setup Menu."
2 Press ◀◀◀/▶▶▶ repeatedly until "P.Hold" appears, then press YES.
3 Press ◀◀◀ /▶▶▶ repeatedly to select "P.Hold On," then press YES.
4 Press MENU/NO.

To turn Peak Hold off, repeat the procedure above, selecting "P.Hold Off" in step 3.

Recording Tips

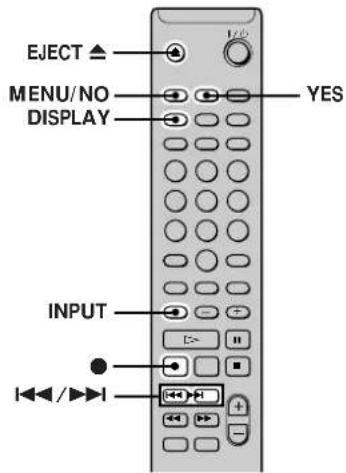

EJECT ▲ MENU/NO DISPLAY YES INPUT ◄◄◄/►►►

Checking the remaining recordable time on the MD

Press DISPLAY repeatedly.

While the deck is The following information appears

Stopped Total number of tracks and total recorded time → Remaining recordable time on the MD → Disc name

Recording Recorded time of the current track → Remaining recordable time on the MD → Input level indication → Track name

For details, see page 11.

Monitoring the input signal (Input Monitor)

You can monitor the selected input signal even when you're not recording it.

1 Press EJECT ▲ to eject the MD.
2 Press INPUT repeatedly to select the jacks (connectors) which the signal you want to monitor is being input.

3 Press ●.

When "Analog In" is selected

The analog signal input from the LINE (ANALOG) IN jacks is output to the DIGITAL (OPTICAL) OUT connector after A/D conversion, and then to the LINE (ANALOG) OUT jacks after D/A conversion. "AD-DA" appears in the display at this time.

When "Optical 1 In" or "Optical 2 In" is selected

The digital signal input from the DIGITAL (OPTICAL) IN1 or IN2 connector first passes through the sampling rate converter, and then output to the DIGITAL (OPTICAL) OUT connector, and then to the LINE (ANALOG) OUT jacks after D/A conversion. “-DA” appears in the display at this time.

To stop monitoring the signal

Press ■.

Erasing blank portions automatically (Smart Space/Auto Cut)

The deck can be set to automatically erase any blanks that are produced when the signal is interrupted during recording. The function which activates (Smart Space or Auto Cut) depends on the length of the interruption, as described below.

Smart Space

If the signal is interrupted for less than 30 seconds, Smart Space replaces the blank portion with a blank space of about three seconds, then continues the recording. "Smart Space" appears in the display during this time.

Auto Cut

If the signal is interrupted for about 30 seconds, Auto Cut replaces the blank portion with a blank space of about three seconds, then pauses the recording. "Auto Cut" appears in the display during this time.

Do the procedure below to turn Smart Space and Auto Cut on or off.

1 While the deck is stopped, press MENU/NO twice.
"Setup Menu" appears in the display.
2 Press I◀◀/▶▶I repeatedly until "S.Space" appears, then press YES.
3 Press I◄◄/►►I repeatedly to select the setting, then press YES.

To Select

Turn on Smart Space and Auto Cut S.Space On (factory setting)

Turn off Smart Space and Auto Cut S.Space Off

4 Press MENU/NO.

Notes

• If you start recording with no signal input, Smart Space and Auto Cut will not operate regardless of the setting.
• Smart Space does not affect the order of the track numbers being recorded, even if the blank space occurs in the middle of a track.
• Auto Cut is automatically turned on or off in tandem with Smart Space.
• If you turn off the deck or disconnect the AC power cord, the deck will store the last setting ("S.Space On" or "S.Space Off") and apply it the next time you turn on the deck.

Marking Track Numbers While Recording (Track Marking)

You can mark track numbers either manually or automatically while recording. By marking track numbers at specific points, you can quickly locate the points later or edit the MD easily.

MENU/NO YES ◄◄◄/►►►

Marking track numbers manually (Manual Track Marking)

Press ● at the point where you want to add a track number while recording.

Marking track numbers automatically (Automatic Track Marking)

When recording from a CD player or MD deck connected to the DIGITAL (OPTICAL) IN1/2 connector, the deck marks track numbers in the same sequence as the source. When recording from other sources connected to the DIGITAL (OPTICAL) IN1/2 connector or a source connected to the LINE (ANALOG) IN jacks, do the procedure below to mark track numbers automatically.

1 While the deck is stopped, press MENU/NO twice. "Setup Menu" appears in the display.
2 Press I◄◄/►►I repeatedly until "T.Mark" appears, then press YES.
3 Press I◄◄/►►I repeatedly to select the setting, then press YES.

To Select

Turn on Automatic Track Marking T.Mark LSync (factory setting)

Turn off Automatic Track Marking T.Mark Off

4 Press MENU/NO.

The deck marks a track number whenever the input signal level drops to -50 dB (the trigger level for Automatic Track Marking) or below for at least 1.5 seconds.

To change the trigger level for Automatic Track Marking

Do the procedure below to change the signal level that triggers Automatic Track Marking.

1 While the deck is stopped, press MENU/NO twice. "Setup Menu" appears in the display.
2 Press I◀◀/▶▶I repeatedly until "LS(T)" appears, then press YES.
3 Press I◄◄/►►I repeatedly to select the level, then press YES.

You can set the level at any value between -72 dB and 0 dB, in 2 dB steps.

4 Press MENU/NO.

Additional Information on Automatic Track Marking

- When recording from a CD player or MD deck connected to the DIGITAL (OPTICAL) IN1/2 connector, the entire material may be recorded as a single track in the following cases:

— When you consecutively record the same track two or more times using single-track repeat play.
— When you consecutively record two or more tracks with the same track number but from different CDs or MDs.
— When you record tracks from certain CD or multi-disc players.

Also, if the source is an MD, a track number may not be marked for tracks less than four seconds long.

• When recording from a component connected to the LINE (ANALOG) IN jacks with "T.Mark Off" selected or when recording from a DAT deck or DBS tuner connected to the DIGITAL (OPTICAL) IN1/2 connector, the entire material may be recorded as a single track.
• When recording from a DAT deck or DBS tuner connected to the DIGITAL (OPTICAL) IN1/2 connector, the deck will mark a track number whenever the sampling frequency of the input signal changes, regardless of the track marking parameter setting ("T.Mark LSync" or " T.Mark Off").

You can mark track numbers even after recording has shed

See "Dividing Tracks" on page 32.

Note

If you turn off the deck or disconnect the AC power cord, the deck will store the last settings ("T.Mark LSync" or "T.Mark Off" and the trigger level) and apply them the next time you turn on the deck.

Starting Recording With Six Seconds of Prestored Audio Data (Time Machine Recording)

Whenever the deck is in recording pause, the deck's buffer memory continuously stores the latest six seconds worth of audio data. When you press T.REC, the recording then starts with the data in the buffer memory. Time Machine Recording thus allows you to avoid missing the beginning of material recorded live from an FM or satellite broadcast.

126 T.REC

1 Do steps 1 to 10 of "Recording on an MD" on pages 14 and 15.
The deck changes to recording pause.
2 Start playing the program source.
3 Press T.REC at the point where you want to start recording.

Recording starts with the six seconds of prestored data in the buffer memory, then continues recording via the buffer memory thereafter.

To stop Time Machine Recording

Press ■.

Note

The storage of data in the buffer memory starts from the moment the deck changes to recording pause. Thus, if you start recording less than six seconds after changing to recording pause, less than six seconds worth of data will be recorded from the buffer memory. The same is true if the program source had been playing for less than six seconds at the time you start recording.

Synchro-recording With the Audio Component of Your Choice (Music Synchro-recording)

The Music Synchro-recording allows you to automatically synchronize recording on the MD deck with the playing of the selected program source. The Track Marking function, however, will differ according to the program source. For details, see "Marking Track Numbers While Recording" on page 18.

MUSIC SYNC

1 Do steps 1 to 9 of "Recording on an MD" on pages 14 and 15.
2 Press MUSIC SYNC.

The deck changes to recording pause.

3 Start playing the program source.

Recording starts automatically.

To stop Music Synchro-recording

Press ■.

Note

During Music Synchro-recording, Smart Space and Auto Cut will operate regardless of their setting ("S.Space On" or "S.Space Off").

Synchro-recording With a Sony CD Player

(CD Synchro-recording)

When the deck is connected to a Sony CD player or Hi-Fi component system, you can easily copy the contents of CDs to the MD using the deck's remote. As the same remote operates both the MD deck and the CD player or CD player section of the component system, make sure to place the MD deck and the CD player as close together as possible.

Note

On some CD players and Hi-Fi component systems, you may find it impossible to perform CD Synchro-recording using the deck's remote. In this case, use Music Synchro-recording (page 19) to record from CDs to the MD.

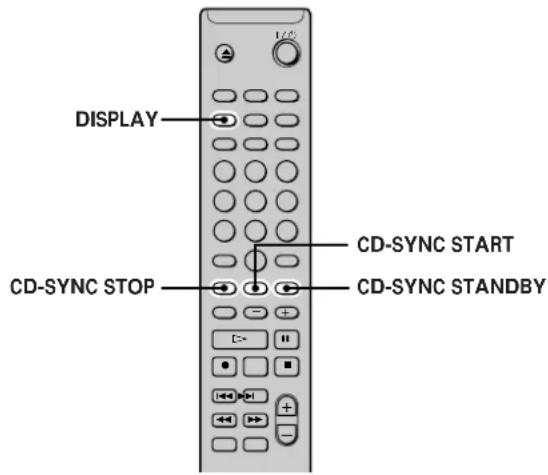

DISPLAY CD-SYNC STOP CD-SYNC START CD-SYNC STANDBY

1 Turn on the amplifier and the CD player, and select CD on the amplifier.
2 Do steps 2 to 9 of "Recording on an MD" on pages 14 and 15.
3 Insert a CD into the CD player and select the playback mode (shuffle play, program play, etc.) on the CD player.
4 Press CD-SYNC STANDBY.

The CD player changes to play standby and the MD deck changes to recording standby.

5 Press CD-SYNC START.

The deck starts recording and the CD player starts to play.

The track number and elapsed recording time of the track appear in the display.

If the CD player doesn't start playing

Some CD players may not respond when you press CD-SYNC START. Press III on the CD player's remote to start play on the CD player.

Operations you may want to do during CD Synchro-recording

To Press
Stop recording CD-SYNC STOP
Pause recording CD-SYNC STANDBY
Resume recording after pausing	CD-SYNC START
Check the remaining recordable time on the MD	DISPLAY (page 11)

You can use the remote of the CD player during CD Synchro-recording

Press To change the deck to And change the CD player to

▷ Recording Play

■ Recording pause Stop

■ Recording pause Pause

You can select the next track to be recorded using the remote of the CD player during recording pause

1 Press Ⅱ to pause recording.
2 Press ◀◀◀ /▶▶▶ repeatedly to select a track.
3 Press ▷ to resume recording.

During CD Synchro-recording, track numbers are marked in the following ways:

• When the CD player is connected to the DIGITAL (OPTICAL) IN1/2 connector, track numbers are automatically marked as they appear on the CD.
• When the CD player is connected to the LINE (ANALOG) IN jacks, track numbers are automatically marked when "T.Mark LSync" has been selected (page 18).
• When you resume recording after recording pause, a new track number is automatically marked, regardless of the track marking parameter setting ("T.Mark LSync" or "T.Mark Off").

You can change CDs during CD Synchro-recording

1 Press ■ on the CD player's remote.
2 Change the CD.
3 Press ▷ on the CD player's remote to resume recording.

You can copy CD-TEXT information automatically during CD

Synchro-recording

By connecting the CONTROL A1jjack on the deck to a Sony CD player using a monaural mini-plug cord (2-pin) (not supplied), you can copy track names automatically during CD Synchro-recording. As a track is recorded, the track name scrolls in the display.

You can also perform synchro-recording with a Sony video player

By reprogramming the MD deck's remote, you can use the procedure below to perform Synchro-recording with a Sony video CD player.

Press number button 2 while pressing down I/ ^① on the MD deck's remote. You can now operate the MD deck and the video CD player with the remote. To control the CD player again, press number button 1 while pressing down I/ ^② on the MD deck's remote.

Notes

• Automatic copying of track names in CD-TEXT information can't be done if you record over existing tracks on an MD.
• When performing CD Synchro-recording with a CD player with a mode selector, be sure to set the selector to CD1.
• When you record tracks from certain CD or multi-disc players, the entire material may be recorded as a single track.

Playing MDs

This chapter explains the various ways to play MDs.

Playing an MD

The operations for normal play are explained below.

EJECT ▲ I/O ANALOG OUT LEVEL +/- I◀◀/▶◀

1 Turn on the amplifier and select MD on the amplifier.
2 Press I/ to turn on the deck. The switch indicator on the deck turns off.
3 Insert an MD.
4 If necessary, press I◄◄/►►I repeatedly to locate the track you want to start playing from. If you want to play from the first track, go to step 5.
5 Press ▷ (or ▶II on the deck). The deck starts to play.
6 Adjust the volume on the amplifier.

Operations you may want to do during play

To Press
Stop play ■
Pause play || (or ▶|| on the deck)
Resume play after pausing ▷ or || (or ▶|| on the deck)
Locate a succeeding track ▶▶I repeatedly
Locate the beginning of the current track or a preceding track	◀◀ repeatedly
Eject the MD EJECT ▲ after stopping play

You can adjust the analog output level

By pressing ANALOG OUT LEVEL +/-, you can adjust the output level of the LINE (ANALOG) OUT jacks and PHONES jack. The level can be set at any value from -40 dB to 0 dB, in 2-dB steps.

When recording from an MD to other component connected to the LINE (ANALOG) OUT jacks on the deck, be sure to set the output level to 0 dB, an ideal level for analog recording. When you set the output level to 0 dB, "ATT" in the display turns off.

Note

You can't use the buttons on the remote or the deck while the deck is controlled by a personal computer. "REMOTE" appears in the display at this time.

Playing a Specific Track

While the deck is playing or stopped, use the procedure below to quickly play any track.

Number buttons >10

Locating a track

To go to Do the following:
The next or a succeeding track during play	Press ▶▶▶ repeatedly.
A preceding track during play	Press ◀◀▶ repeatedly.
The beginning of the current track during play	Press ◀◀◀ once.
A specific track while the deck is stopped	Press ◀◀◀ / ▶▶▶ repeatedly until the track number you want to go to appears in the display, then press ▷ (or ▶▶▶▶ on the deck).

To locate the last track of the MD quickly

While the deck is stopped, press ◀◀ once.

If you locate a track while the deck is stopped or paused

The deck will still be stopped or paused at the beginning of the located track.

Playing a Specific Track

Playing a track by entering the track number

Press the number button(s) to enter the number of the track you want to play.

To enter a track number over 10

1 Press >10 (see the examples below).
2 Enter the corresponding digits.

To enter 0, press 10/0 instead.

Examples:

• To play track number 30, press >10 once, then 3 and 10/0.
• To play track number 108, press >10 twice, then 1, 10/0, and 8.

If you enter a track number while the deck is paused

The deck will still be paused at the beginning of the track.

Locating a Particular Point in a Track

You can locate a particular point in a track during play or play pause.

Front view of a remote control with buttons and navigation arrows (no text or symbols)

Locating a point while monitoring the sound

Hold down ◀◀/▶▶ (or I◀◀/▶▶▶ on the deck) during play.

You will hear intermittent playback as the disc goes forward or reverse. When you reach the point, release the button.

Notes

• If the disc reaches the end while you're pressing ▶▶, the deck stops.
• Tracks that are only a few seconds long may be too short for monitoring. For such tracks, play the MD at normal speed.

Locating a point by observing the time indication

Hold down ◀◀/▶▶ (or I◀◀/▶▶▶ on the deck) during play pause.

The elapsed playing time of the track appears in the display. When you reach the point, release the button. No sound is output during this time.

When “- Over -” appears in the display

The disc has reached the end while you're pressing ▶. Press ◀◀ or ◀◀ to go back.

Playing Tracks Repeatedly

You can play an entire MD repeatedly. This function can be used with Shuffle Play to repeat all the tracks in random order (page 26), or with Program Play to repeat all the tracks in the program (page 26). You can also repeat a specific track or portion within a track.

1/2 REPEAT A

Note

If you turn off the deck or disconnect the power cord, the deck will store the last setting of the repeat play ("Repeat All" or "Repeat 1") and recall it the next time you turn on the deck.

Repeating all the tracks on the MD (Repeat All Play)

Press REPEAT repeatedly until "Repeat All" appears in the display.

When you play an MD, the deck repeats the tracks as follows:

When the play mode is The deck repeats

Normal play (page 22) All the tracks in sequence

Shuffle Play (page 26) All the tracks in random order

Program Play (page 26) All the tracks in the program in sequence

To stop Repeat All Play

Press ■.

To resume normal play

Press REPEAT repeatedly until "Repeat Off" appears in the display.

Repeating the current track (Repeat 1 Play)

While the track you want to repeat is being played, press REPEAT repeatedly until "Repeat 1" appears in the display.

Repeat 1 Play starts.

To stop Repeat 1 Play

Press ■.

To resume normal play

Press REPEAT repeatedly until "Repeat Off" appears in the display.

Repeating a specific portion within a track (Repeat A-B Play)

You can specify one portion within a track to be played repeatedly. Note that the portion that you specify must be within the boundaries of a single track.

1 While the deck is playing, press A←→B at the starting point (point A) of the portion to be played repeatedly.

"REPEAT A-" lights up and "B" flashes in the display.

2 Continue playing the track or press ▶▶ to locate the ending point (point B), then press A↔B.

"REPEAT A-B" lights up and Repeat A-B Play starts.

To stop Repeat A-B Play and resume normal play Press REPEAT or ■.

You can set a new starting point and ending point during Repeat A-B Play

You can change the current ending point to a new starting point, then specify a new ending point to repeat a portion right after the current portion.

1 During Repeat A-B Play, press A↔B.
The current ending point changes to the new starting point (point A).
"REPEAT A-" lights up and "B" flashes in the display.

2 Locate the new ending point (point B) and press A↔B. "REPEAT A-B" lights up and the deck starts to repeat the newly specified portion.

Playing Tracks in Random Order (Shuffle Play)

When you select Shuffle Play, the deck plays all the tracks on the MD in random order.

PLAY MODE

1 While the deck is stopped, press PLAY MODE repeatedly until "SHUFFLE" lights up in the display.
2 Press ▷ (or ▶II on the deck).

Shuffle Play starts.

☐ appears while the deck is "shuffling" the tracks.

To resume normal play

While the deck is stopped, press PLAY MODE repeatedly until "SHUFFLE" turns off.

You can locate tracks during Shuffle Play

Press ◀◀◀ /▶▶▶ repeatedly.

• To locate the next track or a later track to be played, press ▶▶▶ repeatedly.
• To locate the beginning of the current track, press ◀◀. Note that you can't locate and play the tracks that have already been played once.

Creating Your Own Program (Program Play)

You can pick out the tracks that you like and specify the playback order in a program containing up to 25 tracks.

MENU/NO DISPLAY >10 YES CLEAR PLAY MODE Number buttons <

Programming the tracks

1 While the deck is stopped, press MENU/NO twice. "Setup Menu" appears in the display.
2 Press I◄◄/►►I repeatedly until "Program ?" appears, then press YES.
3 Press I◄◄/►►I repeatedly until the track number you want to add to the program appears, then press ►► (or use the number button(s) to enter the track directly).

If you entered the wrong track number

Press ◀◀/▶▶ repeatedly until the wrong track number flashes, then do step 3 above again.

To enter a track number over 10

Use >10. For details, see page 24.

To check the total playing time of the program Press DISPLAY.

4 Repeat step 3 to enter other tracks.
5 Press YES.

"Complete!!" appears and the program is completed.

6 Press PLAY MODE repeatedly until "PROGRAM" lights up in the display.
7 Press ▷ (or ▶II on the deck).

Program Play starts.

To stop Program Play

Press ■.

To resume normal play

Press PLAY MODE repeatedly until "PROGRAM" turns off.

The program remains even after Program Play ends or is ppped

Press ▷ (or ▶ on the deck) to play the program again.

Notes

• If you eject the MD or disconnect the AC power cord, the program will be lost.
• The display shows “--- m -- s” when the total playing time of the program exceeds 199 minutes.
• "ProgramFull!" appears when you program 25th track.

Checking the contents of the program

While the deck is stopped and "PROGRAM" lights up, press DISPLAY repeatedly.

The first several tracks in the program appear in the display. To see the rest of the program, press ▶▶▶ repeatedly.

Changing the contents of the program

While the deck is stopped and "PROGRAM" lights up, do steps 1 and 2 of "Programming the tracks" on page 26, followed by one of the procedures below:

To Do the following:

Erase a track	Press ◀◀/▶▶ repeatedly until the number of the unwanted track flashes, then press CLEAR.
Erase all tracks Press	CLEAR repeatedly until all the track numbers disappear.
Add a track at the beginning of the program	Press ◀◀ repeatedly until “0” flashes before the first track number, then do steps 3 to 5 of “Programming the tracks” on page 26.
Add a track to the end of the program	Press ▶▶ repeatedly until “0” flashes after the last track number, then do steps 3 to 5 of “Programming the tracks” on page 26.
Replace a track	Press ◀◀/▶▶ repeatedly until the number of the track to be changed flashes, then do steps 3 to 5 of “Programming the tracks” on page 26.

Tips for Recording From MDs to Tape

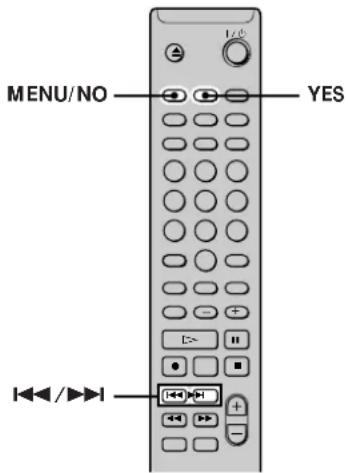

MENU/NO YES <

Note

When recording from an MD to another component connected to the analog output jacks on the deck, be sure to adjust the output level to 0 dB by pressing ANALOG OUT LEVEL + until "ATT" turns off in the display.

Inserting blanks between tracks during play (Auto Space)

The MD deck can be set to automatically insert a three-second blank between tracks during play. This function is useful when you're recording from an MD to an analog tape since the three-second blank enables you to use the Multi-AMS function later to locate the beginning of tracks on the tape.

1 While the deck is stopped, press MENU/NO twice.
"Setup Menu" appears in the display.
2 Press I◄◄/►►I repeatedly until "Auto" appears, then press YES.
3 Press I◄◄/►►I repeatedly to select the setting, then press YES.

To Select

Turn on Auto Space Auto Space

Turn off Auto Space Auto Off (factory setting)

4 Press MENU/NO.

Notes

• If you select "Auto Space" and record a selection containing multiple track numbers (for example, a medley or symphony), blank spaces will be created on the tape in between the various sections.
• If you turn off the deck or disconnect the AC power cord, the deck will store the last setting ("Auto Space" or "Auto Off") and recall it the next time you turn on the deck.

Pausing after each track (Auto Pause)

You can set the MD deck so that it pauses after each track to give you time to locate the next track to be recorded.

1 While the deck is stopped, press MENU/NO twice. "Setup Menu" appears in the display.
2 Press I◀◀/▶▶I repeatedly until "Auto" appears, then press YES.
3 Press I◄◄/►►I repeatedly to select the setting, then press YES.

To Select

Turn on Auto Pause Auto Pause

Turn off Auto Pause Auto Off (factory setting)

4 Press MENU/NO.

To resume play after pausing

Press ▷ (or ▶ on the deck).

Note

If you turn off the deck or disconnect the AC power cord, the deck will store the last setting ("Auto Pause" or "Auto Off") and recall it the next time you turn on the deck.

Editing Recorded MDs

This chapter explains how to edit the tracks that have been recorded on an MD.

MENU/NO YES <

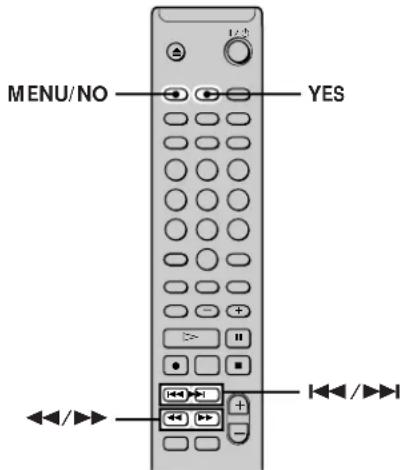

Brief descriptions of buttons used to edit MDs

The buttons below are used to erase, divide, move, or combine tracks on the MD.

Note

The operation of these buttons is different when naming a track or MD. For details, see "Naming a Track or MD" on page 34.

MENU/NO button: Press to edit tracks. While editing, press to cancel editing.

I◄◄/►►I buttons: Press to select an editing operation or track number. You can also use these buttons to specify points in a track for erasure or track division.

YES button: Press to enter a selection.

◀◀/▶▶ buttons: Press to specify the unit (minute, second, or frame) by which the MD is advanced when you press ◀◀◀/▶▶ repeatedly. You can also use these buttons to locate the end point of the portion to be erased.

For further details on the function of each button, see the sections on editing operations.

Note

You can't use the buttons on the remote or the deck while the deck is controlled by a personal computer. "REMOTE" appears in the display at this time.

About indication which appears while editing

When "Protected" appears in the display

The record-protect slot is open. To edit the MD, slide the tab to close the slot. For details, see "To prevent accidental erasure of the recorded material" on page 15.

About indications which appear after editing

When "TOC" lights up in the display

Editing has finished but the TOC (Table of Contents) on the MD has not been updated to reflect the editing results. The editing will be lost if you disconnect the AC power cord while the indication is on. The TOC will be updated only when you eject the MD or turn off the MD deck.

When "TOC Writing" flashes in the display

The deck is updating the TOC. Do not disconnect the AC power cord or move the deck while the indication flashes.

Erasing Tracks

You can erase a track or part of a track simply by specifying the number of the track or the portion within a track to be erased. You can also erase all the tracks on an MD at one time.

Erasing a track

Specify the number of the track you want to erase.

Example: Erasing the second track

1 2/3 4 AAA BBB CCC DDD 1 2/3 AAA CCC DDD

When you erase a track, all the tracks after the one erased are automatically renumbered. For example, if you erase track number 2, the previous track number 3 becomes track number 2 and the previous track number 4 becomes track number 3, and so on.

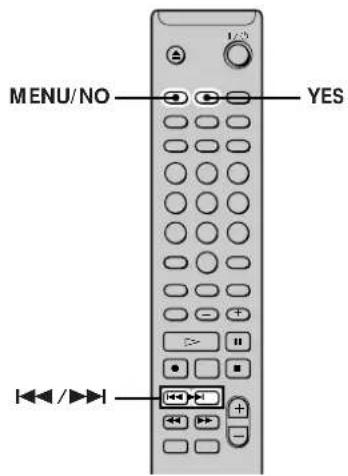

1 While the deck is stopped, playing, or paused, press MENU/NO.

"Edit Menu" appears in the display.

2 Press ◀◀◀/▶▶I repeatedly until "Tr Erase?" appears, then press YES.

The deck starts to play the track indicated by the number in the display.

3 Press I◄◄/►►I repeatedly until the track number you want to erase appears.

4 Press YES.

"Complete!!" appears for a few seconds and the track is erased. The track following the erased track starts to play. If the erased track is the last one on the MD, the track preceding the erased track starts to play.

To cancel the operation

Press MENU/NO or ■.

If "Erase ???" appears in step 4 above

The track has been record-protected on another MD deck. If you still want to erase the track, press YES again while the indication appears.

To avoid confusion when erasing more than one track

Start erasing from the highest numbered track. This way you'll avoid renumbering the tracks that you plan to erase.

You can undo the erasure

For details, see "Undoing the Last Edit" on page 37.

Erasing all the tracks on an MD

Do the procedure below to erase all the tracks, track names, and disc name at once.

1 While the deck is stopped, playing, or paused, press MENU/NO.

"Edit Menu" appears in the display.

2 Press I◄◄/►►I repeatedly until "All Erase?" appears, then press YES.

"All Erase ??" appears in the display.

3 Press YES.

"Complete!!" appears for a few seconds and all the tracks, track names, and disc name are erased.

To cancel the operation

Press MENU/NO or ■.

You can undo the erasure

For details, see "Undoing the Last Edit" on page 37.

Erasing a portion of a track

You can easily erase a portion of a track by specifying the starting and ending points of the erasure.

This is useful for erasing the unnecessary portions of a track recorded from a satellite or FM broadcast.

Example: Erasing portion "B2" of the second track

1 2 AAA BBB B1 B3B2 CCC 1 2 AAA BBB B1 B3 CCC

1 While the deck is stopped, playing, or paused, press MENU/NO.

"Edit Menu" appears in the display.

2 Press I◀◀/▶▶I repeatedly until "A-B Erase?" appears, then press YES.

3 Press I◄◄/►►I repeatedly until the number of the track containing the portion to be erased flashes, then press YES.

"-Rehearsal-" and "Point A ok?" alternate in the display and the deck plays the first several seconds of the track repeatedly.

4 While monitoring the sound, press ◀◀/▶▶I repeatedly to locate the starting point of the portion to be erased (point A).

The time indication ("m (minute)," "s (second)," and "f (frame = 1/86 second)") of the current point is displayed and several seconds of the track from that point play back repeatedly.

To find a point quickly

Specify a unit (minute, second, or frame) by which the MD is advanced when you press ◀◀◀ /▶▶▶ repeatedly.

To do this, press ◀◀/▶▶ in step 4 repeatedly to select "m," "s," or "f." The selected unit flashes in the display.

5 Repeat step 4 until you've located point A.

6 Press YES to enter point A.

"Point B set" appears and several seconds of the track from point A play back repeatedly.

7 Continue playing the track or press ▶▶ to locate the ending point of the portion to be erased (point B), then press YES.

"A-B Ers" and "Point B ok?" alternate in the display and a few seconds of the track before point A and after point B play back repeatedly.

8 Repeat step 4 until you've located point B.

9 Press YES to enter point B.

"Complete!!" appears for a few seconds and the portion between point A and B is erased.

To cancel the operation

Press MENU/NO or ■.

You can undo the erasure

For details, see "Undoing the Last Edit" on page 37.

Note

In the following cases, "Impossible" appears and you can't erase a portion of a track:

• The point B you entered comes before point A.

- After repeated editing of a track, it may become impossible to erase a portion of the track any further. This is a technical limitation of the MD system and is not a mechanical error.

Dividing Tracks

You can divide a recorded track at any point simply by adding a track mark at that point. This is especially useful when you want to divide recorded material which contains multiple tracks but only one track number (see page 18), or when you want to locate a certain point in the track.

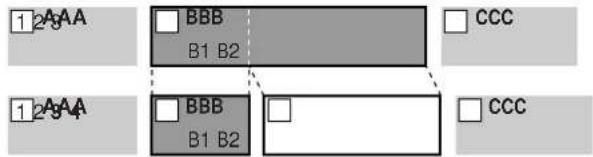

Example: Dividing the second track

1 2AAA BBB B1 B2 CCC 1 2AAA BBB B1 B2 CCC

When you divide a track, the total number of tracks increases by one and all tracks following the divided track are automatically renumbered.

1 While the deck is stopped, playing, or paused, press MENU/NO.
"Edit Menu" appears in the display.
2 Press ◀◀/▶▶I repeatedly until "Divide ?" appears, then press YES.
3 Press I◄◄/►►I repeatedly until the number of the track you want to divide flashes, then press YES.
"-Rehearsal-" appears and the track starts to play.
4 While monitoring the sound, press I◄◄/►►I repeatedly to locate the dividing point.
The time indication ("m," "s," and "f") of the current point is displayed and several seconds of the track from that point play back repeatedly.

To find a point quickly

Specify a unit (minute, second, or frame) by which the MD is advanced when you press ◀◀◀ /▶▶▶ repeatedly.

To do this, press ◀◀/▶▶ in step 4 repeatedly to select "m," "s," or "f." The selected unit flashes in the display.

5 Repeat step 4 until you've located the dividing point.

6 Press YES.

"Complete!!!" appears for a few seconds and the track is divided. The deck starts to play the newly created track. Note that new track has no name.

To cancel the operation

Press MENU/NO or ■.

You can undo the track division

For details, see "Undoing the Last Edit" on page 37.

You can divide tracks while recording

For details, see "Marking Track Numbers While Recording" on page 18.

Combining Tracks

This function allows you to combine any two tracks into a single track. The two tracks need not to be consecutive nor chronological. You can combine several tracks into a single medley, or several independently recorded portions into a single track. When you combine two tracks, the total number of tracks decreases by one and all tracks following the combined track are renumbered.

CCC

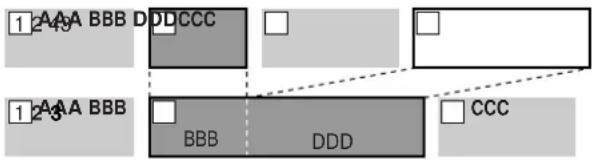

Example: Combining the second track and the fourth track

1 2-49 AAA BBB D DDDCCC 1 2-3 AAA BBB BBB DDD CCC

If both of the combined tracks have a track name, the name of the second track is erased.

1 While the deck is stopped, playing, or paused, press MENU/NO.
"Edit Menu" appears in the display.
2 Press I◄◄/►►I repeatedly until "Combine?" appears, then press YES.
3 Press I◄◄/►►I repeatedly until the number of the first track of the two to be combined appears, then press YES.

The display for selecting a second track appears and the deck plays the portion where joining will occur (the end of the first track and the beginning of the track following it) repeatedly.

4 Press I◀◀/▶▶I repeatedly until the number of the second track of the two to be combined appears, then press YES.

"Complete!!" appears for a few seconds and the tracks are combined. The deck starts to play the combined track.

To cancel the operation

Press MENU/NO or ■.

You can undo the combination

For details, see "Undoing the Last Edit" on page 37.

Note

If "Impossible" appears in the display, the tracks can't be combined because repeated editing has been done to the track(s). This is a technical limitation of the MD system and is not a mechanical error.

Moving Tracks

This function lets you change the order of any track.

Example: Moving the second track after the third track

1 AAA BBB C C DDD 1 AAA BBB 2 DDD 3 4

After you move a track, the tracks are renumbered automatically.

1 While the deck is stopped, playing, or paused, press MENU/NO.
"Edit Menu" appears in the display.
2 Press I◀◀/▶▶I repeatedly until "Move ?" appears, then press YES.
3 Press I◄◄/►►I repeatedly until the number of the track to be moved appears, then press YES.
4 Press I◄◄/►►I repeatedly until the new track position appears, then press YES.
"Complete!!" appears for a few seconds and the track is moved. The deck starts to play the moved track.

To cancel the operation

Press MENU/NO or ■.

You can undo the track move

For details, see "Undoing the Last Edit" on page 37.

Naming Tracks or MDs

You can enter a name for a recorded MD as well as for individual tracks. Names can consist of uppercase and lowercase letters, numbers, and symbols. A total number of 1,700 characters can be stored for all the names on the MD.

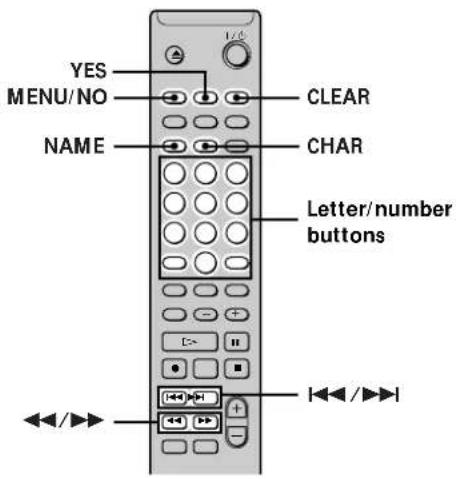

YES MENU/NO NAME CLEAR CHAR Letter/number buttons I<>I

Note

If you name a track while it is being recorded, be sure to finish the naming operation before the track ends. If the track ends before you finish, the entered character data will be discarded and the track will remain unnamed. Also, you can't name tracks while the deck is recording over existing material.

Naming a track or MD

1 Press NAME while the deck is in one of the operating statuses below, depending on what you want to name.

To name a track

Press while the deck is playing, paused, recording, or stopped with the track number displayed.

To name the MD

Press while the deck is stopped with no track number displayed.

A flashing cursor appears in the display.

2 Press CHAR repeatedly to select the character type.

To select Press repeatedly until

Uppercase letters "Selected ABC" appears in the display

Lowercase letters "Selected abc" appears in the display

Numbers or symbols* "Selected 123" appears in the display

* The following symbols can be selected:

$$ !" # \% \& ^ {\prime} () ^ {*} +, -. /:; < = >? @ _ $$

3 Enter a character.

If you've selected uppercase or lowercase letters

1 Press the corresponding letter/number button repeatedly until the character to be entered flashes.

Or, press the button once and press ◀◀◀/▶▶▶ repeatedly.

To change a selected character

Repeat step 2.

2 Press ▶▶.

The flashing character is entered and lights continuously and the cursor shifts to the right.

If you've selected numbers

Press the corresponding number button.

The number is entered and the cursor shifts to the right.

4 Repeat steps 2 and 3 to enter the rest of the name.

To change a character

Press ◀◀/▶▶ repeatedly until the character to be changed flashes, press CLEAR to erase the character, then repeat steps 2 and 3.

To erase a character

Press ◀◀/▶▶ repeatedly until the character to be erased flashes, then press CLEAR.

To enter a space

Press ▶▶ while the cursor is flashing.

5 Press NAME.

The whole name appears in the display.

To cancel the operation

Press MENU/NO or ■.

You can use Edit Menu to name a track or the MD

1 While the deck is stopped, playing, or paused, press MENU/NO to display "Edit Menu."
2 Press ◀◀◀ /▶▶▶ repeatedly until "Name ?" appears, and then press YES.
While the deck is recording, a flashing cursor appears in the display and you can enter a name for the track currently being recorded. In this case, go to step 6.
3 Press ◀◀/▶▶I repeatedly until "Nm In ?" appears, and then press YES.
4 Press ◄◀/▶▶I repeatedly until the number of the track (when naming a track) or "Disc" (when naming the MD) flashes, then press YES.
5 Press YES again to flash cursor.
6 Repeat steps 2 to 5 (page 34 and this page) of "Naming a track or MD."
The whole name appears in the display.

You can undo the naming of a track or MD

For details, see "Undoing the Last Edit" on page 37.

Copying a track or disc name

You can copy an existing track or disc name and use it to name another track on the same disc or the disc itself.

1 While the deck is stopped, playing, or paused, press MENU/NO.
"Edit Menu" appears in the display.
2 Press I◀◀/▶▶I repeatedly until "Name ?" appears, then press YES.
3 Press I◄◄/►►I repeatedly until "Nm Copy ?" appears, then press YES.
4 Press I◄◄/►►I repeatedly until the number of the track (when copying the track name) or "Disc" (when copying the disc name) flashes, then press YES to copy the selected name.
When "No Name" appears in the display
The selected track or disc has no name.
5 Press I◄◄/►►I repeatedly until the number of the track (when naming a track) or "Disc" (when naming a disc) flashes, then press YES to enter the copied name.
"Complete!!" appears for a few seconds and the name is copied.

To cancel the operation

Press MENU/NO or ■.

When "Overwrite ??" appears in step 5 above

The track or the disc selected in step 5 already has a name. If you wish to replace the name, press YES again while the indication appears in the display.

You can undo the copying of a track or disc name

For details, see "Undoing the Last Edit" on page 37.

Naming Tracks or MDs

Renaming a track or MD

1 Press NAME while the deck is in one of the operating statuses below, depending on what you want to rename.

To rename a track

Press while the deck is playing, paused, recording, or stopped with the track number displayed.

To rename the MD

Press while the deck is stopped with no track number displayed.

A track or disc name appears in the display.

2 Hold down CLEAR until the selected name is erased completely.
3 Do steps 2 to 4 of "Naming a track or MD" on pages 34 and 35.
4 Press NAME.

Erasing a track or disc name

Use this function to erase the name of a track or disc.

1 While the deck is stopped, playing, recording, or paused, press MENU/NO.
"Edit Menu" appears in the display.
2 Press I◄◄/►►I repeatedly until "Name ?" appears, then press YES.
If the deck is recording, go to step 3.
3 Press I◄◄/►►I repeatedly until "Nm Erase ?" appears, then press YES.
4 Press I◄◄/►►I repeatedly until the number of the track (when erasing the track name) or "Disc" (when erasing the disc name) flashes, then press YES.

"Complete!!" appears for a few seconds and the name is erased.

To cancel the operation

Press MENU/NO or ■.

You can undo the erasing of a track or disc name

For details, see "Undoing the Last Edit" on page 37.

Erasing all the names on the MD

You can erase all the track names and the disc name on an MD in a single operation.

1 While the deck is stopped, playing, or paused, press MENU/NO.

"Edit Menu" appears in the display.

2 Press I◄◄/►►I repeatedly until "Name ?" appears, then press YES.
3 Press I◄◄/►►I repeatedly until "Nm All Ers?" appears, then press YES.

"Nm All Ers??" appears in the display.

4 Press YES.

"Complete!!" appears for a few seconds and all the names on the MD are erased.

To cancel the operation

Press MENU/NO or ■.

You can undo the erasing of all the names on the MD

For details, see "Undoing the Last Edit" on page 37.

You can erase all the recorded tracks and names on the MD

For details, see "Erasing all the tracks on an MD" on page 31.

Undoing the Last Edit

You can undo the last edit operation and restore the contents of the MD to the condition that existed before the operation. Note, however, that you can't undo an edit operation if you perform any of the following operations after the edit:

• Press ● or MUSIC SYNC on the remote
• Press ● on the deck
• Turn off the deck or eject the MD
• Disconnect the AC power cord.

MENU/NO YES ◄◄/►►►

1 While the deck is stopped and no track number appears in the display, press MENU/NO.

"Edit Menu" appears in the display.

2 Press ◀◀/▶▶I repeatedly until "Undo ?" appears.

"Undo?" doesn't appear if no editing has been done.

3 Press YES.

One of the following messages appears depending on the last edit operation.

Last edit operation Message

Erasing a track

Erasing all the tracks on an MD Erase Undo?

Erasing a portion of a track

Dividing a track Divide Undo?

Combining tracks CombineUndo?

Moving a track Move Undo?

Naming a track or MD

Copying a track or disc name

Renaming a track or MD Name Undo?

Erasing a track or disc name

Erasing all the names on the MD

4 Press YES.

"Complete!!" appears for a few seconds and the MD is restored to the condition that existed before the edit operation.

To cancel the operation

Press MENU/NO or ■.

Other Functions

This chapter explains other useful functions that are available on the MD deck.

Fade In and Fade Out Recording

Fade-in Recording gradually increases the signal level at the start of recording. Fade-out Recording gradually decreases the signal level at the end of recording.

REC FADER

Fade-in Recording

During recording pause, press REC FADER.

◀ flashes in the display and the deck performs Fade-in Recording for five seconds until the counter reaches "0.0s."

Fade-out Recording

During recording, press REC FADER.

▶ flashes in the display and the deck performs Fade-out Recording for five seconds until the counter reaches "0.0s," then pauses.

Falling Asleep to Music

(Sleep Timer)

You can set the deck so that it turns off automatically after 60 minutes.

MENU/NO YES ◀/▶

1 While the deck is stopped, press MENU/NO twice. "Setup Menu" appears in the display.
2 Press I◄◄/►►I repeatedly until "Sleep" appears in the display, then press YES.
3 Press I◄◄/►►I repeatedly to select the setting, then press YES.

To Select

Turn on Sleep Timer Sleep On

Turn off Sleep Timer Sleep Off (factory setting)

4 Press MENU/NO.

To turn off Sleep Timer

Repeat the procedure above, selecting "Sleep Off" in step 3.

About the CONTROL A1Ⅱ Control System

About the CONTROL A1Ⅱ Control System

This MD deck is compatible with the Control A1 Control System.

The CONTROL A1Ⅱ Control System was designed to simplify the operation of audio systems composed of separate Sony components. Control A1Ⅱ connections provide a path for the transmission of control signals which enable automatic operation and control features usually associated with integrated systems.

Currently, CONTROL A1II connections between a Sony MD deck, CD player, amplifier (receiver), and cassette deck provide automatic function selection and synchro-recording.

In the future the CONTROL A1II connection with work as a multifunction bus allowing you to control various functions for each component.

Note

The CONTROL A1II Control system is designed to maintain upward compatibility as the Control System is upgraded to handle new functions. In this case, however, old components will not be compatible with the new function.

CONTROL A1Ⅱand CONTROL A1 compatibility

The CONTROL A1 control system has been updated to the CONTROL A1Ⅱ which is the standard system in the Sony components. Components with CONTROL A1 jacks are compatible with components with CONTROL A1Ⅱ, and can be connected to each other. Basically, the majority of the functions available with the CONTROL A1 control system will be available with the CONTROL A1Ⅱ control system.

However, when marking connections between components with CONTROL A1 jacks and components with CONTROL A1Ⅱ jacks, the number of functions that can be controlled may be limited depending on the component. For detailed information, refer to the operating instructions supplied with the component(s).

About the CONTROL A1ⅡControl System

Connecting the CONTROL A1ⅡControl System

Connect monaural (2P) mini-plug cord in series to the CONTROL A1Ⅱ jacks on the back of the each component. You can connect up to ten CONTROL A1Ⅲ compatible components in any order. However, you can connect only one of each type of component (i.e., 1 CD player, 1 MD deck, 1 tape deck and 1 receiver).

(You may be able to connect more than one CD player* or MD deck, depending on the model. For detailed information, refer to the operating instructions supplied with the respective component.)

* When a personal computer is connected, be sure to connect only one CD player to the deck and set CD player's command mode to "1".

Example

IN the CONTROL A1Ⅱcontrol system, the control signals flow both ways, so there is no distinction of IN and OUT jacks. If a component has more than one CONTROL A1Ⅱjack, you can use either one, or connect different components to each jacks.

Jacks and connection examples

CONTROL A1II CONTROL A1II CD player MD deck

On CONTROL A1 jacks and connections

It is possible to make connections between CONTROL A1 and CONTROL A1Ⅲ jacks. For details regarding particular connections or setup options, refer to the operating instructions supplied with component(s).

About the connection cable

Some CONTROL A1Ⅱ compatible components are supplied with a connecting cable as an accessory. In this case, use the connecting cable for your connection. When using a commercially available cable, use a monaural (2P) mini-plug cord less than 2 meters long, with no resistance (like the Sony RK-G69HG).

Connecting a personal computer

Connect the CONTROL A1Ⅱ jack on the rear panel of the deck using the monaural (2P) mini-plug cord (supplied) and connector (supplied). For details, refer to the operating instructions supplied with the MD Editor 2 software.

Basic Functions of the CONTROL A1Ⅱ Control System

Automatic function selection

When you connect CONTROL A1Ⅱ compatible Sony components using monaural (2P) mini-plug cord, the function selector on the amplifier (or receiver) automatically switches to the correct input when you press the play button on one of the connected components.

(If you press ▷ on the MD deck while the CD is playing, the function selector on the amplifier switched from the CD to MD.)

Notes:

• This function only works when the components are connected to the amplifier (or receiver) inputs according to the names on the function buttons. Certain receivers allow you to switch the name of the function buttons. In this case, refer to the operating instructions supplied with the receiver.
• When recording, do not play any components other than the recording source. It will cause the automatic function selection to operate.

Synchro-recording

This function lets you perform synchro-recording between the MD deck and selected source component.

1 Set the source selector on the amplifier (or receiver) to the source component.
2 Set the source component to pause mode (make sure both the ▷ and Ⅲ indicators light together).
3 Press ● to set the deck to recording pause mode.
4 Press ▷ on the deck.

The source component is released from the pause mode, and recording begins shortly thereafter. When the playback ends from the source component, recording stops.

Note

Do not set more than one component to the pause mode.

Additional Information

This chapter provides additional information that will help you understand and maintain your MD deck system.

Precautions

On safety

• Should any solid object or liquid fall into the cabinet, unplug the deck and have it checked by qualified personnel before operating it any further.
• The use of optical instruments with this product will increase eye hazard.

On power sources

• Before operating the deck, check that the operating voltage of the deck is identical with your local power supply. The operating voltage is indicated on the nameplate at the bottom of the deck.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• If you are not going to use the deck for a long time, be sure to disconnect the deck from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
• AC power cord must be changed only at the qualified service shop.

On condensation in the deck

If the deck is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the deck. Should this occur, the deck may not operate properly. In this case, remove the MD and leave the deck turned on for about an hour until the moisture evaporates.

On the MiniDisc cartridge

• Do not open the shutter to expose the MD.
• Do not place the cartridge where it will be subject to extremes of sunlight, temperature, moisture or dust.

On cleaning

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your deck, please consult your nearest Sony dealer.

Handling MDs

The MD is enclosed in a cartridge to protect the disc from debris or fingerprints and to make it easy to handle. However, the presence of debris or a warped cartridge may inhibit the disc from operating properly. To assure that you can always listen to the highest quality music, follow the precautions below:

• Do not touch the internal disc directly. Forcing the shutter open may damage the internal disc.
• Be sure to stick the labels supplied with the MD to the appropriate positions. The shape of the labels may vary depending on the MD brand.

Proper location of the labels Shutter

Where to keep the MDs

Do not place the cartridge where it may be exposed to direct sunlight or extremely high heat and humidity.

Regular maintenance

Wipe dust and debris from the surface of the cartridge with a dry cloth.

System Limitations

The recording system in your deck is radically different from those used in cassette and DAT decks and is characterized by the limitations described below. Note, however, that these limitations are due to the inherent nature of the MD recording system itself and not to mechanical causes.

“Disc Full” appears in the display even before the MD has reached the maximum recording time

When 255 tracks have been recorded on the MD, "Disc Full" appears regardless of the total recorded time. More than 255 tracks can't be recorded on the MD. To continue recording, erase unnecessary tracks or use another recordable MD.

"Disc Full" appears before the maximum number of tracks is reached

Fluctuations in emphasis within tracks are sometimes interpreted as track intervals, incrementing the track count and causing "Disc Full" to appear.

The remaining recording time does not increase even after erasing numerous short tracks

Tracks under 12 seconds in length are not counted and so erasing them may not lead to an increase in the recording time.

The total recorded time and the remaining recordable time on the MD may not total the maximum recording time

Recording is done in minimum units of 2 seconds each, no matter how short the material. The contents recorded may thus be shorter than the maximum recording capacity. Disc space may also be further reduced by scratches.

Limitations when recording over an existing track

• The correct remaining recordable time may not be displayed.
• You may find it impossible to record over a track if that track has been recorded over several times already. If this happens, erase the track (see page 30).
• The remaining recordable time may be shortened out of proportion to the total recorded time.
• Recording over a track to eliminate noise is not recommended since this may shorten the duration of the track.
• You may find it impossible to name a track while recording over an existing track.

Tracks created through editing may exhibit sound dropout as you're searching for a point while monitoring the sound.

Some tracks can't be combined with others

Tracks may not be combined if they have been edited.

Track numbers are not marked correctly

Incorrect assignment or marking of track numbers may result when CD tracks are divided into several smaller tracks during digital recording. Also, when the Automatic Track Marking is activated during recording, track numbers may not be marked as in the original, depending on the program source.

"TOC Reading" appears for a long time

If the inserted recordable MD is brand new, "TOC Reading" appears in the display longer than for MDs that have already been used.

The correct recorded/playing time may not be displayed during playback of MDs recorded in monaural mode.

Troubleshooting

If you experience any of the following difficulties while using the deck, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

The deck does not operate or operates poorly.

→ The MD may be dirty or damaged. Replace the MD.
→ Only the controls listed below are operable while the MD deck is being controlled by a personal computer.
I/∅, INPUT, SCROLL, DISPLAY, REC LEVEL +/-, ANALOG OUT LEVEL +/-

The deck does not play.

→ Moisture has formed inside the deck. Take the MD out and leave the deck in a warm place for several hours until the moisture evaporates.
→ The deck is not on. Press I/∅ to turn the deck on.
→ The deck may not be connected to the amplifier correctly. Check the connection.
→ The MD is inserted in the wrong direction. Slide the MD into the disc slot with the label side up and the arrow pointing towards the slot.
→ The MD may not be recorded. Replace the disc with one that has been recorded.

No sound is output.

→ The output level of the LINE (ANALOG) OUT jacks or PHONES jack may be too low. Press ANALOG OUT LEVEL + to raise the level.

The sound has a lot of static.

→ Strong magnetism from a television or a similar device is interfering with operations. Move the deck away from the source of strong magnetism.

The deck does not record.

→ The MD is record-protected. Slide the record-protect tab and close the slot.
→ The deck is not connected properly to the program source. Check the connection.
→ Select the correct program source using INPUT.
→ The recording level is not adjusted properly. Adjust the recording level.
→ A premastered MD is inserted. Replace it with a recordable MD.
→ There is not enough time left on the MD. Replace it with another recordable MD with fewer recorded tracks, or erase unnecessary tracks.
→ There has been a power failure or the AC power cord has been disconnected during recording. Data recorded to that point may be lost. Repeat the recording procedure.

The deck does not perform Synchro-recording with a CD player or video CD player.

→ The remote supplied with the MD deck is not set correctly. Reset the remote.

A message and a three-digit alphanumeric code alternate in the display.

→ The Self-Diagnosis Function is on. See the table on page 47.

Note

If the deck does not operate properly even after you've attempted the prescribed remedies, turn off the deck, then reinsert the plug into the power outlet.

Specifications

System MiniDisc digital audio system

Disc MiniDisc

Laser

Semiconductor laser ( = 780nm)

Emission duration: continuous

Laser output Less than 44.6 μW*

*This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.

Laser diode Material: GaAlAs

Revolutions (CLV) 400 rpm to 900 rpm

Error correction Advanced Cross Interleave Reed Solomon Code (ACIRC)

Sampling frequency 44.1 kHz

Coding Adaptive Transform Acoustic Coding (ATRAC)

Modulation system EFM (Eight-to-Fourteen Modulation)

Number of channels 2 stereo channels

Frequency response

5 to 20,000 Hz ±0.3 dB

Signal-to-noise ratio

Over 94 dB during playback

Wow and flutter

Below measurable limit

Inputs

LINE (ANALOG) IN

Jack type: phono

Impedance: 47 kilohms

Rated input: 500 mVrms

Minimum input: 125 mVrms

DIGITAL (OPTICAL) IN1/2

Connector type: square optical

Impedance: 660 nm (optical wave length)

Outputs

LINE (ANALOG) OUT (VARIABLE)

Jack type: phono

Rated output: 2 Vrms (at 50 kilohms)

Load impedance: Over 10 kilohms

DIGITAL (OPTICAL) OUT Connector type: square optical

Rated output: -18 dBm

Impedance: 660 nm (optical wave length)

PHONES Jack type: phono

Rated output: 10 mW

Load impedance: 32 ohms

General

Power requirements

Where purchased Power requirements

U.S.A. and Canada 120 V AC, 60 Hz

Other countries 230 V AC, 50/60 Hz

Power consumption 14 W

Dimensions (approx.) 150 · 65 · 275 mm

(6 · 2^5/8 · 10^7/8 inches) (w/h/d)

incl. projecting parts and controls

Mass (approx.) 2.0 kg (4 lb 7 oz)

Supplied accessories

See page 4.

US and foreign patents licensed from Dolby Laboratories

Licensing Corporation.

Design and specifications are subject to change without notice.

Display Messages

The following table explains the various messages that appear in the display. Messages are also displayed by the deck's Self-Diagnosis function (see page 47).

Message Meaning

Auto Cut The Auto Cut function is on (page 17).
Blank Disc A new (blank) or erased MD has been inserted.
Cannot Copy An attempt was made to make a second copy from a digitally dubbed MD (page 14).
Cannot Edit An attempt was made to edit the MD during Program or Shuffle Play. Or the MD is record-protected.
Disc Full The MD is full (page 43).
Impossible	The deck cannot do the specified operation.
Initialize (flashing)	The Setup Menu settings have been lost.
Name Full	The naming capacity of the MD has reached its limit (about 1,700 characters).
No Disc	There is no MD in the deck.
No Name	The track or disc has no name.
No Program!!	You tried to start Program Play when no program exists.
Premastered	An attempt was made to record on a premastered MD.
ProgramFull! The program contains the maximum number of tracks. You cannot add any more tracks.
Smart Space	The Smart Space function is on (page 17).
REMOTE	The MD deck is being controlled by an external device connected to the deck.*
TEXT PROTECT	The CD-TEXT information being recorded is protected and can't be copied.
TOC Reading	The deck is checking the TOC (Table Of Contents) on the MD.

* If "REMOTE" appears under other circumstances, turn off the deck, then turn it on again.

Edit Menu Table

The following table provides a quick guide to the various editing functions that you can perform using the Edit Menu.

To access the Edit Menu

Press MENU/NO to display "Edit Menu."

Note

The available menu items may vary according to the current status of the deck.

Menu item Sub-item Function Reference page(s)
Tr Erase ? — Erases a track. 30
All Erase ? — Erases all the tracks on an MD. 31
A-B Erase ? — Erases a portion of a track. 31
Divide ? — Divides a track. 32
Combine ? — Combines tracks. 33
Move ? — Moves a track.		34
Name ?	Nm In ? Names a track or an MD.		35
	Nm Copy ? Copies a name to a track or an MD.		35
	Nm Erase ? Erases a name.		36
	Nm All Ers ? Erases all the names on an MD.		36
Undo ? — Undoes the last edit operation. 37
Setup ? — Enters Setup Menu (page 45) directly.		—

Setup Menu Table

The following table provides an overview of the various Setup Menu items, including their parameters, factory settings, and reference page(s) in the manual.

To access the Setup Menu

While the deck is stopped, press MENU/NO twice to display "Setup Menu."

Menu item Function Parameters Factory setting Reference page(s)

Program ? Creates a program. — — 26
T.Mark Turns Automatic Track Marking on or off. Off/LSync LSync 18
LS(T)	Changes the trigger level for Automatic Track Marking.	-72 to 0dB*	-50 dB	18
Auto	Turns Auto Space and Auto Pause on or off.	Off/Space/Pause	Off	28
S.Space	Turns Smart Space and Auto Cut on or off.	On/Off	On	17
P.Hold	Continuously displays the level of the strongest signal.	On/Off	On	16
Sleep	Turns the Sleep Timer function on or off.	On/Off	Off	39
Rec	Selects the recording mode.	Stereo/Mono	Stereo	14

* Adjustable in 2 dB steps.

To recall a factory setting

Press CLEAR while selecting the parameter.

Self-Diagnosis Function

The deck's self-diagnosis function automatically checks the condition of the MD deck when an error occurs, then issues a three-digit code and an error message on the display. If the code and message alternate, find them in the following table and perform the indicated countermeasure. Should the problem persist, consult your nearest Sony dealer.

Three-digit code/Message Cause/Remedy

C11/Protected	The inserted MD is record-protected.→ Take out the MD and close the record-protect slot (page 15).
C13/REC Error	The recording was not made properly.→ Set the deck in a stable surface, and repeat the recording procedure.
	The inserted MD is dirty (with smudges, fingerprints, etc.), scratched, or substandard in quality.→ Replace the disc and repeat the recording procedure.
C13/Read Error	The deck could not read the TOC on the MD properly.→ Take out the MD and insert it again.
C14/TOC Error	The deck could not read the TOC on the MD properly.→ Insert another disc.→ If possible, erase all the tracks on the MD (page 31).
C71/Din Unlock	The sporadic appearance of this message is caused by the digital signal being recorded. This will not affect the recording.
	While recording from a digital component connected through the DIGITAL (OPTICAL) IN1/2 connector, the digital connecting cable was unplugged or the digital component turned off.→ Connect the cable or turn the digital component back on.

Index

A

Accessories 4

Audio connecting cord 4,5

Auto Cut 17

Auto Pause 28

Auto Space 28

Automatic Track Marking additional information 18

how to 18

trigger level 18

B

Battery 4

Blank

erasing during recording. See Smart Space and Auto Cut

inserting during play. See Auto Space

C

CD Synchro-recording 19

Combining 33

Connection. See Hookups

CONTROL A1Ⅱ control system 39

D

Displaying

disc name 11

remaining recordable time 11

total number of tracks 11

total recorded time 11

track name 12

Dividing 32

E

Erasing

a name 36

a portion of a track 31

a track 30

all names 36

all tracks 31

F, G

Fade-in Recording 38

Fade-out Recording 38

H

Hookups

analog 5

CONTROL A1Ⅱ 6

digital 5

personal computer 6

I, J, K

Input Monitor 16

L

Level

input signal 11

output signal. See Output level

recording 16

Locating

particular point 24

tracks 23

M

Manual Track Marking 18

MD (MiniDisc)

ejecting 15,22

inserting 10, 14, 22

premastered 11

recordable 11, 14

record-protect tab 15

Monitoring input signal. See Input Monitor

Moving 33

Music Synchro-recording 19

N

Naming

copying 35

how to 34, 35

renaming 36

0

Optical cable 4,5

Output level 23

P, Q

Pausing

after each track. See Auto Pause

play 22

recording 15

Peak Hold 16

Peak level meters 16

Playing

entering the number 24

from the first track 22

specific track. See Locating

Program Play

changing the contents 27

checking the contents 27

programming 26

R

Recording

how to 14,15

mode 14

over existing tracks 15

Remote 4

Repeat A-B Play 25

Repeat All Play 25

Repeat 1 Play 25

Repeating

a portion. See Repeat A-B Play

all tracks. See Repeat All Play

current track. See Repeat 1 Play

S

Sampling rate converter 14

SCMS. See Serial Copy Management System

Scrolling the name 12

Serial Copy Management System 14

Shuffle Play 26

Sleep Timer 39

Smart Space 17

T

Table of contents. See TOC

Time Machine Recording 19

TOC 13,30

U, V, W, X, Y, Z

Undoing 37

AVERTISSEMENT

Diagram showing battery charging process from a remote case to a closed battery (no text or symbols)

Cordons de raccordement audio (2) (fournis)

Blanche (L)

Blanche (L)

Rouge (R)

Rouge (R)

2 Touche CLEAR (27, 35)

10 Touche ■ (15, 22, 30)

15 Touches ◀◀/▶▶I (14, 22, 26, 30, 39)

16 Touche ● (15, 17, 18)

22 Touche MENU/NO (14, 26, 30, 39)

Touche YES (14, 26, 30, 39)

6 Touche ● (15, 17, 18)

7 Touche ■ (15, 22, 30)

8 Touches ◀◀◀/▶▶▶ (14, 22, 24, 26, 30, 39)

EJECT ▲ I/O MENU/NO YES INPUT I/O I/O I/O I/O

DISPLAY REC LEVEL +/-

(CD Synchro-Recording)

EJECT ▲ I/O I/O ANALOG OUT LEVEL +/-

Front view of a remote control with buttons and navigation arrows (no text or symbols)

1/2 REPEAT A

Remarque

insertion 10, 14, 22

préenregistré 11
