DO9213AV - Air purifier DOMO - Free user manual and instructions

Frequently Asked Questions - DO9213AV DOMO

USER MANUAL DO9213AV DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or

the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

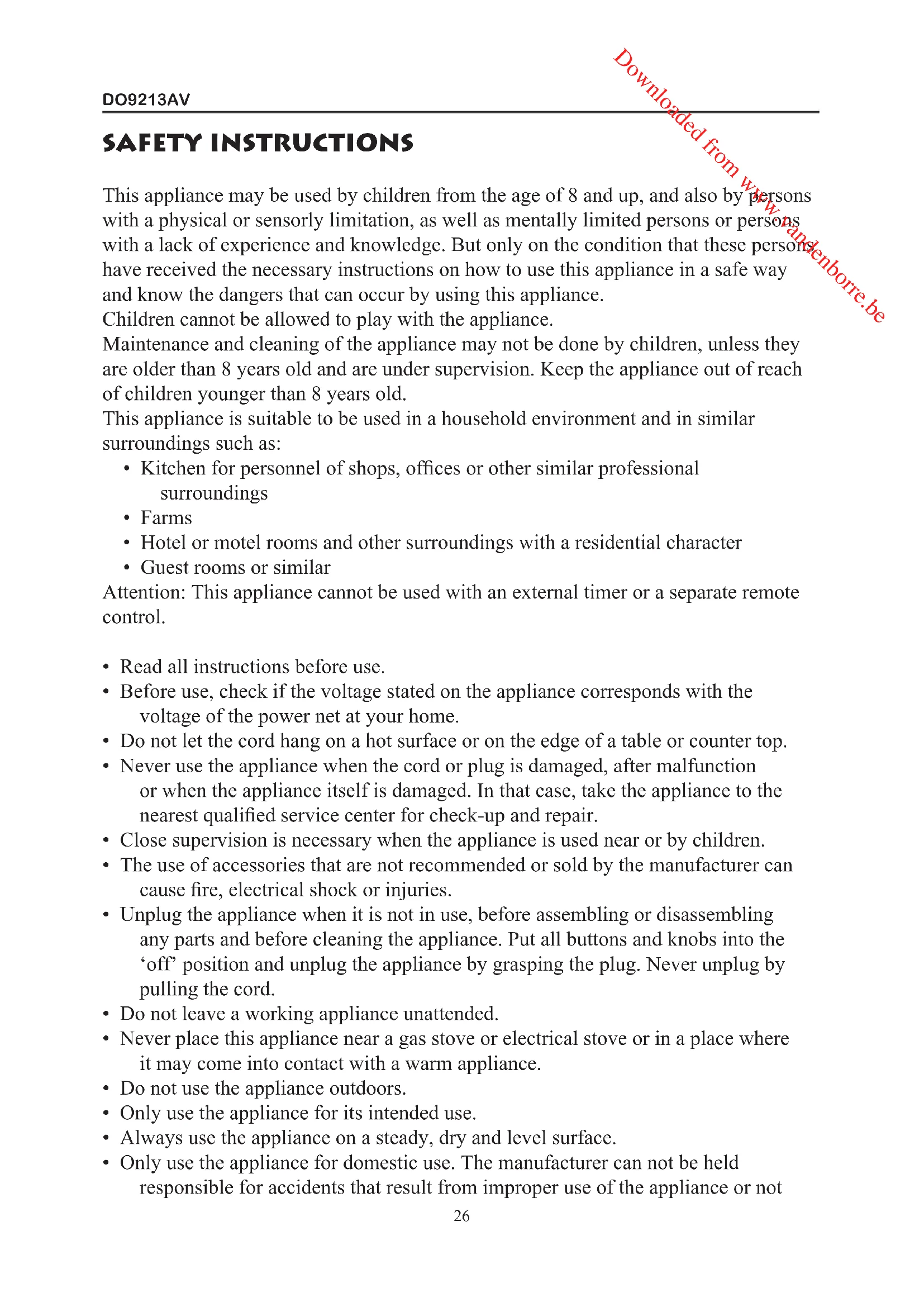

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not

following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Only to be used as an ambience diffuser; not to be inhaled.
• Use in an environment between 10^ and 30^ .
• For optimal maintenance, use mineral water (bottled or tap water). Do not exceed the maximum water level (200ml) . Always pour the water before adding essential oils or home fragrance.
• Continuous use of the diffuser may, in the long term, damage the product and shorten its lifespan.
• Empty the tank when the appliance is not in use.
• Do not remove the lid or cover the diffuser when the appliance is in use.
• Change frequently the water in the tank to avoid any dirt building up that may damage the appliance.
• Clean the water tank every week. Do not use chemical products (such as acids, alkaline, etc.) or any corrosive detergents to clean the appliance. Do not immerse.
• In case of water infiltrations into the appliance, unplug the diffuser immediately and leave it to dry for at least 3 days before reusing it.

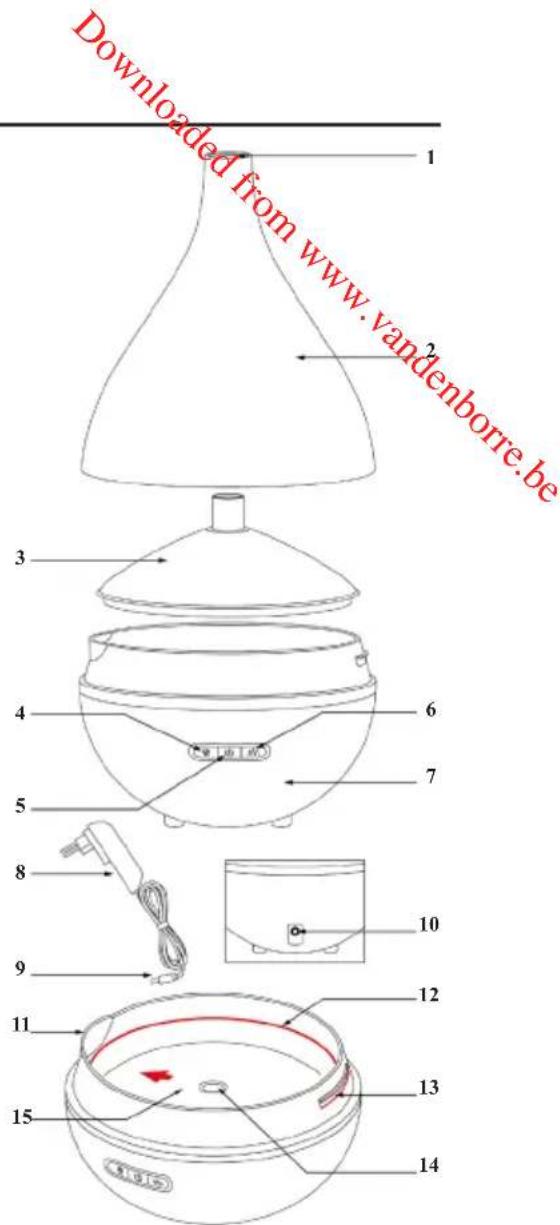

COMPONENTS

1. Mist outlet
2. Cover
3. Removable inner cover
4. Mist volume
5. ON/OFF button
6. Light
7. Base
8. AC/DC adaptor
9. Connector
10. DC-jack/adaptor input
11. Water outlet
12. Indication for the maximum water level
13. Air outlet
14. Ceramic disc
15. Water tank

BEFORE FIRST USE

1. Insert the adaptor's connector into the DC jack input at the back side of the diffuser.
2. Place the diffuser on a flat and stable surface and away from the edge.
3. Remove the diffuser's cover and removable inner cover.
4. Pour mineral water (bottled or tap water) into the water tank up to the maximum level indicated (200ml)
5. Then add a few drops of essential oils (3-10 drops) or home fragrance to the water tank.
6. Replace the cover on the diffuser.
7. Plug the adaptor into the outlet.

USE

This diffuser has 3 function buttons on the front side:

ON-/OFF BUTTON (middle)

1. Press once to start the diffusion in continuous mode at the highest diffusion volume (30ml / h)
2. Press a second time to start the diffusion for 60 minutes and then OFF.
3. Press a third time for an intermittent diffusion - 30 sec ON / 30 sec OFF - for 120 minutes and then OFF.
4. Press a fourth time to switch the diffuser OFF.

LIGHT (right)

1. Press once to start the color changing light (7 colors).
2. Press a second time to set the ambiance lighting to the color of your choice.
3. Press a third time to turn the light OFF.

DIFFUSION VOLUME CONTROL (left)

1. Press once for medium volume - 22ml / h
2. Press a second time for low volume - 15ml / h
3. Press a third time for high volume - 30ml / h

Remarks :

• When the water level in the tank is too low or at zero, the diffuser stops automatically.
• This diffuser can also be used as ambient lamp by pressing only on button #2 (light).
• In order to turn off the LED light around the function buttons, kindly push on the On/Off button for 3 sec. The diffusion will continue. If you push again on the On/Off button for 3 sec again, the LED light will be turned on again.

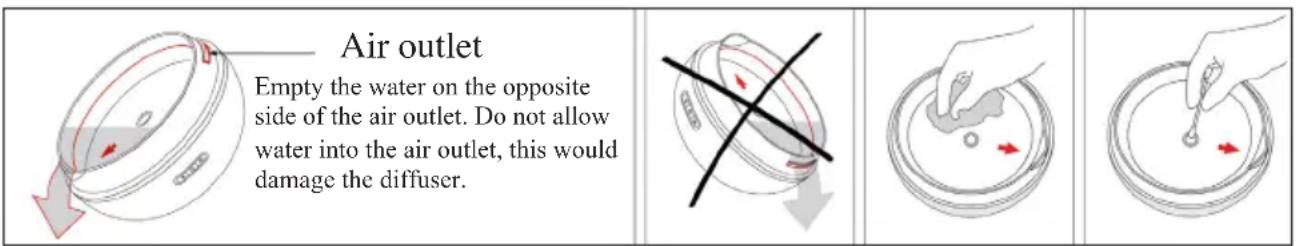

MAINTENANCE

You are advised to change frequently the water in the tank and clean the diffuser once or twice a week, particularly if you want to change the fragrance to be diffused.

1. Turn the appliance off and unplug it.
2. Remove the covers and pour the water into the tank. Empty the water in the opposite way to the air outlet, do not empty the water in the air outlet, this would damage the diffuser.
3. Clean the inside of the diffuser with a soft damp cloth and a little water. If needed, use a little white vinegar strongly diluted. Do not use corrosive detergents. Carefully rub the ceramic disc with a cotton bud being careful about not to scratch it.

PRECAUCIONES IMPORTANTES

ON/OFF TLACIDLO (uprosted)

1. Prvym stlačením spustíte nepretržité uvol'novanie esencie na majvyší stupen (30ml / hod.)
2. Druhym stlaenim pristroj spustite na 60 min a potom sa automaticicky vypne.
3. Tretim stlačením spustíte prerušovaný cyklus - 30 sekünd zapnute / 30 sekünd vypnute - celkovo na 120min, potom sa vypne.
4. Švrtým stlačením prístroj vypnete.

PODSVIETENIE (vpravo)

1. Prvym stlacenim pristroj rozsvietite a bude sa menit' 7 farieb stale dokola.
2. Druhym stlačením si zvolite áku farbu chcete, tak aby atmóféra bola presne podl’a vásho Želania.
3. Tretim stlačením podsvietenie úplne vypnete.

INTENZITA UVOL'NOVANIE ESENCIA (vl'avo)
