Product Type	Outdoor Kitchen Sink Module
Brand	Napoleon
Model	ODKSM100
Main Material	Stainless steel
Usage	Outdoor only
Water supply	Garden hose (not included), quick connect
Main functions	Sink with faucet, condiment tray, storage door, utensil hooks
Dimensions (approx.)	Suitable for installation on grill cart
Warranty	10-year limited (stainless steel parts), 1 year for other components
Safety	Do not leave unattended, do not use in temperatures below 0°C, supervise children
Maintenance and cleaning	Non-abrasive stainless steel cleaner, soapy water, avoid chemicals
Spare parts and repairability	Detailed list in manual, contact customer service for parts
Installation	Assembly required, two people recommended, professional installation advised
Carton contents	Sink, faucet, counter, panels, condiment tray, door, hardware
Serial number	To be recorded on the notice for warranty

Frequently Asked Questions - ODKSM100 Napoleon

How to install the sink on my Napoleon grill?

Installation is done by attaching the module to the side of the grill (left or right depending on version). Follow the assembly steps starting from page 13 of the manual. Two people are recommended to secure the sink in the cabinet.

What is the warranty period?

The President Napoleon limited warranty covers stainless steel panels for 10 years (5 years full, 5 years at 50%). Other components (faucet, sink, etc.) are warranted for 1 year.

How to clean stainless steel surfaces?

Use a non-abrasive stainless steel cleaner or warm soapy water. Always rub in the direction of the grain. Avoid steel wool and abrasive products.

Can I use the sink in winter?

No. Do not use the module when the temperature drops below 0°C (32°F). Before freezing, drain the water from the supply and drain hoses to prevent damage.

How to get spare parts?

Contact consumer service at 1-866-820-8686 or go to www.napoleongrills.com. Have the model, serial number, part number and proof of purchase.

Can I install the sink on any grill?

This module is designed for Napoleon grills of the Mirage and LE series. It attaches to the left or right side depending on whether the grill has a side burner or not.

What to do if water runs continuously?

Check that the faucet is fully closed and that the supply hose is correctly connected. If the problem persists, inspect the faucet and contact customer service.

How to maintain the sink to prevent rust?

Clean regularly (every 3-4 weeks) with fresh water and a stainless steel cleaner. Rinse after use, especially in coastal or pool environments.

Is the garden hose provided?

No, the garden hose is not included. You must use your own hose with quick connect or standard connection.

Can I leave the water connected permanently?

It is recommended to turn off the water at the sink faucet and the outdoor faucet when the module is not in use. Disconnect and drain the hoses to prevent leaks or freezing.

USER MANUAL ODKSM100 Napoleon

Attention: Garden hose is NOT included.

Left hand cart assembly steps begin on page 13. Right hand cart assembly steps (non side burner units only) begin on page 30.

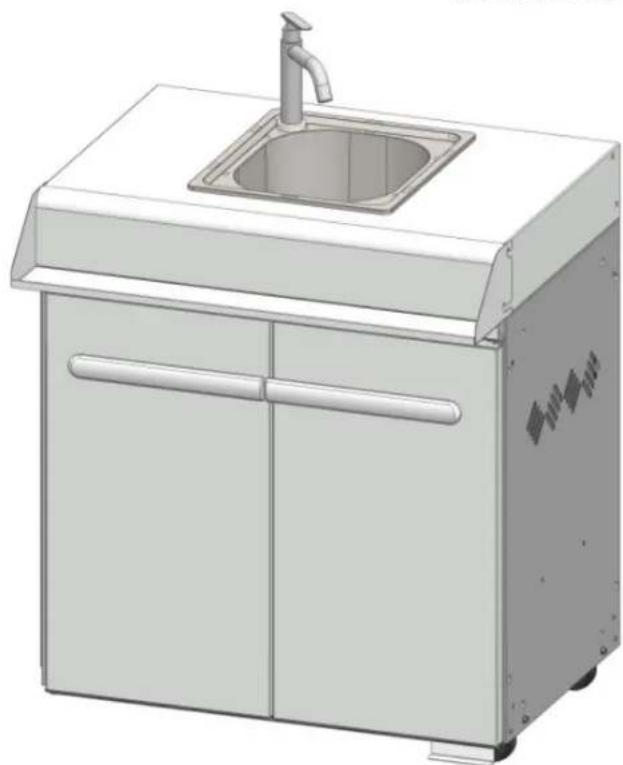

OUTDOOR KITCHEN SINK MODULE ASSEMBLY INSTRUCTIONS

WARNING! Do NOT leave young children unattended, they must be supervised around this product.

Read and retain this manual for future reference.

Napoleon Appliance Corp.,

214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: [phone]

Fax: [phone] email: [e-mail] web site: www.napoleongrills.com

NAPOLEON products are designed with superior components and materials, and are assembled by trained craftsmen who take great pride in their work. Every component has been thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON.

NAPOLEON PRESIDENT'S LIMITED WARRANTY

NAPOLEON warrants the following materials and workmanship in your new NAPOLEON product against defects for 10 years. This covers: stainless steel or painted panels (excluding paint), stainless steel or painted side shelves (excluding paint), stainless steel condiment tray, subject to the following conditions: During the first five years NAPOLEON will provide replacement parts at our option free of charge. From the sixth year to the tenth year, NAPOLEON will provide replacement parts at 50% of the current retail price.

All other components including, casters, faucets, sinks, hoses and connectors, fasteners and accessories are covered and NAPOLEON will provide parts free of charge during the first year of the limited warranty.

NAPOLEON shall not be liable for any transportation charges, labor costs or export duties.

Conditions And Limitations

"NAPOLEON warrants its products against manufacturing defects to the original purchaser only, provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following conditions and limitations:"

This factory warranty is non-transferable and may not be extended what-so-ever by any of our representatives.

The module must be installed by a licensed, authorized service technician or contractor. Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, grease fires, hostile environments, accident, alterations, abuse or neglect and parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, painted finishes, corrosion or discoloring by heat, abrasive and chemical cleaners, nor chipping on porcelain enamel parts, nor any components used in the installation of the module.

Should deterioration of parts occur to the degree of non-performance within the duration of the warranted coverage, a replacement part will be provided.

In the first year only, this warranty extends to the replacement of warranted parts, which are defective in material or workmanship provided that the product has been operated in accordance with the operation instructions and under normal conditions.

After the first year, with respect to this President's Limited Warranty NAPOLEON may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

NAPOLEON will not be responsible for the installation, labor or any other costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by this warranty.

Notwithstanding any provision contained in this President's Limited Warranty NAPOLEON's responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential, or Indirect damages.

This warranty defines the obligation and liability of NAPOLEON with respect to the NAPOLEON module and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.

NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product.

NAPOLEON will not be responsible for: over firing, blow outs caused by environmental conditions such as strong winds, or inadequate ventilation, any damages to the module due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON.

NAPOLEON reserves the right to have its representative inspect any product or part prior to honoring any warranty claim.

NAPOLEON shall not be liable for any transportation charges, labor costs, or export duties.

WARNING! For Outdoor Use Only.

WARNING! Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this module.

Safe Operating Practices

• This module must be assembled exactly according to the instructions in the manual. If the module was store assembled, you must review the assembly instructions to confirm correct assembly before operating the module.
• Read the entire instruction manual before operating the module.
• Under no circumstances should this module be modified.
• Do not leave water running in the sink when unattended. Water must be turned off at the sink faucet and at the wall faucet when it is not in use.
• Disconnect and drain the hoses attached to the module when not in use.
• Inspect the water supply hose before each use. If there is evidence of excessive abrasion or wear or the hose is cut, it must be replaced prior to using the module with a replacement hose assembly specified by the manufacturer.
• Young children should be supervised near the module.
• Do not leave module unattended when operating.
• To protect against electric shock, keep any electrical supply away from wet surfaces.
• Clean sink and faucet regularly.
• Do not use a pressure washer to clean any part of the module.
• Do not use the sink to dispose of hazardous materials such as paints, oils and solvents.
• Do not operate the module when the temperature falls below freezing, (32 °F)-(0°C). Drain the water from the supply and the drain lines when below freezing temperatures are expected.

Cleaning Instructions

WARNING! Always wear protective gloves and safety glasses when servicing your module.

WARNING! Clean the module in an area where cleaning solutions will not harm decks, lawns, or patios. Do not use oven cleaner to clean any part of this module. Barbecue sauce and salt can be corrosive and will cause rapid deterioration of the modules components unless cleaned regularly.

Note: Stainless steel tends to oxidize or stain in the presence of chlorides and sulfides, particularly in coastal areas and other harsh environments, such as the warm, highly humid atmosphere around pools and hot tubs. These stains could be perceived as rust, but can be easily removed or prevented. To provide stain prevention and removal, wash all stainless steel surfaces every 3-4 weeks or as often as required with fresh water and/or stainless steel cleaner.

Cleaning The Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel part of your Napoleon Module, doing so will scratch the finish. Exterior painted surfaces should be cleaned with warm soapy water. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner. Always wipe in the direction of the grain.

EN

KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.

Ordering Replacement Parts

Warranty Informa on

MODEL:

DATE OF PURCHASE:

SERIAL NUMBER:

(Record informa on here for easy reference)

Before contacting the Customer Care Department, check the NAC Website for more extensive cleaning, maintenance, troubleshooting and parts replacement instructions at www.napoleongrills.com. Contact the factory directly for replacement parts and warranty claims. Our Customer Care Department is available between 9 AM and 5 PM (Eastern Standard Time) at 1-866-820-8686 or fax at 1-705-727-4282. To process a claim, we must be provided with the following information:

1. Model and serial number of the unit.
2. Part number and description.
3. A concise description of the problem ('broken' is not sufficient).
4. Proof of purchase (photocopy of the invoice).

In some cases the Customer Care Representative could request to have the parts returned to the factory for inspection before providing replacement parts. These parts must be shipped prepaid to the attention of the Customer Care Department with the following information enclosed:

1. Model and serial number of the unit.
2. A concise description of the problem ('broken' is not sufficient).
3. Proof of purchase (photocopy of the invoice).
4. Return Authorization Number - provided by the Customer Care Representative.

Before contacting customer care, please note that the following items are not covered by the warranty:

Costs for transportation, brokerage or export duties.

Labor costs for removal and reinstallation.

Costs for service calls to diagnose problems.

Discoloration of stainless steel parts.

Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner).

LE GRIL DU GOURMET

OD-KSM100 CONCU POUR LES GRILS DES SÉRIES MIRAGE ET LE

Conditions Et Limitations

CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.

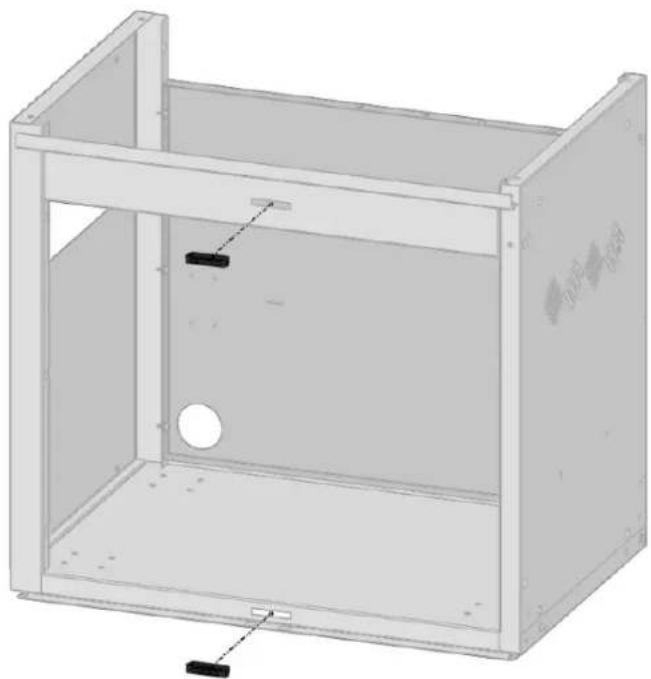

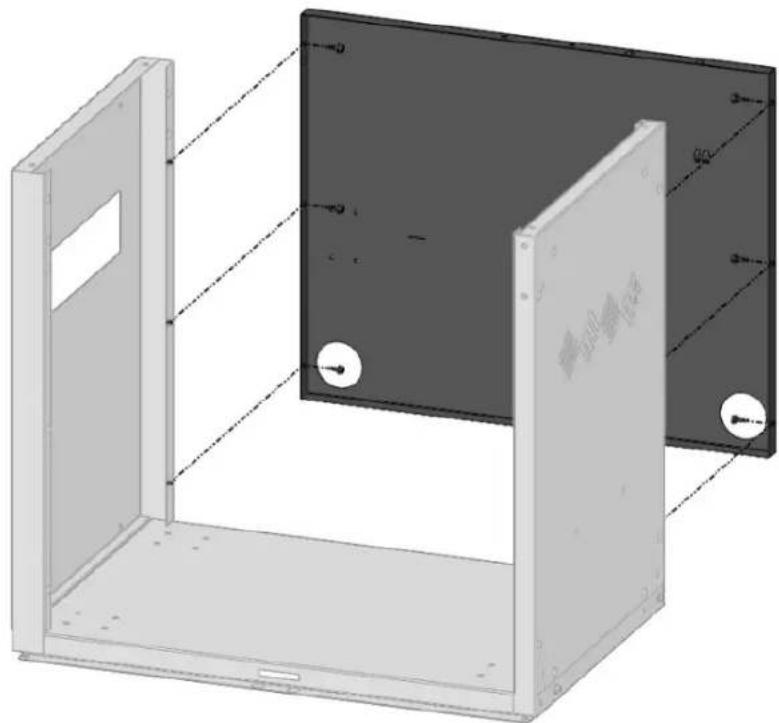

Getting Started

1. Remove all cart panels, hardware, and sink from the carton. Use the parts list to ensure all necessary parts are included.
2. Do not destroy packaging until the module has been fully assembled and operates to your satisfaction.
3. Assemble the module where it is to be used, lay down cardboard or a towel to protect parts from being lost or damaged while assembling.
4. Most stainless steel parts are supplied with a protective plastic coating that must be removed prior to using the module.
5. Follow all instructions in the order that they are laid out in this manual.

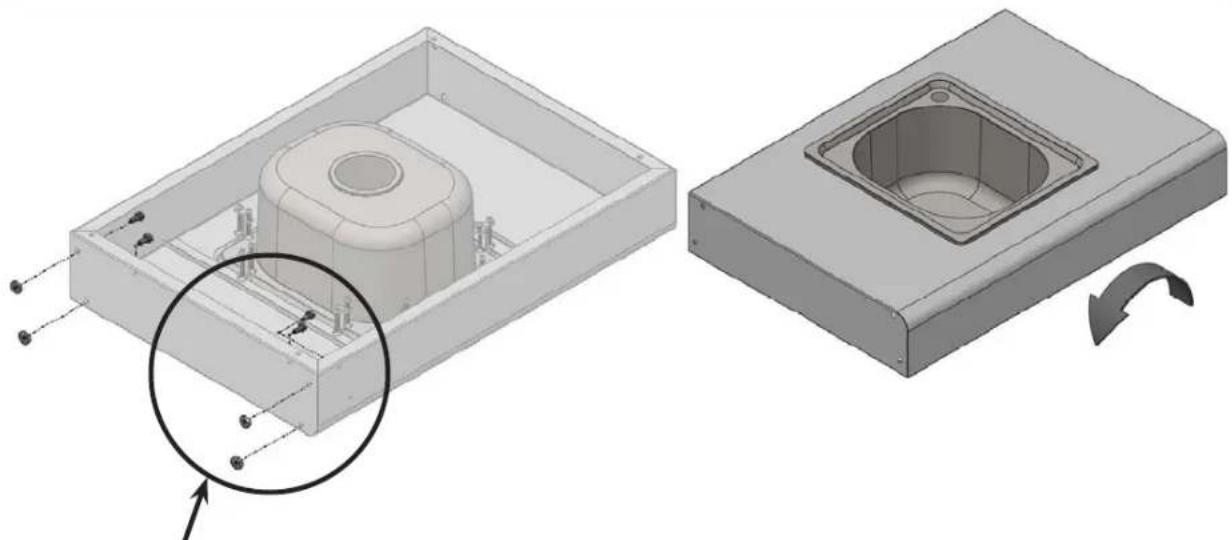

6. Two people are required to set the sink head into the enclosure.

If you have any questions about assembly or operation or if there are damaged or missing parts please call our Customer Care Department at 1-866-820-8686 between 9 AM and 5 PM (Eastern Standard Time).

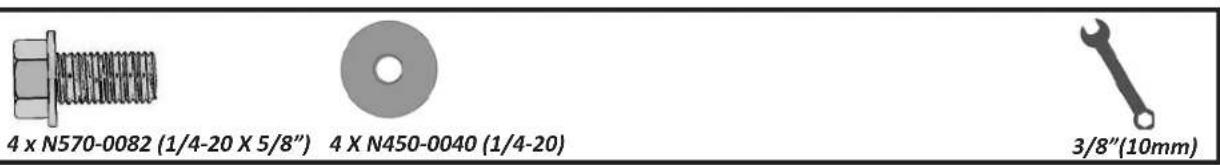

3/8 (10mm) and 7/16 (11mm) Wrench, ratchet or driver
Tournevis ou clé, cliquet de 3/8 (10mm) et 7/16 (11mm)

Remove the left side shelf from your grill and set aside for later installation.

Match the door handle with the door handle on your grill.

NOTE! Can only be installed on right side of grill with non side burner units.

6xN570-0080 (#14x1/2")

3/8"(10mm)

www.napoleongrills.com

4xN570-0080 (#14 x 1/2")

3/8"(10mm)

2X N430-0002

Remove the right side shelf from your grill and set aside for later installation.

Tighten all fasteners after condiment tray has been installed.

Match the door handle with the door handle on your grill.

Garden hose (not included) hookup shown with quick disconnect.

Garden hose (not included) hookup shown with no quick disconnect.

Garden hose (not included) hookup shown with barb connection.

PLEASE PRINT CLEARLY

CONTACT NAME:

SHIP TO :

TEL:FAX:

EMAIL:

VISA OR MASTERCARD #: EXPIRY DATE:

SIGNATURE:

QUANTITY	PART NUMBER DESCRIPTION

TAXES MAY APPLY

SHIPPING EXTRA

IF CONFIRMATION IS REQUIRED PLEASE INCLUDE A FAX NUMBER OR EMAIL ADDRESS

LE GRIL DU GOURMET

TÉLÉCOPIEZ AU: 705 727 4282

BON DE COMMANDE POUR PIECES/ACCESSOIRES

NOM DU CLIENT

ADRESSE:

TELEPHONE:FAX:

EMAIL:

VISA OU MASTERCARD : DATE D'EXPIRATION :

SIGNATURE:

QUANTITÉ	NUMéro DE PRODUIT DESCRIPTION

LES TAXES PEUVENT S'APPLIQUER

LES FRAIS D'EXPEDITION SUPPLEMENTAIRE
