USER MANUAL HDM 2 TEAM

team International

Three small kitchen utensils on a stand, one with rolled dough, one with a bulb, and one with a bottle (no text or symbols visible)

Hot Dog Maker

Hot Dog Maker

Machine à Hot-Dogs

Hotdogmaker

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

1 2 3 4 5

2

D

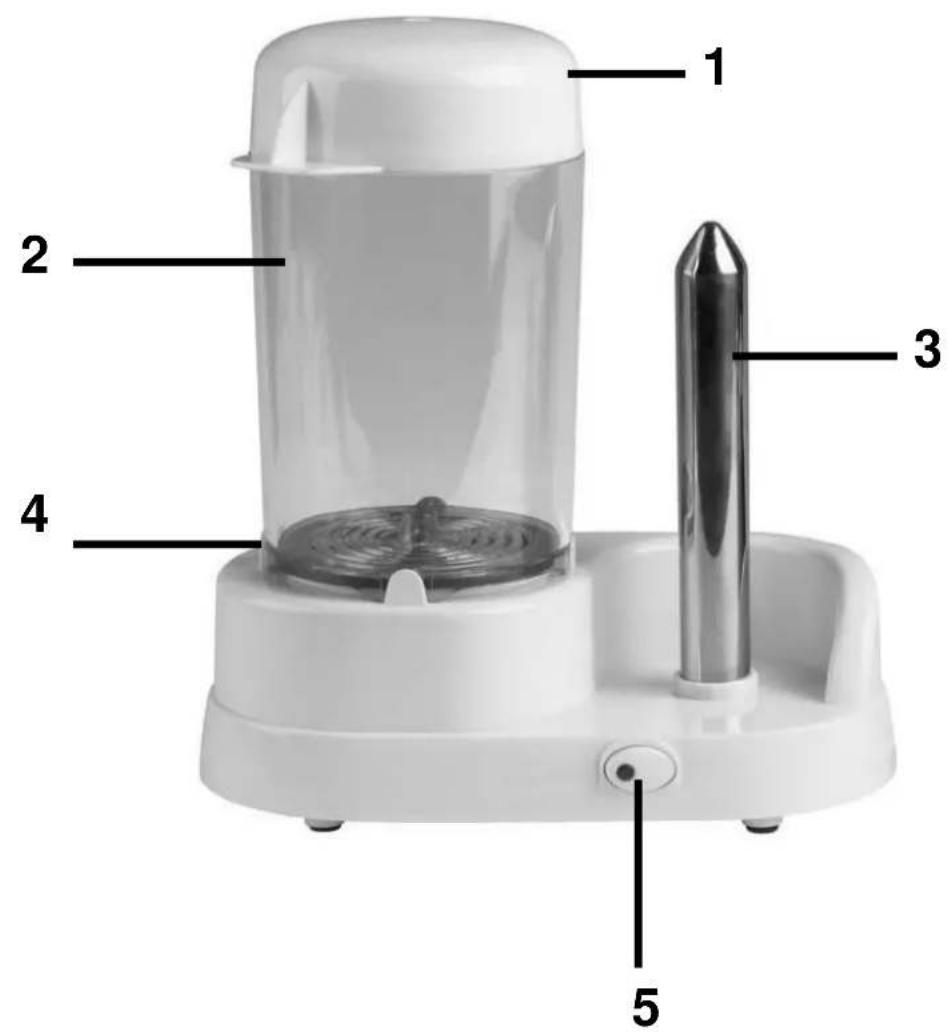

1. Lid
2. Transparent steam tank
3. Heating Pillar
4. Water bowl
5. Lighted switch

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

AUSPACKEN DES GERÄTES

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

ENTKALKUNG

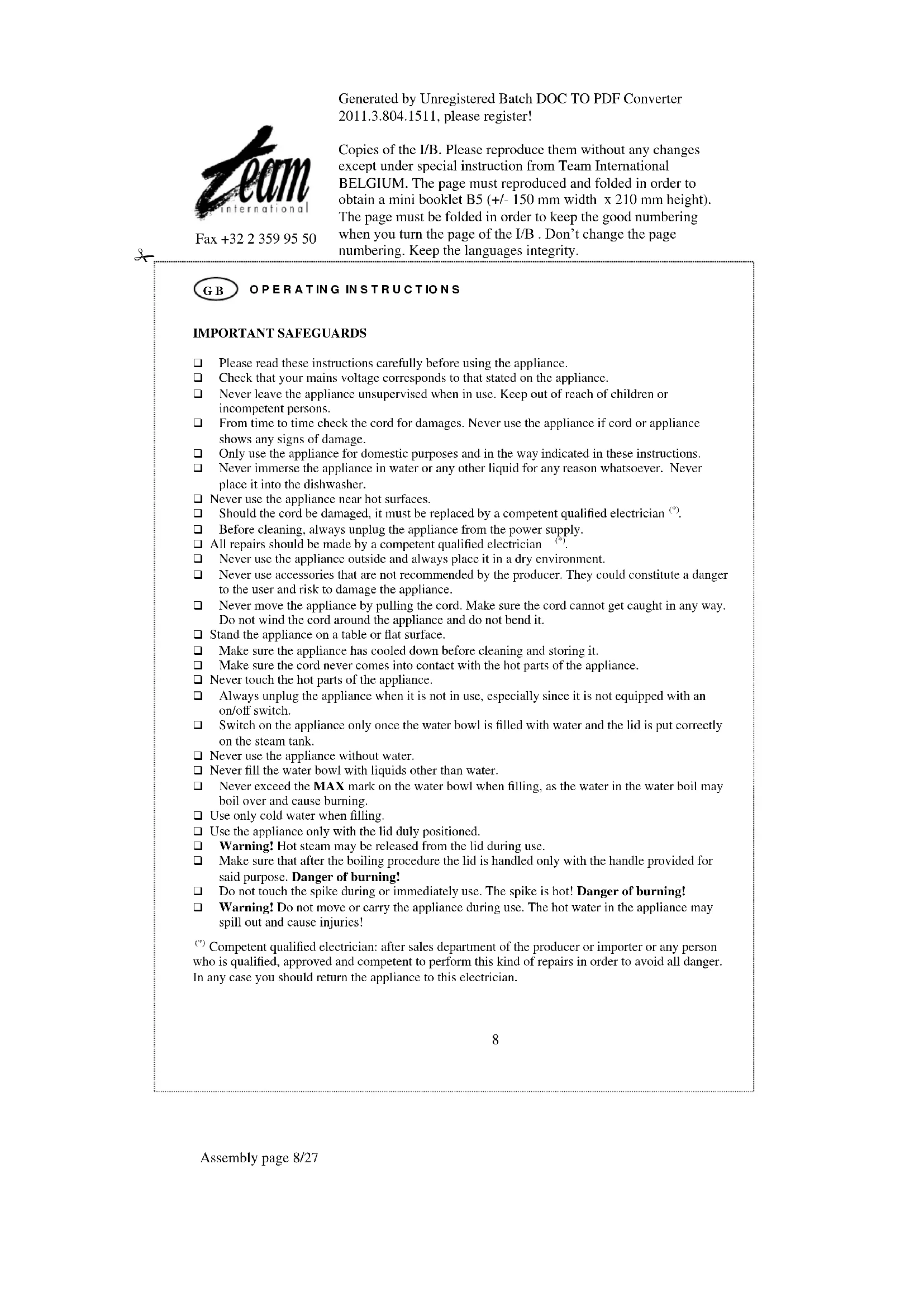

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician (*).
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Stand the appliance on a table or flat surface.
☐ Make sure the appliance has cooled down before cleaning and storing it.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
□ Never touch the hot parts of the appliance.
□ Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.
☐ Switch on the appliance only once the water bowl is filled with water and the lid is put correctly on the steam tank.
□ Never use the appliance without water.
□ Never fill the water bowl with liquids other than water.
☐ Never exceed the MAX mark on the water bowl when filling, as the water in the water boil may boil over and cause burning.
□ Use only cold water when filling.
□ Use the appliance only with the lid duly positioned.
☐ Warning! Hot steam may be released from the lid during use.
☐ Make sure that after the boiling procedure the lid is handled only with the handle provided for said purpose. Danger of burning!
☐ Do not touch the spike during or immediately use. The spike is hot! Danger of burning!
☐ Warning! Do not move or carry the appliance during use. The hot water in the appliance may spill out and cause injuries!

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13-amp power socket. If a BS1363 approved 13-amp plug is used, it should be fitted with a 5 amp fuse. The wires on the power cord are colour coded:

Blue = neutral, Brown = live.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

UNPACKING OF THE APPLIANCE

Remove the contents from the box (appliance, transparent steam tank and steam tank lid). Before using for the first time clean the appliance as described in « Cleaning ».

PREPARING THE APPLIANCE FOR USE

Make sure that the plug is not plugged in and that the ON/OFF switch is positioned on 0. Place the appliance on a level and non-slip working surface.

1. Fill the water bowl up to the MAX mark with water.
2. Place the steam tank on the water bowl. Pay attention to the four locking pins: they must engage in the slots in the steam tank. Press the steam tank firmly onto the locking pins.
3. Put the hot dogs into the steam tank. Do not overfill the steam tank as the appliance may not function properly and the hot dogs will not become hot.
4. Put the lid on the steam tank.
5. Insert the plug in a duly installed 230 V\~50 Hz socket with earthing protection and press the ON/OFF switch to 1. The cooking starts after approximately 2 minutes.
6. The hot dogs are ready after 8-10 minutes.
7. Stick the hot dog sandwiches on the pillar, cutting its extremity first. Warning! The spike is hot! Danger of burning!
8. Remove the lid carefully from the steam tank. Take out the hot dogs from the steam tank with a fork or a hot dog pincer.
9. After approximately 2 minutes, pull the sandwiches off the spike. Insert the hot dogs in the hole in the sandwich.
10. Put other sandwiches on the spike and proceed as described above.

After use press the ON/OFF switch back to 0 and pull out the plug. Let the appliance cool down for about 20 minutes and then clean as described in « Cleaning ».

CLEANING

• Always pull out the plug and shift the ON/Off switch to 0 before cleaning.
- Let the appliance cool down for about 20 minutes if it was used before as the handling of the hot parts (spike, water bowl, steam tank) may cause burns.
- Clean the appliance with a moist cloth.
• do not dip the appliance in water!
• The steam tank and the lid can be washed in a sink.
- Do not use abrasive detergents!
- Dry the entire appliance and all parts well after cleaning.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

DECALCIFYING

The water bowl is covered with a non-stick coating. This coating avoids the calcifying of the water bowl. Should limestone deposits remain on the bottom of the bowl after cooking, wipe it off with a moist cloth or use a decalcifying substance containing citric acid. When using this substance, always follow the manufacturer's instructions.
