MML10M - Electronic display VELLEMAN - Free user manual and instructions

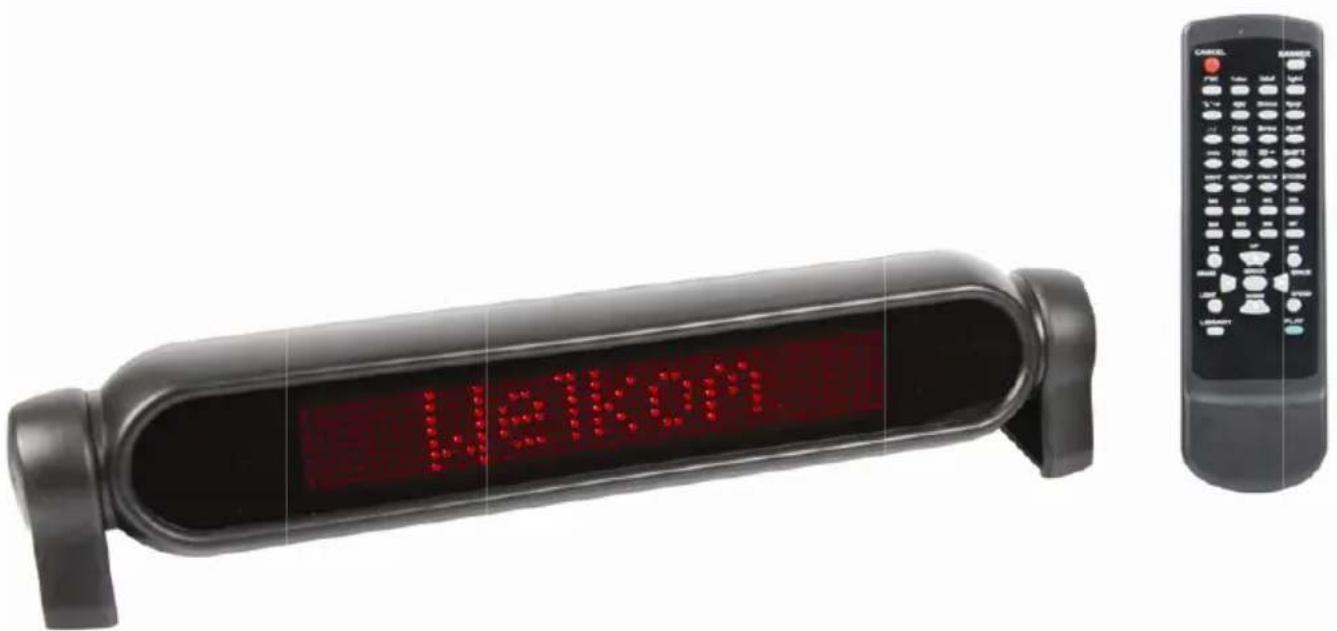

Product type	Scrolling LED electronic display
Brand and model	Velleman MML10M
Display technology	350 high brightness red LEDs
Resolution	7 x 50 points (350 LEDs)
Characters per line	10
Pixel pitch	5 mm
Pixel size	3 mm
Memory	470 characters spread over 11 slots
Preprogrammed messages	99 messages (in English)
Custom programming	Yes, via IR remote control
Control	Infrared remote control (included)
Scrolling speed	Adjustable (via remote control)
Brightness	Adjustable (via remote control)
Display modes	Scrolling, mirror, continuous, sequence
Viewing angle	360°
Operating temperature	0°C to +60°C
Power supply (display)	12 VDC via cigarette lighter plug (4 m cable included)
Optional mains adapter	230 VAC -> 12 VDC (PSSC1350, not included)
Remote control batteries	2 AAA 1.5 V batteries (included)
Cigarette lighter fuse	F2A/250V
Dimensions	433 x 95 x 66 mm
Weight	620 g
Mounting	Rotating stand (free-standing, wall, ceiling)
Use	Indoor: office, store, showcase, events, car
Included accessories	Double-sided adhesive patches, remote control, batteries
Safety	Built-in profanity filter; do not use if cable is damaged; keep out of reach of children
Maintenance	Clean with a dry cloth, avoid liquids
Spare parts and repairability	No user-serviceable parts. Contact an authorized dealer for any repairs.
General information	Use only indoors. Follow the safety instructions in the manual.

Frequently Asked Questions - MML10M VELLEMAN

How to program a custom message?

Press the EDIT button on the remote control, enter the text using the alphanumeric keys, then press STORE followed by a memory location (M0 to M9 or BANNER) to save.

How to adjust the scrolling speed?

Press SPEED then UP (increase) or DOWN (decrease) until the desired speed.

How to adjust the screen brightness?

Press LIGHT then UP (increase) or DOWN (decrease) until the desired brightness.

What does the rear LED indicator mean?

The LED indicator blinks briefly when a remote control button is pressed, blinks rapidly during message display, and stays on for a long time at the end of the message.

Can I use the display in a car?

Yes, thanks to the included cigarette lighter plug. However, check local regulations regarding the use of displays in vehicles.

What is the maximum memory capacity?

Total memory is 470 characters spread over 11 slots. Each slot can hold up to 80 characters.

How to create a sequence of multiple messages?

First clear the previous sequence with SETUP then ERASE. Play the messages in the desired order, then press PLAY once for a single play, or twice for continuous repeat. Save with SETUP then STORE.

What batteries to use for the remote control?

The remote control uses 2 AAA (LR03C) 1.5 V batteries included. Observe the polarity indicated in the compartment.

How to mount the display?

Use the included double-sided adhesive patches or the rotating stand for free-standing, wall, or ceiling mounting. Tilt the screen to the desired angle.

Are there preprogrammed messages?

Yes, 99 messages are preprogrammed in English. You can recall them via the memory keys (M0 to M9) or the library (LIBRARY + number).

USER MANUAL MML10M VELLEMAN

JOURNAL LUMINEUX PORTABLE AVEC TÉLÉCOMMANDE

MENSAJE RODANTE PORTÁT IL CON MANDO A DISTANCIA

TRAGBARE LAUFSCHRIFT MIT FERNBEDIENUNG

PRZENOŚNY WYŚWIETLACZ WIADOMOŚCI Z PILOTEM

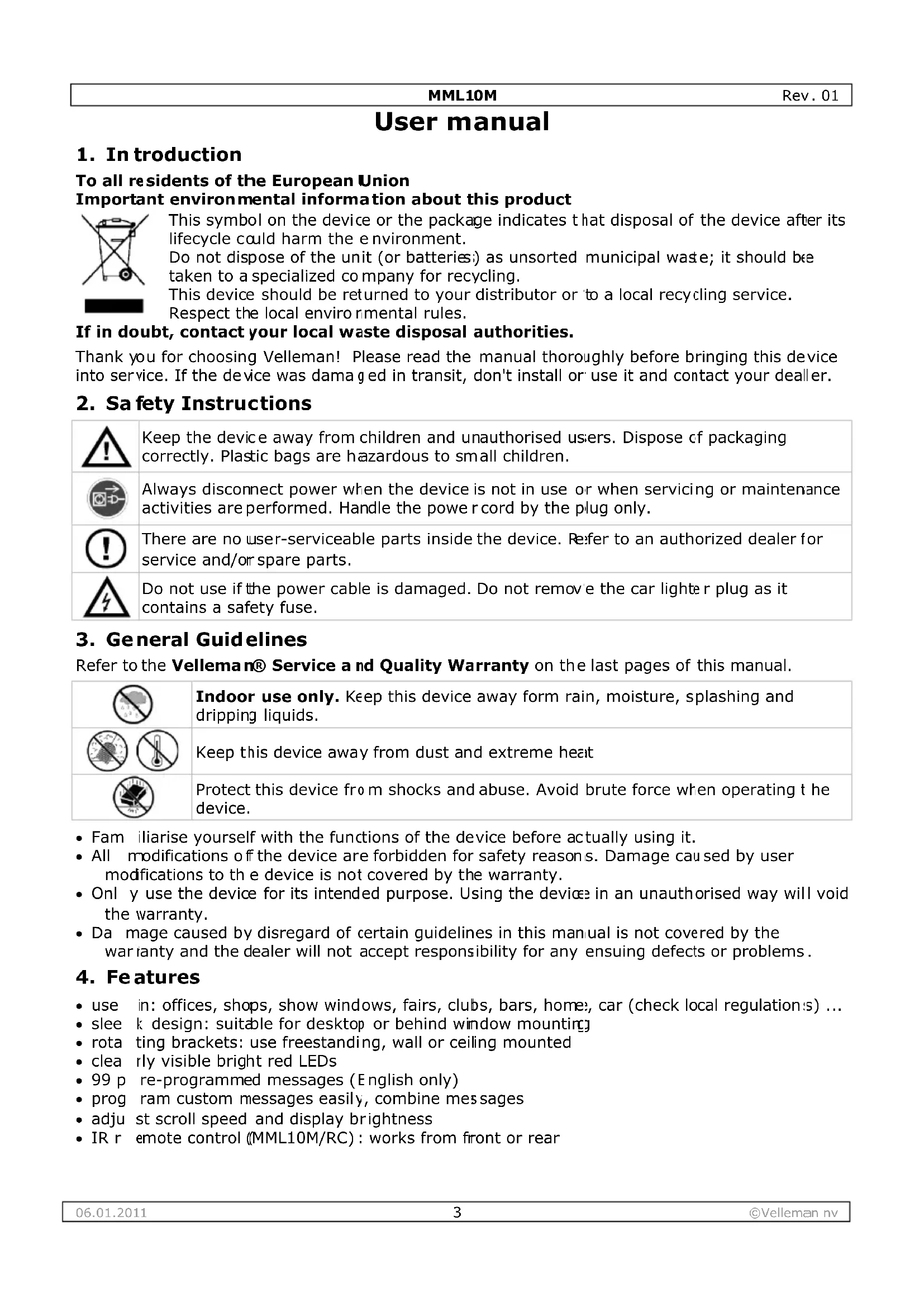

USER MANUAL 3

GEBRUIKERSHAND LEIDING 6

NOTICE D'EMPLOI 9

MANUAL DEL USUARIO 12
