USER MANUAL EMT25507OX ELECTROLUX

1. SAFETY INFORMATION......2

2. SAFETY INSTRUCTIONS....5

3. PRODUCT DESCRIPTION....7

4. BEFORE FIRST USE....8

5. DAILY USE....9

6. AUTOMATIC PROGRAMMES.... 12

7. USING THE ACCESSORIES.... 13

8. ADDITIONAL FUNCTIONS.... 14

9. HINTS AND TIPS.... 14

10. CARE AND CLEANING....15

11. TROUBLESHOOTING....16

12. INSTALLATION.... 17

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

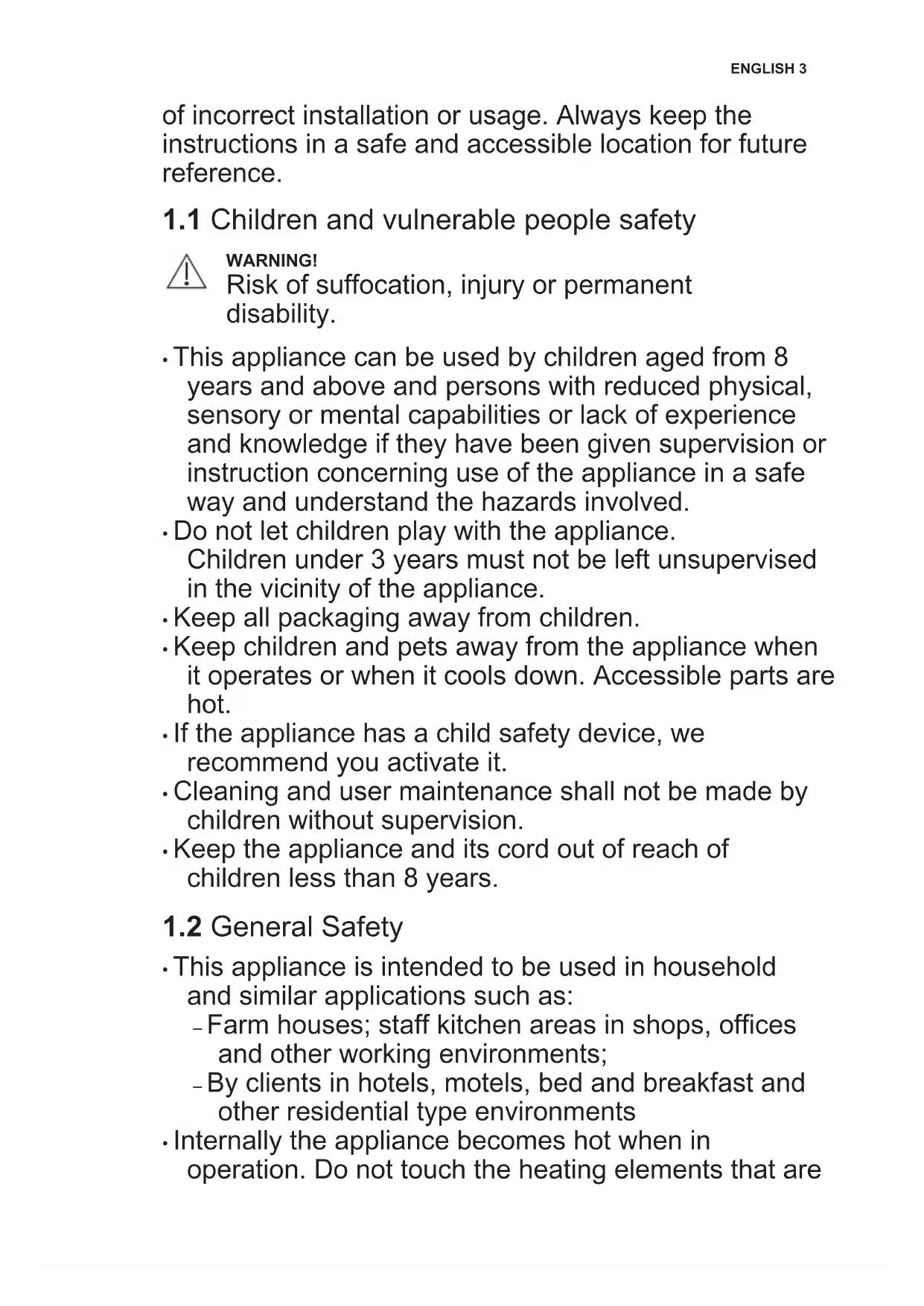

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result

of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance. Children under 3 years must not be left unsupervised in the vicinity of the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.

1.2 General Safety

- This appliance is intended to be used in household and similar applications such as:

• Farm houses; staff kitchen areas in shops, offices and other working environments;
• By clients in hotels, motels, bed and breakfast and other residential type environments

- Internally the appliance becomes hot when in operation. Do not touch the heating elements that are

in the appliance. Always use oven gloves to remove or put in accessories or ovenware.

- Do not use a steam cleaner to clean the appliance.

- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

- If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- Do not operate the appliance by means of an external timer or separate remote-control system.

- Do not heat liquids and other foods in sealed containers. They are liable to explode.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.

• The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
• The rear surface of appliances shall be placed against a wall.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Pay attention to the minimum dimensions of the cabinet (if applicable). Refer to the installation chapter.
• The appliance must be operated with the decorative door open (if applicable).

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not pull the appliance by the handle.

• Keep the minimum distance from the other appliances and units.

• Make sure that the appliance is installed below and adjacent safe structures.

• The sides of the appliance must stay adjacent to appliances or to units with the same height.

2.2 Electrical Connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
  • Make sure that the electrical information on the rating plate agrees

with the power supply. If not, contact an electrician.

• If the appliance is connected to the socket via an extension cord, make sure the cord is earthed.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns and electrical shock or explosion.

• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door.
• Make sure that the ventilation openings are not blocked.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

2.4 Care and Cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.

• Remaining fat or food in the appliance can cause fire.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

3. PRODUCT DESCRIPTION

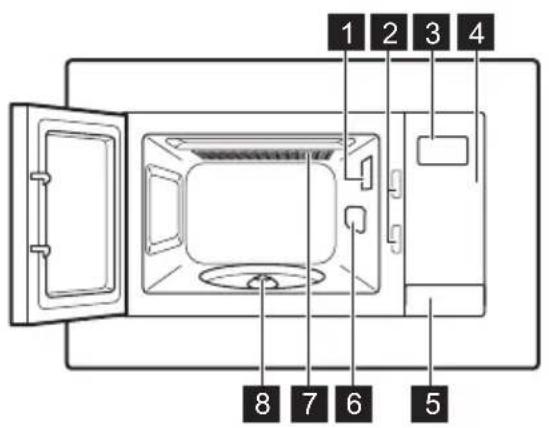

3.1 General overview

1 2 3 4 8 7 6 5

1 Lamp
2 Safety interlock system
3 Display
4 Control panel
5 Door opener
6 Waveguide cover
7 Grill
8 Turntable shaft

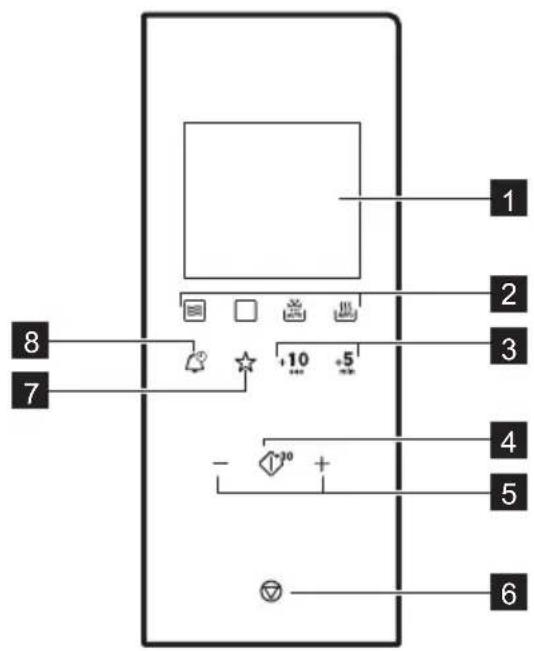

3.2 Control Panel

1 2 3 4 5 6 7 8 +10 +5

Symbol Function Description
[SAYT]	—			Display Shows the settings and current time.
[COOK]				Function pads To set the microwave / grill / convection / combi / auto defrost and auto cooking function.To set the microwave / combi / grill / auto defrost and auto cooking function.

Symbol Function Description
3		Time Set pads To set the desired time.
4		Start / +30 sec To start the appliance or increase the cooking time for 30 seconds at full power.
5		Setting pads To set the time, weight or temperature.
6		Stop / Clear To deactivate the appliance or delete the cooking settings.
7		Favourite To save one favourite combination of cooking parameters.
8		Clock To set the clock / reminder.

3.3 Accessories

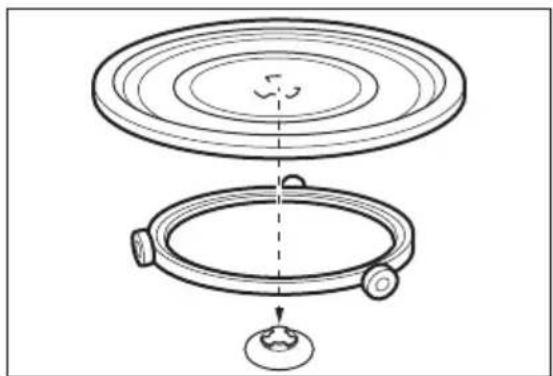

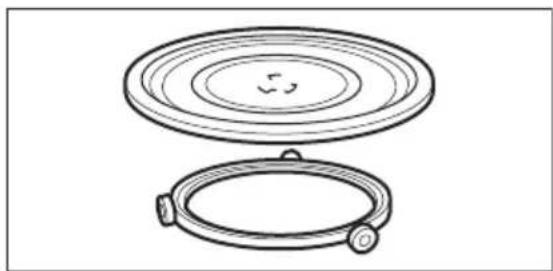

Turntable set

Always use the turntable set to prepare food in the microwave.

Line drawing of two circular objects with rings and a small knob, no text or symbols present

Glass cooking tray and roller guide.

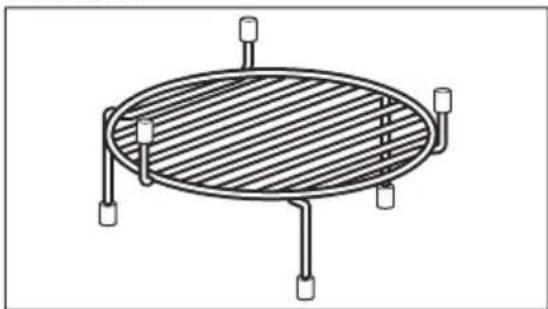

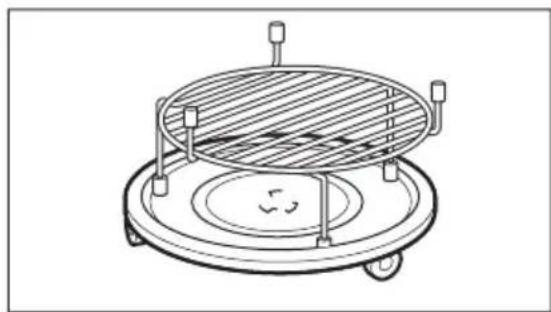

Grill Rack

Line drawing of a circular heating element with four vertical supports and a horizontal grille (no text or symbols)

Use for:

• grilling food
• combi cooking
• convection cooking

4. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

4.1 Initial Cleaning

CAUTION!

Refer to chapter "Care and Cleaning".

• Remove all the parts and additional packaging from the microwave.
• Clean the appliance before first use.

4.2 Setting the time

When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00 and an acoustic signal sounds.

You can set the time in a 24 hour clock system.

1. Press twice.

2. Press the Setting pads to set the hours.

3. Press to confirm.

4. Press the Setting pads to set the minutes.
5. Press to confirm.

The display shows ON and the clock is shown on the display when the microwave is in standby mode.

5. DAILY USE

WARNING!

Refer to Safety chapters.

5.1 General information about using the appliance

• After you deactivate the appliance, let the food stand for some minutes.
- Remove the aluminium foil packaging, metal containers, etc. before you prepare the food.

Cooking

• If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty
• Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch fire in some places.
• Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.
• Prick food with "skin" or "peel", such as potatoes, tomatoes, sausages, with a fork several times before cooking so that the food does not explode.
• For chilled or frozen food, set a longer cooking time.
• Dishes which contain sauce must be stirred from time to time.
  • Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.
• Turn larger pieces after half of the cooking time.
• If possible, cut vegetables into similar-sized pieces.
• Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware

If you do not want the clock to be shown when the microwave is in standby mode press or and set OFF. Press to confirm.

with small holes, e. g. on handles or unglazed bottoms. Moisture going into the holes can cause the cookware to crack when it is heated.

- The glass cooking tray is a work space for heating food or liquids. It is necessary for the operation of the microwave.

Defrosting meat, poultry, fish

• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.
• Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.

Defrosting butter, portions of gateau, quark

• Do not fully defrost the food in the appliance, but let it defrost at room temperature. This gives a more even result. Fully remove all metal or aluminium packaging before defrosting.

Defrosting fruit, vegetables

- Do not fully defrost fruit and vegetables, which are to be further prepared while raw, in the appliance. Let them defrost at room temperature.

- You can use a higher microwave power to cook fruit and vegetables without defrosting them first.

Ready meals

- You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.

- You must follow the manufacturer's instructions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).

Suitable cookware and materials

Cookware / Material Microwave Grilling /
	Defrosting Heating Cooking	Convection
Ovenproof glass and porcelain (with no metal components, e. g. Pyrex, heat-proof glass)	XXXX
Non-ovenproof glass and porcelain 1)	X--- --
Glass and glass ceramic made of ovenproof/frost-proof material (e. g. Arcoflam), grill shelf	XXXX
Ceramic 2), earthenware 2)	XXXX--
Heat-resistant plastic up to 200 °C 3)	XXXX--
Cardboard, paper X--- --
Clingfilm X--- --
Roasting film with microwave safe closure 3)	XXXX--
Roasting dishes made of metal, e. g. enamel, cast iron	--- -- - X
Baking tins, black lacquer or silicon-coated 3)	--- -- - X
Baking tray--- -- X
Browning cookware, e. g. Crisp pan or Crunch plate	--XX--
Ready meals in packaging 3)	XXXX

1) With no silver, gold, platinum or metal plating / decorations

2) Without quartz or metal components, or glazes which contain metals

3) You must follow the manufacturer's instructions about the maximum temperatures.

X suitable -- not suitable

5.2 Power setting table

Press 572A	Power setting Approximate Percentage of Power
1 time 900 Watt 100 %
2 times 700 Watt 77 %
3 times 500 Watt 55 %
4 times 300 Watt 33 %

Press	Power setting Approximate Percentage of Power
5 times 100 Watt 17 %
Other functions
Press	Display Function mode
Grilling
1 time Full Grill
Combi Cooking
2 times		Microwaves, Convection
3 times		Microwaves, Grill
4 times		Convection, Grill,
5 times		Microwaves, Convection, Grill
Convection Cooking
6 times Convection cooking at set tempera-ture

5.3 Quick Start

The maximum cooking time is 95 minutes.

Press to activate the microwave for 30 seconds at full power. The cooking time increases by 30 seconds with each additional press of the button.

5.4 Defrosting

You can choose between 2 defrosting modes:

• Weight defrosting
• Time defrosting

Do not use weight defrosting on food that is left out of the freezer for more than 20 minutes, or for frozen ready-made food.

To activate weight defrosting you must use more than 100 g of food and less than 2000 g.

To defrost less than 200g of food place it on the edge of the turntable.

1. Repeatedly press to set the weight or time defrosting.
2. Press the Setting pads to set the time or weight.

For weight defrosting the time is set automatically.

1. Press to confirm and activate the microwave.

5.5 Convection Cooking

For better result preheat the microwave to the right temperature before inserting the food.

You can use the Kitchen Timer as a time reminder for this function.

1. Repeatedly press to set the Convection Cooking.

2. Press the Setting pads to set the temperature.

3. Press to confirm and activate the microwave.

5.6 Grilling and Combi Cooking

1. Repeatedly press to set the Grilling or Combi Cooking function.
2. Press the Setting pads to set the time.
3. Press to confirm and activate the microwave.

An acoustic signal sounds after half of the cooking time passes. You can turn over the food.

6. AUTOMATIC PROGRAMMES

WARNING!

Refer to Safety chapters.

6.1 Auto cooking

Use this function to easily cook favourite food. The microwave automatically sets the optimum settings.

1. Repeatedly press to set the desired menu.

2. Press the Setting pads to set the weight.

3. To change the set menu for a different one press AUTO
4. Press to confirm and activate the microwave.

Display Menu Weight
	Auto Reheat 150 g
		250 g
		350 g
		450 g
		600 g
	Beverage 1 cup
	Pizza 200 g
		300 g
		400 g
	Popcorn 50 g
		100 g
	Chicken 500 g	750 g1000 g1200 g
	Meat 150 g	300 g450 g600 g
	Potato 230 g	460 g690 g
	Vegetable 150 g	350 g500 g
	Fish 150 g	250 g350 g450 g650 g
	Pasta 50 g (add 450 ml of water)	100 g (add 800 ml of water)150 g (add 1200 ml of water)

6.2 Favourite

You can save only one Favourite setting.

Use this function to save a setting that you often use with the microwave.

1. Set the function and parameters you want to save.

Refer to the procedure for the function you want to set.

1. Press and hold for 2 seconds. An acoustic signal sounds after the settings are saved.

Using the Favourite programme

1. Press

1. Press

7. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

7.1 Inserting the turntable set

CAUTION!

Do not cook food without the turntable set. Use only the turntable set provided with the microwave.

Never cook food directly on the glass cooking tray.

1. Place the roller guide around the turntable shaft.
2. Place the glass cooking tray on the roller guide

Diagram of a mechanical assembly showing a top and bottom views of a circular component with a central hub and a small gear base (no text or symbols)

7.2 Inserting the grill rack

Place the grill rack on the turntable set.

8. ADDITIONAL FUNCTIONS

8.1 Child Safety Lock

The Child Safety Lock prevents an accidental operation of the microwave.

Press and hold ▽ for 3 second.

An acoustic signal sounds.

When the Child Safety Lock is active the

display shows [---]

8.2 Kitchen Timer

You can set a maximum 95 minutes.

1. Press .

2. Press the Setting pads to set the time.

9. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

9.1 Tips for the microwave

Problem Remedy
You cannot find details for the amount of food prepared.	Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time
The food got too dry. Set shorter cooking time or select lower microwave power.

Line drawing of a circular fire extinguisher with heat exchanger and mounted platform (no text or symbols)

The Kitchen Timer activates automatically after a few seconds. When the set time is reached, an acoustic signal sounds.

1. Press to cancel the function.

When the Timer is active the display shows the active function. To see how much time is left press

The Timer still works when you open the door or pause the microwave.

Problem Remedy
The food is not defrosted, hot or cooked after the time came to an end.	Set longer cooking time or set higher power. Note that large dishes need longer time.
After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.

To get better results for rice use a flat, wide dish.

9.2 Defrosting

Always defrost roast with the fat side down.

Do not defrost covered meat because this may cause cooking instead of defrosting.

Always defrost whole poultry breast side down.

9.3 Cooking

Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.

Let the meat, poultry, fish and vegetables stay covered after cooking.

Brush a little oil or melted butter over the fish.

All vegetables should be cooked at full microwave power.

Add 30 - 45 ml of cold water for every 250 g of vegetables.

Cut the fresh vegetables into even size pieces before cooking. Cook all vegetables with a cover on the container.

9.4 Reheating

When you reheat packed ready meals always follow the instruction written on the packaging.

9.5 Grilling

Grill flat food items in the middle of the grill rack.

Turn the food over halfway through the set time and continue grilling.

9.6 Combi Cooking

Use the Combi Cooking to keep the crispness of certain foods.

At the half of the cooking time, turn over the foods then continue.

There are 4 modes for Combi Cooking. Each mode combines the microwave, grill and convection functions at different time periods and power levels.

9.7 Convection Cooking

You can cook food as in a traditional oven.

No microwaves are used.

10. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

10.1 Notes and tips on cleaning

- Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.

• To clean metal surfaces, use a usual cleaning agent.
• Clean the appliance interior after each use. Then you can remove dirt more easily and it does not burn on.

• Clean stubborn dirt with a special cleaner.

• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.

• To soften the hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes.

- To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

11. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

11.1 What to do if...

Problem Possible cause Remedy
The appliance does not operate.	The appliance is deactivated. Activate the appliance.
The appliance does not operate.	The appliance is not plugged in.	Plug in the appliance.
The appliance does not operate.	The fuse in the fuse box is blown.	Check the fuse. If the fuse blows more than one time, contact a qualified electrician.
The appliance does not operate.	The door is not closed properly.	Make sure that nothing blocks the door.
The lamp does not operate.	The lamp is defective. The lamp has to be replace.
The display shows [---].	The Child Safety Lock is active.	Deactivate the Child Safety Lock. Hold for 3 seconds.
There is sparking in the cavity.	There are metal dishes or dishes with metal trim.	Remove the dish from the appliance.
There is sparking in the cavity.	There are metal skewers or aluminium foil that touches the interior walls.	Make sure that the skewers and foil does not touch the interior walls.
The turntable set makes scratching or grinding noise.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray.
The appliance stop to operate without a clear reason.	There is a malfunction. If this situation repeats call the Authorised Service Center.

11.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the appliance. Do not remove the rating plate from the appliance.

We recommend that you write the data here:

Model (MOD.) ......

Product number (PNC) ....

Serial number (S.N.) ....

12. INSTALLATION

WARNING!

Refer to Safety chapters.

12.1 General Information

CAUTION!

Do not block the air vents. If you do that, the appliance can overheat.

CAUTION!

Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.

CAUTION!

The minimum installation height is 85 cm.

• The microwave is for built-in use only. It must be placed on a stable and flat surface.
• The cabinet can not have a back wall in the place where the microwave is located.
• Put the microwave far away from steam, hot air and water splashes.
• If the microwave is to close to the TV and radio it may cause interference in the received signal.
• If you transport the microwave in cold weather, do not activate it immediately after the installation. Let is stand in the room temperature and absorb the heat.

12.2 Electrical installation

WARNING!

Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

This microwave is supplied with a main cable and main plug.

The cable has an earth wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock.

12.3 Installing the microwave

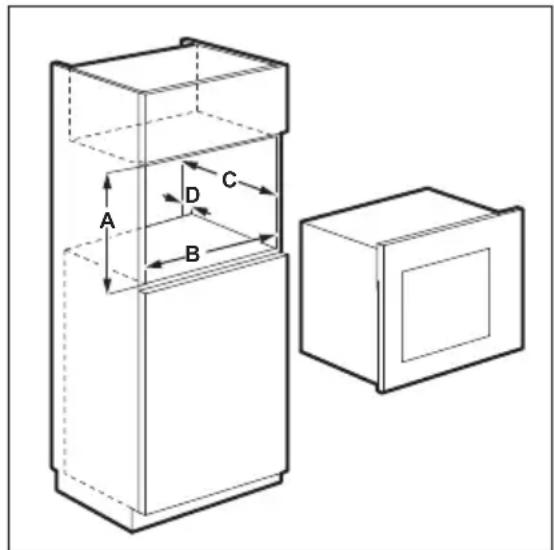

1. Check if the dimensions of the furniture meet the installation distances.

Technical diagram showing a 3D box assembly with labeled dimensions A, B, C, D and an inset view of the same box.

Installation distances

Dimension mm

A 380 + 2

B 560 + 8

C 550

Dimension mm

D 45

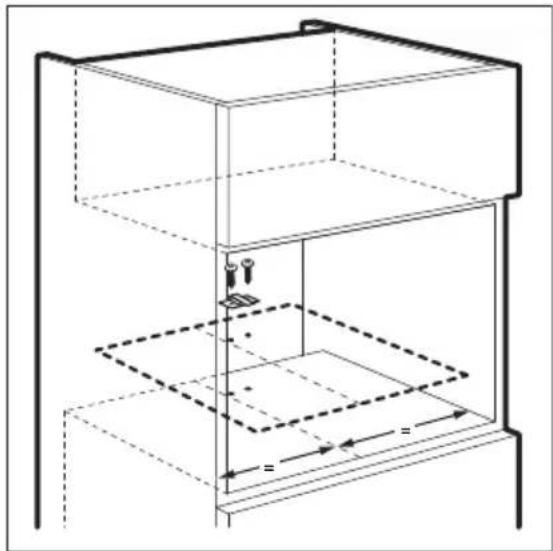

1. If the cabinet depth is over 300 mm, put the template on the bottom of cabinet and check if it fits. If yes, mark the spots for screws. Remove the template and fix the bracket with the screws in the marked spot.

Skip this step if the cabinet depth is 300 mm.

Technical line drawing of a multi-level container or storage unit with dashed internal layers and no visible text or symbols

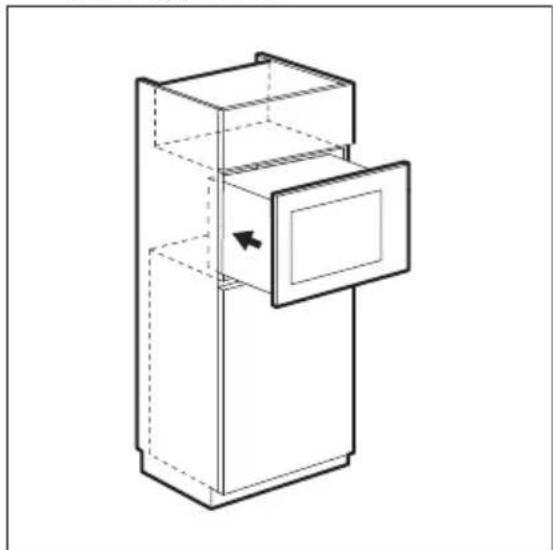

1. Install the microwave. If you fixed the bracket, make sure it locks the back of the appliance.

Line drawing of a cabinet with an open door and a directional arrow indicating rotation (no text or symbols)

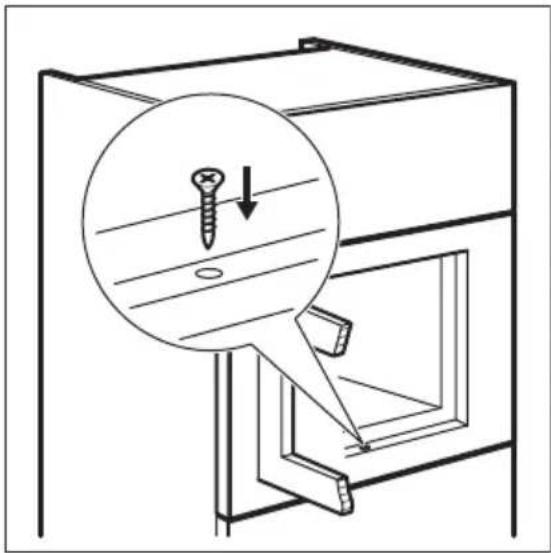

1. Open the door and fix the microwave to the cabinet with screw.

Diagram of a screw installation with a magnified inset showing the screw being inserted (no text or symbols present)

13. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the

environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ✗ with the household waste. Return the

product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. INFORMATIONS DE SÉCURITÉ....20

2. CONSIGNES DE SÉCURITÉ....24

3. DESCRIPTION DE L'APPAREIL....25

4. AVANT LA PREMIÈRE UTILISATION.... 27

5. UTILISATION QUOTIDIENNE....27

6. PROGRAMMES AUTOMATIQUES....31

7. UTILISATION DES ACCESSOIRES.... 33

8. FONCTIONS SUPPLÉMENTAIRES.... 33

9. CONSEILS....34

10. ENTRETIEN ET NETTOYAGE....35

11. DÉPANNAGE.... 35

12. INSTALLATION.... 36

NOUS PENSONS À VOUS

Line drawing of two circular objects with concentric rings, one above and one below, both without any text or symbols.

Line drawing of a circular heating element with four vertical supports (no text or symbols)

Utilisez-la pour :

5.5 Convection naturelle

Diagram of a circular mechanical component with a base and top view, showing internal structure and assembly (no text or symbols)

7.2 Installation de la grille

Line drawing of a circular heating element with radial stirrer and base (no text or symbols)

8. FONCTIONS SUPPLÉMENTAIRES

Technical diagram showing a 3D box assembly with labeled dimensions A, B, C, D and an inset view of a rectangular housing.

Technical line drawing of a multi-level container or storage unit with dashed internal layers and no visible text or symbols

Diagram showing a screw being inserted into a housing, with a magnified inset highlighting the screw detail (no text or symbols present)

Line drawing of a cabinet with an open door and a directional arrow indicating rotation (no text or symbols)

13. EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT

Line drawing of two circular objects with rings and a small protrusion, no text or symbols present

Line drawing of a circular heating element with four vertical supports and a central slatted top (no text or symbols)

Verwendung:

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and assembly (no text or symbols)

Line drawing of a circular fire extinguisher with heat exchanger and mounted platform (no text or symbols)

8. ZUSATZFUNKTIONEN

8.1 Kindersicherung

Technical diagram showing a 3D box assembly with labeled dimensions A, B, C, D and an inset view of the same box.

Montageabstände

Maß mm
A 380 + 2
B 560 + 8
C 550
D	45

Technical line drawing of a multi-level storage unit with dashed internal layers and mounting points (no text or symbols)

Line drawing of a cabinet with an open door and internal panel, no text or symbols present

Diagram showing a screw installation with a magnified inset highlighting the screw and shaft (no text or symbols)

13. UMWELTTIPPS

Line drawing of two circular objects with rings and a small protrusion, no text or symbols present

Simple line drawing of a circular heating element with four vertical supports (no text or symbols)

Da utilizzare per:

Diagram of a circular mechanical component with a central hub and a base, showing internal structure without any text or symbols.

Line drawing of a portable stove or grill with a circular base and two side-mounted fans (no text or symbols)

Technical diagram showing a 3D box assembly with labeled dimensions A, B, C, D and an inset view of a cabinet or enclosure.

Technical line drawing of a multi-level storage unit with dashed internal layers and mounting points (no text or symbols)

Line drawing of a cabinet with an open door and a directional arrow indicating left motion (no text or symbols)

Diagram showing a screw being inserted into a housing, with an inset magnified view of the screw (no text or symbols present)

13. CONSIDERAZIONI SULL'AMBIENTE

Technical line drawing of two circular components with concentric rings and a knob (no text or symbols)

Line drawing of a circular heating element with four vertical supports and a central horizontal grille (no text or symbols)

Se usa para:

Diagram of a circular mechanical component with a central hub and a base, showing internal structure and assembly (no text or symbols)

Line drawing of a circular heating or fire extinguisher with heat exchanger and mounted components (no text or symbols)

Technical diagram showing a 3D box assembly with labeled dimensions A, B, C, D and an inset view of a cabinet or enclosure.

Technical line drawing of a multi-level container or storage unit with dashed internal layers and no visible text or symbols

Line drawing of a cabinet with an open door and a directional arrow indicating movement (no text or symbols)

Diagram showing a screw being inserted into a housing, with an inset magnified view of the screw (no text or symbols present)

Repeating pattern of gray geometric shapes on white background, no text or symbols present
