Product type	Fondue, raclette, and wok appliance
Brand	Fritel
Model	CR 1695
Power supply	Mains, 220-240 V ~
Power	1500 W (estimated)
Materials	Plastic base, heating element, metal cheese holder with wooden handles
Main functions	Thermostatic temperature adjustment, heating indicator light, height-adjustable and tiltable cheese holder up to 45°
Safety	Hot surfaces, do not immerse, use under supervision, minimum distance of 30 cm from walls
Cleaning and maintenance	Clean with a damp cloth; cheese holder washable with hot water and mild detergent; easy disassembly
Included accessories	Cheese holder, height regulator, fixing screws
Warranty	2 years, domestic use only
Usage	Domestic (professional use not covered by warranty)

Frequently Asked Questions - CR 1695 FRITEL

How to assemble the appliance?

Slide the height regulator (10) over the carrying arm (6) and insert the carrying arm into the opening (12) of the base (14). Tighten screws (11) and (13). Plug the cord into the connector (3).

How to use the appliance for raclette?

Place the appliance on a stable surface. Turn the cheese holder outward, place the cheese, then slide it under the heating element at a maximum distance of 2 cm. Plug in, set the thermostat, wait for the light to turn off, then melt the cheese. Scrape the melted cheese with a spatula.

What distance between the cheese and the heating element?

Always maintain a maximum distance of 2 cm between the cheese and the heating element for proper melting.

What to do if the cheese does not melt?

Check that the cord is properly plugged in, that the cheese is within 2 cm of the heating element, that the temperature is high enough, and that the cheese is suitable for raclette.

How to clean the appliance?

Let it cool completely, disassemble the appliance. Clean the cheese holder with hot water and a little detergent (without abrasive sponge). Clean the body with a damp cloth. Dry all parts thoroughly.

Can the appliance be used by children?

The appliance can be used by children aged 8 years and above only under constant supervision. Children under 8 years must be kept away from the appliance and its cord.

What to do in case of malfunction?

Do not use the appliance anymore and contact your point of sale. Do not attempt to repair it yourself; this would void the warranty.

What is the warranty of the appliance?

The warranty is 2 years from the date of purchase, for domestic use only. It covers manufacturing defects. Shipping costs are borne by the buyer.

Can I use an extension cord?

No, never use an extension cord or multi-socket. Plug the appliance directly into a wall socket and fully unwind the cord.

How to store the appliance?

After cleaning and drying, store the appliance in a stable and dry place. Make sure it is completely cool before storing.

USER MANUAL CR 1695 FRITEL

Fritel FAMILY

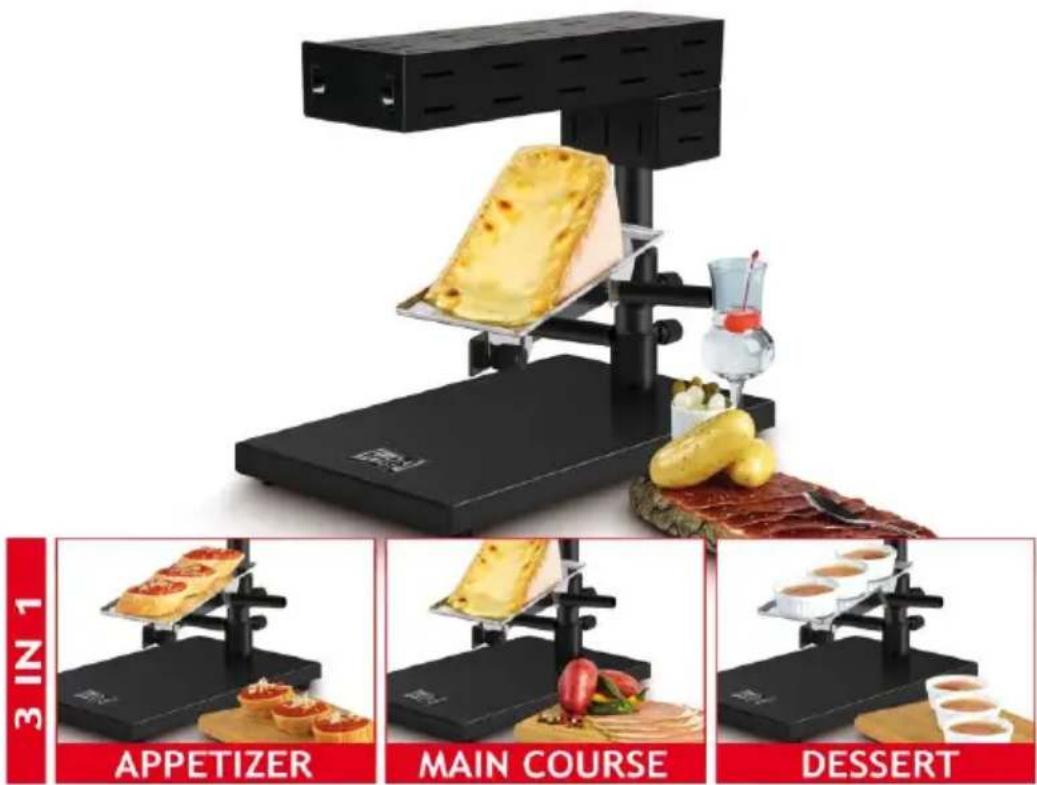

CHEESE RACLETTE CR 1695

3 IN 1 APPETIZER MAIN COURSE DESSERT

GEBRUIKSAANWIJZING

Attentively read the user manual before using the appliance!

Keep the manual carefully.

GEBRAUCHSANWEISUNG

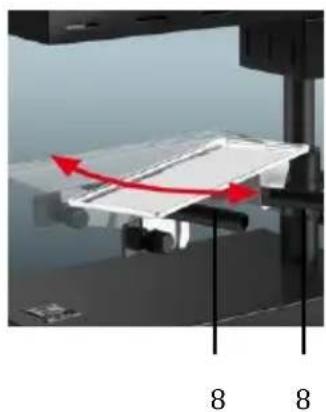

Mechanical assembly diagram showing a rotating component with red arrows indicating motion direction (no text or symbols)

Diagram of a mechanical assembly with red arrows indicating motion or force direction, labeled '8' at bottom (no text or symbols on diagram itself)

Close-up of a mechanical component with dimension annotations (10 and 11) and red directional arrows indicating movement or force, no readable text or symbols beyond measurement markers.

Close-up of a mechanical component with a labeled part '16' (no other text or symbols visible)

Close-up of a black and white object with a serrated edge, labeled '15' at the base (no other text or symbols)

BESCHRIJVING VAN HET TOESTEL1. Traploos regelbare thermostaat2. Controlelampje thermostaat3. Aansluiting voor afneembaar snoer4. Verwarmingselement5. Warmterelector6. Draagarm7. Kaashouder8. Handgrepen kaashouder9. Schroef instelling tot 45°10. Hoogteregelaar11. Schroef hoogteregelaar12. Draagarm opening13. Schroef draagarm opening14. Sokkel15. Raclette mes (apart verkrijgbaar)16. Antislipvoetjes

DESCRIPTION DE L'APPAREIL1. Thermostat réglable en continu2. Lampe témoin thermostat3. Raccord pour cordon amovible4. Elément chauffant5. Rélecteur de chaleur6. Bras porteur7. Porte-fromage8. Poignées du porte-fromage9. Vis pour ajustement jusqu'à 45°10. Régulateur de hauteur11. Vis du régulateur de hauteur12. Ouverture du bras porteur13. Vis de l'ouverture du bras porteur14. Base15. Couteau à raclette (disponible séparément)16. Pieds antidérapants

DESCRIPTION OF THE APPLIANCE1. Continuously adjustable thermostat2. Control lamp for the thermostat3. Connection for removable cord4. Heating element5. Heat relector6. Support arm7. Cheese holder8. Handles chees holder9. Screw inclination till 45°10. Height regulator11. Screw height regulator12. Opening support13. Screw opening support14. Base with antiskid feet15. Raclette knife (separately available)16. Antiskid feet

BESCHREIBUNG DES GERÄTES1. Stufenlos regelbarer Thermostat2. Kontrolllampe Thermostat3. Anschluss des abnehmbaren Kabel4. Heizelement5. Wärmerelektor6. Tragarm7. Käsehalter8. Handgriffe Käsehalter9. Schraube Einstellung bis 45°10. Höheregler11. Schraube Höheregler12. Tragarm Öffnung13. Schraube Tragarm Öffnung14. Sockel15. Raclette Messer (separat erhältlich)16. Gleitschutz Füssen

Black and white photo of a food grater with three small pastries on a wooden base (no text or symbols visible)

Hapje/Voorgerecht:

- Bruscetta

- Mini pizza

- Geitenkaasje met spek

- ...

Steamed griddle with cheese and sauté on a black stand (no text or symbols visible)

Laboratory setup with a black stand and three white cups on a wooden tray (no visible text or symbols)

Dessert:

- Creme brulée

- Crumble

- ...

GEBRUIK

Modern kitchen grater with three baked pastries on a wooden base (no text or symbols visible)

Modern flat-screen griddle with sandwich and plate, no visible text or symbols

Plat

principal/accompagnement:

Laboratory setup with a black stand and three white cups on a wooden tray (no visible text or symbols)

Dessert:

- Crème brulée

- Crumble

- ...

CONDITIONS DE GARANTIE

This appliance has been built in accordance with the European CE safety standards. As for all electrical appliances, the necessary precautions need to be taken in order to avoid accidents and/or damages.

All persons who have not read the instruction manual are not allowed to use this appliance. Pay ATTENTION to the warranty conditions

For all supplementary information and practical tips about all our appliances please visit our website www.fritel.com

SAFETY PRESCRIPTIONS

- ATTENTION please! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the hand or the control buttons when the appliance is in action.

- ATTENTION please! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, clea it or putting it away.

- This appliance may not be used by children from 0 to years old. This appliance may be used by children of many years old, only under continuous supervision. This appliance may be used by persons with reduced physical sensory or mental capabilities or lack of experience knowledge on condition they are supervised or instructed to use the appliance in a safe way and understand the hazard involved. Keep the appliance and its cord out of reach of children less than 8 years. Cleaning and user maintenance shall NOT be made by children.

- Cooking appliances need to be placed on a stable surface

means of the handles (if any) to avoid tilting/shifting an spilling of hot liquids.

- The appliance is only intended for household use as similar applications:

- staff kitchens in shops, offices and other work environments; farms;

- clients in hotels, motels and other residential environment

- bed & breakfast environments.

- The appliance is only intended for household use at roo temperature. NEVER use the appliance outdoors.

- A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. These cases return the appliance to your sales point or recognized after sales service.

- NEVER touch the control button, electrical power cord and plug with wet hands. NEVER immerse the appliance, the power cord or the plug in water (or any other liquid). T are only to be cleaned with a damp cloth. In case the appliance does get wet or moist, immediately disconnect plug from the power socket.

- NEVER use separate timers or remote control systems.

- After use remove the plug from the electrical socket. Also remove the plug when the appliance is not in use, when you clean the appliance or when you move it.

- Always put the appliance on a stable and lat underground, like a kitchen counter or a table so that it cannot turn over or slide.

- Always place the appliance on a heat-resistant surface. A wooden surface always needs to be protected against the heat of the appliance.

- NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. Always completely unroll the power cord.

- NEVER let the cord hang over the edge of the table or the counter.

• NEVER place the appliance near heating sources like cookers, heating or oven.
• NEVER place the appliance and the power supply cord near water sources, such as a sink.
  • NEVER cover the appliance when in use.
• Make sure there is a distance of minimum 30 cm between the appliance and the wall. Keep the appliance away from inflammable goods, such as curtains, textile, paper,
• Only use the appliance on the mains voltage as indicated on the id label.
• NEVER use the appliance without cheese or other food.
• Only use the original accessories.

BEFORE THE FIRST USE

• Remove all packaging and stickers. Keep packing material away from children.
• The appliance is not assembled. Assemble it as described under ‘Assemble the appliance’
• Clean the appliance as described under 'Cleaning'.
  • The appliance is ready for use.

ASSEMBLE THE APPLIANCE

• Slide the height regulator (10) over the support (6) and then put the support in the support opening (12) on the base (14).
• Slide the height regulator to the desired height and tightly fasten the screw (11) on the height regulator.
• Tightly fasten the screw (13) on the support.
• Put the cord in the connection (3)
  • The appliance is ready for use.

WHAT CAN YOU MAKE WITH THE APPLIANCE?

Laboratory setup with a black stand and two plates of bread slices, no visible text or symbols.

Snack /appetizer:

• Bruschetta
• Mini pizza
• Goat cheese with bacon

Modern microwave grater setup with a flat-screen die and various food items (no visible text or labels)

Main course/side dish:

• Cheese Raclette
• Gratin Dauphinois

- ...

Industrial machine setup with three cups on a wooden tray, no visible text or symbols

Dessert:

- Crème brulée

- Crumble

- ...

• Place the appliance on a stable base.
• Turn the cheese holder towards the outside and put a piece of cheese on the holder.
• Slide the cheese holder to the desired height with the height regulator, depending on the thickness of the cheese.
  ATTENTION: Always keep 2 cm distance to the heating element. Tightly fasten the screw (11).
• If you use a part of cheese, you can turn the cheese holder into a corner of 45^ . Unscrew the screw (9), and adjust the cheese holder so that the upper side of the cheese lies horizontally. Then tighten the screw.
• Insert the plug in the socket and turn the thermostat knob into the desired position. The red control light will turn on. As soon as the desired temperature is reached the control light will turn off.
• When irst in use, it is possible for some smoke to come from the appliance. This is normal and will disappear automatically.
• Turn the cheese holder below the heating element.
• Let the cheese melt below the heating element. ATTENTION: the appliance is now hot!

TIP: Does the cheese not melt (enough)? Check points below:

- Check if the plug is correctly inserted into the socket and into the connection of the appliance.

- The cheese is too far from the heating element → place the cheese holder on max. 2 cm of the heating element.

- The chosen temperature is too low turn the thermostat knob higher.

- The used cheese is not suited for melting Use raclette cheese.

• Turn the cheese holder away from the appliance with the handles as soon as the cheese is sufficiently melted.
• Scrape of the desired amount of cheese.
  • After 2 or 3 portions, remove the excess of crust before you continue.
• Push the cheese holder back below the heating element. If necessary, adjust the height of the cheese holder. ATTENTION The appliance is hot! To change the height of the cheese holder while in use, use oven gloves.
• After use, turn the thermostat knob off and pull the plug from the socket and from the connection of the appliance.

• Let the appliance completely cool down before you move, dismount or clean the appliance.

• The appliance needs to be completely cooled down before you dismount or clean it.

• First dismount the appliance. In order to do this, follow the steps as mentioned in ‘Assemble the appliance’ but the other way around.
• Clean the cheese holder with warm water and some soap. Do not use any scourer or abrasive products.
• Clean the appliance with a clean humid cloth.
• If needed, remove the heat relector and clean with warm water and some soap. Do not use any scourer or abrasive products.
• Carefully dry off all the parts.
• Put the appliance away in a stable dry place.

USEFUL TIPS IN CASE OF MALFUNCTIONS

Do not use the appliance, when the fondue or the cord is malfunctioning. Then go to your point of sale.

THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE. THE WARRANTY CONDITIONS EXPIRE UPON PROFESSIONAL USE DEFECTS AND/OR DAMAGES FOLLOWING TO THE NON OBSERVANCE OF THE USER MANUAL ARE NOT COVERED BY THE WARRANTY.

We reserve the right to carry out technical modifications.

WARRANTY CONDITIONS

Your warranty starts on the day of purchase. The warranty lasts 2 years.

Determination of warranty:

- The warranty covers every repair and/or replacement free of charge of the parts recognized defective by our Department of Service after Sale if the damage is due to faulty design, material or construction. The warranty does not cover damage or normal wear of the baking plate.

• The warranty is only valid for the irst/original user.
• The transport costs are at the expenses of the purchaser.
• The warranty is only granted after presentation of your purchase invoice.
• The warranty cannot be invoked for normal wear and tear.

The warranty expires automatically in the following cases:

• Incorrect connection, e.g. electric voltages.
• Abnormal or professional use or misuse handling
• Lack of care and cleaning

• Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.

• When reference numbers have been altered or been removed.

• When not respecting the instructions in the user instructions

ENVIRONMENT

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

LIABILITIES

All liabilities, towards both consumer(s) and third parties, that could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the deep fryer, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

***

FOR ALL SUPPLEMENTARY INFORMATION, RECIPES AND PRACTICAL TIPS ABOUT ALL OUR APPLIANCES PLEASE VISIT OUR WEBSITE WWW.FRITEL.COM !

FIND US ON FACEBOOK: WWW.FB.COM/FRITEL.VANRATINGEN!
