USER MANUAL Series 3000 HC3510 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

HC5410/15

HC3410/15

HC3400/15

HC3400/13

User manual

PHILIPS

ENGLISH 6

DANSK 11

DEUTSCH 16

EAAHNIKA 22

ESPANOL 28

SUOMI 33

FRANÇAIS 38

ITALIANO 44

NEDERLANDS 49

NORSK 55

PORTUGUES 60

SVENSKA 65

TÜRKÇE 70

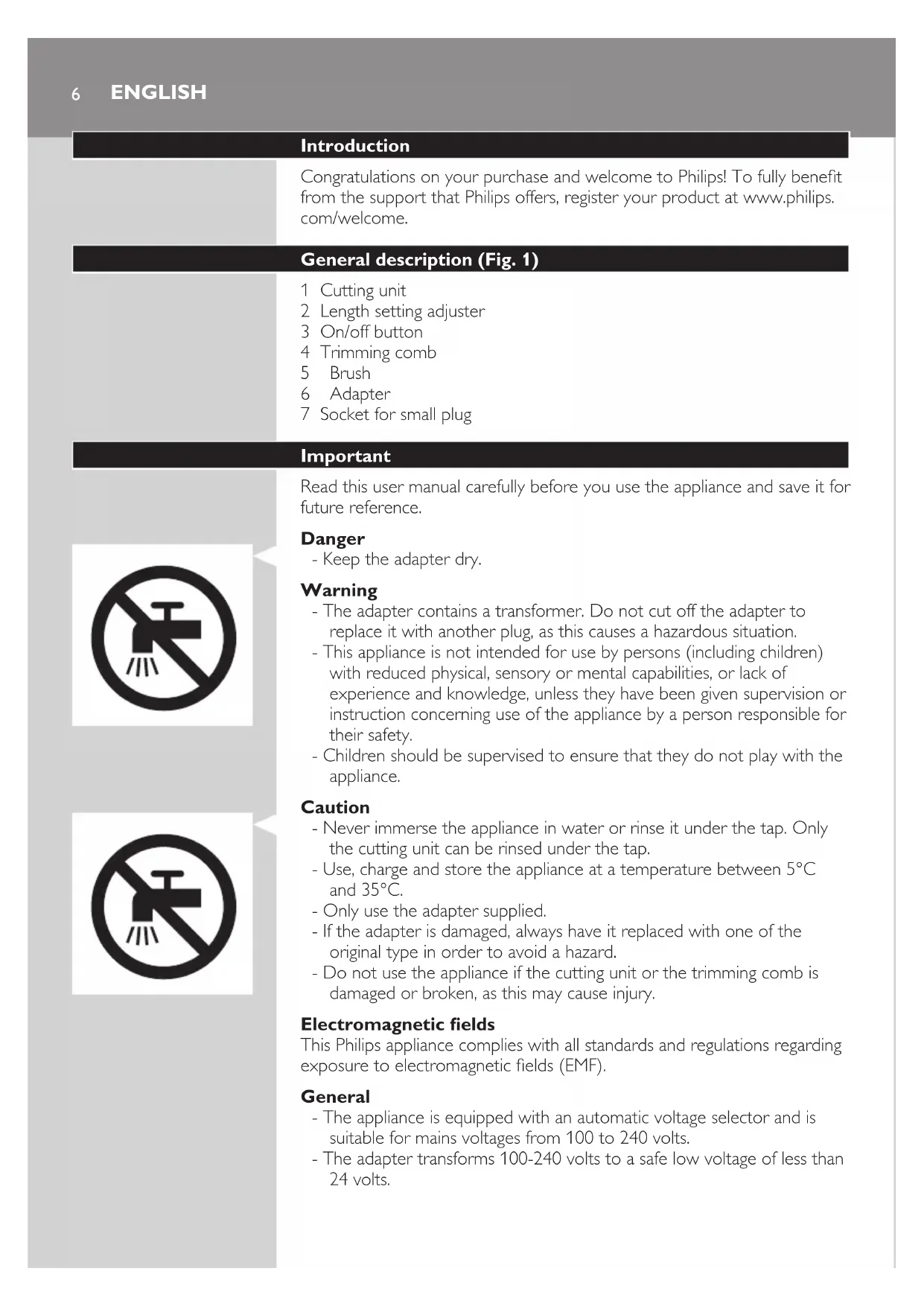

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

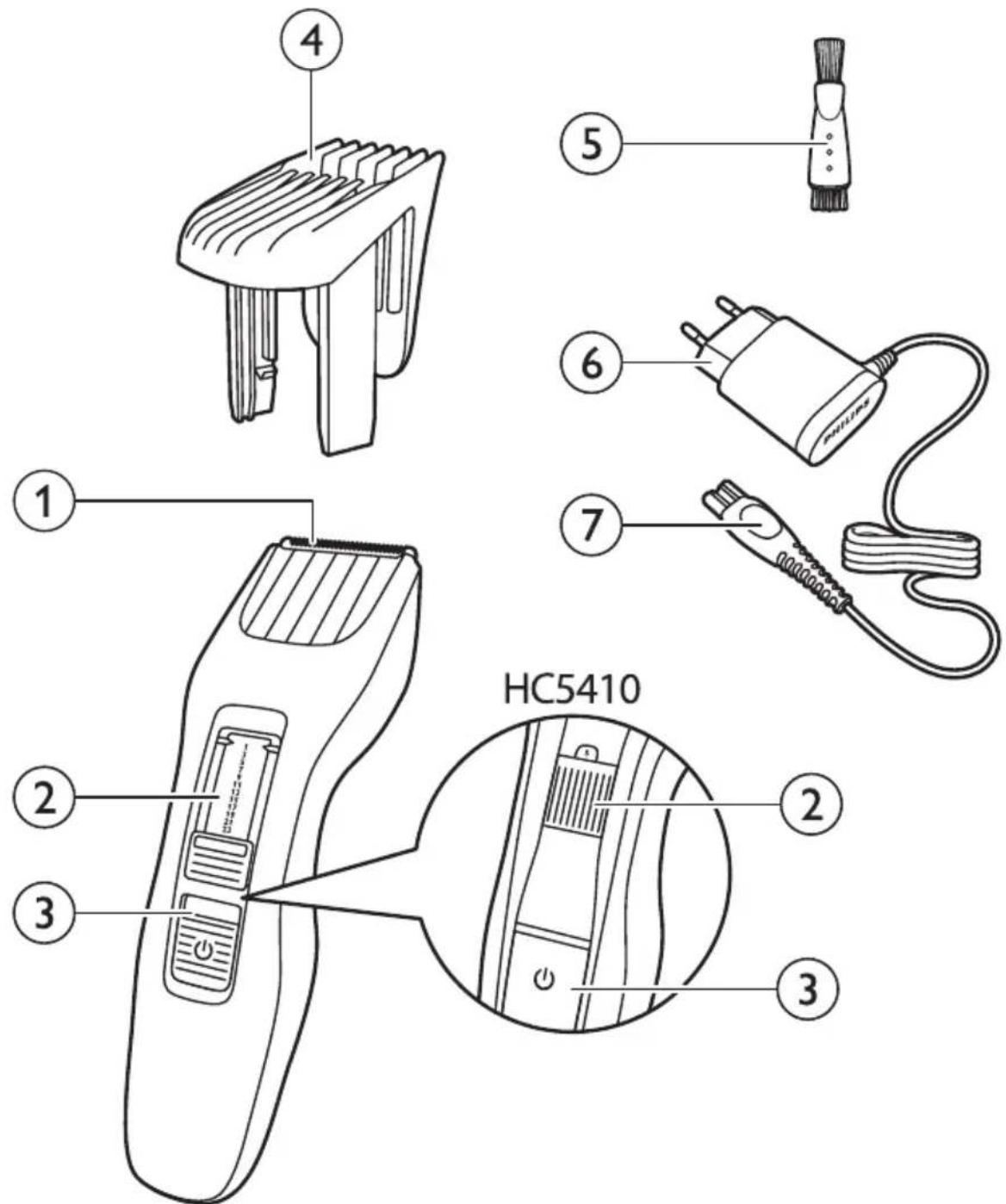

General description (Fig. 1)

1 Cutting unit
2 Length setting adjuster
3 On/off button
4 Trimming comb
5 Brush
6 Adapter
7 Socket for small plug

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Caution

• Never immerse the appliance in water or rinse it under the tap. Only the cutting unit can be rinsed under the tap.
• Use, charge and store the appliance at a temperature between 5^ and 35^ .
• Only use the adapter supplied.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• Do not use the appliance if the cutting unit or the trimming comb is damaged or broken, as this may cause injury.

Electromagnetic fields

This Philips appliance complies with all standards and regulations regarding exposure to electromagnetic fields (EMF).

General

• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Preparing for use

Note: This appliance can only be used directly from the mains.

Preparing the appliance

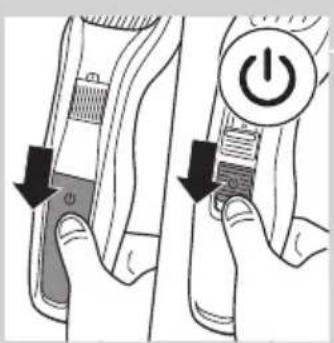

1 Make sure the appliance is switched off.

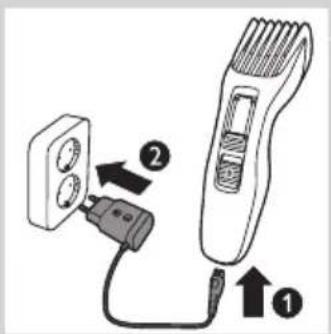

2 Insert the appliance plug into the appliance (1) and put the adapter in the wall socket (2).

Using the appliance

The hair length settings are indicated in millimeters, the comb cuts the hair to a length of 1mm to 23mm . The settings correspond to the remaining hair length after cutting.

When you trim for the first time, be careful. Do not move the trimmer too fast. Make smooth and gentle movements.

Tip: Start trimming at a high length setting and reduce the length setting gradually until you have reached the desired hair length.

Trimming with comb

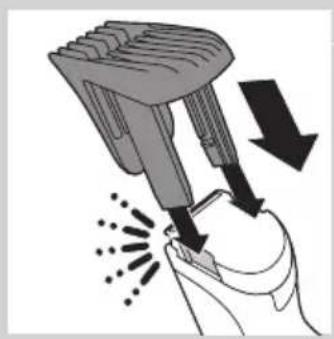

1 Attach the comb onto the appliance.

ENGLISH8

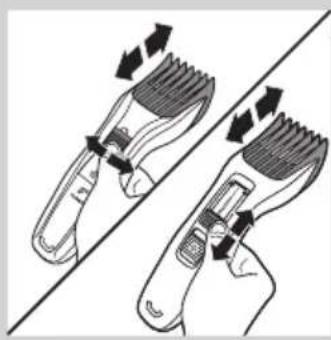

2 Turn the length setting adjuster to the desired length setting.

Note: When you trim for the first time, start at the highest length setting to familiarise yourself with the appliance.

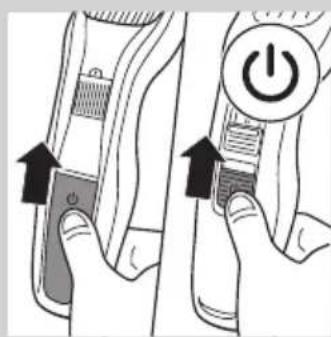

3 Switch on the appliance.

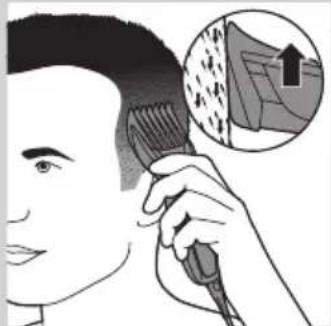

4 To trim most effectively, move the trimmer against the hair growth direction. Make sure the surface of the comb always stays in contact with the skin.

Trimming without comb

Use the trimmer without the trimming comb to clip hair close to the skin (0.5mm) or to contour the neckline and sideburns.

Be careful when you trim without comb because the cutting element removes every hair it touches.

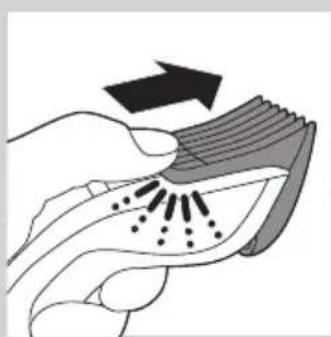

Push the comb off the appliance.

2 Switch on the appliance.

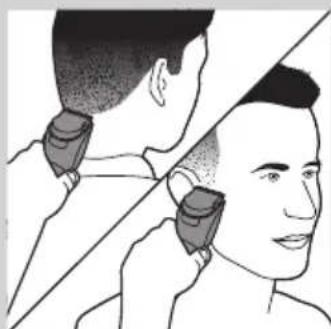

3 Make well-controlled movements. Touch the hair lightly with the trimmer.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

Never immerse the appliance in water or rinse it under the tap.

Note: Only the cutting element and the comb can be cleaned with water.

1 Make sure the appliance is switched off and disconnected from the mains.

2 Wipe the housing of the appliance with a dry cloth.

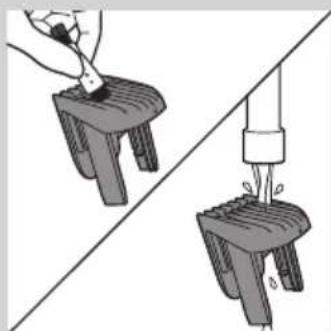

3 Remove the comb and clean it with the brush or rinse it under the tap.

4 Press the release button (1). The cutting unit comes off the appliance (2).

5 Clean the cutting unit with the brush or rinse it under the tap.

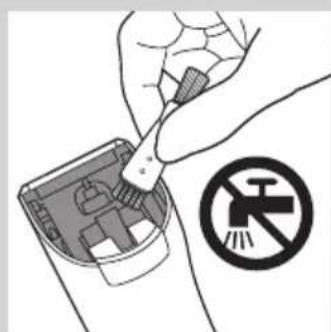

6 Clean the inside of the appliance with the brush.

Never immerse the appliance in water or rinse it under the tap.

7 Shake off excess water. To reattach the cutting unit, insert the lug of the cutting unit into the guiding slot.

Insert the lug of the cutting unit into the guiding slot (1) and push the cutting unit back onto the appliance (2).

Replacement

Only replace a worn or damaged cutting unit with an original Philips cutting unit, available from authorised Philips service centres.

Press the release button (1). The cutting unit comes off the appliance (2).

2 Insert the lug of the new cutting unit into the guiding slot (1) and push the cutting unit back onto the appliance (2).

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.
