| Product type | Cordless sabre saw (pruning saw) |
| Brand | Florabest |
| Model | FAAS 12 A1 |
| Rated voltage | 12 V (direct current) |
| No-load speed | 0 - 2700 min⁻¹ |
| Stroke length | 20 mm |
| Maximum cutting capacity (wood) | 80 mm |
| Battery type | Lithium-ion |
| Battery capacity | 1.5 Ah |
| Charging time | Approx. 60 min |
| Charger input voltage | 230 - 240 V~, 50 Hz |
| Sound pressure level | 79 dB(A) (uncertainty 3 dB) |
| Sound power level | 90 dB(A) (uncertainty 3 dB) |
| Vibration (cutting panels) | 6.6 m/s² (K=1.5 m/s²) |
| Vibration (cutting beams) | 12.6 m/s² (K=1.5 m/s²) |
| Delivery contents | 1 pruning saw, 1 fast charger, 1 battery pack, 1 support bracket, 1 wood blade 152 mm, 1 carrying case, 1 manual |
| Main functions | Safety lock, quick-release chuck, base plate, support bracket, plunge cutting, flush cutting |
| Safety | Hand guard, double insulation (charger), detailed safety instructions |
| Maintenance and cleaning | Clean with a cloth, do not use solvent, store battery between 50% and 80% charge |
| Warranty | 3 years |
| After-sales service | France: 0800 919270, Belgium: (see manual) |
| Spare parts and repairability | Battery, switch, support bracket available; repairs by authorised service centre |
Frequently Asked Questions - FAAS 12 A1 FLORABEST
User questions about FAAS 12 A1 FLORABEST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual FAAS 12 A1 - FLORABEST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FAAS 12 A1 by FLORABEST.
USER MANUAL FAAS 12 A1 FLORABEST
GB IE
CORDLESS BRANCH SAW
Translation of the original instructions
NL BE
ACCU-TAKKENZAAG
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
FR BE
GB / IE Translation of the original instructions Page 1
Introduction 2
Intended use 2
Features 2
Package contents 2
Technical data 2
General Power Tool Safety Warnings 3
- Work area safety 3
- Electrical safety 3
- Personal safety 4
- Power tool use and care 4
- Use and handling of the cordless electrical power tool 5
- Service 5
Appliance-specific safety instructions 5
Safety guidelines for battery chargers 5
Practical advice on sawing 5
Original accessories/auxiliary equipment 6
Information on saw blades 6
Before use....6
Charging the battery pack 6
Attaching/disconnecting the battery pack to/from the appliance 6
Checking the battery charge level 6
Attaching/removing the grip bracket 7
Fitting/changing the saw blade 7
Operation 7
Switching on and off 7
Sawing methods 7
Maintenance and cleaning 8
Warranty....8
Service....9
Importer....9
Disposal....9
Translation of the original Conformity Declaration .... 10

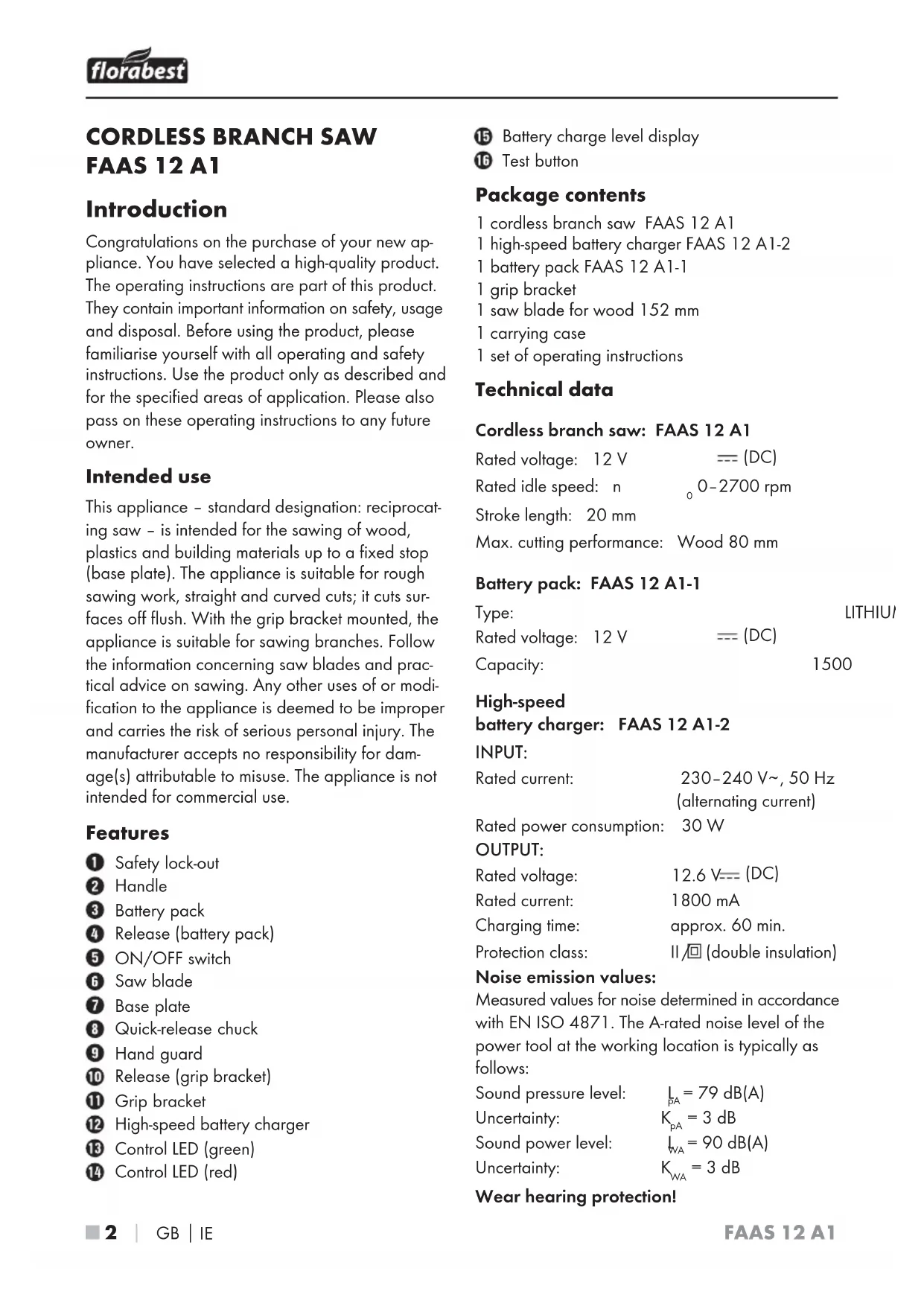

CORDLESS BRANCH SAW FAAS 12 A1
Introduction
Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.
Intended use
This appliance - standard designation: reciprocating saw - is intended for the sawing of wood, plastics and building materials up to a fixed stop (base plate). The appliance is suitable for rough sawing work, straight and curved cuts; it cuts surfaces off flush. With the grip bracket mounted, the appliance is suitable for sawing branches. Follow the information concerning saw blades and practical advice on sawing. Any other uses of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use.
Features
① Safety lock-out
② Handle
3 Battery pack
4 Release (battery pack)
5 ON/OFF switch
6 Saw blade
⑦ Base plate
8 Quick-release chuck
9 Hand guard
10 Release (grip bracket)
11 Grip bracket
12 High-speed battery charger
13 Control LED (green)
14 Control LED (red)
15 Battery charge level display
16 Test button
Package contents
1 cordless branch saw FAAS 12 A1
1 high-speed battery charger FAAS 12 A1-2
1 battery pack FAAS 12 A1-1
1 grip bracket
1 saw blade for wood 152 mm
1 carrying case
1 set of operating instructions
Technical data
Cordless branch saw: FAAS 12 A1
Rated voltage: 12 V = (DC)
Rated idle speed: n 0-2700 rpm
Stroke length: 20 mm
Max. cutting performance: Wood 80 mm
Battery pack: FAAS 12 A1-1
Type: LITHIU/
Rated voltage: 12 V = (DC)
Capacity: 1500
High-speed
battery charger: FAAS 12 A1-2
INPUT:
Rated current: 230-240 V\~, 50 Hz (alternating current)
Rated power consumption: 30 W
OUTPUT:
Rated voltage: 12.6 V= (DC)
Rated current: 1800 mA
Charging time: approx. 60 min.
Protection class: II/回 (double insulation)
Noise emission values:
Measured values for noise determined in accordance with EN ISO 4871. The A-rated noise level of the power tool at the working location is typically as follows:
Sound pressure level: L_pA = 79 dB(A)
Uncertainty: K_pA = 3 dB
Sound power level: I_WA = 90 dB(A)
Uncertainty: K_WA = 3 dB
Wear hearing protection!
Total vibration values (vector total of three directions) determined in accordance with EN 60745:
Cutting boards: a
$$ \begin{array}{l} _ {\mathrm{h}, \mathrm{B}} = 6. 6 \mathrm{m} / \mathrm{s} ^ {2} \ \text { Uncertainty K } = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} \end{array} $$
Cutting wooden beams: q_h,WB = 12.6 m/s^2
$$ \text { Uncertainty } K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$
NOTE
The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.
WARNING!
The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General Tool Safety Warnings
Power
WARNING!
▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Use and handling of the cordless electrical power tool
a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable batteries if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
ION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!
ct the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions
■ Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
■ Wear a dust mask!
Safety guidelines for battery chargers
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
charger is suitable for indoor use only.
To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.
Practical advice on sawing
■ Check the material to be worked to make sure that all foreign objects have been removed, e.g. nails, screws, etc.
■ Switch the appliance off immediately if the saw blade jams. Open up the sawn gap using a suitable tool and pull out the reciprocating saw.
■ Saw the material at a constant speed.
Original accessories/auxiliary equipment
■ Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
Information on saw blades
You can use any saw blade that has a suitable mount - 1/2" (12.7 mm) universal shaft. Saw blades are available from retail stores in various lengths and optimised for a variety of purposes.
NOTE
▶ TPI = teeth per inch = the number of teeth per 2.54 cm
Before use
Charging the battery pack
CAUTION!
▶ Always unplug the appliance before you remove the battery pack ③ from or connect the battery pack to the high-speed battery charger ⑫
■ Never charge the battery pack ^3 when the ambient temperature is below 10°C or above 40°C.
Connect the battery pack 3 to the high-speed battery charger 12
- Insert the power plug into the socket. The control LED lights up red.
The green control LED indicates that the charging process is complete and the battery pack is ready for use.
♦ Push the battery pack 3 back into the appliance.
■ Never recharge a battery pack 3 again immediately after rapid charging. This could overcharge the battery pack 3, thus reducing the lifespan of the battery and charger.
You should always switch the high-speed charger 12 off for at least 15 minutes between successive charging processes. Also disconnect the power plug from the mains power socket.
Attaching/disconnecting the battery pack to/from the appliance
Attaching the battery pack:
◆ Click the battery pack ③ into the handle ②
Removing the battery pack:
◆ Press the release button 4 and remove the battery pack 3.
Checking the battery charge level

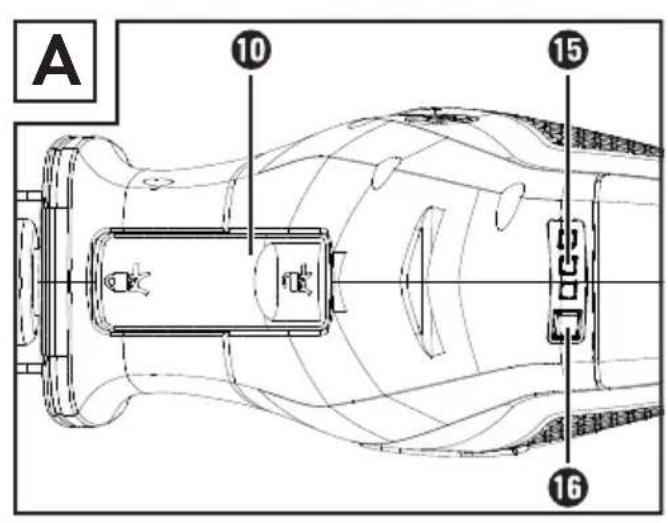

- Press the test button 16 to check the charge level of the battery (see Fig. A). The status/remaining charge will be shown on the battery charge level display 15 as follows:
- RED / ORANGE / GREEN = maximum charge/performance RED/ORANGE = medium charge/performance RED = low charge - charge the battery
Attaching/removing the grip bracket
NOTE
The grip bracket ^1 cannot be attached/removed while the saw blade is attached.

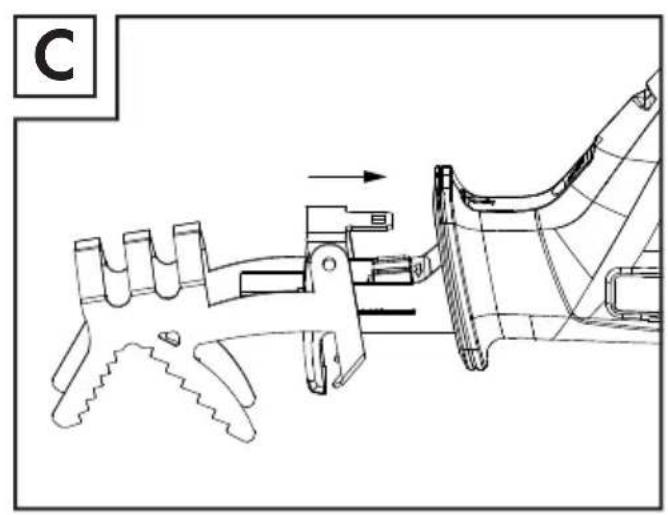

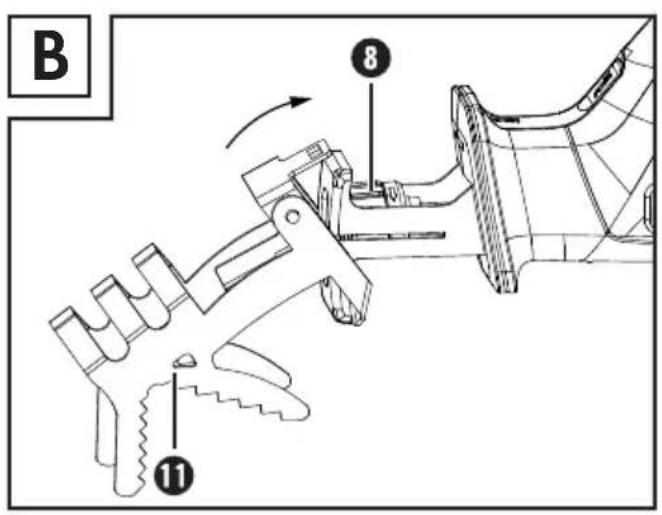

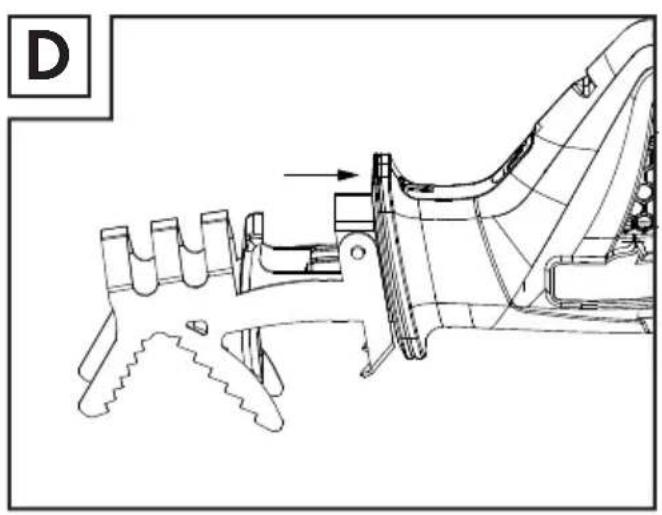

Attaching the grip bracket (see fig. B-D):
◆ Press the release button10.
♦ Push the grip bracket 11 over the guides on the base plate 7 and onto the appliance.
◆ Lock the release button10.
Removing the grip bracket:
◆ Press the release 0 and pull the grip bracket 11 forwards out of the guides.
Fitting/changing the saw blade
Wear protective gloves when fitting/changing a saw blade.

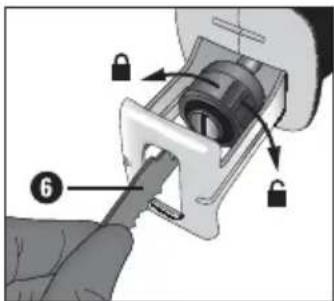

Turn the quick-release chud ^8 as far as it will go in the direction of the arrow and hold it in this position.
♦ Push the required saw blade into the quick-release chuck 8 as far as the stop.
CAUTION!
The teeth of the saw blade must point downwards!
Operation
Switching on and off
Switching on:
◆ Press the safety lock-ou1.
◆ Press the ON/OFF switch5.
Switching off:
Release the ON/OFF switch ^5 .

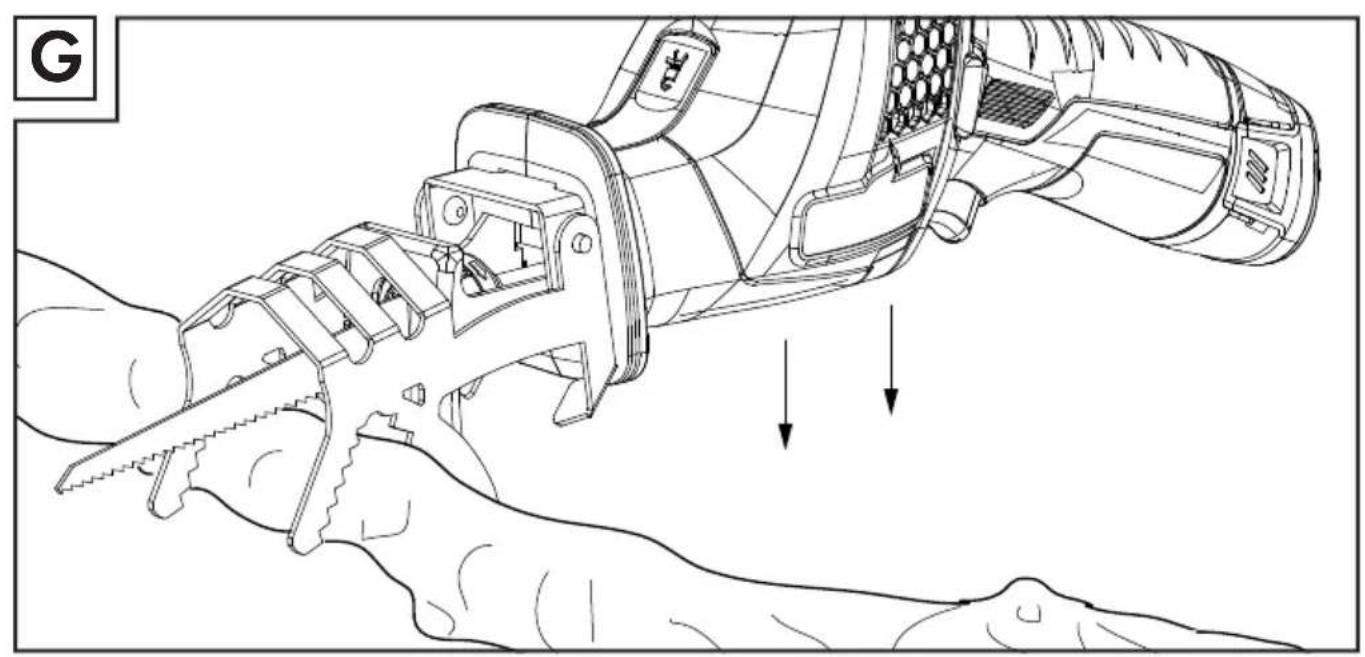

Sawing methods

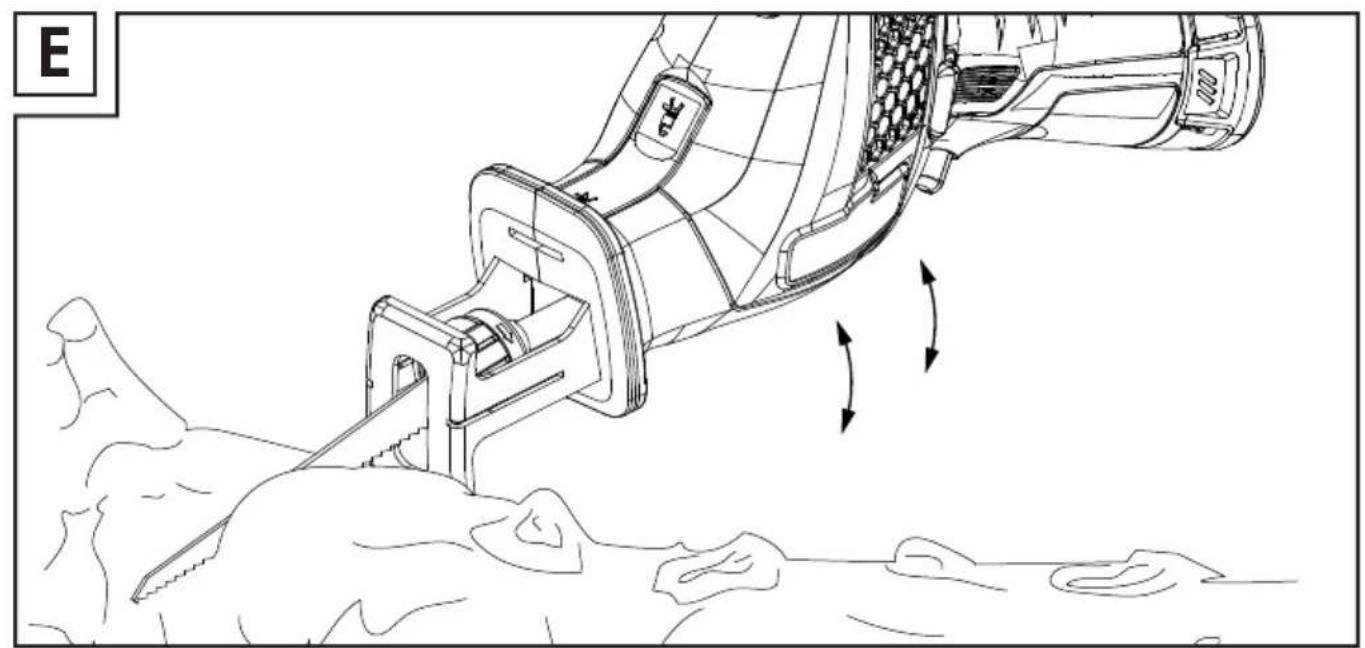

A) Working without the grip bracket (see fig. E):
For branches of a larger diameter or wood, plastic or building material, work without the grip bracket. The workpiece must be right up against the base plate. Use a rocking cutting motion for round workpieces.
A1) Sawing flush:
■ Flexible saw blades allow you to saw off protruding workpieces such as pipes located close to the wall, provided the saw blade is long enough.
- Place the saw blade directly against the wall.
- Bend it by applying lateral pressure to the reciprocating saw so that the base plate ⑦ comes into contact with the wall.
- Switch the appliance on as described and saw off the workpiece by applying constant pressure.
A2) Plunge cutting (see fig. F):
CAUTION! RISK OF KICKBACK!
▶ Plunge cuts may only be made in soft materials (wood or similar).

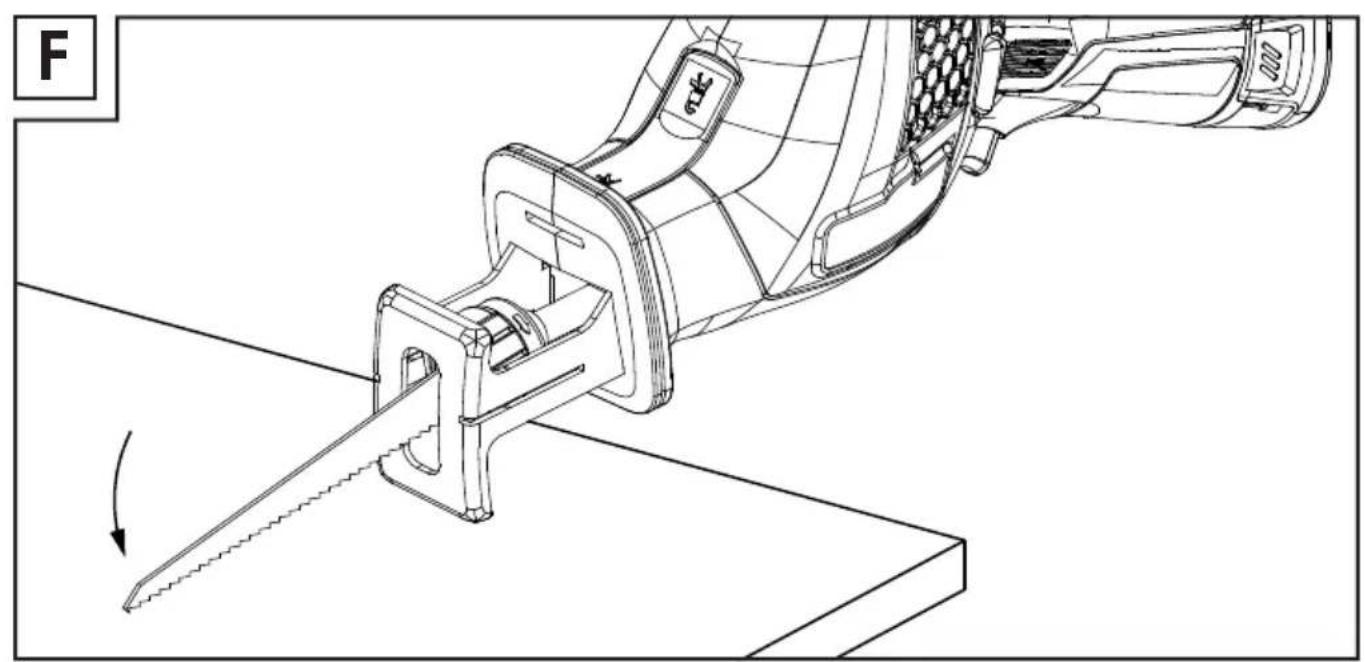

- Place the reciprocating saw with the lower edge of the base plate ⑦ on the workpiece. Switch the appliance on.
- Tilt the reciprocating saw forwards and plunge the saw blade into the workpiece.
- Position the reciprocating saw vertically and continue sawing along the cutting line.
B) Working with the grip bracket (see fig. G):
♦ Push down lightly and move the saw downwards.
Maintenance and cleaning
NING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.
■ Always remove the saw blade before carrying out any work on the power tool.
- Keep the appliance and ventilation slits clean at all times. If the ventilation slits are blocked, there is a risk of overheating and/or the appliance being damaged.
■ Always clean the appliance after completion of work.
- Do not allow any liquids to get into the appliance. Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
■ Clean the saw blade mount, if necessary with a brush or by blowing it out with compressed air.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry.
Warranty
This appliance is provided with a 3-year warranty valid from the date of purchase. The appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.
The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.
Service
WARNING!
▶ Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
▶ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.
NOTE
▶ Replacement parts not listed (such as batteries, switches and grip bracket) can be ordered via our service hotline.
GB
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 275666
IE
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 275666
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
dispose of power tools in your normal household waste!
European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.
dispose of batteries in your normal domestic waste!
Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.
Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)
Applied harmonised standards:
EN 60745-1:2009/A11:2010
EN 60745-2-11:2010
EN 62233:2008
EN 60335-1:2012/A11:2014
EN 60335-2-29:2004/A2:2010
EN 55014-1:2006/A2:2011
EN 55014-2:1997/A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
Type/appliance designation:
Cordless branch saw FAAS 12 A1
Year of manufacture: 02 - 2016
Serial number: IAN 275666
Bochum, 26/01/2016
- Quality Manager -
The right to effect technical changes in the context of further development is reserved.
Table des matières
Introduction....12
Informations relatives aux lames 16
Informations relatives aux lames
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Mise au rebut
Accupack: FAAS 12 A1-1
Type: LITHIUM-ION
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Afvoeren
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Entsorgung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
Last Information Update · Version des informations
Stand van de informatie · Stand der Informationen:
01 / 2016 · Ident.-No.: FAAS12A1-012016-3
