USER MANUAL SHBS 3.7 A1 SILVERCREST

6.1 Changing the cutting attachments ........ 79

6.2 Changing the comb attachments.......... 79

6.7 Trimming nose and ear hair................ 82

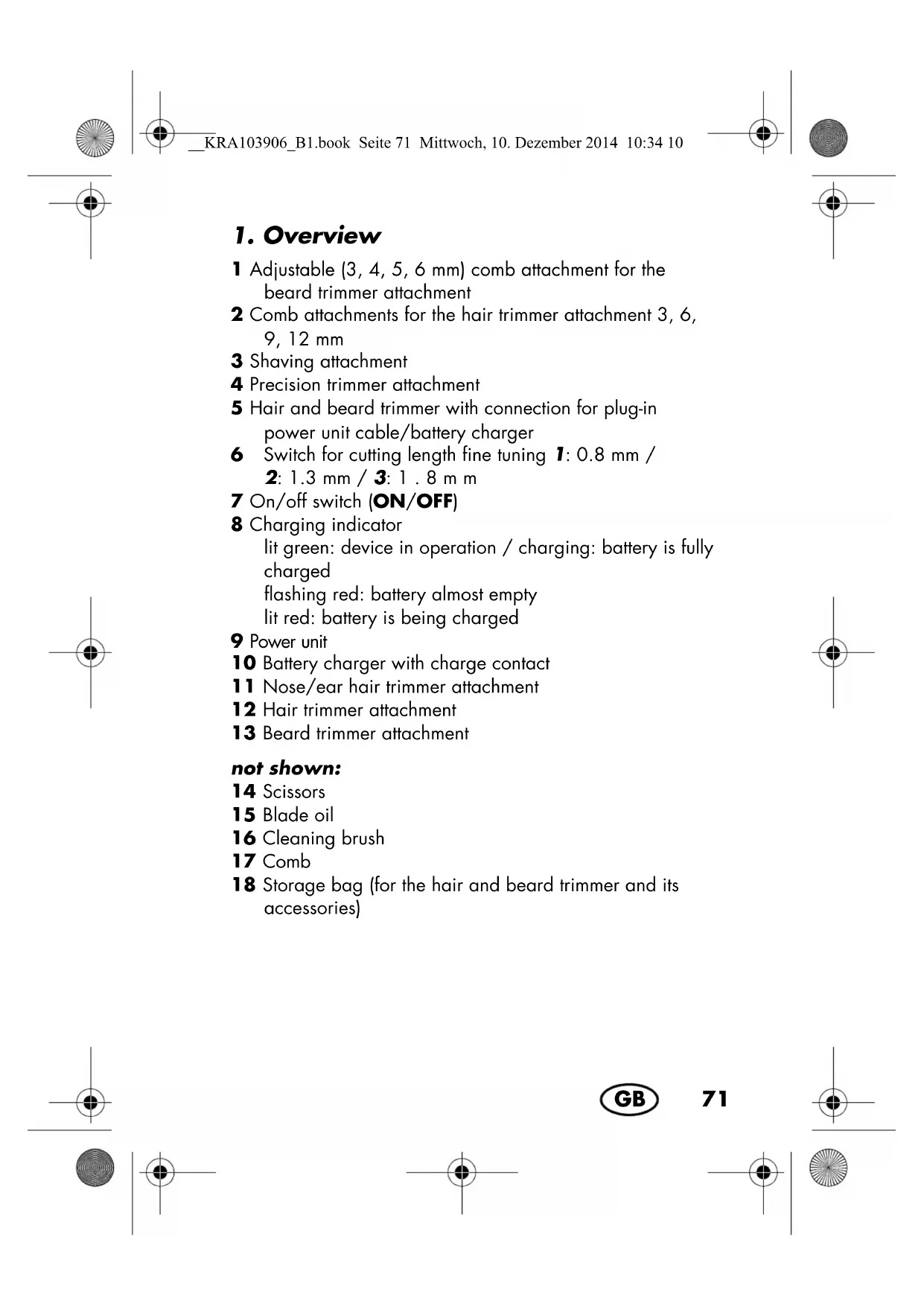

1 Adjustable (3, 4, 5, 6 mm) comb attachment for the beard trimmer attachment 2 Comb attachments for the hair trimmer attachment 3, 6, 9, 12 mm 3 Shaving attachment 4 Precision trimmer attachment 5 Hair and beard trimmer with connection for plug-in power unit cable/battery charger 6 Switch for cutting length fine tuning 1: 0.8 mm / 2: 1.3 mm / 3:1.8mm 7 On/off switch (ON/OFF) 8 Charging indicator lit green: device in operation / charging: battery is fully charged flashing red: battery almost empty lit red: battery is being charged 9 Power unit 10 Battery charger with charge contact 11 Nose/ear hair trimmer attachment 12 Hair trimmer attachment 13 Beard trimmer attachment not shown: 14 Scissors 15 Blade oil 16 Cleaning brush 17 Comb 18 Storage bag (for the hair and beard trimmer and its accessories)

Thank you for your trust! Congratulations on your new 5in1 hair and beard trimmer. For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.

• Above all, observe the safety instructions!

• The device should only be used as described in these operating instructions.

• Keep these operating instructions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new 5in1 hair and beard trimmer!

The 5in1 hair and beard trimmer is intended exclusively for trimming human hair. Only use the device for dry hair. The device is designed for private home use and must not be used for commercial purposes. The device must only be used indoors. Foreseeable misuse WARNING! Risk of material damage! Do not use the device to cut artificial hair or animal hair.

3. Safety information

Warnings If necessary, the following warnings will be used in these op- erating instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or material damage. NOTE: circumstances and specifics that must be observed when handling the device. Instructions for safe operation

This device can be used by children from the age of 8 and people with re- stricted physical, sensory or intellectual abilities or people without adequate ex- perience and/or understanding, if they are supervised or instructed on how to

use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and maintenance by the user must not be performed by children without su- pervision.

Keep children under the age of 8 away from the device and the power cable.

Only use the included original power adaptor for mains operation. DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation! ~ Keep the device out of the reach of children. DANGER! Risk of electric shock due to mois- ture ~ Protect the device from moisture, water drops and water splashes. ~ Never touch the device with wet hands. ~ The device, the battery charger and the power unit must not fall into water or other liquids and must not be rinsed under running water. ~ If the device has fallen into water, pull out the power unit immediately, and only then remove the device from the water. Do not use the device again, but have this checked by a specialist. ~ Should liquid enter the device, have it checked before starting the device up again.

~ If the device is used in a bathroom, the power unit must be pulled out after use, as the proximity of water represents a hazard, even when the device is switched off. ~ Installation of a residual current device (FI/RCD) with a rat- ed residual operating current of no more than 30 mA is recommended to provide additional protection. Ask your electrician for advice. The installation should only be car- ried out by a qualified electrician. DANGER! Risk of electric shock ~ Never put the device into operation if there are visible damages to the device, the battery charger or the cable or if the device has been dropped before. ~ Connect the cable to the device/battery charger before plugging the power unit into a wall socket. ~ Only connect the power unit to a properly installed, easily accessible wall socket, the voltage of which corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in. ~ Ensure that the cable cannot be damaged by sharp edges or hot surfaces. ~ Ensure that the cable is not trapped or crushed. ~ When removing the power unit from the wall socket, al- ways pull the power unit and never the cable. ~ Pull the power unit out of the wall socket, … … after every use, … after each charging process, … if there is a fault, … before connecting the device to the cable, … before you clean the device and … during thunderstorms. ~ To avoid any risk, do not make modifications to the de- vice. Repairs must be carried out by a specialist workshop or the Service Centre.

DANGER from batteries ~ Protect the battery against mechanical damages. Fire hazard! ~ Do not expose the device to direct sunshine or heat. The ambient temperature should not be lower than -10 °C and higher than +40 °C. ~ The charge contacts on the device must not be connected by metallic objects. ~ The battery may only be charged with the original acces- sory (power unit). ~ The battery only removed for disposal must not be used again. ~ Should the electrolyte solution leak out of the battery

avoid contact with eyes, mucous membranes and skin. Rinse immediately with plenty of clean water and consult a doctor. The electrolyte solution can cause irritation. WARNING! Risk of injury from cutting ~ The points of the comb attachments, the hair trimmer at- tachment, the beard trimmer attachment and the precision trimmer attachment are sharp. Handle with care. ~ Do not use the device if the attachment shows damages. ~ Switch off the device before pinning up or changing the attachments and each time before cleaning. WARNING! Risk of injury ~ Place the cable in such a way that no one trips over it or steps on it. ~ Do not push the nose/ear hair trimmer attachment too deep into the nostril or the ear canal. ~ Do not use the device on open wounds, cuts, sunburn or blisters. WARNING! Risk of material damage

The battery charger is fitted with non-slip silicon feet. As fur- niture is coated with a variety of different varnishes and acrylics and treated with different cleaning agents, we can- not rule out that some of these substances could damage and soften the rubber feet. If necessary, place a non-slip mat under the battery charger.

~ Use the original accessories only. ~ Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire. ~ Do not cover the power unit to prevent overheating. ~ Do not exert too much pressure on the shaving foil of the shaving attachment, to avoid damaging the shaving foil. ~ Do not detach the shaving foil from the shaving foil frame, and do not clean it using the brush. ~ Do not use any astringent or abrasive cleaning agents.

1 5in1 hair and beard trimmer5 1Power unit9 1 Battery charger10 5 Interchangeable cutting attachments: hair trimmer attachment12 beard trimmer attachment13 precision trimmer attachment4 nose/ear hair trimmer attachment11 shaving attachment3 4 Comb attachments2 for the hair trimmer attachment 3, 6, 9, 12 mm 1 Adjustable (3, 4, 5, 6 mm) comb attachment1 for the beard trimmer attachment13 1Comb17 1Scissors14 1Cleaning brush16 1 Blade oil15 1 Storage bag (for the hair and beard trimmer and its acces- sories)18 1 Operating Instructions

• Before first use (without cable), and for every charging procedure afterwards, charge the hair and beard trim- mer5 for approx. 90 minutes.

• When the batteries are nearly empty, the charging indica- tor8 flashes red during operation. The device can then only be used for a short time without being connected to the electricity supply.

1. Place the battery charger10 on a level surface.

2. Connect the power unit9 to the battery charger10.

3. Switch off the device with the on/off switch7 if necessary.

4. Insert the power unit9 into a readily accessible wall sock-

et whose voltage matches the voltage stated on the rating plate.

5. Put the hair and beard trimmer5 into the battery charg-

6. The charging indicator8 is lit red and the battery is

charged. When the battery is fully charged, the charging indicator is lit green. When the battery is fully charged, the device can be used for approximately 60 minutes with- out being connected to the power supply.

Regardless of the charging state of the battery, the 5in1 hair and beard trimmer can always be mains-operated.

1. For mains operation, ensure that the hair and beard trim-

mer5 is switched off.

2. Connect the power unit9 to the connector of the hair and

3. Insert the power unit9 into a readily accessible wall sock-

et whose voltage matches the voltage stated on the rating plate.

4. Switch on the device with the on/off switch7.

6.1 Changing the cutting attachments

WARNING! Risk of injury! Switch off the hair and beard trimmer5 , before you attach or remove the attachments.

• Figure A: to remove the attachments12,3,4,11,13 use your thumbs to press the attachment towards the rear of the hair and beard trimmer5.

• Figure B: to attach the attachments, put the lower flap of the attachment12,3,4,11,13 into the slot in the hair and beard trimmer5 and press the upper part of the at- tachment against the hair and beard trimmer until it audi- bly locks into place and sits firmly in position.

6.2 Changing the comb attachments

• To attach the comb attachments2 +1 carefully slide the appropriate comb attachment over the hair or beard trim- mer attachment12 /13. Press the lower part of the comb attachments2 firmly until they lock into place. Removing

• To remove the comb attachments2 loosen the comb at- tachment at its lower end and pull it off the hair and beard trimmer5.

• Slide the comb attachment1 for the beard trimmer attach- ment13 upwards from the hair and beard trimmer5.

• The hair to be dressed must be dry.

• The cutting length may deviate depending on the cutting angle.

• Place a sheet or cape around throat and neck to prevent cut-off hair from dropping into the collar.

• First, start with a comb attachment2 with a longer cutting length and then, in the course of the cutting process, use shorter cutting lengths step by step.

• Start by cutting the hair in the neck or on the sides and cut towards the centre of the head. Then, cut the front section of the hair towards the centre of the head.

• Hold the hair and beard trimmer5 in such a way that the comb attachment2 lies as flat as possible on the head. Move the device evenly through the hair.

• If possible, cut against direction of hair growth.

• In order to catch all the hair, move the hair and beard trim- mer5 several times through each section of the hair.

• Comb the hair repeatedly and well.

• In order to achieve a straight cutting line for cutting lengths over 12 mm, the hair and beard trimmer5 should be passed through the hair several times from different direc- tions.

6.4 Trimming a beard

Beard trimmer attachment13 NOTE: please note that the cutting lengths will only be achieved if the switch for cutting length fine tuning6 is at po- sition 1 and the hair and beard trimmer5 is held at a right an- gle to the skin surface.

• Comb the beard in the direction that it grows.

• Trim the beard downwards from ear to chin. First trim one side, then the other.

• Comb attachment1 Figure C: adjust the cutting length with the slider accord- ing to the desired hair length and read off the cutting length using the marking on the side of the comb attach- ment1 (3, 4, 5, 6 mm). Now, shorten your beard step-by- step.

• Use the beard trimmer attachment13 without a comb at- tachment1, to cut the beard very short or to cut a mous- tache and hairline.

• Using the switch for cutting length fine tuning

the cutting length can be slightly varied with three levels (

• To trim your moustache, first comb it straight downwards. Then use either the beard trimmer attachment13 or the precision trimmer attachment4. Start at the centre above the mouth and trim first one side, then the other.

6.5 Cutting a hairline

Precision trimmer attachment4

• Use the precision trimmer attachment4 to shorten and shape moustaches, whiskers, sideburns or eyebrows.

• Put the edge of the attachment at the desired hairline height and move the hair and beard trimmer5 down- wards.

Shaving attachment3 NOTE: your skin must be clean and dry.

• Hold the hair and beard trimmer5 at a right angle to the skin surface and gently guide it over your face.

• Shave against the direction of your beard growth.

• Stretch your skin in complicated areas, such as the chin, to achieve better results.

6.7 Trimming nose and ear hair

Nose/ear hair trimmer attachment11

• Insert only the metal tip slowly into a nostril or an ear.

• Slowly move the hair and beard trimmer5 with a circular motion to trim the hair.

7. Cleaning and care

DANGER! Risk of electric shock! Unplug the power unit9 from the wall socket before cleaning the hair and beard trimmer5 and the battery charger10. WARNING! Risk of injury! Always switch the hair and beard trimmer5 off before clean- ing. WARNING! Risk of material damage! Do not use any astringent or abrasive cleaning agents. NOTE: clean and oil the device after every use. Hair and beard trimmer5 and battery charger10

• Wipe the casing of the hair and beard trimmer and the battery charger with a damp cloth. Comb attachments2,1

• Remove the comb attachment. Rinse the comb attachment with water and let it dry before using it again. Hair trimmer, beard trimmer and precision trimmer attachments12,13,4

1. Figure A: remove the attachment from the hair and beard

trimmer5 by pressing it with the thumb towards the rear.

2. Remove the hair remnants from the attachment using the

cleaning brush16 included in the delivery.

3. Apply a few drops of blade oil15 to the cutting edge of

the attachment. Using a soft cloth, wipe off the surplus oil, if necessary. Only use acid-free oil, such as e.g. sewing machine oil. Nose/ear hair trimmer attachment11

• Remove the nose/ear hair trimmer attachment11. Rinse it with water and let it dry completely before using it again.

Shaving attachment3 WARNING! Do not detach the shaving foil from the shaving foil frame, and do not clean it using the cleaning brush16. NOTE: from time to time, oil the cutting blade with a few drops of acid-free oil (e.g. sewing machine oil). Attach the shaving attachment to the hair and beard trimmer5 and let it run for a few seconds without using it. Using a soft cloth, wipe off the surplus oil, if necessary.

1. Remove the shaving attachment3.

2. Press the button on the side of the shaving attachment and

remove the shaving foil frame. While removing the shav- ing foil frame, only hold it at the side and do not press against the shaving foil.

3. Clean the cutting blade using the included cleaning

4. Clean the shaving foil in the shaving foil frame under run-

ning water and allow it to dry completely before putting it back on the shaving attachment3.

5. Put the shaving foil frame back onto the shaving attach-

. While attaching the frame, make sure that the fas- tening tabs on the shaving foil frame fit into the appropriate recesses on the shaving attachment, and press the shaving foil frame gently downwards until it audibly locks into place.

• For storage … … put the hair and beard trimmer5 in the battery charg- er10 or … use the included storage bag18.

Parts such as the shaving foil frame for the shaving attach- ment3 can be ordered: - on www.hoyerhandel.com or - through the service centre hotline which is listed in Chap- ter "Warranty of HOYER Handel GmbH" on page 88.

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Un- ion. This applies to the product and all acces- sories marked with this symbol. Products identified with this symbol may not be dis- carded with normal household waste, but must be taken to a collection point for recycling electric and electronic applianc- es. Recycling helps to reduce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country. Removing the battery

• This device is operated with a rechargeable lithium-ion bat- tery, which you must remove before disposing of the device.

• You must be technically minded to remove the battery, oth- erwise there is the danger of injuring yourself. If you do not have any experience with tools, you should have the batteries removed by a person who is qualified to do this.

DANGER from batteries! ~ Ensure that the battery is not damaged as you remove it. Fire hazard! ~ The removed battery must not be disassembled. ~ Never short-circuit the battery. The contacts on the re- moved battery must not be connected by metallic objects. The battery may overheat and explode. ~ Only remove the battery to dispose of the device. The de- vice is destroyed by removing the battery. Never try to op- erate a disassembled device.

1. Disconnect the device from the mains.

2. Switch on the device and let it run until the battery is empty.

3. Figure A: remove the attachment12,3,4,11,13 from

the hair and beard trimmer5 by pressing it with the thumb towards the rear.

4. Figure D: use a Phillips screwdriver to release the

3 screws on the back and on the top end of the device.

5. Figure E: use a screwdriver to lever open the side seam

and unfold the two halves of the housing apart.

6. Figure F: release the 3 screws on the board and turn it so

that the battery faces you.

Figure G: release the connections between the battery and the board with a pair of pliers/wire cutters. Remove the ex- posed battery. Take the battery and the device separately to suitable disposal. The lithium-ion battery used for this device may not be treated as household waste. The battery must be disposed of properly. Con- tact battery distributors or local waste dispos- al points for this. Li-ions

If your device fails to function as required, please try this check- list first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances. Fault Possible causes / Action No function

• Has the device been con- nected to the power supply?

• Is the battery empty? The cutting attach- ments12, 3, 4, 11, 13 are not running smoothly

• Have the attachments been cleaned, and oiled if neces- sary?

Subject to technical modification.

13. Warranty of HOYER Handel GmbH

Dear Customer, your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase. If within three years from the purchase date of this product a ma- terial or factory defect occurs, the product will be repaired or re- Model: SHBS 3.7 A1 Hair and beard trimmer: Input: 4.5 V , , 1000mA Protection class of the hand- held device: III Power unit Model LY045–045–1000E: Input: 100–240 V ~ 50/60 Hz, 0.2 A max Output: 4.5 V , , 1000 mA Protection class of the power unit: II Ambient conditions: only approved for indoor use Battery: 1x 3.7V Li-ion, 700mAh Operating temperature: -10 °C to +40 °C

placed by us – at our discretion – free of charge to you. This war- ranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects. This war- ranty does not include product parts that are subject to stand- ard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, re- chargeable batteries or parts made of glass. This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the prod- uct, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is ad- vised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Ser- vice Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please ob- serve the following notes:

• Please keep the article number IAN: 103906 and the pur- chase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product reported as defective free of charge to the service address specified to you, in- cluding the purchase receipt and the information on the defect and when it occurred. Please vi sit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie IAN: 103906 Supplier Please note that the following address is no service ad- dress. First contact the aforementioned Service Centre. HOYER Handel GmbH Kühnehöfe 5 22761 Hamburg Germany
