WT247 - Weather Station MAJESTIC - Free user manual and instructions

Features	Details
Product Type	Weather Station
Display	Backlit LCD Screen
Weather Measurements	Indoor and outdoor temperature, humidity, atmospheric pressure
Connectivity	Wireless (external sensors)
Power Supply	Power adapter and/or batteries
Usage	Home weather condition monitoring
Maintenance	Regular cleaning of the screen and sensors
Safety	Avoid exposure to water and extreme temperatures
Warranty	Check conditions with the seller
Included Accessories	Outdoor sensor, power cable

Frequently Asked Questions - WT247 MAJESTIC

How to set up the MAJESTIC WT247 weather station for the first time?

To set up the MAJESTIC WT247 weather station for the first time, insert the batteries into the main unit and the outdoor sensor. Turn on the device and follow the on-screen instructions to select your language, time zone, and synchronize the data.

Why does the weather station not receive the signal from the outdoor sensor?

If the weather station does not receive the signal from the outdoor sensor, check that the sensor is properly positioned and at least 5 meters away from the main unit. Also ensure that the sensor batteries are in good condition.

How to calibrate the temperature of the MAJESTIC WT247 weather station?

To calibrate the temperature, access the weather station settings menu, select the calibration option, and follow the on-screen instructions to adjust the displayed temperature as needed.

What to do if the weather station screen remains black?

If the weather station screen remains black, first check that the batteries are correctly inserted and in good condition. If the problem persists, try removing the batteries for a few minutes, then reinsert them.

How to change the temperature measurement unit?

To change the temperature measurement unit, go to the weather station settings menu, select the 'Units' option, then choose between Celsius (°C) and Fahrenheit (°F).

Is the MAJESTIC WT247 weather station water-resistant?

The outdoor sensor of the MAJESTIC WT247 weather station is designed to withstand weather conditions, but it is recommended not to expose it to extreme conditions or prolonged immersion in water.

How to reset the weather station to factory settings?

To reset the weather station to factory settings, access the settings menu, select the reset option, and confirm your choice. This will erase all customized settings.

Why do the displayed weather forecasts seem inaccurate?

The weather forecasts of the MAJESTIC WT247 station are based on algorithms and local data. If the forecasts seem inaccurate, check that the outdoor sensor is properly installed and that the data is up to date.

Can the MAJESTIC WT247 weather station connect to a mobile app?

The MAJESTIC WT247 weather station does not support connection to a mobile app. It operates independently to display weather data on its own screen.

How to change the batteries of the MAJESTIC WT247 weather station?

To change the batteries, open the battery compartment located at the back of the main unit and the outdoor sensor. Replace the batteries ensuring the indicated polarity is respected.

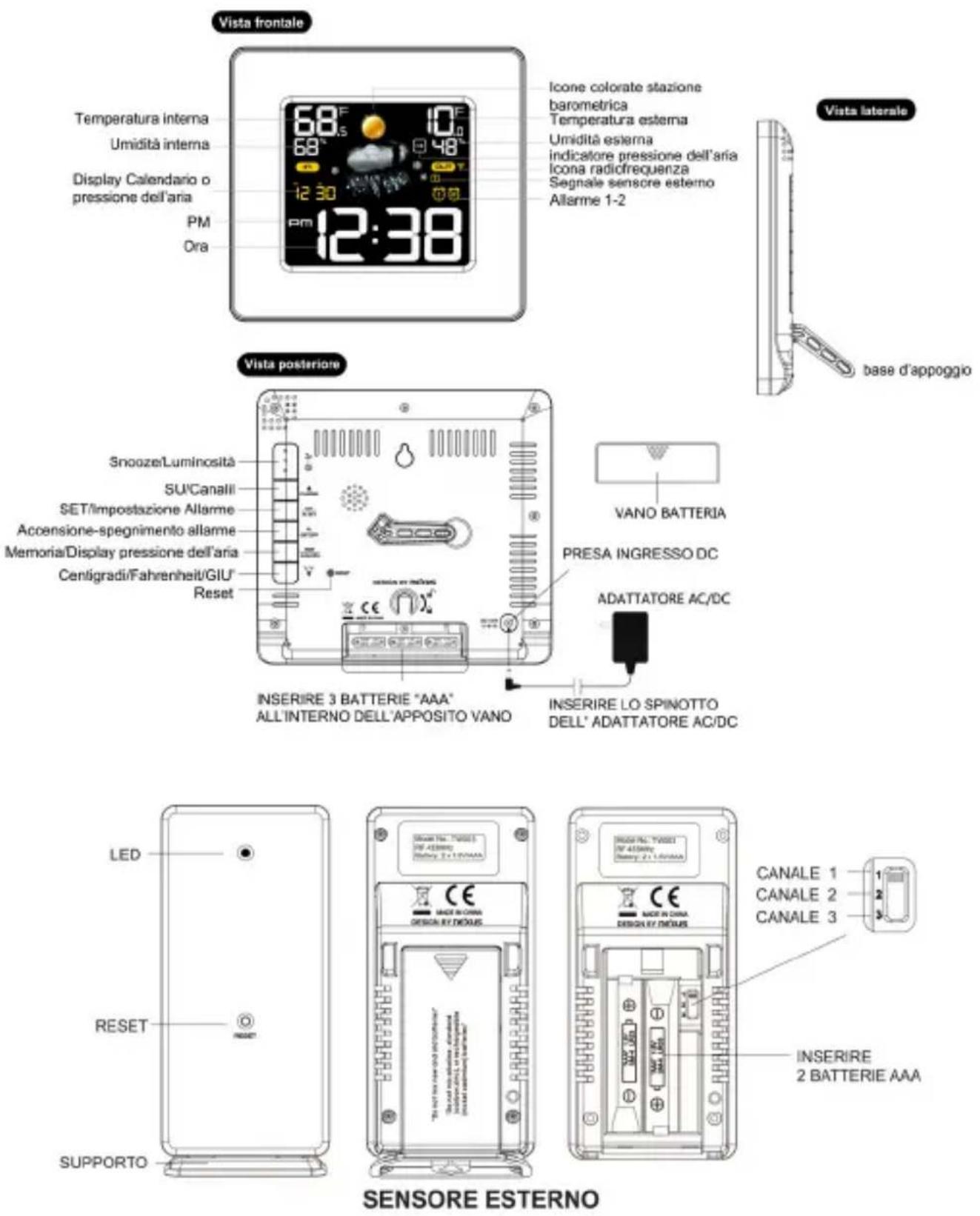

USER MANUAL WT247 MAJESTIC

21°C - 15°C 68% 48% OUT 10 00 1 2 PM 12:38 MAJESTIC

MANUALE D'ISTRUZIONI

CE

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

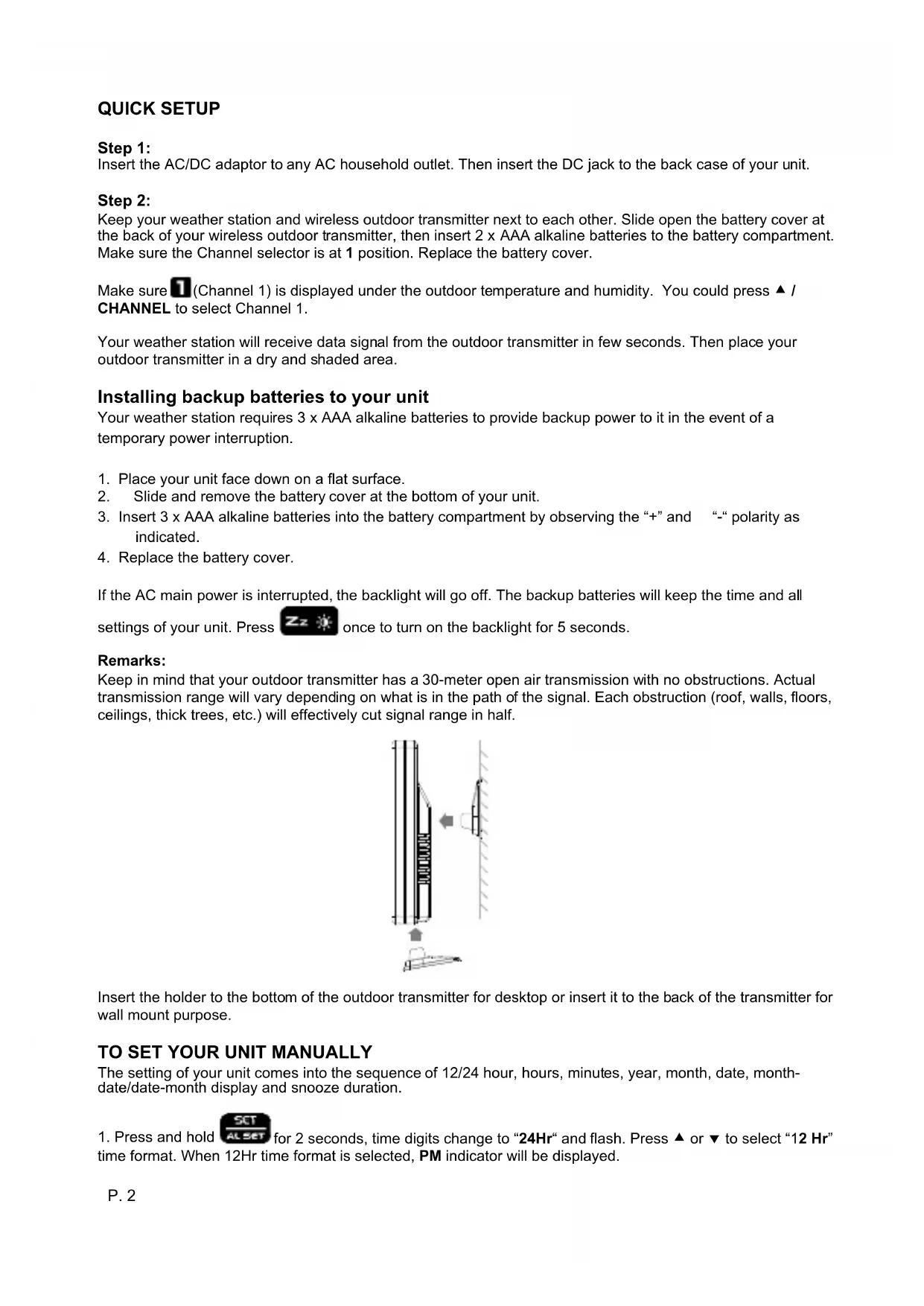

IMPOSTAZIONE RAPIDA

1:

Diagram showing a cylindrical object with internal structure and a separate view of a speaker (no text or symbols)

Insert the AC/DC adaptor to any AC household outlet. Then insert the DC jack to the back case of your unit.

Step 2:

Keep your weather station and wireless outdoor transmitter next to each other. Slide open the battery cover at the back of your wireless outdoor transmitter, then insert 2 x AAA alkaline batteries to the battery compartment. Make sure the Channel selector is at 1 position. Replace the battery cover.

Make sure 1 (Channel 1) is displayed under the outdoor temperature and humidity. You could press ▲ / CHANNEL to select Channel 1.

Your weather station will receive data signal from the outdoor transmitter in few seconds. Then place your outdoor transmitter in a dry and shaded area.

Installing backup batteries to your unit

Your weather station requires 3 x AAA alkaline batteries to provide backup power to it in the event of a temporary power interruption.

1. Place your unit face down on a flat surface.
2. Slide and remove the battery cover at the bottom of your unit.
3. Insert 3 x AAA alkaline batteries into the battery compartment by observing the “+” and “-” polarity as indicated.
4. Replace the battery cover.

If the AC main power is interrupted, the backlight will go off. The backup batteries will keep the time and all

settings of your unit. Press Zz once to turn on the backlight for 5 seconds.

Remarks:

Keep in mind that your outdoor transmitter has a 30-meter open air transmission with no obstructions. Actual transmission range will vary depending on what is in the path of the signal. Each obstruction (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut signal range in half.

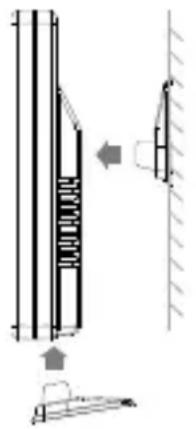

Technical diagram showing a vertical cylindrical structure with internal components and a separate mechanical assembly (no text or symbols)

Insert the holder to the bottom of the outdoor transmitter for desktop or insert it to the back of the transmitter for wall mount purpose.

TO SET YOUR UNIT MANUALLY

The setting of your unit comes into the sequence of 12/24 hour, hours, minutes, year, month, date, month-date/date-month display and snooze duration.

1. Press and hold for 2 seconds, time digits change to "24Hr" and flash. Press ▲ or ▼ to select "12 Hr" time format. When 12Hr time format is selected, PM indicator will be displayed.

2. Then press ▲/▼ once again, "0" the hour digits flash. Press ▲ or ▼ button to set the hours. Press and hold ▲ / ▼ will accelerate your setting faster.

3. Then press ▲/▼ once again, "00"" the minute digits flash. Press ▲ or ▼ button to set the minutes. Press and hold ▲ / ▼ will accelerate your setting faster.

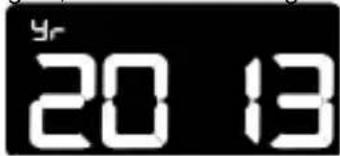

4. Then press SET once again, "Yr" and "2013" digits flash. Press ▲ or ▼ button to set the year.

yr 20 13

1. Then press ▲ once again, month digits flash. Press ▲ or ▼ button to set the month.

2. Then press ▲ or ▼ button to set the date.

3. Then press ▲ once again, “m”, “d”, month-date digits flash. Press ▲ or ▼ to select month-date “m” “d” or date-month “d” “m” calendar display.

PM 12:38

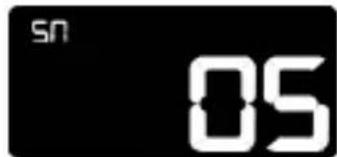

1. Then press SET ON once again, "SN" and "05". Press ▲ or ▼ button to set the snooze duration from 5 minutes to 60 minutes.

SN 05

1. Press SET to return to normal mode, or it will return to normal mode in around 10 seconds if no further press of any other buttons.

TO SET ALARM TIME

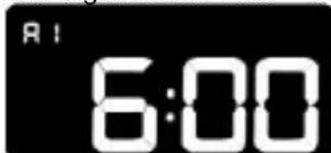

1. Press once, time digits change to alarm time digits "6:00" and "A1". Then press and hold for 2 seconds, the alarm hour digits flash. Press ▲ or ▼ to set the hours of your desired alarm time.

R1 6:00

1. Then press ▲ once again, the alarm minute digits flash. Press ▲ or ▼ button to set the minutes of your desired alarm time.

2. Then press SET once again your weather station will return to normal mode, or it will return to normal mode in around 10 seconds if no further press of any other buttons.

3. Press two times, time digits change to alarm time digits "6:00" and "A2" is displayed. Then repeat the above in Alarm 1 setting.

R2 6:00

TO TURN ON OR OFF YOUR DAILY ALARM

Simply press ON-OFF to turn on or off the Alarm 1, Alarm 2, or Alarm 1 & 2.

When Alarm 1 is turned on, the 🔒 appears. When Alarm 2 is turned on, the 🔒 appears.

TO USE SNOOZE ALARM

When time reaches your set alarm time, your weather station will give a beep sound to wake you up. The corresponding 📄 or 🌐 flash.

Press once to stop the alarm temporarily, the corresponding or keeps flashing. The alarm will beep again according to your set snooze duration.

TO STOP ALARM

When the alarm is sounding, press any button once except the snooze button, the alarm beep will stop, or become static, alarm will beep again at the same time next day.

Alarm Duration: 2 minutes

TO USE THE DIMMER

Press 📃 button once to adjust the display brightness for nighttime viewing.

TO DISPLAY TEMPERATURE IN DEGREE °C OR °F

Simply press °C/°F/▼ to display temperature in degree °C or degree °F.

WEATHER FORECAST AND PRESSURE TREND INDICATOR

Your weather station has a built-in barometric sensor which measures the change of the air pressure over time. Your weather station takes around 24 hours to gather and average air- pressure readings to provide a weather forecast for next 12-24 hours.

WEATHER ICONS

There are five possible types of weather icons that will be displayed:

SUNNY
SUNNY AND CLOUDY(PARTLY SUNNY)
CLOUDY
RAINY
STORMY
FROST ALERT	Frost Alert Icon appears when outdoor temperature is below 0°C

AIR PRESSURE TENDENCY INDICATORS

When the arrow appears, the air pressure is increasing, the weather is expected to improve.

When the arrow appears, the air pressure is decreasing, the weather is expected to become worse.

When the arrow appears, the air pressure change is stable.

Remarks: Moving your weather station from one floor of a building to another floor will affect the accuracy of your weather station, which should operate at the same altitude all the time. If you move it to a new location, it will take 24 hours to get stable and accurate again.

Our weather station provides next 12-24 hours weather forecast. It may not match with the current weather condition outside.

TO DISPLAY AIR PRESSURE READOUT

Press and hold until the calendar display shows the air pressure readout in hPa. Press and hold

again to revert back to calendar display.

TO READ MAXIMUM-MINIMUM IN-OUT TEMPERATURES AND HUMIDITIES

Simply press the “VHg·hPa” to view the maximum indoor-outdoor temperatures and humidities records with “MAX” icons appearing on the display. Press again to view the minimum indoor-outdoor temperatures and humidities and the air pressure with “MIN” icons appearing on the display.

When the maximums or minimums are displayed, press and hold the ink-g-hPa to reset both records and it will start to record the maximums and minimums again.

IF YOU LOSE THE OUTDOOR TEMPERATURE AND HUMIDITY

When the outdoor temperature and humidity digits show '--', the wireless transmission is either interrupted or lost. Press and hold the ▲ / CHANNEL button to start searching for the signal from the outdoor transmitter with the flashing.

If you continue to lose the outdoor temperature and humidity display, which could happen in extreme cold weather, try placing the transmitter in a different location until you have smooth transmission of temperature / humidity data.

HOW TO SYNCHRONIZE YOUR WEATHER STATION WITH ANOTHER OUTDOOR TRANSMITTER

1. Press ▲ / CHANNEL at the back of your weather station, 📄 icon appears under your outdoor temperature and humidity.

2. Press and hold ▲ / CHANNEL until the 📋 icon blinks, your weather station is searching for the signal of another outdoor transmitter at Channel 2.

3. Slide open the battery door of your second transmitter, slide the switch to the middle position marked with 2, then insert two AAA batteries into the battery compartment by observing the correct +/- polarity. Replace the battery cover.

4. The outdoor temperature and humidity of your second transmitter will appear on the LCD together with icon within few seconds. If the data still does not appear, press RESET at the front of your second transmitter once.
5. To synchronize your weather station with a third outdoor sensor, repeat the same step by choosing ☐ on your weather station and select 3 on your third transmitter.

AUTO SCROLLING THE OUTDOOR TEMPERATURE AND HUMIDITY OF DIFFERENT TRANSMITTER

Press ▲ / CHANNEL one at a time until the 1 icon flashes. Then the outdoor temperature and humidity of different outdoor transmitter will be displayed for few seconds alternately with 1, 2, flashing.

To stop the auto scrolling, press ▲ / CHANNEL once to go back to constant display of the temperature and humidity of the 1 transmitter, the 1 icon remains static on the display.

LOW BATTERY INDICATION OF YOUR OUTDOOR TRANSMITTER

The icon will appear to indicate the battery level of your outdoor transmitter is getting low. You may need to replace the batteries of your outdoor transmitter with new ones.

Extreme cold weather (e.g. below -10 °C) will also cause low battery voltage.

TROUBLESHOOTING

In case your weather station clock shows irrelevant information or digits, it may be affected by electrostatic discharge or interferences from other devices. Use a sharp object to press RESET. Your unit will be reset to default settings and you need to set the time, calendar and alarm time again.

Problem Solution
LCD is blank 1. Press RESET on humidity is displayed	the main unit.2. Replace fresh batteries in your weather station.
No Outdoor Temperature and Humidity is displayed	1. Press and hold ▲ / CHANNEL on the weather station.2. Press RESET on the outdoor transmitter.3. Make sure the correct channel is selected on your weather station (default setting is 1– Channel 1)4. Observe if the Low Battery icon appears on the left of the outdoor temperature. If yes, replace batteries in outdoor sensor with fresh alkaline batteries.5. No other interfering sources are being used (such as computer monitors, TV sets, headphones, or speakers) in the path of signal from the outdoor sensor. The signal travels in a straight line, an electrical source near that “line” may cause interference.
Temperature, humidity, or air pressure is incorrect	1. Press RESET on the main unit.2. Make sure your main unit and the outdoor transmitter is away from sources of heat / cold / direct sunshine.

1. Do not expose the unit to extreme temperature, water or direct sunlight.
2. Avoid contact with any corrosive materials.
3. Do not subject the unit to excessive force, dust or humidity.
4. Do not open the inner back case or tamper with any components of this unit.
5. Do not plug in any other AC/DC adaptor with incorrect specifications or voltage.

SPECIFICATIONS:

Temperature Range

Indoor 0°C to +50°C (display shows HH.H / LL.L if out of this range)

Outdoor -40°C to +60°C (display shows HH.H / LL.L if out of this range)

Humidity Range

Indoor		20%	-	95%
Outdoor	20% - 95%

Temperature Resolution 0.1°C

RH% Resolution 1%

Temperature & Humidity measure every 30 seconds

Air Pressure Range 850 hPa to 1050 hPa

Alarm Duration 2 minutes

Snooze Duration 5 to 60 minutes

Power supply: AC 230V/50Hz DC 4.5V 200mA (included)

3 x 1,5V "AAA" alkaline battery power supply (battery not included)

Outdoor sensor power supply: 2 x 1,5V "AAA" alkaline battery (battery not included)

Diagram of a mechanical assembly with a cylindrical component and a separate view showing a pin and base (no text or symbols)
