Features	Details
Product type	Portable basketball hoop
Hoop dimensions	Standard (adjustable height)
Materials	Steel, plastic, nylon net
Weight	Varies by model
Usage	Indoor and outdoor
Ease of assembly	Quick assembly with included instructions
Maintenance	Regular cleaning, checking fastenings
Safety	Ensured stability, do not use on uneven surfaces
Included accessories	Basketball, pump (depending on model)
Warranty	Varies by retailer

Frequently Asked Questions - Comet Portable Basket EXIT

How do I assemble the EXIT Comet Portable basketball hoop?

To assemble the EXIT Comet Portable basketball hoop, start by unpacking all the parts and checking that you have all the necessary components. Then follow the instructions provided in the user manual, starting with the base, then attaching the pole, and finally the hoop.

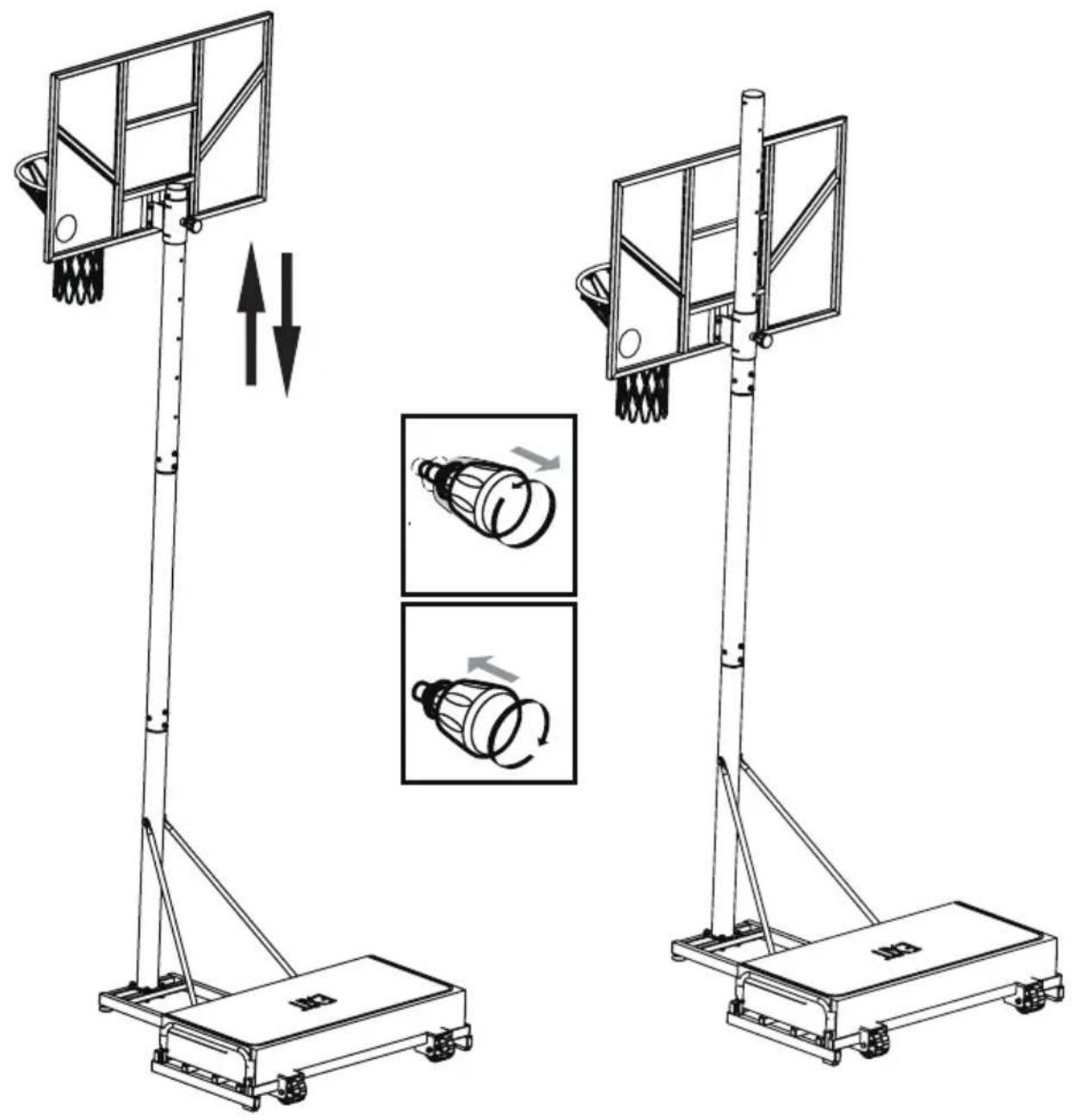

What is the adjustable height of the hoop?

The EXIT Comet Portable hoop has an adjustable height between 2.30 m and 3.05 m, making it suitable for different ages and skill levels.

Can I use the hoop outdoors?

Yes, the EXIT Comet Portable hoop is designed for outdoor use. Make sure to store it indoors during extreme weather conditions to prolong its lifespan.

How can I stabilize the hoop on the ground?

To stabilize the hoop, it is recommended to fill the base with water or sand to prevent it from tipping over during play.

How do I maintain the EXIT Comet Portable hoop?

To maintain the hoop, clean it regularly with a damp cloth and avoid using harsh chemicals. Also check screws and connections to ensure they are tight.

What are the dimensions of the hoop's base?

The base of the EXIT Comet Portable hoop measures approximately 1.20 m long by 0.80 m wide, providing good stability during use.

Can the hoop be folded for transport?

Yes, the EXIT Comet Portable hoop is designed to be easily folded, making transport and storage easier.

Is there a warranty for the product?

Yes, the EXIT Comet Portable hoop is generally covered by a 2-year warranty against manufacturing defects. Please consult your user manual for more details.

USER MANUAL Comet Portable Basket EXIT

EXIT TOYS.COM

User manual Gebrauchsanweisung Gebruikshandleiding Mode d'emploi Brugermanual

Comet

Portable Basketball System Owners Manual

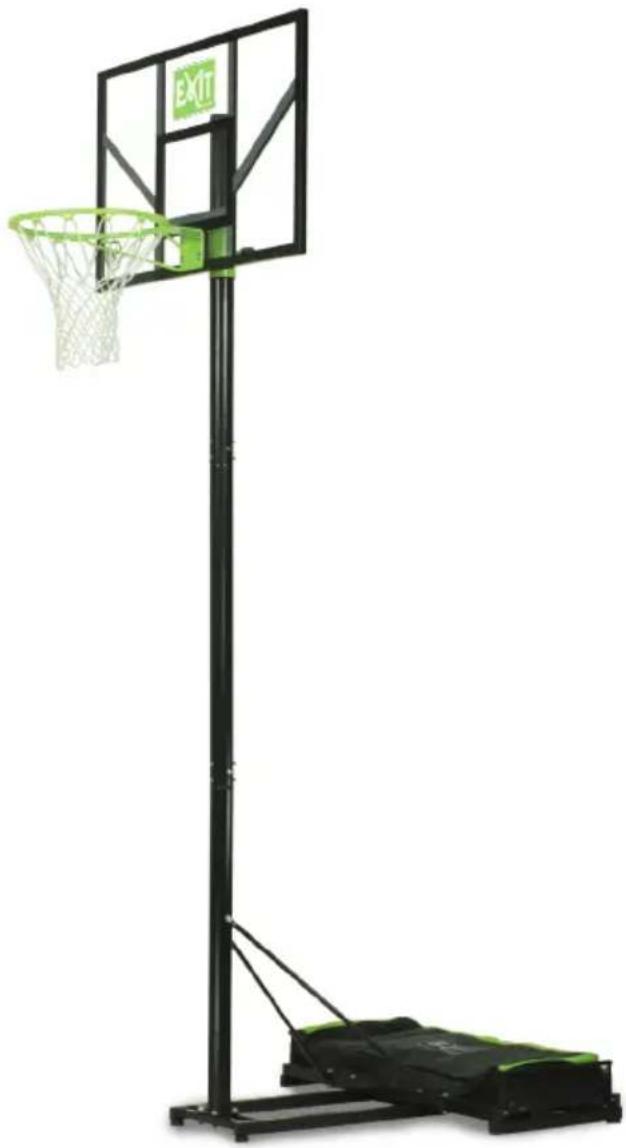

Exterior view of a basketball hoop with green 'EXIT' branding and a green cargo box (no text or symbols on the structure itself)

WARNING! TWO CAPABLE ADULTS REQUIRED FOR ALL THE ASSEMBLY PROCEDURE, FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

WARNING CHOKING HAZARD small parts Adult assembly required retain for future reference

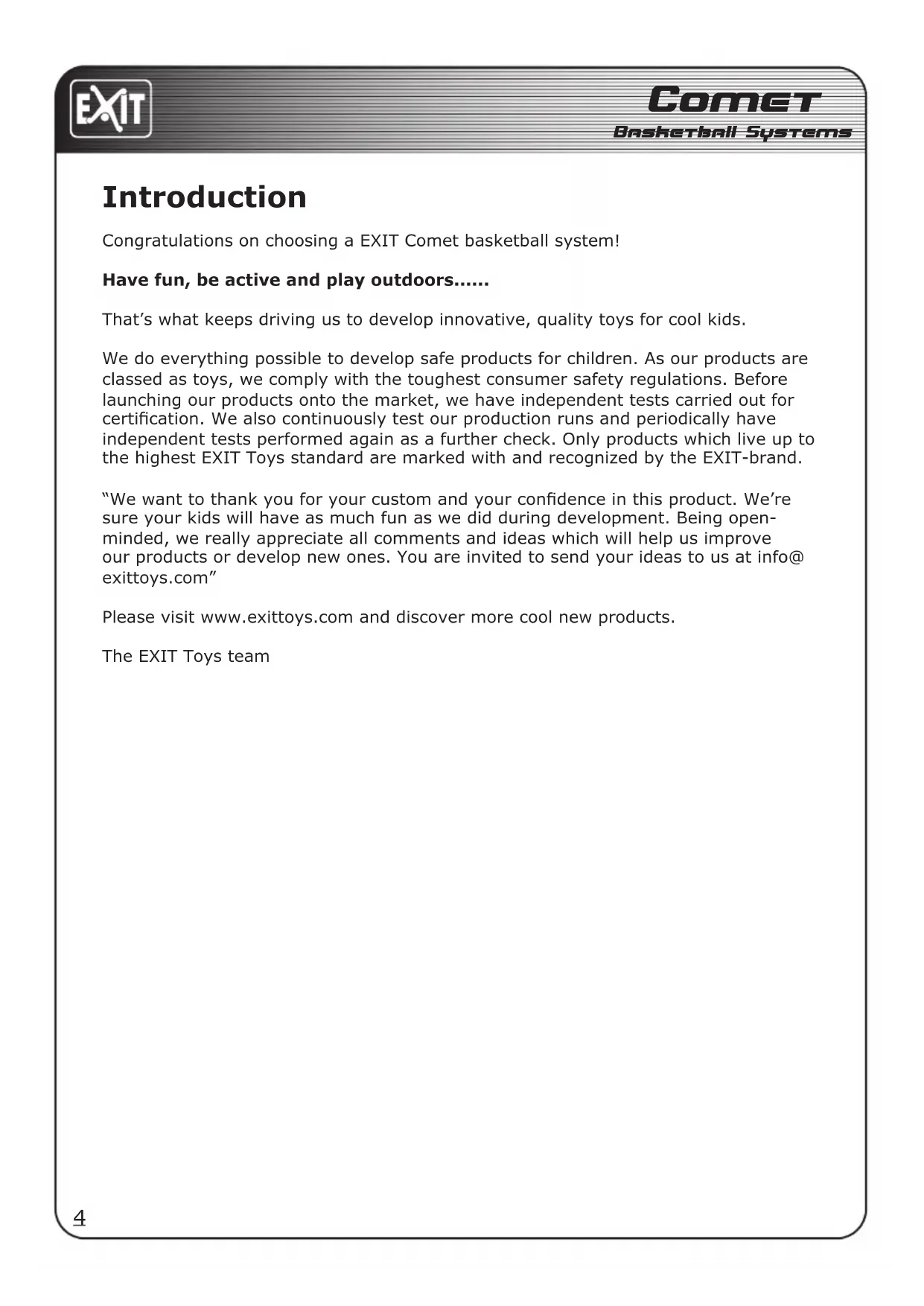

Introduction

Congratulations on choosing a EXIT Comet basketball system!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www.exittoys.com and discover more cool new products.

The EXIT Toys team

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY.

Owner must ensure that all players know and follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without following the instructions carefully. check entire box and inside all packing material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware identifier and parts list in this document. proper and complete assembly, use, and supervision are essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.

• If using a ladder during assembly, use extreme caution.
• Two (2) capable adults are recommended for this operation.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play and/or transport of the system.
  • Climate, corrosion, or misuse could result in system failure.
• Minimum operational height is 6' 6" (1.98 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NoT excessive competitive play.
• Read and understand the warning label affixed to pole.
• The life of your basketball pole depends on many conditions. The climate, placement of the pole, location of the pole, exposure to corrosives such as pesticides, herbicides, or salts are all important.
• If technical assistance is required, contact customer Service.
• Adult supervision is recommended when adjusting height.

• DO NOT HANG ON RIM

Most injuries are caused by misuse and/or not following instructions. Use caution when using this system.

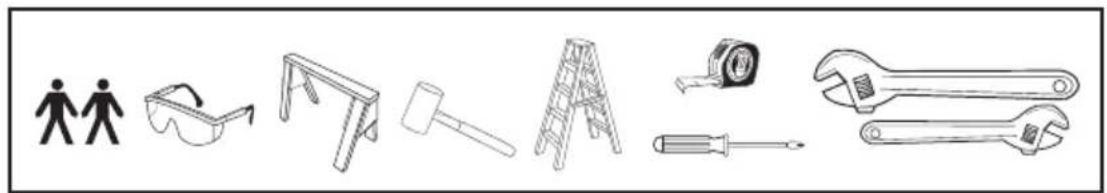

TOOLS REQUIRED

- Two (2) Capable Adults

- Step Ladder 8ft. (2.4 m)

- Tape Measure

- Sawhorse or Support Table

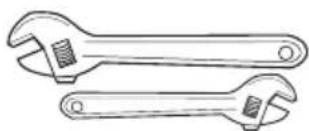

Line drawing of two adjustable wrenches with no text or symbols

• Large and Small Adjustable Wrenches

- Hammer

• #2 or #3 Phillips Screwdriver

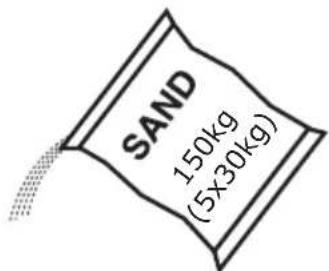

SAND 150kg (5x30kg)

- Sand

- Safety Glasses

General instructions for use

• Read the instructions before use and keep them throughout the lifetime of the product.
• Warning! Not suitable for children under 3 years due to small parts. Choking hazard.

Please note

• Regularly check the important parts of the product (backboard, rim, post, base, fastenings, etc) to make sure it is in a good state of repair. Without these regular checks, the product might topple over or present other risks to the user.
  • We advise you to mount your backboard on the ground.
  • This piece of equipment must not be misused.
• Not adhering to the safety instructions below may lead to seriously physical injury.
• For domestic use only.
• Product designed exclusively for novice basketball use.

When assembling

• It should be fitted by two adults only.
• Adhere to the assembly instructions (diagrams and text supplied)
• Position the product on a flat, stable surface at least 2 metres away from any structure of obstacle like a house, garage door, electrical wiring or cables, etc.
  • Ground fastenings are not supplied.
• Before mounting the product, check with a professional builder that the screws are suitable for the support you intend to mount it on.
• The base must always be filled with sand to ensure that the whole system is stable.
• Never leave the system in a upright position without filling the base because it might topple over and cause injuries.
• When you adjust the height or move the system, keep you hands and fingers away from moving parts.
• Make sure that you fit the sections of the post together correctly, or they may come apart during play or when moving the system.

Storage

- If the product is stored outside, it must be placed far away from personal belonings and hanging cables and/or in a place protected from wind to prevent risks of toppling over.

Instructions for use in play

• Read the instructions below before using this product. Not adhering to these safety instructions may lead to serious physical injury and/or material damage.
  • Children using this product should be under the constant supervision of an adult.
• Outdoor or indoor use (allow sufficient ceiling height to be able to play at a maximum height of 3.05 m).
• When adjusting the height or moving the system, keep you hands and fingers away from moving parts.
• It is essential that you check the state of repair of the system before every use. Never play using faulty equipment.

• Check the system (ballast, loose screws, excessive wear and signs of corrosion) and that parts wich fit together are firmly fastened (backboard, rim, post and base, net, stability of the whole system) before each use. If necessary, repair before use.

• DO NOT HANG ON THE RIM, the net or any other part of the system, including the backboard and the posts.

• Do not climb, jump, slide or play on the base, post or frame.
• Do not shake the frame.
• Risk of strangulation with the net.
• During play, especially when dunking, keep your face away from the backboard, rim and net. You risk serious injury if your theeth or face come into contact with the backboard, rim or net.
• Do not allow a child to move or adjust the system alone. It must be adjusted or moved by an adult only.
• Before play, remove your jewellery (rings, watches, necklaces, etc). These objects may get caught in the net.
• The ground surface under the base must be smooth, with no gravel or other sharp objects.
• Keep organic substances away from the base of the post. Grass and rubbish etc. may cause corrosion and/or damage the system.
• Check the state of repair of the system (signs of corrosion like rust, holes, flaking) and repaint with outdoor enamel paint. If rust has worn through the steel at any point, replace the post immediately.
• Do not use the system when there are high winds and/or storms; the system may topple over.
• When you move the system, be careful to prevent the mechanism from becoming unbalanced.

Safety Instructions:

NOT COMPLYING WITH THESE SAFETY INSTRUCTIONS MAY CAUSE SERIOUS PHYSICAL INJURY, MATERIAL DAMAGE AND/OR THE CANCELLATION OF THE WARRANTY.

• The owner must ensure that all players know and adhere to the instructions for using and assembling the system.
• Correctly and full assembly, use and supervision are essential for the system to work properly and to reduce the risks of accident or injury. Serious injuries are very likely if the system is not fitted, maintained and used correctly.
• If you use a ladder for assembly (solution not recommended for assembling this system), make sure you are extremely careful.
• Weather conditions, corrosion or misuse may damage the system.
• When assembled, the base MUST be filled with sand at all times.
• All EXIT Comet basketball systems, including those used for display, must be assembled and filled with sand, as per the instructions. If you do not adhere to these instructions you risk SERIOUS INJURIES.
• Do not design yourself and use a ballast system other than the one recommended. Most injuries are caused by misuse and/or not adhering to the instructions. Be careful when you use this system.

Care and Warranty

To ensure that your product lasts, we advise you to:

• Adhere to the usage and assembly procedures.
• Check the system before each use (ballast), loose screws, excessive wear and signs of corrosion) and if necessary make repairs.
• Regularly inspect and tighten screws and small parts to prevent slack and risks of injury.
• Do not use detergent products to care for the system. Wash with clear or soapy water.

Warranty

1. After the date of the purchase invoice, the owner of the EXIT Toys Comet System has a:

2. 2-year warranty on the the steel frame.

3. 1 year warranty on the backboard and rim.

4. 6-months warranty on the sandbag box and sandbags.
   Parts subject to wear and tear (such as the net): no warranty.

5. The warranty applies only to the material and construction defects with respect to this product or its components.

6. The warranty becomes defunct if:

7. This product is used incorrectly and/or carelessly and is used in such a way that it does not comply with its purpose.

8. This product is not assembled and maintained according to the instruction booklet.
9. Technical repairs to this product are not carried out professionally.
10. Parts, which are mounted afterwards, do not comply with the technical specifications of the product concerned or are mounted incorrectly.
11. Defects are a result of climatic influences such as corrosion, UV rays or normal disintegration.

12. The product is rented out or was made available to various unspecified persons in any other manner.

13. EXIT Toys will repair or replace according to its choice all material and construction defects that have been ascertained by EXIT Toys during the warranty period.

14. The owner of the EXIT Toys Comet System is only entitled to the warranty by presenting the product for inspection at a EXIT Toys dealer. It should be handed to the EXIT Toys dealer, accompanied by the original purchase invoice.

15. In case of material and construction defects that have been ascertained by EXIT Toys, the product or its components will be repaired or replaced – according to its choice – free of charge during the warranty period mentioned in Article 1.

16. If the claim for warranty is not justifiable, all the costs are at the expense of the owner.

17. This warranty cannot be transferred to third parties.

18. The EXIT Toys Comet System is designed for personal use. It is not permitted to rent out or use the EXIT Toys Comet System in non-residential areas like schools, clubs or day-care centres. The guarantee and any other liabilities shall expire if the EXIT Toys Comet System is rented out or used in public areas.

19. Warranties shall cover damage or failure that occurs during the course of NORMAL or INTENDED USE of the product. Normal or intended use shall be described as activity that is necessary for the participation in the sport for which the equipment is designed. NOT COVERED is damage caused by deliberate hanging, multiple player hanging, vandalism, non-basketball activities or any

Notes / Notizen / Notities / Notes / Noter

Einführung

Glückwunsch zur Wahl des EXIT Toys Comet Basketball Systems!

Prohibition sign with no text, featuring a construction-related icon and a hammer symbol inside a circle.

Line drawing of two adjustable wrenches with no text or symbols

SAND 150kg (5x30kg)

- Sand

- Schutzbrille

- Ladder 2.4mtr (8ft)

- Rolmaat

Line drawing of two adjustable wrenches (no text or symbols)

SAND 150kg (5x30kg)

- Zand

- Veiligheidsbril

Prohibition sign with no sign, featuring a construction hook symbol and a vertical barrier

Line drawing of two adjustable wrenches with no text or symbols

SAND 150kg (5x30kg)

- Sable

- Lunettes de protection

Line drawing of two adjustable wrenches with no text or symbols

SAND 150kg (5x30kg)

- Sand

- Sikkerhedsbriller

A1012 EXIT TOYS.COM

Line drawings of various household and mechanical tools including a person, glasses, table, hammer, ladder, screwdriver, wrench, and washer (no text or labels)

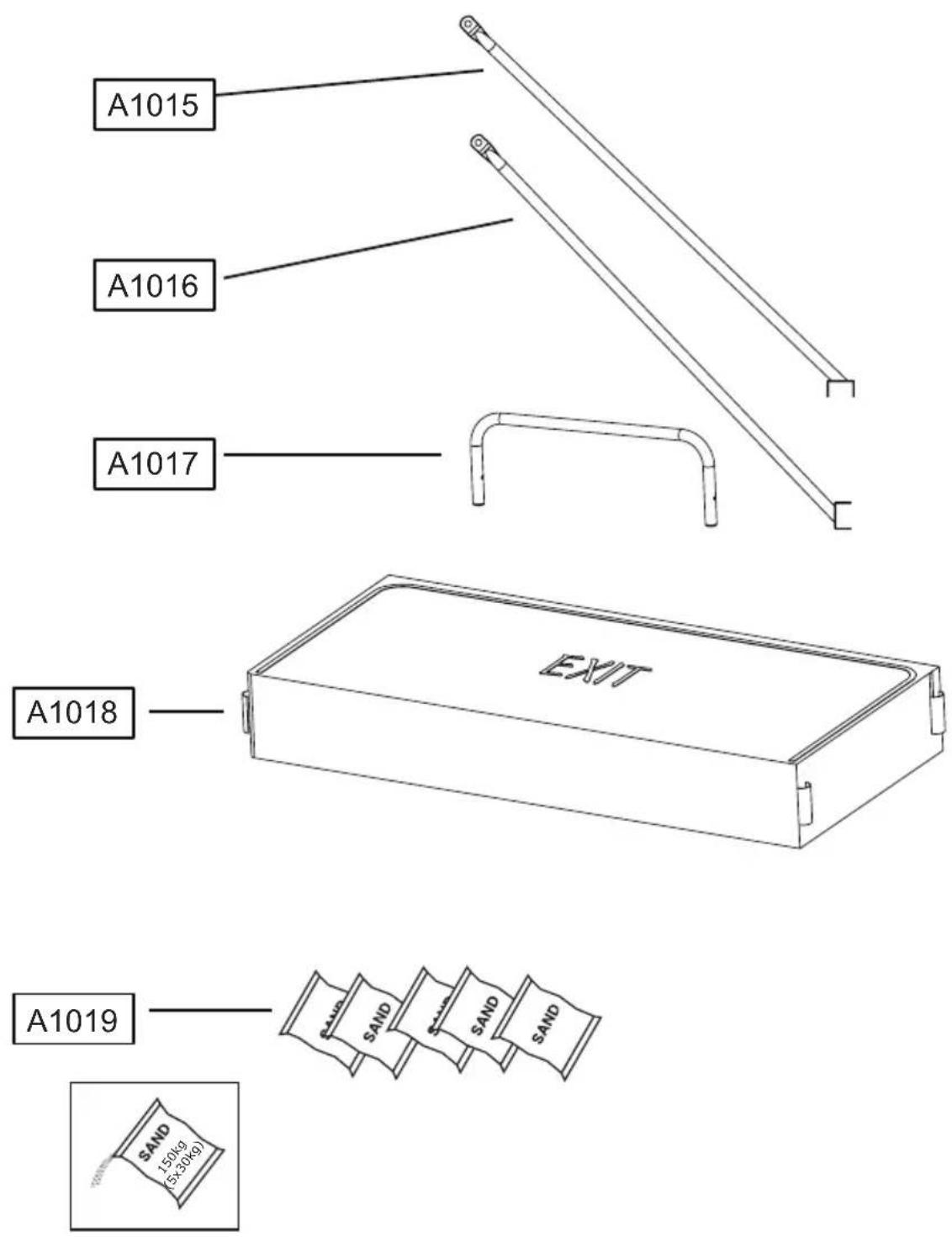

Parts list #3 / Teileliste #3 / Onderdelenlijst #3 / Liste des pièces #3 / Delliste #3

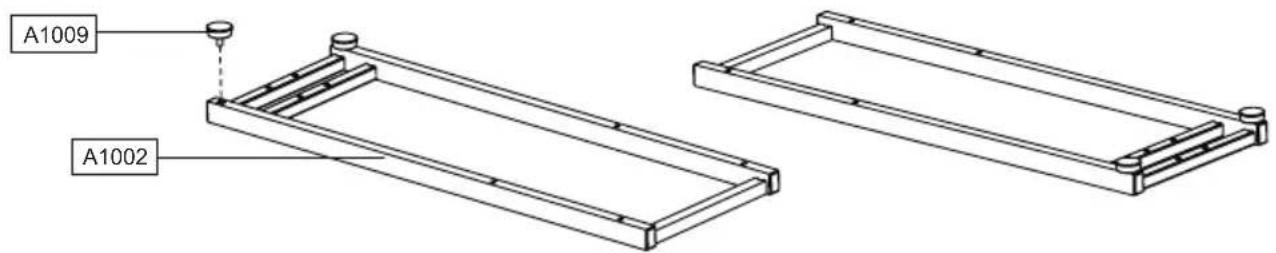

Step 1 / Schritt 1 / Stap 1 / Étape 1 / Trin 1

A1009 A1002

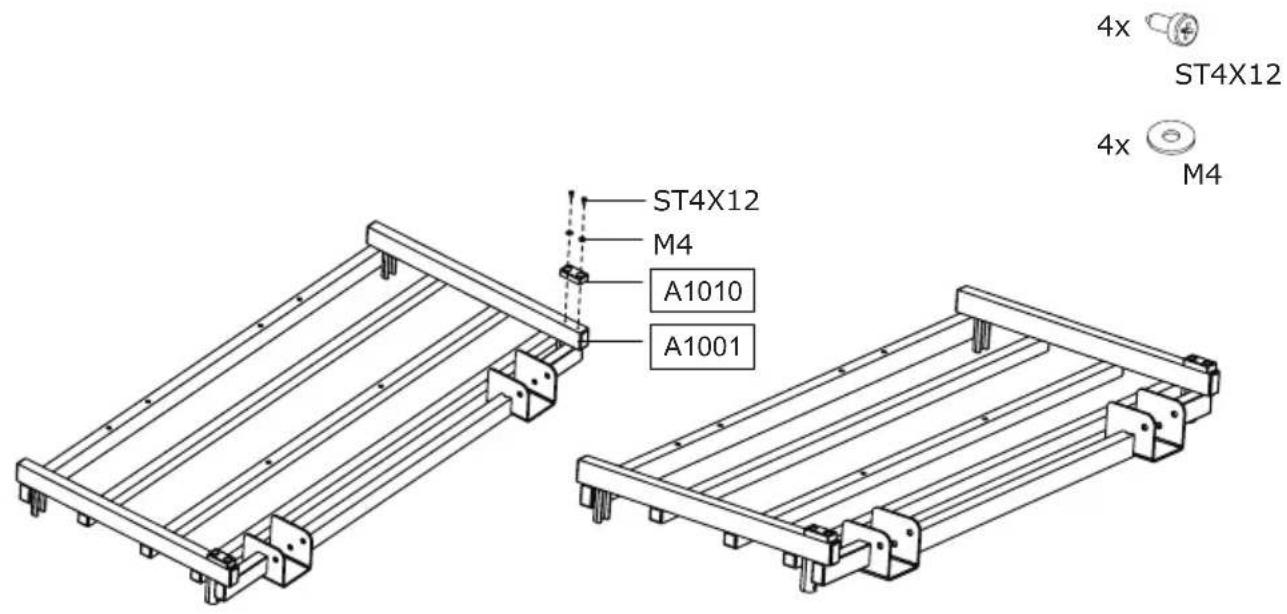

Step 2 / Schritt 2 / Stap 2 / Étape 2 / Trin 2

ST4X12 M4 A1010 A1001 4x ST4X12 4x M4

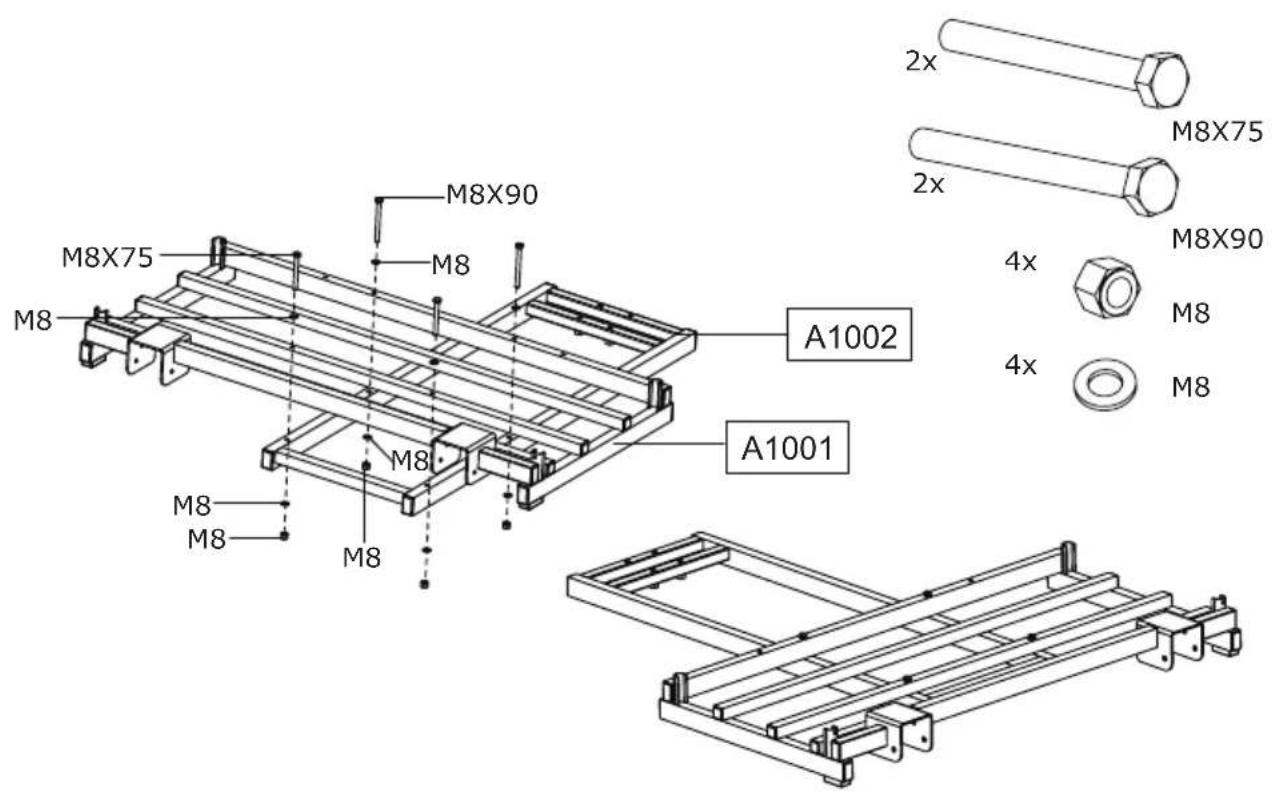

Step 3 / Schritt 3 / Stap 3 / Étape 3 / Trin 3

M8X90 M8 M8X75 M8 A1002 M8 M8 M8 A1001 4x 4x M8X75 M8X90 M8 M8

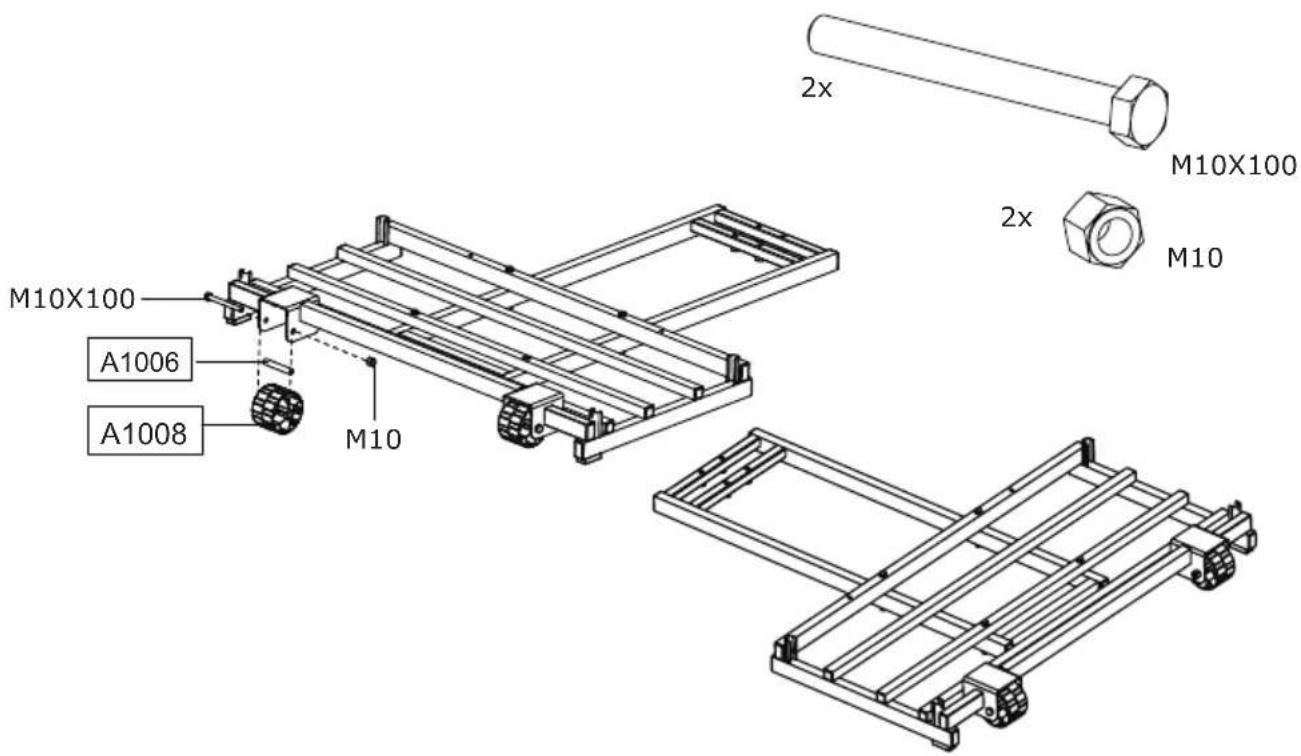

Step 4 / Schritt 4 / Stap 4 / Étape 4 / Trin 4

M10X100 A1006 A1008 M10 M10X100 2x 2x M10X100 M10

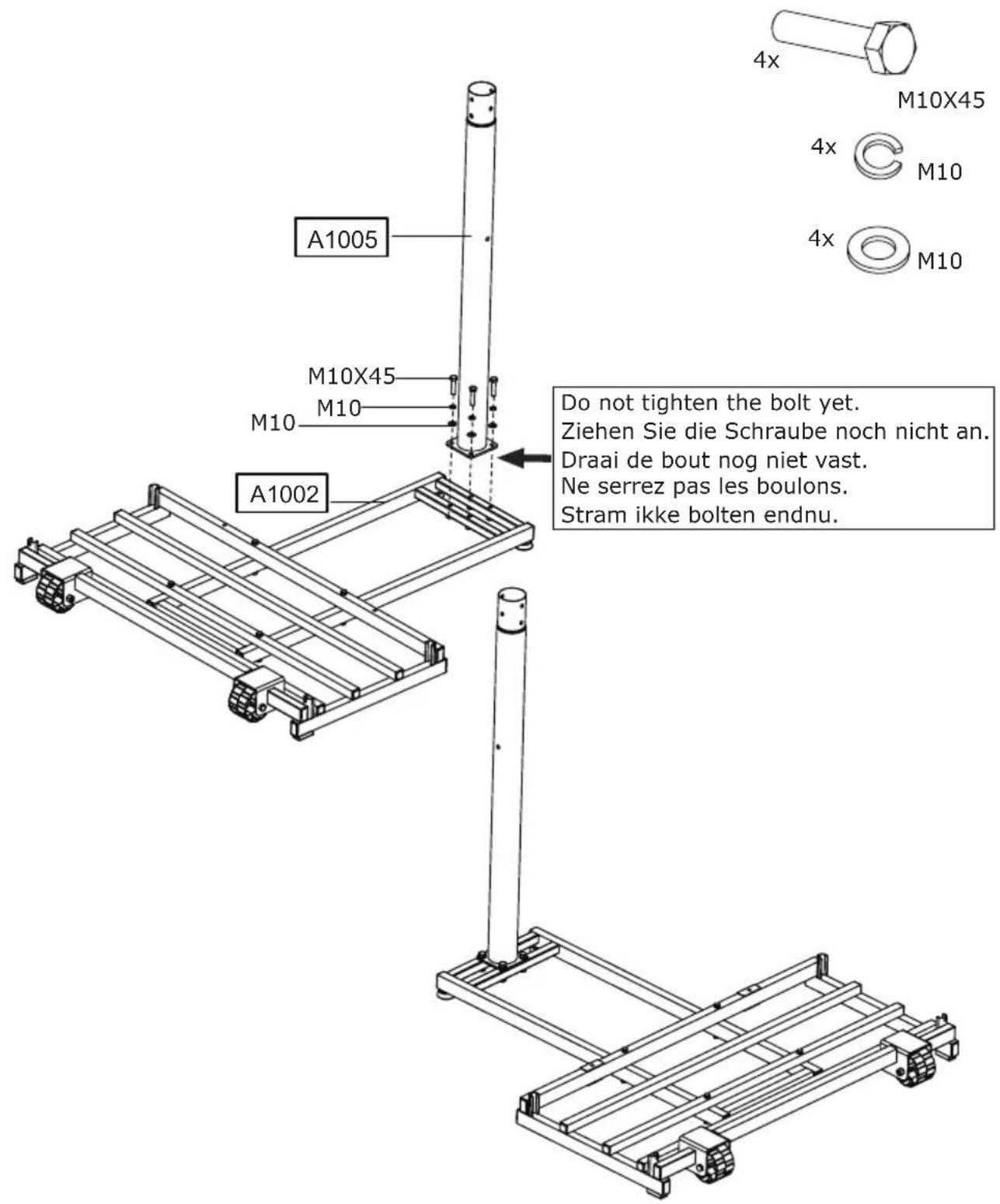

Step 5 / Schritt 5 / Stap 5 / Étape 5 / Trin 5

A1005 M10X45 M10 M10 A1002 Do not tighten the bolt yet. Ziehen Sie die Schraube noch nicht an. Draai de bout nog niet vast. Ne serrez pas les boulons. Stram ikke bolten endnu.

Step 6 / Schritt 6 / Stap 6 / Étape 6 / Trin 6

Technical line drawing of a cylindrical mechanical component with a flanged arm and mounting bracket (no text or symbols)

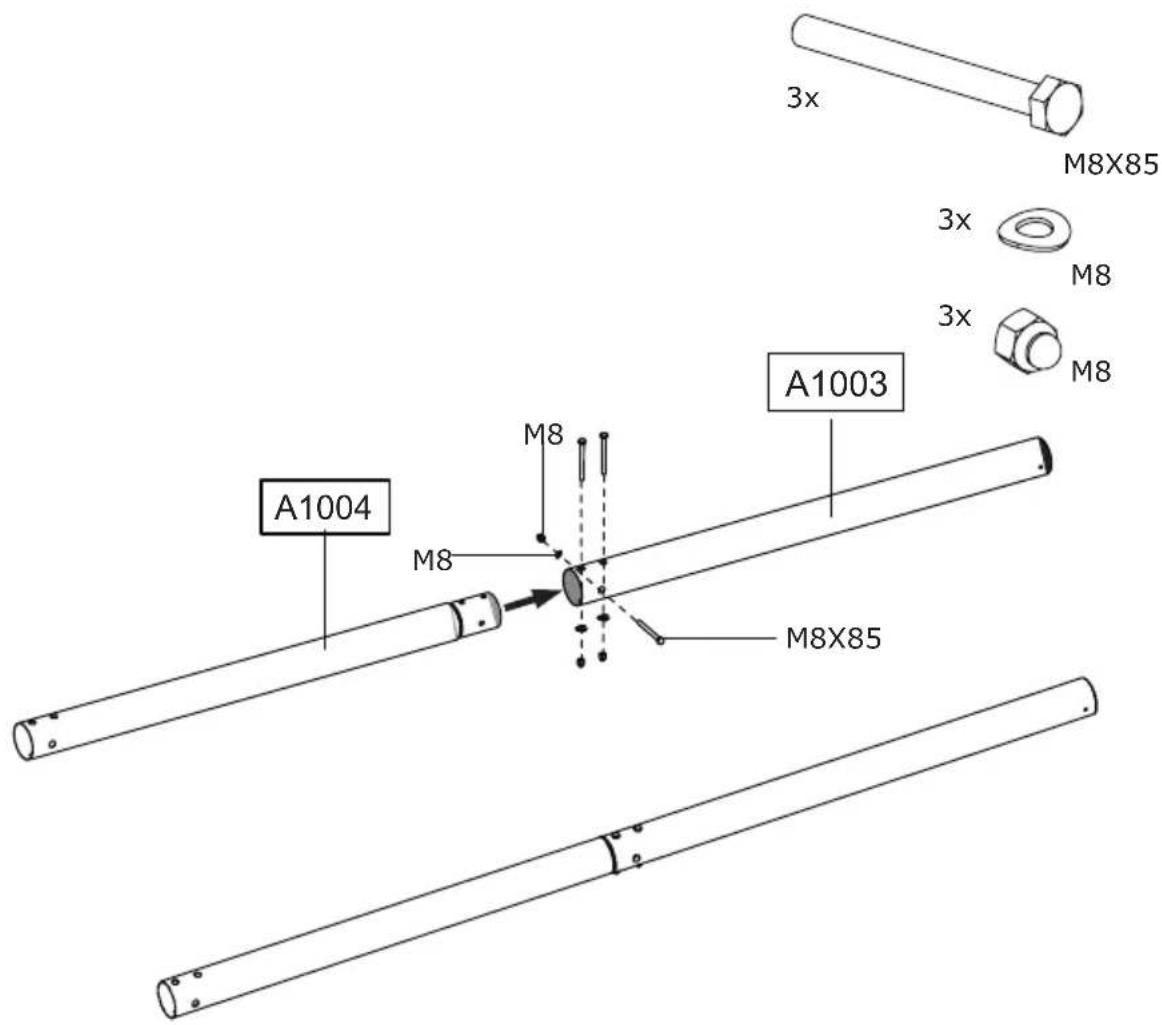

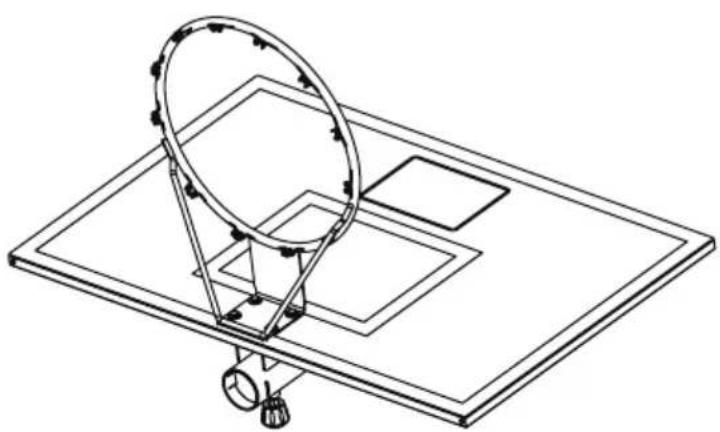

Step 8 / Schritt 8 / Stap 8 / Étape 8 / Trin 8

A1003 M8X85 3x M8X85 3x M8 3x M8 A1004 M8 M8X85

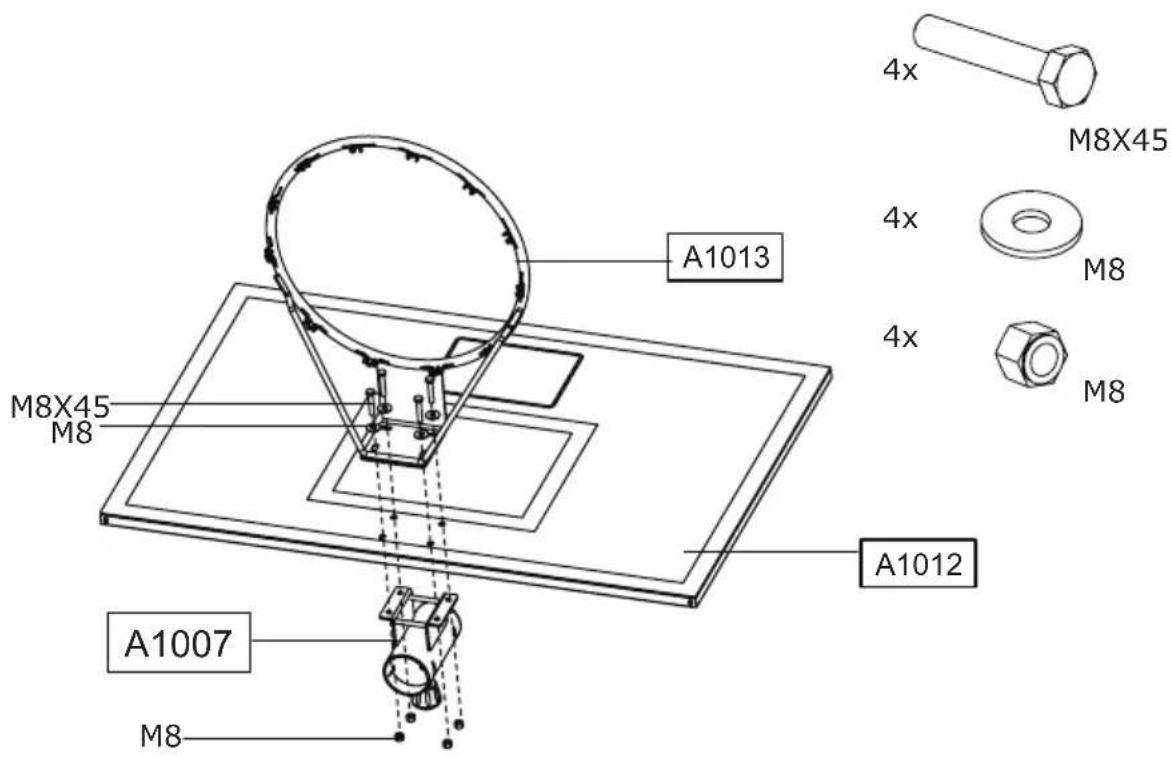

Step 9 / Schritt 9 / Stap 9 / Étape 9 / Trin 9

A1013 M8X45 M8 M8X45 M8 A1012 A1007 M8 4x M8X45 4x M8 4x M8

Isometric line drawing of a mechanical assembly with a circular component mounted on a rectangular base (no text or symbols)

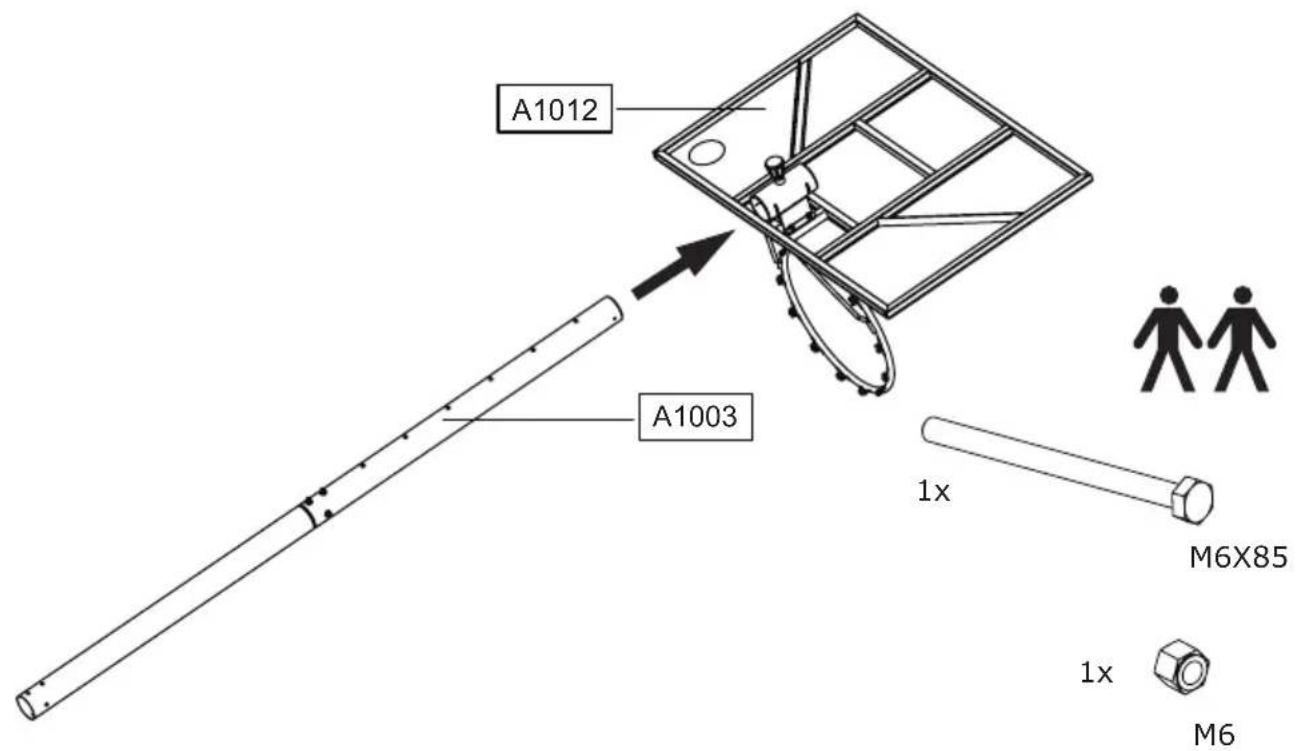

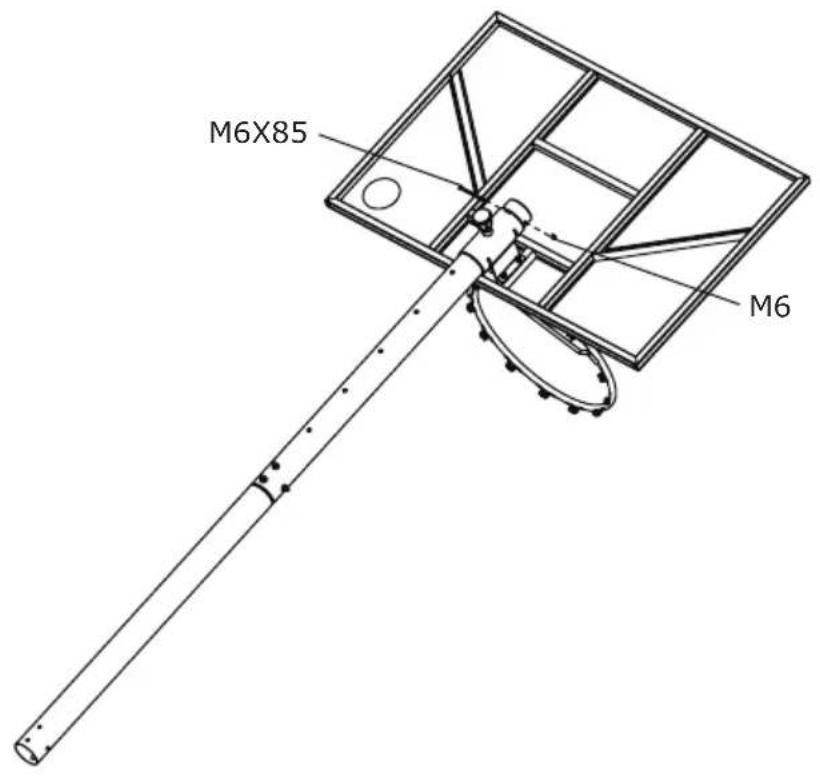

Step 10 / Schritt 10 / Stap 10 / Étape 10 / Trin 10

A1012 A1003 1x M6X85 1x M6

M6X85 M6

Step 11 / Schritt 11 / Stap 11 / Étape 11 / Trin 11

A1005 M8 M8 M8X85 A1004 3x M8X85 3x M8 3x M8 A. B C D

Step 12 / Schritt 12 / Stap 12 / Étape 12 / Trin 12

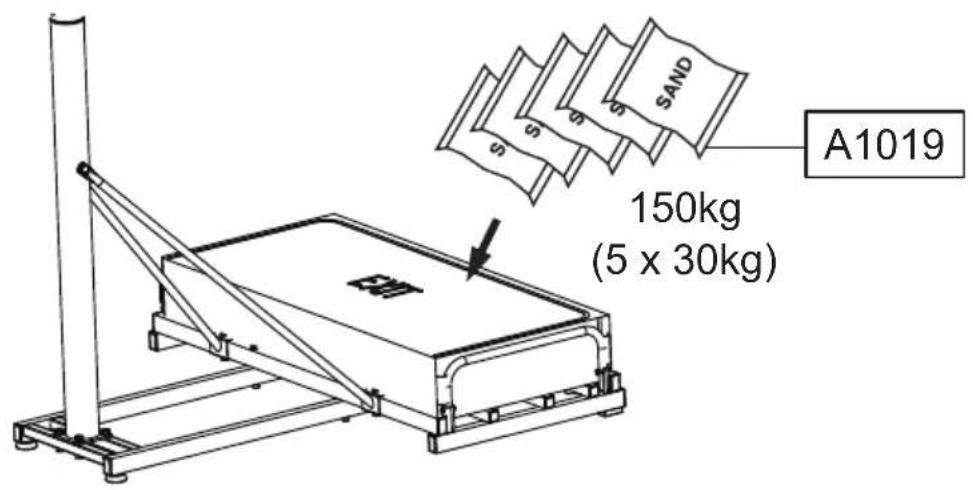

Step 13 / Schritt 13 / Stap 13 / Étape 13 / Trin 13

SAND A1019 150kg (5 x 30kg)

Technical line drawing of two basketball hoop platforms with directional arrows indicating movement, shown from different angles (no text or symbols present)

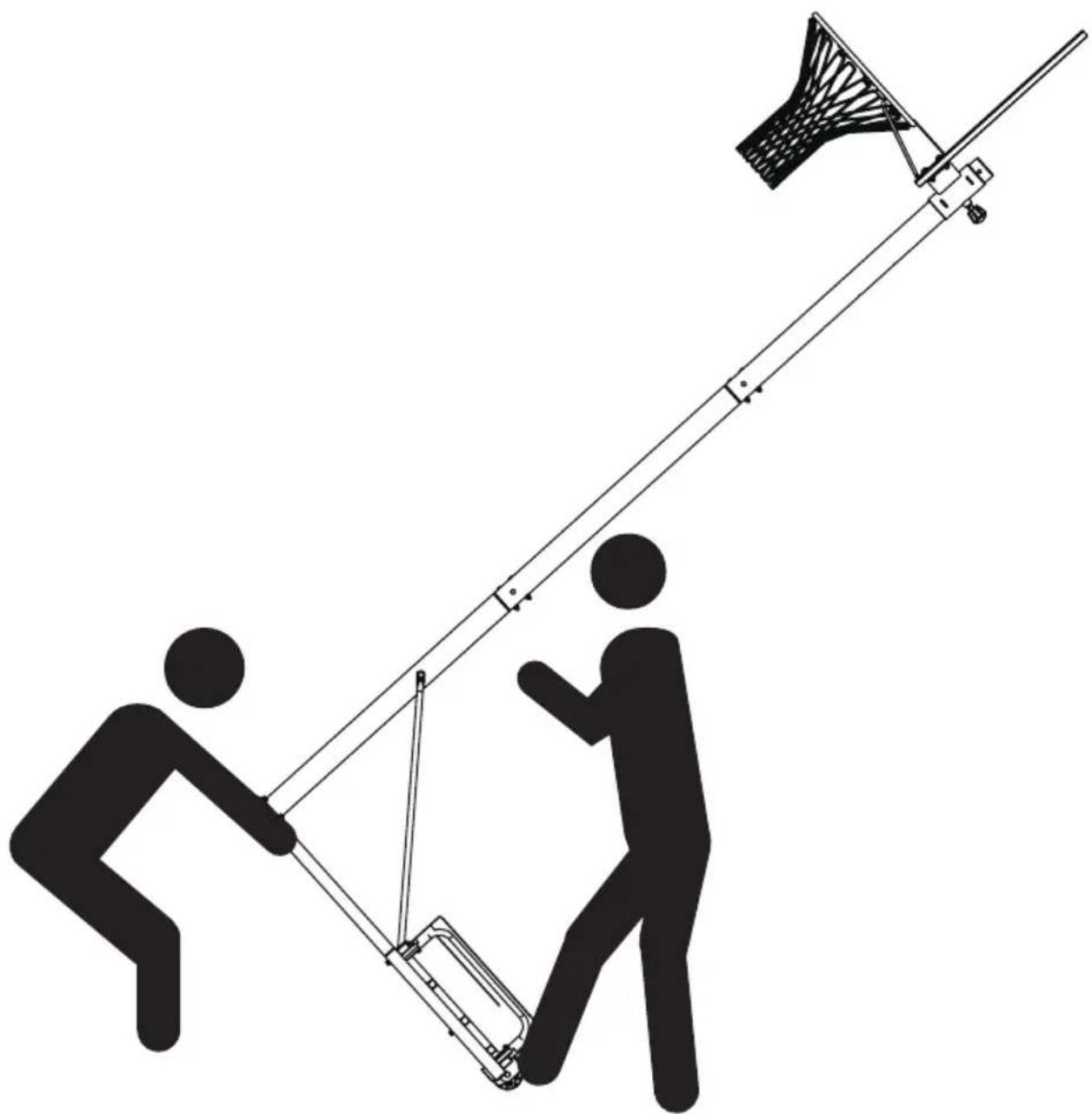

Silhouette of two people pulling a long pole with a net, no text or symbols present

EN:

Congratulations! Your EXIT Comet Basketball hoop is now fully assembled (put together).

DE:

Exterior view of a basketball hoop with green and black materials (no text or symbols visible)

Enclosed are the current specifications and product features available at time of printing, however, changes may be made in equipment, availability, specifications and features without notice.

Exterior view of a basketball hoop with green 'EXIT' and 'PORTA' branding (no text on main subject)

Comet

Portable Basketball System Owners Manual

Contact:

Dutch Toys Group

EXIT is a registered trade mark of Dutch Toys Group
