Moto G04S - Smartphone MOTOROLA - Free user manual and instructions

Product type	Smartphone
Brand	Motorola
Model	Moto G04S (XT2421-3)
Dimensions (estimated)	164 x 75 x 9 mm
Weight (estimated)	190 g
Display	6.5 inches HD+ (estimated)
Battery	5000 mAh (estimated), non-removable
Charging	USB-C, recommended Motorola charger
SIM	Dual nano SIM
Expandable storage	microSD up to 1 TB (estimated)
Fingerprint sensor	On the side (Power button)
Rear camera	Main with LED flash
Front camera	Front
Connectivity	Wi-Fi 5, Bluetooth 5.0 (estimated), GNSS, FM radio
Mobile networks	GSM, UMTS, LTE (bands 1/3/5/7/8/20/28/38/40/41)
Headphone jack	Yes, 3.5 mm
Sensors	Proximity
Operating temperature	-20°C to 45°C
Water resistance	Not waterproof
Battery safety	Removal only by authorized center
SAR information	Available in Settings or by dialing *#07#

Frequently Asked Questions - Moto G04S MOTOROLA

How to insert the SIM card and microSD card?

Use the provided tool to open the tray located on the edge. Place the nano SIM (gold contacts facing down) and optionally a microSD card. Close the tray and turn on the phone.

How to turn on and off the Moto G04S?

To turn on, press and hold the Power button. To turn off, press and hold Power and Volume Up until the device turns off.

What to do if the phone becomes unresponsive?

Press and hold the Power button until the screen turns off and the phone restarts. This forces a restart.

Is the Moto G04S waterproof?

No, it is not waterproof. Avoid any contact with water and humidity.

How to check SAR (Specific Absorption Rate) information?

Swipe up on the home screen, go to Settings > type 'Regulatory labels' in the search, or dial *#07# on the phone keypad.

Can I replace the battery myself?

No, the battery is built-in and should only be removed by an authorized Motorola service center to avoid risk of burns or injury.

How to take a screenshot?

Press and hold the Power and Volume Down buttons at the same time. The screen will flash and the screenshot will be saved in the gallery.

What type of charger should I use?

Use a compatible Motorola charger (USB-C). Non-compliant chargers may be dangerous and damage the device.

How to transfer data from an old phone?

During initial setup, follow the instructions to copy your data. You can also use Google Drive app or a USB-C cable.

Where to find help and updates?

Swipe up on the home screen, then tap Settings > Help. Also visit www.motorola.com/mymotog for guides and software.

USER MANUAL Moto G04S MOTOROLA

moto g04

English....3

Deutsch....7

Français....11

Español....15

Português.... 19

Italiano 23

Nederlands 27

suomi....31

Polski 35

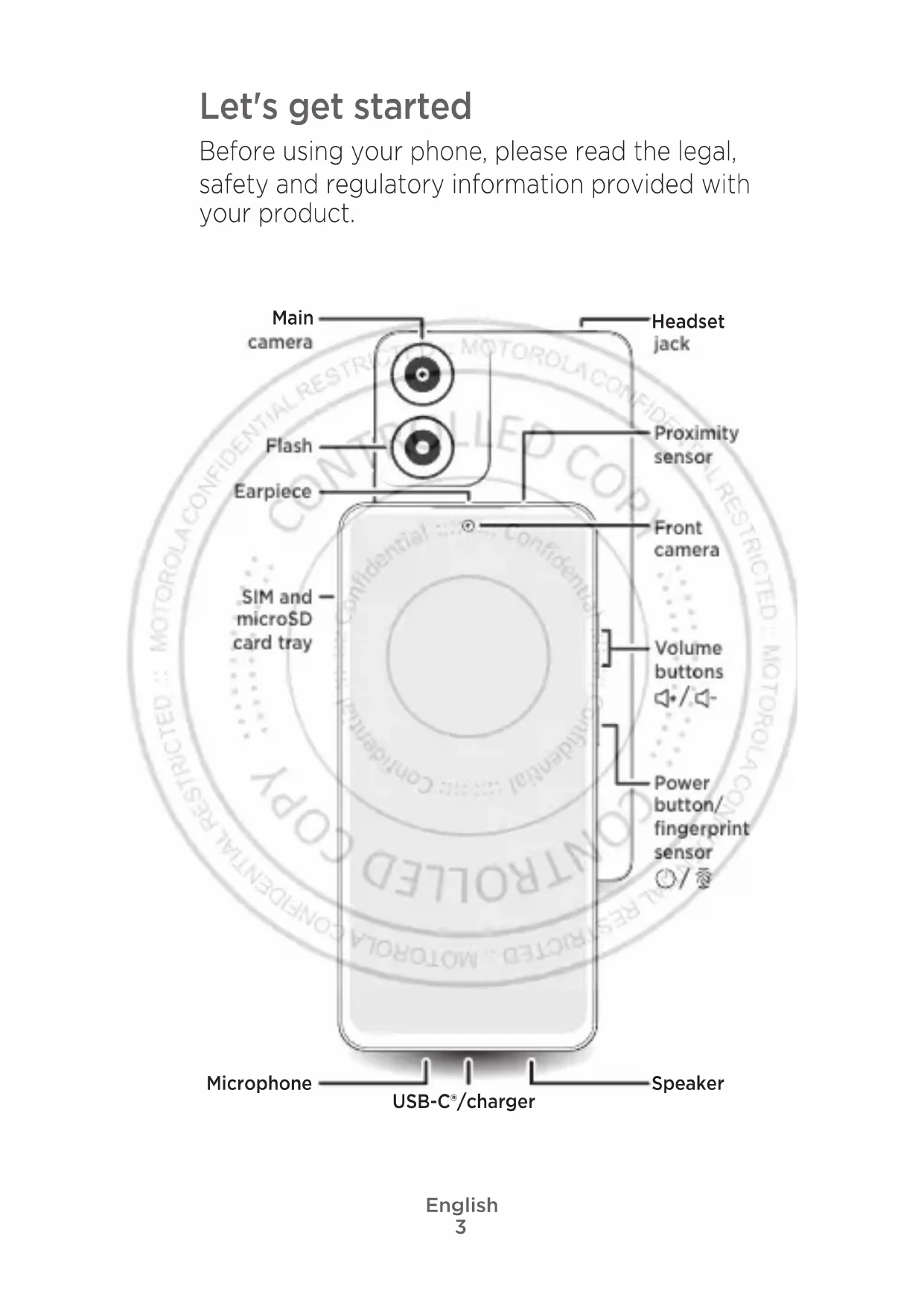

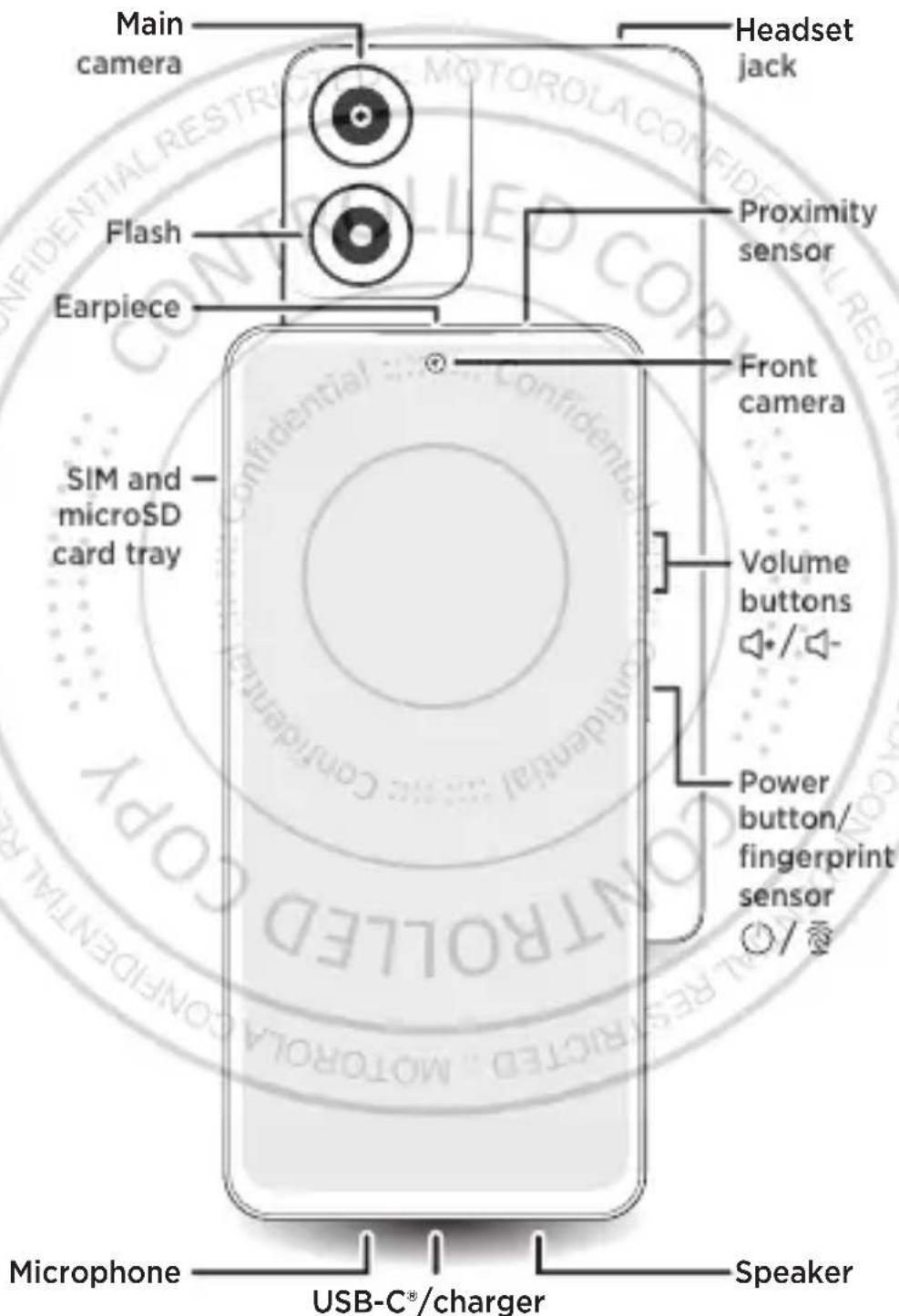

Let's get started

Before using your phone, please read the legal, safety and regulatory information provided with your product.

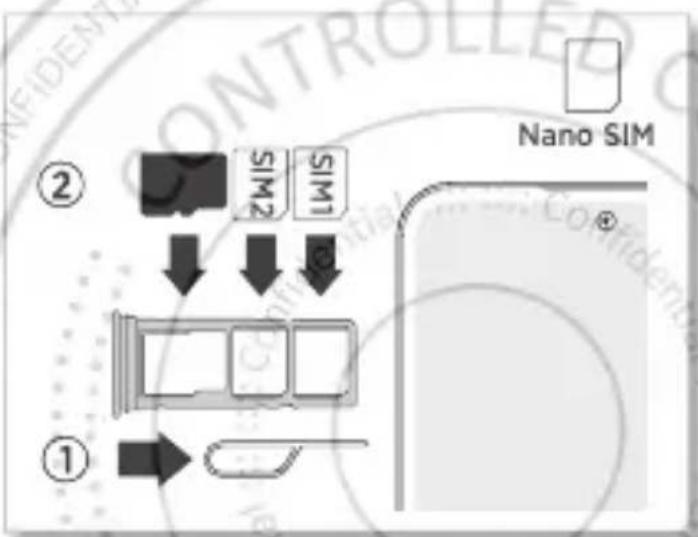

Put the card(s) in and power on

1 Insert the SIM tool into the hole next to the tray to pop out the tray.

Make sure that you use the correct size of SIM card and don't cut the SIM card.

2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot.

Add a microSD card micro (optional, sold separately) for additional storage.

3 Press and hold the power button ⏻ to turn on your phone, then follow the prompts to get started.

To turn off your phone, press the power and Volume up buttons ⏻ + ▶+ at the same time.

Scan with your

Camera app for the video.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
  • Get more: get software, user guides and more at www.motorola.com/mymotog.
  • Get apps: tap Play Store to browse and download apps.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > Q, then type Legal information or visit www.motorola.com/device-legal.

Water repellent. Your phone is not waterproof. For more about your phone's water-repellent design and care, swipe up and tap

Settings > Help.

Charging and battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel.

If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended and may impair the charging performance. Don't charge your phone in temperatures below -20°C or above 45°C. Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the Volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide

that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > 🔒 then type Regulatory labels, from your phone's dial pad type *#07# or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2421-3). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/band	Maximum nominal transmit power dBm
Bluetooth	2400 - 2483.5	20 dBm EIRP
Wi-Fi	2400 - 2483.5	20 dBm EIRP
Wi-Fi	5150 - 5250	23 dBm EIRP
Wi-Fi	5250 - 5350	20 dBm EIRP
Wi-Fi	5470 - 5725	20 dBm EIRP
Wi-Fi	5725 - 5850	14 dBm EIRP
GNSS	1559 - 1610	N/A
FM receive	87.5 - 108	N/A
GSM	3/5/8	33/30
UMTS	1/5/8	24
LTE	1/3/5/7/8/20/28/38/40/41	23

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play, and other related marks and logos are trademarks of Google LLC. microSD Logo is a trademark of SD-3C, LLC, USB Type-C and USB-C are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2023 Motorola Mobility LLC. All rights reserved.

Product ID: moto g04 (Model XT2421-3)

Manual Number: 7013AA001349-A

Erste Schritte

Protect your phone with

moto care. Visit:

motorola.com/motocare

With moto care, extend your warranty coverage up to three years, and take advantage of features like accidental damage protection.

Printed in China
