USER MANUAL MULTI HL 3000 BRENNENSTUHL
LED Rechargeable Hand Lamp
MULTI HL 3000
EN Operating instructions 8
FR Mode d'emploi 12

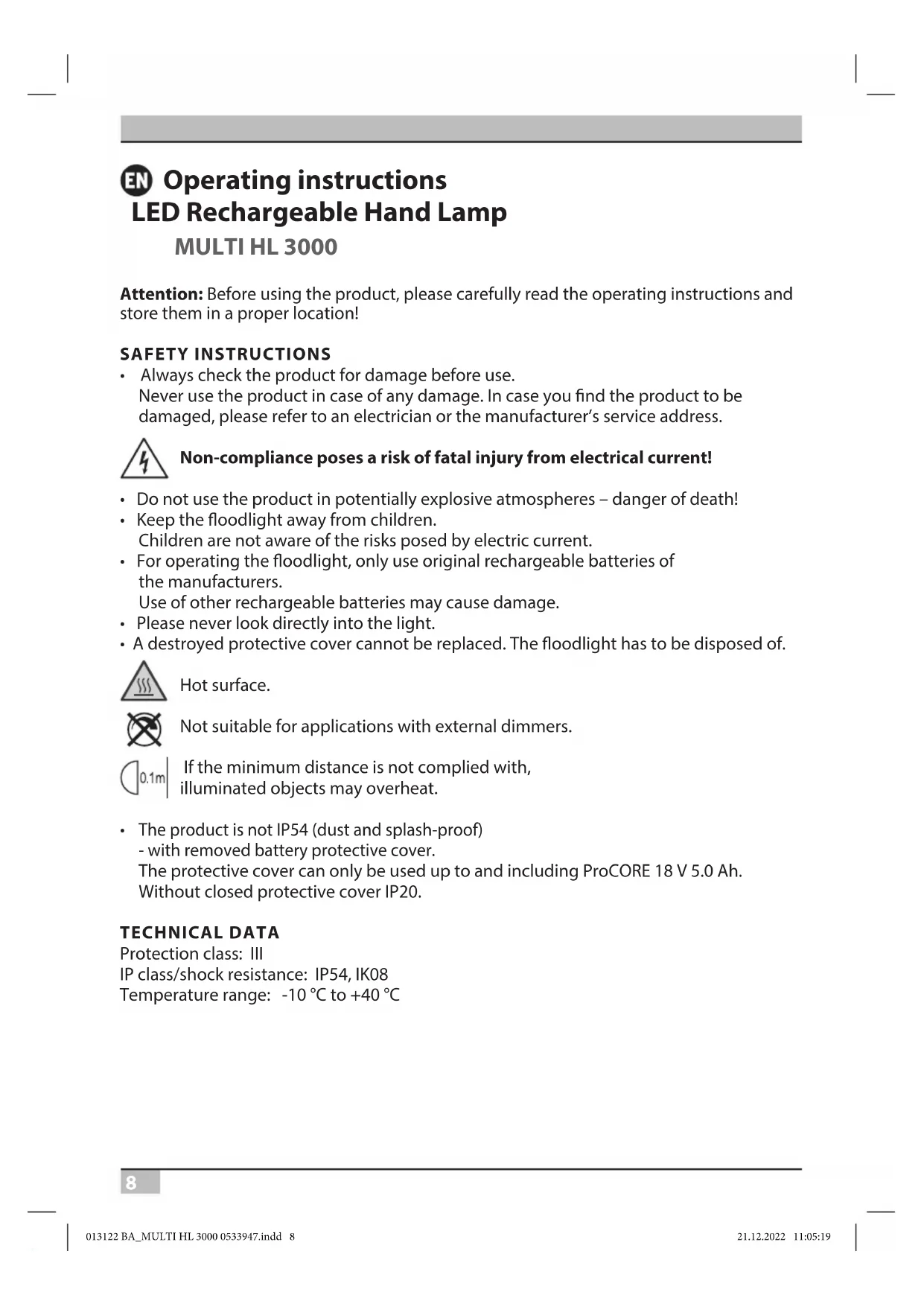

Operating instructions D Rechargeable Hand Lamp
MULTI HL 3000
Attention: Before using the product, please carefully read the operating instructions and store them in a proper location!
SAFETY INSTRUCTIONS
- Always check the product for damage before use. Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.
Non-compliance poses a risk of fatal injury from electrical current!
- Do not use the product in potentially explosive atmospheres – danger of death!
- Keep the floodlight away from children.
Children are not aware of the risks posed by electric current. - For operating the floodlight, only use original rechargeable batteries of the manufacturers.
Use of other rechargeable batteries may cause damage. - Please never look directly into the light.
- A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.
Hot surface.
Not suitable for applications with external dimmers.
If the minimum distance is not complied with, illuminated objects may overheat.
- The product is not IP54 (dust and splash-proof) - with removed battery protective cover. The protective cover can only be used up to and including ProCORE 18 V 5.0 Ah. Without closed protective cover IP20.
TECHNICAL DATA
Protection class: III
IP class/shock resistance: IP54, IK08
Temperature range: -10 °C to +40 °C
| Model: MULTI HL 3000 | |
| Compatible battery types: You can find an overview of all available adapters and the matching batteries on our homepage www.brennenstuhl.com | |
| Max. projected area: 183.63 cm | ^2 |
| Dimensions: 18.2x13.8x21.4 cm | |
| Dimensions of protective cover: 11.1x11.1x2 cm | |
| Weight: 1.37 kg | |
This product is suitable for indoor and outdoor lighting purposes.
COMMISSIONING
Place the spotlight on a dry, flat surface or take the spotlight in your hand.
With the adjustable foot bracket, different angles of inclination of the spotlight can be realised (Fig. 2a). The foot bracket is also equipped with magnets.
To switch on the spotlight, press the switch at the top of the handle.
Pressing it once activates the spotlight with full light intensity. Pressing it again (within five seconds) switches the spotlight to the secondary light source (100%) (Fig. 2b). This can be adjusted to 75%, 50% and 25% by pressing again and then switched off (Fig. 2c). The less light output is set, the longer the light duration.
If a switch position remains unchanged for more than 5 seconds, pressing it again always leads to the "off" state.
If the battery is almost empty, the LED spotlight flashes five times. After that, the spotlight will continue to shine at 50% brightness for approx. 10 minutes, depending on the battery capacity, before the deep discharge protection switches the spotlight off.
This leaves enough time to change the battery or to finish the work.
INSERTING AND REMOVING THE BATTERY
The adapter can be inserted quickly and easily.
To do this, open the catch and pull the battery cover towards you (Fig. 1a - 1b). Now insert the matching adapter into the Brennenstuhl interface (Fig. 1c) and lock it with the red locking mechanism (Fig. 1d). Insert the charged 18 volt battery into the battery holder from behind (Fig. 1e) until you feel it click into the end position.
To remove the battery, press the battery release button and pull the battery back out of the battery holder.
Then close the cover again (Fig. 1f).
To ensure IP54 (dust and splash-proof), the floodlight may only be operated with the battery cover correctly closed.
If the device is not used for a longer period of time, remove the rechargeable battery.
The floodlight can also be operated without battery cover up to 12 Ah rechargeable batteries; in this case, the IP class will, however, be reduced to IP20 and the floodlight may only be operated in a dry environment. To do so, open the battery cover locking (Fig. 1a).
Afterwards, remove the battery cover.
CHARGING THE RECHARGEABLE BATTERY
Only use one of the manufacturer's original charging device.
SCOPE OF DELIVERY
Floodlight, 4 multi adapters: Bosch, Makita, Metabo, Milwaukee/Dewalt, Adapter bag.
ACCESSORIES
Suitable accessories are available on our homepage www.brennenstuhl.com.
CLEANING
Remove the rechargeable battery before cleaning.
Do not use solvents, caustic cleaning agents or similar products.
Only use a dry or slightly moistened cloth for cleaning.
MAINTENANCE
ATTENTION: The LED lamp does not contain components that require maintenance.
The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.
EU DECLARATION OF CONFORMITY
UK DECLARATION OF CONFORMITY
The declaration of conformity is deposited with the manufacturer.
DISPOSAL
Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.
For possibilities of disposal of the used appliance, please contact your local or municipal administration.
DISPOSAL
Batteries and accumulators must not be disposed of in the household waste!
As a consumer, you are legally obliged to hand in all batteries and accumulators at a collection point in your community/urban district or in the trade, so that they can be disposed of in an environmentally friendly manner, otherwise there are possible risks to the environment and human health.
MANUFACTURER
For more information, we recommend the Service/FAQs section on our homepage www.brennenstuhl.com.
