USER MANUAL TR4GNORB1 ROSIERES

Exterior view of a modern stainless steel electric stove with open doors and internal cabin structure (no visible text or symbols)

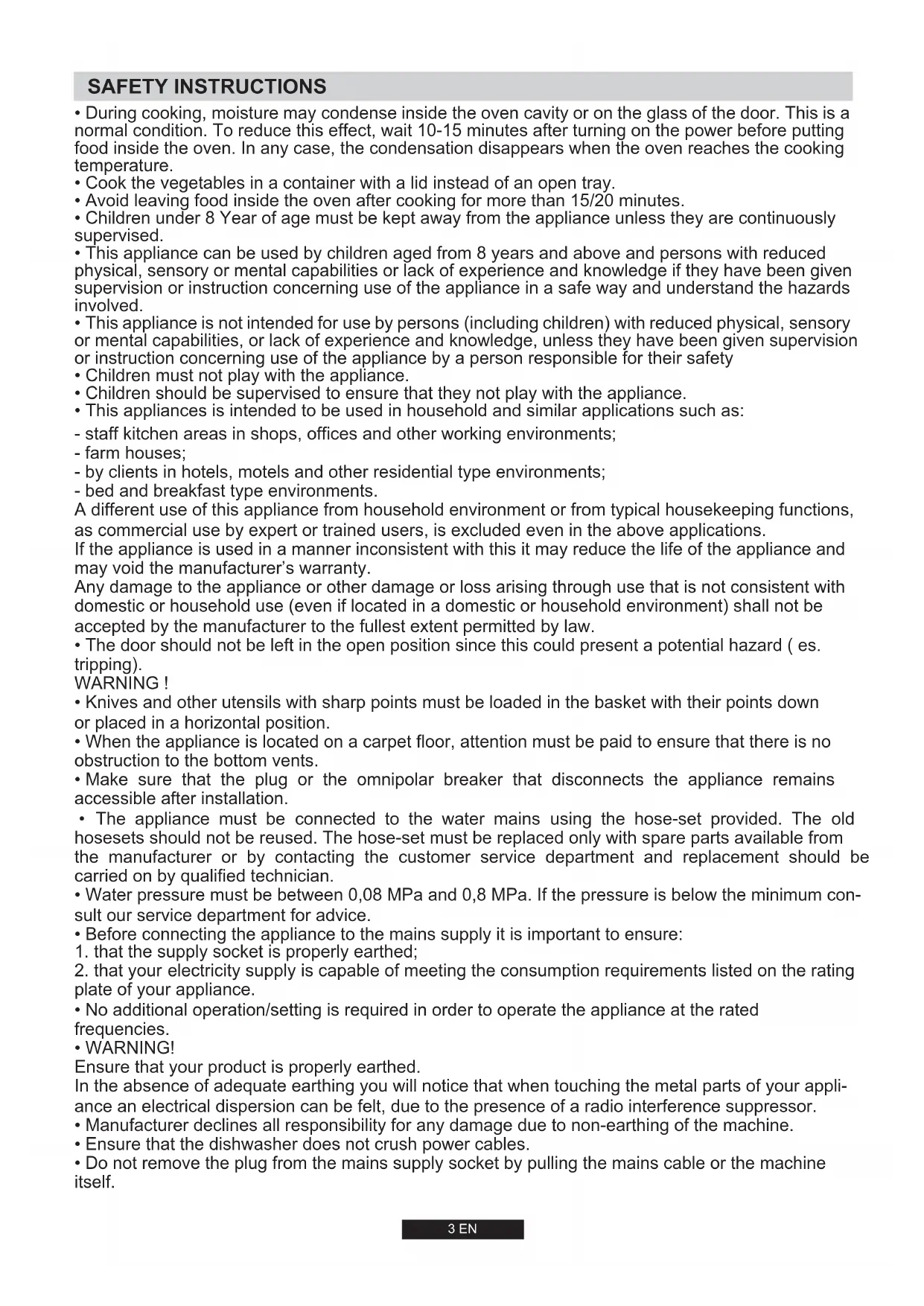

SAFETY INSTRUCTIONS

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.
• Cook the vegetables in a container with a lid instead of an open tray.
• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
  • Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
  • Children must not play with the appliance.
• Children should be supervised to ensure that they not play with the appliance.
• This appliances is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty.

Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- The door should not be left in the open position since this could present a potential hazard (es. tripping).

WARNING!

• Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
• When the appliance is located on a carpet floor, attention must be paid to ensure that there is no obstruction to the bottom vents.
• Make sure that the plug or the omnipolar breaker that disconnects the appliance remains accessible after installation.
• The appliance must be connected to the water mains using the hose-set provided. The old hosesets should not be reused. The hose-set must be replaced only with spare parts available from the manufacturer or by contacting the customer service department and replacement should be carried on by qualified technician.
• Water pressure must be between 0,08 MPa and 0,8 MPa. If the pressure is below the minimum consult our service department for advice.

• Before connecting the appliance to the mains supply it is important to ensure:

• that the supply socket is properly earthed;

• that your electricity supply is capable of meeting the consumption requirements listed on the rating plate of your appliance.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

- WARNING!

Ensure that your product is properly earthed.

In the absence of adequate earthing you will notice that when touching the metal parts of your appliance an electrical dispersion can be felt, due to the presence of a radio interference suppressor.

• Manufacturer declines all responsibility for any damage due to non-earthing of the machine.
• Ensure that the dishwasher does not crush power cables.
• Do not remove the plug from the mains supply socket by pulling the mains cable or the machine itself.

SAFETY INSTRUCTIONS

- In general it is not advisable to use adaptors, multiple plugs and/or extension cables.

- Never touch the appliance when your hands or feet are wet or damp.

- Do not use when your feet are bare.

- Do not leave the appliance exposed to the elements (rain, sun etc).

- Leaning or sitting on the open door of the dishwasher could cause it to tip over.

- If the appliance breaks down or stops working properly, switch it off, turn off the water supply and do not tamper with it. Repair work should only be carried out by an approved service agent and only gen-uine spare parts should be fitted. Any failure to follow the above advice may have serious consequences for the safety of the appliance.

- Water left in the machine or on the dishes at the end of the wash programme should not be swal-lowed.

- The maximum number of place setting for dishwasher is 6.

- The dishwasher is designed for normal kitchen utensils.

Objects that have been contaminated by petrol, paint, traces of steel or iron, corrosive chemicals, acids or alkalis must not be washed in the dishwasher.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- Cleaning and user maintenance shall not be made by children without supervision

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- The hob cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- During use the appliance becomes hot. Care should be taken to avoid touching h eating elements inside the oven.

- WARNING: Accessible parts may become hot during use. Young children must be kept away.

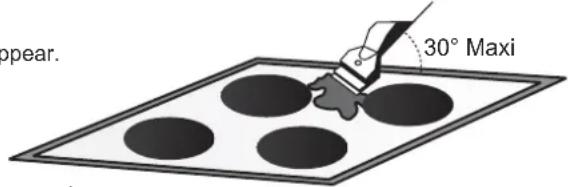

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass, the glass hob lid or the glass hob surface since they can scratch the surface, which may result in shattering of the glass.

- Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

- The oven must be switched off before removing the guard, after cleaning, the guard must be replaced in accordance with the instructions.

- Only use the temperature probe recommended for this oven.

- WARNING: Never remove the oven door seal.

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

- When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity.

- When inserting the grid tray pay attention that the anti-slide edge is positioned rearwards and upwards.

- Do not use a steam cleaner or high pressure spray for cleaning operations.

- Any spillage should be removed from the lid before opening.

- The hob surface must be allowed to cool down before closing the lid.

- CAUTION: glass lids may shatter when heated. Turn off all the burners before shutting the lid.

- If present, do not to stare into halogen lamp hob elements.

- Use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

- Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up.

- Do not touch the heat zones during operation or for a while after use.

- Do not place anything on control panel.

SAFETY INSTRUCTIONS

• WARNING: Avoid possibility of electric shock - ensure the appliance is switched off before replacing the lamp.
• The product must not be placed on a base.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• The connection to the power source must be carried out by a suitably qualified professional. In order to have an installation compliant to the current safety legislation the product must be connected only placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source. The omnipolar breaker must bear the maximum connected load and must be in line with current legislation. The yellowgreen earth cable should not be interrupted by the breaker. The omnipolar breaker used for the connection must be easily accessible when the appliance is installed. The connection to the power source must be carried out by a suitably qualified professional considering the polarity of the oven and of the power source. The disconnection must be achieved incorporating a switch in the fixed wiring in accordance with the wiring rules.
• If the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. This operation should be carried out by a suitably qualified professional. The type of power cable must be H05V2V2-F. The earth conductor (yellowgreen) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts. Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The new hose-sets supplied with the appliance must to be used and the old hose-sets to be discard-ed.
• This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible";
• The adjustment conditions for this appliance are stated on the label (or data plate)";
• This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.
• The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
• CAUTION:Accessible parts may be hot when the grill is in use. Young children must be kept away".
• For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.
• Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.

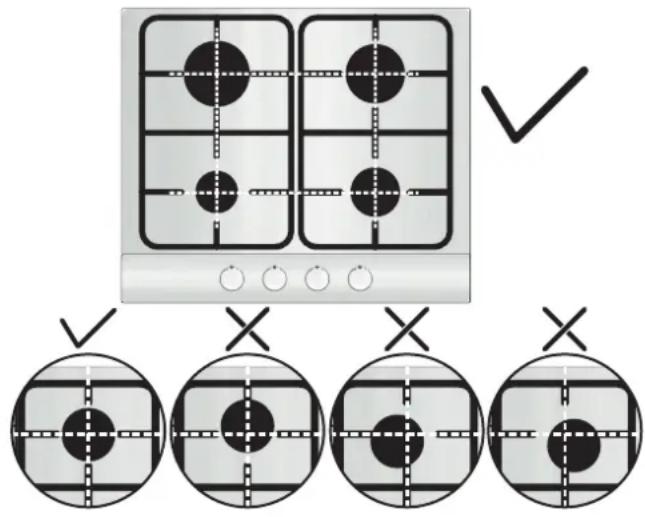

  • Always place the pan in the centre of the unit that you are cooking on.
• Do not use the surface as a cutting board.
• Do not slide cookware across the hob.
• Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
• Do not use the hob as a working surface.
• Aluminium foil and plastic pans must not be placed on heating zones.
• It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.
• Caution, possibility of tilting
• Anti-tip restraints must be applied. Follow the instruction provided with the brackets included in the product.

UNPACKING THE APPLIANCE

Inside the appliance, you will find the booklet and, for gas model, a bag containing :

- if you have to change the type of gas: new jets for the gas modifications, Butane Gas G30 28-30 mbar or Propane Gas G31-37 mbar,

- for connection by soft rubber tube, an end piece for Natural Gas and an end piece for Butane or Propane gas with seal.

RECOMMENDATIONS

READ THE INSTRUCTIONS CAREFULLY TO MAKE THE MOST OF YOUR APPLIANCE.

We recommend you keep the instructions for installation and use for later reference, and before installing the appliance, note its serial number below in case you need to get help from the after sales service.

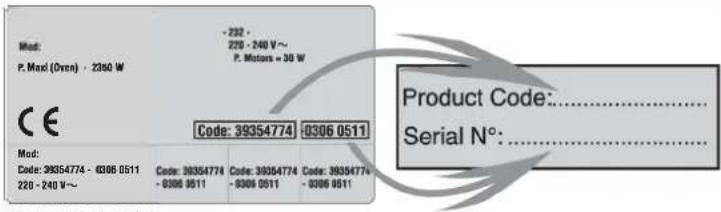

. Identification plate is located at the back of the Trio.

THE COMPANY SHALL NOT BE LIABLE IF THE INSTRUCTIONS PROVIDED IN THIS DOCUMENT ARE NOT COMPLIED WITH.

Mod: P. Maxl (Oven) - 2360 W -232 - 220 - 240 V ~ P. Motors = 30 W CE Code: 39354774 -0306 0511 Mod: Code: 39354774 - 6306 0511 220 - 240 V ~ Code: 39354774 - 6306 0511 Code: 39354774 - 6306 0511 Code: 39354774 - 6306 0511 Product Code:............. Serial N°:............

IMPORTANT NOTES

- You should entrust the gas installation of your appliance and its electrical connection to an approved installer or technician with similar qualifications.

• The Trio consists of three elements, a hob, an oven and a diswasher. For safety reasons under no circumstances should any modifications be carried out to this appliance.

- This appliance is designed for domestic use only. - If the Trio shows even the smallest defect, do not connect it. Disconnect from the power supply and immediately contact an approved service agent.

- If the surface is cracked, switch off the appliance to avoid the possibility of electric shock

- Do not lean on the doors or not allow children to do so.

• After each use we recommend that some cleaning of the Trio is undertaken. This prevents the accumulation of dirt or grease which gets re-cooked and burns, generating unpleasant smells and smoke.

- Do not store flammable products in the Trio as they can catch fire if the appliance is inadvertenty switched on.

- In case of Hobs incorporating Halogen lamps, do not stare the plates during use.

- Use oven gloves when placing or removing a dish from the oven. - Do not line the oven walls with aluminium foil or single-use oven protectors available from some stores. Aluminium or any other protection, in direct contact with the hot enamel, risks melting the enamel or causing deterioration to the inside.

- When cooking with fats or oils, always take care to watch the cooking process as heated fats and oils can catch fire rapidly. - The hob lid (for gas model):

- While the cooker is in use, keep the lid in the upright position. - before opening the lid, remove any items from it, to avoid any spillage.

- before closing the lid, let all the hot parts of the cooker cool down. - do not store heavy or metallic objects on the lid.

- If you wish to dispose of an old dishwasher be careful to remove the door to eliminate the risk of children becoming trapped inside it.

• The dishwasher has been made from materials which can be recycled so that it can be disposed of in an environmentally friendly way.

- Ensure that the dishwasher does not crush power cables.

- It is not advisable to use adaptors, multiple plugs and/or extension cables.

- Any queries regarding the power supply cord should be referred to After Sales Service or a qualified technician.

- When the appliance is located on a carpet floor, attention must be paid to ensure that there is no obstructions to the bottom vents. Any failure to follow the above advice may have serious consequences for the safety of the appliance.

In order to improve the quality of the products, CANDY may carry out modifications linked to technical improvements.

The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).

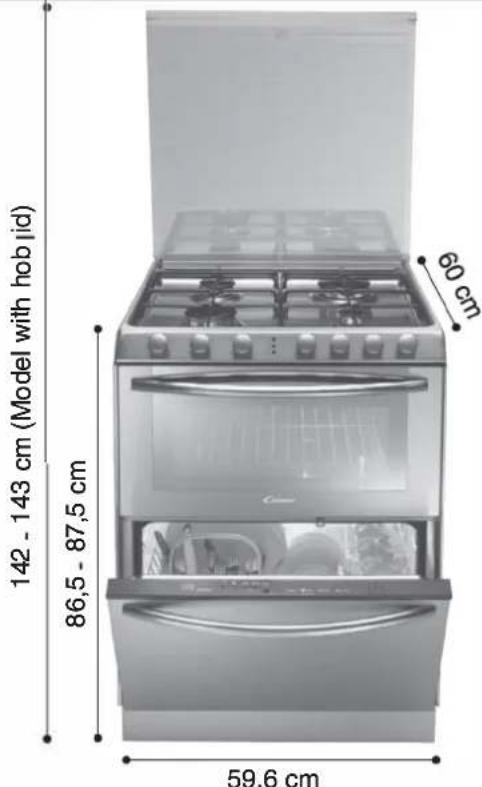

TECHNICAL DATA

142 - 143 cm (Model with hob lid) 86,5 - 87,5 cm 60 cm 59,6 cm

TRIO
TYPE / Reference	TRI 5 S		TRI 5
	4 Gas	3 Gas + 1 EL	4 EL
Position

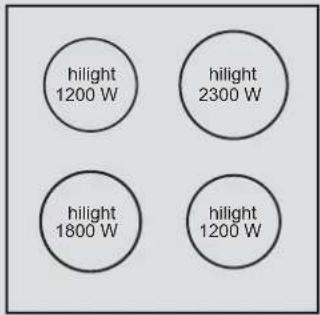

Front left	Rapid burner	Rapid burner	hilight ∅180
Rear left	Semi rapid bur.	.E.P. ∅180	hilight ∅220
Rear right	Ultra rap. bur.	Ultra rapid bur	hilight ∅140
Front right	Auxiliary bur.	Auxiliary bur.	hilight ∅140
Flame failur device	Yes		-
Ignition	Yes		-
Installation class	2 subclass 1 end 1		-
Installed gas type / power
Gas power kW	8,75	7	-
G20 20mbar (N.G.) l/h	833	666	-
Alternative injector kit for LPG gas available in the packaging
Gas power kW	8,75	7	-
G30/G31 28-30/37 mbar g/h	636	509	-
Dishwasher
Place setting EN60436	6	6	6
Water pressure min 0,08 - max 0,08 MPa
Rated power input
TRI 5 S Voltage(V)-Frequency(Hz)		220-230V~50Hz
TRI 5 Voltage(V)-Frequency(Hz)		220-230V~/380-400V~50Hz
Electrical power	2100	3600	8600

The flexible tube shall be fitted in such a way that does not pass through any space where it may become crushed/kinked or damaged in any way.

INSTALLATION

WARNING:

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer safety. It is for this reason that a professionally qualified person should undertake the task who will carry it out in accordance with the technical regulations in force.

In the event that this advice is ignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.

In case of installation of the cooker on a base, measures have to be taken to prevent the appliance slipping from the base itself

GAS MODEL

1.1 SUITABLE LOCATION

- This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.

- A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.

- If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

- Before installing the appliance, the technician must :

- Check the compatibility between the Trio and the gas installation. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting.

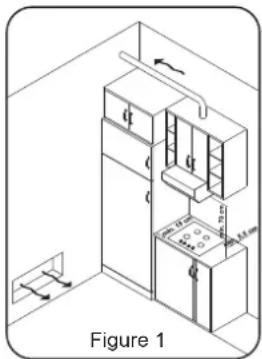

Isometric line drawing of a kitchen cabinet with appliances and a door, labeled Figure 1 (no text or symbols on the diagram itself)

The Trio is factory set for use with the gas type as stated on the packaging and repeated on the rating plate affixed to the cooker. Natural gas G 20-20 mbar / G 25-25 mbar : main gas

- If necessary, change the gas.

To adapt the gas burners cooker fit suitable jets that provide the nominal flow rate (as explained on paragraph changing the gas type).

- For installation the technician must :

All work must be carried out with the electricity supply disconnected.

The Trio is Class2 - Sub class 1 ; furniture adjacent to the unit must not be higher than the top of the appliance.

• If the Trio is fitted next to a cabinet on either side, the distance between the Trio and the cabinet must be at least 15 cm (see Figure 1); while the distance between the Trio and the rear wall must be at least 5.5 cm. The distance between the Trio and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70 cm (Figure 1).
• The cooker has adjustable feet for perfect levelling on the floor.
• Make the gas connection to the installation according to the gas supply.

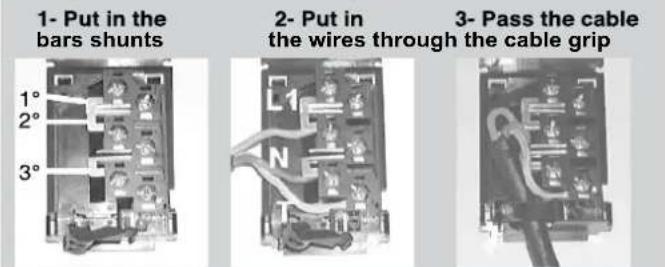

• Connect the cooker electrically in compliance with the information given on paragraph electrical connection.

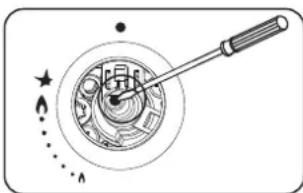

• If the gas type has been changed, adjust the minimum flow of each gas burner (as explained on paragraph changing the gas type).

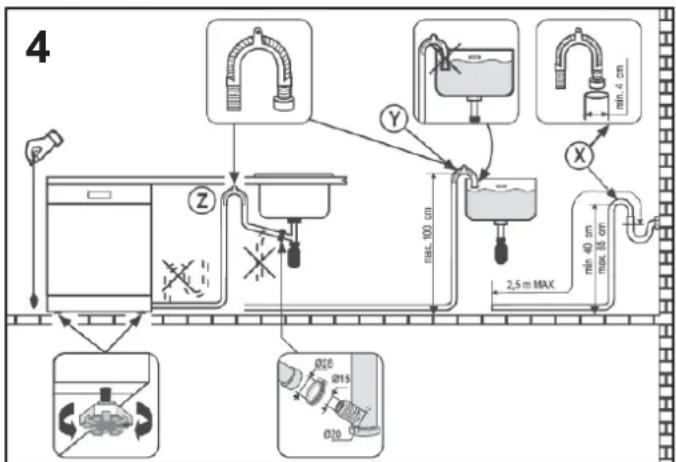

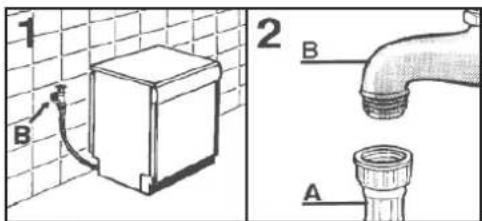

• Connect the Trio to the water supply and the water drainage (see paragraph water connection).

ANY MODIFICATION MADE TO THE GAS SETTING SHOULD BE NOTED ON THE RATING PLATE AFFIXED TO THE COOKER.

• GAS CONNECTION

This must be done in compliance with the regulations in force in the installation country (For U.K. only: by law the gas installation \commissioning must be carried out by a "Gas Safe" installer). In all cases, on the gas feed pipe provide a stopcock, a regulator or regulator release device for propane gas. Only use valves, regulators ends and flexible tubes, regulators with the official mark of the installation country.

Gas connection according to installation :

Natural Rigid, Flexible hose with mechanical fittings (1) - Soft rubber tube (2)

Butane Rigid, Flexible hose with mechanical fittings (1) - Soft rubber tube (2)

Propane Rigid, Flexible hose with mechanical fittings (1) - Soft rubber tube (2)

1 - provided the flexible hose can be inspected for its entire length.
2 - provided the soft rubber tube can be inspected for its entire length, its length does not exceed 1.5 metres and it is fitted with suitable clamps at the ends.
1, 2 - soft tubes and flexible hoses with mechanical fittings must be arrange to be away from any flames, and not deteriorated by the combustion gases, hot cooker parts or by any spills of hot food.
The flexible tube shall be fitted in such a way that does not pass through any space where it may become crushed/ kinked or damaged in any way.

• THREE CONNECTION OPTIONS :

• RIGID PIPE CONNECTION

Connect directly to the manifold fittings.

• CONNECTION BY FLEXIBLE HOSE WITH MECHANICAL FITTINGS

We recommend this type of connection.

Screw the hose nuts directly onto the manifold fitting on the one hand and onto the stop cock of the piping on the other hand.

• CONNECTION BY SOFT RUBBER

We do not recommend this type of connection.

To be reserved solely for old installations not enabling any other option.

Screw the compliant end piece (2)

Fit the soft tube to the end piece on

the one hand and to the regulator or

to the valve outlet on the other hand.

(2) In all cases, make sure the seal is fitted. Following the connection operations, test the leak tightness using soapy water, testing by flame is strictly prohibited.

Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

CHANGING THE GAS TYPE :

WARNING:

Only professionally qualified person should undertake the task who will carry it out in accordance with the technical regulations in force and following instructions.

The calorific capacity and pressure of the gas vary according to the type of gas.

When changing the gas, the technician should successively :

1-Disconnect the appliance from power supply

2-Make the "GAS CONNECTION" to the installation as described above,

3-Close the gas valve before the appliance

4-CHANGE THE JETS

5-REGULATING THE MINIMUM FLAME

CHANGE THE JETS :

To adapt the Hob for use with different types of gas, carry out the following instructions:

• Remove the grids and burners
• Insert on hexagonal spanner (7 mm) into the burner support (Figure 2)
• Unscrew the injector and replace it with one suitable for the gasto be used (see gas type table)

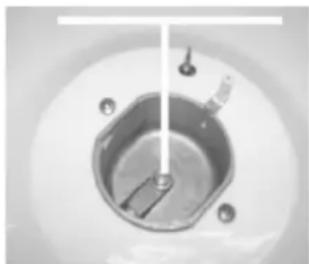

JET

Top-down view of a circular sink with a central drain and four small feet, no text or symbols visible.

Figure 2

REGULATING THE MINIMUM FLAME

To regulate the minimum flame the technician carry out the following instruction:

-Remove the knobs,

CASE 1: regulating screw visible inside the valve shaft (see figure 3A)

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 3A.

Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow.

Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob.

When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop

Restore the knobs

CASE 2: regulating screw not visible (see figure 3B)

-Remove, grids, burners and lid.
-Remove the top plate
-Using a small screwdriver the regulating screw can be adjusted as in Figure 3C.
Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow
-When the gas supply available is LPG the screw to set the idle flame must be turned (clockwise) to the end stop.
-When the gas supply available is NG gas the screw to set the idle flame must be turned anticlockwise of 1/2 turn from complete close position. (flame of approximately 3 to 4 mm in length)
-Restore the top plate, making sure to correctly reassemble each disassembled or disconnected piece and pay attention to not damage parts, (in case the technician must replace it with original spare parts.
-Restore burners, grids lid and knobs.
Warning : Never loosen the others screws !

Diagram of a mechanical device with a lever and starburst symbol, no text or labels present

Figure 3A Figure 3B Figure 3C

Close-up of a camera lens component with no visible text or symbols

Close-up of a mechanical assembly with a tool inserted, showing internal components and a magnified circular detail (no text or symbols visible)

ELECTRICAL CONNECTION

"The installation must conform to the standard directives". The manufacturer declines all responsibility for any damage that may be caused by unsuitable or unreasonable use.

Warning :

• Always check before any electrical operation, the supply tension shown on the electricity meter, the adjustment of the circuit-breaker, the continuity of the connection to earth to the installation and that the fuse is suitable.
• The electrical connection to the installation should be made via a socket with a plug with earth, or via an omni pole cut-out switch.

If the appliance has a socket outlet, it must be installed so that the socket outlet is accessible.

The manufacturer cannot be held responsible for any accidents resulting from the use of an appliance which is not connected to earth, or with a faulty earth connection continuity.

- Any queries regarding the power supply cord should be referred to After Sales Service or a qualified technician.

Warning! This appliance must be earthed. In the absence of adequate earthing you will notice that when touching the metal parts of your appliance an electrical dispersion can be felt due to the presence of a radio interference suppressor.

• TRIO TYPE TRI 5 S

A power cord is supplied with the Trio which allows it to be connected only to a power supply of 220-230 V between phases, or between phase and neutral. Connect to a 16 Amp socket.

• TRIO TYPE TRI 5

Depending on the model the product can be supplied with or without power cord. If the power cord is not supplied: the cord type and its connection must be in accordance to safety instruction and table provided.

To open the terminal block :

. Locate the two tabs on the sides,
. place the screwdriver blade on the front of the tab, insert it (1) and press down (2)
. Lift the cover off.

Terminal block

Diagram showing a mechanical component with two labeled arrows pointing to specific parts, likely indicating assembly or inspection steps.

Close-up of a mechanical component with internal parts and a labeled section (x 3 ba.) (no readable text or symbols)

To connect :

. unscrew the cable grip,
. pass the cable through the cable grip,
. strip the insulation off the end of the each wire and connect them to the according to the numbers shown in the table as well as the "bars shunts".

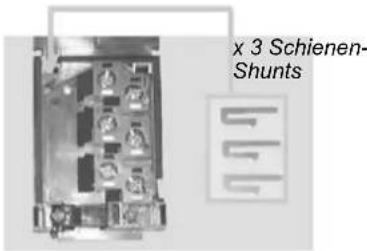

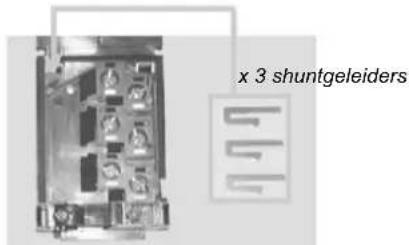

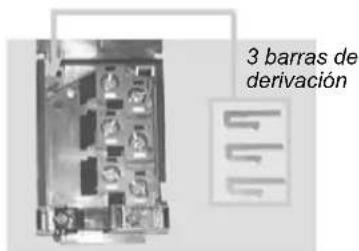

Example of connection in monophase

1- Put in the bars shunts 2- Put in the wires through the cable grip 3- Pass the cable

Caution: incorrect tightening can cause dangerous heating risks for the power supply cable.

When the connection operation to the appliance terminals is finished, tighten the cable clamp and close the cover.

	Monophase 220-230V~	Three phases 220-230V3~	Three phases 380-400V~3N~
CABLE TYPE-AERA	H05V2V2-F 3 G 4 mm2	H05V2V2-F 4 G 2,5 mm2	H05V2V2-F 5 G 1,5 mm2
CONNEC-TION TO THE TERMINAL BLOCK
To Shunt: make a bridge with a shunt bar	2 Phase Shunt 1-2 Shunt 2-3 5 Neutral Shunt 4-5 T Earth	1 Phase Shunt 1-2 3 Phase Shunt 3-4 5 Phase T Earth	1 Phase 2 Phase 3 Phase 5Neutral Shunt 4-5 T Earth

WATER CONNECTION - WATER DRAINAGE

WATER CONNECTION :

The inlet and drain hoses can be directed to left or right. The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60^ C.

Water pressure mut be between 0,08 MPa and 0,8 MPa. If the pressure is below the minimum consult the service department for advice.

The inlet hose must be connected to a tap so that the water supply can be cut off when the machine is not in use (fig.1). The dishwasher inlet hose is fitted with a 3/4" threaded connector (fig.2). The inlet hose "A" should be tightly connected to a 3/4" tap "B".

The water connection of the dishwasher must be done exclusively with the pipe supplied. Do not use an old pipe.

If the machine is connected to new pipes or to pipes which have not been in use for long time, run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter.

Take care not to bend or kink the drain hose when connecting it to the machine so that the water can drain freely from it (fig.4y). The drain hose must be at least 40 cm above floor level and it must have an internal diameter af at least 4 cm. It is advisable to fit an anti-odour air trap (fig.4x).

If necessary, the outlet hose can be extended up to 2,6 m, provided that it is kept at a maximum height of 85 cm above floor level. For this, contact Customer Service.

INSTALLATION

The hose can be hooked over the side of the sink (it must not be immersed in water, in order to prevent water from being siphoned back to the machine when this is in operation) Check that there are no kinks in the inlet and outlet hoses. To extend, if necessary the inlet hose, contact the Customer Service.

GAS BURNERS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

Before using burner, be sure, grid perimeters center the burner as below figure.

Diagram showing a kitchen stove with four circular windows and checkmark indicators below, likely illustrating a cooking or dining setup.

USE

Each burner is controlled by a tap with progressive settings allowing:

* a wider choice of settings from the maximum position to the lowest and most precise one,
* easier flame regulation according to the pan diameter,
* no risk of cutting off the flame or switching off when the flame is turned down quickly.

IGNITION

RECOMMENDATIONS : when the burners are not in service, the general gas supply tap should always be turned off.

Prior to switching on the gas hob ensure that the burner caps are correctly placed within their position.

Turn on the gas tap,

- A symbol next to each control knob indicates which burner is lit.
ä Turn and press in the relevant burner control knob to the symbol, keeping it pressed in until the flame ignites. On models fitted with electronic ignition the flame is ignited by an electric spark. This is operated by the button or by pressing the knob (for models with ignition under the knob). For models not fitted with electronic ignition, or if there is no electric power light the flame with a match.

Warning: In any case if after 5 seconds the burner has not lit, stop operating the device and wait at least 1 min before attempting a further ignition of the burner

NB: for models fitted with the SAFETY thermocouple, keep the knob pressed in for a few seconds in order to activate the safety system. If the knob is released straightaway there is not time for the safety system to be activated and the flame goes out. If this happens, repeat the ignition procedure from the beginning waiting longer after the flame is lit.

The rapid thermocouple safety device automatically cuts off the gas supply if the flame is accidentally extinguished.

If there are particular local gas supply conditions which make ignition difficult, you are advised to repeat the ignition procedure, turning the knob to "minimum" (💧).

• Set the flame according to your cooking requirements Intermediate positions are available between the ( Ⓞ) and ( Ⓥ) settings on the control knob.
• To turn the flame out, turn the control knob back to stop position.
• If the burner is accidentally extinguished, turn the knob to "0", wait one minute and then try to ignite again.

PANS

For a proper use of the burners, choose pans which match the dimensions given below :

* Very fast ∅ 18 cm and more
* Fast ∅ from 16 to 26 cm
* Semi-fast ∅ 12 cm
* Auxiliary ∅ 10 cm

- Pans with curved, ridged or warped bottoms are not recommended.

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.

If over the years the gas taps become stiff to turn it is necessary to lubricate them.

Such operation must be carried out only by qualified Service Engineers.

äAluminium pans may leave marks on the enamelled pan support. These marks can easily be removed with a damp cloth and a light abrasive product.

SOME TIPS ....

- Avoid boiling food too intensely. Food is not cooked any more quickly this way. In fact, it is subjected to severe agitation, which may cause the food to lose some of its flavour.

SAVING AND RESPECTING THE ENVIRONMENT

• To save gas, make sure that the flames do not overlap the bottom of the pan.
  • Do not use the gas burner with an empty pan.
• Where possible use lid to cover the pan. Regulate the flame to not overlap the diameter of the pan.

The use of high quality utensils is important to obtain good cooking results :

• Always use good quality cookware with perfectly flat and thick bases.
• Ensure that the base of the pot or pan is dry.
• Use pans whose diameter is wide enough to completely cover the surface unit.

CHOOSING UTENSILS

The following information will help you to choose cookware which will give good performance.

On the label, check the mark that shows if the pan is compatible with the vitroceramic.

Stainless Steel: highly recommended. Especially good with a sandwich clad base. The sandwich base combines the benefits of stainless steel (appearance, durability and stability) with the advantages of aluminium or copper (heat conduction, even heat distribution).

Aluminium: heavy weight recommended. Good conductivity. Aluminium residues sometimes appear as scratches on the hob, but can be removed if cleaned immediately. Because of its low melting point, thin aluminium should not be used.

Cast Iron: usable, but not recommended. Poor performance. May scratch the surface.

Copper Bottom / stoneware: heavy weight recommended. Good performance, but copper may leave residues which can appear as scratches. The residues can be removed, as long as the hob is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass hobs. An overheated copper pot will leave a residue that will permanently stain the hob.

Porcelain/enamel : Good performance only with a thinly smooth, flat base.

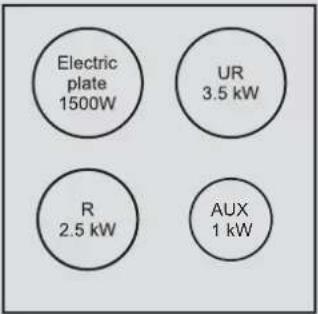

THE ZONES

•highlight zone : it is operational within 3 seconds and is suitable for steady, homogeneous and sustained cooking.

- Sprinter: with the sprinter facility, reduced cooking times of up to 15% can be achieved.

USE

• Locate the sign corresponding to the cooking zone that you need.
• It is recommended that heat setting is at its highest until it has properly warmed up and then lower to the desired cooking setting.

- The power-on indicator light comes on to show that the heat zone is operating.

• Each zone is linked to a residual heat indicator located on the hob. It lights up when the heat zone temperature reaches 60^ and above. It will stay on, even if the unit is switched off, until the surface has cooled down.
• To switch off a heat zone, turn the corresponding control knob until the position "0".
• Positions: the examples below are intended as a guide. When you become familiar with using your hob you will be able to work out the settings that suit you best.

Positions Some Tips
1	1-2	Very Low	To keep a dish hot, melt butter and chocolate...
2	3-4	Low	Slow cooking, sauces, stews, rice pudding poached eggs...
3	5-6	Moderate	Beans, frozen foods, fruit, boiling water...
4	7-8	Medium	Steamed apples, fresh vegetables, pasta, crepes, fish...
5	9-10	High	More intense cooking, omelettes, steaks...
6	11-12	Very High	Steaks, chops, frying...

SAVING AND RESPECTING THE ENVIRONMENT

• Use pans whose diameter is wide enough to completely cover the surface unit: the size of the pan should be no smaller than the heating area. If it is slightly wider the energy will be used at its maximum efficiency.
• To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce the cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

OVEN EQUIPMENT (According to the model)

It is necessary to do an initial cleaning of the equipment before the first use of each of them. Wash them with a sponge. Rinse and dry off.

- THE SHELF: it is for holding dishes, plates, and meat joints when cooking with the grill. It is fitted with rails which enables the drip tray to be slid into.

Thanks to its special shape, the shelf always remains horizontal, even when pulled to its fullest extent towards the front of the oven, thus avoiding the risk of dishes sliding off or tipping over.

• THE DRIP TRAY : collects meat and grilling juices during grilling. It can be put on the shelf, or slid under it. Unless used with the grill, the drip tray must not be stored in the oven while in use

Never use the drip tray as a roasting tray. This would cause smoke to be produced, fat to be splashed and the oven would become rapidly stained.

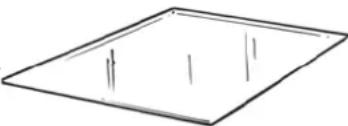

• THE PASTRY TRAY must be placed on the shelf. It is for cooking small pastries like choux, biscuits, meringues, etc...

Simple line drawing of a rectangular plate with three vertical lines and two short vertical lines on the sides (no text or symbols)

Never place the pastry tray directly on the oven bottom.

- THE ROTISSERIE is equipped with a skewer and an handle, two forks and a skewer support.

When the oven is in use, any unused accessories should be removed.

• It takes in charge the functioning of the oven, for between 1 and 120 minutes, with immediate start and automatic stop. When the time is up, the timer automatically cuts off the power supply to the oven.
  • However, the oven could be used

without programming. In this case, turn the control knob to the Hand position.

Nota : to set a time, turn the control knob clockwise up to the 120 minutes mark and then turn it back to the required time.

THE OVEN USE

VERY IMPORTANT : the oven and the dishwaher cannot be used at the same time.

To use the oven, you have to close the dishwasher.

IMPORTANT : always keep small children away from the Trio while it is in use. If the Trio is fitted with a lid, lift it up before use.

THE COOKING METHODS (According to the model)

- Convection + Fan 📄: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed. Allow about ten minutes extrawhen cooking foods at the same time.

- Grill - : using the top-heating element. Success is guaranteed for mixed grills, kebabs and "gratin dishes". Five minutes preheating is required to get the element hot.

• Grill + Turnspit : using the top-heating element in conjunction with the rotisserie providing the real flavour of a traditional roast. Remove all accessories from the oven.
• Place the drip tray on the oven bottom.
  . Skewer the food to be cooked and centre it between the two forks.
  . Fit the skewer into the bracket and slide the bracket and skewer on to the second level. The end of the skewer will then be facing the slot in the drive mechanism.
  . Fit the skewer into the drive mechanism.
• Convection + Turnspit ⇔ : using in the same time the rotisserie and the conventional cooking. It allows to save time when cooking. However, you have to take care of placing the shelf with rails up side down, with rails towards the top and place the drip tray on it.
• Master bake: This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result.
• Conventional ☐: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.

- Turn the control knob on the requesting cooking method and set a temperature :

*	Conventional	Temperature from 65°C to 250°C
	Grill	Temperature 200°C
	Grill + Turnspit	Temperature 200°C
	Convection + Turnspit	Temperature from 65°C to 250°C
*	Master Bake	Temperature from 65°C to 250°C
	Convection + Fan	Temperature from 65°C to 250°C

* Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

- Turn the control knob of the circuit-breaker timer to the hand position or on a programming duration.

- The regulator indicator light indicates that the thermostat is working. It goes on and off regularly during the cooking time.

COOKING ADVICES

MEAT:

It is better not to salt meats until after cooking as salt encourages the meat to splatter fat.

This will dirty the oven and make a lot of Joints of white meat, pork, veal, lamb and fish can be put into the oven cold. The cooking time is longer than in a preheated oven, but it cooks through to the centre better as the heat has more time to penetrate the joint.

CORRECT PRE-HEATING IS THE BASIS OF SUCCESSFUL RED MEAT COOKERY.

CAKE - PASTRIES AND BISCUITS :

Avoid using shiny moulds because they reflect heat and can spoil your cakes. If your cakes brown too quickly, cover them with greaseproof paper or aluminium foil.

Caution : the correct way to use foil is with the shiny side inwards. If not the heat is reflected by the shiny surface and does not penetrate the cake.

Avoid opening the door during the first 20 to 25 minutes of cooking: sponge cake, soufflés, brioche, etc., will tend to fall. You can check if cakes are done, by pricking the centre with a knife blade or metal knitting needle. If the blade comes out nice and dry, your cake is ready, and you can stop the cooking. If the blade comes out moist or with bits of cake attached, continue baking but slightly lower the thermostat so that it finished off without burning.

The following instructions are for guidance only. You may wish to alter them according to your own experience or your personal taste.

Pre-heating times :

. 20 minutes between 210 and 250°C
. 15 minutes between 140 and 190°C
. 10 minutes between 65 and 115°C
. 20 minutes between 210 and 250°C . 15 minutes between 140 and 190°C . 10 minutes between 65 and 115°C

QUANTITY	FOOD	Oven Temperature in °C	Shelf position from the bottom	Cooking time in minutes
FISH
	Trout	200	1	15 / 25
1 kg	Whiting 190	1	50
MEAT
1 - 1,5 kg	Roast-beef	190	1	90
1 kg	Roast veal	150 / 160 1	120 /	150
2 kg	Blanquette of veal	170 / 190 1	60 /	90
1 - 1,5 kg	Leg of lamp	150 / 160 1	60 /	75
1 - 1,5 kg	Leg of mutton	150 / 160 1	50 /	60
POULTRY
2 kg	Pigeons	150 / 160 1	45
4 kg	Goose	160	1	240 / 270
2 - 2,5 kg	Duck	175	1	90 / 150
1 - 1,5 kg	Chicken	170	1	60 / 80
VARIOUS
	Lasagne	200	1	40
	Soufflès	200	1	20
	Fritter	200	1	20
	Pizza	200	1	20
PASTRY
	Buckwheat cake	175	1	40 / 50
	Tart with fruits	180 / 190	1	20 / 30
	Biscuit (leaven dough)	160	1	40 / 45
	Meringue	100	1	90
	Puff pastry	200	1	20

smoke SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity.

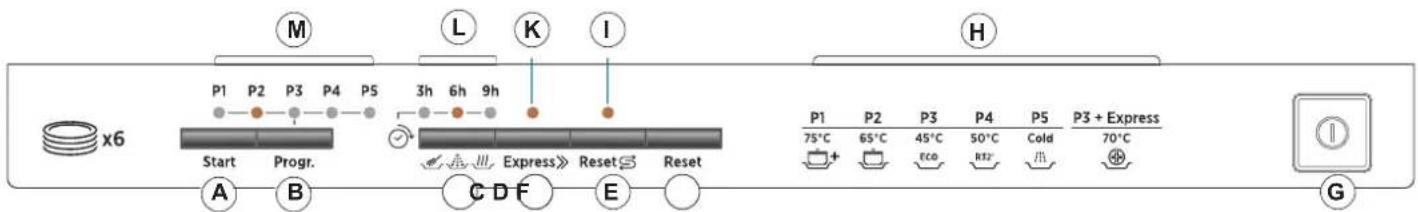

DISHWASHER CONTROLS

M L K I x6 P1 P2 P3 P4 P5 3h 6h 9h Start Progr. Express Reset Reset A B C D F E H P1 P2 P3 P4 P5 P3 + Express 75°C 65°C 45°C 50°C Cold 70°C + ECO RTZ + G

A "START" button

B "PROGRAMME SELECTION" button

C "DELAY START" button

D "EXPRESS" option button

E "RESET" button for "SALT EMPTY" light

F "RESET" button (cancelling programme)

G "ON/OFF" button

H Programme guide

I "SALT EMPTY" light

K "OPTION SELECTION" light

L "PROGRAMME STATUS" lights/ "DELAY START" time lights

M "PROGRAMME SELECTION" lights

SELECTING THE PROGRAMMES AND SPECIAL FUNCTIONS

The dishwasher and the oven cannot be used simultaneously.

Setting a programme

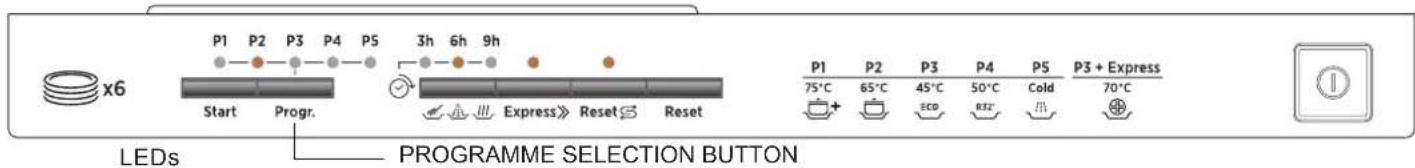

Open the door and press the On/off button ; the Program selection (P3) LED start flashing.
- Set the required programme by pressing Programme selection button, LED of the chosen programme will turn on (2 LEDs for COLD
RINSE programme).
- Press the "START" button (the selected programme indicator light will stop flashing and remain on.
- Close the door (after audible signal), the chosen programme will start automatically.

USE THE DISHWASHER

Grip the handle in the front panel and pull forward. If the machine comes open while it is working, an electrical safety device automatically switches everything off. For the machine to work properly, the door should not be opened while it is in operation.

Closing the door

Place the basket in the dishwasher. Make sure that the spray arm is free to rotate and is not obstructed by cutlery, crockery or pans. Close the door, pressing on it to make sure it is firmly shut.

Interrupting a programme

It is not recommended that the door be opened while a programme is running, and especially not during the main wash phase and final drying.

However, the appliance stops automatically when the door is opened.

When the door is closed again, the programme continues automatically.

If you wish to change or cancel a programme that is running, carry out the following procedure:

Hold the "PROGRAMME SELECTION" button down for at least seconds. The programme indicator lights will turn on and off individually and sequentially and some audible signals will sound.

The running programme will be cancelled and all the programme indicator lights will flash.

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. WARNING: if the door is opened during the drying phase, an intermittent audible signal is activated to advise that the cycle is not yet completed.

A 5 seconds alarm will sound (if not muted 3 times at 30 seconds intervals to signal that the programme has ended.

The selected programme indicator light (2 indicator lights for the "COLD RINSE" programme will start to flash.

Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for new cycle.

The alarm for the programme end may be muted as follows:

IMPORTANT

The dishwasher must ALWAYS be offbefore start of this procedure.

1. Hold down the "PROGRAMMESELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time, 2 audible signals will sound).
3. Release the button when the second audible signal sounds (3 "PROGRAMME SELECTION" indicator lights will come on).
4. Press the same button again: the 3 indicator lights (which indicate that the alarm is activated) will start flashing (to indicate that the alarm is off).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning.

Memorization of the last programme used

The last programme used can be memorized by following the below:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 30 seconds (during this time, 3 audible signals will sound).
3. Release the button when the THIRD audible signal sounds (all the indicator lights will flash).
4. Press the same button again: the flashing indicator light (memorization off) will stop flashing and remain on (memorization on).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To disable the memorization, follow the same procedure.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Attention - The dishwasher is equipped with an anti-overflow safety device which in the event of anomaly intervenes by evacuating water in excess.

Fault Signals

If malfunctions or faults occur when a program is running, the LED that corresponds to the selected cycle (2 LEDS for COLD RINSE programme) will blink rapidly and an audible signal will be activated. In this case, turn the dishwasher off by pressing the On / Off button. After checking to make sure the water inlet hose tap is open, that the drain hose is not bent and that the siphon or filters are not clogged, re-start the selected program. If the anomaly persists, contact Customer Service.

Important!

To ensure the correct operation of the anti-overflow safety device, it is recommended not to move or to tilt the dishwasher during operation.

If it is necessary to move or to tilt the dishwaher, first make sure the washing cycle is finished and that no water is left in the tank.

PRELIMINARY OPERATIONS AND CLEANING THE FILTER UNIT

Simple line drawing of a cartoon character sitting on a rectangular board (no text or symbols)

The filtering system is composed of :

• a central filter cup which traps the largest food particles.
• a flat filter which continuously filters the washing water.
• the micro filter, situated under the

flat filter, which traps the smallest food particles ensuring a perfect rinse.

For best results, the filter unit should be checked and cleaned after each wash.

To remove the filter unit, simply grip the handle and lift the whole unit out.

Remove the flat filter and wash the whole unit under a jet of water. If necessary a small brush can be used.

The central cup is just resting on top for easy cleaning. The dishwasher is fitted with a self cleaning micro filter, which only requires checking about once every 15 days.

However, it is advisable to check after every wash, that the central cup and the flat filter are not clogged.

NB : After cleaning the filters, make sure that they are correctly reassembled, one inside the other, and that the flat filter is properly positioned at the bottom of the dishwasher.

A poor seating of the filter unit could have an adverse effect on the efficiency of the appliance.

Important : Never use the dishwasher without filter.

Cleaning the appliance's interior

• The dishwasher does not require special maintenance, because the tank is self-cleaning.
• Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid.
• Dishwasher cleaning is recommended, in order to remove limestone deposits or dirt. We suggest you run a washing cycle periodically with specialist dishwasher cleaning products. For all cleaning operations the dishwasher must be empty.
• If, in spite of the routine cleaning of the filters, you notice that the dishes or pans are not properly washed or rinsed, check that all the spray heads on the rotor arm are clear.
  If they are blocked, clean them in the following way:
• The rotor arm can be removed simply by pulling it upwards;
• wash the rotor arm under a jet of water to clear any blockage in the spray heads.
• when you have finished, refit the rotor arms in the same position.

Warning: Do not use tools that can deform the spray heads.

Option buttons

"EXPRESS" button

This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the final rinse. This programme is recommended for light soil washes, and for slightly wet dishes that are not fully dry, & improved drying results. We advise you to leave the door of the Dishwasher half-open at the end of the cycle, to allow for a natural circulation of air inside the dishwasher.

Salt empty indicator

This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container.

The appearance of white stains on dishes is generally a warning sign that the salt container needs filling.

"RESET" button for "SALT EMPTY" light

After filling the salt container, you should press this button for a few seconds, until the corresponding indicator light switches off.

WARNING!

If you press the reset button without filling the salt container, this will interfere with the correct functioning of the salt indicator light.

IMPORTANT

In order to guarantee the correct functioning of the salt indicator light, YOU MUST ALWAYS FULLY REPLENISH THE SALT CONTAINER.

"DELAY START" button

The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours.

Proceed as follows to set a delayed start:

■ Choose a programme by pressing the "PROGRAMME SELECTION" button.

■ Press the "DELAY START" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will illuminate).

■ To start the countdown, press the "START" button (the set time indicator light will start to flash).

If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours.

At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically.

If countdown has not ended, whereby the programme has not yet started, it is possible to change or cancel the delayed start and select another programme or select/deselect the option button, proceeding as follows:

■ Hold the "RESET" button down for at least 3 seconds. Some audible signals will sound and the programme indicator lights will turn on and off individually and sequentially.

■ The delayed start and the selected programme will be cancelled.

The programme indicator lights will flash.

■ Press the "DELAY START" button to set another delayed start time (the corresponding indicator light will turn on).

■ A new programme can be set after a delayed time has been changed or cancelled or an option button can be selected or deselected.

USE

LOADING DISHES

The basket has been carefully designed to make loading easy. For good wash performance, remove any debris from the dishes (bones, tooth picks, the remains of meat and vegetables) to avoid blocking the filters, water outlet and washing arm nozzle and, as a result, reducing washing efficiency.

Warning ! to avoid any injury from cutlery with blades or sharp points, they can be placed with the handles upwards.

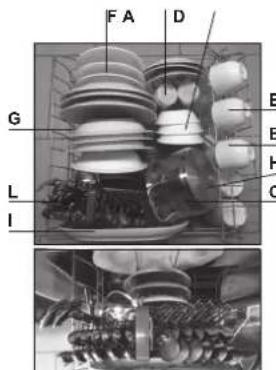

LOADING A 6 PLACES SETTING (EN 60436)

F A D G E B H C L I

A-6 glasses
B- 6 dessert plates
C-6 saucers
D-Small bowl
E-6 tea or coffee cups
F - 6 flat plates
G-6 deep plates
H- Medium bowl
I - Serving dish
L - Cutlery

LOADING 4 PLACE SETTINGS PLUS CASSEROLES

Casseroles, salad bowls, souppans, lids etc., can be loaded on the basket. It is advisable to arrange the cutlery

in the basket provided for that purpose. If there is any cutlery with narrow handles, it should be placed with handles upwards, to avoid falling through the bottom of the basket and blocking the washing arm. Do not put wooden handled lids in the basket, or any whose lids are bonded with resin.

LOADING THE DETERGENT

It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form.

Unsuitable detergents, (like those for washing up by hand) do not contain the proper ingredients for use in a dishwasher and impede the efficient functioning.

Normal wash

Illustration of a hand inserting a component into a device with an open lid (no text or symbols visible)

The detergent dispenser is inside the door. The dispenser lid should be closed before every wash. To open it, simply press the catch. At the end of each wash cycle the lid is always open and ready for the next time the dishwasher is used. The amount of detergent to be used varies according to how dirty the dishes are and the type of wash. A 15g dose is normally recommended. If the water is hard or the

dishes are exceptionally dirty, 25g of detergent should be loaded. After pooring the detergent into the dispenser, close the lid, since not all detergents are the same and the instructions on the boxes of detergent can vary.

We should just like to remind users that too little detergent does not clean the dishes properly whilst too much detergent not only does not produce better results but is also a waste. Do not use an excessive amount of detergent and help limit damage to the environment at the same time.

Intensive washing

Line drawing of a hand using a tool to clean or store items on an appliance (no text or symbols visible)

When using the intensive wash programme, add a second dose of detergent of about 15g (1 soup spoonful).

This extra dose should be put in the small tank (see immage)

FILLING THE RINSE AID DISPENSER

The rinse aid dispenser "B" is to the right of the detergent dispenser and has a capacity of about 130 ml.

Open the lid and pour in enough liquid, which will last several washes. Try to avoid overloading. Close the lid.

This additive, which is automatically released during the last rinse cycle, helps the dishes to dry quickly and prevents spots and stains

forming. It is always advisable to use rinse aid.

Check the rinse aid level through the indicator eye "A" which is situated in the centre of the dispensers.

Close-up of a mechanical component with labeled points A and B, showing internal components and arrows indicating direction (no text or symbols beyond labels)

FULL - Dark

EMPTY - Bright

REGULATING THE RINSE AID (from 1 to 4).

The regulator control "B" is below the indicator and can be turned with the finger, the recommended position is "3". The hardness of the water can be judged by incrustation or by the level of dryness.

It is therefore important that the correct dosage of Rinse Aid is regulated to give the best results.

After the wash,

. if streaks occur on the dishes, decrease the amount by one position.

. if whitish spots occur, increase the amount by one position.

LOADING THE SALT

The dishwasher is fitted with a softener that clears the water of lime which could cause scale and damage the dishwasher. On the bottom of the diswasher there is a salt dispenser for regenerating the softener.

The filter element of the softener unit should be recharged with a salt specially produced for dishwashers. This salt can be bought either as tablets or as granules.

Simple line drawing of a kitchen sink with a grater and a bowl (no text or symbols)

To add salt, unscrew the cap of the salt dispenser on the bottom and refill the dispenser.

During this operation a little water will overflow but keep adding salt until the dispenser is fill, clean the thread of salt residue and retighten the cap.

If the dishwasher is not required straightaway, set the programme Cold rinse ("Eco+Rapid, 2 Leds") so that the salt solution which has overflowed is discharged from the washing tank.

The salt dispenser has a capacity of between 1.5 kg for efficient use of the appliance, it should be refilled from time to time according to the regulation of the water softener unit.

The regulation of the softener unit must be done in accordance to the table and instruction in next page.

NB: it is necessary to add water until the dispenser overflows. Only install the dishwasher completely filling the salt dispenser.

USE

Regulating the water softener with electronic programmer

The water softener can treat water with a hardness level of up to 60°Fh (French grading) or 33°Dh (German grading) through 5 settings. The settings are listed in the panel below:

Level	Water hardness	Water hardness	Use of regenerating salt	Water softener setting
	°fH (French)	°dH (German)
0	0-8	4	no
1	9-20	5-11	yes	Indicator light 1
2	21-30	12-17	yes	Indicator light 1+2
3	31-40	18-22	yes	Indicator light 1+2+3
4	41-60	23-33	yes	Indicator light 1+2+3+4

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL an audible signal sounds. Some "PROGRAMME SELECTION" indicator lights will come on to indicate the current water softener setting level.
3. Press the same button again to select the required water softener level: each time the button is pressed, one indicator light will come on (the water softener level is indicated by the number of lights on). For level 5, 4 lights will flash, for level 0 all lights will be off.
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn thedishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

x6 P1 P2 P3 P4 P5 3h 6h 9h Start Progr. Express Reset Reset LEDs PROGRAMME SELECTION BUTTON P1 P2 P3 P4 P5 P3 + Express 75°C 65°C 45°C 50°C Cold 70°C + ECO R32

WASHING PROGRAMME

Information for the test laboratories General programme comparison

Ref. EN 60436 standards:

1) Normal load
2) Shine setting: "4"
3) Amount of detergent: 4 gr. for pre-wash, 10 gr. for whash.

CONSUMPTION (main programmes)
Programme	Energy (kWh) Water (L)		Place Setting
Universal	1,25	15	6
Hygiene+	0.93	12	6
Eco *	0.61	8	6
Rapid 32'	0,60	8	6
Power consumption of the off-mode and of the left-on mode: 0,5 W / 1 W
* The values given for programmes other than the eco programme are indicative only.* Values are measured in a laboratory according to European Standard EN 60436

The regeneration phase is done at the end of the washing cycle.

- the amount of water consumed in the regeneration phase is about 4L, with an increase of energy consumptions of about 1 Wh and 3 minutes of cycle time.

- the frequency of the regeneration depends on the setting chosen by the user based on the hardness of the tap water.

- for the Eco cycle the frequency related to the set positions is reported in the table side:

Position Frequency
0 never
1	1 every 5 cycle
2	1 every 3 cycle
3	1 every 2 cycle
4	1 every 1 cycle

Programme

Description

Check list

Programme contents

Average duration in minutes

Special function buttons available

Detergent for soaking (Prewash)

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

With cold water (15°C)-Tolerance ± 10%-

“DELAY START” button

“EXPRESS” button

P1

75°C

Intensive

Once a day - for heavily soiled pans and any other items that have been left all day for washing.

●

●

●

●

●

○

75°C

○

○

○

130

YES

YES

P2

65°C

Universal

Once a day - for normal soiled pans and any other items that have been left all day for washing.

●

●

●

○

°C

○

○

120

YES

YES

P3

45°C

Eco

Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware). Programme standardised to EN 60436.

●

●

●

●

○

°C

○

190

YES

YES

P4

50°C

Rapid 32'

Quick wash for dishes which are to be washed immediately after the meal. Wash load of 6 persons.

●

●

●

●

50°C

○

32

YES

N/A

P5

Cold pre-wash

Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

●

○

5

YES

N/A

70°C

Dishwasher Cleaner P3+€press=

This programme should be used periodically with specialist dishwasher cleaning products. For all cleaning operations the dishwasher must be empty.

70°C

○

45

YES

SOME PRACTICAL HINTS ....

• To carry out a wash programme with a full load of dishes load the machine correctly after each meal and do a cold pre-wash between each load to get rid of stains and remove the larger residues of food.
• Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.
• Manual pre-rinsing of tableware items leads to increase water and energy consumption and is not recommended
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instruction.

HOW TO GET GOOD WASH RESULTS

1) Place the dishes face downwards.
2) Try to place the dishes in such a way that they are not touching one another. If they are loaded properly you will get better results.
3) Before placing the dishes in the dishwasher remove any remaining food (bones, shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash etc. that could clog up the outflow and the washing arm jets.
4) After loading the dishes, check that the washing arm can rotate freely.
5) Pans and other dishes that have particularly stubborn food particles or remnants of burnt food should be left to soak in water with dishwasher detergent.
6) To wash silver properly:
a) - rinse the silver immediately after use especially if it has been used for mayonnaise, eggs, fish etc.
b) - do not sprinkle detergent onto it.
c) - keep it separate from other metals.

WHAT TO DO IF ...

You want to stop the dishwasher to put in more dishes whilst it is in the middle of a wash. Open the door, put in the dishes, and close the door, the machine will start up again automatically.

WHAT NOT TO WASH ...

It should also be remembered that not all dishes are suitable for washing in a dishwasher.

We advise again using the dishwasher to wash items in thermoplastic, cutlery with wooden or plastic handles, saucepans with wooden handles, items in aluminium, crystal, leaded glass unless otherwise stated.

Certain decorations may fade. It is therefore a good idea before loading the whole batch to wash just one of the items first so as to be sure that others like it will not fade.

It is also a good idea not to put silver cultery with non-stainless steel handles into the dishwasher as there could be a chemical reaction between them.

NB: when buying new crockery or cutlery always make sure that they are suitable for washing in a dishwasher

AFTER USE - After each wash, close the tap which supplies the water to the dishwasher and press the On/Off button to the Off position. If the dishwasher is not going to be used for some time, the following precautions are advisable:

1 - carry out a wash programme, but with no dishes, to degrease the machine,

2 - pull the plug out,

3 - turn off the water supply tap,

4 - fill the rinse aid dispenser,

5 - leave the door slightly ajar,

6 - leave the inside of the machine clean,

7 - if the machine is to be left in a place where the temperature is below 0^ , the water left in the dispenser could freeze.

Therefore, it is advisable to raise the temperature above 0°C, approximately 24 hours before using the machine again.

CLEANING

- Before carrying out any cleaning, you must :

a Disconnect the appliance from the electrical supply and wait for all the hot parts to cool.

Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

• THE ENAMELLED PARTS:

When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.

• THE VITROCERAMIC HOB

Do not use a sponge that is too wet. It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products.

Maintenance

- place a few drops of a specialist cleaning product on the hob surface.

- rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.

- wipe with a soft cloth or dry kitchen paper until the surface is clean.

- Never use abrasive cleaners, wire wool or sharp objects to clean the glass oven door, as this may result in shattering of the glass

Stubborn stains :

- place a few drops of a specialist cleaning product on the hob surface.

- scrape with a scraper, holding it at an angle of 30° to the hob, until the stains disappear.

- wipe with a soft cloth or dry kitchen paper until the surface is clean.

- repeat the operation if necessary.

A scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30^ . Never leave a scraper with a razor blade within reach of children.

A few hints :

Frequent cleaning leaves a protective layer which is essential for preventing scratches and wear.

Make sure that the surface is clean before using the hob again.

To remove marks left by water, use a few drops of white vinegar or lemon juice. Then wipe with absorbent paper and a few drops of specialist cleaning fluid.

The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels, however, it is always better to lift them when moving.

appear. 30° Maxi

CLEANING

• OVEN LIGHTING

The bulb and its cover are made of material resistant to high temperatures: 230 V\~ - E 14 base - 15 W - Temperature 300°C mini. Replacing the bulb : disconnect the power supply from the oven before attempting to replace the lamp. Wait for the oven to cool down before doing any operation.

To change a defective bulb, just unscrew the glass cover, unscrew the bulb, replace it with the same type, after replacing the defective bulb, screw back the protective glass cover.

This product contains a light source of energy efficiency class G.

• THE ACCESSORIES

The oven shelf - the pastry tray : do not clean the oven shelf with harsh abrasives, scouring pads or sharp objects. Simply use a cloth wrung out in hot soapy water. Rinse with clean water and then dry.

The drip tray : after grilling, remove the drip tray from the oven and pour the grease into a container. Wash and rinse the drip tray in very hot water, using a sponge and washing powder. If still stained withs sticky food, immerse in soapy water. The drip tray can be clean in the dishwasher. Never put the drip tray back in the oven if still dirty.

• THE OVEN DOOR GLASS

It is recommended to wipe the oven door glass with absorbent paper after each cooking cycle. If there is heavy staining, the glass can be cleaned with a sponge cleaning agent.

• OVEN DOOR :

it is possible to clean the oven door while in position or after removal.

To remove the door, carry out the following :

. open the door fully,

. release the hooks,

. pull the door upwards, closing it partially, until it is free.

To refit it, make sure you reposition the hinges carefully; a notch located below them lets you fit he hinges correctly.

After the door is put back on its supports, fit the hinges in their initial position.

- GAS BURNERS: The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the burners are replaced correctly.

Chromed grids and burners

Chromed grids and burners have a tendency to discolour with use.

This does not jeopardize the functionality of the hob

- Caution: Be careful not to let any water get into the burners.

Our After Sales Service Centre can provide spare parts if required.

- LID : once the Trio has cooled down, simply clean with soapy water and dry with a clean cloth. Before lifting the lid, make sure that anything that might spill over has been removed.WASTE MANAGEMENT AND

·WASTE MANAGEMENT AND ENVIRONMENTAL PROTECTION

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- TheWEEE should not be treated as domestic waste;

- The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVINGANDRESPECTING THEENVIRONMENT

Where possible use lid to cover the pan. Regulate the flame to not overlap the diameter of the pan.

REMEMBER! the oven and the dishwasher cannot be used in the same time.

Should the dishwasher fail to operate, before contacting the Service Centre, make the following checks:

FAULT	CAUSE REMEDY
1 - Machine completely dead	Plug is not connected correctly	Connect electric plug
	O/I button has not been pressed	Press button
	No electricity	Check the electricity supply
	Door is open	Close door
2 - Machine does not drawwater	See causes for No 1	Check
	Water tap is turned off	Turn water tap on
	Programme selector is not at correct position	Turn programme selector to correct position
	The inlet hose is bent	Eliminate the bends in the hose
	The inlet hose filter is blocked	Clean the filter at the end of the hose
3 - Machine does not discharge water	Filter is dirty	Clean filter
	Outlet hose is kinked	Straighten outlet hose
	The outlet hose extension is not correctly connected	Follow the instructions forconnecting the outlet hose carefully
	The outlet connection on the wall is pointing downwards not upwards	Call a qualified technician
4 - Machine discharges water continuously	Position of outlet hose is too low	Lift outlet hose to at least 40 cm above floor level
5 - Spray arm is not heard to rotate	Excessive amount of detergent	Reduce amount of detergent
	Item prevents arm from rotating	Check
	Plate and cup filter very dirty	Clean plate and cup filter
6 - On electronic appliance without a display: "Eco" indicator light and indicator light "No 1", with audible signal	Water inlet tap turned off	Switch off the appliance - Turn on the tap - Re-set the cycle
7 - Load of dishes is only partially washed	See causes for No 5	Check
	Bottom of saucepans have not been washed well	Burnt on food remains must be soaked before putting pans indishwasher
	Edge of saucepans have not been washed well	Reposition saucepans
	Spray arm is blocked	Remove spray arm by unscrewing ring nut clockwise and wash under running water
	The dishes have not been properly loaded	Do not place the dishes too closely together
	The end of the outlet hose is in thewater	The end of the outlet hose must not come into contact with the outflow water
	The incorrect amount of detergent has been measured out; the detergent is old and hard	Increase the measure according to how dirty the dishes are and change detergent
	The tap of the salt dispenser is not closed very well	Tighten it fully.
	The wash programme is not thorough enough	Choose a more vigorous programme
8 - Presence of white spots on dishes	Water is too hard	Check salt and rinse aid level and regulate amount. Should the fault persist, contact Service Centre
9 - Noise during wash	The dishes knock against one another	Load dishes better onto the basket
	The revolving arm knock against the dishes	Load dishes better
10 - The dishes are not completely dry	Inadequate air flow	Leave the dishwasher door ajar at the end of wash program to allow dishes to dry naturally

ISTRUZIONI PER LA SICUREZZA

Isometric line drawing of a kitchen interior with appliances and fixtures (no text or symbols)

Top-down view of a circular mechanical component with a central shaft and mounting holes (no text or symbols visible)

Figura 2

REGOLAZIONE DEL MINIMO DELLA FIAMMA

Diagram of a mechanical device with a lever and circular components, no text or symbols present

Figura 3A Figura 3B Figura 3C

Close-up of a camera lens with no visible text or symbols on the lens face (labeled '3B Figura 3C')

Close-up of mechanical components with a magnified inset showing a circular detail (no visible text or symbols)

Diagram showing a mechanical component with numbered arrows indicating direction of movement or assembly.

Diagram showing a kitchen appliance with four circular insets, each containing a black circle and a checkmark, below indicating four circled insets.

UTILIZZO

Simple line drawing of a tilted rectangular shape with three vertical lines inside (no text or symbols)

Simple line drawing of a cartoon character sitting on a rectangular board (no text or symbols)

F A D G E B H C L I

A - 6 bicchieri

Illustration of a hand inserting a card into an electronic device (no text or symbols visible)

Line drawing of a hand using a tool to lift a tray with a small object inside a storage cabinet (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a handle, no text or symbols present

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

1.1 EMPLACEMENT APPROPRIÉ

Isometric line drawing of a kitchen interior with appliances and fixtures, labeled Figure 1 (no text or symbols on the diagram itself)

Diagram of a mechanical device with a lever and starburst symbol, no text or labels present

Figure 3A Figure

Close-up of a circular mechanical component with no visible text or symbols

INJECTEUR

Top-down view of a circular mechanical component with a central shaft and mounting holes (no text or symbols visible)

Figure 2

Avertissement :

Ne jamais

Close-up of a mechanical component with a magnified inset showing a circular detail (no visible text or symbols)

BRANCHEMENT ÉLECTRIQUE

Diagram showing two labeled arrows pointing to a mechanical component with a screwdriver, likely illustrating a machining or disassembly process.

x 3 barrettes shunt

Pour connecter :

Electrical circuit diagram with labeled components (no readable text or symbols)

Diagram showing a kitchen appliance with four circular switches and checkmark indicators below, likely for cooking or testing purposes.

UTILISATION

Simple line drawing of a rectangular plate with three vertical lines inside (no text or symbols)

Simple line drawing of a cartoon character on a rectangular object (no text or symbols)

F A D G E B H C L I

A - 6 verres

Illustration of a hand inserting a card into a device with an open lid (no text or symbols visible)

Line drawing of a kitchen sink with a hand using a tool to clean or wash the dish (no text or symbols)

Simple line drawing of a bathroom sink with toilet, sink bowl, and bathtub (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Isometric line drawing of a kitchen interior with appliances and fixtures, labeled as Figure 1 (no text or symbols on the diagram itself)

Diagram of a mechanical device with a lever and star symbol, no text or labels present

Figura 3A Figura 3B Figura 3C

Close-up of a circular mechanical component with a central square and two small holes, labeled '3B Figura 3C' (no other text or symbols visible)

BOQUILLA

Top-down view of a circular mechanical component with a central shaft and mounting holes (no text or symbols visible)

Figura 2

Advertencia:

¡Nunca afloje

los otros

Close-up of a mechanical component with a magnified circular detail (no visible text or symbols)

CONEXIÓN ELÉCTRICA

Diagram showing a mechanical component with two labeled arrows pointing to different parts, likely indicating assembly or inspection steps.

Pure electrical circuit lines without any symbols

Diagram showing a kitchen appliance with four circular holes and checkmark indicators below, likely for scoring or testing purposes.

USO

Simple line drawing of a tilted rectangular plate with three vertical lines inside (no text or symbols)

Simple line drawing of a robot-like figure standing on a rectangular plate (no text or symbols)

F A D G E B H C L I

A - 6 vasos

B - 6 platos de postre

C - 6 platillos

D - Bol pequeño

E - 6 tazas de té o café

F - 6 platos llanos

G - 6 platos hondos

H - Bol mediano

Illustration of a hand inserting into a device into a stack of electronic components (no text or symbols visible)

Line drawing of a kitchen sink with a hand holding a tool, no text or symbols present

Simple line drawing of a bathroom sink with a toilet and sink (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Isometric line drawing of a kitchen cabinet with appliances and fixtures, labeled Abb. 1 (no text or symbols on the diagram itself)

Diagram of a mechanical device with a lever and starburst symbol, no text or labels present

Close-up of a mechanical component with a magnified inset showing a circular detail (no visible text or symbols)

Diagram showing a tool interacting with a mechanical component, labeled with arrows ① and ② indicating specific parts or steps.

x 3 Schienen-Shunts

Für den Anschluss:

T Erde
1 Phase Shunt 1-2
3 Phase Shunt 3-4
5 Phase
T Erde
1 Phase
2 Phase
3 Phase
5 Neutral Shunt 4-5
T Erde

Diagram showing a kitchen appliance with four circular windows and checkmark indicators below, likely for cooking or testing purposes.

NUTZUNG

Simple line drawing of a tilted rectangular plate with three vertical lines (no text or symbols)

Simple line drawing of a cat sitting on a rectangular plate (no text or symbols)

Illustration of a hand inserting a card into a device (no text or symbols visible)

Line drawing of a hand using a tool to lift a component into a kitchen appliance (no text or symbols)

Simple line drawing of a bathroom sink with toilet and bathtub (no text or symbols)

Ref. Normen EN 60436:

Diagram of a mechanical device with a lever and starburst symbol, no text or labels present

Afbeelding 3A

Close-up of a circular mechanical component with internal concentric rings and mounting holes (no visible text or symbols)

Afbeelding 3B

Close-up of a mechanical assembly with a circular annotation highlighting a component, labeled 'eelding 3C' (no other text or symbols visible)

SPROEIER

Top-down view of a circular mechanical component with a central shaft and mounting holes (no text or symbols visible)

Afbeelding 2

Diagram showing a mechanical component with two labeled arrows (① and ②) indicating directional movement or assembly.

x 3 shuntgeleiders

Aansluiten:

Electrical circuit diagram with labeled components (no readable text or symbols)

WATERAANSLUITING - WATERAFVOER

WATERAANSLUITING:

Diagram showing a kitchen appliance with four circular components and checkmark indicators below, likely illustrating a cooking or testing setup.

GEBRUIK

Simple line drawing of a rectangular plate with three vertical lines inside (no text or symbols)

Simple line drawing of a robot-like figure sitting on a rectangular platform (no text or symbols)

F A D G E B H C L I

A- 6 glazen
B- 6 gebaksbordjes
C- 6 schotels
D- Kleine kom
E- 6 thee- of koffiekopjes
F- 6 platte borden
G- 6 diepe borden
H- Kom medium
I- Serveerschaal
L- Bestek

4 COUVERTS PLUS

OVENSCHALEN LADEN

Ovenschalen, slakommen,

Illustration of a hand inserting a component into a device with two stacked devices (no text or symbols visible)

Line drawing of a kitchen sink with a hand using a tool to clean or install food (no text or symbols)

Close-up of a mechanical component with labeled points A and B, showing circular features and arrows indicating direction (no text or symbols beyond labels)

VOL - Donker

LEEG - Licht

Simple line drawing of a bathroom sink with toilet and bathtub (no text or symbols)

Ref. EN 60436-normen:

TRI 5

hilight 1200 W hilight 2300 W hilight 1800 W hilight 1200 W

Electric plate 1500W UR 3.5 kW R 2.5 kW AUX 1 kW

GAS TYPEHOBS

TYPE TRI 5 S
II 2E+3+	FR, BE
Gaz Type/Gas type				G20 / G25
Pression gaz/Gas pressure				20 / 25 mbar
	P (Kw)
	Max (kW)	l/h	Min (kW)	1/100mm
AUX	1.00	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

TYPE TRI 5 S
II 2E+3+	FR, BE
Gaz Type/Gas type				G20 / G25
Pression gaz/Gas pressure				20 / 25 mbar
	P (Kw)
	Max (kW)	l/h	Min (kW)	1/100mm
AUX	1.00	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

TYPE TRI 5 S
II 2E+3+	FR, BE
Gaz Type/Gas type				G20 / G25
Pression gaz/Gas pressure				20 / 25 mbar
	P (Kw)
	Max (kW)	l/h	Min (kW)	1/100mm
AUX	1.00	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

Gaz Type/Gas type				G30 / G31
Pression gaz/Gas pressure				28-30/37 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mg/h (kW)
AUX	1.00	73	0.25	50
SR	1.75	127	0.40	66
R	2.50	182	0.60	80
UR	3.50	254	0.70	94

Gaz Type/Gas type				G30 / G31
Pression gaz/Gas pressure				28-30/37 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mg/h (kW)
AUX	1.00	73	0.25	50
SR	1.75	127	0.40	66
R	2.50	182	0.60	80
UR	3.50	254	0.70	94

TYPE TRI 5 S
II 2H3+	CY, GB, GR, IE, IT, PT, ES, CH
Gaz Type/Gas type				G20
Pression gaz/Gas pressure				20 mbar
	P (Kw)			1/100mm
	Max (kW)	l/h	Min (kW)
AUX	1.00	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

Gaz Type/Gas type				G30 / G31
Pression gaz/Gas pressure				28-30/37 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mj/h(kW)
AUX	1.00	73	0.25	50
SR	1.75	127	0.40	66
R	2.50	182	0.60	80
UR	3.50	254	0.70	94

Gaz Type/Gas type				G30 / G31
Pression gaz/Gas pressure				28-30/37 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mj/h(kW)
AUX	1.00	73	0.25	50
SR	1.75	127	0.40	66
R	2.50	182	0.60	80
UR	3.50	254	0.70	94
TYPE TRI 5 S
II 2H3B/P BG, HR, DK, EE, FI, LV, LT, NO, RO, SK, SE, SI, CZ, TR
Tipo di gas/Gas type				G20
Pressione gas/Gas pressure				20 mbar
	P (Kw)
	Max (kW)	l/h	Min (kW)	1/100mm
AUX	1.00	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

TYPE TRI 5 S
II 2E3B/P DE
Tipo di gas/Gas type				G20
Pressione gas/Gas pressure				20 mbar
	P (Kw)			1/100mm
	Max (kW)	l/h	Min (kW)
AUX	1.00	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

Gaz Type/Gas type				G30 / G31
Pression gaz/Gas pressure				50/50 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mg/h(kW)
AUX	1.00	73	0.35	46
SR	1.75	127	0.50	58
R	2.50	182	0.75	71
UR	3.50	254	0.95	83
KIT: 35000238

Gaz Type/Gas type				G30 / G31
Pression gaz/Gas pressure				30/30 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mg/h(kW)
AUX	1.00	73	0.25	50
SR	1.75	127	0.40	66
R	2.50	182	0.60	80
UR	3.50	254	0.70	94

TYPE TRI 5 S
II2H3B/P CH - AT
Tipo di gas/Gas type				G20
Pressione gas/Gas pressure				20 mbar
	P (Kw)
	Max (kW)	l/h	Min (kW)	1/100mm
AUX	1	95	0.25	76
SR	1.75	167	0.40	101
R	2.50	238	0.60	118
UR	3.50	333	0.70	144

Gaz Type/Gas type				G30/G31
Pression gaz/Gas pressure				50/50 mbar
	P (Kw)			1/100 mm
	Max (kW)	Mg/dl(kW)
AUX	1.00	73	0.35	46
SR	1.75	127	0.50	58
R	2.5	182	0.75	71
UR	3.5	254	0.95	83
KIT: 35000238

Efficiency Declaration 2016/426

TRI5S - 4GAS
SINGLE BURNER EFFICENCY
AUX SR	R		UR
-	62,5 % 59,4 % 61,3 %
MEDIUM %61,1

STICK

RAITING LABEL

AND

GAS LABEL (only for Gas products)

EN

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

IT
