WM62 - Microphone Vonyx - Free user manual and instructions

Product type	UHF wireless microphone system
Model	WM62
Brand	Vonyx
Receiver power supply	220-240 V AC / 50 Hz via mains adapter
Handheld microphone power supply	2 AA 1.5 V batteries (type R6)
Bodypack transmitter power supply	2 AA 1.5 V batteries (type R6)
Audio outputs	XLR and 6.35 mm jack
Antenna	Integrated, tiltable at 45°
Display	LCD
Synchronization	Infrared (IR)
Channel selection	Yes (Up/Down buttons)
Usage	Indoor only
Operating temperature	5 °C to 35 °C
Estimated range	30 to 50 meters (without obstacles)
Cleaning	Dry cloth, no chemicals
Battery maintenance	Remove batteries if not used for long time
Safety	Do not open, do not expose to moisture, disconnect during storms
License	No license required in listed countries (EU and Switzerland)
Included accessories	Handheld microphone or bodypack transmitter depending on version, mains adapter, audio cable (not specified)

Frequently Asked Questions - WM62 Vonyx

How to turn on the WM62 receiver?

Press the Power On/Off switch on the rear of the receiver. The LCD screen should light up.

How to synchronize the microphone with the receiver?

Turn on the receiver and microphone. On the receiver, press and hold the Down button to activate the IR function. Place the IR sensor of the microphone facing the IR sensor of the receiver. Synchronization occurs automatically.

What type of batteries to use for the microphone?

Use two AA R6 batteries (1.5 V). For the bodypack transmitter, the same. Remove batteries if the device is not used for a long time.

What is the maximum range of the system?

The range is approximately 30 to 50 meters in open field without obstacles. Walls and interference can reduce this distance.

How to connect the receiver to a mixing desk?

Use the XLR output or the 6.35 mm jack output on the rear of the receiver. Connect these outputs to the corresponding input on your mixing desk with a suitable audio cable.

Can multiple WM62 microphones be used simultaneously?

Yes, provided you use different channels for each microphone. The receiver allows selecting multiple channels. Make sure not to use the same channel for two microphones.

What to do if the microphone produces no sound?

Check that the receiver and microphone are turned on, batteries are charged, IR synchronization is correct, and the receiver volume is not at zero. Also check the audio cables.

How to clean the microphone and receiver?

Use a dry, soft cloth. Never use chemicals or aerosols. For the microphone grille, a puff of compressed air can remove dust.

Where to place the antenna for best reception?

Tilt the antenna at 45° from vertical. Place the receiver as high as possible and away from metal obstacles to avoid interference.

Do I need to declare the use of this microphone?

No, the WM62 system operates without a license in the following countries: Belgium, Denmark, France, Finland, Germany, Hungary, Italy, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Spain, Sweden, Switzerland, United Kingdom.

USER MANUAL WM62 Vonyx

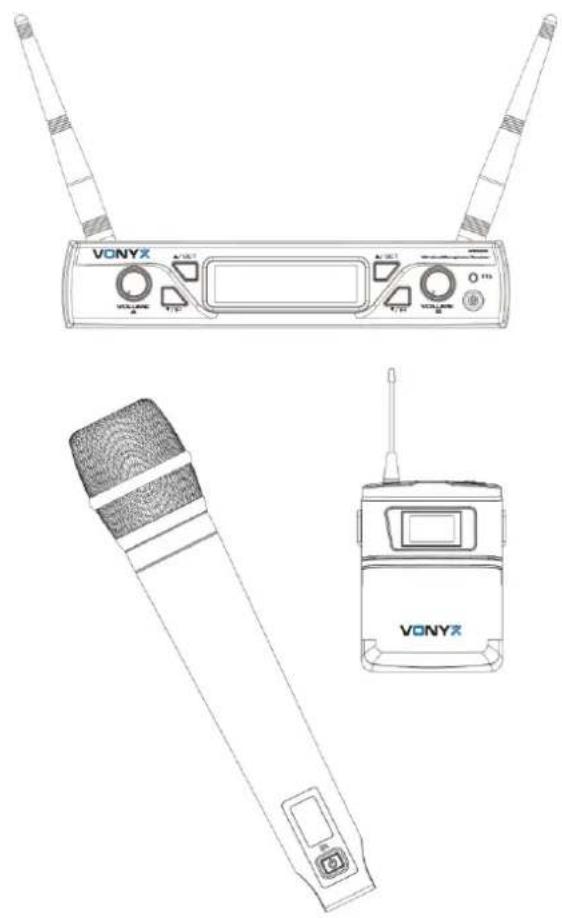

WM62 UHF Wireless Microphone set

Ref. nr.: 179.262; 179.264

Technical line drawing of a VONYX wireless device with external antennas, showing front, side, and top views (no text or symbols on the device itself)

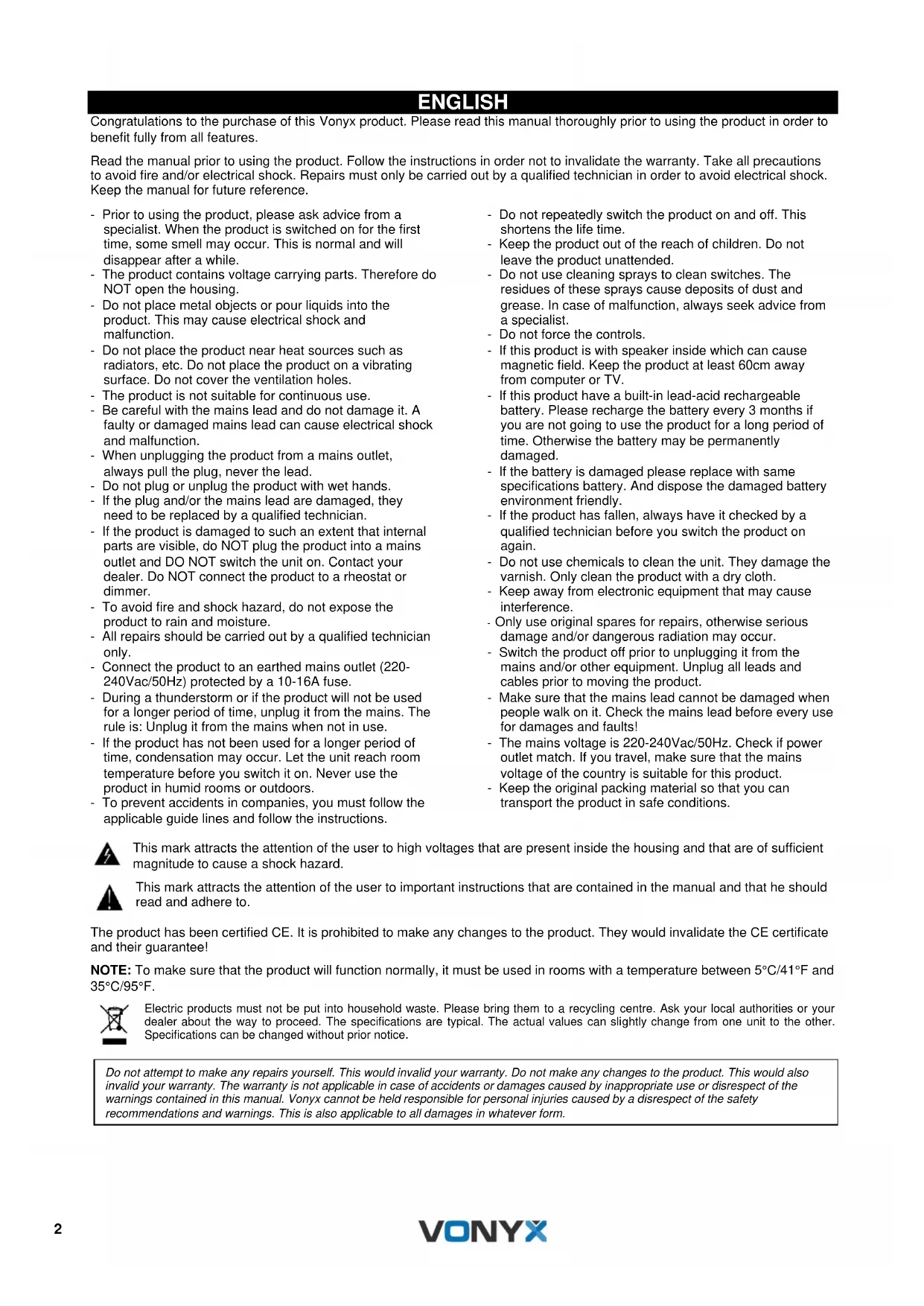

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

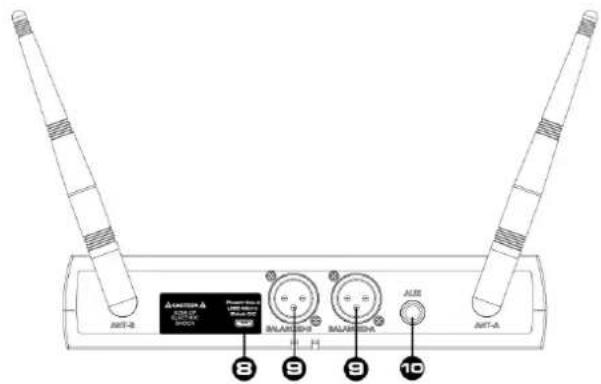

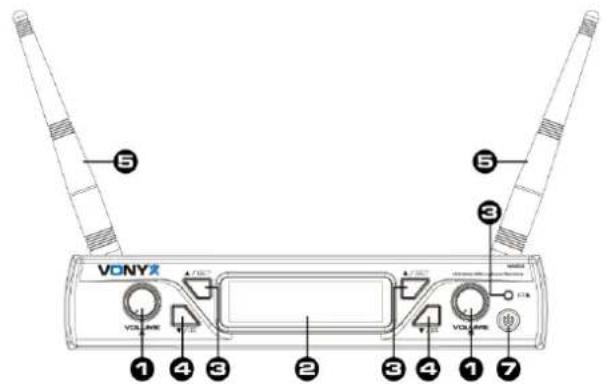

FRONT- AND BACKPANEL

1. Volume
2. Display
3. Up function / Set channel data
4. Down function / Set channel data or press long to apply IR function
5. Antenna
6. Infrared sensor
7. Power On/Off
8. Power input via micro USB connector
9. XLR connector for output signal to mixer
10. 6.3mm ¼ Jack for output signal to mixer

Models:

179.262 : WM62 UHF Microphone System with 2x handheld microphone

179.264:WM62B UHF Microphone System with 2x bodypack

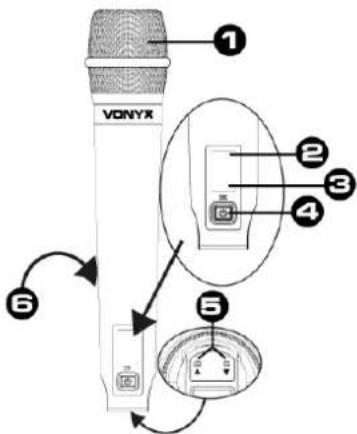

HANDHELD MICROPHONE

1. Grille, protects the cartridge and help reducing the breath sounds and wind noise.
2. Display
3. IR Learn sensor
4. Power ON/OFF
5. Up / Down Channel selection
6. Battery compartment - 2xAA 1.5V

Attention: If the handheld microphone are not used for a longer period, please remove the batteries to prevent damage in case of battery leakage!

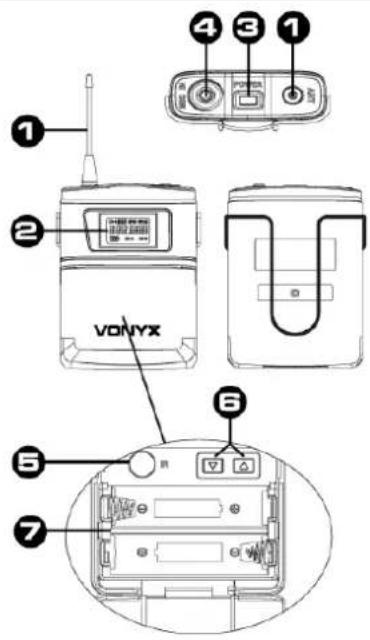

BODYPACK

1. Antenna
2. Display
3. Power ON/OFF
4. Microphone input Jack for headset.
5. IR Learn sensor
6. Up / Down Channel selection
7. Battery compartment - 2xAA 1.5V

Line drawing of a medical device with attached tubing (no text or symbols)

Attention: If the bodypack are not used for a longer period, please remove the batteries to prevent damage in case of battery leakage!

Lavalier microphone

Illustration of a person holding an ID badge next to a microphone device (no text or symbols present)

Headset microphone

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

Line drawing of a person wearing a headset and holding an object (no text or symbols)

SYSTEM CONNECTIONS

1. Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC adapter into a AC230V 50Hz outlet.

1. Keep the position of antenna at a 45^ angle from vertical. Shown as below.

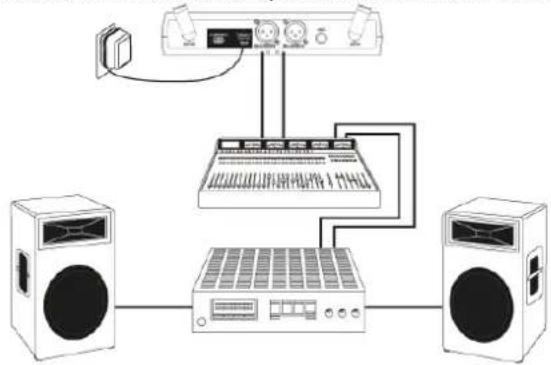

1. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.

No license required (excluding geographical restrictions)

BE	DK	F	FI	DE
HU	IT	NL	NO	PL
PT	RO	SI	ES	SE
CH	GB

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB).

NEDERLANDS

Line drawing of a medical device with attached tubing and connector (no text or symbols)

Line drawing of a device with a USB port and cable, no text or symbols present

Line drawing of a person wearing a headset and holding an object (no text or symbols)

SYSTEEM AANSLUITEN

Line drawing of a medical device with attached tubing and connector (no text or symbols)

Line drawing of a device with a sensor and cable, no text or symbols present

Line drawing of a person wearing a headset and tie, holding an object (no text or symbols)

SYSTEMANSCHLÜSSE

Line drawing of a medical device with earbuds and tubing (no text or symbols)

Line drawing of a VAND device with attached cable and sensor (no text or symbols)

Line drawing of a person wearing a headset and holding a device (no text or symbols)

Line drawing of a medical device with ear, ear canal, and connector (no text or symbols)

Illustration of a person holding a device with a magnified inset showing a connector (no text or symbols present)

Emetteur de poche

Line drawing of a device with a labeled sensor and cable, no text or symbols present

Line drawing of a person wearing a shirt and tie, holding an object (no text or symbols)

BRANCHEMENTS

Line drawing of a medical device with earbuds and tubing (no text or symbols)

Diagram of a VONX device with a cable and connector, no text or symbols present

Illustration of a person holding a medical device with an inset showing a close-up of a medical device (no text or symbols present)

Line drawing of a VONZ sensor device with attached cable and connector (no text or symbols)

Line drawing of a person wearing a headset and tie, holding an ID tag (no text or symbols present)

	WM62	WM62B
	179.262	179.264
Power supply:	100-240VAC 50/60Hz
Frequency Range:	863 – 865 Mhz
Frequency Response:	40Hz - 17.000Hz
Frequency stability:	0.002%
Sensitivity:	-90dB
Signal-to-noise ratio:	>90dB
THD:	<1%
Dimensions:
Receiver:	185 x 215 x 40mm
Handheld:	52x250mm	-
Bodypack:	-	30 x 68 x 100mm
Weight:	0,9kg	0,8kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

• The products referred to in this manual conform to the European Community Directives to which they are subject:
  ●

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
