USER MANUAL Bravia KD49X7053 SONY

For useful information about Sony products

https://www.sony.eu/support

BRAVIA

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guía de referencia	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční príručka	CZ
Referenčná príručka	SK
Felhasználói útmutató	HU
Ghid de referinţă	RO
Информация за позукту	BG
Öðnyóç øναφοράς	GR
Başvuru Kılıavuzu	TR

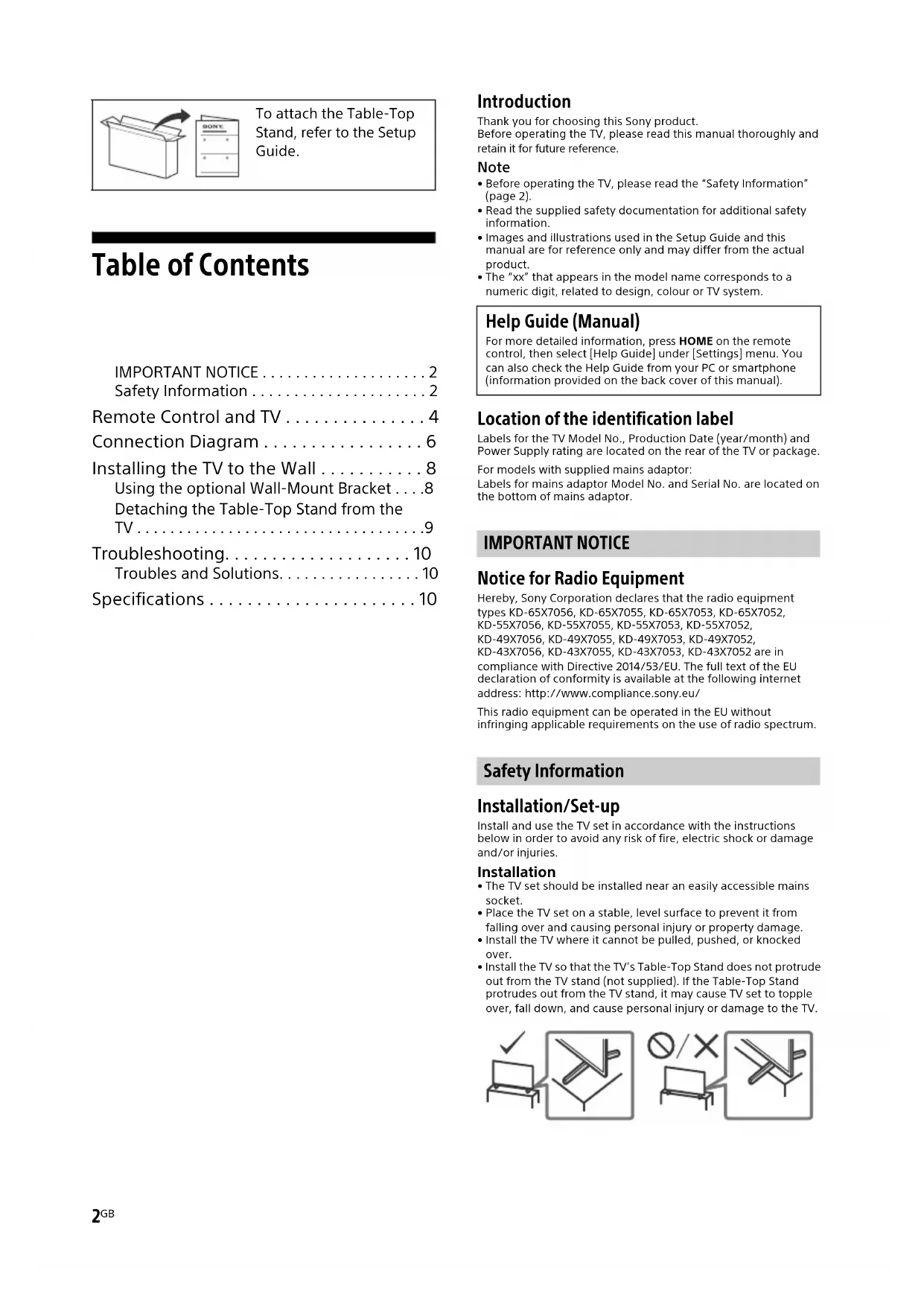

To attach the Table-Top Stand, refer to the Setup Guide.

Table of Contents

IMPORTANT NOTICE 2

Safety Information 2

Remote Control and TV. 4

Connection Diagram 6

Installing the TV to the Wall 8

Using the optional Wall-Mount Bracket . . .8

Detaching the Table-Top Stand from the TV. 9

Troubleshooting. 10

Troubles and Solutions. 10

Specifications 10

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

Before operating the TV, please read the "Safety Information" (page 2).
- Read the supplied safety documentation for additional safety information.
- Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Help Guide (Manual)

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

For models with supplied mains adaptor:

Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-65X7056, KD-65X7055, KD-65X7053, KD-65X7052, KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052, KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052, KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following interne address: http://www.compliance.sony.eu/

This radio equipment can be operated in the EU without infringing applicable requirements on the use of radio spectrum.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  Install the TV where it cannot be pulled, pushed, or knocked over.

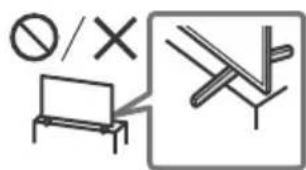

• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount installations.
  For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket: SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

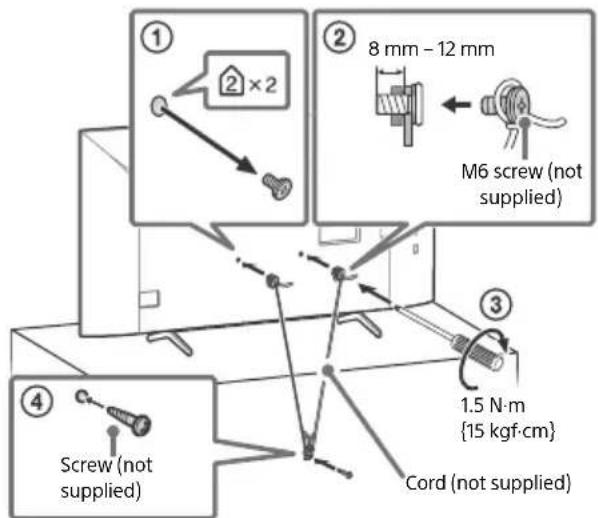

Topple prevention KD-65X70xx

KD-55X70xx / 49X70xx / 43X70xx

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/ country/TV model.

1 (Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

(TV standby)

DIGITAL/ANALOG

Switch between digital and analogue input.

SYNC MENU

Display the BRAVIA Sync Menu.

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

Number buttons

EXIT

(Text)

Display text information.

3 Colour buttons

YouTube (Only on limited region/ country/TV model)

NETFLIX (Only on limited region/ country/TV model)

I n f o / T e x t r e v

Display information.

SLEEP

Press repeatedly until the TV displays the time in minutes ([Off]/[15 min]/[30 min]/[45 min]/[60 min]/[90 min]/[120 min]) that you want the TV to remain on before shutting off. To cancel the sleep timer, press SLEEP repeatedly until [Off] appears.

GUIDE/

Display the Digital EPG (Electronic Programme Guide).

RETURN/

OPTIONS

Display a list that contain shortcuts to some setting menus.

The listed options vary depending on the current input and content.

HOME

/4/4/1

On screen menu navigation and selection.

5 +/-(Volume)

一 (Jump)

(Mute)

PROG+/-/E/A/E

In TV mode: Select the channel.

In Text mode: Select the next (E) or previous (E) page.

6 AUDIO

Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

TITLE LIST (Not available for Italy)

Display the Title list.

<1/>

Operate media contents on the TV and connected BRAVIA Sync-compatible device. This key also can be used to operate VOD (Video on Demand) service playback. Availability is depend on VOD service.

REC (Not available for Italy)

Record the currently viewed programme on the USB HDD.

(Wide Mode)

Adjust the screen display. Press repeatedly to select the desired wide mode.

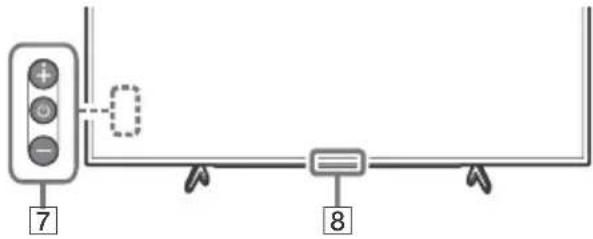

KD-65X70xx

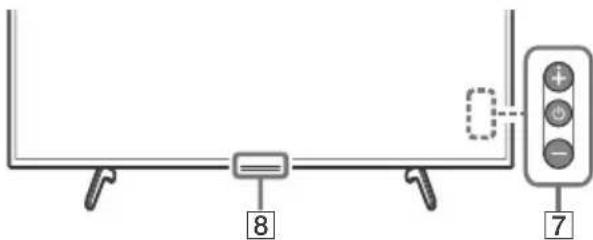

KD-55X70xx / 49X70xx / 43X70xx

7 (Power)

Remote Control sensor / LED indicator

Note

• If subtitles are selected and the user launches a digital text application via 'text' key, subtitles may, under certain circumstance stop being displayed. When the user exits the digital text application, subtitle decoding will resume automatically.
• Make sure that the TV is completely turned off before unplugging the mains lead.
• To disconnect the TV from the mains completely, pull the plug from the mains socket.
• Please wait for a while when perform input selection to change to other input.

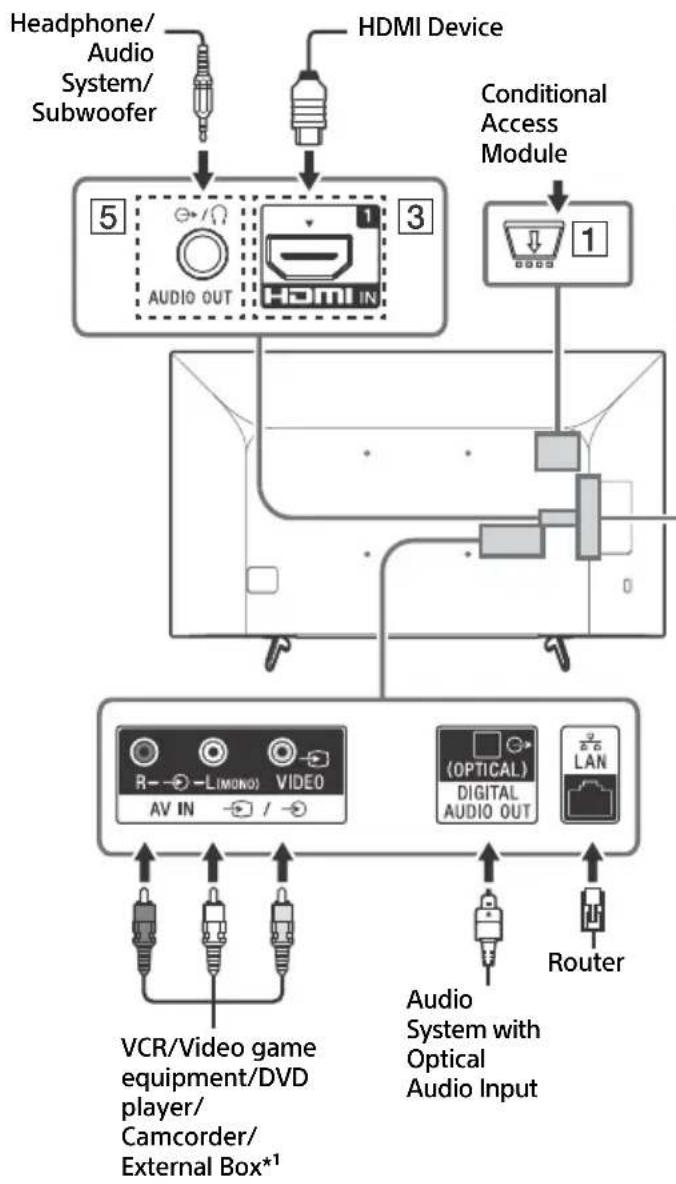

Connection Diagram

You can connect a wide range of optional equipment to your TV.

Note

• Terminals, labels and functions may vary depending on region/country/TV model.

CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
• CAM is not supported in some countries/ areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

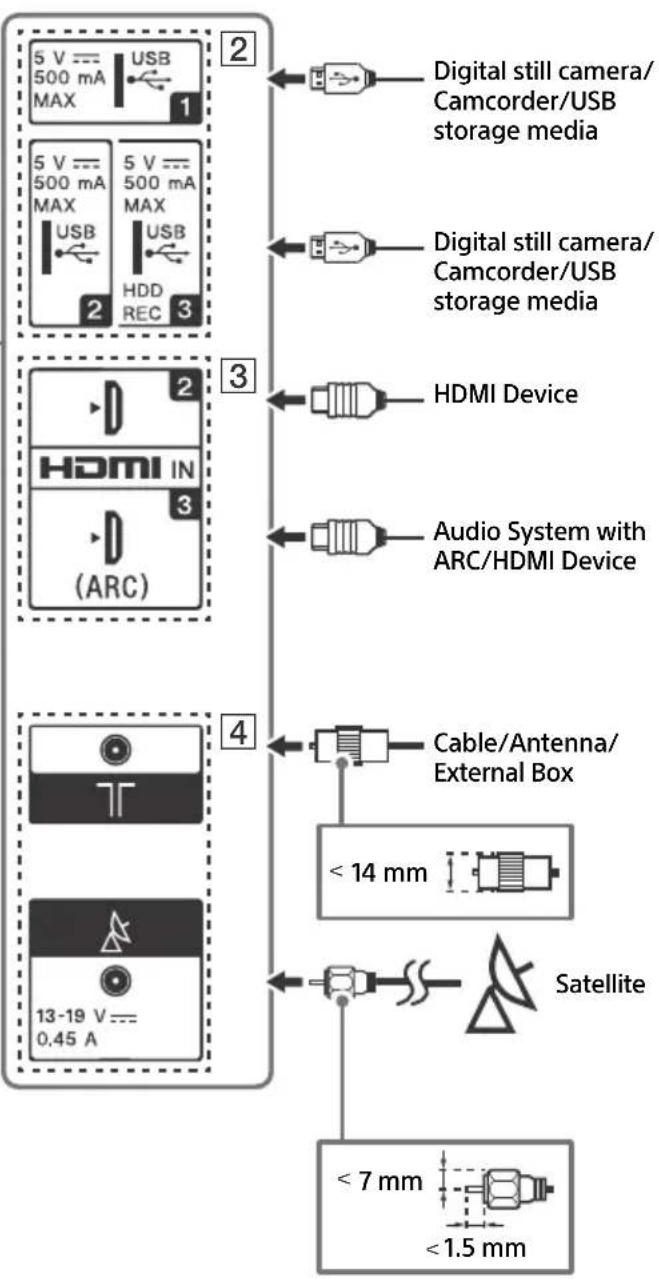

2 USB1/2, USB3 (HD)

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.
• Connect a USB HDD device to the USB 3 port.

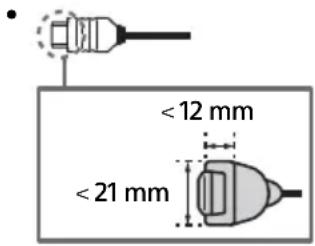

3 HDMI IN 1/2/3

• HDMI interface can transfer the digital video and audio on a single cable.

HDMI IN 2/3

To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format].

For details of supported formats, refer to the "Specifications" in this manual (page 10-11).

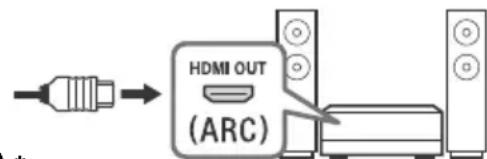

HDMI IN 3 ARC (Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

REC)

4 (RF input), (Satellite input)* 2

• Connections for terrestrial/cable and satellite.

5 AUDIOOUT

Supports 3-pole stereo mini jack only.
- To listen to the TV's sound through the connected equipment, press HOME, then select [System Settings] [Setup] [AV Setup] [Headphone/Audio Out] and then select the desired item.

Note

1 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor.
2 Only on limited region/country/TV model.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.
• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand. See the Setup Guide and follow in reverse order the steps to detach the Table-Top Stand.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49/43X70xx only)

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

https://www.sony.eu/support

KD-65X70xx

Remove the screws from the rear of the TV.

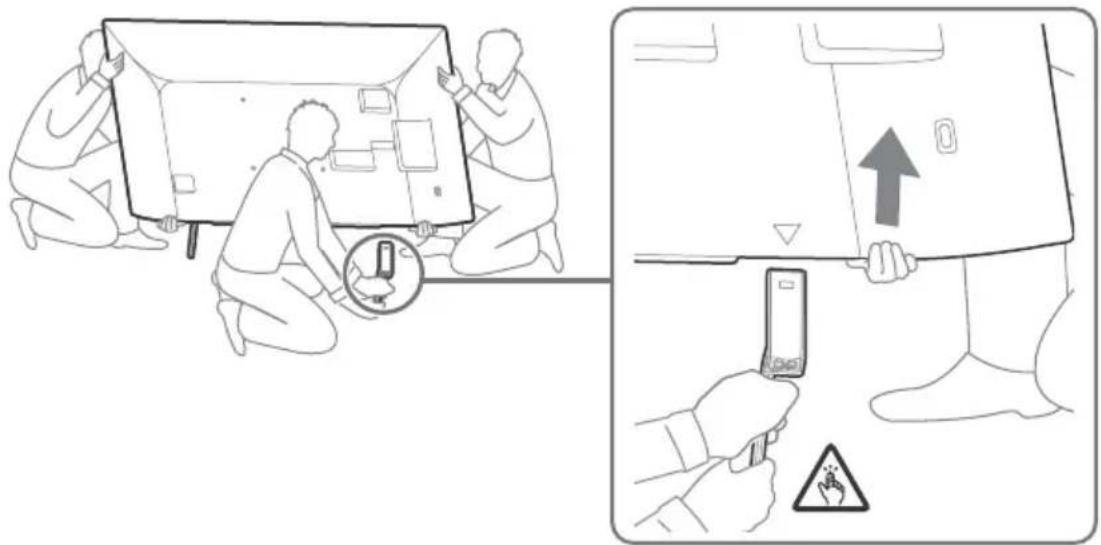

KD-65X70xx

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

2 Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
• Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

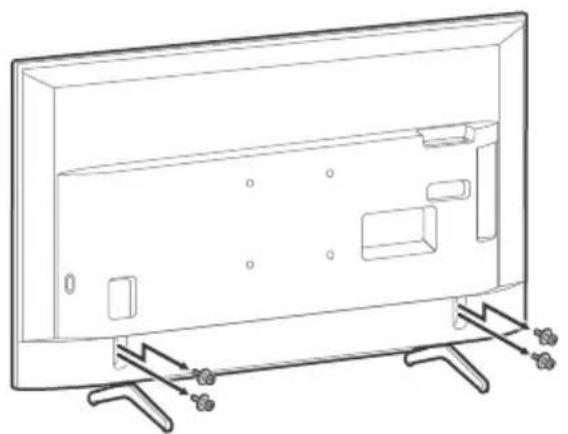

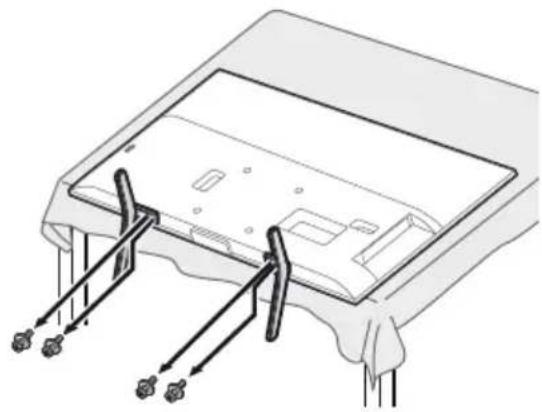

KD-55X70xx KD-49X70xx / 43X70xx

Troubleshooting

When the LED indicator is flashing red, count how many times it flashes (interval time is three seconds).

If the LED indicator flashes red, reset the TV by disconnecting the mains lead from the TV for two minutes, then turn on the TV.

If the problem persists, contact your dealer or Sony service centre with the number of times the LED indicator flashes red (interval time is three seconds). Press on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre.

Troubles and Solutions

No picture (screen is dark) and no sound

• Check the antenna (aerial)/cable connection.
• Connect the TV to the mains socket, and press on the TV or the remote control.

Picture contours are distorted

• Change the current setting of [Film Mode]* to other settings.

The TV turns off automatically (the TV enters standby mode)

• Check if the [Sleep Timer]* is activated.
• Check if the [Duration] is activated by [On Timer] or [Photo Frame Settings]*.
• Check if the [Idle TV Standby]* is activated.

Some input sources cannot be selected

• Select [AV Preset] and select [Always] of the input source.

Some programmes cannot be tuned

• Check the antenna (aerial)/cable connection.

The remote control does not function

• Replace the batteries.

The TV surrounds become warm

• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.
• For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

Specifications

System

Panel system LCD (Liquid Crystal Display) Panel, LED Backlight

TV system
Depending on your country/area selection/TV model
Analogue: B/G, D/K, I
Digital: DVB-T/DVB-C DVB-T2*1
Satellite*1:DVB-S/DVB-S2

Colour/video system
Analogue: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)
Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L5.0, H.265/HEVC MP/Main10@L5.1 (4K 60fps)

Channel coverage
Depending on your country/area selection/TV model
Analogue: UHF/VHF/Cable
Digital: UHF/VHF/Cable
Satellite ^1 : IF Frequency 950-2,150 MHz

Sound output 10W + 10W Wireless technology Protocol IEEE 802.11b/g/n

Frequency band(s)

Wireless LAN (IEEE 802.11b/g/n)
Frequency range Output	Power
2400-2483.5 MHz < 20.0 dBm

Input/Output jacks

Antenna (aerial)/ cable 75 ohm external terminal for VHF/UHF Satellite antenna* Female F Type Connector, 75 ohm. DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable Distribution EN50494.

A V I N Video/Audio input (phono jacks)

HDMI IN 1/2/3 (support 4K resolution, HDCP

2.3-compatible) Video: 4096× 2160p (24,50,60 Hz), 3840× 2160p (24,25,30,50, 60 Hz),1080p (30,50,60 Hz),1080/24p,1080i (50,60 Hz), 720p (30,50,60 Hz),720/24p,576p,576i,480p,480i Audio: Two channel linear PCM:32/44.1/48 kHz 16/20/24 bits,Dolby Audio,DTS

ARC (Audio Return Channel) (HDMI IN 3 only) Two channel linear PCM:48 kHz 16 bits,Dolby Audio, DTS DIGITAL AUDIO OUT(OPTICAL) Digital optical jack (Two channel linear PCM:48 kHz 16 bits Dolby Audio, DTS)

AUDIO OUT (Stereo mini jack) Headphone, Audio output, Subwoofer 1,2-3 (HDD-REC) (Function not available in Italy)

USB port 1, 2 and 3 support High Speed USB (USB 2.0)

CAM (Conditional Access Module) slot

DC IN 19.5 V (models with supplied mains adaptor only)

Mains adaptor input LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

except models with supplied mains adaptor

220V-240VAC,50Hz

models with supplied mains adaptor only

19.5 V DC with mains adaptor

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-65X70xx: A

KD-55X70xx:A

KD-49X70xx:A

KD-43X70xx: A

Screen size (measured diagonally) (Approx.)

KD-65X70xx: 163.9 cm / 65 inches

KD-55X70xx: 138.8 cm / 55 inches

KD-49X70xx: 123.2 cm / 49 inches

KD-43X70xx: 108.0 cm / 43 inches

Power consumption

In [Standard] mode

KD-65X70xx:151W

KD-55X70xx:110W

KD-49X70xx: 75 W

KD-43X70xx:66W

In [Vivid] mode

KD-65X7056/65X7055:256W

KD-65X7053/65X7052:245W

KD-55X7056/55X7055:184W

KD-55X7053 / 55X7052:173W

KD-49X7056 / 49X7055:115 W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055:100W

KD-43X7053/43X7052:97W

Annual energy consumption⁸

KD-65X70xx: 220 kWh per year

KD-55X70xx:161 kWh per year

KD-49X70xx: 110 kWh per year

KD-43X70xx: 96 kWh per year

Standby power consumption*4*5

0.50W

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2/3

5V=， 500mA MAX

Dimensions (Approx.) (w× h× d)

with Table-Top Stand

KD-65X70xx:146.3×90.4×34.0cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1× 70.2× 28.6 cn

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

without Table-Top Stand

KD-65X70xx: 146.3× 84.5× 8.0cm

KD-55X70xx:124.1×72.1×7.9cm

KD-49X70xx: 110.1× 64.5× 5.7cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Mass (Approx.)

with Table-Top Stand

KD-65X70xx:21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx:10.2kg

without Table-Top Stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature: 0^ - 40^

Operating humidity: 10% -80% RH (non-condensing)

1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.
2 HDMI IN 2 and HDMI IN 3 support High-Quality HDMI formats such as 4K 60p/50p 4:2:0 10 bit, 4:4:4, 4:2:2.
3 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
4 Specified standby power is reached after the TV finishes necessary internal processes.
*5 Standby power consumption will increase when your TV is connected to the network.

Note

• Do not remove the dummy card or cover (availability depends on TV model) from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/ TV model/stock.
• Design and specifications are subject to change without notice.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
  This TV supports digital broadcasting using MPEG-2, H.264/ MPEG-4 AVC and H.265/HEVC codesc, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Notes on HDR (High Dynamic Range) (Only on limited region/country/TV model)

• Compatible with all HDR PS4 Game titles via HDMI and HDR videos of built-in Netflix and YouTube App only. (See Sony support website for more information).
• HDR image signal specifically means HDR10 Media Profile format (commonly referred to as HDR10).
• Compatibility with all HDR content is not guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
  Vewd Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.
  Wi-Fi, Wi-Fi Alliance, Wi-Fi Direct and Miracast are registered trademarks of Wi-Fi Alliance.
• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.
  The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.
• Netflix is a registered trademark of Netflix, Inc.
• "YouTube" and the "YouTube logo" are registered trademarks of Google LLC.
  "BRAVIA", Fand BRAVIA Sync are trademarks or registered marks of Sony Corporation.
• "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.
• "PlayStation" is a registered trademark and "PS4" is a trademark of Sony Interactive Entertainment Inc.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
  TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

For satellite models only:

• DiSEq™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• All other trademarks are the property of their respective owners.

https://www.sony.eu/support

KD-65X70xx

Analogue: UHF/VHF/Cable

ARC (Audio Return Channel) (HDMI IN 3 unquipment)

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx : 110,1 × 70,2 × 28,6 cm

KD-43X70xx : 97,0 × 62,8 × 28,6 cm

Sans support de table

KD-65X7052, KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052, KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

Sistema de television

Digital: UHF/VHF/Cable

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Audio:

PCM lineal de dos canales: 32/44,1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (sólo HDMI IN 3)

PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Toma digital optica (PCM lineal de dos canales: 48 kHz 16 bits,

Dolby Audio, DTS)

AUDIO OUT (minitoma estereo)

Auricular, salute de audio, Altavoz de graves

1,2-3 (HDD-REC) (estamerican no esta

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx: 124,1× 78,1× 34,0 cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx: 97,0×62,8×28,6 cm

Tweekanaals lineaire PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (alleen HDMI IN 3)

Tweekanaals lineage PCM: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx:97,0×62,8×28,6cm

https://www.roy.eu/support

KD-65X70xx

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx: 146,3×84,5×8,0 cm

KD-55X70xx: 124,1 × 72,1 × 7,9 cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7 cm

Gewicht (Ca.)

mit Tischständer

KD-65X70xx:21,4 kg

KD-55X70xx:16,3kg

KD-49X70xx:12,4kg

KD-43X70xx:10,2 kg

ohne Tischständer

KD-65X70xx: 20,5 kg

KD-55X70xx:15,4 kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7kg

Sonstiges

Sonderzubehör

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

Instalar o television na parede

Utilizar o Suporte de parede optional

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Audio:

PCM linear de doit canais: 32/44,1/48 kHz 16/20/24 bits

Dolby Audio, DTS

ARC (Audio Return Channel) (Apenas nos modelos

HDMI IN 3)

PCM linear de doit canais: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital otica (PCM linear de dois canais: 48 kHz 16 bits,

Dolby Audio, DTS)

AUDIO OUT (Mini-tomada estéreo)

Auscultador, saía de audio, subwoofer

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx: 124,1× 78,1× 34,0cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx:97,0×62,8×28,6 cm

sem suporte de fixacao para mesas

KD-65X70xx: 146,3× 84,5× 8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Peso (Aprox.)

ARC (Audio Return Channel) (solo HDMI IN 3)

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx: 97,0 × 62,8 × 28,6 cm

KD-65X70xx:146,3×84,5×8,0 cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Peso (circa)

con piedistallo

KD-65X70xx:21,4kg

KD-55X70xx: 16,3 kg

KD-49X70xx:12,4 kg

KD-43X70xx: 10,2 kg

https://www.sony.eu/support

KD-65X70xx

Tvakanig linjar PCM: 48 kHz 16-bitars, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx:97,0×62,8×28,6cm

utan bordstativ

KD-65X70xx:146,3×84,5×8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Vikt (Ca.)

med bordsstativ

KD-65X70xx:21,4 kg

KD-55X70xx: 16,3 kg

KD-49X70xx:12,4kg

KD-43X70xx:10,2kg

utan bordstativ

KD-65X70xx:20,5 kg

KD-55X70xx:15,4kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7 kg

Övrigt

Valfritt tillbehör

Vaggfaste:SU-WL450

Anvandningstemperatur: 0^ - 40^

https://www.sony.eu/support

KD-65X70xx

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Lyd:

To-kanals lineaer PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (kun HDMI IN 3)

To-kanals lineer PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals linear PCM: 48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT (Stereo-minijack)

Hovedtelefoner, lydudgang, subwoofer

I [Standard] tilstand

KD-65X70xx:151W

KD-55X70xx:110W

KD-49X70xx: 75 W

KD-43X70xx:66W

I [Kraftig] tilstand

KD-65X7056/65X7055:256W

KD-65X7053/65X7052:245W

KD-55X7056/55X7055:184W

KD-55X7053 / 55X7052:173W

KD-49X7056 / 49X7055:115W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055:100W

KD-43X7053/43X7052:97W

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cn

KD-43X70xx:97,0×62,8×28,6cm

Uden TV-fod

KD-65X70xx:146,3×84,5×8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7 cm

Vægt (Ca.)

Inkl. TV-fod

KD-65X70xx:21,4 kg

KD-55X70xx: 16,3 kg

KD-49X70xx:12,4 kg

KD-43X70xx: 10,2 kg

Uden TV-fod

KD-65X70xx: 20,5 kg

KD-55X70xx:15,4 kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7 kg

Andre

Ekstraudstyr

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Audio:

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6cn

KD-43X70xx:97,0×62,8×28,6cm

ilman poytajalustaa

KD-65X70xx:146,3×84,5×8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Paino (Noin)

https://www.sony.eu/support

KD-65X70xx

60 Hz], 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Lyd:

Tokenals linear PCM: 32/44,1/48 kHz 16/20/24 biter, Dolby Audio, DTS

ARC (Audio Return Channel) (kun HDMI IN 3)

Tokenals lineer PCM: 48 kHz 16 biter, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokenans lineer PCM: 48 kHz 16 biter, Dolby Audio, DTS)

AUDIO OUT (minjack, stereo)

Hodetelefon, lydutgang, subwoofer

1,2-3 (HDD-REC) (Funksjon/DD-REC)

Italia)

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6cn

KD-43X70xx:97,0×62,8×28,6cm

uten bordstativ

KD-65X70xx:146,3×84,5×8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Vekt (ca.)

med bordstativ

KD-65X70xx:21,4 kg

KD-55X70xx: 16,3 kg

KD-49X70xx:12,4kg

KD-43X70xx:10,2kg

uten bordstativ

KD-65X70xx:20,5kg

KD-55X70xx:15,4 kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7kg

Annet

Tilleggsutstyr

Veggmonteringsbrakett: SU-WL450

Driftstemperatur: 0^ - 40^

Driftsluftfuktiget: 10% - 80% relativ fuktiget

(ikke-kondenserende)

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6cm

KD-43X70xx:97,0×62,8×28,6cm

bez podstawy

KD-65X70xx: 146,3× 84,5× 8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Waga (przyblżona)

z podstawa

KD-65X70xx:21,4 kg

KD-55X70xx: 16,3 kg

KD-49X70xx: 12,4 kg

KD-43X70xx: 10,2 kg

bez podstawy

KD-65X70xx: 20,5 kg

KD-55X70xx:15,4kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7 kg

Inne

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052,

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 jsou v

souladusesmernic2014/53/EU.UplnezneneEU prohlasei o

shode je k dispozici na teto internetové adrese:

http://www.compliance.sony.eu/

Toto radiove zaifizen lze pouzivat v EU, aniz by porusovalo platne pozadavky na vyuziti radioveho spektra.

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Audio:

Dvoukanalov linearni PCM: 32/44,1/48 kHz 16/20/24 bitu, Dolby Audio, DTS

ARC (Audio Return Channel) (pouze modelly HDMI IN 3)

Dvoukanálovy linearní PCM: 48 kHz 16 bitu, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6cn

KD-43X70xx:97,0×62,8×28,6cm

KD-65X70xx:146,3×84,5×8,0 cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7cm

Hmotnost (pribl.)

se stolním stojanem

KD-65X70xx:21,4 kg

KD-55X70xx: 16,3 kg

KD-49X70xx:12,4kg

KD-43X70xx:10,2kg

bez stolniho stojanu

KD-65X70xx:20,5kg

KD-55X70xx: 15,4 kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7kg

Ostatni

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Audio:

Dvojkanalovy linearny PCM: 32/44,1/48 kHz 16/20/24 bitov, Dolby Audio, DTS

ARC (Audio Return Channel) (Len model HDMI IN 3)

Dvojkanalovy lineary PCM: 48 kHz 16 bitov, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

4096×2160p(24,50,60 Hz),3840×2160p(24,25,30,50, 60 Hz),1080p(30,50,60 Hz),1080/24p,1080i(50,60 Hz), 720p(30,50,60 Hz),720/24p,576p,576i,480p,480i

Audio:

Kétcsatornás lineáris PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (CsakHDMI IN 3)

DIGITAL AUDIO OUT (OPTICAL)

KD-65X70xx:220 kWh event

KD-55X70xx:161 kWh evente

KD-49X70xx: 110 kWh evente

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cn

KD-43X70xx:97,0×62,8×28,6cm

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit ^+1 : Frecventa IF 950-2.150 MHz

lesire audio

10W+10W

Tecnologie wireless
Protocol IEEE 802.11b/g/n
Bandá (benzi) de frecventa

LAN wireless (IEEE 802.11b/g/n)
Gama de freventa Putere	de ieşire
2.400-2.483,5 MHz < 20,0	dBm

Mufe intrare/iesire

Antena (extrioar)/cablu

4096×2160p(24,50,60 Hz),3840×2160p(24,25,30,50, 60 Hz),1080p(30,50,60 Hz),1080/24p,1080i(50,60 Hz), 720p(30,50,60 Hz),720/24p,576p,576i,480p,480i

Audio:

PCM liniar pe doua canale: 32/44,1/48 kHz 16/20/24 biti, Dolby Audio, DTS

ARC (Audio Return Channel) (Numai HDMI IN 3)

PCM liniar pe doua canale: 48 kHz 16 biti, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Mufa optica digitala (PCM liniar pe doua canale: 48 kHz 16 biti, Dolby Audio, DTS)

AUDIO OUT (Mini mufa stereo)

Casti, iesire audio, subwoofer

KD-55X70xx:138.8cm/55toli

KD-49X70xx: 123,2 cm / 49 toli

KD-43X70xx: 108,0 cm / 43 toli

Consum de putere

In modul [Standard]

KD-65X70xx:151W

KD-55X70xx:110W

KD-49X70xx: 75 W

KD-43X70xx:66W

In modul [Stralucitor]

KD-65X7056/65X7055:256W

KD-65X7053/65X7052:245W

KD-55X7056 / 55X7055:184W

KD-55X7053/55X7052:173W

KD-49X7056 / 49X7055:115W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055:100W

KD-43X7053 / 43X7052:97W

Consumul de energia anual*3

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx: 110,1×70,2×28,6 cm

KD-43X70xx:97,0×62,8×28,6cm

fara suport de masa

KD-65X70xx: 146,3× 84,5× 8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7 cm

Masa (aprox.)

cu suport de masă

KD-65X70xx:21,4kg

KD-55X70xx:16,3 kg

KD-49X70xx:12,4kg

KD-43X70xx: 10,2 kg

fara suport de masa

KD-65X70xx: 20,5 kg

KD-55X70xx: 15,4 kg

KD-49X70xx:11,9 kg

KD-43X70xx:9,7kg

Altele

Accesorii optionale

Dispositiv de montare pe perete: SU-WL450

Temperatura de utilizes: 0^ - 40^

RCT\* (RF BxOД), (CateJIITeH BxOД)\* 2

KynnyHr 3a Ha3eMHa/Ka6eNHa n caTeNJnTHa TeneBu3nA.

5 AUDIOOUT

-Подьржа само стapestо мни-жakс Трплюca.
3a da cnyuwaTe 3Byk OT TeJIeBuN3opa npe3 Cbbp3aHOTO 6OpUyDbaHe,HaTnCHHeTe HOME, n36epeTe [CnCTemHn HAcTpoiKn] [HacTpoiKa] [AV NaCTpoiKn] [CnyuAank/Naydno n3xOj], cIeJ Koeto n36epeTe JeJahnE eIemEnT.

3a6eJekka

13a BBHshOуCTpoIcTBo, KOeTo mMa cMo SCART AV OUT, n3noJ3BaIte SCART-RCA aanTep.
2 Camo 3a onpeJeHn perNoHN/ctpaHn/MoJeN TeneBn3OpN.

TeIeBn3OpbT ce n3KJIIOUyBa aBTOMaTHUHO (TeIeBn3OpbT Bn3a B peXIM Ha rOTOBHOCT)

• Поберете дал e akTNbupan [TaIMep 3a n3KJIIOUvBaHe]*.
• Поберете далеakтubиразн [Времетрае He] ot [АвTomатунно Вкlioчван] Ил [Hастpoй Кн на сфотамka]*.
• Побере Te Дд eakTNBupaH [ИзкнюваHe, korato TB He ce n3noJ3Ba]*.

HЯкоBxOДни n3ToUHn He MoRaT da 6bdaT n36paHn

• N36epeTe [AV hacptpoKn] u n36epeTe [BunHaRn] Ha BXODHnN3TOUHNK.

HЯков поррами He moraT da 6bdaT NaCTpoEH

-Поберетe БрзкаТа саHTehaТа/ka6eJa.

ДиctaHOnOHTo ynpaBHeHne He pa6Otn

• CmeheTe 6aTepu nTe.

Pamkata Ha TeleBn3opa ce 3aToTnIa

Korato TeIeBn3OpbT ce n3noJ3Ba npOdbJIxNtEnHO BpeMe, pAMKaTa My ce 3aToPnJa. MoKe da ycETNe ToPnHa, KOrato JdoKOChTe Cpka.
*3a no-noipo6ha nHΦopMaζη,HaTnchHeTe HOMe Ha nCTaHcnoHHTO, CneI TOBa n36epeTe [Pomouho pbKOBOdCTBO] B [HaCtpoiKn] MeHTo.

Cneunkaaun

Cnctema

CnTeMaHa naHeNa

LCD（TeuHokpcTaJenDinCnne）naHeI,LEDnoCBeTka

TB CNTema

B 3aBucmocT OT BaUaTa IbpxKaBa/H36Op Ha 3oHa/MoJeN Ha TeBeu3opa

AHaIorOB:B/G,D/K,I

LunΦροB: DVB-T/DVB-C DVB-T2*1

BxOJHO/u3XoHN JkaKOBe

AHTeHa/ka6eJ

75 OMa BbHWeH TepMHaI 3a VHF/UHF

CateInTha aHTeHa

KoHeKTOp TnF,KeHcKn,75 oMa.

DiSeC 1.0, LNB 13 V/18 V & 22 kHz toH, Pa3npedJIeHne no 1

ka6eJ EN50494

A V I N

ARC (Audio Return Channel) (camo HDMI IN 3)

Дуканен Линецн PCM: 48 kHz 16 bita, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

LHPOB ONTueH JAK (DBykaHaJIe HJnHeeH PCM: 48 kHz

16 6nta, Dolby Audio, DTS)

AUDIO OUT (CTepeo MMHn KaK)

CnywaanKn, Aydno n3xO, Cb6yep

1,2-3(HDD-REC) (Функцята He e DoctbHa B

Utaa)

USB nopT 1,2 n 3 noDbpxkat High Speed USB (USB 2.0)

0

AM (mOyI 3a yCNoBEN IOCTbN) rHe3do

DC IN 19.5 V (camoto MoDJIc c oCTaBeH 3axpaHbaa aanTop)

KD-65X70xx:220kWhroDnHNO

KD-55X70xx:161kWh roDnHnO

KD-49X70xx:110kWh roDnH

KD-43X70xx:96kWh roDnsho

KoHcymaLna Ha eHepnB pexnM IOTOBHOCT*4*5

0.50 W

Pe3oHouznaHaDucnpea

3840 toky (no xopn3oHTana) × 2160 pea (no Beptnka)

U3XOJHNNHOOMHaHNN daHHN

USB 1/2/3

5V=500mA（mKc.）

Pa3mepn (npn6I.) (w x B x d)

C NOCTaBka 3a MaCa

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx:97,0×62,8×28,6cm

6e3 NOCTaBka 3a Maca

KD-65X70xx: 146,3× 84,5× 8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx:110,1×64,5×5,7cm

KD-43X70xx:97,0×57,0×5,7 cm

Terno (np6n.)

C NOCTaBKa 3a Maca

KD-65X70xx:21,4kg

KD-55X70xx:16,3 kg

KD-49X70xx: 12,4 kg

KD-43X70xx: 10,2 kg

6e3 nocTaBka 3a Maca

KD-65X70xx:20,5 kg

KD-55X70xx:15,4kg

KD-49X70xx: 11,9 kg

KD-43X70xx:9,7kg

Друн

DonbHnTeHHn akcecoapn

Koh30a 3a 3akpenBaHe KbM cTeHa: SU-WL450

Pa6oTHa TemnepaTypa: 0^ - 40^

Pabotha BnaXHOCT:OTHOCHTENHa BnaXHOCT 10% -80%

(6e3obpa3yBaHeHa KOHneH3)

^1 He BCnKu TeLeBn3Opn mMat DVB-T2 nnn DVB-S/S2 TexHOJrN uN KOHeKTop 3a caTeJNTHa aHTeHa.
2HDMI IN 2иHDMI IN 3 подьржат Всокokачесын HDMI фор matи Кат 4К 60р/50р 4:2:0 10 6ит, 4:4:4, 4:2:2.
^3 Гошнота консmaина ha eheprnB kWhe 6a3npaHa ha KOHcmaunraHa TeLEBn3Op, KoTo pa60Tu 4 qaca Ha DeH, 365 dH. DeiCTBnTeHnHa KOHcmaunna Ha eheprn3abncn OT TOBA KaC ce n3noJI3Ba TELEBn3Opa.
*4 Yka3aHaTa KOHCyMaUHa Ha eHepnBa B pexm FoTOBHOCT ce DoCTnFa CneI KaTo TeEbn3OpbT npKKnOu Hno6xOIMnTe BbTpueHN IpoucN.
5 KoHcyMaunrHa ha eHepnB pexm rTOBHOCT ue ce yBeiNHy, KOrTaTo BaunrTeNeBn3Op e Cbbp3aH KbM MpeJa.

3a6eJekka

• He n3BaXdAne TncBdo-KapTaTaNn Kanaka (HaIuHocTt A M 3aBnCn OT MoDena Ha TeNeBu3Opa)OT TV CAM cNoTa (Moyna 3a YcNOBENIOCTbN),OCBeH 3a Da NoCTaBnTe CmApT KapTa B CAM.
  HaJIuHneTo Ha DOnbJIHNTeJHn AkCeCoApn 3aBcN O T dbPkaBata/perHOHa/MoJeHa TeJeBn3Opa HAIuHocTtA.
  ДиЗанБТИСпeциФКaциTe NOДLEЖАТ Ha npOMЯHA 6e3npedynpeKdHHe.

3a6eJekka 3a unfoBbata yHKnna Ha TeIeBn3opa

LHpOBA TeEbn3nRA (DVB Ha3emHO, cateJInTH n Ka6eJIHO), INTEpaKTHBnH yCnyr mPexKOBn FyHKuM oKe da He ca DocTbHN Bb BCNU CTPaH Nnn paOn HkaON FyHKuN MOKe Da He ca AKTNBpAH NIN MOKe Da He paobotr npaBnHO C HAKON DoCTaBnuNm U MpeKOBn CpeDN. HkON DOCTaBnuNHa TEeBn3NoHH yCnyr MoKe Da HaucnBaT TaKaCA 3a yCnyrTe CNI.
To3nTeBn3OpNoIbpbXaUΦpOBo IpeBaHaNe, nIOnIbAaKn MPEG-2,H.264/MPEG-4AVC uH.265/HEVC KOeunHO He Moxe Da bSe rapaHTnpaHa CbBMecTmocCTTa BCNcHcRHaHn Ha OepaTopy/cnyr, KOnTO MoKe Da ce npomeHrCTeueHHe Ha BpeMeTo.

3a6eJexKo OTHOCHO HDR (BnCOK dHAmuueh 06XbaT) (Camo 3a onpeJeIeH npReHn/CTpaHn/MoJeN TeLeBu3Opn)

CbBMeCTIMeINHCTBeHO C BcNk3aIaBnHa HDR PS4 npRnPne3 HDMI n HDR BnDea c BrpaJeHnTe npNoJoxEnHa Netflix nYouTube. (3a noBue uHOpMaunn BnKTe ye6caTn 3a noDpBxKa Ha Sony).
HDR cHrHaI Ha3O6paXeHHeTO O3HaUaBA KOHKpeTHo FOpMaH HDR10 Media Profile (Wnpoko pa3npocTpaHEn H a3OBaBaN KaTo HDR10).
CbBmecTUMocTtacBCaKBOpyrHDRcbDbpxKaHne He e rapaHTnpaHa.

Hhopmaun3a TbproBckn MapK

• TepMNHTeHDMIиИнТерфсьза MyNTmEДЯсВICOKa pa3dENITeHa cnoc6bOCT HDMI (HDMI-High-Definition Multimedia Interface), KaKToилгOTo HDMl ca 3ana3eHn Маркn Ha HDMI Licensing Administrator, Inc.в СебднEHnTe 估Tи dpyrI dprkabn.
• Понибевен no Лимень Ha Dolby Laboratories. Dolby, Dolby Audio, И симовьт Ha Довий�TO "D" ca Тьр罗БСКИ Марки Ha Dolby Laboratories.
• Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.
  Wi-Fi, Wi-Fi Alliance, Wi-Fi Direct and Miracast can perncptpapaHbproBckn MapKn Ha Wi-Fi Alliance.
• Wi-Fi Protected Setup™ e TBproBcka Mapka Ha Wi-Fi Alliance.
• Jloroto Wi-Fi CERTIFIED™ e ceptuФkaцион 3нak Ha Wi-Fi Alliance.
• Netflix e perinctpupaHa TbproBcKa Mapka Ha Netflix, Inc.

• "YouTube" n "YouTube nonzero" ca perinctpupaHa TbproBcKn Mapkn Ha Google LLC.
  "BRAVIA", BrBRAVIA Sync ca TbproBcKn Mapkn Nn perncptpapnHa Mapkn Ha Sony Corporation.
  "Blu-rayDisc", "Blu-ray" n "Blu-ray Disc" Ioro ca TBprobckn Mapkn Ha Blu-ray Disc acounaun.
  "PlayStation e perinctpupaHa TbproBcKa Mapka n "PS4"e TbproBcKa Mapka Ha Sony Interactive Entertainment Inc.

• 3a DTS nateHn, BnXte http://patents.dts.com. PpOn3BeHeNo no liueH3 Ha DTS, Inc. DTS, cIMBOBt, DTS n CIMBOBt 3aeDho n Digital Surround ca pernctpnpaHn TbproBcKn MapKn nnTbproBcKn MapKn Ha DTS, Inc., B CAU n/nn npyru cTpaHn. © DTS, Inc. BcnuKn npaba 3ana3eHn.
  TUXERA e pernctpnpaHa TpbroBcKa Mapka Ha Tuxera Inc. B CALU n npuRn cTpaHn.

CaMo 3a caTeJNUTHM OMeJI:

DiSEQCTeTbproBcKaMapkaHaEUTELSAT.To3nTeJebN3Op noDbpxaDiSEQC1.0.To3nTeJebN3OpHe npedHa3Haueh 3a ynpabHeHne Ha aHTehn C MOTOP.
BCNUKINpyrTbproBcNMapKnCa npntExKaHneHa CbOTBeHTHeIMco6CTBeHNU.

Tia PAnpoopoe
Oxetikae tn ouvdeon
tnc BaoNC eitpaneclac
tooTheTnnc,avatpeTe
otov O8nyo
Eykataoanc.

περιεχόμενα

SHMANTIKH S HMEIΩS H. 2

DIGITAL AUDIO OUT (OPTICAL)

Ontikn unofoxn (PqmuKo PCM dO kavaiw:

48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT 念 / (MivI oTepeoΦwviKn uTdoxh)

Akouotuk,Eeobocxou, Subwoofer

1,2,3(HDDREC)(Hειtoupyiaδενεια

I i a)

Ol USB 1,2 kai 3 unooTpiOuv High Speed USB

(USB 2.0)

KD-65X70xx:163,9cm/65VTOεC

KD-55X70xx:138,8 cm/55 iVTOε

KD-49X70xx: 123,2 cm / 49 iVTOε

KD-43X70xx:108,0cm/43ivt0e

Katavaawon toxuoc

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6 cm

KD-43X70xx:97,0×62,8×28,6cm

Xwpiicbaon enitipaneEiaac tonoEtnons

KD-65X70xx: 146,3× 84,5× 8,0cm

KD-55X70xx:124,1×72,1×7,9cm

KD-49X70xx: 110,1 × 64,5 × 5,7 cm

KD-43X70xx:97,0×57,0×5,7cm

Bapoc (Nepinou)

https://www.sony.eu/support

KD-65X70xx

720p(30,50,60Hz),720/24p,576p,576i,480p,480i

Ses:

iki kanalogrusal PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (sadece HDMI IN 3)

Iki kanal dogrusal PCM: 48 kHz 16 bit, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Dijital optik jak (lki kanal dogrusal PCM: 48 kHz 16 bit, Dolby Audio, DTS)

AUDIO OUT (Stereo Mini Jak)

Kulaklik, Ses Çikışı, Subwoofer

KD-65X70xx:146,3×90,4×34,0 cm

KD-55X70xx:124,1×78,1×34,0 cm

KD-49X70xx:110,1×70,2×28,6cn

KD-43X70xx:97,0×62,8×28,6cm
