BT3022 - Electric mower BRAUN - Free user manual and instructions

Brand	Braun
Model	BT3022
Product type	Electric trimmer
Power supply	Special cord with integrated safety very low voltage power supply; rechargeable battery
Charging time	Approximately 10 hours
Runtime	Up to 40 minutes of cordless shaving
Cutting heights	1 to 10 mm, in 2 mm steps
Precision comb	Included, for beard and short hair
Trimmer head	Removable, can be used without comb for contouring
On/off button	Yes, sliding
Charge indicator	Present on the special cord
Cleaning	Head and comb washable under running water; brush the device
Recommended oiling	A few drops of light oil regularly
Warranty	2 years, except normal wear (foil, cutter block) and damage from improper use
Recommended charging temperature	5 to 35 °C
Recommended operating temperature	15 to 35 °C
Safety	Use by children aged 8 and above under supervision; do not use with a damaged accessory
Spare parts	Use only Braun parts; repairs by authorized centers
Recycling	Do not dispose of with household waste; take to a recycling point

Frequently Asked Questions - BT3022 BRAUN

How to charge the Braun BT3022?

Connect the device when off to a power outlet using the special cord (6). The charge indicator (7) lights up continuously. Allow approximately 10 hours for a full charge, providing up to 40 minutes of runtime.

What cutting heights are available?

The precision comb allows cutting heights from 1 to 10 mm, adjustable in 2 mm steps using the wheel (3).

How to clean the trimmer?

Turn off the device, remove the trimmer head. Use the supplied brush to clean the device. The head and comb can be rinsed under running water. Dry them completely before reassembling. Apply a few drops of light oil regularly.

Can I use the trimmer without the comb?

Yes, the trimmer head can be used without the comb to shape sideburns, mustaches, or trimmed short beards.

What is the warranty period?

Braun provides a 2-year warranty from the date of purchase, covering manufacturing or material defects. It does not cover normal wear (foil, cutter block) or damage from improper use.

How to make a warranty claim?

Return or take the device with the warranty certificate to your retailer or an authorized Braun Service Center. Visit www.service.braun.com or call 0 800 944 802 to find the nearest center.

Can I use the trimmer while charging?

No, the device only charges when off. Use it cordless after a full charge.

What safety precautions should I follow?

Only use the supplied special cord. Do not tamper with any part of the shaver. Do not use the device if an accessory is damaged. This device can be used by children aged 8 and above under supervision.

How to adjust the cutting height?

Turn the cutting height wheel (3) to the desired length. The beard comb slides up or down automatically. Available heights are 1 to 10 mm in 2 mm steps.

What to do if the battery does not charge?

Check that the ambient temperature is between 5 and 35 °C. If the temperature is too low or too high, the battery may not charge properly. Make sure the device is off and the cord is properly connected.

USER MANUAL BT3022 BRAUN

Black BRAN-branded hairbrush with circular head and power button (no text or symbols visible)

BT 3020

Type 5516

www.braun.com

Deutsch 5

English 8

Français 14

Español 17

Português 20

Italiano 23

Nederlands 26

Dansk 29

Norsk 32

Svenska 35

Suomi 38

Ελληνικά 41

DE / AT 00 800 27 28 64 63 00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802 (service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

Braun GmbH

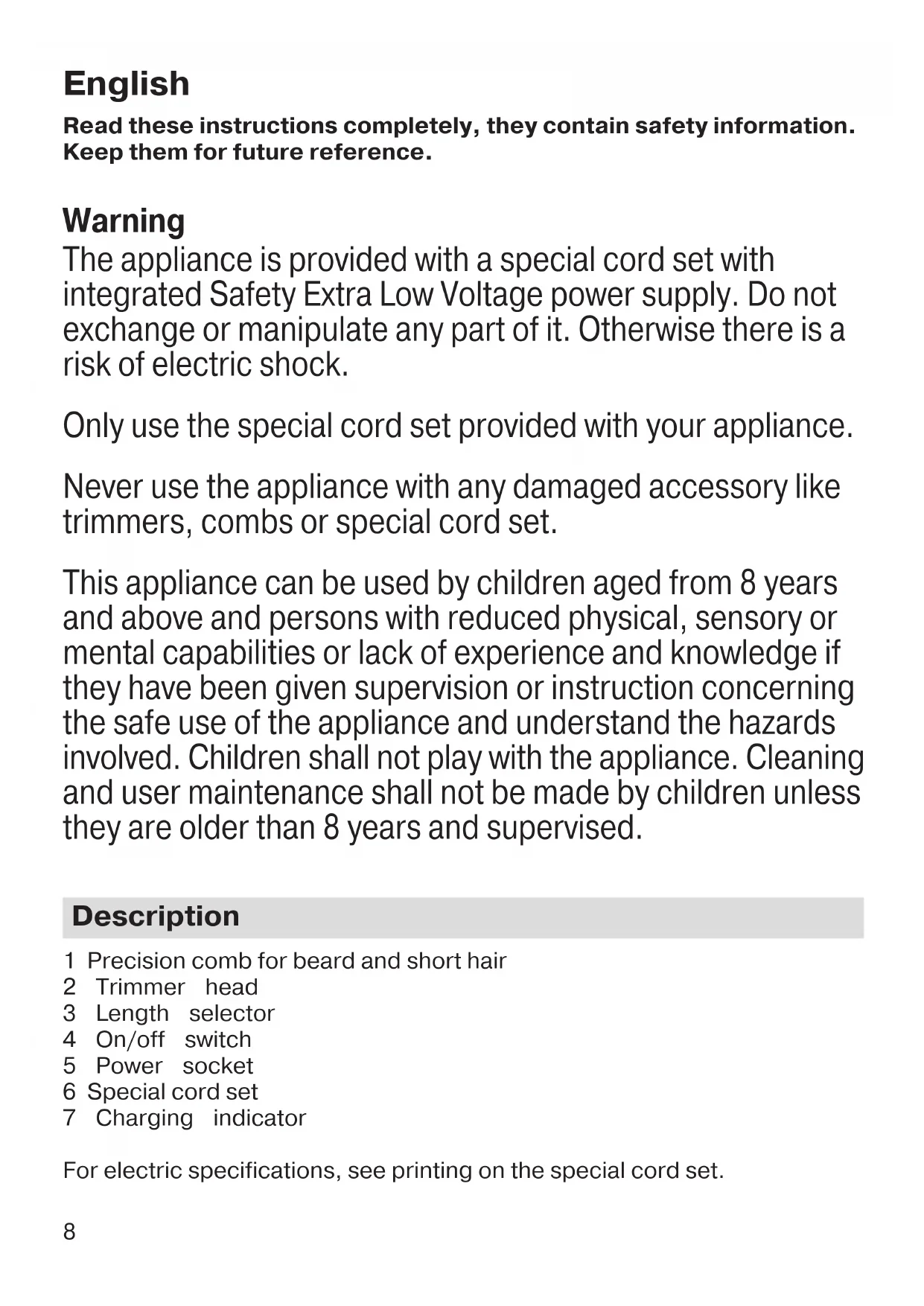

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Description

1 Precision comb for beard and short hair
2 Trimmer head
3 Length selector
4 On/off switch
5 Power socket
6 Special cord set
7 Charging indicator

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

- Connect the appliance via the special cord set (6) to an electrical outlet.

The appliance will only charge when it is switched off.

• A full charge takes approx. 10 hours and provides up to 40 minutes of cordless operation time.
• The charging indicator (7) in the special cord set lights up continuously when the appliance is being charged.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Trimming

• Click the precision comb (1) onto the trimmer head (2).
• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.
• Length settings precision comb (1): 1 to 10 mm in 0,5 mm steps
• Slide the on/off switch up to turn the appliance on.
• Trim against hair growth by guiding the flat comb part over the skin.
• Avoid clogging the comb with hair. Remove and clean it from time to time.
• For shaping sideburns, moustaches and partial short beards, take off the precision comb.

Cleaning and maintenance

• Switch off the appliance.
  • Take off the comb and the trimmer head.
• Use the brush to clean the head, comb and the appliance.
• The removed head and comb can be cleaned under running water. Let them dry completely before reattaching them.
• To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains a battery and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For claims in Australia please contact:

Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park

NSW 2113

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

For claims in New Zealand please contact:

Procter & Gamble Distributing New Zealand Limited

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense.

For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1 800 641 820

New Zealand Consumer Service (free call): 0 800 108 909

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. [phone] Fax. [phone] Email: [e-mail]

QUEENSLAND

Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. [phone] Fax. [phone] Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd Shop 4, 9 Evans Road, Rooty Hill, NSW 2766 Tel. [phone] Fax. [phone] Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre Shop B2, Parkholme Shopping Centre 319 Oaklands Road, Parkholme Adelaide, SA 5043 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW ZEALAND

Key Service Ltd 7D Echelon Place East Tamaki Manukau City Auckland New Zealand (PO Box 38569, Howick, Auckland, New Zealand) Tel. [phone] Fax. [phone] Email: [e-mail]
