USER MANUAL KG959ZTA ETNA

Read the separate safety instructions before using the device!

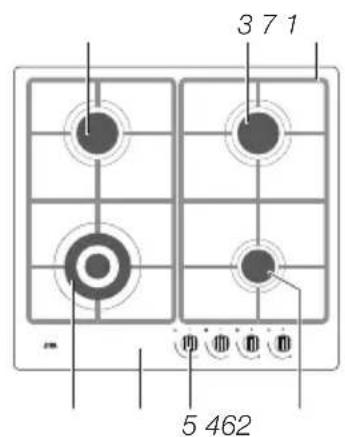

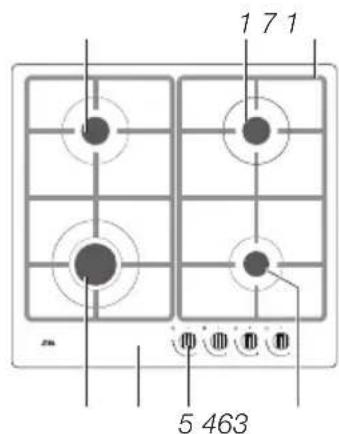

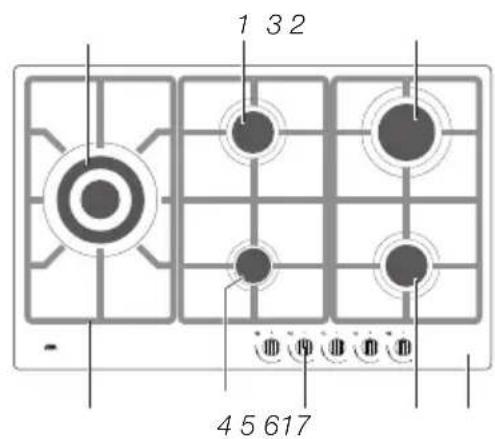

Description

1. standard burner
2. wok burner
3. rapid burner
4. simmer burner
5. control knob
6. drip tray
7. pan support

Igniting and setting

1. 0 setting
2. Low setting
3. High setting
4. zone indication

Each burner can be adjusted continuously between high and low heat.

Burners with electric ignition:

• Press the control knob and turn it anticlockwise. The burner ignites.
• Keep the control knob fully pressed for at least 3 seconds between high and low settings.

The thermocouple safeguard is activated.

Use

incorrect

Pans

• Ensure that the flames always remain underneath the pan. If flames play around the pan, a great deal of energy is wasted. The handles can also become too hot.
• Do not use pans with a base diameter smaller than 12cm . Smaller pans are not stable.

correct

The recommended pan base diameters are:

rapid burner at least 22~cm
standard burner at least 18cm
simmer burner at least 14 cm
- wok burner at least 24 cm

Pan support

Put the pan supports down vertically without sliding them over the drip tray.

Burners

Put the parts of the burner in the correct order so they fit together properly.

1. Burner cover
2. Burner distributor
3. Thermocouple
4. Spark plug (some models)

Maintenance

Regular maintenance immediately after use prevents

spilt food from setting too long and creating stubborn

stains that are difficult to remove. Use a mild cleaning agent.

First clean the control knobs, burners and pan supports, and lastly the drip tray. This avoids making the drip tray dirty again during the cleaning process.

Note! Do not clean burner parts in the dishwasher. The detergent may harm the parts!

Stubborn stains on enamel (pan supports, burner covers, drip trays)

The best way to remove stubborn stains is with a liquid cleaning agent or a plastic scourer. Never use abrasive powder, abrasive pads, sharp objects or caustic cleaning agents.

Stubborn stains on stainless steel (drip trays)

The best way to remove stubborn stains from stainless steel is with a special stainless steel cleaning agent. Always wipe in the direction of the structure of the steel to avoid glossy patches (damage caused this way is not covered by the warranty!). The surface of stainless steel can fade slightly after a while.

Refer to the website www.etnaservice.nl for extra maintenance and cleaning instructions!

Malfunction list

If you are in doubt that your gas hob is not working properly, this does not automatically mean there is a defect. Try to address the problem yourself first by checking the points mentioned below or visit the 'www.etnaservice.nl' website for more information.

SYMPTOM POSSIBLE CAUSE SOLUTION
You can smell gas near the appliance.	The connection to the appliance is leaking.	Turn off the main gas valve. Contact your technician.
A burner does not ignite.	Plug not in socket. Faulty fuse/fuse in meter cupboard is switched off. Spark plug (4) dirty/damp. Burner parts not installed correctly. Burner parts dirty/damp. Main gas valve closed. Gas mains failure. Gas cylinder or tank is empty. Wrong type of gas used.	Put the plug into the socket. Fit a new fuse or switch the fuse back on. Clean/dry the spark plug. Put the parts of the burner in the correct order so they fit together properly. Clean/dry the burner parts. Make sure that the outflow holes are open. Open the main gas valve. Contact your gas supplier. Connect a new gas cylinder or have the gas tank filled. Check whether the gas used is suitable for the appliance. If it is not correct, contact your technician.
The burner is not burning evenly.	Burner parts are not installed correctly. Burner parts dirty/damp. Wrong type of gas used.	Put the parts of the burner in the correct order so they fit together properly. Clean/dry the burner parts. Make sure that the outflow holes are open. Check whether the gas used is suitable for the appliance. If it is not correct, contact your technician.
SYMPTOM POSSIBLE CAUSE SOLUTION
Burner extinguishes out after igniting.	You did not press the control knob long and/or deep enough (at least 3 seconds).	Keep the control knob fully pressed for at least 3 seconds between high and low settings. This can be longer the first time, because of the supply of gas.
	Thermocouple (3) is dirty.	Clean/dry the thermocouple.

Where the GAD type examination certificates of KIWA refer to the appliance category "I2EK" this is understood as:

This appliance was configured for the appliance category K (I2K) and is suitable for the use of G and G + distribution gases according to the specifications as included in the NTA 8837:2012 Annex D with a Wobbe index of 43.46 - 45.3MJ / m3 (dry, 0^, upper value) or 41.23 - 42.98 (dry, 15^, upper value).

This appliance can moreover be converted and/or again be calibrated for the appliance category E (I2E) This therefore implies that the appliance: "is suitable for G+ gas and H gas or is demonstrably suitable for G+ gas and can demonstrably be made suitable for H gas" within the meaning of the "Dutch Decree of 10 May 2016 regarding amendment of the Dutch Gas Appliances Decree....

Disposal of the appliance and packaging

Sustainable materials were used in the manufacture of this appliance.

The appliance packaging is recyclable. The following may have been used:

cardboard;
paper;
polyethylene film (PE);
CFC-free polystyrene (PS rigid foam);
polypropylene tape (PP).

The materials should be disposed of in a responsible manner and in accordance with government regulations.

The requirement for separate collection of household electrical appliances is highlighted by the symbol of a crossed-out dustbin which is attached to the product.

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance such as this hob separately avoids possible negative consequences for the environment and health and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

The appliance identification card is located on the bottom of the appliance.

When contacting the service department, have the complete type number to hand.
