USER MANUAL PDP270 PEAQ

Close-up of a computer interface showing a USB port socket and connector (no text or symbols visible)

Simple 3D diagram showing a black block connected to a white wall with an arrow pointing upward (no text or symbols)

Mobilladestation

Two wall-mounted electrical connectors, one with a black PEAQ label and connected to the other with a white panel (no text or symbols on the devices themselves)

Close-up of a mechanical component with a circular opening and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a black electrical socket mounted on a white wall socket (no text or symbols visible)

Akkus einlegen

Close-up of a black remote control casing with visible battery modules and a white V-shaped annotation (no readable text or symbols)

* 0 P # @ V PEAQ

Hinweis

Close-up of a black computer control panel with indicator lights and function buttons (no readable text or symbols)

Settings Language Registration Date and Time System PIN Display Handset Reset

Language English Deutsch Français Español Nederlands Italiano

Settings Language Registration Date and Time System PIN Display Handset Reset

Date and Time Date and Time Set Time Format Auto Update

Registration Register De-register Select Base

MOBILTEIL ANMELDEN/ABMELDEN

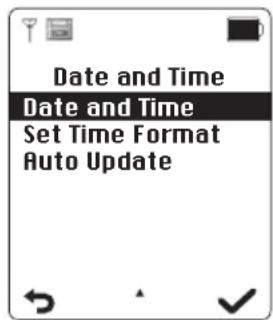

Date and Time Date and Time Set Time Format Auto Update

DATUM/UHR

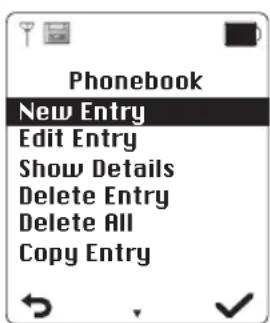

Phonebook New Entry Edit Entry Show Details Delete Entry Delete All Copy Entry

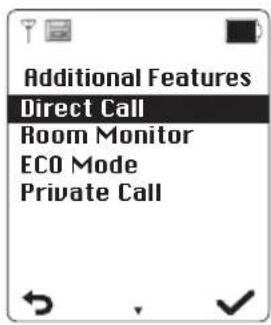

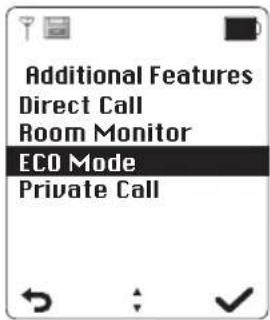

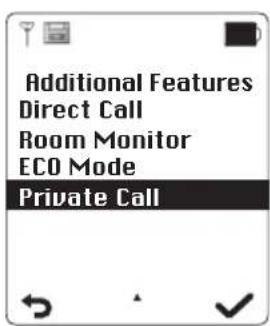

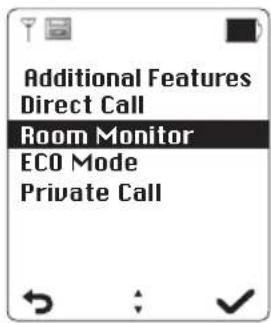

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

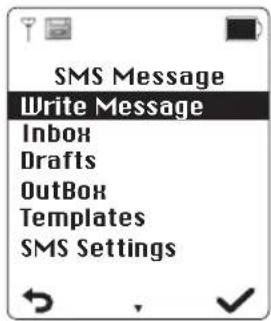

SMS Message Write Message Inbox Drafts OutBox Templates SMS Settings

Call Log All Calls Missed Calls Received Calls Dialed Calls

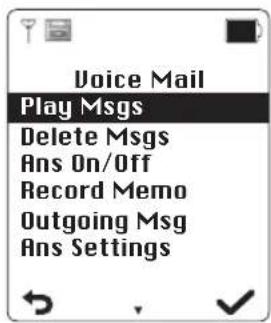

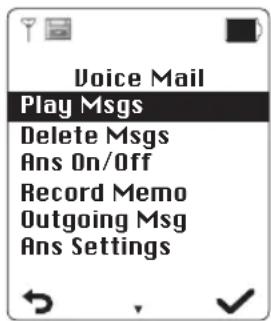

Voice Mail Play Msgs Delete Msgs Ans On/Off Record Memo Outgoing Msg Ans Settings

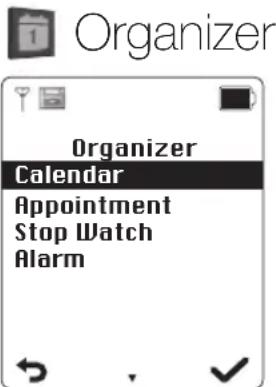

Organizer Organizer Calendar Appointment Stop Watch Alarm

KALENDER

Please read the instructions carefully and keep them for later use.

CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN WARNING: SHOCK HAZARD - DO NOT OPEN

The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons and animals.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte nance instructions in the literature accompanying the device.

To reduce the risk of fire or electric shock, do not expose the device to rain or moisture. Do not expose the device to splashes or moisture. Do not place liquid filled objects, e.g. vases, on top of the device.

• Do not use the product for any other purpose than described in this manual in order to avoid any hazardous situation. Improper use is dangerous and will void any warranty claim.
• For household use only. Do not use outdoors.
• Danger of suffocation! Keep all packaging material away from children.
• Only use under normal room temperature and humidity conditions.
• The product is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.

• Outdoor antennas should be located away from power lines.

• Do not move the product from cold into warm places and vice versa. Condensation can cause damage to the product and electrical parts.

• Do not use attachments or accessories other than recommended by the manufacturer or sold with this appliance. Install in accordance with this user manual.
• When installing the product, leave sufficient space for ventilation. Do not install in bookcases, built-in cabinets or the like.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Do not insert any objects into the product. Do not place any electronic equipment or toys on the product. Such items could fall from the top and cause product damage and/or personal injury.
• Do not install near any heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
• Do not apply excessive force to the front or top, as this could ultimately overturn the product.
• Do not touch, push or rub the surface of the product with any sharp or hard objects.
• Danger! To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
• The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product.
• Care should be taken so that no objects or liquids enter the enclosure through openings.

• No naked flame sources, such as lighted candles, should be placed on the product.

• Refer all servicing to authorised service agent. Do not attempt to repair the product yourself. Servicing is required when the product has been damaged in any way, such as the supply cord or plug are damaged, liquid has been spilled, objects have fallen into the product, the enclosure is damaged, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Before connecting the product to a socket outlet, make sure the voltage indicated on the product corresponds to your local mains.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.
• Regularly check if the supply cord, product or extension cable is defective. If found defective, do not put the product into operation. Immediately pull the plug.
• Place the supply cord and, if necessary, an appropriate extension cable in such away that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.
• Do not jam, bend or pull the supply cord over sharp edges.
  • Only use the provided adaptor.
• The adaptor power plug is used as the disconnect device; the disconnect device shall remain readily operable. To completely disconnect the power input, disconnect the adaptor power plug.
• The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the appliance; reconnect after a few seconds.

• Protect the supply cord from being walked on or pinched particularly at the plug, convenience receptacles and the point where it exits from the product.

• Never pull the adaptor power plug by the supply cord or with wet hands.

• Disconnect the adaptor power plug in case of faults during use, during lightening storms, before cleaning and when not using the product for a longer period of time.
• Danger! Before cleaning, switch the product off and disconnect the adaptor power plug from the socket.
• When the product has reached the end of its service life, make it defective by disconnecting the adaptor power plug from the socket and cutting the cord in two.
• Caution! There is danger of explosion from improper replacement of the batteries. Replace batteries only with the same or equivalent type of battery.
• Always change the entire battery pack. Do not mix old and new batteries, or batteries with different charge state.
• Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.
• Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.
• The connections must not be short-circuited.
• Remove used batteries. Remove the batteries if you know that the device will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.
• Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.
• Non-rechargeable batteries must not be recharged.
• Remove the batteries from the product before disposal.

- If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.

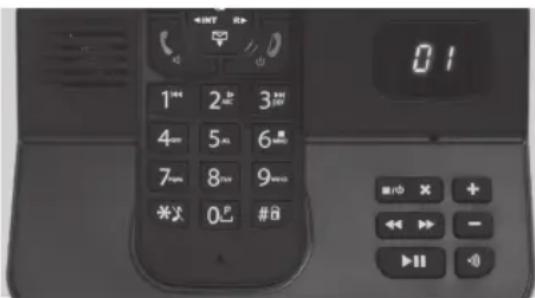

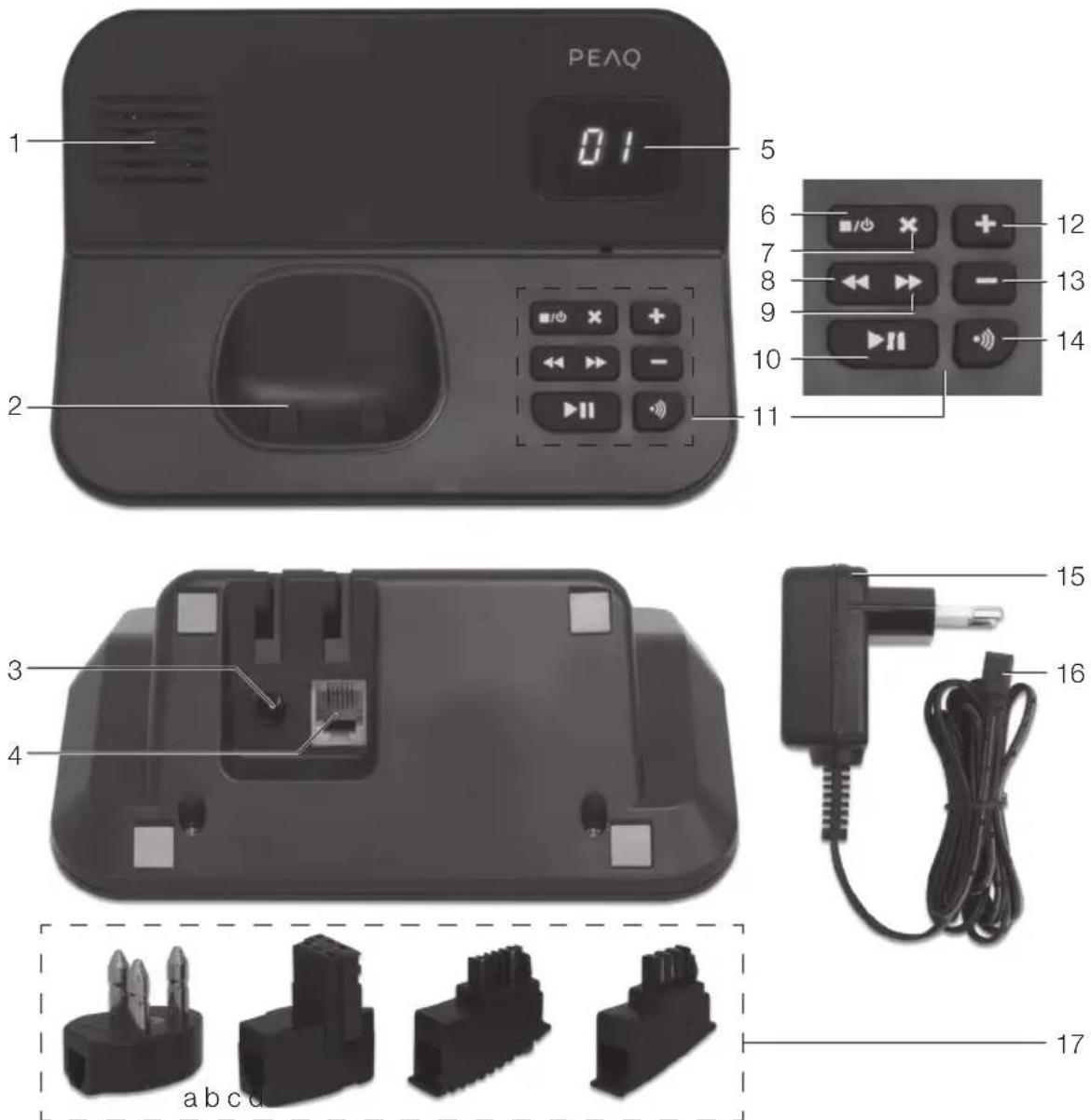

Base station

1. Speaker
2. Charging socket
3. DC-input jack (bottom side)
4. Telephone socket (bottom side)
5. Display
6. Answering machine On/Off/Stop ■/○
7. Delete Voice message X
8. Backward (beginning of message/ previous message/ welcome message)
9. Forward (next message/ record voice message)

10. Play voice messages/Pause▶II

11. Control panel

12. Volume increase +
13. Volume decrease -
14. Search handset (Pager)
15. Charging power supply
16. DC-cord with plug
17. Phone plug adapters
    a. Italy
    b. Switzerland
    c. Austria
    d. Germany

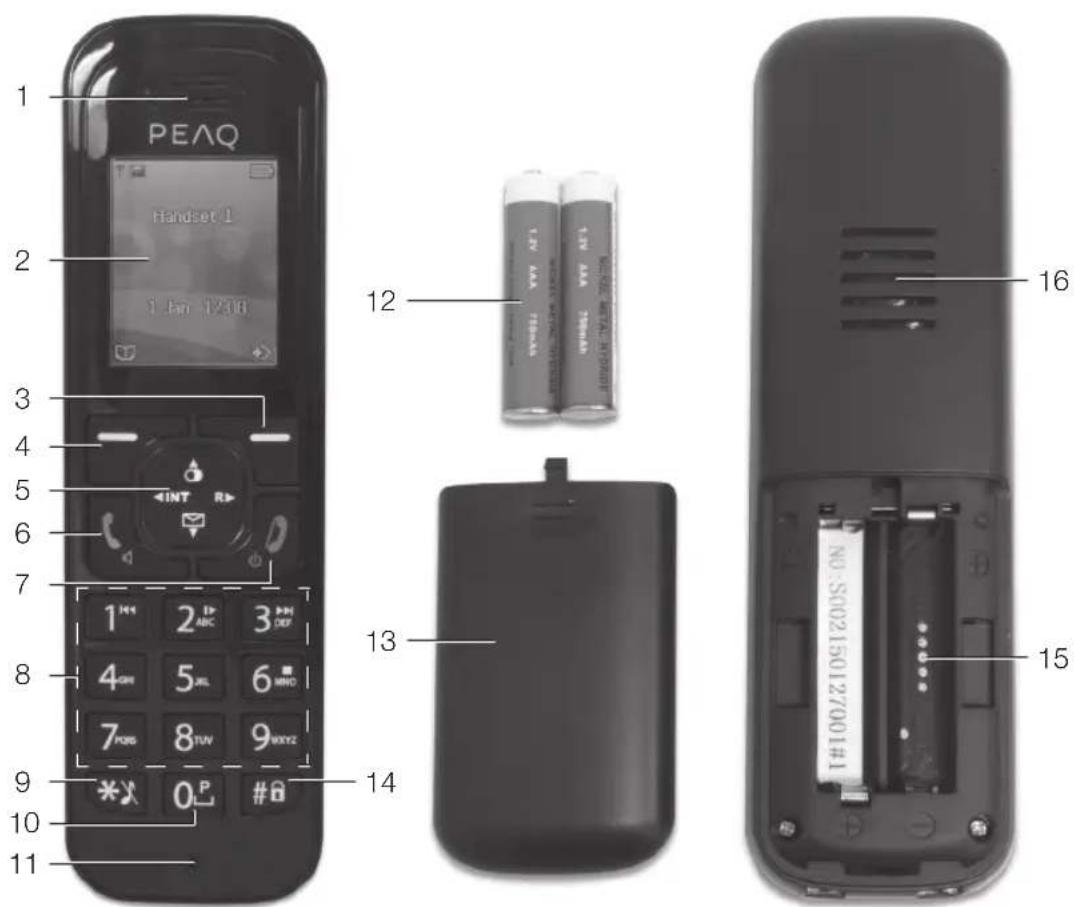

Handset

PEAQ Handset 1 1 Jan 12:06 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. Speaker
2. Display
3. Display button right
4. Display button left
5. Navigation buttons ▲▼◀▶ / Redial ⭕ / Flash-button R/ Call list 📧 / Internal call ◀INT
6. Pick up/ Call
7. End call, On/Off
8. Numeric buttons 1-9
9. Star key / Microphone mute
10. Numeric button 0/ P
11. Microphone
12. Batteries
13. Battery compartment lid
14. Hash key #/ key lock
15. Battery compartment
16. Speaker (hands-free)

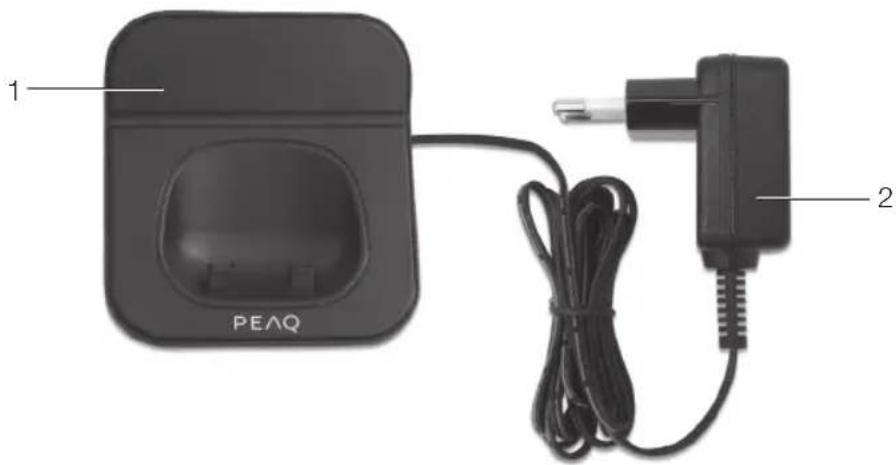

Mobile charging station

1 PEAQ 2

1. Charging socket
2. Power cord with adaptor

Accessories

1x Dect base station
1x Mobile charging station
1x Phone cable
4x Rechargeable batteries
1x Instruction manual
2x Dect handset
1x Power adaptor
4x Phone plug adaptors

Power supply Line connection

Base station

Close-up of a computer interface showing two Ethernet ports with a white arrow pointing to the port (no text or symbols visible)

Connect the end of the power adaptor to the DC input jack at the bottom of the base station and the other to a power socket on the wall.

Simple 3D diagram showing a black rectangular object with an arrow pointing to it, next to a white rectangular block (no text or symbols)

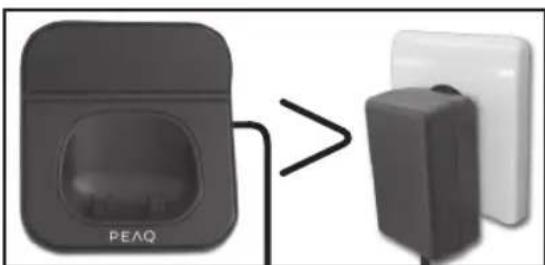

Mobile charging station

Place the mobile charging base on an even surface and plug in.

Two connected electrical connectors, one black with 'PEAQ' label and arrow pointing to a white panel (no text or symbols on the connectors themselves)

1. Connect one end of the line cord to the telephone socket at the bottom of the base station.

Close-up of a mechanical component with a circular button and a bracket, showing no visible text or symbols.

1. Connect the other end of the line to telephone wall socket.

Depending on your country use one of the provided adapters to connect the cord with the telephone wall socket.

Close-up of a black plastic electrical outlet plug mounted on a white wall socket (no text or symbols visible)

Install batteries

1. Open the battery compartment cover.
2. Insert the rechargeable batteries (provided) in the correct polarity (+ and -).
3. Close the battery compartment.

Close-up of a black remote control box with visible battery modules and a white V-shaped annotation (no readable text or symbols)

Battery levelCharge the handset

Via base station

Place the handset on the base station to charge the handset and you will hear a docking sound.

Close-up of a remote control interface with a white checkmark and numeric keypad, showing function keys and playback controls.

Via mobile charging base

Place the additional handset on the charging base to charge the handset.

*X 0^P #i PEAQ

Notes

• Charge the batteries for 16 hours before first use.
• Replace the handsets in the base or charging unit after use to avoid complete discharge of the batteries. The batteries are designed for continuous charging.

The battery icon displays the current battery level.

PEAQ

Note

• When the handset is off the base station/charger, the bars indicate the battery level.
• Whilst charging the handset on the base station, the bars are flashing.

First steps

SWITCH ON/OFF THE HANDSET

Press and hold On/Off switch for approx. 2 seconds to switch the handset on or off.

INT R ←→ ←→

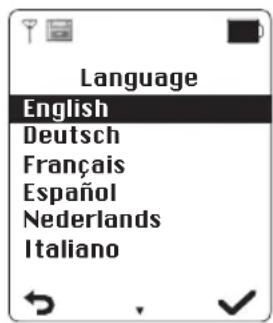

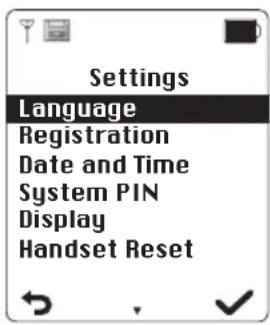

SET THE DISPLAY LANGUAGE

Settings Language Registration Date and Time System PIN Display Handset Reset

Language English Deutsch Français Español Nederlands Italiano

Push the right display button to open the main menu.

1. Chose option Settings with the Navigation buttons (▲▼) and confirm with the right display button.
2. Chose submenu Language and confirm with the right display button.
3. Chose your language and confirm with the right display button.

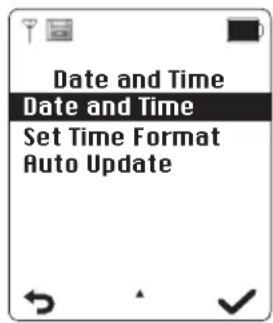

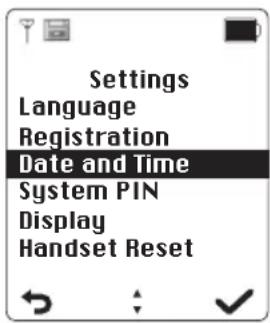

SET DATE AND TIME

Settings Language Registration Date and Time System PIN Display Handset Reset

Date and Time Date and Time Set Time Format Auto Update

Push the right display button to open the main menu.

1. Choose option Settings with the Navigation buttons (▲▼) and confirm with the right display button.
2. Choose submenu Date and Time and confirm with the right display button.
3. Successively set Year, Month, Day, Hours and Minutes. Confirm each setting with the right display button to come to the next setting.
4. Use the Navigation buttons ▲▼ to choose the time format (12 or 24 hours). Confirm with the right display button.

REGISTER THE HANDSET

1. Push the right display button to open the main menu.
2. Choose option Settings with the Navigation buttons (▲▼) and confirm with the right display button.
3. Choose submenu Register and confirm with the right display button.
4. Choose the base station where the handset shall be registered and enter the PIN code (factory setting 0000).
5. Push and hold button Handset register until a signal tone confirms the registration.

1. Push the right display button to open the main menu.
2. Choose option Settings with the Navigation buttons (▲▼) and confirm with the right display button.
3. Choose submenu Register and confirm with the right display button.
4. Enter the PIN code and confirm with the right display button.
5. Choose the number of base station and confirm with the right display button.
6. A signal tone confirms the deregistration and the display shows "not reg."

Phone call

QUICK CALL

1. Press button ↘.
2. Dial the number once you hear the dialing tone. The number appears on the display and is dialed.
3. Press ☐ to finish the call or replace the handset on the base station.

BLOCK DIALLING

1. Dial a number.
2. Press INT to correct the dial number.
3. Press and the number will be dialed.
4. Press ☐ to finish the call or replace the handset on the base station.

REDIAL

1. Press ☐.
2. Press . The previously dialed number will be dialed.

CALL FROM THE REDIAL LIST

1. Press ☐ The number recently dialed appears on the first place of the display.
2. Search the requested number with ▲▼
3. Press and the number shown in display will be dialed.
4. Press ☐ to finish the call or replace the handset on the base station.

CALL A NUMBER FROM THE PHONEBOOK

The phone has a phonebook in which you can save numbers and names. To call a number from the phonebook:

1. Press the left display button and use buttons ▲▼ to choose a number.
2. Press and the number shown in display will be dialed.

Pick up a call

The handset starts to ring during an incoming external or internal call. The call symbol appears in the display. The caller's number appears in the display if your telephone line has Caller ID. Consult your telephone company. The name of the caller also appears on the display if: Ferner wird der Name des Anrufers im Display angezeigt, wenn:

• the number is stored into the phonebook with name.

• the network transmits the name along with the phone number.

• To pick up a call:

• Press button to pick up the call.

• Pick up the handset from the base station (function only possible when Auto call has been activated).

• Press to finish the call or replace the handset on the base station.

FORWARDING A CALL TO ANOTHER HANDSET

You can forward an external call to the second handset.

1. Push button ◀INTERNAL" is shown in display.
2. Choose the number of the other handset to which you want to forward.
3. If the other handset answers you can first talk internally.
4. Press button End call ⚠. The call is forwarded to the other handset and your handset finishes the call.
5. If the other handset does not answer push "END" to talk back to the external caller.

CONFERENCE CALL BETWEEN TWO HANDSETS AND EXTERNAL CALLER

You can make conference connection between a external caller and a second handset.

1. Push button "INTERNAL" is shown in display.

2. Choose the number of the other handset to which you want to forward.

3. If the other handset answers choose "CONF".

4. You are now connected with the second handset and the external caller.

Hands-free

This function allows you to make a call without having to hold the handset in your hand.

1. Press during a call to activate the hands-free function.
2. Press 📋 again to deactivate.

Mute

Press 🧑 during a call to mute the microphone. You can talk without the caller hearing you. Press again 🔊 to switch on the microphone.

Answering machine

1* 2* 3* 4= 5= 6= 7= 8= 9== *# 0# # 01 mfb * + ← > - →

When putting the base station into initial operation, the answering machine is preset with a standardized welcome message. The activated display at the base station shows that the answering machine is activated.

RETRIEVE VOICE MESSAGES VIA HANDSET

• New messages on the answering machine are shown by text message "New message: x" (x=number of new messages) blinking below handset name.
• For playing new voice messages push the left display button.

RETRIEVE VOICE MESSAGES VIA BASE STATION

PEAQ 01

User interface buttons including playback, navigation, and audio control icons

• The blinking display of base station shows the number of new messages.
• For playing new messages directly push button Play voice messages/Pause
• For deleting the message push button Delete Voice message X.

Note:

The number of played messages which were not deleted are permanently shown in display.

REMOTE ACCESS

You can operate your answering machine when you are away from home. Simply make a call to your phone with a phone using tone dialing and enter your 4-digit PIN code.

1. Make a call to your home number with a phone using tone dialing.
2. Push * twice after you heard the announcement.
3. Enter your PIN code (factory setting: 000).

4. You now have access to your answering machine, and you can now listen to the new messages.

5. Press a key to choose a function. See the Remote access commands table below for a list of available functions.

Key Function

1 Previous message

2 Play messages

3 Skip to next message

6 Stop playing

7 Delete current message

REMOTE CONFIGURATION OF ANSWERING MACHINE

You can setup your answering machine when you are away from home.

1. Make a call to your home number.
2. The answering machine is answering your call.
3. Push *-button twice.
4. Enter your PIN code (factory setting: 000).
5. A signal tone appears and following options are available:

Key Function
# Record voice message
0 Delete all messages
4 Play welcome message
5	Record new welcome message
6 Stop recording; stop playing
8 Turn off answering machine
9	Switch between welcome messages; Switch on answering machine1

^1 If the answering machine is switched off, in answer mode it will answer the call after ringing min. 10 times. After pushing *-button twice you can enter the PIN code and switch on the answering machine.

Symbols shown on display

Symbol Function
	Missed calls
	New text messages (SMS)
“[wwGT]’ messages:(x=1 per of new messages)	New messages on answering machine
	Key lockActive: For locking the keys push #-button for 2 seconds. Incoming calls can be picked up as usually. Emergency numbers can be called as well.Deactivate: Deactivate key lock by pushing right display button followed by pushing #-button immediately.

Menu

Handset 2 Ringer Off 3 Jan 15:15

Call Log

Press the right display button to show the menu. Use the navigation buttons to choose a menu setting

Settings

LANGUAGE

Language English Deutsch Français Español Nederlands Italiano

Choose a language with the navigation buttons and press √ to confirm.

REGISTRATION

Registration Register De-register Select Base

HANDSET REGISTER/DE-REGISTER

For details information refer to REGISTER THE HANDSET/ DEREGISTER THE HANDSET in chapter "First steps". You can choose one Base station if there are several available.

TIME SETTING

Date and Time Date and Time Set Time Format Auto Update

DATE AND TIME

For details information refer to SET DATE AND TIME in chapter "First steps".

SET TIME FORMAT

For details information refer to SET DATE AND TIME in chapter "First steps".

AUTO UPDATE

Switch on/off the automatically time updates.

PIN

To change the default PIN-codes or enter a new code, follow the steps:

1. Enter the 4-digit default PIN (0000) and confirm with the right display button.
2. Enter a new 4-digit PIN and confirm with the right display button.
3. Repeat the new 4-digit PIN to confirm.
4. A beep sound will indicate the complete setting.

DISPLAY

Contrast

Possible contrast settings are:

• Low
• Middle
  • High

Backlight Time

Possible backlight time settings are: 10s, 20s, 30s or 40s

Name of Handset

To change the default handset name, proceed as follow:

1. Press the left display button.
2. Enter a new name with the numeric buttons. Toggle between upper and lower case with the star button.

RESET HANDSET

Reset handset will only erase your custom settings. Phonebook, Caller log and SMS will not be reset.

- Press the right display button to reset.

Reset handset to default

Please note that all previous settings will be deleted.

1. Press Flash button (R) for least 10 seconds.

2. Confirm with the right display button.

RESET BASE

Reset base will only erase your custom settings. Phonebook, Caller log and SMS will not be reset.

1. Confirm with the right display button.

2. Enter PIN.

RESET BASE TO DEFAULT

Please note that all settings will be erased

1. Press INT button for at least 10 seconds.

2. Confirm with the right display button.

Phonebook

NEW ENTRY

Phonebook New Entry Edit Entry Show Details Delete Entry Delete All Copy Entry

Name, phone number, ringtone and group will be set in sequence.

• Name: Enter a name with the numeric buttons. Toggle between upper and lower case with the star button. Press right display button to save.
• Phone number: Enter the phone number with the numeric buttons. Press right display button to save.
• Ringtone: Assign a ringtone to a new entry. Press right display button to save.
• Group: Assign the new entry to a group. Press right display button to save.

EDIT ENTRY

Edit name, phone number, ringtone and group in sequence. Save one by one after entering by pressing the right button.

SHOW DETAILS

Display the group, the name, the phone number and the assigned ringtone for a selected phonebook entry.

• Dial phone number by pressing the right display button.
• Press left display button to return to phonebook.

DELETE ENTRY

Press the right display button to confirm to delete the selected entry. To cancel press left display button.

DELETE ALL

Press right display button to confirm to delete all phonebook entries. To cancel press left display button.

COPY ENTRY

If more than one handset is registered with the base, you can copy selected phonebook entry to another handset.

1. Select the handset to copy the entry.
2. Confirm with the right display button. The display will show "Copying from Handset x" (x=number of handset).

Additional features

1. Confirm receipt with the right display button.
2. To reject receipt press the left display button. The entry will not be copied.

COPY APPEND

If more than one handset is registered with the base, you can copy all phonebook entries to another handset.

Note: Actual entries will not be overwritten.
1. Select the handset to copy the entries.
2. Confirm with the right display button. The display will show "Copying from Handset x" (x=number of handset).
3. Confirm receipt with the right display button.
4. To reject receipt press the left display button. The entries will not be copied.

COPY ALL

If more than one handset is registered with the base, you can copy the phonebook to another handset

Note: Actual entries will be overwritten.

1. Select the handset to copy the entries.
2. Confirm with the right display button. The display will show "Copying from Handset x" (x=number of handset).
3. On the other handset the display will shows "Replace all Phonebook Record?".
4. Press the right display button to confirm or left button to reject.

DIRECT CALL

Additional Features Direct Call Room Monitor ECO Mode Private Call

If this function is enabled, pressing the Dial button or the left display button will establish a connection to the saved phone number.

Note: While enabled, the display will show "Direct Call" underneath the handset name.

• New: Enter a phone number.
- On/Off: Enable or disable the direct call function.
• Edit: Edit the saved phone number.

ROOM MONITOR

Additional Features Direct Call Room Monitor ECO Mode Private Call

Monitoring a room, while the user is not at home. The user can call home and monitor the room where the handset is located. To do so, the user must save the phone number that he will call from.

While enabled, the display will show "Room Monitor" underneath the date and time.

Note: To use this feature, it's required that both phone lines must have the Caller ID function enabled. If the Room Monitor is enabled on multiple handsets for the same phone number, the handset with the lowest handset ID will respond if a call is made to the room monitor. If no phone number has been saved, the only available menu option will be "New". If a phone number has been saved already, the items "On/Off" and "Edit" will be shown.

• New: Enter a phone number which you will call later.
• On/Off: Enable or disable the room monitor function.
  • Edit: Edit the saved phone number.

ECO MODE

Additional Features Direct Call Room Monitor ECO Mode Private Call

This DECT phone can be operated in low power mode (ECO mode) with reduce RF power. Select the mode "Normal" or "Zero Emission" with the ▲ button and confirmed with the right display button.

PRIVATE CALL

Additional Features Direct Call Room Monitor ECO Mode Private Call

Hide or show your caller ID for outgoing calls. You can select:

• Show Number: your caller ID will be shown
- Hide Number: your caller ID will not be shown

Note: It's required that your telephone provider support the Private call function.

SMS

SMS Message Write Message Inbox Drafts OutBox Templates SMS Settings

You can received and send messages (SMS) with this mobile phone.

Requirements:

• Caller IDD function must be enable for this phone line.
• Sending and receiving SMS messages has been enable by your telephone provider.

For detail information please contact your telephone provider.

Options described in the below table are available. Press the right display button to open the overview and select an option with the ▲▼ button. Confirm with right display button.

Option Explanation
Send • send SMS• via entering phone number or select contact from phonebook
Save SMS •	save SMS in draft
Templates •	use templates
Delete • delete SMS
Reply • reply to a received SMS
Forward • forward a read SMS• add additional text into SMS before forward
Dial number •	dial number of the sender
Save number •	save the sender's number in phonebook• input name, number, ringtone and group in sequence.
Delete All •	delete all SMS

WRITE MESSAGE

Input the SMS with the numeric buttons. Toggle between upper and lower case with the star button. Press left display button to delete text. Press right display button to select further options:

• Send
• Save SMS
• Use templates

INBOX

All received SMS will be saved in inbox until delete.

Select a SMS with the ▲▼ button. Press the right display button to open the SMS.

• Delete
• Reply
• Forward
• Dial number
• Save number
• Delete all

DRAFT

All draft messages will be saved here. Select a SMS with the ▲▼ button. Press the right display button to open the draft message.

• Send to
• Save Message
• Use Template
• Dial number
• Delete
• Delete All

OUTBOX

All outgoing messages will be saved here. Select a SMS with the ▲ button. Press the right display button to open the message.

• Send to
• Save Message
• Use Template
• Dial number
• Delete
• Delete All

TEMPLATES

Here you can find message templates. Select a template with the ▲ button. Press the right display button to open it.

• Edit
• Delete

SMS SETTING

To be able to send or receive any text messages you have to register your provider's information. For more information, please contact your network or service provider.

• Service Center: add up to 4 service centers
- Send Service: select service center to send message

CALL LOG

Call Log All Calls Missed Calls Received Calls Dialed Calls

When receiving a call, the number of the caller, the date and the time will be shown on the handset display.

Options described in the below table are available. Press the right display button to open the overview and select an option with the

▲▼button. Confirm with right display button.

Option Explanation
Save Number	save the sender's number in phonebookinput name, number, ringtone and group in sequence.
Delete Delete phone number
Delete All	Delete all phone numbers
Show Details	Shows date and time of call

ALL CALLS

All calls are listed here.

Select with the ▲▼ button. Press the right display button to confirm.

• Save Numbers
• Delete
• Delete All

MISSED CALLS

All missed calls are listed here.

Select with the ▲ button. Press the right display button to confirm.

• Save Numbers
• Delete
• Delete All

RECEIVED CALLS

All incoming & received calls are listed here.

Select with the ▲ button. Press the right display button to confirm.

• Save Numbers
• Delete
• Delete All

DIALED CALLS

All outgoing calls are listed here.

Select with the ▲ button. Press the right display button to confirm.

• Save Numbers
  • Show Details
• Delete
• Delete All

Answering machine (Voice mail)

Voice Mail Play Msgs Delete Msgs Ans On/Off Record Memo Outgoing Msg Ans Settings

PLAY MESSAGES

Two options are available

• Play New Msgs: Plays new messages only. If there are no new messages, a confirmation tone will sound and the display shows "No New Message".
• Play All Msgs: If no messages are saved a confirmation tone will sound and the display shows "No Messages".

When playing voice messages pushing left display button will delete current message and pushing right display button will skip to next message.

DELETE MESSAGES

This option allows you to delete all messages.

Push the right display to delete all messages.

SWITCHING ON/OFF THE ANSWERING MACHINE

This option allows you to switch the answering machine on or off.

Choose your option with navigation buttons

▲▼ and confirm with right display button.

Note:

• You can switch on and off the answering machine directly at the base station. For switching on/off push button Answering machine On/Off.
• You can toggle between "Only answer call" (--> display oo) and "Answer call and record message" (--> display 00) by pushing button "Answering machine On/Off" for long time.

RECORD MEMO

Choose this option to leave a message. Wait for the welcome message and confirmation tone, leave your message and push right display button to save the message.

Note: Voice memos can also be recorded directly at the base station. Press the Forward button for 2 seconds. Wait for the welcome message and confirmation tone, leave your message and stop recording with Stop button.

WELCOME MESSAGE

The answering machine is prepared with preinstalled welcome messages. Following options are available:

• Record message: Record an individual welcome message
• Play Message: Play recorded message

Note: After recording a message it will be played once directly after recording.

ANSWERING MACHINE SETTINGS

With this option you can configure your answering machine.

Answer Mode

Following options are available

• Answer & Record: After welcome message the caller can leave a message.
- Answer only: The welcome message is played but the caller cannot leave a message.

ANSWER DELAY

• Set the number of rings after which the answer machine will answer incoming calls. Set a number between 2 and 9 rings or choose setting "Toll Saver".
• Toll Saver mode: If there are no new messages the answering machine will answer calls after ringing 5 times. If new messages are available incoming calls will be answered after 2 times.

SECURITY CODE

Follow below instructions to change security code of base station:

1. Enter the old 3-digit security code (factory setting 000).
2. Confirm entry with right display button.
3. Enter a new 3-digit security code.
4. Confirm entry with right display button and reenter code and confirm entry again. A confirmation tone confirms the change.

Note: You will need this code for remotely playing voice messages.

LANGUAGE

This option is for selecting the language of the answering machine. Choose the language with the navigation buttons ▲ and confirm the setting with right display button.

Organizer Organizer Calendar Appointment Stop Watch Alarm

CALENDAR

When choosing this option a calendar will be shown.

APPOINTMENT

Up to 5 appointments can be set. Choose an appointment and push the right display button to Edit or Delete an appointment.

→ Title
→ Date
→ Time

DELETE APPOINTMENT

Select an appointment and confirm with the right display button or push left display button to cancel.

STOPPWATCH

To start the stopwatch push the right display button and to stop the stopwatch push the left display button.

• With the left display button you can stop the stopwatch or resume the measurement.
• If the measurement is stopped the time can be reset by pushing the right display button.

The current function of display buttons is shown in display.

ALARM CLOCK

The alarm clock can be set for modes Once, Every Day, Mon-Fr). For turning off alarm clock function select "Off".

1. Enter the time and confirm with the right display button.
2. Select the alarm tone and confirm with the right display button.

The alarm is activated at the preset time. Push the left display button to stop the alarm. To activate the 5 minutes snooze function push the right display button.

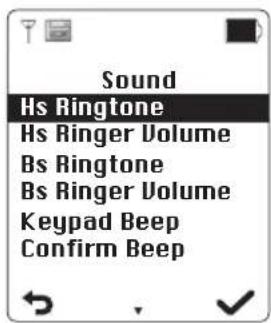

Sound

Sound Hs Ringtone Hs Ringer Volume Bs Ringtone Bs Ringer Volume Keypad Beep Confirm Beep

HANDSET RINGTONE (HS RINGTONE)

Set the ringtone for incoming calls.

HANDSET RINGTONE VOLUME (HS RINGER VOLUME)

Adjust the ringtone volume in 5 levels (5: Max.; 1: Min; 0: Off/silent). When choosing the "Off/silent", the silent icon is shown in display.

BASE STATION RINGTONE (BS RINGTONE)

Set the ringtone of base station for incoming calls.

BASE STATION RINGTONE VOLUME (BS RINGER VOLUME)

Adjust the ringtone volume at base station for incoming calls.

KEYPAD BEEP

Choose keypad beep on or off with navigation buttons ▲▼ and confirm with right display button.

CONFIRM BEEP

Choose confirm beep on or off with navigation buttons ▲▼ and confirm with right display button.

Telephony

Telephony Dial Mode Auto Talk Recall Prefix

DIAL MODE

There are two options available:

• Tone: Tone dialing or multi-frequency signaling, standard dialing method nowadays
  • Pulse: Pulse dialing for older appliances

AUTO TALK

You can select automatically taking calls if the handset is taken from the base station or not.

RECALL

The Flash button is used to forward calls if the telephone is used in a telephone system. The Flash button will cause a short interruption.

• Short: interruption cycle 100 ms
• Long: interruption cycle 300 ms

Choose the preferred setting with navigation buttons ▲▼ and confirm with right display button.

Note: If your telephone provider supports special services the flash button can be used e.g. for "Call waiting".

PREFIX

This function allows to automatically dial a prefix number before any external call.

Note: If no prefix number is saved the option "New" is shown. If prefix number is saved the options "On/Off", "Show/Hide" and "Edit" are available.

• New: Enter the prefix which shall be used for each external call.
• On/Off: Turn on or off automatic prefix.
• Show/Hide:
• Show prefix
• Hide prefix
• Edit: Edit the prefix

Cleaning and care

• Unplug the adaptor from the socket before cleaning the unit.
• Attention! Do not let water penetrate into the unit.
• Clean the housing with a lightly dampened cloth.
• Do not use sharp, scouring or aggressive cleaners.
• Do not use chemicals (such as gasoline or alcohol) to clean the housing.

Technical data

Adaptor : Kings: Y07FF-060-0500G

: Shenzhen G.credit Technology Co., LTD: HX-AD060050-E01

Input : 100 - 240 V\~ 50/60 Hz

Output : 6 V DC 500 mA

Mobile charging station : Kings: Y07FF-070-0420G

: Shenzhen G.credit Technology Co., LTD: HX-AD070042-E01

Input : 100 - 240 V \~50/60 Hz

Output : 7 V DC, 420 mA

Handset

Batteries : 2 x AAA 1.2 V 750 mAh

Talk time : 11 hours

Charging time : 16 hours

Flash time : 100 ms

Frequency range : 1.881 - 1.898 GHz

Number of channels : 120

Modulation : GFSK

Speech coding : Adaptive Differential Pulse Code Modulation

Emission power : 250 mW MAX.

Range : 50 m (indoor), 300 m (outdoor)

Dimensions (height x width x depth)

Base station : 145 x 77.74 x 86.68 mm

Handset : 155 x 46 x 21 mm

Disposal

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.

Close-up of a USB port socket with a white arrow pointing to it, no visible text or symbols

Simple 3D diagram showing a black block connected to a white wall with an arrow pointing upward (no text or symbols)

Station de recharge mobile

Two wall-mounted electronic devices, one with a black panel and 'PEAQ' label, connected by a cable to the other (no text or symbols on device body)

Close-up of a mechanical component with a circular opening and internal structure, no visible text or symbols

Close-up of a black plastic electrical outlet mounted on a white wall socket (no text or symbols visible)

Installer les piles

Close-up of a black remote control casing with visible battery modules and a white V-shaped annotation (no readable text or symbols)

Close-up of a computer control panel with a white checkmark and numeric keypad, showing function keys and playback buttons.

Par la station de recharge mobile

0 P #8 PEAQ

Remarques

Settings Language Registration Date and Time System PIN Display Handset Reset

Date and Time Date and Time Set Time Format Auto Update

Close-up of a mobile phone keypad with numeric keypad and control buttons, showing time display and status bar

User interface buttons including playback, navigation, and audio control icons

Registration Register De-register Select Base

ENREGISTER LE COMBINE/ANNULER L'ENREGISTREMENT DU COMBINE

Date and Time Date and Time Set Time Format Auto Update

DATE ET HEURE

Phonebook New Entry Edit Entry Show Details Delete Entry Delete All Copy Entry

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

SMS Message Write Message Inbox Drafts OutBox Templates SMS Settings

• Delete
• Reply
• Forward
• Dial number
• Save number
• Delete all

BROUILLON

• Send to
• Save Message
• Use Template
• Dial number
• Delete
• Delete All

ENVOYER

• Send to

• Save Message

• Use Template

• Dial number
• Delete
• Delete All

MODELES

Call Log All Calls Missed Calls Received Calls Dialed Calls

• Save Numbers
• Delete
• Delete All

APPELS MANQUES

• Save Numbers
• Delete
• Delete All

APPELS RECUS

• Save Numbers
• Delete
• Delete All

APPELS COMPOSES

• Save Numbers
  • Show Details
• Delete
• Delete All

Répondeur

Voice Mail Play Msgs Delete Msgs Ans On/Off Record Memo Outgoing Msg Ans Settings

LECTURE DES MESSAGES

Agenda Organizer Calendar Appointment Stop Watch Alarm

CALENDRIER

Telephony Dial Mode Auto Talk Recall Prefix

MODE DE COMPOSITION

Close-up of a computer interface showing two USB connectors with port labels (no readable text or symbols)

Simple 3D diagram showing a black rectangular object next to a white wall, with an arrow pointing right (no text or symbols)

Two connected electrical connectors, one with a black outline and the other white, showing no text or symbols.

Close-up of a mechanical component with a circular knob and connector port (no visible text or symbols)

Close-up of a black plastic electrical plug inserted into a white wall socket (no text or symbols visible)

Close-up of a black remote control casing with visible battery modules and a white V label pointing to one component (no readable text or symbols beyond labels)

Close-up of a computer control panel with a white V-shaped button and numeric keypad, showing function keys and playback controls.

0 P # #8 PEAQ

Note

Settings Language Registration Date and Time System PIN Display Handset Reset

Date and Time Date and Time Set Time Format Auto Update

01 1" 2" 3" 4" 5" 6" 7" 8" 9" * 0# #8

Gray-scale interface buttons including play, audio, and navigation icons (no text or symbols)

Registration Register De-register Select Base

REGISTRAZIONE/DEREGISTRAZIONE HANDSET

Date and Time Date and Time Set Time Format Auto Update

DATA E ORA

RESETTAGGIO BASE TO DEFAULT

Phonebook New Entry Edit Entry Show Details Delete Entry Delete All Copy Entry

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

Additional Features Direct Call Room Monitor ECO Mode Private Call

SMS Message Write Message Inbox Drafts OutBox Templates SMS Settings

• Delete
• Reply
• Forward
• Dial number
• Save number
• Delete all

BOZZE

• Send to
• Save Message
• Use Template
• Dial number
• Delete
• Delete All

IN USCITA

• Send to
• Save Message
• Use Template
• Dial number
• Delete
• Delete All

MODELLI

Call Log All Calls Missed Calls Received Calls Dialed Calls

• Save Numbers
• Delete
• Delete All

CHIMATE PERSE

• Save Numbers
• Delete
• Delete All

CHIAMATE RICEVUTE

• Save Numbers
• Delete
• Delete All

CHIAMATE DIGITATE

• Save Numbers
  • Show Details
• Delete
• Delete All

Segreteria telefonica

Voice Mail Play Msgs Delete Msgs Ans On/Off Record Memo Outgoing Msg Ans Settings

Organizer Calendar Appointment Stop Watch Alarm

CALENDARIO

Telephony Dial Mode Auto Talk Recall Prefix

MODALITA' CHIAMATA

Subsidiary of Media-Saturn Group

(Managing Director) KLAS (AHRANOD)
