USER MANUAL AT7700 AEG

A silver AEG toaster with digital display and control buttons (no visible text or symbols on the device itself)

GB INSTRUCTION BOOK

Modern kitchen toaster with a power outlet attached, placed on a white surface (no text or symbols visible)

Diagram showing a kitchen appliance connected to a wall-mounted electrical socket, labeled with parts 1 and 2.

Illustration of a modern toaster with two shades and a handle, showing a right-hand rule for lifting the weight (no text or symbols present)

4 B C CHECK CANCEL A

5 D 2 BROWN LEVEL

Electric toaster with a plaid cloth placed next to a small phone and power plug (no text or symbols visible)

www.aeg.com

CONTENTS

ENGLISH 4

FRANÇAIS 12

PORTUGUÊS 20

DEUTSCH 6

ΕΛΛΗΝΙΚΑ 14

ITALIANO 16

ESPAÑOL 10

NEDERLANDS 18

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy Accessories and Consumables for www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Toasting slot
B. Outer housing
C. Crumb tray
D. Defrost button
E. Bun warmer button
F. LCD Display
G. Check button

H. Cancel button
I. Browning control button() V
J. Browning control button()
K. Start lever
L. Bun warming rack for warming up buns and rolls
M. Power cord and plug
N. Cord storage (on the underside of the toaster)

Picture page 2

GETTING STARTED

1 Before you start using the toaster, place it in an area with good ventilation such as a stove vent hood that is turned on or an open window. Set the browning setting to 8 and turn the toaster on without any bread in it. Repeat for a total of 2 to 3 times as this will help remove any odors that can occur during the first few uses.

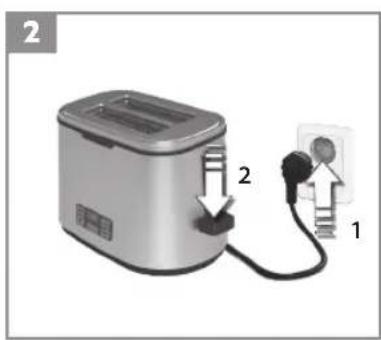

2 How to use the toaster: Plug the cord into the mains. Insert bread. Press the browning control button (A or V) to adjust the browning level (1-7). Press down the start lever. The LCD display will show the process time and starts to count down.

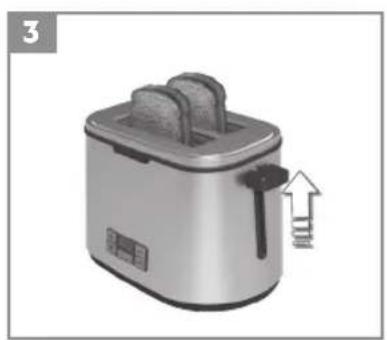

3 When the bread has reached the desired degree of browning, the toaster switches off automatically and the bread is lifted up.

FEATURES AND CLEANING

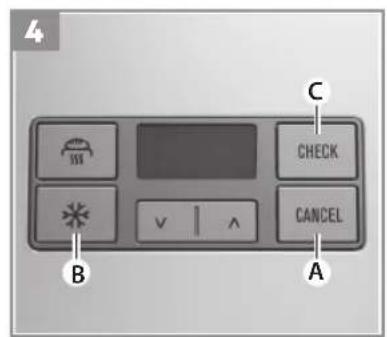

1. Operating features: to interrupt toasting, press the Cancel button (A). To toast frozen bread, press the Defrost button (B). Press the Check button (C) to pause toasting. The bread is lifted up and the toasting will pause (press down the start lever within 10 seconds to resume toasting). Press and hold the Cancel button (A) for two seconds to turn off the LCD display.

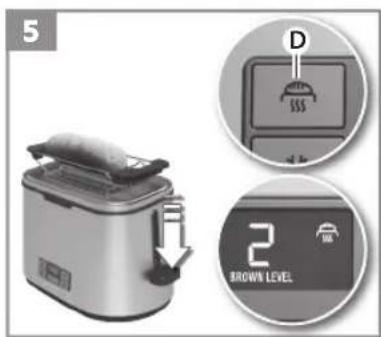

   5 To warm buns, rolls, or other bread, use the bun warmer rack. Place the bun warmer rack on top of the appliance.
   Press the bun warmer button (D) (browning setting 2) and then start the toaster by pressing down the start lever.
   Once finished, turn the bread over and repeat if necessary.
   Caution - Do NOT touch the rack since it becomes very hot during use!

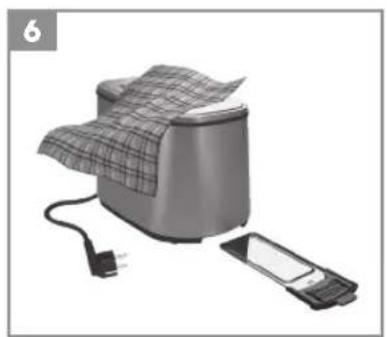

   6 Cleaning and care: unplug the toaster and allow it to cool down. Empty the crumb tray. Wipe the outer surfaces with a slightly moist cloth. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!
   Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using machine for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

www.aeg.com

4

• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• The mains cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
• Crumbs can burn, clean crumb tray regularly. Never use the appliance without crumb tray.
• Do not reach into the toasting slot with your fingers or metal utensils. There is a risk of injury and damaging the appliance.
• Bread can burn. Do not use the toaster underneath or near inflammable objects (e.g. curtains). The toaster must not be left unattended while running.
• Do not use or place the appliance on a hot surface or near source of heat.
• Do not cover the toasting slot when toasting.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.

www.aeg.com
