USER MANUAL MEK17GTE8 MIDEA

Please read the manual carefully before operating your product. Retain it for future reference.

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. DO NOT touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or (state specific part or parts in question) in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. DO NOT use outdoors.
9. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
10. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.

12. DO NOT use appliance for other than intended use.

13. Household Use Only.

14. DO NOT Immerse In Water.

SAVE THESE INSTRUCTIONS

A. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
B. Extension cords are available and may be used if care is exercised in their use.
C. If an extension cord is used, (1) the marked electrical rating of the extension cord should be at least as great as electrical rating of the appliance, and (2) the longer cord should be arranged so that it will not drape over the counter or table top where it could be pulled on by children or tripped over unintentionally.

Notes On The Card:

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance.
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Brief introduction

Rational design,

bring convenience and enjoyment to your life

Rapid boiling, save time and energy for you
- Removable filter to keep the water clean of any foreign matter.
- Automatically cuts out for boil-dry protection.
- Easy read water gauge.
- Thermostat of high quality.
360 rotational power base
- Stainless steel body

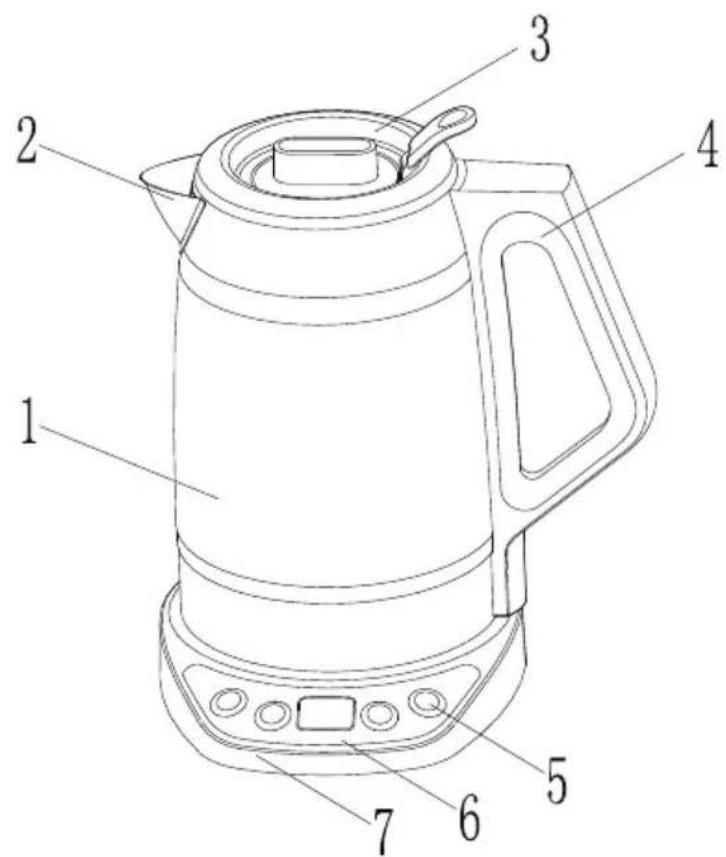

Names of main parts

1. The kettle body 2. Spout 3. Lid 4. Handle
2. Button 6. Temp indication 7. Power base

Kettle model

Model No. Rated voltage Rated power Capacity Dimensions					Weight
MEK17GT-E8 120V~ 50/60Hz 1500W 1.7L 9.45*8.19*11.34 inch 3.46 lbs

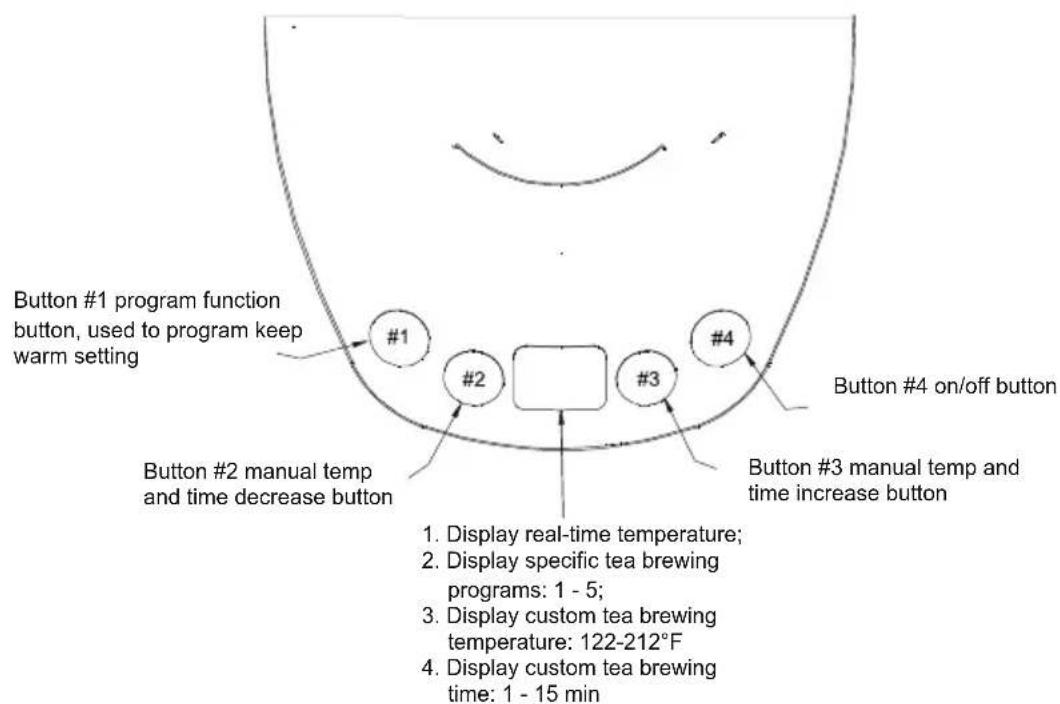

Operation Manual

1. Powering on:

1.1. Without kettle on the base: After the product is powered on, the buzzer sounds a long hint tone, the LED display tube displays letter "E" all the time, and any buttons are not valid.

1.2. With kettle on the base: After the product is powered on, the buzzer sounds a long hint tone, the LED display tube displays letter "C", after about 3 s, the product enters the standby mode, and the functions of the specific program "1" are selected by default. At the same time, the indicator light on the top left corner of the LED display tube turns on, and the LED display tube displays the current temperature.

1. Selecting tea brewing programs and setting tea brewing temperature and time

2.1. Selecting specific tea brewing programs:

In standby status: When you click the button #1 at the first time, the indicator light corresponding to the button # 1 turns on, the LED display tube enters the fixed displaying mode of tea brewing and displays "1" by default, and the corresponding indicator light on the top left corner turns on at the same time (Specific tea brewing

programs correspond to respective indicator lights). Then, you can select "1, 2, 3, 4 and 5" with the buttons #2 and #3 within 5 s. Figures have the following meanings:

1: herbal tea: 212^ / 6 minutes brewing time
2: black tea: 212^ / 3 minutes brewing time
3: oolong tea: 200^ / 3 minutes brewing time
4: white tea: 180^ / 3 minutes brewing time
5: green tea: 160^ / 3 minutes brewing time

2.2.Customizing tea brewing temperature:

In standby status: When you double-click the button #1, the product enters the temperature setting program, the LED display tube displays 176^ by default. Then, you can set the tea brewing temperature from 122 212^ with the buttons #2 and #3 within 5 s.

2.3.Customizing tea brewing time:
In standby status: When you click the button #1 three times, the product enters the time setting program, the LED display tube displays 3 min by default. Then, you can set the tea brewing time from 1 ~ 15 min with the buttons #2 and #3 within 5 s.
2.4. In standby status: When you click the button #1 four times, the product returns to the setting program in 2.1.
2.5. When the kettle is keeping warm after water is boiled to the target temperature, the indicator light corresponding to the button #1 turns on. At this time, the LED display tube displays the set temperature, please click the button #1 to switch to the tea brewing time setting program. Then, you can set the tea brewing time from 1 ~ 15 min again with the buttons #2 and #3.

(If there is no operation within 5 s after you click the button #1, the LED display tube returns to display real-time temperature; when you click the button #1 again, the product directly returns to the setting program you selected last time.)

1. Starting/Cancelling tea brewing

3.1. After the product is powered on, the kettle enters the standby status, please click the button #4. Then, the indicator light corresponding to the button #4 turns on, the kettle starts to boil water according to program "1" by default, the LED display tube displays the target tea brewing temperature, and after 3 s, the LED display tube switches to display the real-time temperature. During water boiling, you can click the button #4 again to cancel water boiling and return to the standby status.
3.2. After water is boiled to the target temperature to brew tea, the buzzer sounds 3 times, the indicator light corresponding to the button #1 turns on, the indicator light corresponding to the button #4 turns off, and the kettle starts to keep warm.
3.3. When the kettle is keeping warm after water is boiled to the target temperature to brew tea, click the button #4 to brew tea. If you previously selected the specific tea brewing programs "1-5", the kettle brews tea for corresponding default tea brewing time; if you previously selected custom tea brewing, the kettle brews tea at custom tea brewing temperature for custom tea brewing time. After tea brewing is finished, the kettle starts to keep warm. During tea brewing, you can click the button #4 again to cancel tea brewing and return to the standby status. (If the kettle is brewing tea, the indicator light corresponding to tea brewing on the bottom right corner of the LED display tube turns on; else, this indicator light turns off)
4. Keeping warm
4.1. The kettle starts to keep warm after water is boiled to the target temperature. During warm keeping, if there is no operation, the kettle stops keeping warm and turns off any display by default after 20 min.
4.2. After tea brewing is finished, the kettle starts to keep warm, and after 20 min, the kettle stops keeping warm and turns off any display.
5. Standby to save energy: In standby mode, if there is no operation within 30 min, the product will turn off.

Operation Manual

1. Functions of pressing and holding buttons:
   6.1. Function of pressing and holding button to silence: When the button #1 is valid, press and hold it 2 s. Then, the buzzer sounds twice, and it indicates the product is silenced successfully.
   6.2. Function of pressing and holding button to turn off: While the product starts on, press and hold the button #4 for 2 s. Then, the product turns off; after the product is turned off, you can click any button to restart it.

Notes:

a. When buttons are valid, the buzzer sounds a "tick";
b. There are 6 round LED lights above and under the LED tube, and they are indicator lights for specific tea brewing programs. They are arranged orderly in “Z” shape from the top left corner to indicate specific programs “1, 2, 3, 4 and 5” and the tea brewing program.
c. During water boiling and tea brewing and after tea brewing, no button is available except the button #4, namely that only button #4 can cancel tea brewing and return to the standby status.
d. If the kettle is placed on the base, buttons respond to operations of users; else, buttons do not respond. In any status after startup, when you place it on the base after lifting it, the product returns to the standby status again.

To prolong the kettle's life, please clean the mineral deposits in the kettle regularly.
Always unplug from the plug socket and allow to cool down before cleaning.
- Do not use chemical, steel wool, or abrasive cleaners to clean the outside of the kettle, as these will scratch the surface and fade the outside color.

1. Fill the kettle with 0.5L white vinegar and the remainder with water and allow to stand for over 1 hours;
2. Empty the solution from the kettle. Wipe off the deposits remained with damp cloth;
3. Fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will be ready to use;
4. If necessary, repeat the operations above for several times;
5. Do not immerse into water. The surface of the kettle may be wiped over with a damp cloth and polished with a soft dry cloth;
6. Grasp the top of the scale filter and pull upwards to remove. Wash with clean water and dry thoroughly before replacing in the kettle.
