DCB-P850R / DCB-P850RS

Gebruiksinstructies

SAMSUNG

Instructions for use .

MF68-00408A REV.1.0

DIGITALE KABELONTVANGER MET INGEBOUWD HARDESCHIJFSTATION DIGITALE KABELONTVANGER MET INGEBOUWD HARDESCHIJFSTATION

Instructions for use .GB

DCB-P850R / DCB-P850RS

Gebruiksinstructies

NED

VEILIGHEIDSVOORSCHRIFTEN

Consummation : 30 W max.

Veille:18W

Instructions for use

GB

SAFETY INSTRUCTIONS

This STB has been manufactured to satisfy international safety standards. Please read the following recommended safety precautions carefully.

MAINS SUPPLY: AC 230V\~, 50/60Hz

OVERLOADING: Do not overload wall outlets, extension cords or adapters as this can result in fire or electric shock.

LIQUIDS: Keep liquids away from the STB.

CLEANING: Before cleaning, disconnect the STB from the wall socket. Use a cloth lightly dampened with water(no solvents) to clean the exterior.

VENTILATION: Do not block the STB ventilation holes. Ensure that free airflow is maintained around the STB. Never store the STB where it is exposed to direct sunlight or near heating equipment e.g. a radiator. Never stack other electronic equipment on top of the STB. Place the STB at least 10cm from the wall.

ATTACHMENTS: Do not use any attachment that is not recommended by the manufacturer; it may cause a hazard or damage the equipment.

CONNECTION OF CABLE, TV, AND STB:

Connect all components before plugging any power cords into the wall outlet. Always turn off the STB, TV and other components before you connect or disconnect any cables. To disconnect this STB, from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

SERVICING: Do not attempt to service this product yourself. Any attempt to do so will make the warranty invalid. Refer all servicing to a qualified service agent.

LIGHTNING: If the STB is installed in an area subject to intense lightning activity, protection devices for the STB mains connector and modem telephone line are essential. The individual manufacturer's instruction for safeguarding other equipment, such as TV set, Hi-Fi, etc., connected to the STB must also be followed during lightning storms.

GROUNDING: Signal cable MUST BE EARTHED. The grounding system must comply with SABS 061.

Note : Dispose the used batteries at designated place for environment protection.

WARNING!

1. Follow these directions in order not to damage the power cord or plug.

2. Do not modify or process the power cord or plug arbitrarily.

3. Do not bend or twist the power cord too much.
4. Make sure to disconnect the power cord with holding the plug.

5. Separate heat appliances from the power cord as distantly as possible in order to prevent the cover from being melted.

6. Failure to follow one of them may cause electric shock or fire.

7. Do not open the main body.

8. Do not insert metals or inflammable objects inside the product.
9. Do not touch the power plug with a wet hand.
10. Disconnect the power cord in case of lightning.
11. Do not cover the receiver's ventilation openings with items such as newspapers, clothes etc.
12. Do not place the receiver on top of household appliances that emit heat.

13. Do not expose the receiver to rain or moisture.

14. Do not use the product when it is out of order. If you continue to use the product with a defect, it can cause a serious damage to the product. Make sure to contact your local product distributor when the product is out of order.

15. Do not turn the power off suddenly while the hard disk drive is running. The company shall not be liable for any corruption of data on the hard disk drive caused by the carelessness or misuse of users.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes

at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

CONTENTS

Safety Instructions 2

General Features 5

Connecting Your "STB" 6

Description 8

Front Panel 8

Rear Panel. 9

Remote Control 10

Setting Up TV Operations with the Remote Control 12

Initial Installation 13

Basic Functions 14

Operating The Receiver 25

Main Menu 25

1. Guide 25

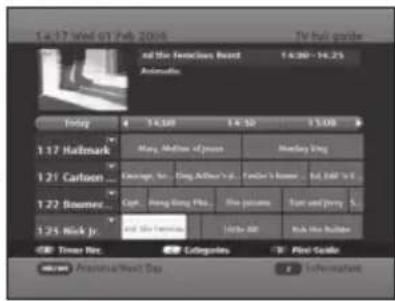

1.1 Full Guide 26
1.2 Mini Guide 26
1.3 Using the colour buttons 26

1. Channel 27

2.1 Favorite Channel 27
2.2 Auto Scanning 29
2.3 Channel List 29
2.4 Parental Guide 31

1. Library 32

3.1 Video 32
3.2 Music 36
3.3 Photo 38
3.4 Radio 40

1. Timer Recording 41

4.1 Scheduled Recordings 41
4.2 EPG Setting 42

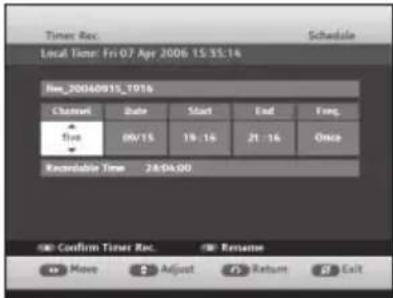

4.3 Manual Setting 43
4.4 Record Guard Time 43

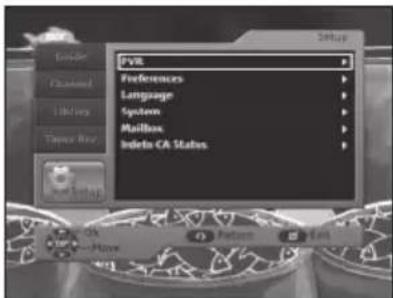

1. Setup 44

5.1 PVR 44
5.2 Preferences 45
5.3 Language 47
5.4 System 48

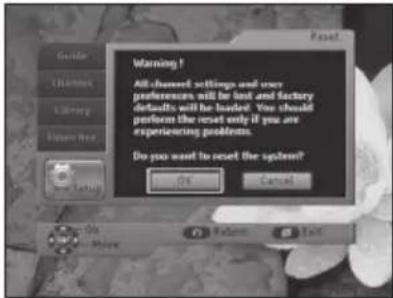

5.5 Mailbox 49
5.6 Irdeto CA Status 50

Available TV Manufacturer Numbers 51

Troubleshooting 59

Technical Specifications 60

GENERAL FEATURES

1. USER SECTION

400 PROGRAMMABLE CHANNELS
ADVANCED ELECTRONIC PROGRAMME GUIDE
MULTI LANGUAGE SUPPORTED FOR OSD
SUBTITLE & TELEXT SUPPORTED WITH MULTI LANGUAGES
FULL FUNCTION INFRARED REMOTE CONTROL
AUTO SCAN FACILITY
CHANNEL ORGANISING (PROGRAMMABLE)
LOW POWER CONSUMPTION
AUTO UPDATED EPG
PVR(PERSONALVIDEORECORDER)FUNCTION

2. TUNER SECTION

VHF, UHF BAND 50~870 MHz
MAX 7 Msps SYMBOL RATE
16~256 QAM MODULATION FORMAT
RF LOOP-THROUGH OUTPUT(MALE) FOR ANALOG RECEIVER

3.VIDEO SECTION

DVB-C COMPLIANT
MPEG-2VIDEO(MP@ML)
COMPATIBLE FOR BOTH SCPC/MCPC
SUPPORTS ASPECT RATIO 4:3(NORMAL) AND 16:9(WIDE SCREEN)
1~15 Mb/s DATA RATE
2 SCART
COMPOSITEVIDEOOUTPUT

4. AUDIO SECTION

MPEG 1 AUDIO LAYER I & II
MONO, DUAL, STEREO, AND JOINT STEREO AUDIO MODE
32, 44.1, AND 48kHz SAMPLING FREQUENCIES
VOLUME CONTROL AND MUTE FUNCTION THROUGH REMOTE CONTROL
OPTICAL DIGITAL AUDIO OUTPUT

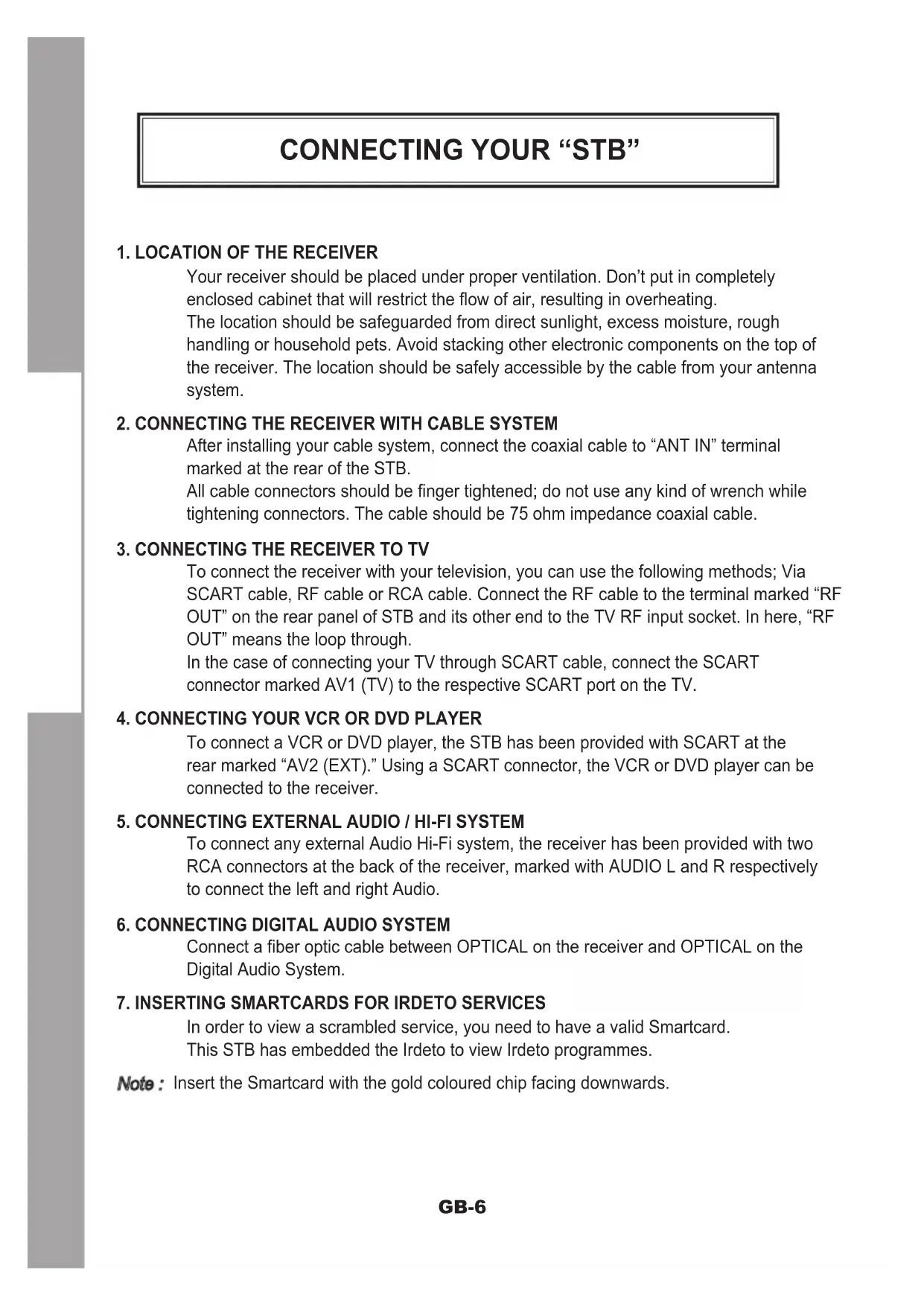

CONNECTING YOUR "STB"

1. LOCATION OF THE RECEIVER

Your receiver should be placed under proper ventilation. Don't put in complete enclosed cabinet that will restrict the flow of air, resulting in overheating.

The location should be safeguarded from direct sunlight, excess moisture, rough handling or household pets. Avoid stacking other electronic components on the top of the receiver. The location should be safely accessible by the cable from your antenna system.

2. CONNECTING THE RECEIVER WITH CABLE SYSTEM

After installing your cable system, connect the coaxial cable to "ANT IN" terminal marked at the rear of the STB.

All cable connectors should be finger tightened; do not use any kind of wrench while tightening connectors. The cable should be 75 ohm impedance coaxial cable.

3. CONNECTING THE RECEIVER TO TV

To connect the receiver with your television, you can use the following methods; Via SCART cable, RF cable or RCA cable. Connect the RF cable to the terminal marked "RF OUT" on the rear panel of STB and its other end to the TV RF input socket. In here, "RF OUT" means the loop through.

In the case of connecting your TV through SCART cable, connect the SCART connector marked AV1 (TV) to the respective SCART port on the TV.

4. CONNECTING YOUR VCR OR DVD PLAYER

To connect a VCR or DVD player, the STB has been provided with SCART at the rear marked "AV2 (EXT)." Using a SCART connector, the VCR or DVD player can be connected to the receiver.

5. CONNECTING EXTERNAL AUDIO / HI-FI SYSTEM

To connect any external Audio Hi-Fi system, the receiver has been provided with two RCA connectors at the back of the receiver, marked with AUDIO L and R respectively to connect the left and right Audio.

6. CONNECTING DIGITAL AUDIO SYSTEM

Connect a fiber optic cable between OPTICAL on the receiver and OPTICAL on the Digital Audio System.

7. INSERTING SMARTCARDS FOR IRDETO SERVICES

In order to view a scrambled service, you need to have a valid Smartcard. This STB has embedded the Irdeto to view Irdeto programmes.

Note: Insert the Smartcard with the gold coloured chip facing downwards.

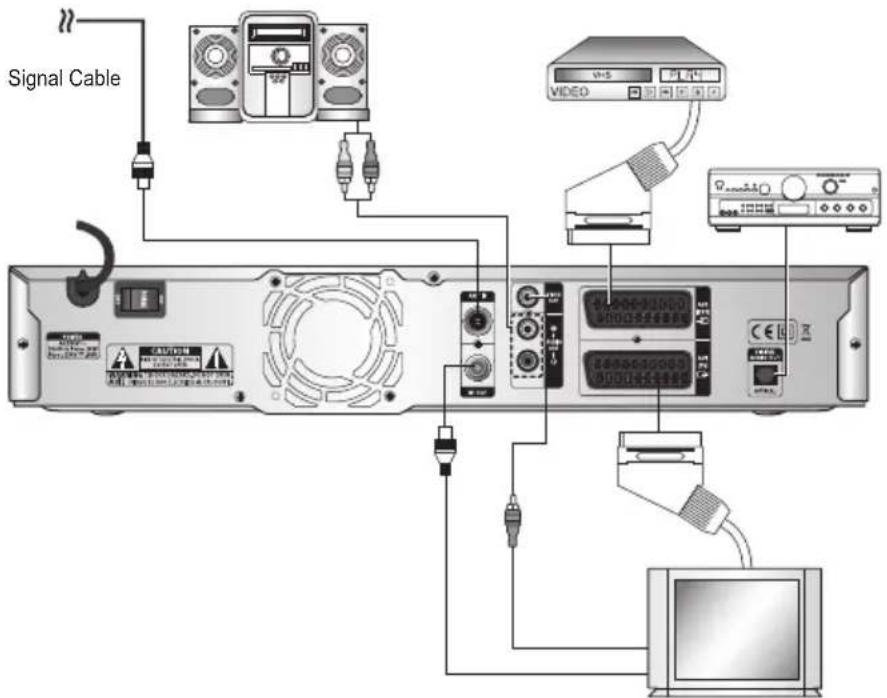

Connecting Figure

If degraded picture quality is observed while viewing copy-protected VOD (Video-on-Demand) movies, connect the set-top box directly to the TV set. Do not connect through a VCR.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS labs, Inc.

DESCRIPTION

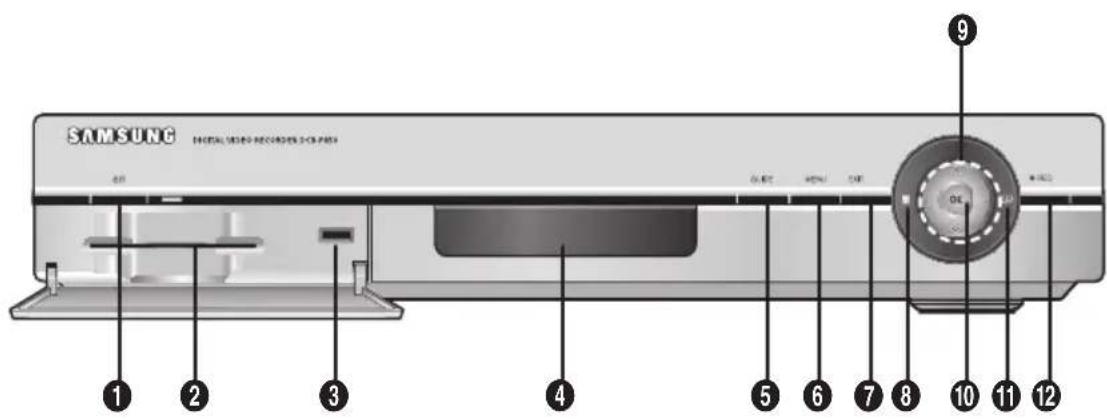

Front Panel

1. POWER Turns the receiver on and off (standby).
2. Smart Card Slot 1 slot for Irdeto smartcard.

Note: Smart Cards are only distributed by service providers and special distributors, not by SAMSUNG.

1. USB Port Connects an external USB storage device such as USB-HDD or thumb-drive.
2. Display Displays the playing status.
3. GUIDE Displays TV/Radio EPG (Electronic Programme Guide).
4. MENU Opens up or exits the menu.
5. EXIT Exits the current menu.
6. Infrared Sensor Receives IR commands from the remote control.
7. / / K Moves the highlight bar for selecting options on the menu.
8. OK Enters and confirms any data to the receiver in the menu.
9. REC Indicator Lights when the receiver is recording.
10. REC Records for Live TV and Radio programmes.

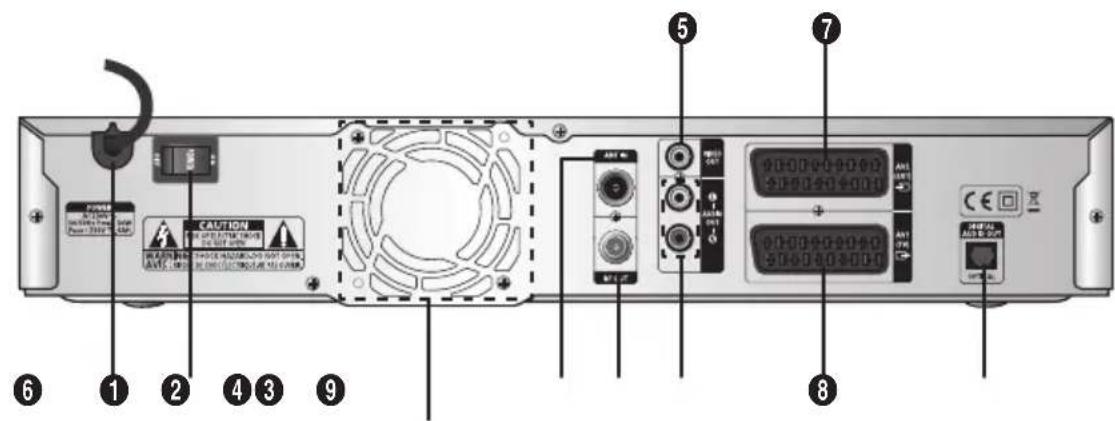

Rear Panel

Fan
The fan always revolves when the power is on.
Ensure a minimum of 10cm clear space on all sides of the fan when installing the product.

1. AC MAINS This is to plug in the AC mains power cord. The input

AC voltage range is 230V 50/60Hz supply.

1. POWER SWITCH This is used to turn AC mains power on and off.
2. ANT IN Connects to a terrestrial aerial (or antenna).
3. RF OUT Connects to your TV aerial.
4. VIDEO OUT Connects to a video input of your TV using a RCA video

cable.

1. AUDIO OUT Connects to audio inputs of your TV using RCA audio

cables.

1. AV2(EXT) Connects to your VCR or other equipment using a

SCART cable.

1. AV1(TV) Connects to your TV using a SCART cable.
2. DIGITAL AUDIO OUT(OPTICAL) Connects to an optical input of your digital amplifier

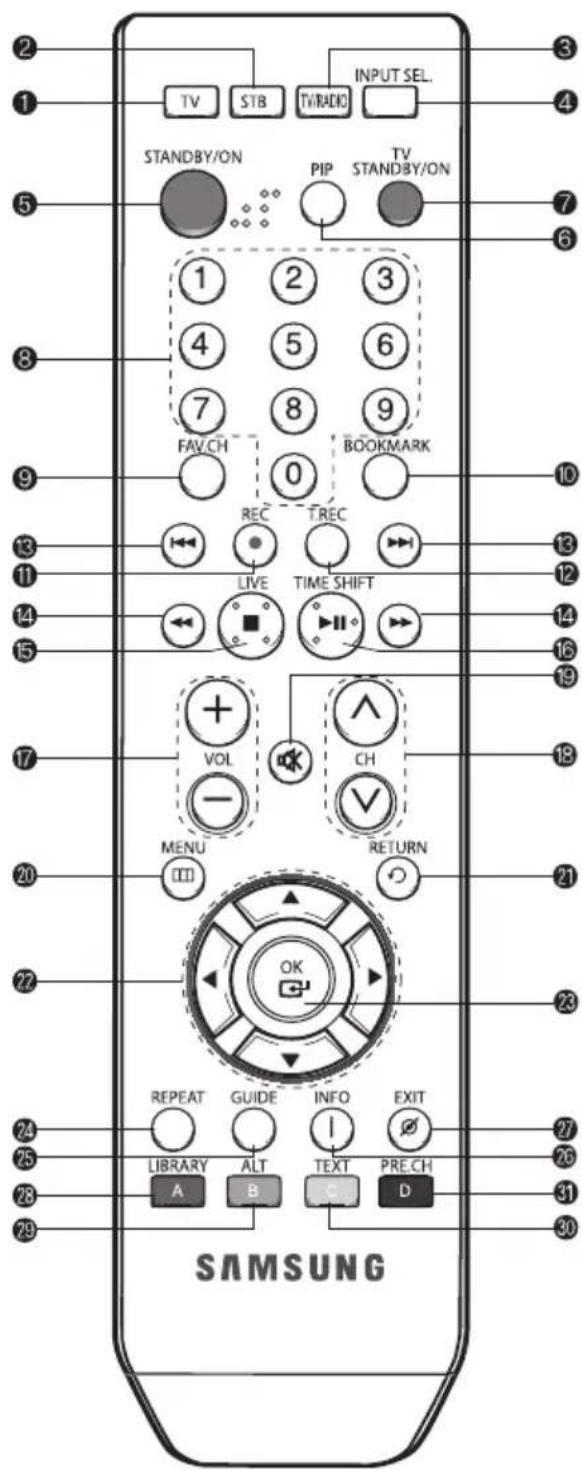

Remote Control

1. TV

Switches the TV mode.

1. STB

Switches the STB mode.

1. TV/RADIO

Toggles between the TV channel and Radio channel.

1. INPUT SEL.

Selects input signal in external input mode.

1. STANDBY/ON

Turns the receiver on and off (standby).

1. PIP

Used for PIP(Picture in Picture) function.

1. TV STANDBY/ON

Turns the TV on and off (standby).

1. NUMERIC(0~9)

Enters numeric values and selects the channel directly by entering its number. Also used for inputting text.

1. FAV.CH

Displays the favorite channel list.

1. BOOKMARK

Used for bookmark function.

1. REC

Records for Live Broadcasting.

1. T.REC

Used for configuring the timer recording.

1. SKIP(1▶▶I) Buttons

Used for skipping backwards or forwards. (every 30 seconds)

1. SEARCH(▲/▶) Buttons Used for searching backwards or forwards.
2. LIVE(■) Button Used for stopping play in HDD mode or returning to Live Broadcasting when the Time Shift is active.
3. TIME SHIFT II) Used for starting and pausing play in HDD mode or starting the Time Shift.
4. VOL+/- Increases or decreases the volume.
5. CH/Selects channels (programmes).
6. (MUTE) Toggles between normal and muted audio.
7. MENU() Opens up or exits the menu.
8. RETURN() Returns to the previous menu.
9. DIRECTION Buttons Moves the highlight bar for selecting options on the menu.
10. OK Enters data or confirms the selection on the menu.
11. REPEAT Repeats selected section (A-B).
12. GUIDE Displays TV/Radio EPG (Electronic Programme Guide).

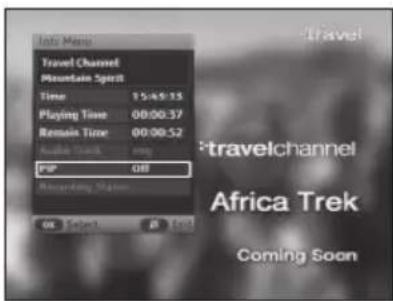

13. INFO(i) Displays the channel information and programme information. If pressed again, it displays the Info menu, which includes information about signal information, time details, audio/video track, Add to FAV list, PIP On/Off, and recording status.
14. EXIT(0) Exits the current menu.
15. RED(LIBRARY) Displays the recorded list. This button functions the same as the RED button on the menu.
16. GREEN(ALT) Selects the audio and video track list for the current service. This button functions the same as the GREEN button on the menu. Press it once and audio track list appears. Press it twice and video track list appears. The audio and video track services are not provided for every channel and depend on the conditions the operator is in.
17. YELLOW(TEXT) Selects the Teletext or Subtitle mode. This button functions the same as the YELLOW button on the menu.
18. BLUE(PRE.CH) Moves the previous channel. This button functions the same as the BLUE button on the menu.

Setting Up TV Operations with the Remote Control

Enter the manufacturer number into the remote control to control the TV with the remote control (see "Available TV Manufacturer Numbers" on pages 51~58).

1. Turn the TV on.
2. Point the remote control towards the TV.
3. Enter the TV manufacturer number by using the NUMERIC(0~9) buttons while pressing the TV button. E.g. For a Samsung TV, press 0, 0 and 1 in this order by using the NUMERIC(0~9) buttons while pressing the TV button.
4. When the TV is turned off or on, the configuration is finished.

TV functions that you can control with the remote control

Button Function
TV STANDBY/ON Press to turn the TV on or off.
INPUT SEL. Press to select an external input source for the TV.
VOL+/- Press to adjust the TV volume / Exclusive to the TV
CH/Press to select a TV channel.
(MUTE) Press to mute the TV sound.
NUMERIC(0~9) Press to enter the number

Note : 1. There is a model that can only be turned on by pressing the NUMERIC buttons “0” on the remote control.

1. TV models of other manufacturer that can be controlled with the remote control are limited, and some functions may not work.
2. If you replace the remote control batteries or enter a new manufacturer number, the previously configured TV manufacturer number is deleted.
3. When a connected device is an integrated TV model (VCR, DVDP), take care when using the remote control because it may operate both of them simultaneously.
4. If the configuration number does not work, try another number.

INITIAL INSTALLATION

You have to set up your receiver when it is plugged in for the first time. For this action, after pressing the MENU button, select Setup > System > Initial Installation. After entering your PIN code (the initial setting is "0000"), do the following actions:

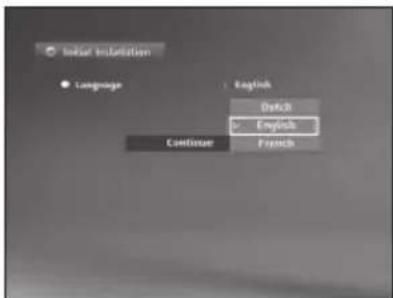

Setting Language

• Press the OK button to select your desired language, then move the cursor to Continue
• Press the OK button.

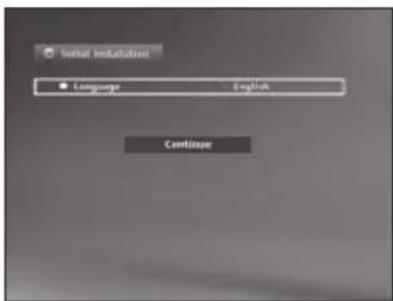

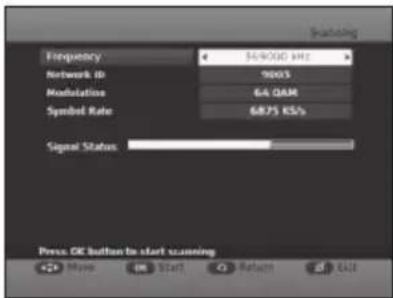

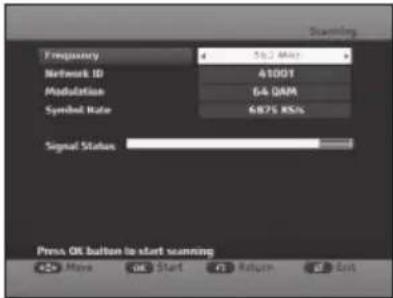

The channel scanning box appears as shown in the picture.

Setting Frequency

• Use the / buttons to select a desired frequency. You can enter the proper frequency using the NUMERIC buttons on the remote control.

Setting Network ID

• Use the buttons to select a desired Network ID. You can enter the proper Network ID using the NUMERIC buttons on the remote control.

Selecting Modulation

• Use the / buttons to select the modulation of the channel you want to find.
  You can select the value of 16, 32, 64, 128, 256 QAM, or AUTO.

Setting Symbol Rate

• Use the / buttons to select a desired symbol rate of channel you want to find.
  You can enter the proper symbol rate using the NUMERIC buttons on the remote control.

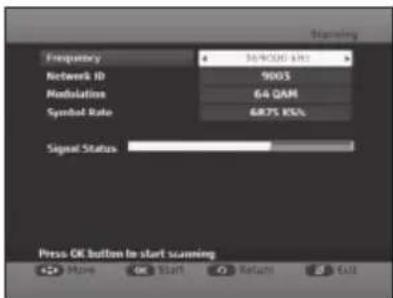

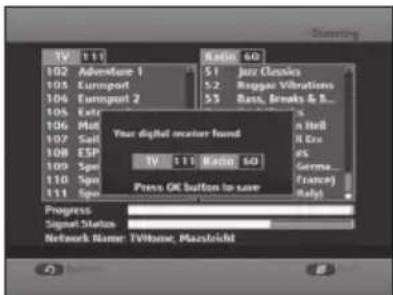

Executing Auto Channel Scanning

After selections are made, press the OK button to start auto channel scanning. Auto channel scanning will start.
- After auto channel scanning completes, press the OK button to save the TV and Radio channels.

BASIC FUNCTIONS

1. Display Screen

Before you can view the television programme, you must perform the installation. Therefore you will see only menu images at first.

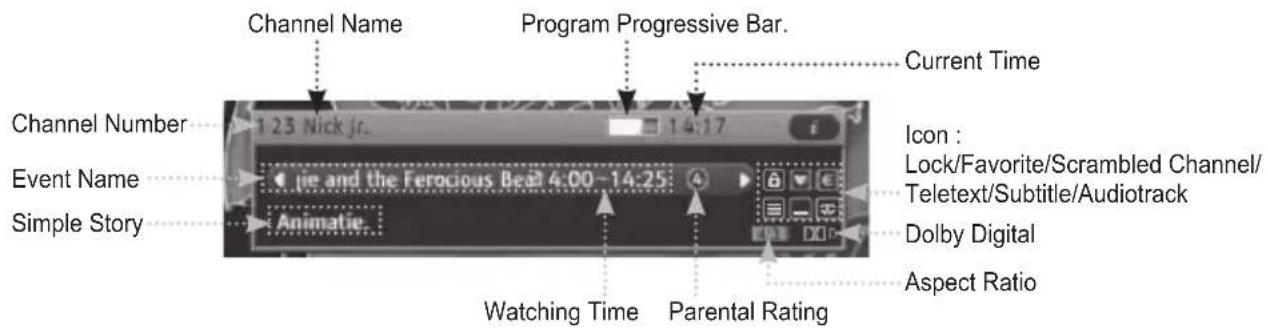

After the television channels have been programmed, you will see the following picture (banner) each time you change channels:

• Press the INFO(i) button in Live mode.

• Select the channel by pressing the NUMERIC(0~9) buttons or CH\~/buttons and select the TV/RADIO button to move to TV or Radio channel. You will also see this picture each time you change channels.

When you press the TV/RADIO button on the remote control, TV and Radio programmes are toggled.

Note: With no action, the channel banner disappears after about five seconds.

Detailed programme information

• Press the INFO(i) button twice while you are viewing a programme. First you will see the channel information. If pressed again, detailed information on the current programme is displayed as shown in the picture.

• [▲] buttons: displays information of the previous or next programmes.

• [▲▼ buttons]: scrolls the current information.

Note: This service depends on the service provider.

2. Volume Control

To control the volume level :

• Press the VOL +/- buttons to adjust the volume level.
• Press the (MUT) button to turn to silence mode.
• Press the × (MUTE) button again or VOL +/- buttons in order to cancel the mute function.

Note: With no volume control, the volume control banner disappears after about two seconds.

3. Select audio track

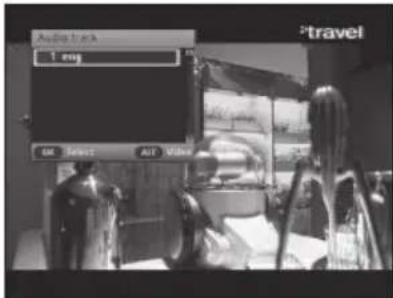

• Press the GREEN(ALT) button to see the audio track list.
• Use the / buttons to select an audio language, press the OK button.

Note: 1. Although the channel you are trying to record contains many audio tracks, you can listen to the limited number of audio tracks after the recording is complete.(minimum 1 / maximum 3 audio tracks)

• If the channel does not contain the subtitle and teletext: Maximum three audio tracks are available for recording.
• If the channel contains either the subtitle or teletext: Maximum two audio tracks are available for recording.

• If the channel contains both the subtitle and teletext: One audio track is only available for recording.

• For the channels that contains many audio tracks, use the GREEN(ALT) button to select audio tracks while recording. Then you can listen to the selected audio tracks after the recording is complete.

4. Select video track

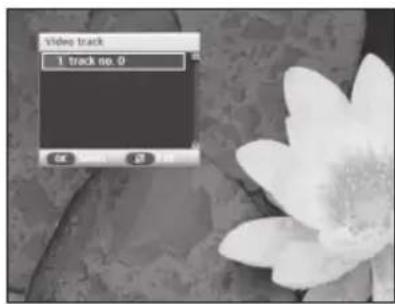

• Press the GREEN(ALT) button twice to see the video track list.
• Use the / buttons to select a video, press the OK button.

Note: When the GREEN(ALT) button is pressed but no action follows, the video track banner disappears after about four seconds.

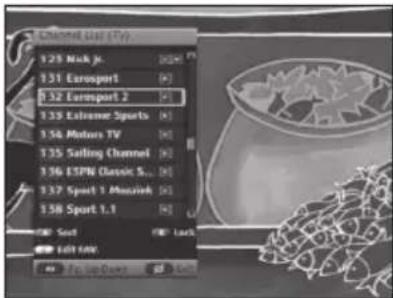

5. Channel List

• Press the OK button while you are watching a programme.
• Press the TV/RADIO button to select a TV or Radio channel.

You can select any of TV, Radio, and All channel lists.

• Press the / buttons to select a desired channel, then press the OK button. To move to the previous or next page on the channel list, use the / buttons.

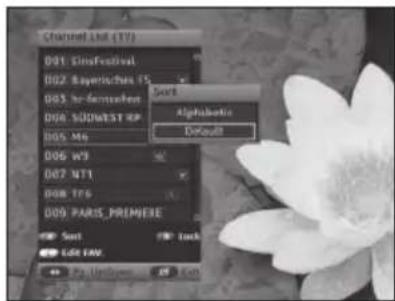

• [RED(LIBRARY) button]: Sorts by alphabetic order or default setting.

• [GREEN(ALT) button]: Locks the channel after entering your PIN code.

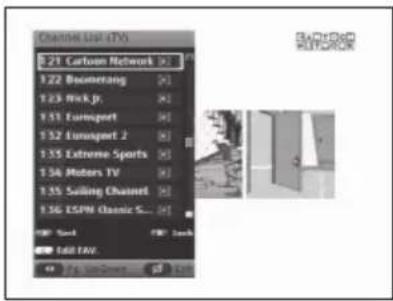

• [YELLOW(TEXT) button]: Adds to the favorite list.

6. Favorite List

• Press the FAV.CH button while you are viewing a programme.
• Press the TV/RADIO button to select a TV or Radio channel.

You can select any of TV, Radio, and All channel lists.

• Press the / buttons to select a desired channel, then press the OK button. To move to the previous or next page on the channel list, use the / buttons.

• [RED(LIBRARY) button]: Removes the favorite channel.

• [GREEN(ALT) button]: Renumbers the channel. The channel number is changed using the buttons.
• [BLUE(PRE.CH) button]: Used when performing extra functions (such as Sort by name, Sort by number, or Rename List).

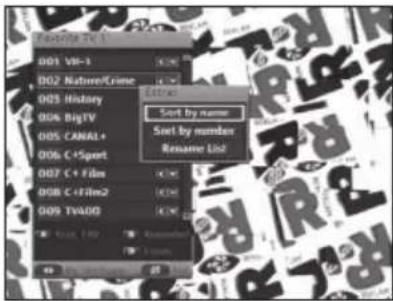

Sort by name: Sorts by alphabetic order.
Sort by number: Sorts by channel order.

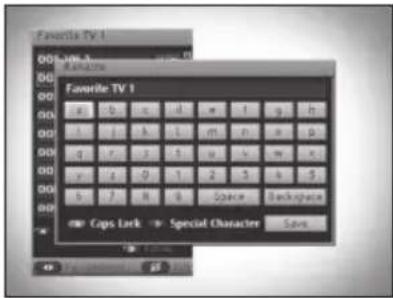

Rename List: Renames the channel.

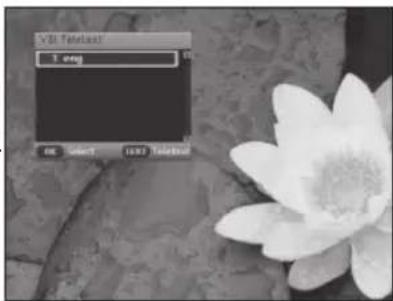

7. Teletext

When the current broadcasting programme provides teletext, press the YELLOW(TEXT) button to see the current teletext language list. The first press displays the VBI (vertical blanking interval) teletext and the second press displays the OSD teletext.

To change the teletext language:

• Press the YELLOW(TEXT) button to see the teletext language list.
• Use the / buttons to select a teletext language you want.
• Press the OK button and then the selected teletext language is displayed.

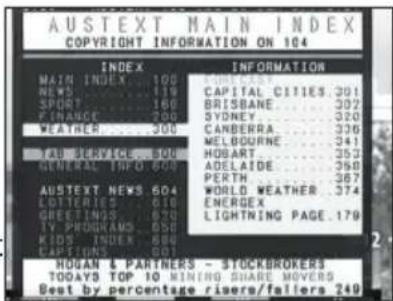

To use the coloured-button for teletext:

• [RED(LIBRARY) button]: Goes back to the previous page.
• [GREEN(ALT) button]: Goes to the next page.
• [▲/▼ buttons]: Moves to the previous/next page.
• [CH\~/buttons]: Moves to the previous/next page.

Note: When the YELLOW(TEXT) button is pressed but no action follows, the teletext banner disappears after about four seconds.

8. Subtitle

When the current broadcasting programme provides subtitle, press the YELLOW(TEXT) button three times to see the current subtitle language list.

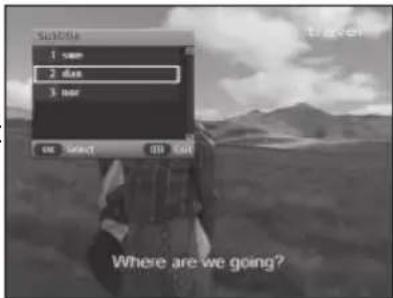

To change the subtitle language:

• Press the YELLOW(TEXT) button twice to see the subtitle language list.
• Use the buttons to select the subtitle language you want.
• Press the OK button and then the selected subtitle language is displayed.

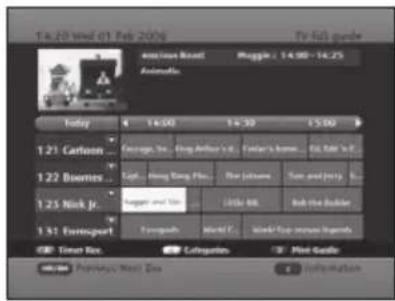

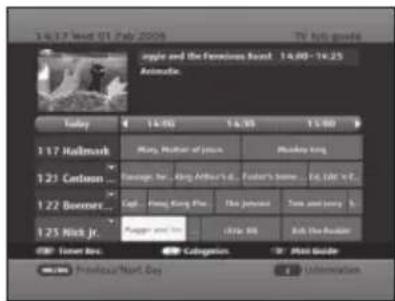

9. Programme Information (EPG—Electronic Programme Guide)

The electronic programme guide shows you programme information for the selected channel.

Note: 1. This service depends on the service provider.
2. After the receiver recognises the GMT-time from the signal which takes few seconds, it can display correct EPG information.

• Press the GUIDE button while you are viewing a programme.

Programme Information is displayed on the screen on the time basis.

• [▲▼ buttons]: Selects channels.
• [▲/▶buttons]: Used to display the program information by 30 minutes per block.
• [OK button]: You can select a current live channel, and also can schedule the future coming programmes for recording.
• [RED(LIBRARY) button]: Used for adding or cancelling timer recording.
• [YELLOW(TEXT) button]: Displays programmes by categories. (All, Movie/Drama, News/Affairs, Show/Game Show, Sports, Children's/Youth Programmes, Music/Ballet/Dance, Arts/Culture, Social/Political Issues/Economics, Education/Science, Leisure hobbies, Others)
• [BLUE(PRE.CH) button]: Toggles between Full Guide and Mini Guide.
• [SKIP(I▲) button]: Moves back to the previous day.
• [SKIP(▶▶I) button]: Moves to the next day.
• [INFO(i) button]: Displays the programme information.

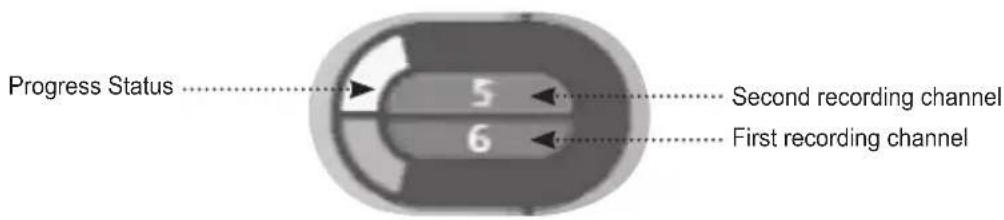

10. Instant Recording

Directly records while enjoying Live TV or Radio programme. The recorded file will be automatically saved to Video and Radio folders in the Library menu. This is not for permanent recording, so if you plug out the set without stopping the record, no file is saved. You can also record two separate channels at the same time.

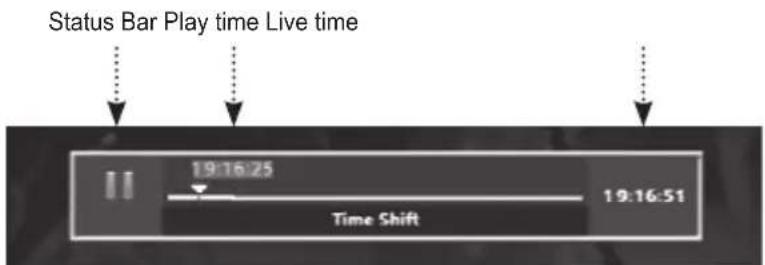

11. Time Shift

Time Shift function enables replay of previous scenes while playing a programme. The system automatically records the active live programme on the built-in HDD. First press the PLAY/PAUSE II) button during play and the current live programme will be paused. After a while, press the PLAY/PAUSE II) button and the programme resumes. The Time status bar appears to show you the current operating status. Use the playback-related buttons to play contents saved in the HDD.

• [TIMESHIFT(II)]: Used to start the Time Shift. To resume the stilled screen, press it again.
• [LIVE(■)]: Returns to the live channel.
• [SKIP(I▲/I]]: Skips backwards or forwards.
• [FAST SEARCH(▲/▶)]: Fast-searches backwards or forwards.
• [SLOW SEARCH(▲▲/▲▲)]: Slow-searches backwards or forwards while the screen is paused.

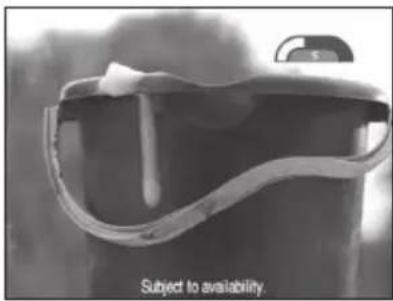

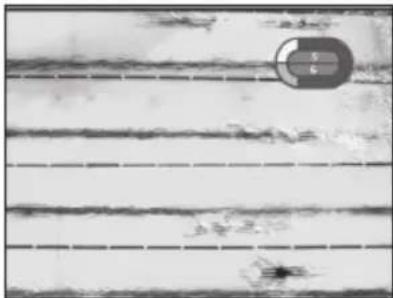

To record one channel:

• Change to the channel you want to record, then press the REC button to start recording.
• To stop the recording, press the STOP) or REC button. The recording option menu will appear. Press the STOP) button again.

To record two channels:

• Change to the channel you want to record, then press the REC button to start recording.
• Change to another channel you want to record, then press the REC button to start recording. The red color indicates the channel that is currently displayed.

• To stop the recording,

• Press the STOP(■) button. The recording option menu will appear.

• Select the channel to stop the recording using the / buttons and press the STOP button.
• To stop the second recording also, press the STQ) button and press it again when the option menu opens.

Note: When recording two channels, you can watch only one of those.

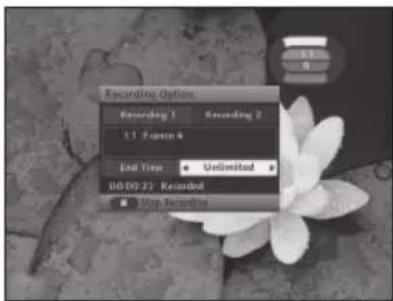

To use the Recording Option menu:

• Press the REC button during recording. The Recording Option menu will appear.

• [▲/▲] buttons: To change the recording end time such as Unlimited, This Event, Next Event, 30 min, 60 min, 90 min, 120 min, 3hr, 4hr, 6hr, and 8hr.

• To exit the menu, press the EXIT button.

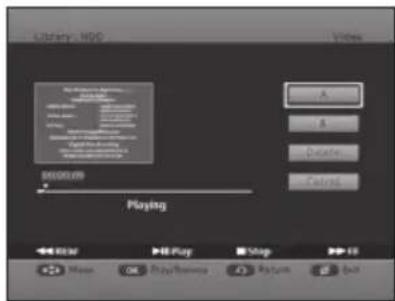

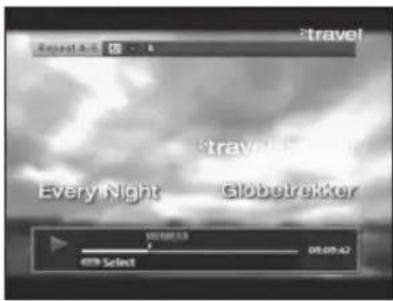

12. A-B Repeat Function

Repeatedly plays a selected section (A-B).

• Press the REPEAT button during playback.
• Press the OK button at the scene you want to start repeating.
• Press the OK button again at the scene you want to end repeating.

The specified A-B section will be played repeatedly.

• To deactivate the repeat function, press the REPEAT button again while the A-B section is playing, then the function will be deactivated.

13. Bookmark Function

You can bookmark specific scenes of the recorded file for easier search.

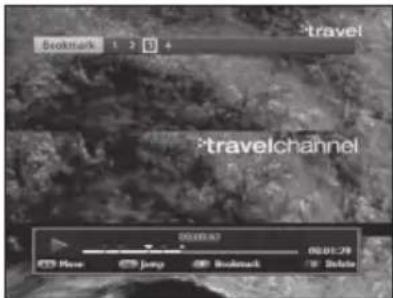

To add a bookmark:

• Press the BOOKMARK button during playback.
• Press the RED(LIBRARY) button when a desired scene appears. The number "1" is displayed at the top on the screen and the scene is memorised.
• Press the RED(LIBRARY) button again when the next desired scene appears. To get the scene quickly, use the SEARCH(▲▼▶) buttons. The number “2” is displayed and the scene is memorised.
• Bookmarks can be added by repeating the steps above. You can bookmark up to 10 scenes.

To find a preset bookmark:

• Press the buttons to search the bookmark that you want. The selected bookmark number changes.
  After selection, press the OK button to play from that point.

To delete a bookmark:

• Press the buttons to select the bookmark that you want to delete. The selected bookmark number changes.
• After selection, press the BLUE(PRE.CH) button to delete from the preset bookmarks. The final bookmark number decreases by 1 with no change to locations.

To move to the bookmark starting point:

• Press the JUMP button to get to the starting point of the current bookmark.

14. Info Menu

To see the Info menu about the programme on a live channel or the recorded play on HDD, press the INFO(i) button.

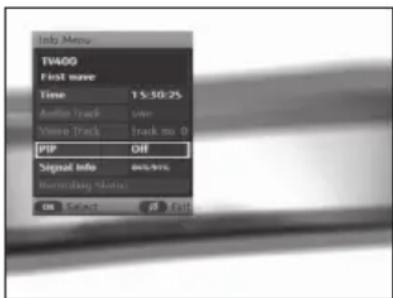

14.1. On live programme

With in the live programme, do the following:

• Press the INFO(i) button 3 times. The first press opens the channel information while the second press opens the programme information.

• The Info menu box displays the following items for your own taste.

• [Audio Track]: Use the / buttons to select an audio language, then press the OK button. When the Dolby Digital is available and it has priority, you can select it also.

• [Video Track]: Use the / buttons to select a video track number, then press the OK button.

• [PIP]: After setting it to "On," you can watch two channels with main and sub pictures. When you are watching 2 programmes at a time, use the RED(LIBRARY) button for swapping between main and sub pictures. The channel on the sub picture is changed upward by the YELLOW(TEXT) button, while it is changed downward by the BLUE(PRE.CH) button. To remove the sub picture, change the setting to "Off."
• [Signal Info]: Displays the signal strength and quality.
• [Recording Status]: If any recording is going on, it displays the recording information. For more details, see the following sections.

Note: When the PIP is active but a locked channel is in the small picture, it is displayed black-empty.

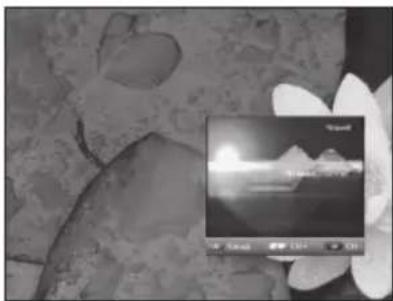

14.2. While a recorded file is played

With in a recorded file playing, do the following:

• Press the INFO(i) button. It displays the following items for your own taste.

• [Time]: Displays the started time.

• [Playing Time]: Displays the played period of time.
• [Remain Time]: Displays the remaining time to the end.
• [Audio Track]: Use the / buttons to select an audio language, then press the OK button. When the Dolby Digital is available and it has priority, you can select it also.
• [PIP]: After setting it to "On," you can watch a live programme on the sub picture as mentioned above.
• [Recording Status]: If any recording is going on, it displays the recording information as mentioned above.

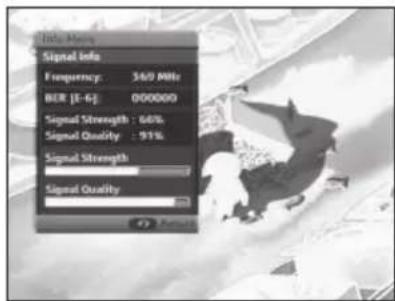

14.3. Signal Info

You can check the signal strength and quality of the current channel.

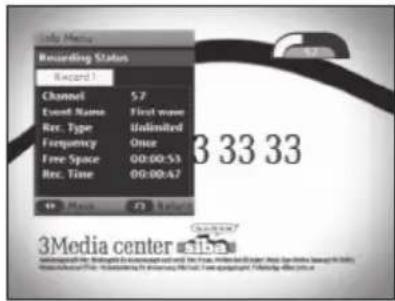

14.4. Recording Status

You can check the recording status such as channel number, event name, record type, frequency, and remaining time. When there are 2 recordings available, use the / buttons to see the recording status between recording 1 and recording 2.

After installing your aerial system and STB with appropriate connectors.

• Plug in the AC main power and switch on the receiver.
• Press the MENU(III) button to bring up the main menu.

The following on screen display will appear:

You will see the main menu on the TV screen as shown below.

• Moves into the desired sub menu using the / / buttons.
• Press the OK button to confirm your selection.

1. Guide

In this menu, you can get information about programmes on various channels.

Note : 1. This service depends on the service provider.
2. After the receiver recognises the GMT-time from the received signal that takes few seconds, it can display correct programme information.

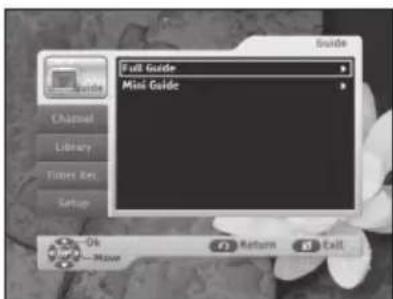

• Use the / buttons to select Guide in the main menu, then press the button.
• Use the / buttons to select Full Guide or Mini Guide, then press the OK or button.

The programme information may include: current time, channel name, name of the current and next programme, the start and total time of the current and next programme.

1.1. Full Guide

The function gives you information for the full channels. This service depends on the service provider.

When you select a channel using the / buttons, it will display various information such as current time and date, channel name, programme name, schedule of programmes, and programme status (Recording, Favorite Channel, etc.).

• Use the / / buttons to select a desired channel, then press the OK button. You can select a current live channel, and also can schedule the future coming programmes for recording. To schedule the programme for recording, press the RED(LIBRARY) button.
• Reserved channel list will be erased when you plug out the set.
• Press the INFO(i) button, then you can get more information selected programme.

1.2. Mini Guide

Mini Guide menu is similar to Full Guide menu. Use buttons to get previous or next programme information.

• Use the / buttons to select Mini Guide in the Guide menu, then press the OK or button.
• Press buttons to select previous or next programme. You can use OK and INFO(i) buttons as in Full Guide menu.

Note: 1. It can reach as far as the time displaying the EPG information.
2. If you select a locked channel, you can input the password only when the Mini Guide menu is gone.

1.3. Using the colour buttons

• When you press the RED(LIBRARY) button, the timer recording can be assigned with a desired recording frequency.
• To delete it from the favorite channel list, press the button again.
• When you press the YELLOW(TEXT) button, the channel can be assigned a category like sports, news, movie, and such.
• Full Guide and Mini Guide are toggled by the BLUE(PRE.CH) button.

2. Channel

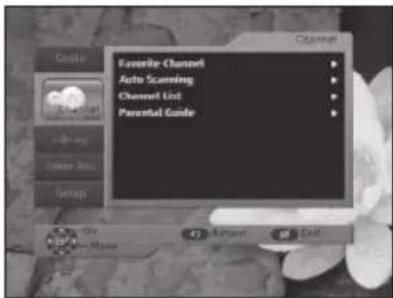

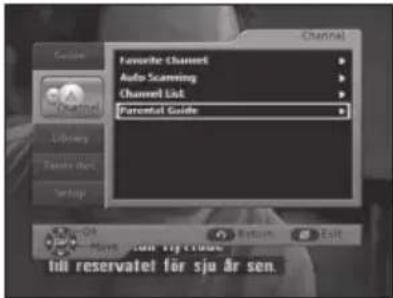

Channel menu have four sub menus: Favorite Channel, Auto Scanning, Channel List, and Parental Guide.

These options enable you to change channel settings. You can set the various settings you want.

• Use the / buttons to select Channel in the main menu, then press the button.
• Use the buttons to select a sub menus, then press the OK or button.

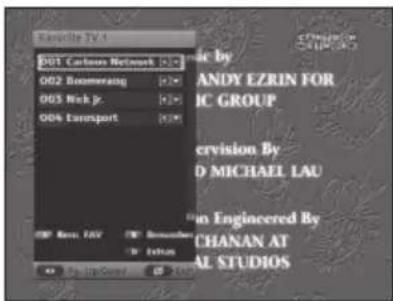

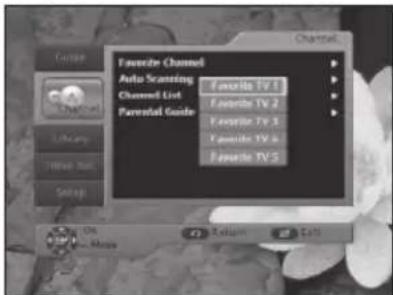

2.1. Favorite Channel

You can select TV or Radio channel from the favorite list. The screen displays five different favorite groups.

Select a favorite group you want.

• Press the TV/RADIO button to toggle the TV and Radio favorite list.
• Use the / / buttons to select a desired channel.
• You can edit the favorite channel list using Rem. FAV, Renumber, Add Current, and Extras.
• To exit, press the EXIT() button.

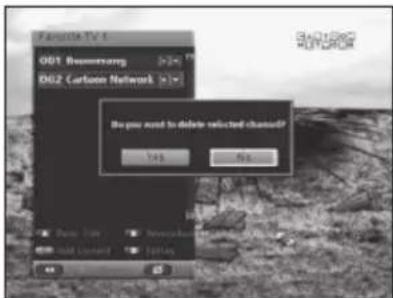

2.1.1 Remove Favorite channel

You can remove channels on the favorite list.

• Use the / buttons to select the channel you want to remove.
• Press the RED(LIBRARY) button.
• Use the / buttons to select Yes, then press the OK button.

The selected channel is removed.

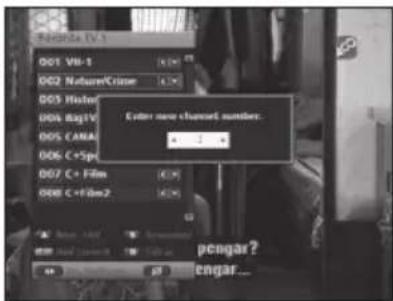

2.1.2. Renumber

You can change the channel number of the selected one on the list.

• Use the / buttons to select the channel you want to renumber, then press the GREEN(ALT) button.
• Use the / buttons to change the channel number, then press the OK button.

2.1.3.Add Current

You can add the current channel to the favorite list when the current channel is not in the favorite list. (See page 16)

2.1.4. Extras

You can perform extra functions in the favorite list. (See page 16)

2.2. Auto Scanning

This menu enables download of available channels automatically.

• Use the buttons to select items, then press the buttons to change.
• Press the OK button to start scanning.
• After scanning completes, press the OK button to save.
• To exit without saving, press the MENU or EXIT (品) button.

2.3. Channel List

You can select TV or Radio channel from the channel list.

• Press the TV/RADIO button to toggle the TV and Radio channel list.
• Use the / / buttons to select a desired channel list and press the OK button.
• You can edit the channel list using Sort, Lock, and Add to FAV.
• To exit, press the EXIT button.

Icons of the Channel List

:Locked channel.
: Favorite channel.
€: Scrambled channel.

2.3.1.Sort

You can sort channels on the channel list.

• Press the RED(LIBRARY) button to sort channels.
• Use the / buttons to select a desired sorting method from Alphabetic and Default.
• When you press the OK button, channel list is sorted by your desired sorting method.

2.3.2.Lock

You can block the current channel.

• Press the GREEN(ALT) button to lock the channel. Then the menu requesting the PIN code appears.
• Enter the PIN code using the NUMERIC buttons.

2.3.3.Add to FAV.

You can add the current channel to the favorite list.

• Use the / buttons to select the channel you want to add to the favorite list, then press the YELLOW(TEXT) button.

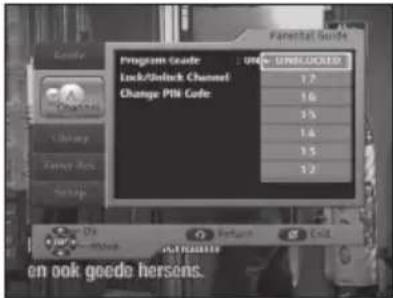

2.4. Parental Guide

This function prevents children or unauthorized persons from watching programme. Also you can change your PIN (Personal Identification Number) code.

Note : The factory preset PIN code is "0000."

2.4.1. Program Grade

When it is set, any programme that violates the setting is blocked. To set this grade,

• Use the / buttons to select a grade.
  The password input box appears.
• Enter your 4-digit PIN code to confirm it.

2.4.2. Lock/Unlock Channel

When a channel is locked, the user must input the PIN code to watch it. To lock or unlock the channel,

• Select Lock or Unlock and press the OK button.
  The password input box appears.
• Enter your 4-digit PIN code to confirm it.

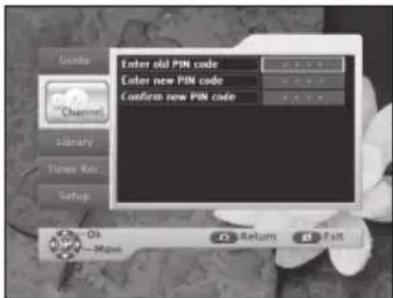

2.4.3. Change PIN Code

You can change the PIN code.

• Use the NUMERIC(0~9) buttons to enter the old PIN code and new PIN code.
• To confirm it enter the new PIN code again.

Please remember the PIN code should be a 4-digit numerical value.

The factory preset PIN code: 0000

Note: If you forgot the PIN code, contact the Service

Provider. Once you change your password, you must keep it in mind.

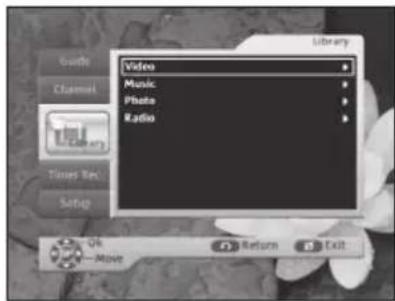

3. Library

You can play and edit TV channel recordings, Radio channel recordings, video files, photo files, and music files in the Library menu.

You can also enjoy JPG and MP3 files stored in your external USB storage device.

• Use the / buttons to select Library in the main menu, then press the button.
• Use the / buttons to select a sub menu, then press the OK or button.

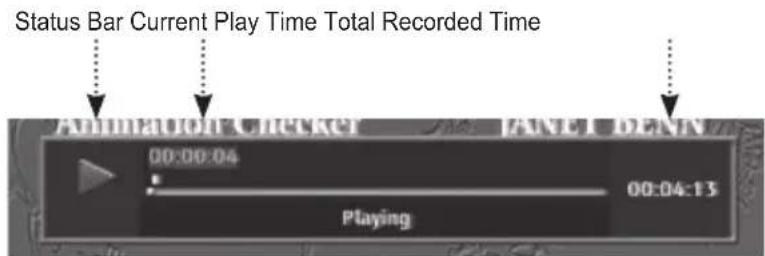

3.1. Video

You can play and edit TV channel recordings.

• Use the / / buttons to select a recorded file or video file, then press the OK button.

• [PLAY/PAUSE▶II) button]: Plays or pauses the current file.

• [STOP(■) button]: Stops playback and exits to the file list.
• [SKIP(I <▶▶) buttons]: Each press performs a 30-second commercial skip. It enables you to evade from watching commercials.

To enter a folder, use the / / / buttons to select a folder, then press the OK button.
To change to a higher level folder, use the / / buttons to select the..icon, then press the OK button. After selecting a folder, you can edit by options such as Rename, Delete, and New Folder after pressing the GREEN(ALT) button.

• After selecting a file, you can use the following buttons:

• [YELLOW(TEXT) button]: You can list the files by the selected media such as Video, Music, Photo, and Radio using the / and OK buttons.

• [GREEN(ALT) button]: You can edit files using Sort, Move, Rename, Lock, Delete, New Folder, Delete A-B, Combine, and Divide. Use the / buttons to select a sub menu, then press the OK button.

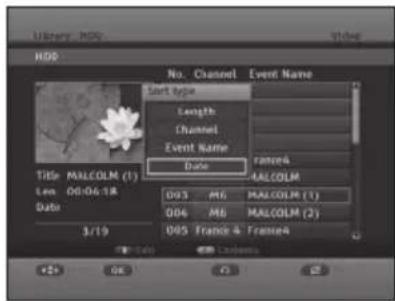

3.1.1.Sort

You can sort video files in the file list.

• Use the / buttons to select a desired sorting type such as length, channel, event name, and date.
• When you press the OK button, file list is sorted by your desired sorting type.

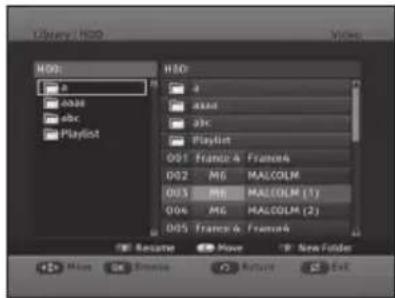

3.1.2. Move

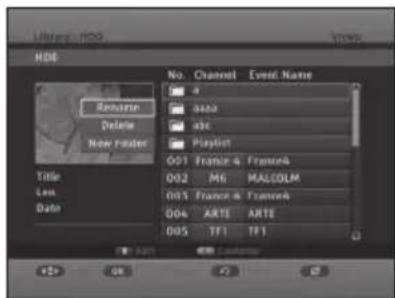

Files can be moved between different HDD folders.

If Move is selected, it lists the video files.

• To move to the file list, press the button.
• Use the / buttons to select each file to move, then press the OK button.
• To move the selected files to the destination folder, use the button to set the destination. After a folder is selected, press the YELLOW(TEXT) button. The selected files are moved to the destination folder.

Note: You can select multiple files using / and OK buttons.

3.1.3. Rename

You can change the name of file or folder.

• Press the BLUE(PRE.CH) button to rename the name of file or folder.

• [ / / buttons]: Moves the cursor.

• [OK button]: Enters characters.
• [RED(LIBRARY) button]: Toggles between upper case and lower case.
• [BLUE(PRE.CH) button]: Toggles between special characters and alphabets.

After changing completes, use the / / buttons to select Save, then press the OK button.
- Up to 30 characters are allowed as a channel name.
- To exit without saving, press the MENU or EXIT button.

3.1.4. Lock/Unlock

You can lock or unlock files in the list.

• Enter your own PIN code. (The factory preset PIN code: 0000)

If a file is locked, you can see icon. In order to see the locked file, you must enter the PIN code.

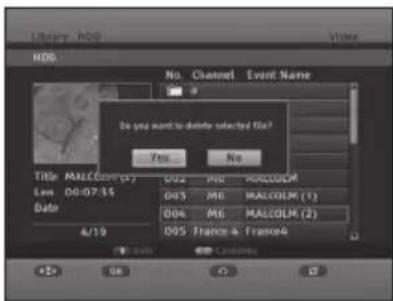

3.1.5. Delete

You can delete files from the file list.

• Use the buttons to select Yes, then press the OK button.

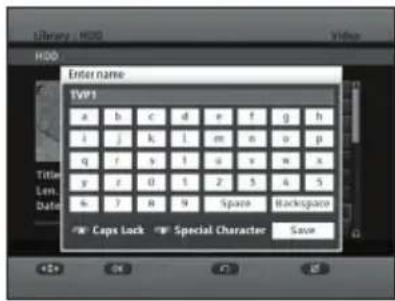

3.1.6.New folder

A new folder can be created on the current directory.

• Enter the name of new folder as above.
• Select Save using the / / buttons, then press the OK button.

3.1.7. Delete A-B

You can delete the selected A-B section.

After selecting the starting point, press the OK button on the highlight bar A. The cursor moves to the bar B.
- Select the ending point and press the OK button.
- To delete the selected section, select Delete using the / buttons, then press the OK button.
To cancel the action, select Cancel using the / buttons, then press the OK button.

Note: Delete A-B, Combine, and Divide functions will take a while when the size of the target file is big enough.

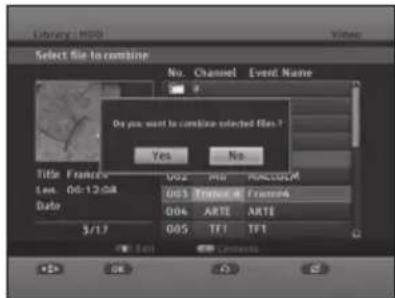

3.1.8. Combine

Two files can be combined into one file.

• When you select Combine, the file at which the cursor is located is set as the first file.
• Move the cursor to the next file to select the second one using the / / buttons, then press the OK button. The confirmation message appears.
• Select Yes for combine. To cancel the action, select Cancel using the / buttons, then press the OK button.

3.1.9 Divide

A file can be split into two files.

• When you select Divide, the highlight bar is located on A.
• Press the PLAY/PAUSE II) button and search the split point using the buttons, then press the OK button on the highlight bar A. After marking the point, the cursor moves to Divide
• Press the OK button for dividing the selected file. To cancel the action, select Cancel using the▲/▼ buttons, then press the OK button.

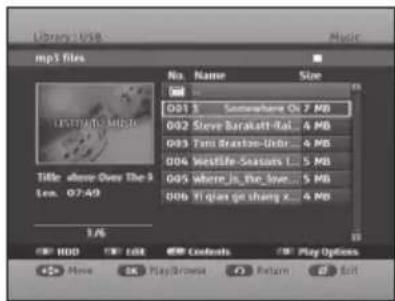

3.2. Music

You can play and edit music files with the extension *.mp3.

• Use the / / buttons to select a music file, then press the OK button.
• [PLAY/PAUSE▶II) button]: Plays or pauses the current file.
• [STOP(■) button]: Stops playback and exit to the file list.
• [SKIP(I▲/▲) buttons]: Moves to the previous or next music title.

• For entering a folder, first use the / / buttons to select a folder, then press the OK button.
  To change to a higher level folder, use the / / buttons to select the , then press the OK button.

• [RED(LIBRARY) button]: Selects the storage device between the built-in HDD and the external USB storage device. If the external USB storage device is not connected, this button is deactivated.

Note: When using external USB HDD, its file system must be FAT32.

• [GREEN(ALT) button]: Edits files by Add to Playlist, Sort, Copy, Rename, Delete, and New folder. Use the button to select a sub menu, then press the OK button.
• [YELLOW(TEXT) button]: Selects the contents such as Video, Music, Photo, and Radio. Use the▲/▼ button to select a content, then press the OK button.
• [BLUE(PRE.CH) button]: Selects the play option such as Repeat and Random. Repeat repeatedly plays the selected file or the files in the selected folder. Random repeatedly plays the files in the selected folder.

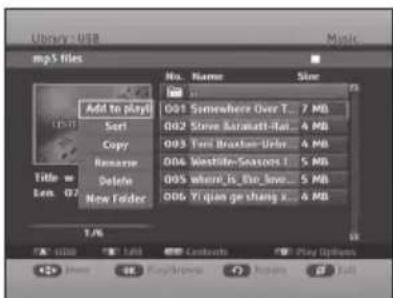

3.2.1. Add to Playlist

You can add the selected file to the Playlist folder. If the Playlist folder does not exist, the folder is created on the root directory automatically.

• To remove the file from the Playlist folder, select a file to remove using the / buttons, then press the GREEN(ALT) button and select Delete

3.2.2.Sort

You can sort music files in the file list.

• Use the to select a desired sorting type such as file name and size.
• When you press the OK button, the file list is sorted by your desired sorting type.

3.2.3. Copy

Files can be copied from an external USB storage device to your receiver and vice versa. You can also copy files between folders on the hard disk drive.

• After selecting a file for copy, press the GREEN(ALT) button. The selected file is highlighted.
• Select Copy using the / buttons, then press the OK button.
• Select a target folder in the HDD or USB device and press the YELLOW(TEXT) button. To change to the external USB device, press the RED(LIBRARY) button, which can toggle between HDD and USB device.

Note: It may cause a sudden disconnection with a particular USB memory during file(MP3 or JPEG) copying.

3.2.4. Rename

You can change the name of file or folder. (See page 34)

3.2.5. Delete

You can delete files from the file list.

• Use the / buttons to select Yes, then press the OK button.

3.2.6.New folder

A new folder can be created on the current directory. (See page 34)

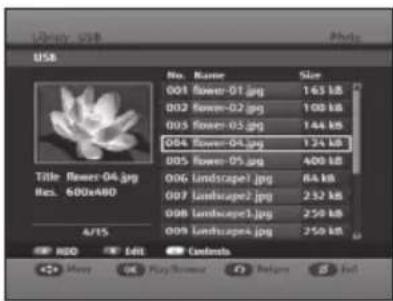

3.3. Photo

You can play and edit photo files with the extension *.jpg.

• Use the / / buttons to select a photo file, then press the OK button.

• [PLAY/PAUSE▶II) button]: Plays or pauses the slide show.

• [STOP(■) button]: Stops playback and exit to the file list.
• [▲/▲ buttons]: Changes to the previous or next image.

• [SEARCH(▲▼) buttons]: Changes the slide show in fast speed.

• For entering a folder, first use the / / buttons to select the folder, then press the OK button.
  To change to a higher level folder, use the / / buttons to select the then press the OK button.

• [RED(LIBRARY) button]: Selects the storage device between the built-in HDD and the external USB storage device. If the external USB storage device is not connected, this button is deactivated.

Note: When using external USB HDD, its file system must be FAT32.

• [GREEN(ALT) button]: Edits files by Add to Playlist, Sort, Copy, Rename, Delete and New folder. Use the buttons to select a sub menu, then press the OK button. The listed functions are the same as in Music. (See page 36 and 37)
• [YELLOW(TEXT) button]: Selects the contents such as Video, Music, Photo, and Radio. Use the▼ buttons to select a content, then press the OK button.

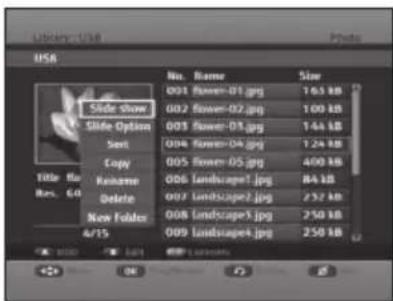

3.3.1. Slide Show

You can play photo files by slide show mode.

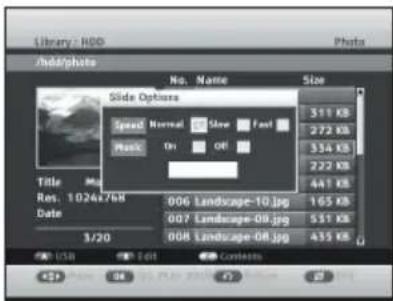

3.3.2. Slide Option

You can set the slide show speed and background music on or off.

• Use the buttons to select a desired option among Normal, Slow, Fast, On, and Off, then press the OK button to check.
• Use the button to select OK, then press the OK button.
• If you set the Music On, music files stored in the receiver are played in random order, while slide show is running. The music files should have been stored in the folder for slide show.

3.3.3.Sort

You can sort photo files in the file list.

• Use the buttons to select a desired sorting type such as file name and size.
• When you press the OK button, file list is sorted by your desired sorting type.

3.3.4. Copy

Files can be copied between your receiver and an external USB storage device. Refer to the method as in video files moving. Only the difference is the target files are not removed from the source folder by Copy.

3.3.5. Rename

You can change the name of file or folder. (See page 34)

3.3.6. Delete

You can delete files from the file list.

• Use the buttons to select Yes, then press the OK button.

3.3.7.New Folder

A new folder can be created on the current directory. (See page 34)

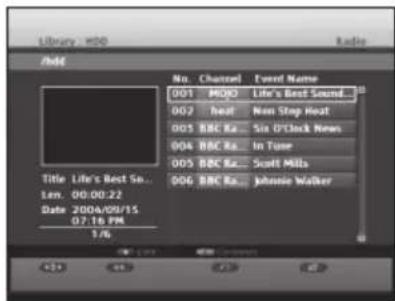

3.4. Radio

You can play and edit Radio channel recordings.

• Use the / / buttons to select a Radio channel recording, then press the OK button.
  For entering a folder, first use the / / buttons to select a folder, then press the OK button.
  To change to a higher level folder, use the / / buttons to select the , then press the OK button.

• [GREEN(ALT) button]: Edits files such as Add to Playlist, Sort, Copy, Rename, Delete, and New folder. Use th▲/▼ button to select a sub menu, then press the OK button. Edit functions of Radio are the same as the ones in music. (See page 36 and 37)

• [YELLOW(TEXT) button]: Selects the contents such as Video, Music, Photo, and Radio. Use the / button to select a content, then press the OK button.

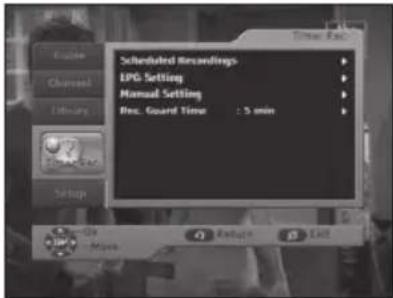

4. Timer Recording

You can schedule timer recordings for the TV and Radio channels.

• Use the / buttons to select Timer Rec. on the main menu, then press the button.
• Use the / buttons to select a sub menu, then press the OK or button.

4.1. Scheduled Recordings

You can add, edit or delete the timer recording in the reserved list.

• [Event Name]: Title name of the timer recordings.
• [Date]: Date of the timer recordings.
• [Start]: Starting time of the timer recording.
• [Freq.]: Frequency of the timer recording such as Once, Daily, Weekly, and Work Day.

4.1.1.Add

You can add the timer recording to the reserved list.

• Press the RED(LIBRARY) button to add the timer recording to the scheduled list.

• Use the / / buttons to set the channel, date, start time, end time, and frequency, then press the RED(LIBRARY) button to confirm.

• [▲/▼ buttons]: Adjusts the values.

• [▲/▶buttons]: Moves through the items.
• [NUMERIC(0~9) buttons]: Enters a number.

• [BLUE(PRE.CH) button]: Changes the recording name. The default name is created based on the channel, date, and start time of the recording (See page 34)

• To confirm the timer recording, press the RED(LIBRARY) button.

4.1.2. Edit

You can edit the timer recordings in the reserved list.

• Use the / buttons to select a timer recording you want to edit, then press the GREEN(ALT) button.
• Use the / / buttons to edit the items of the timer recording, then press the RED(LIBRARY) button to confirm.

Note: You cannot modify the file that is in progress of recording.

4.1.3. Delete

You can delete a timer recording from the reserved list.

• Use the / buttons to select a timer recording you want to delete, then press the BLUE(PRE.CH) button.
• Use the / buttons to select Yes, then press the OK button.

4.2. EPG Setting

You can record the channels using EPG.

• Use the following buttons to select a channel you want to record, then press the RED(LIBRARY) button.

• [▲/▼ buttons]: Selects channels.

• [▲▶ buttons]: Selects times.

• [SKIP(▶▶I) button]: Moves to the next day.

• Use the / / buttons to select the start time and the duration, then press the OK button to confirm.
  The channel will be added to the reserved list automatically.

4.3. Manual Setting

You can set the channels using EPG.

• Use the / / buttons to set the channel, date, start time, end time, and frequency, then press the RED(LIBRARY) button to confirm.

• [▲▼ buttons]: Adjusts the values.

• [▲/▶ buttons]: Moves the items.
• [NUMERIC(0~9) buttons]: Enters number.
• [BLUE(PRE.CH) button]: Changes the recording name. The default name is created based on the channel, date, and start time of the recording(See page 34)

4.4. Record Guard Time

• Use the / buttons to select Record Guard Time, then press the OK or button.
• Use the buttons to desired time (such as off, 2, 5, 10, and 15 minutes), then press the OK button.

5. Setup

You can set the setup items such as PVR, Preferences, Language, System, Mailbox, and Irdeto CA Status.

• Use the / buttons to select Setup in the main menu, then press the button.
• Use the / buttons to select a sub menu, then press the OK or button.

5.1.PVR

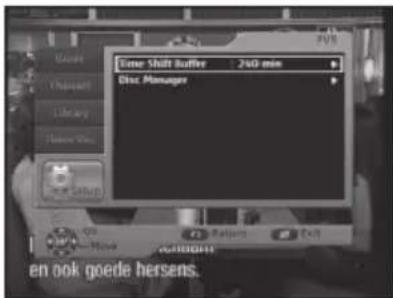

You can set the Time Shift Buffer and Disc Manager. The setting of Time Shift Buffer enables replay of previous scenes of live TV programme for up to 240 minutes before.

5.1.1. Time Shift Buffer

You can set the time length for the Time Shift function.

• Use the / buttons to select Time Shift Buffer, then press the OK or button.
• Use the / buttons to desired time(such as 30, 60, 90, 120, and 240 minutes), then press the OK button.

5.1.2. Disc Manager

You can check the capacity information of the disc, and you can format the disc. All data stored in the disc will be deleted after formatting.

To format the disc:

• Press the buttons to select a storage device between HDD and USB. If the external USB storage device is not connected, this button is deactivated.
• Use the / buttons to select Format, then press the OK button.
• Use the buttons to select OK, then press the OK button to confirm.
• Enter your own PIN code to start format. (The factory preset PIN code: 0000)
  After the formatting completes, press the OK button.

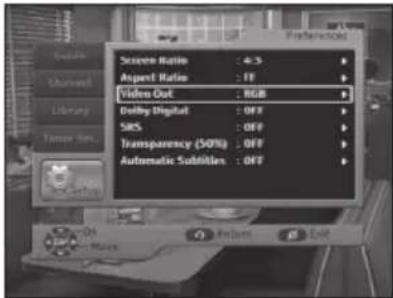

5.2. Preferences

You can set the preferences menu.

• Use the / buttons to select a sub menu, then press the OK or button.

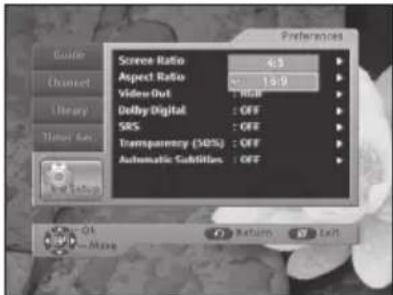

5.2.1. Screen Ratio

You can set the screen ratio.

• Use the / buttons to select a desired screen ratio (such as 4:3 and 16:9), then press the OK button.

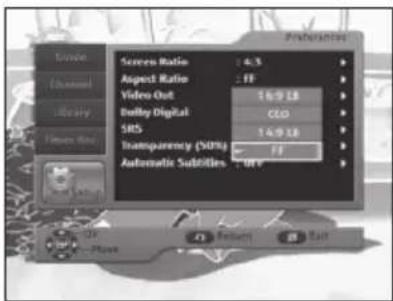

5.2.2. Aspect Ratio

• Use the / buttons to select the desired aspect ratio (such as 16:9 LB, CCO, 14:9 LB, and FF), then press the OK button.

• [16:9 LB]: LB means the letter box. Select this when you want to see a 16:9-ratio image on the 4:3-ratio TV monitor. It shrinks the 16:9-ratio image with no screen distortion so the top and bottom of the screen are black-empty.

• [CCO]: CCO means center cutout. The image is center focused so the other edges that exceed the screen limits are cropped.
• [14:9 LB]: Select this when you want to see a 14:9-ratio image on the 4:3-ratio TV monitor. It shrinks the 14:9-ratio image with no screen distortion so the top and bottom of the screen are black-empty.
• [FF]: FF means full frame. Select this when you want to see an image with converted to full screen regardless of the aspect ratio of sources.

5.2.3. Video Out

You can set the video output signal format.

• Use the / buttons to select the desired video output signal format (such as RGB and Composite), then press the OK button.

• [RGB]: Selects for SCART cable.

• [Composite]: Selects for RCA cable.

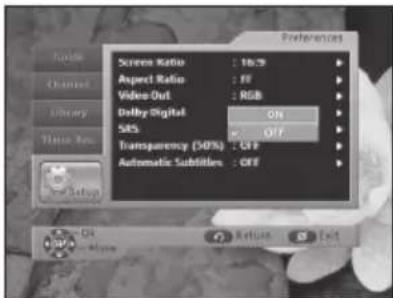

5.2.4. Dolby Digital

You can set the Automatic Dolby digital audio on or off.

• Use the / buttons to select ON or OFF, then press the OK button.

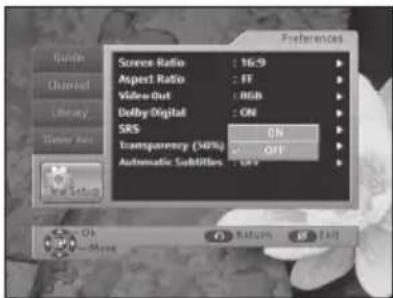

5.2.5. SRS

You can set the Sound Retrieval System on or off.

• Use the / buttons to select ON or OFF, then press the OK button.

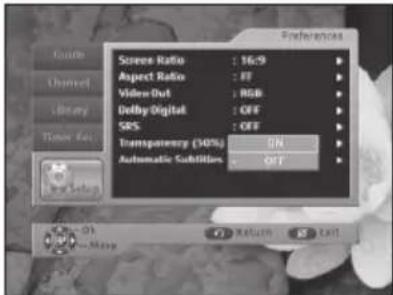

5.2.6. Transparency

You can set the OSD transparency on or off.

• Use the / buttons to select ON or OFF, then press the OK button.

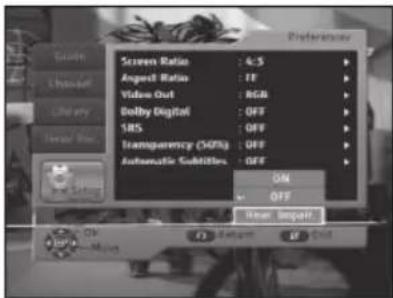

5.2.7. Automatic Subtitles

You can set the automatic display of subtitles on or off. To show effect sounds such as "knock knock" for hearing-impaired people, select Hear. Impair

• Use the / buttons to select any of ON, OFF, and Hear. Impair, then press the OK button.

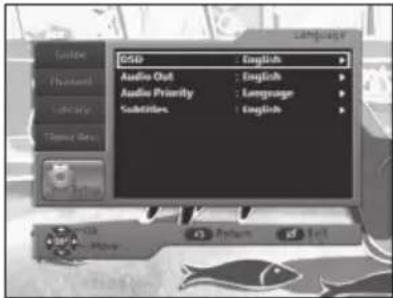

5.3. Language

You can set the languages for OSD, Audio Out, Audio Priority, and Subtitles.

5.3.1. OSD

You can set the OSD language.

• Use the / buttons to select a desired language, then press the OK button.

5.3.2. Audio Out

You can set the audio language.

• Use the / buttons to select a desired language, then press the OK button.

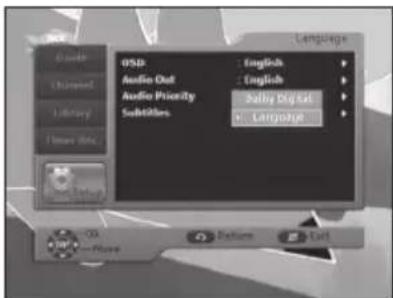

5.3.3. Audio Priority

You can select any of audio language and Dolby Digital. If the audio language has priority, you can hear the audio language without Dolby Digital sound.

• Use the buttons to select any of audio language and Dolby Digital, then press the OK button.

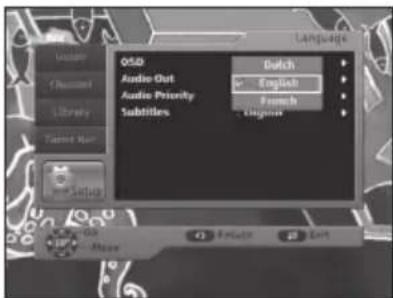

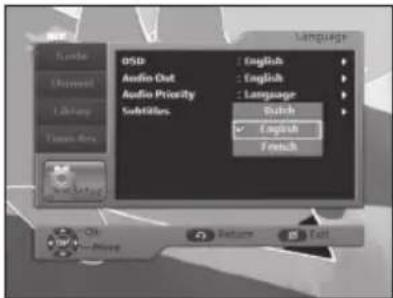

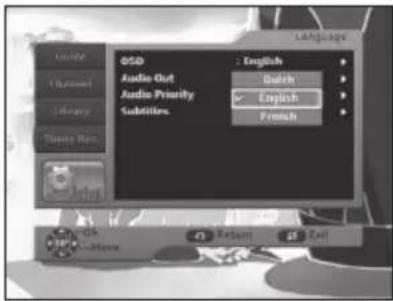

5.3.4.Subtitles

You can set the language of subtitles.

• Use the / buttons to select a desired language, then press the OK button.

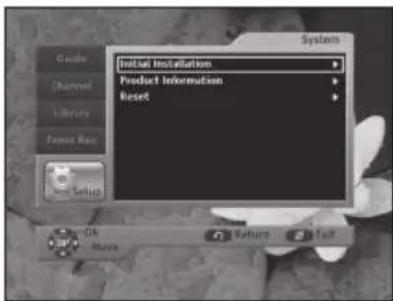

5.4. System

You can set the system menu.

• Use the / buttons to select a sub menu, then press the OK or button.

5.4.1. Initial Installation

You can set the initial installation.

• Enter your own PIN code, then press the OK button.
• Press the OK button to select your desired language, then move the cursor to Continue
• Press the OK button.

The channel scanning box appears.

• Adjust the settings for scan, if needed. (For details, see page 13)
• To start scanning, press the OK button.

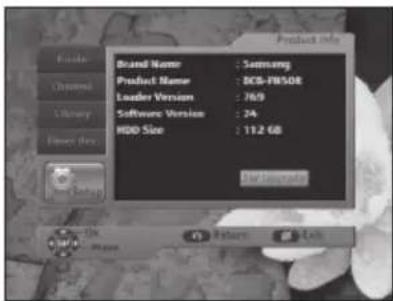

5.4.2. Product Information

You can display the product information including brand name, product name, loader version, software version, and hard disk size.

To upgrade software:

• Press the OK button on the Product Information menu, then the SW Upgrade menu will appear.
• To scan particular channel, use the▶ buttons to select a mode between Auto and Manual.
• In the manual mode, you can select the channel and PID value using the / / buttons.
• To start the software upgrade, press the OK button.

Caution: When the receiver is transferring, you must keep a thing intact until transfer is ended.

5.4.3. Reset

You can restore the factory preset values in case the user has encountered some problems after changing any new values for channel data and others, which may be in error.

• Use the / buttons to select OK, then press the OK button.
• Enter your own PIN code to start reset. (The factory preset PIN code: 0000)

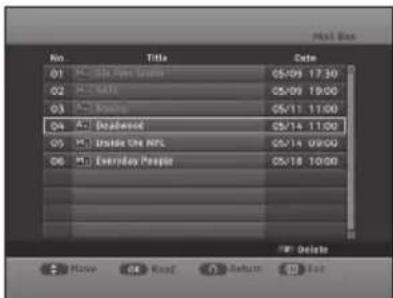

5.5.Mailbox

You can read the messages from the service providers. Press the EXIT button to exit the menu.

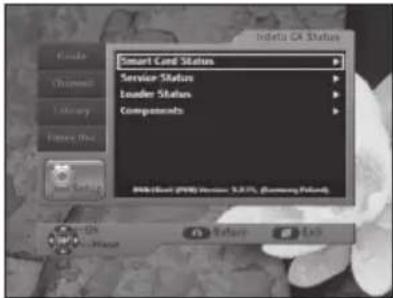

5.6. Irdeto CA Status

You can see information about smartcard, service, loader, and components.

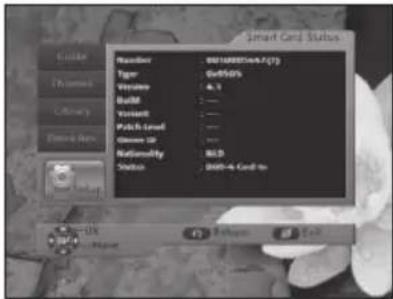

Smart Card Status

It shows you the status of the Irdeto smartcard as shown in the picture.

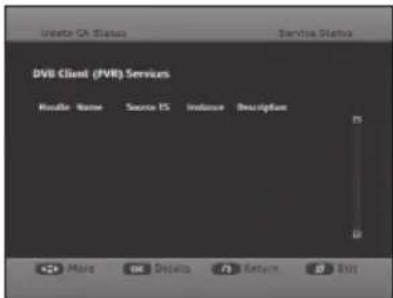

Service Status

It shows you the status of the digital broadcasting services as shown in the picture.

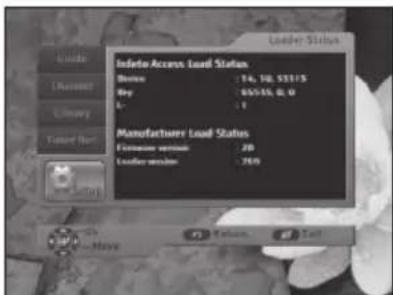

Loader Status

It shows you the load status of the access to smartcard and manufacturer as shown in the picture.

Components

It shows you information about smartcard components as shown in the picture.

AVAILABLE TV MANUFACTURER NUMBERS

1. TV button + 3-digit User Code
2. TV Operating buttons: TV STANDBY/ON, NUMERIC(0~9), CH / , VOL+/-, INPUT SEL.,

(MUTE)

TV

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

SAMSUNG 001 002 003 004 005 006 007 008 009

010 050 066 076 102 195 217 365 379

421

A.R. SYSTEMS 049 152

ACCENT 049 152

ACEC 112

ACURA 195

ADMIRAL 065 076 163 171 190 307 324 369 466

481

ADYSON 379

AGASHI 076379

AGEF 324

AIKO 049 076 102 141 152 172 195 225 379

AIWA 377459

AKAI 049050055066076102107123139

141 150 152 172 182 195 209 225 379

428 433 437 471 475

AKIBA 049123152380378

AKITO 049106152

AKURA 049076123195378426470

ALARON 042379

ALBA 018049050107123134163168195

225 232 379 413 421 457

ALBIRAL 371

ALCYON 407

ALLORGAN 050 094 236 379

ALLSTAR 049152

AMPLIVISION 113379421425

AMSTRAD 012 049 076 123 131 152 172 195 225

426 476

ANAM 049152195

ANAM NATIONAL 049152

ANGLO 076195

ANITECH 049 076 152 195 407

ANSONIC 045049107112152195210226391

413 421

ARC EN CIEL 074182186424453463

ARCAM 379424

ARISTONA 049050065079112152160

ARTHUR MARTIN 107 127 136 139 153 307 425

ASA 020 065 078 080 091 146 171 197 307

324 375 408 449

ASBERG 049152407

ASORA 195

ASTRA 195

ASUKA 050076123378379

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

ATLANTIC 049 050 071 113 152 236 379

ATORI 195

AUCHAN 107425

AUDIOSONIC 049 074 076 152 182 195 213 379 421

AUDIOTON 050076379421

AUSIND 090407

AUTOVOX 050 071 078 079 080 083 090 156 236

324 379 407 413 449 468 470

AWA 018049131152195226320379426

433

AYOMI 411

BAIRD 074102182209218379409

BANG&OLUFSEN 324483

BARCO 107371480

BASIC LINE 049107123195226378

BASTIDE 379

BAUR 049 107 150 152 172 247 249 357 414

454 470 475

BEKO 152241421433460

BEON 049152163

BEST 213421

BESTAR 049152226421

BINATONE 379

BLACKSTAR 413

BLACKTRON 378

BLACKWAY 378

BLAUPUNKT 057 060 113 247 249 345 451 454 481

BLUE SKY 049123152195217232378380457

BLUE STAR 378

BONDSTEC 413

BOOTS 050106379

BPL 049152378

BRANDT 014 074 182 186 218 424 436 452 462

BRANDT ELECTRONIC 074 453 463

BRANDT ELECTRONIQUE 074 182 186 453

BRINKMANN 049152163

BRIONVEGA 049 065 083 152 167 172 324 356 476

BRITANNIA 379

BROTHER 076

BRUNS 065324

BSR 094107110139168

BTC 123

BUSH 018 049 076 094 106 107 123 134 139

142 172 193 195 209 217 225 226 232

307 378 379 457 458 470 480

BUSH(UK) 107 168

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

CAPSONIC 049 076 152 380
CARREFOUR 018 177
CASCADE 049 064 152 195
CASIO 049 152
CATHAY 049 152
CCE 049 152 379
CENTURION 049 152
CENTURY 065 163 324 411 413 481
CGE 011 090 093 094 107 139 142 163 168
	346 348 369 407 413 421 480
CIHAN 217
CIMLINE 123 134 195
CITY 195
CLARIVOX 049 125 163
CLATRONIC 045 049 076 113 123 152 195 225 379
	407 413 421
CMS HIGHTEC 379
COMTEL 125 217
CONCORDE 195
CONDOR 045 049 050 113 152 163 195 210 378
	379 413 421 467
CONTEC 018 131 195 320 379
CONTINENTAL EDISON 014 074 182 186 232 424 453 462 463
COSMEL 195 213
CROSLEY 065 090 093 094 104 107 139 324 346
	348 407 413 469 481
CROWN 049 152 163 170 195 209 232 407 421
	470
CRYSTAL 477
CS ELECTRONICS 123 379 413
CTC 413
CTC CLATRONIC 045
CURTIS MATHES 126 190
CYBERTRON 123
DAENYK 042
DAEWOO 049 123 152 193 195 226 379 456 464
DAINICHI 123 379
DANSAI 049 076 141 152 195 379
DANSETTE 426
DANTAX 421
DATSURA 209
DAWA 049 152
DAYTON 049 152 195 226
DE GRAAF 107 139 209 307 479
DECCA 049 102 106 120 217
DECCA(UK) 046 049 050 102 106 131 152 379
DEITRON 049 152
DENKO 076
DENON 126
DERWENT 105
DESMET 049 113 152
DIGATRON 049

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

DIGILINE	049 152
DIXI	049 152 195 379 413
DORIC	104 105
DREAN	049 152
DTS 195
DUAL	049 050 107 139 152 156 168 182 243 379 414 417 424 468 470
DUAL TEC	040 050 168 195 379
DUMONT	045 065 080 102 139 146 324 375 379 449 469
DUMONT-FINLUX	020 045 078 091 104
DUX	049 112 152
DYNATRON	049 152
ELBE	049 107 123 152 172 210 243 369 391 411 421 435
ELBIT	217
ELCIT	045 046 062 065 104 107 150 168 324 413
ELECTA	076 378
ELECTRO TECH	195
ELEKTA	076 378
ELG 049 152
ELIN	020 049 107 139 152 172 195 379 470 479
ELITE	049 123 152 467
ELMAN	045 168
ELTA	195 076 379
EMERSON	012 042 049 065 113 152 225 324 378 413 475 481
ERRES	049 112 152
ESC	049 152
ETRON	049 107 139 152 195
EURO-FEEL 076
EUROMAN	049 076 152 379 421
EUROPA 049 152
EUROPHON	045 046 049 050 068 107 120 152 168 379 413
EXPERT	071 107 236 425
EXQUISIT	049 152 413
FAMILY LIFE	049 152
FENNER	152 195 226
FERGUSON 049 050 074	076 080 082 102 103 182 218 247 409 411 436 452 472
FIDELITY	049 050 076 107 152 225 307 379 475
FILSAI	050 379
FINLANDIA	033 139 172 197 209 307 375 470 474
FINLUX	020 042 045 049 078 080 090 091 102 104 107 139 146 152 163 197 210 324 375 379 407 408 428 429 437 449 469
FIRST LINE	045 049 094 102 107 134 139 152 191 195 209 210 226 379 411 413 457 470

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

FISHER 018 041 050 065 069 102 104 107 139 156 172 209 320 324 379 408 414 421 470

FLINT 049 102 123 152 380

FNR 045

FORMENTI 049 090 107 113 139 307 324 379 407 467 469 480 481

FORMENTI-PHOENIX 050 104 113 307

FORTRESS 190 324

FRABA 049 152 421

FRIAC 045 049 152 195

FRONTECH 066 076 139 195 307 379 413 466 470 477

FUJITSU 042 045 071 102 107 195 236 379

FUJITSU GENERAL 195 379

FUNAI 042 076 094

GALAXI 045 049 152

GALAXIS 045 049 152 163 421

GBC 104 107 139 168 195 226 480

GE 074 182 218 378

GEANT CASINO 107 425

GEC 049 102 104 107 120 152 171 172 307 379 470

GEC(UK) 046 050 102 107 150 162

GELOSO 062 104 107 139 168 171 195 226 307 413 469 481

GENERAL 064 074 182

GENERAL TECHNIC 195

GENEXXA 049 123 152 307 426 466

GOLDHAND 379

GOLDLINE 213

GOLDSTAR(LG) 049 050 055 107 139 152 168 172 182 195 219 379 413 414 421 460

GOODMANS 018 042 049 076 102 134 139 141 152 182 193 195 218 225 226 232 379 428 450 456 464

GORENJE 421

GPM 123

GRADIENTE 049 152 170 177

GRAETZ 049 090 104 136 139 152 153 162 171 172 198 225 307 466 469 475

GRANADA 013 018 033 041 049 102 104 105 112 120 152 171 172 198 209 218 238 241 307 379 407 425 470 471 472 474

GRANADA(UK) 046 050 090 107 139 162 307

GRANDIN 049 107 113 123 152 195 378 380 425 435

GRONIC 045 379

GRUNDIG 049 080 090 152 232 247 249 407 454 455

HALIFAX 076 379

HAMPTON 379

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

HANIMEX	094
HANSEATIC	018 049 050 094 104 107 113 152 172
	195 241 324 378 379 391 421 455 467
	470 475
HANTAREX	045 046 049 152 195
HANTOR	049 152
HARLEY DAVIDSON 042
HARWOOD 049 152 195 426
HAUPPAUGE	049 152
HAVERMY	190
HCM	049 076 123 152 163 195 378 379 426
HEMA	195 379
HEMMERMANN	150 470
HIFIVOX	074 182 186 424 453 463
HIGASHI	050
HIGHLINE	049 076 152
HIKONA	123
HINARI	012 018 042 049 066 094 107 123 134
	139 195 209 232 307
HISAWA	123 378 380 425
HIT	324
HITACHI	018 020 033 049 050 074 086 099 102
	104 107 110 126 127 139 150 152 162
	168 171 182 186 218 238 307 379 466
	469 470 472 479
HITACHI FUJIAN	013
HITSU 123 195 380
HORNYPHON	049 112 152
HOSHAI 123 380
HUANYU	193 226 379
HYGASHI	379
HYPER	050 168 195 379 413
HYPERSONIC	172
HYPSON	049 076 152 217 378 379 380 425
IBERIA	049 152
ICE	049 076 123 152 195 225 379
ICES	123 379
IMPERIAL	011 049 090 093 094 107 142 152 163
	168 307 346 348 369 407 413 421 470
	480
INDIANA	049 152
INGELEN	090 104 136 139 153 162 171 198 232
	435 466
INGERSOLL	195
INNO HIT	046 049 050 066 102 123 152 195 217
	379 407 413
INNOVATION	049 152
INTERACTIVE	210
INTERBUY	076 195 413
INTERFUNK	049 065 067 074 090 104 107 112 139
	150 152 153 172 182 307 324 413 421
	453 463 466 475

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

INTERNAL 049 152

INTERVISION 045 049 055 076 107 123 152 225 232378 379 380 413 421

IR 346

IRRADIO 049 066 090 123 152 195 407 413

ISUKAI 049 123 152 378

ITC 379 480

ITS 049 076 123 152 225 378 379

ITT 042 090 107 134 139 150 157 162 171172 193 197 198 209 307 375 428 466469 470 471 475 479

ITT-NOKIA 042 090 104 107 134 136 139 150 153162 171 172 193 197 198 209 307 375470 428 433 435 437

ITV 076 049 152 413
JEAN 018
JEC 141
JET POINT 365
JVC	018 103 123 170 182 225 409 433 439 465
KAISUI 049 050 123 152 195 378 379 380
KAMOSONIC	050
KAMP	379
KAPSCH	071 107 172 236 466
KARCHER 020 045 049 050 068 076 107 152 195 217 378 421 435

KATHREIN	455
KAWASHO 379
KB ARISTOCRAT	107
KENDO	045 049 055 134 152 172 210 413 421
	435 476

KENNDY	071 079 104 107 139 236 369 480
KINGSLEY	379
KLARMAX	371
KNEISSEL	049 152 210 243 369 391 411 421 435

KOLSTER	045 049 152 470
KONKA	049 123 152 225
KONTAKT	232
KORPEL	049 152
KORTING	065 094 113 324 421
KOSMOS	049 152
KOTRON	076 426
KOYODA	195
KRAKING	411
KRIESLER	050 065 079 112 152 160

KTV	050 379
KURO	445
KYOSHU	076 163 426
KYOTO	107
LECSON	049 152
LEMAIR	210
LENCO	049 107 152 195 226

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST
LENOIR	050 195
LESAL	413
LEYCO	049 076 094 102 152
LIESENK & TTER	049 112 152 345
LIFE	440 441 443 444
LIFETEC	049 076 123 152 195 226 440 441 443 444
LLOYD_S	195
LOEWE	035 049 089 120 152 324 391 421
LOEWE OPTA	035 046 049 065 120 144 152 213 324
LOGIK	131 225
LOGIX	195
LUMA	071 107 110 152 171 172 195 210 226 236 307
LUMATRON	049 076 107 152 172 236 379
LUX MAY	049 152 195
LUXOR	042 050 090 107 127 139 150 172 197 209 307 375 428 429 470 472 473 475
LYCO	076
MAAZ	371
MADISON	049 152
MAGNADYNE	045 046 062 065 104 107 120 139 150 168 324 413 469
MAGNAFON	045 046 050 068 090 120 379 407 481
MAGNAVOX	018 042 049 152
MAGNUM	440 441 443 444
MANDOR	076
MANESTH 076 094 113 134 141 152 379 467
MANHATTAN 049 195
MARANTZ	049 152 455
MARELLI	324
MARK	049 152 195 226 379
MASUDA	123 195 225
MATSUI	012 018 041 049 050 094 100 102 106 107 131 134 141 150 152 171 195 209 218 225 232 247 307 379 380 470
MAXIMAL	139
MAXWELL 371
MEDIATOR	049 112 152
MEDION	049 152 195 217 457
MEGAS	435
MEGATRON	126
MELECTRONIC	020 049 074 152 182 193 195 197 210 226 375 379 408 413 428 429 466 470
MELVOX	425
MEMOREX	099 195 217
MEMPHIS	102 125 195 213
MERCURY	049 152 195
METZ	049 065 067 070 092 247 324 412 420 454 481
MICROMAXX	049 152 195
MICROSTAR	440 441 443 444

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

MINERVA 080 090 232 247 249 407 454
MINOKA 049 152 426 470
MITSUBISHI 013 018 049 065 105 131 152 157 190
MIVAR 046 050 058 072 081 090 120 379 391
MONACO 195
MORGAN S 049 152
MOTION 407
MOTOROLA 190
MTC 152 379 421 470
MTEC 106
MULTISTANDARD 045
MULTITEC 049 152 195
MULTITECH 045 046 049 050 120 152 195 379 407
MURPHY 102 104 105 107 171 307 379
MURPHY(UK)	162
MUSIKLAND	123
MYRYAD	455
NAD	172 209 475
NAIKO	049 152
NAKIMURA	049 152 226
NAONIS	040 071 079 110 171
NAT 085 151
NATIONAL	033 085 104
NEC	018 049 113 131 152 177 195 226 379 380
NECKERMANN	011 049 050 065 107 139 152 163 210 247 249 307 324 357 379 413 421 455 470 481
NEDIATOR	152
NEI	049 125 152 225 477
NESCO	042 413
NETSAT	049 152
NETWORK	213
NEUFUNK	049 152 195 435
NEW TECH	049 050 152 182 195 379
NEW WORLD	123
NICAMAGIC	379
NIKKAI	018 049 076 102 123 125 139 141 152 195 213 379 066
NOBLEX	049 076 152
NOBLIKO	045 050 080 090 379 407
NOGAMATIC 074 182 186	424 453 463
NOKIA	090 104 107 134 136 139 150 153 157 162 171 172 193 197 198 209 226 307 375 428 429 433 437 465 470 475 478 479
NORDMENDE	049 074 083 150 152 182 186 218 247 307 424 453 463 469 481
NOVATRONIC	020 049 152 226

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

OCEANIC 086 094 104 107 108 109 139 172 209
425 466 469 475
OCEANIC(F)	150
ODEON	076
OKANO 049 076 102 152 421
OMEGA	076
ONCEAS 050
ONWA	123 225
OPERA	049 152
OPTIMUS 099
OPTONICA	190
ORBIT	049 152
ORION	012 042 045 049 076 094 113 131 134 139 150 152 191 195 216 366 367 426 467
ORLINE	049 123 152
ORMENTI-PHOENIX	104
ORMOND	195
OSAKA	066
OSAKI	049 066 076 102 106 123 152 226 379 426
OSIO	049 152
OSO	123
OSUME	018 102 123
OTAKE	450
OTTTO VERSAND	018 049 050 074 094 104 107 113 134 139 152 172 190 218 247 249 357 362 379 413 414 454 455 467 469 470 480 481
P.T ACTRON	217
PAEL	050 379
PALLADIUM	049 107 152 163 210 247 324 357 379 413 421 470
PALSONIC	049 055 076 152 379 426
PANAMA	049 076 152 195 379 413
PANASONIC	016 049 099 104 107 139 151 152 172 396 420 466 469 481
PANAVISION 049 152 210
PATHE CINEMA	107 113 379 391 411 425 467 470 48 481
PATHE CINEMA(F)	050 168
PATHE MARCONI	014 074 182 186 424 453 462 463
PAUSA	195
PAUZA	195
PERDIO	049 102 107 113 152 467
PERFEKT	049 152
PERSHIN	425
PHILCO 011 016 049 065	090 093 094 104 107
	126 142 152 163 168 324 346 348 369
	407 413 421 480 481
PHILEX	471
PHILHARMONIC	379

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

PHILIPS 014 049 050 065 079 089 112 152 160
	182 193 216 217 220 226 247 249 324
	427 455 482
PHOENIX 049 050 102 104 107 113 152 324 379
	421
PHONOLA 049 050 065 079 112 152 160 324 379
PILOT 049 152
PIONEER 049 074 152 172 182 209 218 307 421
	427 466
PLANTRON 049 076 152 195
PLAYSONIC 379
POLICOM 074
POPPY 195
PORTLAND 226
POWERPOINT 232
PRANDONI-PRINCE 046 090 120 171 172 307 407 413
PRECISION 379
PREMIER	142
PRIMA	076 195 307
PRINCE	046 171
PRINZ	102 470
PROFEX	107 139 195 407 475
PROFI-TRONIC	045 049 152
PROLINE	049 102 112 191 366 436
PROSONIC	049 085 151 152 195 225 226 379 421
PROTECH	045 049 076 125 139 152 163 195 379
	413 457 470 477 480
PROVISION	049 152
PYE	050 065 079 112 152 160 226 324
PYMI	049 112 152 195 226 324
QUADRA VISION	425
QUASAR 045 046 068 099 413
QUELLE	018 020 049 050 074 076 078 080 090
	091 094 113 131 139 146 150 152 153
	172 195 247 249 320 345 346 348 357
	379 408 413 449 451 454 470 475 480
	481
QUESTA	018
RADIALVA	049 074 107 123 152
RADIOLA	014 049 050 065 079 112 152 160
RADIOMARELLI	045 046 062 065 104 105 150 152 168
	324 413
RADIONETTE	020 150
RADIOSHACK	049 152
RADIOTONE	049 076 152 163 195 421 426
RANK ARENA	018
RCA	190 218 436
RECOR	049 152
RECTILIGNE	049 152
REDIFFUSION	018 059 104 105 139 171 172 307 471
	475
REDIFFUSION(UK)	150 162

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

REDSTAR	049 152
REFLEX	049 152
REOC	460
REVOX	049 152 421
REX	040 071 079 107 110 152 171 210 236 243 307 413 466
RFT	076 102 241 324 391 421
RHAPSODY	379
R-LINE	049 152
ROADSTAR 049 076 123 152 163 195
ROBOTRON	065 324
RODEX 049 152
ROWA	458
ROWSONIC	050
ROYAL LUX 421 426
RTF	065
SABA	046 065 074 077 107 120 139 172 182 186 218 307 324 424 436 452 453 463 466 469 481
SACCS 411
SAGEM	378 380 435
SAISHO	012 050 076 107 131 134 195 307 379 477
SALORA	033 107 127 136 139 150 153 171 172 198 209 307 466 470 472 474 475 479
SAMBERS	045 046 068 090 120 407 481
SANDRA	379
SANELA	411
SANSUI	049 152 225
SANTON	195
SANYO	018 020 041 049 050 065 102 107 131 152 195 198 209 320 379 391 408 421 481
SAVE	049 152
SBR	049 112 152
SCHAUB LORENZ	090 104 136 139 153 162 171 198 307 433 469 470 475
SCHNEIDER	014 040 049 050 065 069 079 104 107 112 123 139 152 156 160 168 172 182 195 225 243 307 379 382 413 414 417 457 468 470
SCOTT	042
SEARS	042
SEG	018 045 049 050 076 107 152 172 195 232 379 413 407 457 480
SEI	012 045 049 094 107 139 152 236 324 357 469 470 481
SEI SINUDYNE	446
SELECO	040 071 079 107 110 152 171 172 210 236 243 307 369 466 476
SENCORA	195
SENTRA	123 139 141 195

Maker (BRAND) NAME CODE NUMBER (3DIGIT) LIST

SERINO 380435

SHARP 018 094 170 190 320 362

SHORAI 042 094

SIAM 049152

SIAREM 045 046 065 104 107 120 139 324 469

481

SIEMENS 018 049 066 113 152 247 249 307 320

345 451 454 469 481

SIERA 050 065 079 112 152 160

SIERRA 049112152

SIESTA 421

SILVA 049152379

SILVER 018 042 049 076 152 172

SINGER 045 049 065 104 152 195 324 369 413

425

SINUDYNE 012 045 065 094 104 107 134 139 150

152 172 210 216 236 324 357 366 367

469 470 481

SKANTIC 307472473

SKY 049152

SKYWORTH 448

SOGERA 113

SOLAVOX 066102107139172307466471

SONAWA 123

SONITRON 209379421

SONNECLAIR 049152

SONOKO 049 050 076 152 195 378 379

SONOLOR 107 139 172 209 357 425 466

SONTEC 049094152421

SONY 018045131211346357358370

SOUND & VISION 045 123 226

Problem Possible	cause Solution of the problem
No display on the front panel;No power supply	Power cord not plugged in correctly.	Power cord plug in correctly.
No pictures on the screen. Receiver in Standby mode;SCART not connected tightly to video output of television;Incorrect channel or video output selected on television.		Set Receiver to "On"; Check connection and correct; Check channel and video output and correct. (TV instruction manual)
No sound. Audio cord connected incorrectly;Volume level = 0;Muting active.		Check connection and correct; Increase volume on television set;Press the×(MUTE) button.
Remote Control does not operate directly.	TV mode is selected.Incorrect operation;Batteries dead or inserted incorrectly.	Press the STB button. Point remote control toward the Receiver. Replace batteries or insert correctly.
Poor picture. Signal strength too low. Check the signal strength in the Info Menu, correct alignment of your antenna.
On-Screen Error Message"No signal."	Antenna cable not connected or not tight;Incorrect connection of the antenna.	Check connection and correct; Check the signal strength in the Info Menu.
On-Screen Error Messages:“Please insert Samrtcard.”	Smartcard:- not plugged in correctly;- not plugged in.	(dependently on models)Check the Smartcard."Insert the Smartcard."
On-Screen Error Message“No access”	No access to this channel. Check that you subscribe to this channel. If the STB has been switched off for a longer period of time, turn on the STB, select any channel, and wait for authorization for up to 60 minutes.

DISPOSAL

The device, packaging material (e.g. Styrofoam) and the batteries must never be disposed of with household refuse.

Please obtain appropriate information about the regulations in your community, and dispose of all refuse in accordance with regulations at the separate locations provided.

TECHNICAL SPECIFICATIONS

Power Supply

Type: SMPS

Input voltage: AC 230V~, 50/60 Hz

Fuse rating: 250V/T1.6AH

Power consumption: Max. 30W

Stand by: 18W

Tuner & Demodulator

Input frequency: VHF, UHF BAND (50~870 MHz)

Demodulation: QAM DVB-C

Symbol rate: MAX 7 Msps

Constellation: 16, 32, 64, 128, 256 QAM

Cable out: Loopout for analog receiver

RF Input

Input connector: IEC, Female

Frequency range: 50 860MHz

Input signal level: -78 ~ -20 dBm

Loop through:

50~860MHz

-78~-20 dBm

50~860 MHz, IED, Male

Video Decoder

System decoding:

MPEG 2 ISO/IEC 13818

(Transport Stream)

Profile and level: MPEG 2 MP@ML (4:2:2)

Data rate:

1~15 Mbs

Video formats:

4:3 (normal) and 16:9 (wide screen)

Picture resolution:

720(H) x 576(V) x 50 fields/sec

Audio Decoder

System decoding:

MPEG 1 ISO/IEC 11172~3 layer I & II

Audio mode: Mono, Dual, Stereo, Joint stereo

Sampling frequency: 32, 44.1, 48kHz

Note : The specification of the STB may be changed without notice in advance.

BASE-BAND AUDIO/VIDEO OUTPUT

A/V Output

SCART(TV):VIDEO(CVBS/RGB),AUDIO L/R

SCART(VCR) :VIDEO(CVBS), AUDIO L/R

RCA JACK:VIDEO(CVBS),AUDIO L/R

DIGITAL AUDIO OUTPUT: OPTICAL

MEMORY

Flash: 8MB

SDRAM: 64MB

BUILT-IN HDD 160GB

ACCESS EXTERNAL HDD USB2.0 (HOST)

PLAYABLE CONTENTS FILE FORMAT

Music: MP3

Photo: JPG

PHISICAL SPECIFICATION

Size (W x D x H): 381 x 267 x 60 mm

Weight (Net): 3.1 Kg

Note: Actual formatted capacity may be less than what is marked on box and manual. (1GB=1billion byte)
