Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

1. Important safety information....65
2. Quick operation guide 70
3. Operation Instruction 74
4. Prior using for the first time....76
5. Loading the Dishwasher Baskets....86
6. Starting a washing program....92
7. Maintenance and Cleaning....97
8. Installation instruction 103
9. Troubleshooting Tips 107
   Disposal of old electrical appliances 118

Read this Manual

Dear Customer,

• Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
• Keep it to refer to it at a later date.
  • Pass it on to any subsequent owner of the appliance
  This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

• To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• This user manual shall also be got from the manufacturer or responsible vendor.

1. Important safety information

WARNING!

When using your dishwasher, follow the precautions listed below:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out children unless they are supervised.
• If the power cord is damaged, it must be replaced by the manufacturer, their after-sales service or a qualified professional in order to avoid any hazards.
• This appliance is designed to be used for domestic and similar purposes, such as:
• kitchens used by employees in shops, offices and other working environments;
• farms;
• use by guests of hotels, motels and other residential environments;
• other bed and breakfast-type accommodation;

- The door must not be left open as this presents a risk of tipping.

- CAUTION: Knives and other sharp utensils must be placed

face down in the basket, or horizontally.

• The ventilation openings must not be obstructed by a mat.
• The appliance must be connected to the water distribution network using new sets of pipes, and used sets of pipes should not be used.
  • The maximum number of cutlery sets to wash: 10
  • Water supply pressure: 0.04–1 MPa.
• Only use connection assemblies that conform to standard EN 61770 and which are recommended in the country.
• For cleaning instructions, please refer to paragraph in the notice below.
• For how to load the dishwasher, please refer to paragraph in the notice below.

EARTHING INSTRUCTIONS

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance; If it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• Check that the detergent powder is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
• For plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher.

• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

• Children should be supervised to ensure that they do not play with the appliance.

• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
• The maximum number of place settings to be washed is 10.
• The maximum permissible inlet water pressure is 1MPa.
• The minimum permissible inlet water pressure is 0.04MPa.

Disposal

• Dispose of the dishwasher packaging material correctly.
• All packaging materials can be recycled.
• Plastic parts are marked with the standard international abbreviations:
  PE — for polyethylene, e.g. sheet wrapping material
  PS — for polystyrene, e.g. padding material
  POM — polyoxymethylene, e.g. plastic clips
  PP — polypropylene, e.g. Salt filler
  ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

In accordance with directive DEEE 2012/19/CE concerning the environment, it is forbidden to dispose of used electric or electronic appliances in nature or at regular public

waste disposal sites. You are required to take it to a designated recycling centre.

2. Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance↓Fill the deter-gent dispenser↓Check the rinse aid level	Open the door, Press the Power switch button to switch on the appliance.
	Compartment A:With each wash cycle.Compartment B: For programmes with pre-wash only.(Follow the user instructions!)
	Mechanical indicator C.Electric indicator on control panel (if provided).
↓Check the regeneration salt level	(On models with water softener system only.) Electric indicator on control panel (if provided).If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run.

Load the baskets	Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.
Select a programme	Press the programme button until the selected programme lights up. (See the section entitled "Operation instruction")
Running the dishwasher	Close the door, turn on the water tap. The machine will start working.
Changing the programme	1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be refilled.2. Open the door slightly, then press the program button more than 3 seconds to cancel the running programme.3. Select a new programme.4. Close the door, restart the dishwasher.
Add forgotten dishes in the dishwasher	1. Open the door slightly.2. You can open the door completely until the spray arms stop.3. Add the forgotten dishes.4. Close the door, the dishwasher will start running again.
If the appliance is switched off during a wash cycle.	If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).
Switch off the appliance	When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.Turn off the appliance using the ON/OFF button.Since the appliance is standing by, it will power off automatically after 30 minutes without any operation

Turn off the water tap, unload the baskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better. Unload the appliance, starting from the lower basket.

3. Operation Instruction

IMPORTANT

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Control Panel

1 2 3 4 5 6 7 8

1. Power Button: To turn on/off the power supply.
2. Function Screen: To show the delay time, Extra drying Express indicators, Alt indicators, Salts and Rinse and warning;
3. Program indicators: to show the program.
4. Alt Button: Dual zone wash function, press the button to select either upper basket or lower basket loaded, and the response indicators will light on.
5. Option Button: to select option the Extra Drying or Express function with the main program being selected.

6. Delay Button: To touch the button to delay, delay time will be increased by discontinuous or continuous touch, maximum 24 hours delay can be defined.

7. Program Button: To press the button to select appropriate Program.

8. Washing phase indicators: Prewash, Mainwash, Rinse, Drying indicators, Prewash phase have two lights bright, Mainwash phase have four lights bright, Rinsephase have six lights bright, Drying phase have eight lights bright, Eight lights go out after washing finished

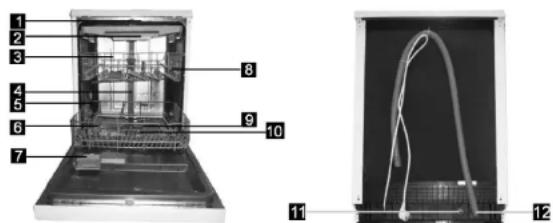

Dishwasher Features

Labeled diagram of a multi-chamber refrigerator with numbered parts and internal wiring, shown in two views.

Front view Back View

1. Top spray arm
2. Cutlery rack
3. Upper basket
4. Inner pipe
5. Lower basket

6. Salt container

7. Dispenser

8. Cup shelf
9. Spray arms
10. Filter assembly
11. inlet pipe connector
12. Drain pipe

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill the rinse aid dispenser
D. Fill in detergent

A. Water Softener

• The water softener must be set manually, using the water hardness dial.
• The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
• The higher the content of these minerals and salts, the harder your water is.
• The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Open the door .Switch on the appliance;
2. Press the Program button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on (The Salt and Rinse aid warning lights will be on periodically when it get in the set model);
3. Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the Power button to end the set up model.

WATER HARDNESS				Selector Position	Salt consumption (gram/cycle)
°dH °fH °Clarke mmol/l
0-5 0-9 0-6	0-0.94 H1 0
6-11	10-20	7-14	1.0-2.0	H2	9
12-17	21-30	15-21	2.1-3.0	H3	12
18-22	31-40	22-28	3.1-4.0	H4	20
23-34	41-60	29-42	4.1-6.0	H5	30
35-55	61-98	43-69	6.1-9.8	H6	60

Note: 1

1"dH=1,25°Clark=1.78°fH=0.178mmol/l

°dH: German degree

°fH: French degree

°Clark: British degree

Note: 2

The manufactory setting: H3 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

- Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

- Only fill with salt just before starting one of the complete washing programs.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1

2

A. After the lower basket has been removed, unscrew and remove the cap from the salt container.
B. Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C. Full fill the salt container with water. It is normal for a small amount of water to come out of the salt container.
D. After filling the container, screw the cap tightly back clockwise.
E. The salt warning light will stop being after the salt container has been filled with salt.
F. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

1. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can

estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4 full
◎ 1/2 full
1/4 full -

Should refill to eliminate spotting

○ Empty

C (Rinse-Aid indicator)

1. To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

Adjust lever (Rinse)

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Attention!

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers.

Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6^ dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

– conventional, alkaline detergents with caustic components
– low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

NOTE:

• If the lid is closed: press release button. The lid will spring open.
  • Always add the detergent just before starting each wash cycle.
• Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A. The place of main wash cycle detergent placed.
B. The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage.

Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

• You find information about the amount of detergent for the single programme on the last page.
• Please aware, that according to the level soiling and the specific hardness of water differences are possible.
• Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
• For particular items, select a program with as low a temperature as possible.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
  • Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
  • Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres

Are of limited suitability

• Some types of glasses can become dull after a large number of washes
  • Silver and aluminum parts have a tendency to discolour during washing
• Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

• Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.
• It is not necessary to rinse the dishes under running water.
• Place objects in the dishwasher in following way:
• Items such as cups, glasses, pots/pans, etc. are faced downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
• All utensils are stacked securely and cannot tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the lower basket.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

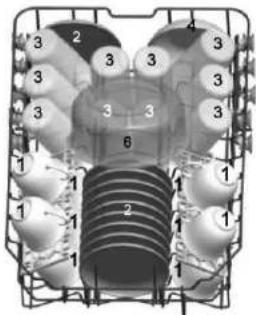

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

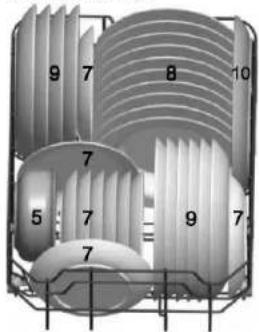

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Please be reminded that:

• Pots, serving bowls, etc, must always be placed top down.
• Deep pots should be slanted to allow water to flow out.
• The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

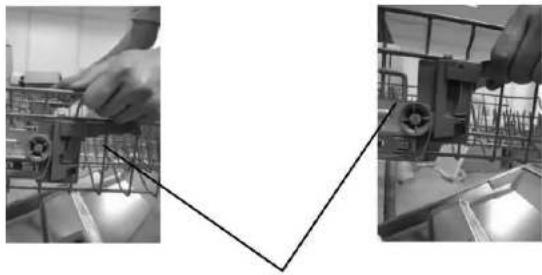

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket.

The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Two-panel black-and-white photo showing hands operating a mechanical device in a factory setting, with no visible text or symbols.

Lift the basket for upper position
Adjust handle Up press the handle to lower the basket

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Cutlery Basket

WARNING!

• Do not let any item extend through the bottom.
  • Always load sharp utensils with the sharp point down!

For a top quality cleaning, place the silverware in the basket making sure that:

• They do not nest together.
• Silverware Is placed with the male face up.
- Long utensils in the middle.

6. Starting a washing program

Wash Cycle Table

NOTE: () Means: need to fill rinse into the Rinse-Aid Dispenser.

Program Cycle Selection Information		Description of Cycle	Detergent pre/maln	Running time(min)	Energy (Kwh)	Water (L)	Rinse Ald
AUTO	Auto sensing wash, lightly, normally or heavily soiled crockery, with or without dried-on food.	Pre-wash (45°C) Autowash (45-55°C) Rinse Rinse(65°C) Drying	3/22g (1 piece)	150 0.9-1.3	9.5-13		★
Intensive For heaviest soiled crockery, and normally soiled pots> pans^ dishes etc with dried on soiling.		Pre-wash(50°C) Wash (60°C) Rinse Rinse Rinse(70°C) Drying	3/22g (1 piece)	170 1.4	15.5		★
Normal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.		Pre-wash(45°C) Wash (55°C) Rinse Rinse (65°C) Drying	3/22g (1 piece)	180 1.1	12		★
ECO (*EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash (45°C) Rinse(65°C) Drying	3/22g (1 piece)	195 0.74	8		★

Program Cycle Selection Information		Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Glass For lightly soiled loads, such as glasses, crystal and fine china.		Pre-wash Wash (40 °C) Rinse Rinse(60°C) Drying	3/22g (1 piece)	125 0.75 12			★
90 min For lightly soiled loads that do not need excellent drying efficiency.		Wash(65°C) Rinse Rinse (65°C) Drying	25g 1 piece	90 1.15 11.5			★
Rapid A shorter wash for lightly soiled loads that do not need drying.		Wash (45 °C) Rinse (50 °C) Rinse (55 °C)	20g 30 0.7 10 /
Soak To rinse dishes that you plan to wash later that day		Pre-wash	/	15 0.02 3.5	/

NOTE:

*EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

• Capacity: 10 setting
• Position Upper basket: upper wheels on rails
- Rinse aid setting: 6
• PI:0.49W; Po:0.45W.

Left-on mode duration: Power will be cut off automatically after program finished for 30 minutes.

Turning On the Appliance

Starting a cycle wash

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the up-

per one (see the section entitled "Loading the Dishwasher").
2. Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
3. Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4. Press the program button, the wash program will be changed as follows direction:
5. If a program is selected, the response program indicator will light, then you can also choose the desired function, close the door, the dishwasher will begin work after about 1 seconds.

$$ \begin{array}{l} \text { ECO - > Glass - > 90min - > Rapid - > Soak - > Auto - > Intensive- } \ \text { >Normal; } \end{array} $$

Change the Program

Premise:

1. A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").

2. Open the door, the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled

"Starting a wash cycle...").

The front indicator shows the state of dishwasher:

A. blue light with blinking: running;
B. blue light without blinking: pause;
C. no light: stand by

NOTE: If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and buzzer will mooing every minute unless you close the door. For you close the door, the machine will keep on working. Our model has broken remember function, the machine will finish to finish the selected program after the power cut.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1. Open the door a little.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door.
5. The dishwasher will run again.

At the end of the Wash Cycle

When the working cycle has finished, the buzzer of the dish-washer will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and

open the door of the dishwasher.

Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

- Switch Off the Dishwasher

Front indicators are off, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the Power button.

2. Turn off the water tap!

- Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

- Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump.

The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being deposited on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.

For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.

To remove the filter device, pull the cup handle in the upward direction.

WARNING!

• The dishwasher must never be used without the filters.
• Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Step 1: Turn the filter in anti-clockwise direction,

Step 2: lift the filter assy up

NOTE: When following this procedure from step 1 to step

2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

- Inspect the filters for blocking after every time the dishwasher has been used.

- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a k.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

To clean the edge around the door, you should use only a soft warm, damp cloth.

To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
• Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, we contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

• After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

- Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

• No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products.

Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

- When not in Use for a Long Time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

- Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

- Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for leveling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.

About Power Connection

WARNING!

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

103102

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Insure proper ground exists before use

GB

Water Connection

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING! Please close the hydrant after using.

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

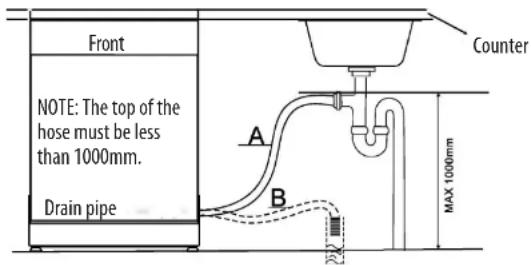

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

Front NOTE: The top of the hose must be less than 1000mm. Drain pipe Counter A B MAX 1000mm

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.

Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1. The dishwasher is level and fixed properly
2. The inlet valve is open
3. Fill hose connections are fully tightened and not leaking
4. The wires are tightly connected
5. The power is switched on
6. The inlet and drain hoses are knotted
7. All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

	Problem Possible Causes What to Do
Technical problems	Dishwasher doesn't start fuse blown, or the circuit breaker acted		Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
			Power supply is not turned onMake sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
			Water pressure is low Check that the water supply is connected properly and the water is turned on.
			Door of dishwasher not properly closedMake sure to close the door properly and latch it.
	water not pumped from dishwasher	Kink in drain hose Check drain hose.
		Filter clogged Check the coarse filter (see section titled « Cleaning The Filter»)
		Kitchen sink clogged Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers
	Problem Possible Causes	What to Do
General problems	Suds in the tub Improper detergent Use only the special		dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step. Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
			Spilled rinse-aid Always wipe up rinse-aid spills immediately.
	Stained tub interior Detergent with colourant was used		Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.
		A programme was not run after dishwasher salt was added.Traces of salt have gotten into the wash cycle.	Always run the quick wash programme without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt,
		The lid of the softer is loose	Check the lid .Ensure the fix is fine.

	Problem Possible Causes	What to Do
Noise	Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme, and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function, if in doubt, contact a suit-ably qualified plumber.
Unsatisfactory washing result	The dishes are not clean	The dishes were not loaded correctly.	See notes in “Loading the Dishwasher Baskets”.
		The programme was not powerful enough.	Select a more intensive programme. See" Wash Cycle Table".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly. Clean the spray arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cups.	Re-loading the dishes properly.
	Problem Possible Causes What to Do
Unsatisfactory drying result	The dishes are not drying Improper loading Load the dishwasher as suggested in the directions.
	Too little rinse-aid Increase the amount of rinse-aid/refill the rinse-aid dispenser.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water from dropping off dishes in the upper basket.
	Wrong program has been selected	In short program the washing temperature is lower. This also lowers cleaning performance. Choose a program with a long washing time.
	Use of cutlery with a low-quality coating	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dish-washer.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings Possible Causes
E1	Longer inlet time. Faucets are not opened, or water intake is restricted, or water pressure is too low.
E4	Overflow. Some element of dishwasher leaks.
E8	Divider vale failed Divider vale failed

WARNING!

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

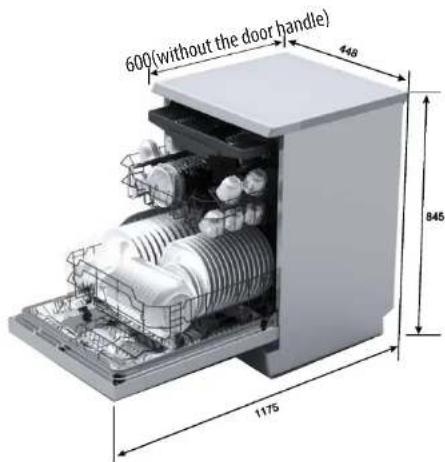

Technical Information Loading the baskets according to En50242:

600(without the door handle) 448 845 1175

Height: 845mm
Width : 448 mm
Depth : 600mm(without the door handle)
Water pressure: 0.04–1.0MPa
Power supply: see rating label
Capacity: 10 place settings

1. Upper basket:


Technical diagram of a mechanical or electrical component with numbered parts and internal structure

1. Lower basket:


9 7 8 10 5 7 9 7 7

Cups1Saucers

3Glasses

4Small serving bowl

5Medium serving bowl

6Large serving bowl

7Dessert dishes

8Dinner plates

9Soup plates

10Oval platter

1. Cutterly basket:


Technical diagram of a mechanical or electrical component with numbered parts and internal structure annotations

1 Soup spoons

4 Teaspoons

5 Dessert spoons

6 Serving spoons

7 Serving forks

8 Gravy ladles

Information for comparability tests in accordance with EN 50242

Capacity: 10 place settings

Position of the upper basket: lower position

Programme: ECO

Rinse aid setting: 6

Softener setting: H4

Cutlery basket could have 2 positions:

Mode 1 Position one: lift the left basketup, the left basket is sideling.

Mode 2 Position two: adjust the leftbasket to lower position, andthe left basket is flat.

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer SABA
Type / Description LV10C44MINI	-PLIX
Standard place settings 10
Energy efficiency class 1 A++
Annual energy consumption 2	11 kWh
Energy consumption of the standard cleaning cycle	0.74 kWh
Power consumption of off-mode	0.45 W
Power consumption of left-on mode	0.49 W
Annual water consumption 3	2240 liter
Drying efficiency class 4 A
Standard cleaning cycle 5 ECO 45°C
Program duration of the standard cleaning cycle	195min
Noise level 44 dB(A) re 1 pW
Mounting Free standing
Could be built-in Yes
Height 84.5 cm
Width 44.8 cm
Depth (with connectors) 60 cm
Power consumption 1760-2100W
Rated voltage / frequency 220-240 V~ / 50 Hz
Water pressure (flow pressure) 0.4-10 bar = 0.04-1 MPa

NOTE:

1. A++ + (highest efficiency) to D (lowest efficiency)
2. Energy consumption "211" kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3. Water consumption "2240" litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4. A (highest efficiency) to G (lowest efficiency)
5. This program is suitable for cleaning soiled normally soiled

tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery (If the version number is not in conformity with the latest standards, please refer to the latest version number.):

• LVD 2014/35/EU
• EMC 2014/30/EU
• ERP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions.

Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

Disposal of old electrical appliances

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be elected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on an health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

CE
