USER MANUAL Arnova 7 G2 ARCHOS

ENGLISHP/N: 109860 NEED HELP? As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. On our Website: See the Frequently Asked Questions section on http://arnovatech.com/faq

Contact our Technical Support Team: Visit http://arnovatech.com/support for e-mail support. Please register your product before contacting Technical Support (see Register your Product

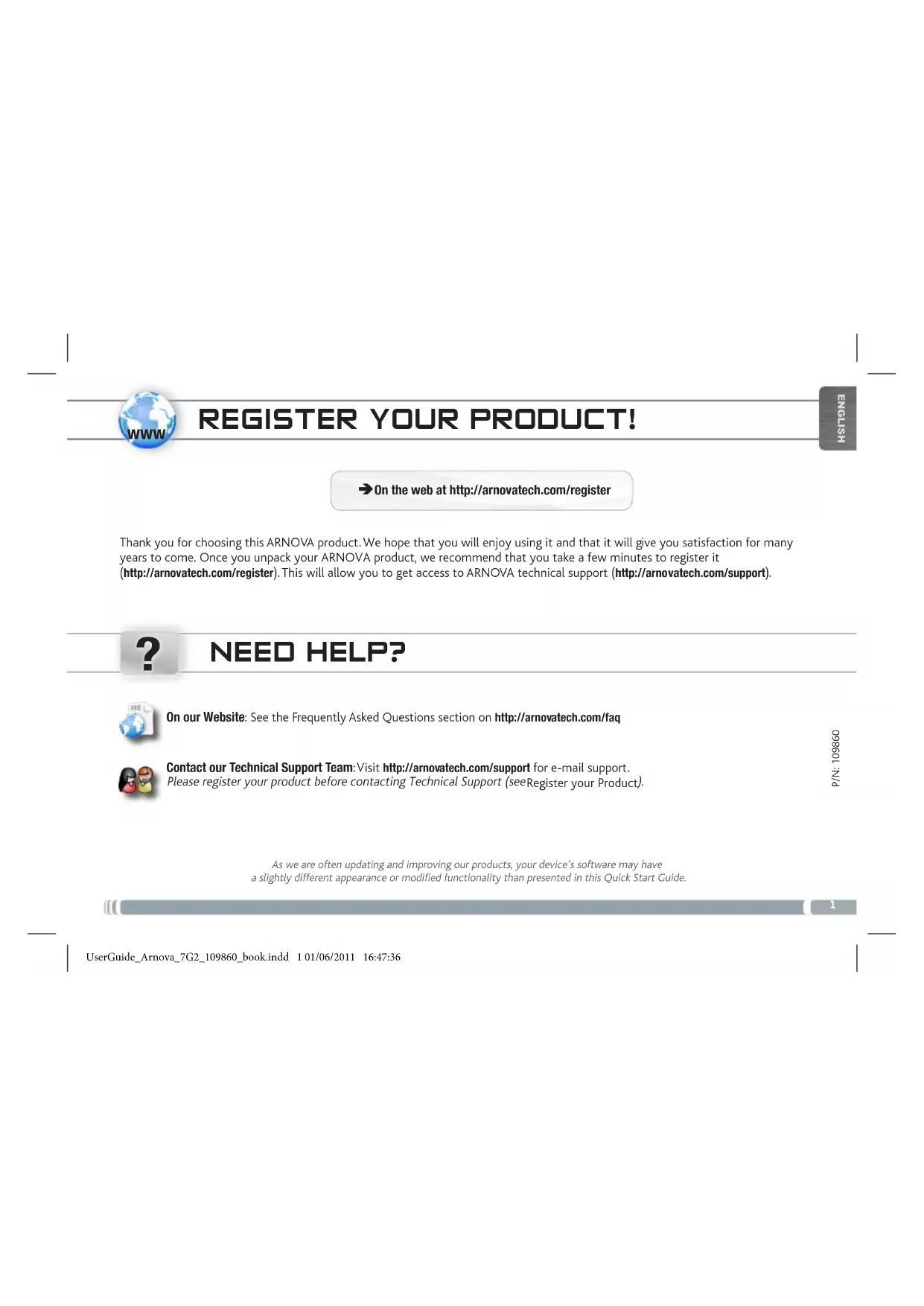

REGISTER YOUR PRODUCT! Thank you for choosing this ARNOVA product. We hope that you will enjoy using it and that it will give you satisfaction for many years to come. Once you unpack your ARNOVA product, we recommend that you take a few minutes to register it (http://arnovatech.com/register). This will allow you to get access to ARNOVA technical support (http://arnovatech.com/support). ÄOn the web at http://arnovatech.com/register UserGuide_Arnova_7G2_109860_book.indd 1 01/06/2011 16:47:362

Power/Lock: slide left and hold to switch on/off. Slide right to lock the device’s touchscreen. When you slide left and hold, a window appears with a list of options (when the product is on). Tap on “Power Off” to fully shut down your ARNOVA. Tap on “Suspend” to put the device in standby (and allow a quick start up when you next tap the screen). While the device is in suspend mode, slide right to lock the device with its screen off. This can be useful if your ARNOVA is in your backpack, for example, and you do not want to wake it up by touching the screen by accident. Micro-SD card reader Charging indicator: Red light: battery charging / Yellow: battery charged. Loudspeakers Headphone jack Power connector: to connect the supplied power cable. Micro-USB port: to connect your ARNOVA to your computer, using the included USB cable (to transfer files). You can also con- nect a keyboard, a mouse or a mass storage USB device. Go on the Home screen, tap on the Menu icon , then select Settings/ USB Mode select. If the Host port is off, tap on the Host port line to turn it on. Important: turn off the Host port after use. Leg stand: pull it out, and it will allow your ARNOVA to stand by itself on a flat, stable surface. IMPORTANT: Your device is frozen.You can turn it off. Slide and hold to the left the ON/OFF button for 10 seconds or press the reset button. UserGuide_Arnova_7G2_109860_book.indd 2 01/06/2011 16:47:403

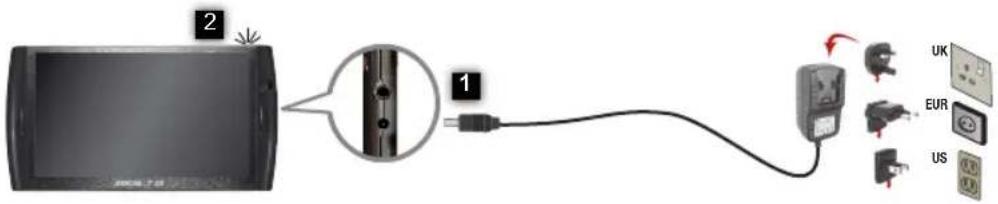

ENGLISH STARTING UP Installation Wizard The first time you start up your ARNOVA, the installation wizard will bring you through a few screens to help you set up the principal settings: Language, country, time, etc. Before using your ARNOVA for the rst time, completely charge the battery! Charging the Battery Connect the supplied power cable to the ARNOVA Power connector and to a wall outlet. The ARNOVA device will turn on and start charging. The Power indicator light is red while the battery is charging. It will turn yellow when the battery is fully charged.UserGuide_Arnova_7G2_109860_book.indd 3 01/06/2011 16:47:424

For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARNOVA is in range of a network that you have already configured once, it will attempt to make a connection.

• For free access WiFi points, there is no need to enter any special information. For secured networks, you will need either a key (a series of numbers and/or letters) of the type WEP, WPA, or WPA2. To obtain the exact connection parameters required, contact the Internet service provider. To configure a new WiFi network, go on the Home screen, tap on the Menu icon , then select Settings . In the Settings screen, select Wireless & networks. If the WiFi is off, tap on the Wi-Fi line to turn it on. Then select Wi-Fi settings. The ARNOVA will scan for available WiFi networks and display them at the bottom of the screen. Tap on the network you want to connect to, enter the required network information* and then tap on Connect. Your ARNOVA will now attempt to establish a connection to that WiFi hot spot with the network parameters you entered. UserGuide_Arnova_7G2_109860_book.indd 4 01/06/2011 16:47:445

Top bar of the Interface (varies according to the screen you are in) Return to the Home screen Return to the previous screen Menu: gives menu options ac- cording to the current screen. Your ARNOVA device is equipped with a capacitive touchscreen. Use your finger pulp to navigate. Status icons: (WiFi connection status, battery level, etc.) Notification icons: drag the top bar downwards to reveal the notification messages (if any). These are the default Android™ shortcuts (Web Browser, EMail, etc.). Tap on an icon to open the correspond- ing application. You can customize the Home screen by adding/removing shortcuts and widgets, changing the wallpaper, etc. See next page. Home Screen Application button Tap on this icon to reveal all the An- droid™ applications installed on your ARNOVA (games, various tools, etc.). You can copy them onto the Home screen. You can get more Android™ applications from AppsLib . Time Volume -/+ Settings shortcut Web browser shortcut UserGuide_Arnova_7G2_109860_book.indd 5 01/06/2011 16:47:456 ENGLISH Customizing the Home screen items - To add a Home screen item (shortcuts, widgets, etc.), hold your finger on the screen at an empty location, then choose from the list. You can also tap on the Menu icon and select Add , at the bottom of the screen. - To move a Home screen item, hold your finger onto it until it gets larger, then drag it to the desired location, and release your finger. - To remove a Home screen item, hold your finger onto it, drag it onto the recycle bin (while you’re holding an item, the Applications tab, on the right side of the screen, turns into a recycle bin) and release your finger.

CUSTOMIZING YOUR PRODUCT

Changing the Settings: From the Home screen, tap on the Menu icon , tap on Settings and choose a category: Wireless controls, Sound & display, Date & time, etc. The extended Home screen Slide your finger horizontally on the screen to go to the left or right side of the extended Home screen. Adding more applications with APPSLIB : With the ARNOVA connected to the Internet, tap on the AppsLib icon . This online library of free and purchasable applications has thousands of fun games and useful applications to download and use. UserGuide_Arnova_7G2_109860_book.indd 6 01/06/2011 16:47:467

From the Home screen, tap on the video, audio or photo icon. The ARNOVA will display a list of les or folders corresponding to the selected category. Tap on an item to start playing it. Only in Video and Photo modes: to display/hide the on-screen controls, tap anywhere on the screen. To pause or resume a video, tap on the icon / (bottom of screen). To go to any particular point in the video, slide the progression bar to the desired point. To play the next or previous song, tap on the icons / . Use the icons / and the progression bar as in the video player screen (see above). To start or pause a slide show, tap on the icon

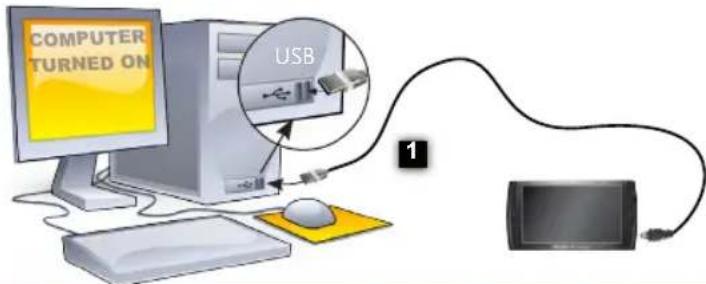

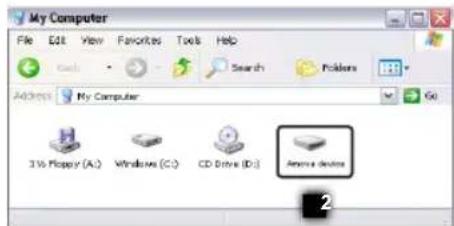

Connect the supplied USB cable to the ARNOVA and to a running computer. The ARNOVA will turn on. Within a few seconds the ARNOVA will appear as an icon on your computer. You can transfer your media files to the ARNOVA either by copy/pasting them into the respective folders using Win- dows® Explorer (or the Finder on a Mac®), or by using Windows Media® Player. Open Windows Media Player® and then use the Sync tab to synchronize your music, videos, and photos onto your ARNOVA. See Windows Media Player®’s Help to learn more about this. Once all your file transfers are finished, close Windows® Explorer and any other program that may have read or written to the ARNOVA. Click on the ‘safely remove’ icon in the system tray, next to the clock. You can now unplug the USB cable.

ANPASSEN IHRES PRODUKTES

PERSONALISEER UW PRODUCT

2.4 GHz band has been ongoing in recent

years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required. Luxembourg None General authorization required for network and service supply (not for spectrum) Norway Implemented This subsection does not apply for the geo- graphical aera within a radius of 20 km from the centre of Ny-Alesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France.

Consult the declaration of conformity on http://www.arnovatech.com/products/declaration_conformity.html UserGuide_Arnova_7G2_109860_book.indd 48 01/06/2011 16:48:3849 National restrictions This device is intended for home and ofce use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use lim- ited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the

2.4 GHz band has been ongoing in recent

years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required. Luxembourg None General authorization required for network and service supply (not for spectrum) Norway Implemented This subsection does not apply for the geo- graphical aera within a radius of 20 km from the centre of Ny-Alesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. Consult the declaration of conformity on http://www.arnovatech.com/products/declaration_conformity.html UserGuide_Arnova_7G2_109860_book.indd 49 01/06/2011 16:48:38
