USER MANUAL DE1113407M SIEMENS

White Siemens electronic plus control panel with rotary knob (no text or symbols on the device itself)

Gebrauchsanleitung

Operating instructions

Eine Störung, was tun?

Achtung!

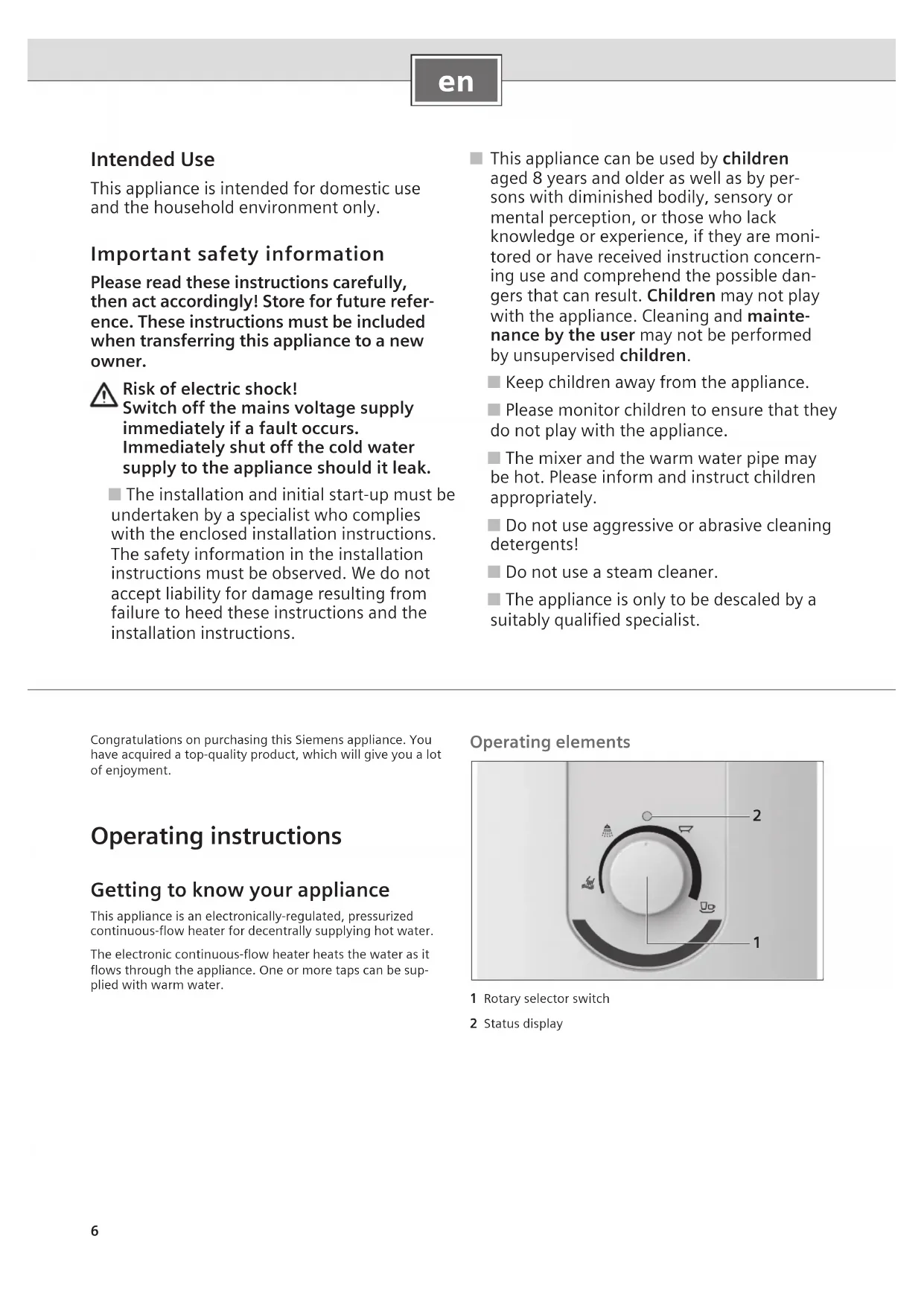

This appliance is intended for domestic use and the household environment only.

Important safety information

Please read these instructions carefully, then act accordingly! Store for future reference. These instructions must be included when transferring this appliance to a new owner.

Risk of electric shock! Switch off the mains voltage supply immediately if a fault occurs. Immediately shut off the cold water supply to the appliance should it leak.

The installation and initial start-up must be undertaken by a specialist who complies with the enclosed installation instructions. The safety information in the installation instructions must be observed. We do not accept liability for damage resulting from failure to heed these instructions and the installation instructions.

This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.

• Keep children away from the appliance.
• Please monitor children to ensure that they do not play with the appliance.
  The mixer and the warm water pipe may be hot. Please inform and instruct children appropriately.
• Do not use aggressive or abrasive cleaning detergents!
• Do not use a steam cleaner.
  The appliance is only to be descaled by a suitably qualified specialist.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Operating instructions

Getting to know your appliance

This appliance is an electronically-regulated, pressurized continuous-flow heater for decentrally supplying hot water.

The electronic continuous-flow heater heats the water as it flows through the appliance. One or more taps can be supplied with warm water.

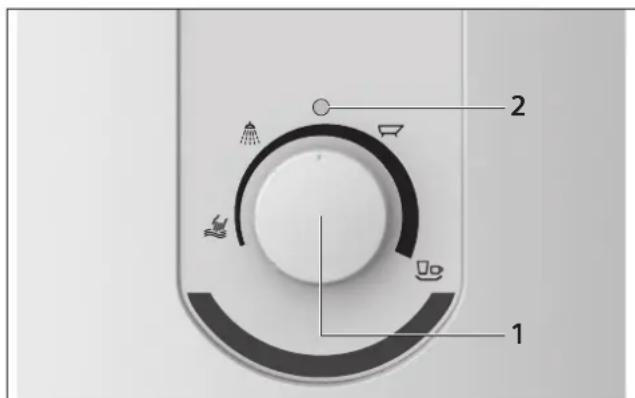

Operating elements

1 2

1 Rotary selector switch
2 Status display

Operating the appliance

Switching the appliance on and off

The continuous-flow heater switches on and heats the water when the warm water tap is opened. It switches off again if the water tap is closed.

Setting the water temperature

■ Turn the rotary selector switch.

Use the continuously-variable switch to set the desired temperature for.

Washing hands Showering

Bathing Rinsing

Note: If a thermostatic-regulating mixer tap is used for high temperatures or for large water volumes, then it is recommended that the setting "Bathing" or "Rinsing" be selected.

Increasing the water temperature

If a higher temperature is not obtained when the warm water tap is fully opened, then this is because more water is flowing than the continuous-flow heater's power capacity can heat.

If this happens, then slightly close the warm water tap.

Decreasing the water temperature

Turn the rotary selector switch to a lower level e.g. "Washing hands" 📋.

Note: If the temperature of the water supplying the appliance changes, then the output temperature of the water leaving the tap also changes correspondingly.

Status display

LED Appliance status
Off Off
Lights green On
Flashes green (1/s)	The set temperature is not obtained; the rate of water flow is too high for appliance rating (the appliance has reached the power limit). See “A fault, what to do?”
Flashes green (2/s)	Cold-water rinse-through phase
Flashes red	See “A fault, what to do?”

Startup after power failure

- Open the warm water tap fully and allow water to flow until it is warm.

Using the appliance after switching off the water supply

- Switch off the appliance (unscrew the fuse in the fusebox).

- Open the warm water tap and keep it open until the air has been completely forced out of the water pipe.

■ Switch the fuse back on again.
- Open the warm water tap fully and allow water to flow for at least one minute,

Only then (for safety reasons) will the appliance begin to heat. The appliance is now ready to operate.

Saving energy

Set the desired water temperature directly on the appliance. The appliance is operated economically when set to approximately 40 °C (rotary selector switch: "Showering")

Note: Mixing in of cold water at the faucet/fitting consumes unnecessary water and energy.

This also accelerates calcification (scaling) of the appliance. Therefore, please always set the desired temperature directly on the continuous-flow heater.

Winter operation

Note: It is possible in winter that the supply temperature of the water is reduced and the required outlet temperature is no longer achieved.
■ Reduce the water flow on the taps until the desired water temperature is reached.

Cleaning

■ Only wipe off the appliance using a moist cloth.
- Do not use acidic or abrasive cleaning materials.
- Do not use a steam cleaner.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find the numbers on the ratings plate on the inner side of the front flap.

The contact information for your country can be found on the last pages of these instructions.

Environmentally-friendly disposal

■ Dispose of the packaging in an environmentally sound manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Subject to change without notice.

A fault, what to do?

Attention!

Repairs must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user.

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

Faults that the customer can troubleshoot himself

Fault Cause Solution
Water flow-rate is too low The filter in either the water tap or the showerhead is clogged.		Remove the filter and either clean it or descale it.
A high water temperature is set, but it is not reached.	The continuous-flow heater is connected to a thermostatically-controlled water tap.	Set the temperature on the continuous-flow heater to "Rinsing" ☐.
The water is not warm.	The fuse in the fusebox has tripped/blown.	Check the fuse in the fusebox.
	The supply temperature has dropped or the appliance has reached the power limit.	Set the temperature lower e. g. "Washing hands" ☐.
LED status display flashes red. Fault in the appliance Please contact customer service.

If the fault could not be eliminated, please call customer service.

Faults that the customer service specialist should troubleshoot

Fault Cause Solution
Water flow-rate is too low despite cleaning of filter using the water tap or showerhead	A filter in the appliance is clogged. Get a servicing expert to clean the appliance.

Faults that are automatically remedied

Fault Cause Solution
From time to time, cold water flows out.	The air sensor in the appliance detects air in the water and momentarily switches the heating element off.	After a few seconds, the continuous-flow heater automatically goes back into operation.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
