USER MANUAL FPH 755 G WK X Fulgor Milano

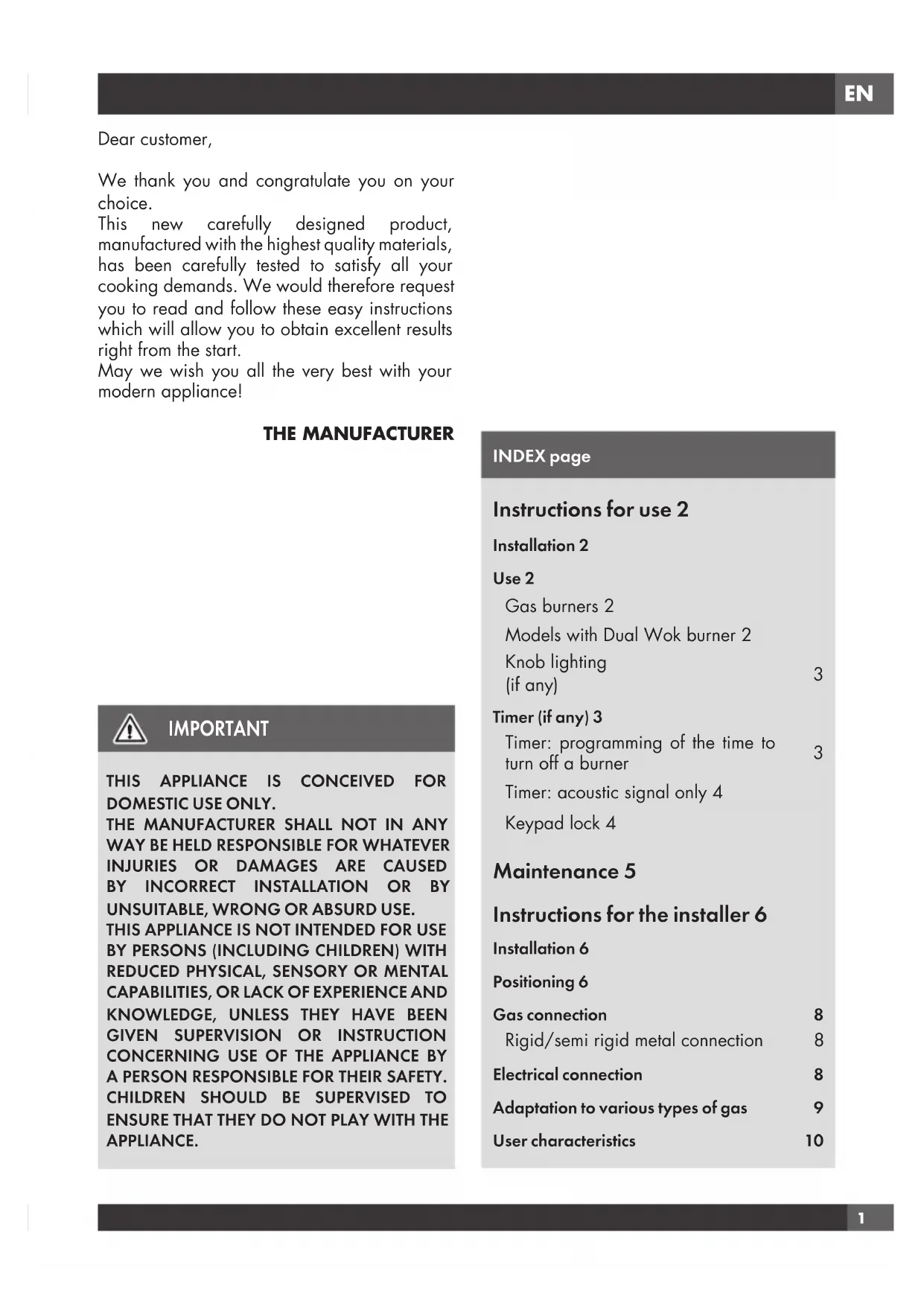

Dear customer, We thank you and congratulate you on your choice. This new carefully designed product, manufactured with the highest quality materials, has been carefully tested to satisfy all your cooking demands. We would therefore request you to read and follow these easy instructions which will allow you to obtain excellent results right from the start. May we wish you all the very best with your modern appliance! THE MANUFACTURER IMPORTANT

THIS APPLIANCE IS CONCEIVED FOR

THE MANUFACTURER SHALL NOT IN ANY

BY PERSONS (INCLUDING CHILDREN) WITH

A PERSON RESPONSIBLE FOR THEIR SAFETY.

CHILDREN SHOULD BE SUPERVISED TO

ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE. INDEX page Instructions for use 2 Installation 2 Use 2 Gas burners 2 Models with Dual Wok burner 2 Knob lighting (if any)

Timer (if any) 3 Timer: programming of the time to turn off a burner

Timer: acoustic signal only 4 Keypad lock 4 Maintenance 5 Instructions for the installer 6 Installation 6 Positioning 6 Gas connection 8 Rigid/semi rigid metal connection 8 Electrical connection 8 Adaptation to various types of gas 9 User characteristics 10EN

Installation All the operations concerned with the installation (electrical and gas connections, adaptation to type of gas, necessary adjustments, etc.) must be carried out by qualified technicians, in terms with the standards in force. For specific instructions, kindly read the part reserved for the installation technician. Use Gas burners (Fig. 1) The ignition of the gas burner is carried out by putting a small flame to the upper part holes of the burner, pressing and rotating the corresponding knob in an anti-clockwise manner, until the maximum position has coincided with the marker. When the gas burner has been turned on, adjust the flame according to need. The minimum position is found at the end of the anti-clockwise rotation direction. For models with automatic/ simultaneous (with one hand) ignition, it is sufficient to proceed as described above using the corresponding knob. The electric spark between the ignition plug and the burner provides the ignition of the burner itself. After ignition, immediately release the push-button and adjust the flame according to need. For models with a thermoelectric safety system, the burner is ignited as in the various cases described above, keeping the knob fully pressed on the maximum position for approximately 3/5 seconds. After releasing the knob, make sure the burner is actually lit. NB: we recommend the use of pots and pans with a diameter matching that of the burner, thus preventing the flame from escaping from the bottom part and surrounding the pot

• do not leave any empty pots or pans on the fire When cooking is finished, it is also a good norm to close the main gas pipe tap and/or cylinder. GAS Fig 1 wok Ø 20-32 fast Ø 20-26 semifast Ø 14-20 auxiliary* Ø 10-14 *with reduction grid Models with Dual Wok burner (Fig.2) Some models are equipped with a Dual Wok burner. It is possible to light the central and external flame (F1+F2) by turning and pressing the knob anti-clockwise or to light the central burner (F1) only, as shown in the figure below. F1+F2 Max

• use of the appliance produces heat and moisture in the room where it is installed. Make sure the kitchen is sufficiently ventilated; keep natural ventilation holes open or install mechanical ventilation devices (such as a hood).

• Prolonged use of the appliance may require additional ventilation, such as opening a window. GAS PROTEKT

• on floors with thermoelectric protection do not keep the ignite button pushed for more than 15 seconds. If the burner has not ignited after 15 seconds, open the door of the room and wait at least one minute before making a further attempt. Knob lighting (if any) When a knob is turned away from the OFF position, it will light up (white). When a burner is in use and is then turned off, the knob lights up red, giving the "hot burner" warning. The light goes out after the burner has had time to cool down. Timer (if any) (fig.3) 3 Functions:

B BD FF A = ON/OFF button B = Increase / Decrease keys C = Timer Button D = Display E = Cooking zones selection keys F = Indication LED: Flashing (Associated with the display) / Fixed (active) TIMER: Programming of the time to switch off a burner With the device it is possible to set independently for each of the burners a time after which the burner switches off automatically. ATTENTION Turning the knob to the OFF position will always turn off the corresponding burner, even if the timed function is active.EN

Programming Press the ON/OFF button. In the upper part of the button the LED indicating activation will light up. In the control panel, where the zones of each burner are represented, press the button corresponding to the zone for which the automatic switch-off is to be set; the burner indicator (LED) will start to flash to signal that the burner is currently ready for programming while the timer display will show 0.00. With the + / - keys it is possible to set the time, with 30-second steps from 1 to 10 minutes and with 1-minute steps from 11 up to a maximum of 240 minutes. The selected burner is identified by the corresponding LED indicator in flashing mode. To select the desired area, with displaying of the relative time on the display, press the corresponding button. Cancellation During the time programming it is possible to reset the current setting at any time by pressing for 5 seconds the button corresponding to the burner which is to be reset, (a time equal to zero deactivates the burner timer). It will also be possible to simultaneousness reset all the timings by pressing the ON/OFF button for 5 seconds. TIMER: Acoustic signal only With the device it is also possible to set the timer function; this function has no influence on the operation of the burners. Programming Press the ON/OFF button. In the upper part of the button the LED indicating activation will light up. Press the timer button. The indicator (LED) will start to flash to indicate that it is currently ready for programming and the display will show

With the + / - keys it is possible to set the time, with 30-second steps from 1 to 10 minutes and with 1-minute steps from 11 up to a maximum of 240 minutes. If the timer is selected, it is identified by the relative LED indicator in flashing mode. To display the time on the display, press the timer button. Cancellation During operation it is possible at any time to reset the current setting by pressing the timer button for 5 seconds (a time equal to zero deactivates the function). Keypad lock Once a timer auto-off or timer function is set, the keypad can be locked by pressing only once the ON/OFF button. The previously entered settings will be retained and it will not be possible to change them until the ON/OFF button is re-enabled.EN

Prior to any operation, disconnect the appliance from the electrical system. For long-life to the equipment, a general cleaning operation must take place periodically, bearing in mind the following:

• the glass, steel and/or enamelled parts must be cleaned with suitable non-abrasive or corrosive products (found on the market). Avoid chlorinebase products (bleach, etc.);

• avoid leaving acid or alkaline substances on the working area (vinegar, salt, lemon juice, etc.).

• the wall baffle and the small covers (mobile parts of the burner) must be washed frequently with boiling water and detergent, taking care to remove every possible encrustation. Dry carefully and check that none of the burner holes is fully or partially clogged; NB: Cleaning of the taps must be carried out by qualified personnel, who must be consulted in case of any functioning anomaly. Check periodically the state of conservation of the flexible gas feed pipe. In case of leakage, call immediately the qualified technicians for its replacement.

Installation This appliance is not provided with a combustion product discharge. It is recommended that it be installed in sufficiently aerated places, in terms of the laws in force. The quantity of air which is necessary for combustion must not be below

/h for each kW of installed power. See table of burner power. Note: the device is in installation class 3. The appliance’s adjustment parameters are shown on the plate attached to its housing. Positioning (Fig. 4). The appliance can be fitted into a working area as illustrated on the corresponding figure. Before positioning the hob, fit the seal around the entire periphery of the hole cut in the worktop. Instructions for the installer Fig 4

Gas connection (Fig. 5) Connect the appliance to the gas cylinder or to the installation according to the prescribed standards in force, and ensure beforehand, that the appliance matches the type of gas available. Otherwise, see “Adaptation to various types of gas”. Furthermore, check that the feed pressure falls within the values described on the table: “User chacteristics”. Rigid/semi rigid metal connection Carry out the connection with fittings and metal pipes (even flexible pipes) so as to obtain counter stress the inner parts of the appliance. NB: when the installation has been carried out, check the perfect sealing of the entire connection system, by using a soapy solution. Fig 5 Electrical connection (Fig. 6) Prior to carrying out the electrical connection, please ensure that:

• the plant characteristics are such as to fol- low what is indicated on the matrix plate placed at the bottom of the working area;

• that the plant is fitted with an efficient earth connection, following the standards and law provisions in force. The earth connection is compulsory in terms of the law. Should there be no cable and/or plug on the equipment, use suitable absorption material for the working temperature as well, as indicated on the matrix plate. Under no circumstance must the cable reach a temperature above 50°C of the ambient temperature. If connecting directly to the mains power supply, fit a multi-pole switch of a suitable size for the rated capacity with a clearance distance which completely disconnects the power line under overvoltage category III conditions, consistently with the rules of installation (the yellow/green earth wir must not be interrupted). The plug or omnipolar switch must be easily reached on the installed equipment. IMPORTANT To avoid all risk, if the power cable becomes damaged, it must only be replaced by the manufacturer, by an authorised service centre, or by a qualified electrician. Fig 6

Adaptation to various types of gas Should the appliance be reset for a different type of gas than available, proceed as follows:

• replace the injectors (Fig. 7) with the corresponding type of gas to be used (see table “ Uses characteristics”)• to adjust to the minimum, use a screwdriver on the screw placed on the tap (Fig. 8) after turning the tap to its minimum position. For LPG (butane / propane) screw tight.Fig 7

1: W3 / W2 / Dual 2: Rapid 3: Auxiliary

1: W3 / W2 / Dual 2: Semi-rapid 3: Rapid 4: Auxiliary

1: Semi-rapid 2: Semi-rapid 3: Rapid 4: Auxiliary

Mod: 75 cm Standard with Timer

1: Semi-rapid 2: Semi-rapid 3: W3 / W2 / Dual 4: Rapid 5: Auxiliary

4: Rapid 5: Auxiliary

4: Auxiliary 5: Semi-rapidEN

1: W3 / W2 / Dual 2: Semi-rapid 3: Semi-rapid 4: Semi-rapid 5: Rapid 6: Auxiliary

4: Rapid 5: Auxiliary

4: Rapid 5: Auxiliary
