USER MANUAL Stack & Snap 70820 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online.

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Front view of a Hamiltonian blender oven with a black lid and control panel (no visible text or symbols)

Hamilton Beach®

Stack & Snap™ Food Processor With Bowl Scraper Robot culinaire avec bras racleur Procesador de Alimentos con Espátula para Tazón

English 2

Français.... 13

Español 24

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not immerse base, motor, cord, or plug in water or other liquid.
6. Turn the appliance OFF(), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep fingers out of feed chute.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
10. Do not use your food processor if any part is broken.

11. Do not use appliance outdoors.

12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

13. Keep hands and utensils away from moving blade and disc while processing food to reduce the risk of severe personal injury and/or damage to the food processor. A rubber scraper may be used but ONLY when the food processor is not running.
14. Blades are sharp. Handle cutting blades carefully when inserting or removing, emptying the bowl, and during cleaning. Store out of reach of children.
15. To reduce the risk of injury, never place cutting blade or disc on base without first putting bowl properly in place.
16. Be certain lid is securely locked in place before operating appliance.
17. Never feed food into food chute by hand. Always use the food pushers.
18. Do not attempt to defeat the lid interlock mechanism.
19. Make sure the blade or disc has come to a full stop before removing lid.
20. To reduce the risk of injury, be sure to insert or remove blade and disc using hubs provided for this purpose. Use caution when removing blade and disc from the bowl, when emptying the bowl, and when cleaning.
21. Check that the appliance is OFF (○) before plugging cord into wall outlet. To disconnect, turn the control to OFF (○) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

22. Be sure to turn switch to OFF ( ) position after each use. Always use the pushers to clear the food chute. When this method is not possible, unplug cord from outlet and disassemble unit to remove the remaining food.

23. The appliance is not intended for commercial, professional, or industrial use. It is designed and built exclusively for household use only.

24. Never use appliance for a longer period or with a larger amount of ingredients other than that recommended by appliance manufacturer.
25. The maximum rating of this unit is based on using the chopping/mixing blade. Using the slicing/shredding disc may draw significantly less power.

26. Do not place on or near a hot gas or electric burner or in a heated oven.

27. Do not use appliance for other than intended use.

28. Do not fill the bowl above the marked maximum fill line (or rated capacity) to avoid risk of injury due to damage to the cover or bowl.
29. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
30. Be careful if hot liquid is poured into the food processor bowl as it can be ejected out of the appliance due to a sudden steaming.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

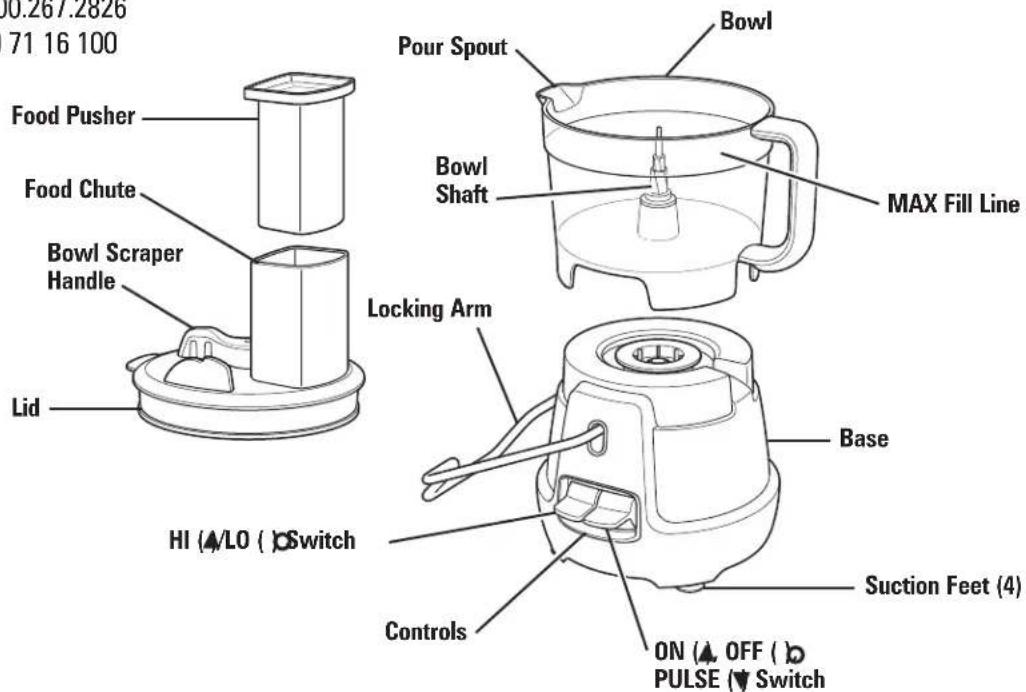

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

BEFORE FIRST USE: Unpack processor. Handle blade and disc(s) carefully; they are very sharp. Wash all parts except base in hot, soapy water. Rinse; then dry.

0.267.2826 71 16 100 Food Pusher Food Chute Bowl Scraper Handle Lid Pour Spout Bowl Bowl Shaft MAX Fill Line Locking Arm HI (▲/LO ( ▼Switch) Base Controls Suction Feet (4) ON (▲ OFF ( ▼PULSE (▼ Switch)

Line drawing of a bowl scraper with three legs and a central circular component (no text or symbols)

Line drawing of a cord storage device with no text or symbols

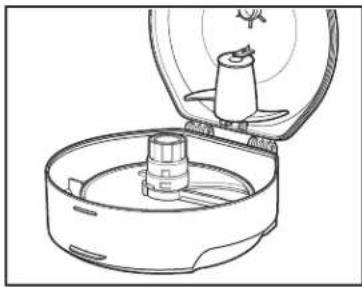

Storage Case and Parts

Diagram of a mechanical device with a rotary knob and rotating dial, showing internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with a cylindrical component inserted into a circular housing (no text or symbols)

HI LO ON Off PULSE

Technical line drawing of a three-legged support structure with a central circular component (no text or symbols)

The storage box can be stored in three ways: flat, tipped on its side, or under the processor. To store attachments, use finger holes to insert shredding disc first, aligning finger holes with the rounded ribs in bottom of the storage case. Next, place adjustable slicing disc on top and to the side with hub facing the top of the storage case. Snap dough blade into notches provided in the lid.

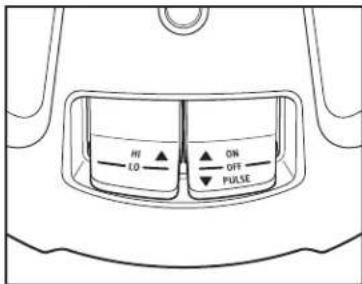

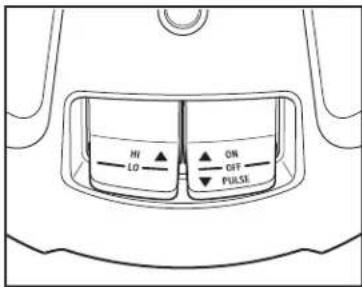

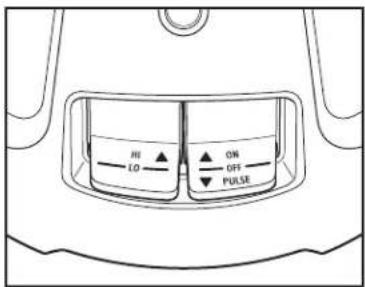

Controls

Bowl Scraper

Use with chopping/mixing blade to remove food from sides of bowl.

NOTE: Do not use with slicing or shredding discs or dough blade.

Simple line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

Chopping/Mixing Blade

Use to coarsely chop, mince, mix, or puree food.

Simple line drawing of a circular object with internal divisions and no text or symbols

Reversible Fine or Coarse Shredding Disc

Use to shred a variety of foods (such as chilled cheese, carrots, cabbage, and potatoes).

Line drawing of a circular mechanical component with a flanged top and central hub (no text or symbols)

Adjustable Slicing Disc

Use to slice a variety of foods from 1 mm to 6 mm (1/32" to 1/4") such as carrots, cucumbers, potatoes, pepperoni, onions, peppers, tomatoes, and chilled cheeses.

Simple line drawing of a conical object with two curved ends (no text or symbols)

Dough Blade

Use to mix cookie dough, pastry crust, knead bread dough, pizza dough, and crumb toppings.

How to Use Chopping/Mixing Blade or Dough Blade

WARNING Laceration Hazard.

- Handle blade carefully; it is very sharp. Make sure unit is switched to OFF (Φand is unplugged.

• Always use food pusher to feed food into the chute. Never push food through chute with hands or other objects.

1. Place bowl on base with handle facing to the right. Carefully place chopping/mixing blade or dough blade straight down onto motor shaft. If desired, add bowl scraper when using chopping/mixing blade.

Simple line drawing of a coffee maker with a stand and a funnel, no text or symbols present

1. Add food to bowl. Place lid on bowl, raise locking arm up and over, and snap in place. Plug into outlet.

2. Select High (HI) speed by moving the left switch up, or select Low (LO) speed by moving left switch down. NOTE: This food processor will start in the speed it was last used.

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

1. Move ON (▲switch up to turn on food processor or press switch down to PULSE for instant on and off control.

2. Turn bowl scraper handle on top of lid back and forth to remove food from sides of bowl. Bowl scraper can be used when unit is running or when it is OFF.

3. When finished, switch to OFF (⊕ and unplug. Push locking arm back to unlock lid and lower arm onto counter.

4. Always remove lid before removing bowl to avoid possible damage to the appliance. Remove bowl scraper, if used.

NOTES:

• Operate using only one blade or disc at a time.
• High speed is recommended for most recipes using the chopping/mixing blade or dough blade.
• Do not use bowl scraper with dough blade.
  • Make sure food pusher is in place while operating.

Illustration of a hand pressing a button on a device, with no visible text or symbols

How to Use Adjustable Slicing Disc

WARNING Laceration Hazard.

• Handle disc carefully; it is very sharp. Make sure unit is switched to OFF (⊕) and is unplugged.

• Always use food pusher to feed food into the chute. Never push food through chute with hands or other objects.

• Place bowl on base with handle facing to the right. Adjust disc to desired thickness by turning the adjustment post. There are 6 adjustment positions, ranging from 1 mm to 6 mm (1/32" to 1/4"). Carefully place adjustable slicing disc straight down onto motor shaft.

• Place lid on bowl. Raise locking arm up and over bowl and snap into place. Plug into outlet.
• Place food into food chute and use food pusher. Do not fill bowl above MAX FILL line.
• Select Low (LO) speed by moving left switch down. NOTE: This food processor will start in the speed it was last used.

Illustration of a hand holding a circular object with a ring, no text or symbols present

Diagram of a funnel pouring liquid into a beaker (no text or symbols)

1. Move ON (▲ switch up to turn on food processor or press switch down to PULSE for instant on and off control.
2. When finished, switch to OFF (①) and unplug. Push locking arm back to unlock lid and lower arm onto counter.
3. Always remove lid before removing bowl to avoid possible damage to the appliance. Carefully remove disc from motor shaft using the finger holes. Pour out food.

NOTES:

• Check to make sure no other blades are in the bottom of the work bowl.
• Bowl scraper cannot be used with adjustable slicing blade disc.
• For smaller, thinner foods, like carrots, cut in half and load pieces side by side in the chute in an upright position to prevent the food from falling over. This will result in more uniform slices.
• LO speed is recommended for slicing and shredding.

How to Use Reversible Shredding Disc

WARNING Laceration Hazard.

- Handle disc carefully; it is very sharp. Make sure unit is switched to OFF (⊕and is unplugged.

• Always use food pusher to feed food into the chute. Never push food through chute with hands or other objects.

1. Place bowl on base with handle facing to the right. Disc is labeled FINE SHRED on one side and COARSE SHRED on the other side. Carefully place shredding disc straight down onto motor shaft with desired side facing UP.

CABLE HINED FINE-HINED

1. Place lid on bowl. Raise locking arm up and over bowl and snap into place. Plug into outlet.

2. Place food into food chute and use food pusher. Do not fill bowl above MAX FILL line.

3. Select Low (LO) speed by moving left switch down. NOTE: This food processor will start in the speed it was last used.

Diagram showing a container with liquid and a lid above it, indicating a chemical or physical process.

1. Move ON (▲switch up to turn on food processor or press switch down to PULSE for instant on and off control.

2. When finished, switch to OFF (⊕ and unplug. Push locking arm back to unlock lid and lower arm onto counter.

3. Always remove lid before removing bowl to avoid possible damage to the appliance.

NOTES:

- Check to make sure no other blades are in the bottom of the work bowl.

- Bowl scraper cannot be used with the reversible shredding disc.

- LO speed is recommended for slicing and shredding.

Tips and Techniques

• Add the bowl scraper to bowl before processing ingredients that will stick to the sides of the bowl.
• For a more uniform consistency, start with pieces of food that are similar in size. Cut food into 1-inch (2.5-cm) pieces before processing with chopping/mixing blade and leave room in bowl for the food to be tossed around.
• When using the bowl scraper, do not fill above the scraper.
• This food processor is excellent to chop, mix, slice, or shred most foods. However, to maintain peak performance, do not use your food processor for the following: grinding coffee beans or spices, slicing frozen meats, or crushing ice.
• When chopping foods, pulsing on and off will produce the best results.
• Operating time will depend on quantity of food being processed. Most foods can be sliced, chopped, or shredded in seconds. If unit is operated continuously for an extended period of time, let the processor rest about 4 minutes before continuing.
• Do not puree or mash starchy vegetables like potatoes as they are easily overprocessed and will become gummy.
• To slice or shred cheese, use only firm cheese like Cheddar or Swiss that has been chilled for at least 30 minutes. Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella must be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.

Visit hamiltonbeach.com for delicious recipes, tips, and to register your product online!

Processing Charts

Disc attachments are reversible and labeled. The label should face up for the desired function. Do not process past the MAX LEVEL on the bowl.

ATTACHMENT FOODS

Chopping/Mixing Blade Chop: nuts, meat, garlic, onions, peppers, celery, herbs,bread (for crumbs), crackersMince/Puree: vegetables, fruitMix: salad dressingsPuree: soups, sauces, dipsGrate: cheese, such as Parmesan (chilled)

Bowl Scraper Nuts, meat, garlic, onions, peppers, celery, herbs, bread(for crumbs), crackers, vegetables, fruit, salad dressings,soups, sauces, dips, cheese

Slicing Disc(slicing side facing UP)

Cucumbers, apples, mushrooms, carrots, potatoes,cabbage, tomatoes, pepperoni, peppers, radishes, firmcheeses (chilled)

Shredding Disc Cabbage, potatoes, carrots, cheese (chilled)

Dough Blade Cookie dough, pastry crust, bread, pizza dough

For best results, do not exceed the following amounts when chopping, mincing, or pureeing with the chopping/mixing blade.

FOOD MAXIMUM AMOUNT

Dry ingredients such as crackers or nuts 8 cups (1.9 L)

Vegetables or fruits, quartered 4 cups (946 ml)

Cheese such as Parmesan or Cheddar, cubed* 1 pound (454 g)

Thick sauces or dips 6 cups (1.4 L)

Liquids such as marinades or soups 7 cups (1.7 L)

Boneless beef, cut into 1-inch (2.5 cm) cubes** 1 pound (454 g)

*DO NOT process with bowl scraper. **PULSE until desired consistency

Care and Cleaning

WARNING Laceration Hazard.

Store slicing disc with slicing side down. Handle blades carefully.

⚠ WARNING Electrical Shock Hazard: Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

1. Wash bowl, lid, food pusher, blades, discs, and bowl scraper in hot, soapy water or place in dishwasher. Rinse and dry.
2. Wipe base, controls, and cord with a damp cloth or sponge. If necessary, use a mild nonabrasive cleanser.
3. DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. All removable parts may also be cleaned in the sink with hot, soapy water. Use caution when washing chopping/mixing blade and slicing/shredding disc.

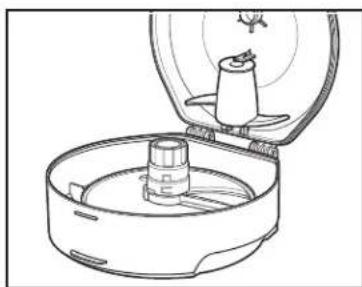

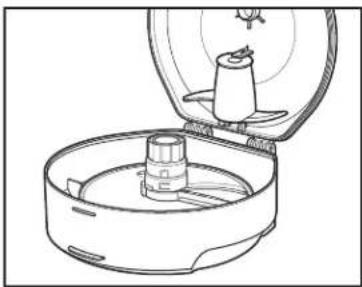

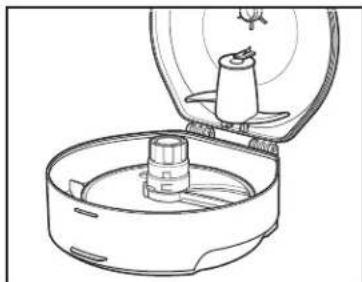

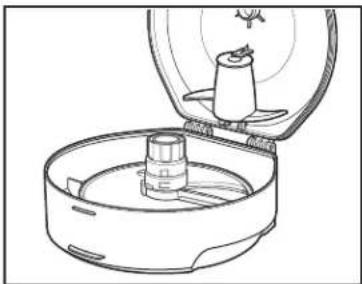

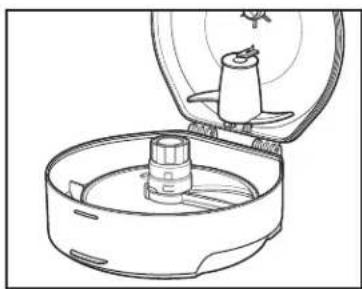

Storage and Storage Case

1. Place chopping/mixing blade on bowl shaft.
2. Place bowl scraper in bowl with scrapers facing downward in the bowl. The scraper will self-center.
3. Add lid and raise locking arm up and over bowl and snap into place. Bowl scraper handle may need to be rotated to align bowl scraper with handle.
4. Place food pusher in food chute.
5. Push cord into unit and lock in place with storage hole feature.

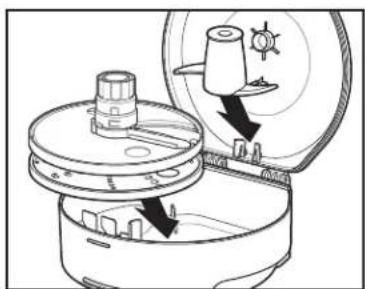

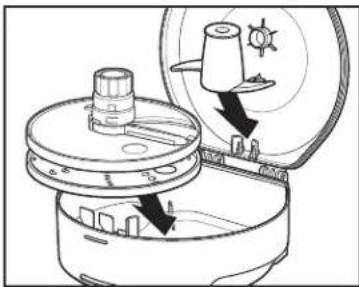

6. To store attachments in storage case, insert shredding disc first, aligning finger holes with the rounded ribs in bottom. Next, place adjustable slicing disc on top and to the side with hub facing the top of the storage case. Snap dough blade into notches provided in the lid.
7. Food processor can be placed on top of storage case or beside it.

Diagram of a mechanical device with a lid and base, showing internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with a cylindrical component inserted into a circular housing (no text or symbols)

Troubleshooting

Unit does not operate on any speed or Pulse.

• The unit is not plugged in or outlet does not work.
- The bowl and lid are not locked in place. See "How to Use" sections.
• The locking arm is not locked in place over bowl and lid.

Food is not sliced or shredded uniformly.

- Packing too much food in the food chute or pushing too hard on the food pusher may cause processed food to be irregularly sliced or shredded. Refer to Processing Charts for recommended sizes and quantities.

Unit stops and will not come back on.

• The bowl and lid are not locked in place. They may have moved slightly during processing. See "How to Use" sections.
• The outlet is not working. Check it by plugging in a working lamp or other appliance. You may have overloaded the circuit and blown a fuse or tripped the circuit breaker.
• This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for 15 minutes before resuming process.

Unit has a burning smell.

- There may be a residue left on motor from the manufacturing process, causing a slight odor during initial use. This will go away. If a strong odor or any visible smoke appears, unplug unit IMMEDIATELY and call the Customer Service number.

Motor seems weak.

- The recommended food size and quantity to be processed have not been used. Refer to Processing Charts for recommended food sizes and speeds.

Cheese is not shredding well.

- Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella must be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.

Vegetables are not shredding or slicing.

- Store vegetables with high water content in refrigerator prior to processing. Room-temperature vegetables are less firm and do not perform as well.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Diagram of a mechanical device with a lid and rotating components, showing internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with a cylindrical component inserted into a circular housing (no text or symbols)

HI LO ON OFF PULSE

Technical line drawing of a three-pronged mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

Simple line drawing of a circular object with internal markings and no visible text or symbols

Simple line drawing of a circular mechanical component with a flanged base and two small holes (no text or symbols)

Simple line drawing of a conical object with two curved ends (no text or symbols)

Lame à pâte

Simple line drawing of a coffee maker with a handle and spout, no text or symbols present

Diagram of a mechanical device with a rotating arrow indicating motion (no text or symbols)

Illustration of a hand holding a circular object with a ring, no text or symbols present

Diagram of a funnel pouring liquid into a glass container (no text or symbols)

Diagram showing a lid being placed into a beaker with liquid, indicating a chemical or physical process.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with a lid and base, no text or symbols present

Dépannage

Diagram of a mechanical device with a lid and internal components, showing directional arrows indicating movement or force (no text or symbols present)

Line drawing of a mechanical device with a cylindrical component inserted into a circular housing (no text or symbols)

HI LO ON OFF PULSE

Line drawing of a three-legged table with a central circular top and four legs (no text or symbols)

Simple line drawing of a mechanical component with a conical top and curved base (no text or symbols)

Simple line drawing of a circular object with internal patterns and dots, no text or symbols present.

Line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Simple line drawing of a conical object with two curved legs (no text or symbols)

Cuchilla para Masa

Simple line drawing of a coffee maker with a funnel and base, no text or symbols present

Diagram of a mechanical device with a rotating arrow and lever mechanism (no text or symbols)

Diagram showing a hand pressing a device into a container with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a circular device with a handle, no text or symbols present

Diagram of a funnel pouring liquid into a container with a handle (no text or symbols)

Diagram showing a cooking step with a lid and liquid being poured into a beaker, labeled with Chinese characters.

Diagram of a mechanical device with arrows indicating motion or force, showing internal components and a sun symbol (no text or labels)

Line drawing of a mechanical device with a cylindrical component inside a circular housing (no text or symbols)
