MET110 - Detector DENVER - Free user manual and instructions

Product Type	Metal Detector
Brand	Denver
Model	MET-110
Dimensions (shaft extended)	Approximately 1.1 meters
Weight	Approximately 0.8 kg
Power Supply	2 x 9V batteries (not included)
Approximate Battery Life	20 to 30 hours depending on batteries
Operating Frequency	6.6 kHz
Detection Mode	Discrimination, adjustable sensitivity
Target Indication	Audio signal and LCD screen
Max Detection Depth	Up to 30 cm depending on target size
Waterproof Coil	Yes (submersible coil)
Settings	Sensitivity, discrimination, audio threshold
Operating Temperature	0 °C to 40 °C
Maintenance and Cleaning	Clean with a damp cloth, do not use abrasive products
Spare Parts and Repairability	Coil and batteries replaceable
Safety	Do not open, keep out of reach of children, respect battery polarity
Included Accessories	User manual

Frequently Asked Questions - MET110 DENVER

What batteries should I use for the Denver MET-110 detector?

Use two 9V batteries (type 6LR61). Make sure to respect the polarity (+ and -) indicated in the compartment. Do not mix old and new batteries, nor different types.

How do I assemble the MET-110 metal detector?

Assembly is simple: attach the shaft by inserting the sections, then screw on the coil. Consult the full manual on the Denver website for details. A QR code on the manual allows quick access.

Why does my detector emit a constant audio signal?

This may be due to sensitivity too high, interference (power lines, mineralized soil), or a poorly connected coil. Reduce sensitivity and try in a less disturbed environment.

What is the maximum detection depth?

The depth depends on the size and type of metal. Generally, the MET-110 can detect a coin up to about 15 cm and a larger target (like a box) up to 30 cm under optimal conditions.

How do I adjust discrimination?

Turn the DISCRIM knob to eliminate unwanted metals (like iron). In the low position, you detect all metals; turning clockwise progressively excludes ferrous metals. Use the PINPOINT function to precisely locate the target.

Can the detector be used in the rain?

No, the unit is not waterproof. Only the coil is waterproof (submersible in fresh water). Avoid any exposure to water, humidity, and direct sunlight.

What should I do if the device does not turn on?

Check that the batteries are inserted correctly (polarity) and are in good condition. If batteries are new, test with another set. The battery compartment should be clean.

How do I clean the detector?

Use a soft, slightly damp cloth to clean the exterior. Do not use solvents or abrasive products. Dry thoroughly before storing.

Can I use the detector to search for gold objects?

Yes, the MET-110 detects all metals, including gold. For better discrimination, set the sensitivity to an appropriate level and avoid highly mineralized soils.

Where can I find the full user manual?

Scan the QR code on the manual to directly access the download page on the www.denver.eu website. You can also search for model MET-110 in the Downloads section.

USER MANUAL MET110 DENVER

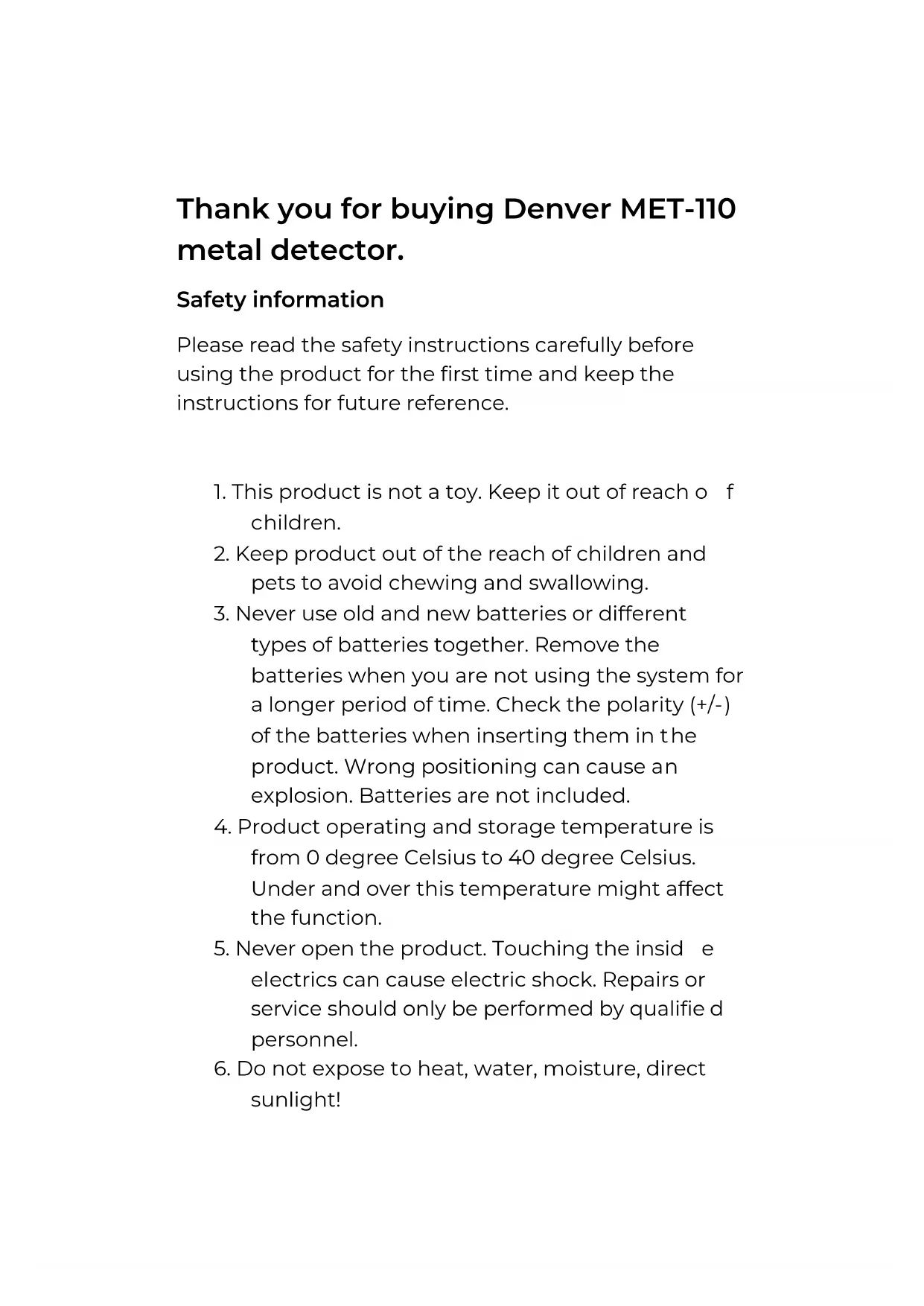

Thank you for buying Denver MET-110 metal detector.

Safety information

Please read the safety instructions carefully before using the product for the first time and keep the instructions for future reference.

1. This product is not a toy. Keep it out of reach o f children.
2. Keep product out of the reach of children and pets to avoid chewing and swallowing.
3. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion. Batteries are not included.
4. Product operating and storage temperature is from 0 degree Celsius to 40 degree Celsius. Under and over this temperature might affect the function.
5. Never open the product. Touching the inside of electronics can cause electric shock. Repairs or service should only be performed by qualified personnel.

6. Do not expose to heat, water, moisture, direct sunlight!

7. The unit is not waterproof. If water or a foreign object enters the unit, stop use immediately.

8. Do not use non original accessories together with the product as this can make the product functionality abnormal.

To get information on how to assemble, insert batteries and use the metal detector, please enter our website and find the full manual in your local language.

Use your camera in your Smart Phone and scan the QR code to get to the right page.

Then scroll down to Downloads and find the user manual there for download.

Or go to www.denver.eu and use the search box

Then enter: MET-110

And click the photo that appears, and then scroll down to Downloads and find the user manual there for download.

Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER

denver.eu

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.
